Lot 2 - Daewoo - H400P Twin Pallet Horizontal Machining Centre (2000)
Description:

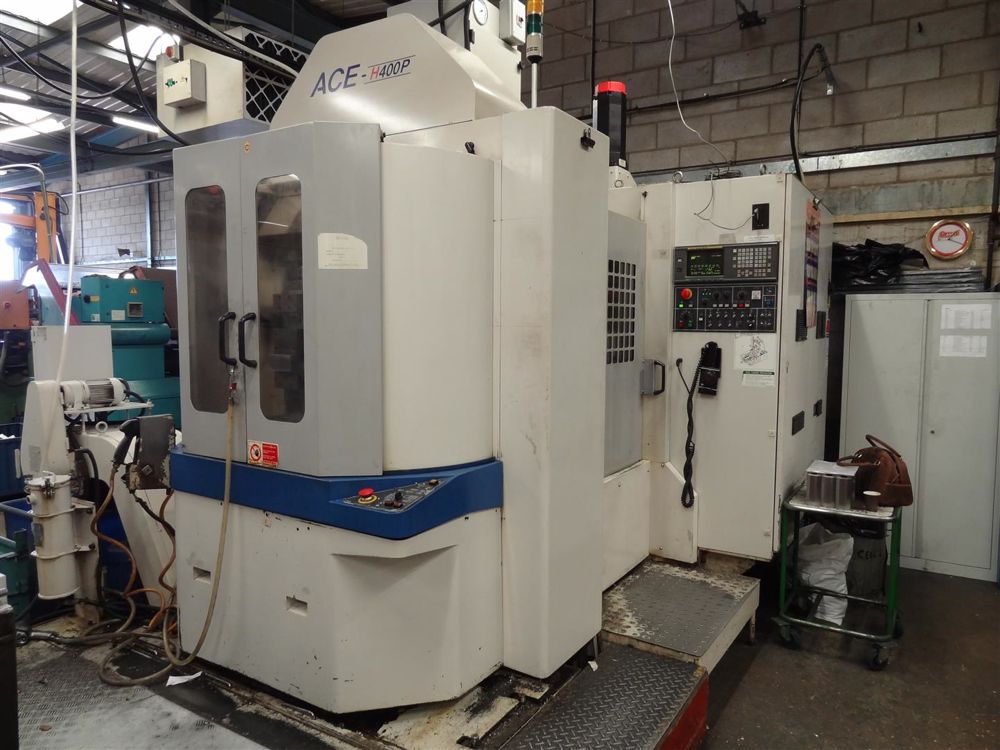

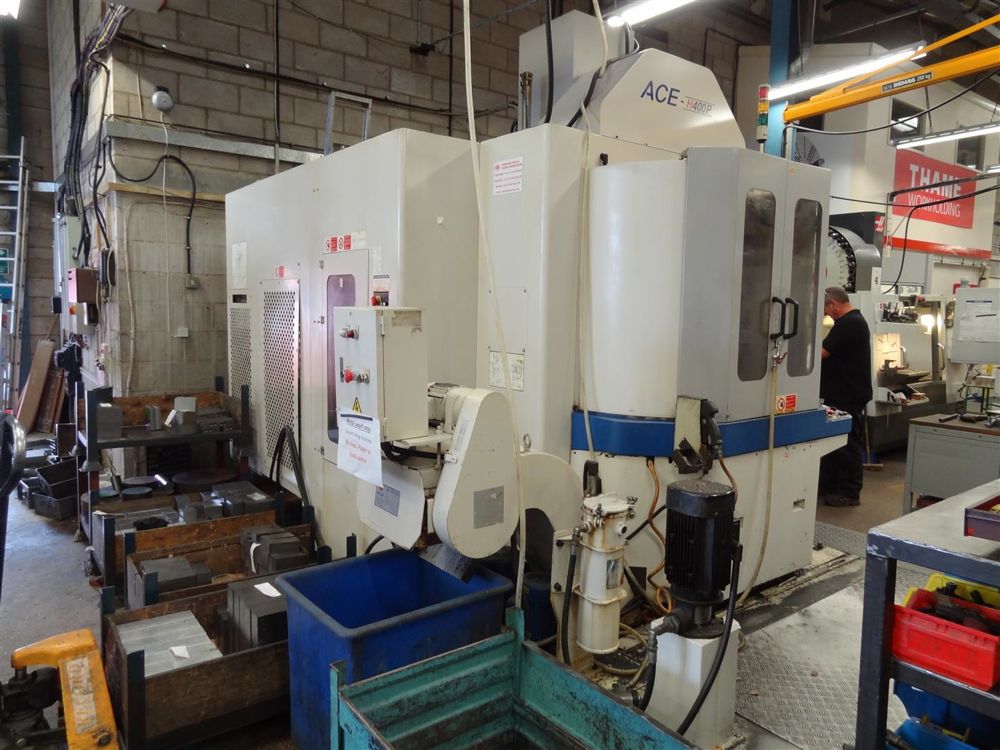

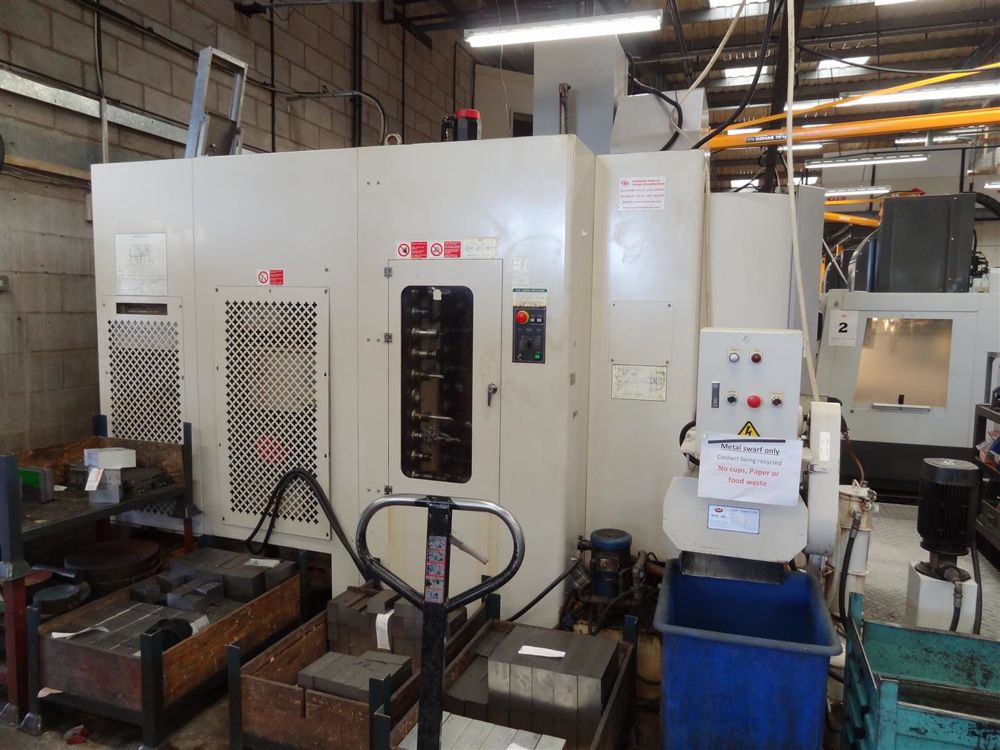

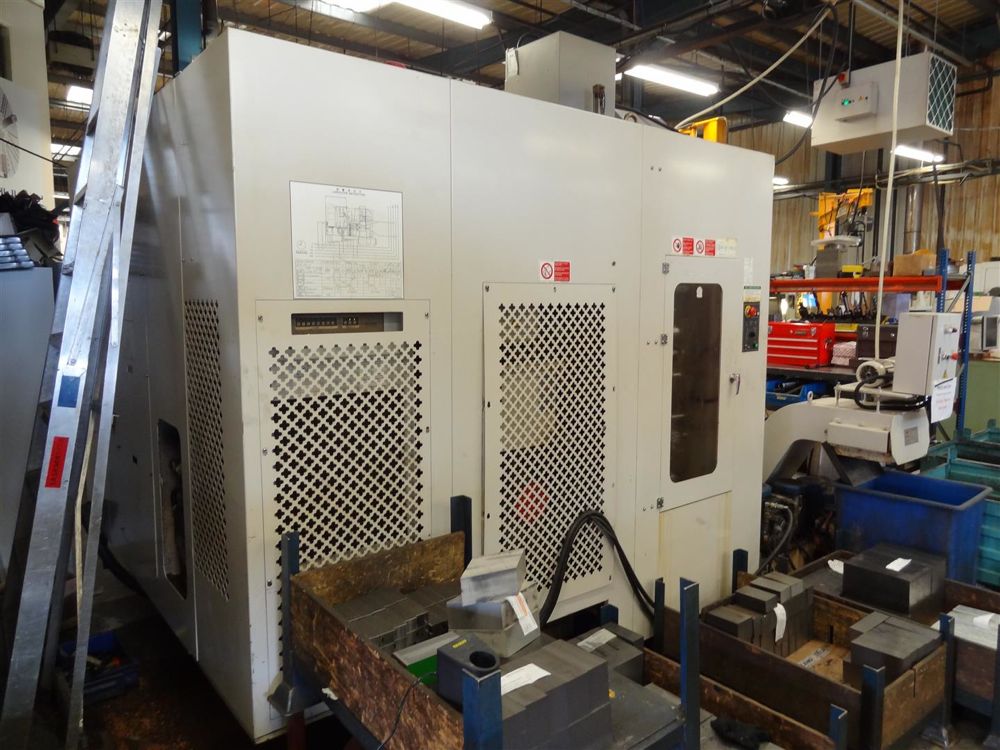

Daewoo - H400P Twin Pallet Horizontal Machining Centre
Year 2000

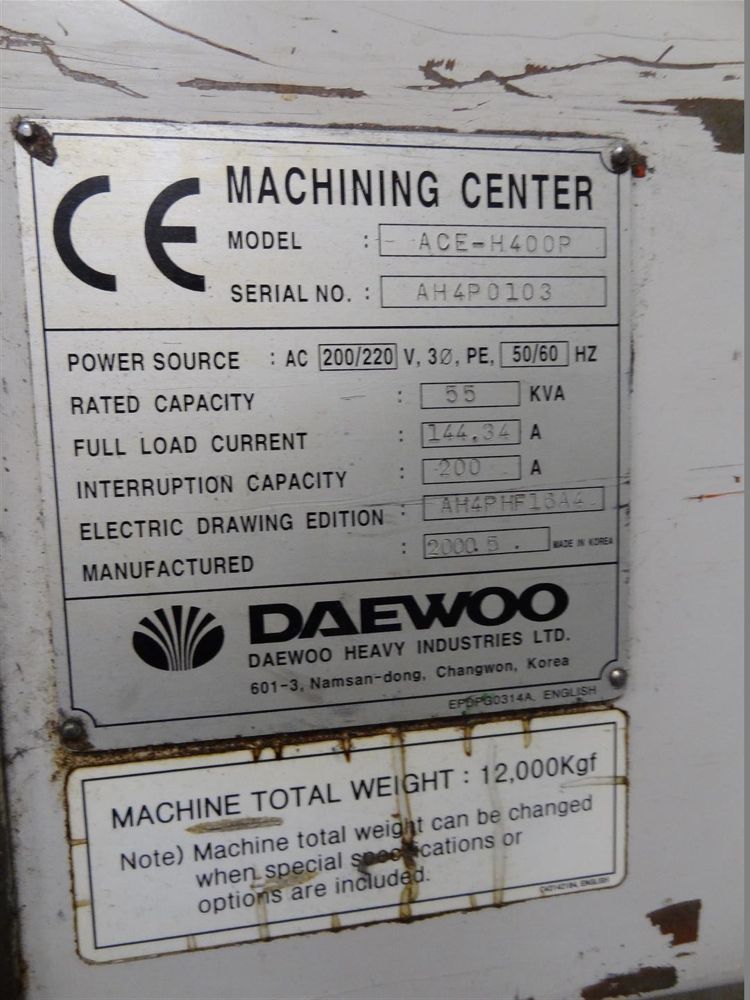

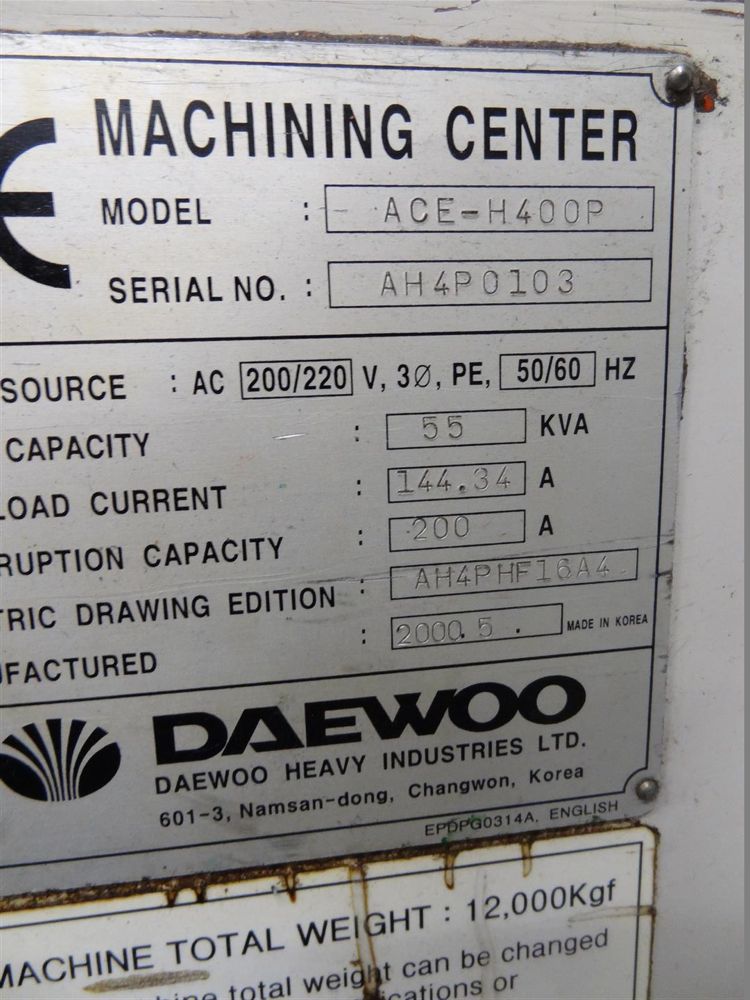

Serial No. AH4P0103

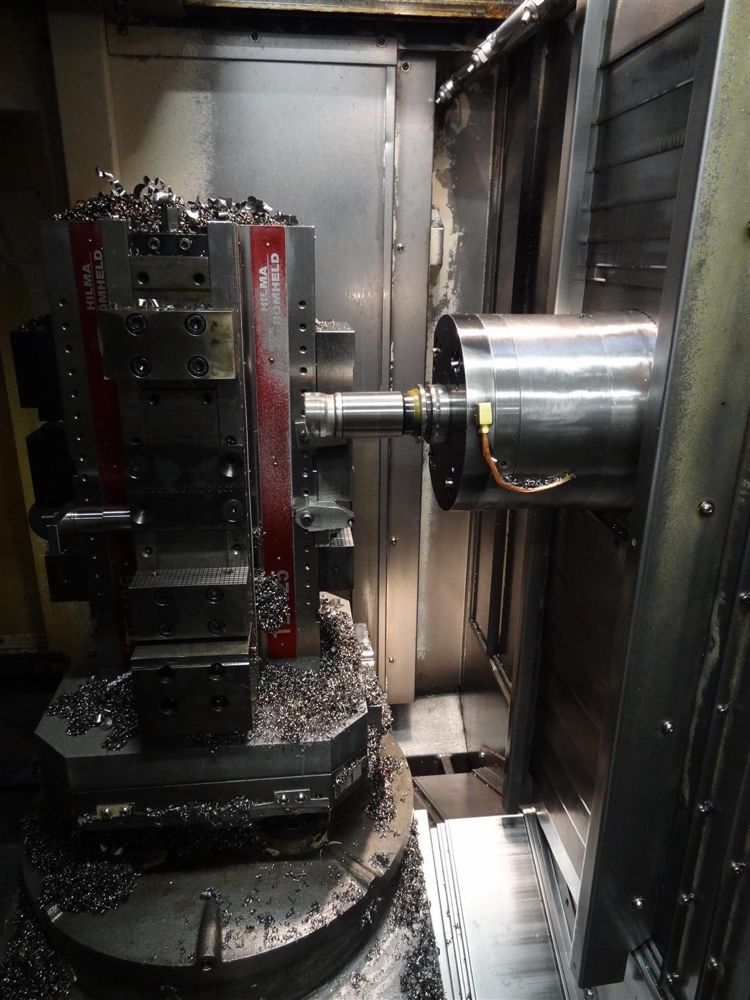

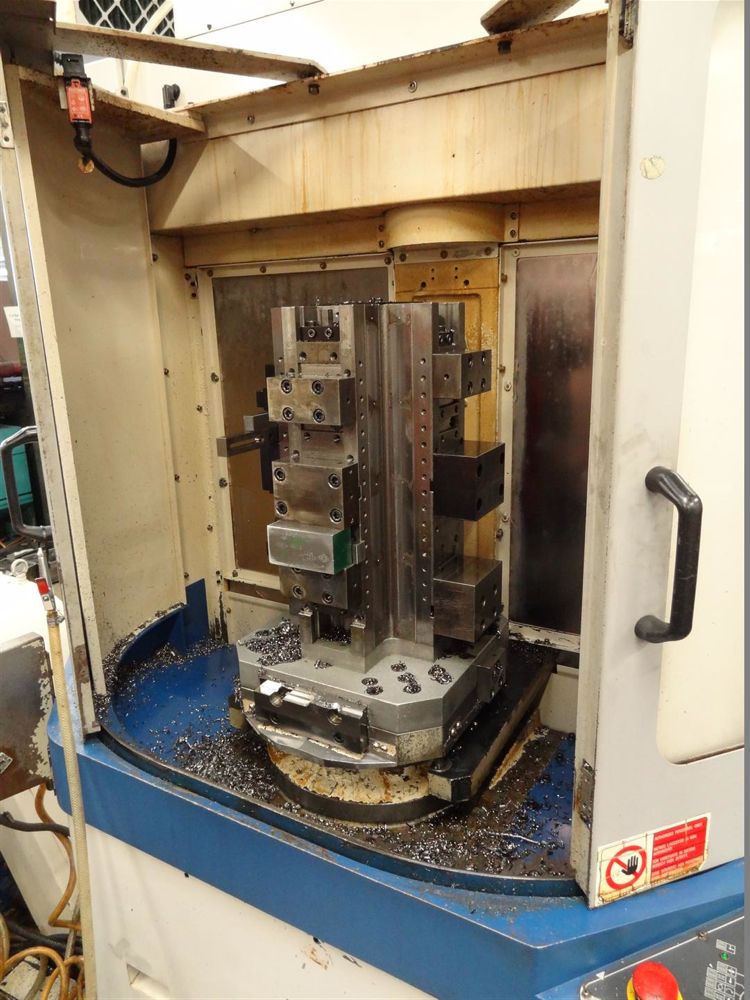

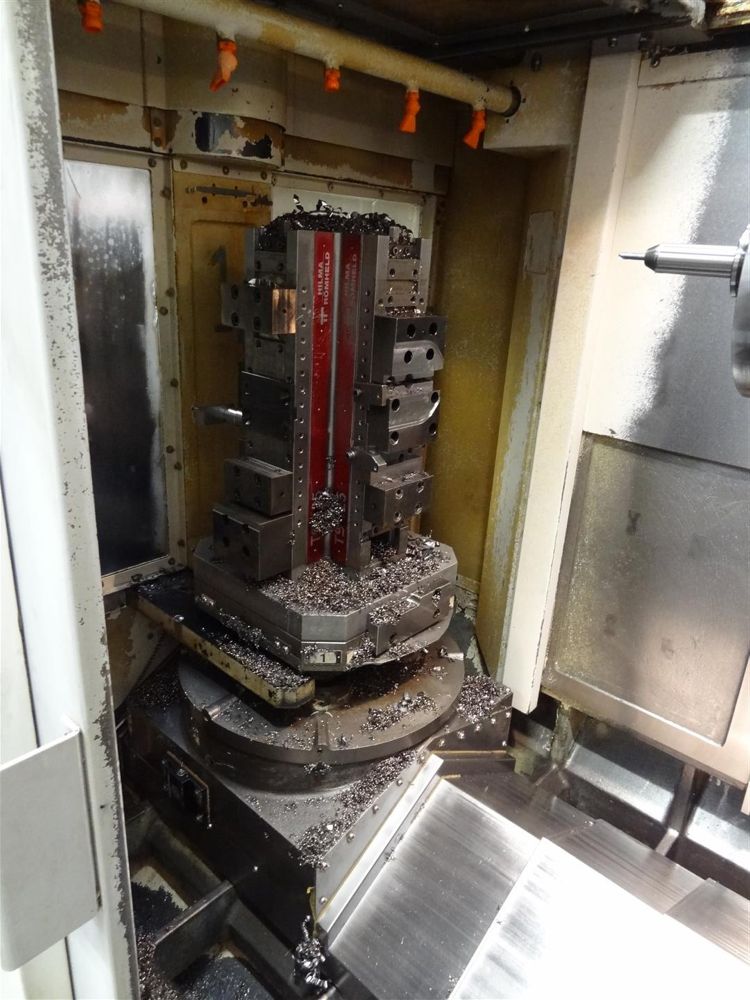

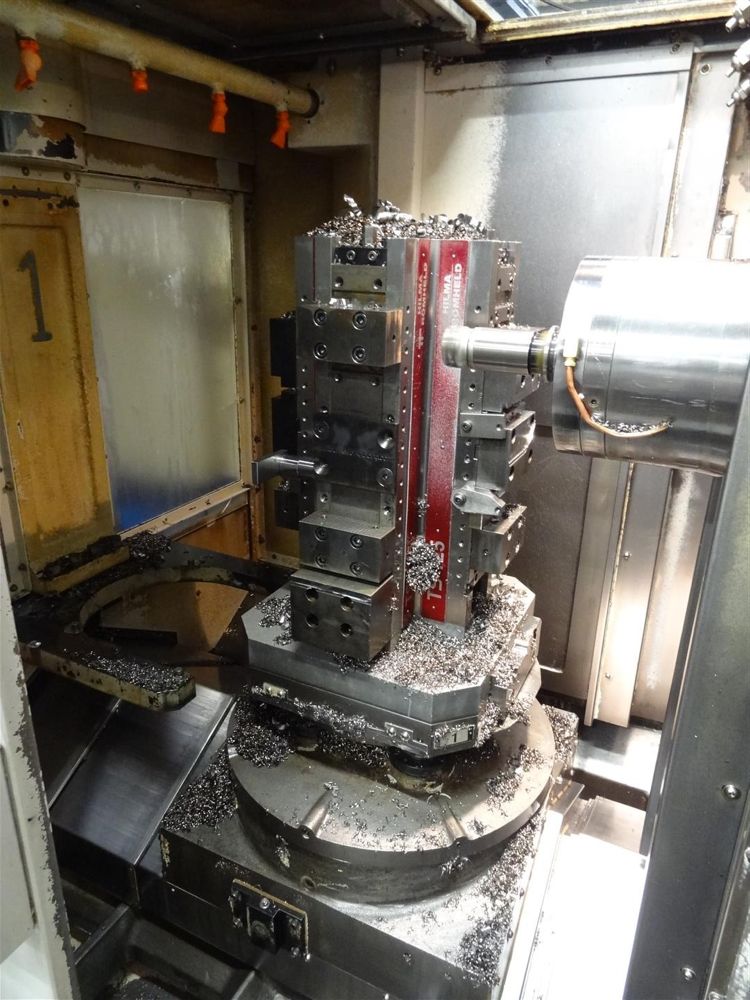

2 x 400mm pallets tapped M16 x 2P at 80 centres (24 holes) + 2 x Edge locators
X travel = 600
Y travel = 560
Z travel = 560
Distance from spindle nose to table centre 150-710mm
Distance from spindle centre to pallet top50-610mm
Max load 500 kg per pallet (uprated ~ 400 Kg is standard)
Overall height = 2,818mm Overall length = 4,020mm Overall width = 3,340mm
Machine weight 12,000 kg
Table index 1 degree (360 positions)

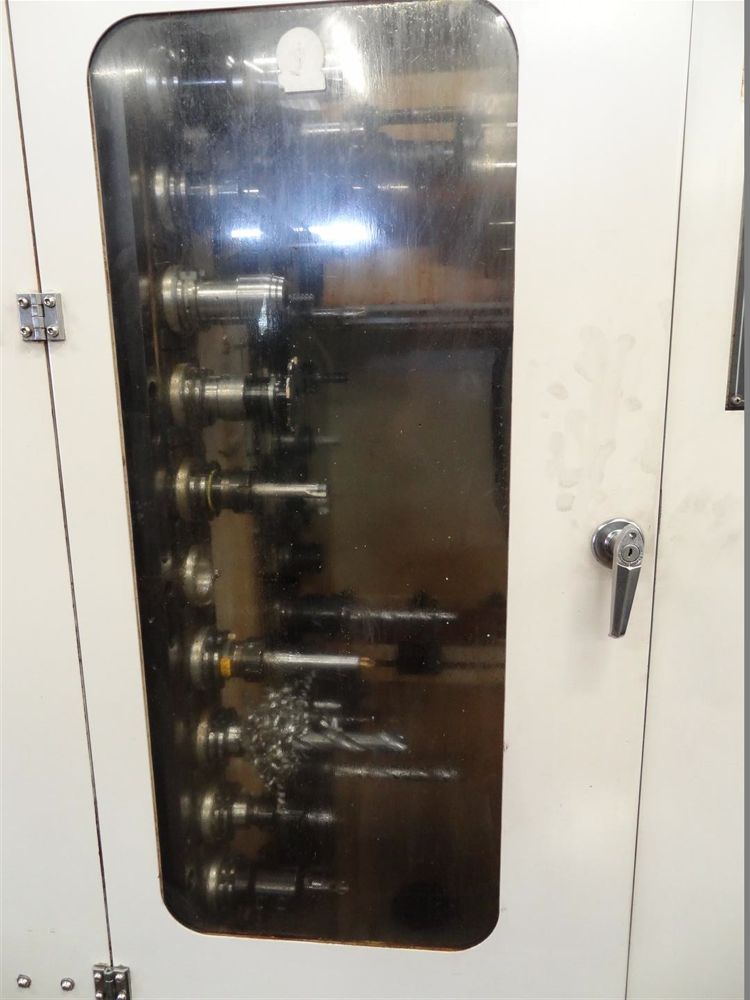

40 tool ATC with Cat #40 arm

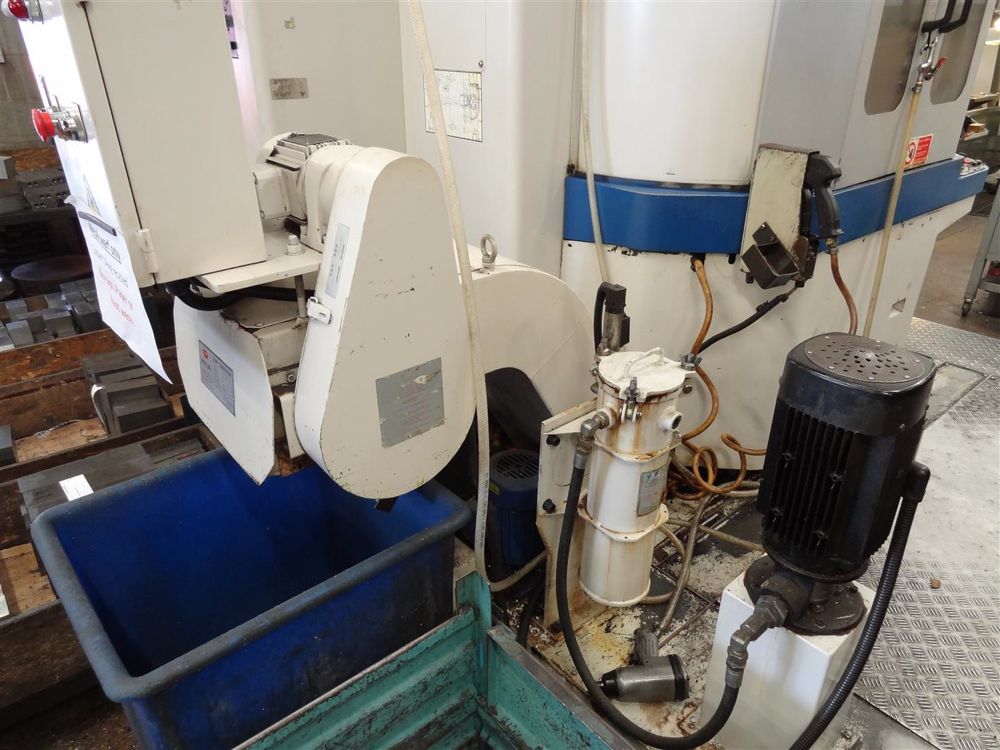

Chip conveyer and coolant tank

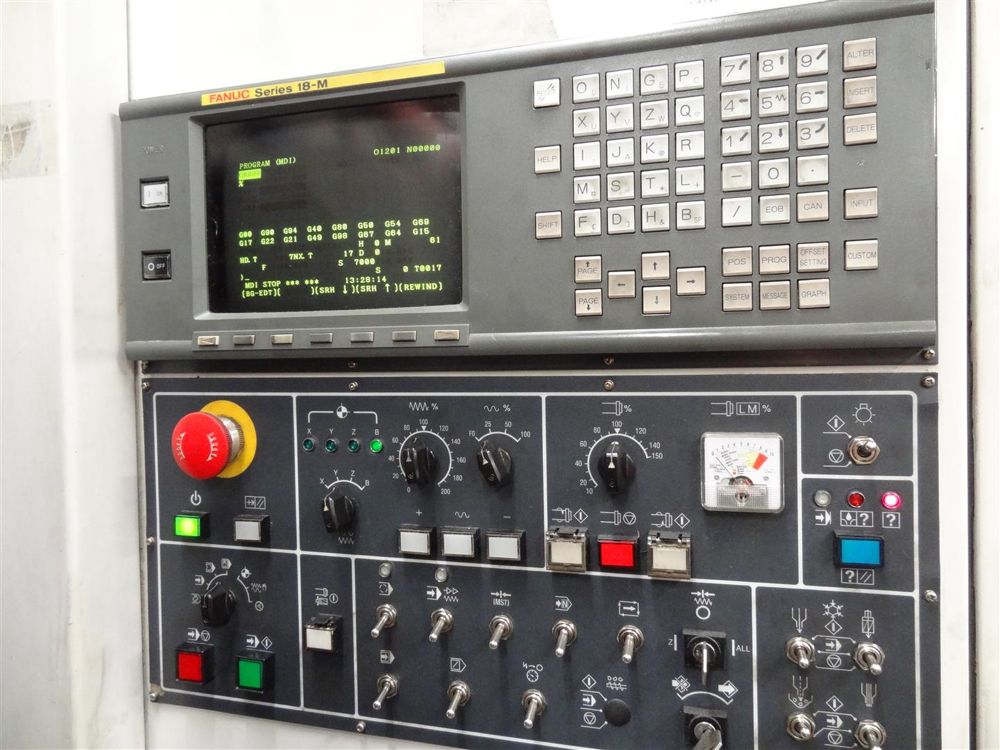

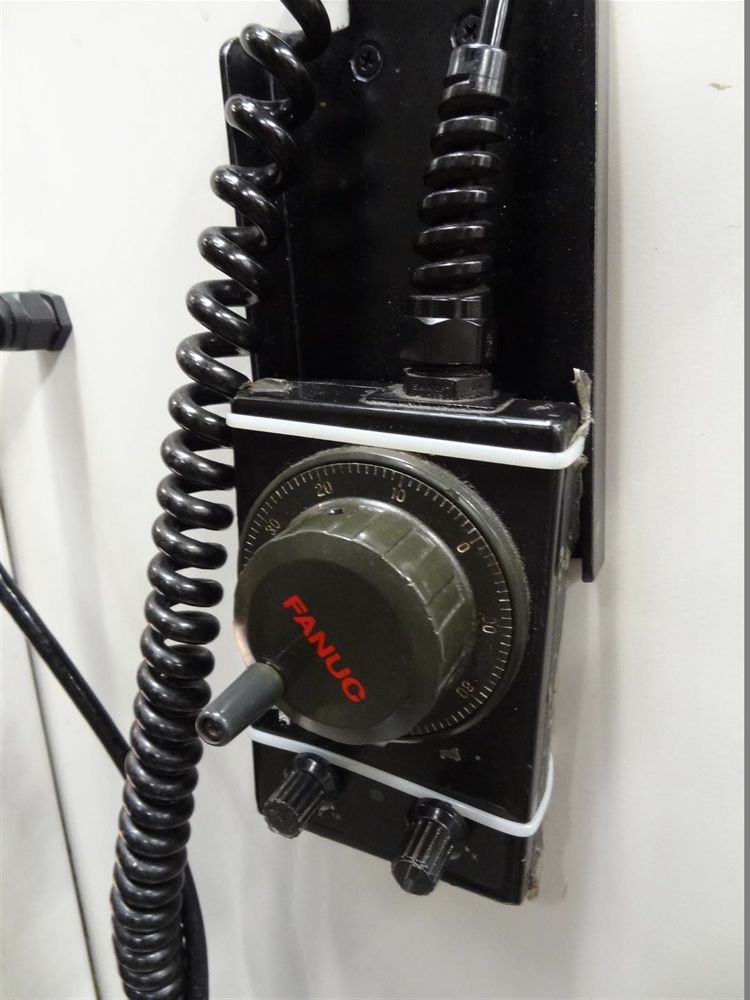

Control Fanuc 18MC CNC control system

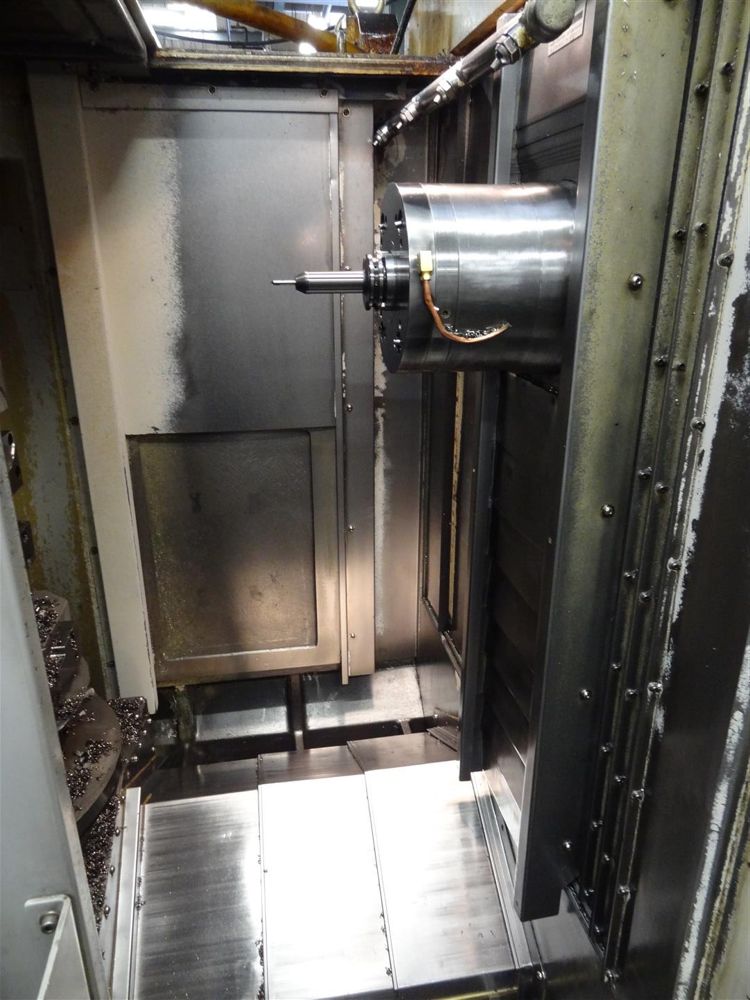

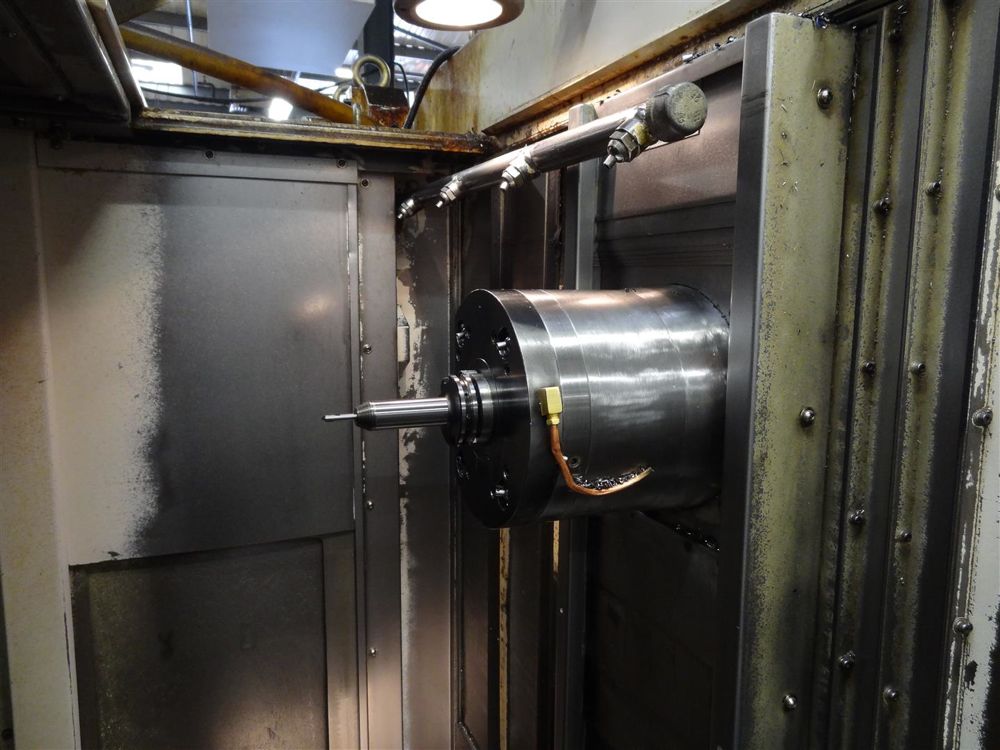

18.5/22kW Main Spindle motor 12,000 RPM Spindle oil cooler
20 Bar through spindle coolant plus standard overhead flood and shower coolant

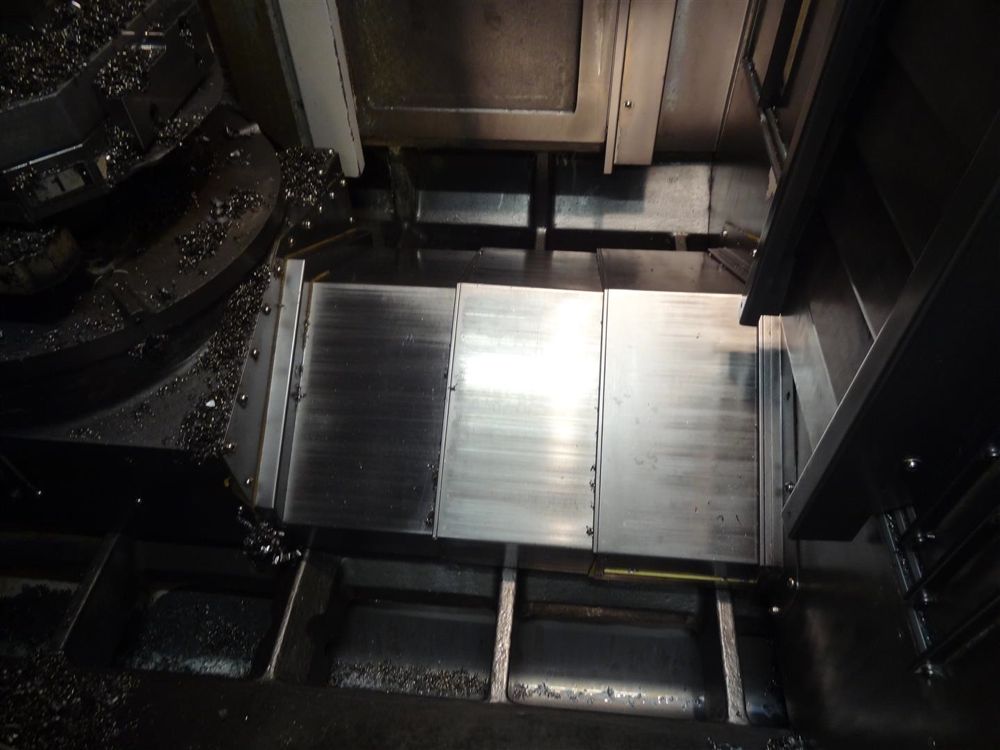

Fully enclosed splash guards Interlocking APC guarding Coolant tank and chip conveyor Rigid tapping
Inch/Metric programming
160 metres of memory + 200 variables
Tool path graphics
Run hour/parts count display
G10 programmable input of offset
Work light
Operator call lamp
Limited tool life monitoring

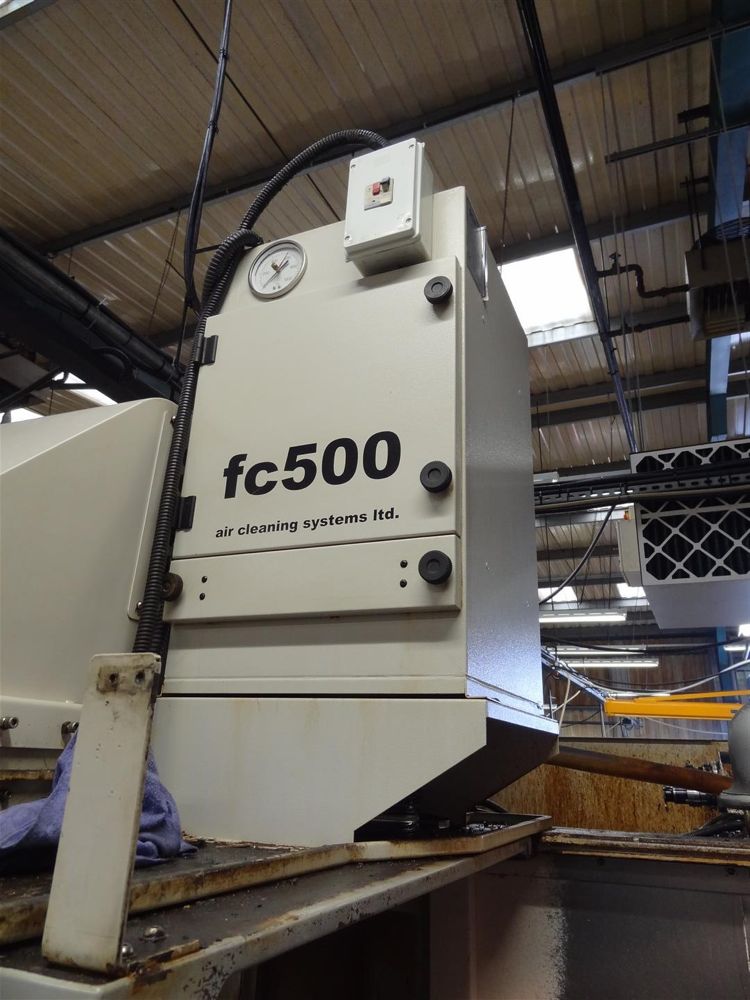

Integral ACS fc500 Mist Extraction system
Full service history
Full set of operator, programmer and maintenance manuals
Machine colour Blue/Beige/Grey
Tooling and Cubes not included, as been used on there new machine.
Location: Leicester, Can be loaded for £150 to Flatbed Truck
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
