DAEWOO ACE HP5000 CNC Twin Pallet HMC

Lot 1 - DAEWOO ACE HP5000 CNC Twin Pallet HMC

Description:

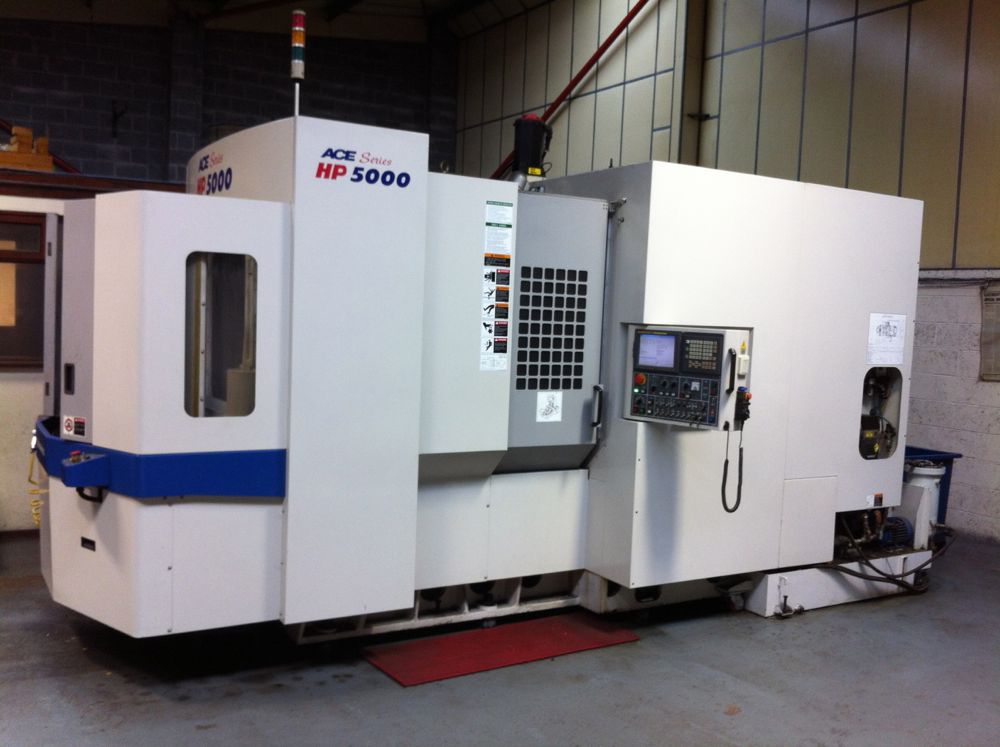

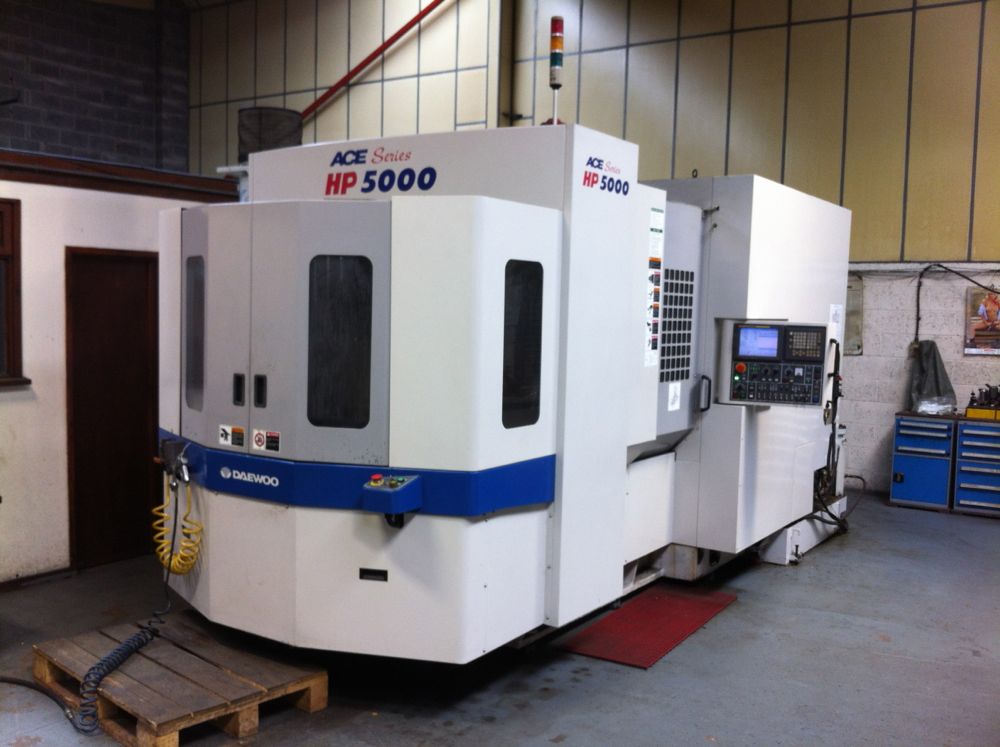

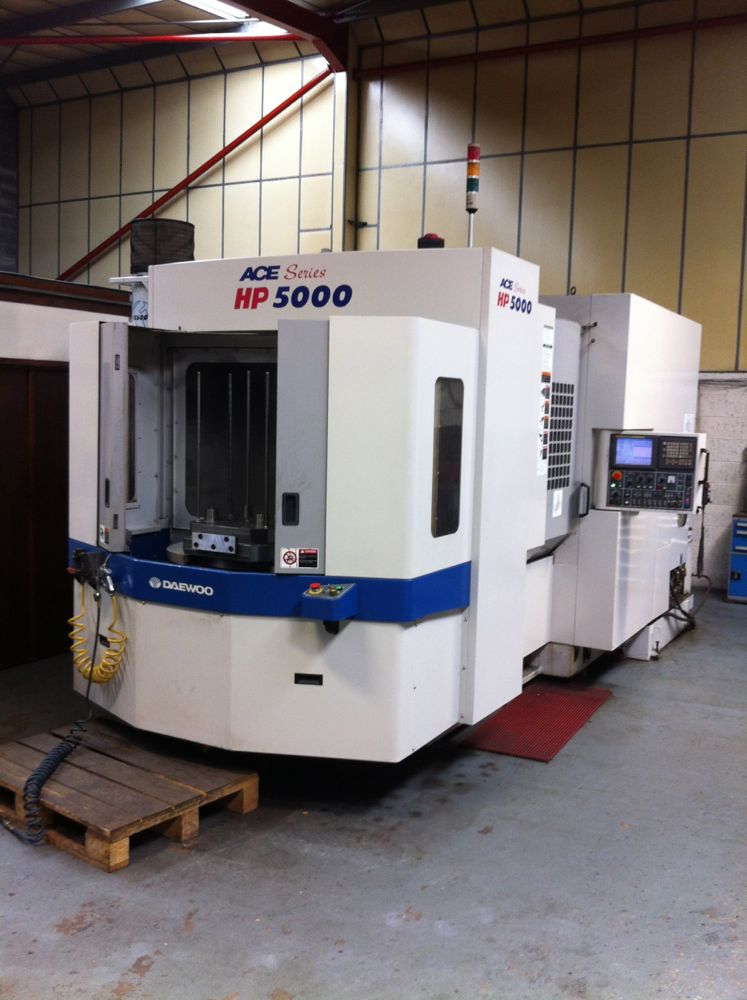

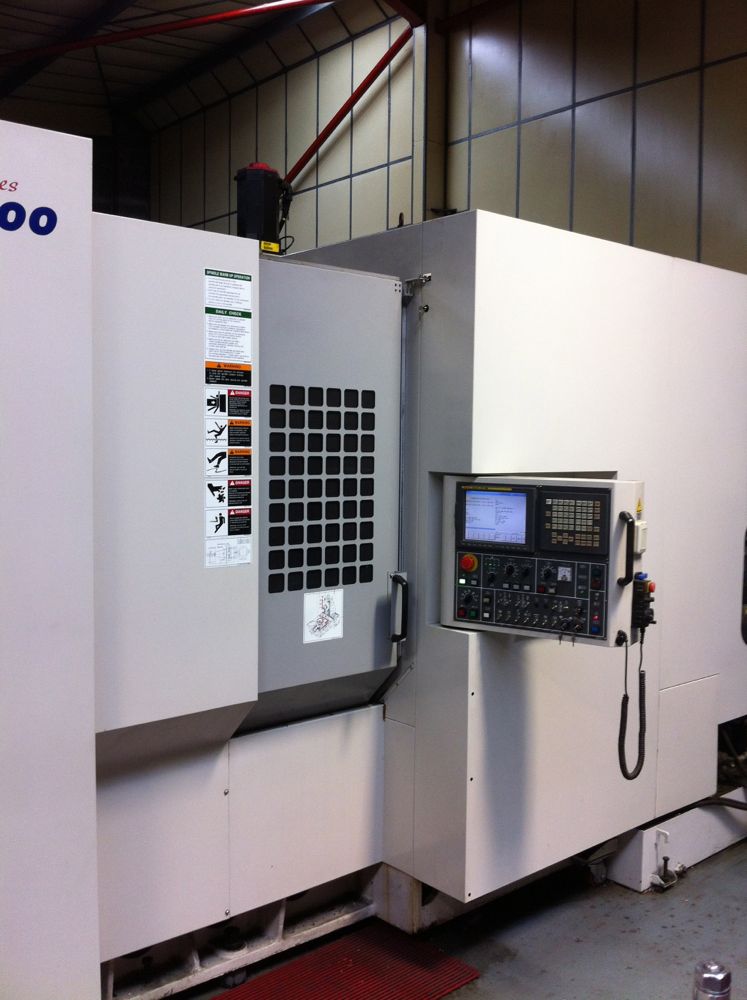

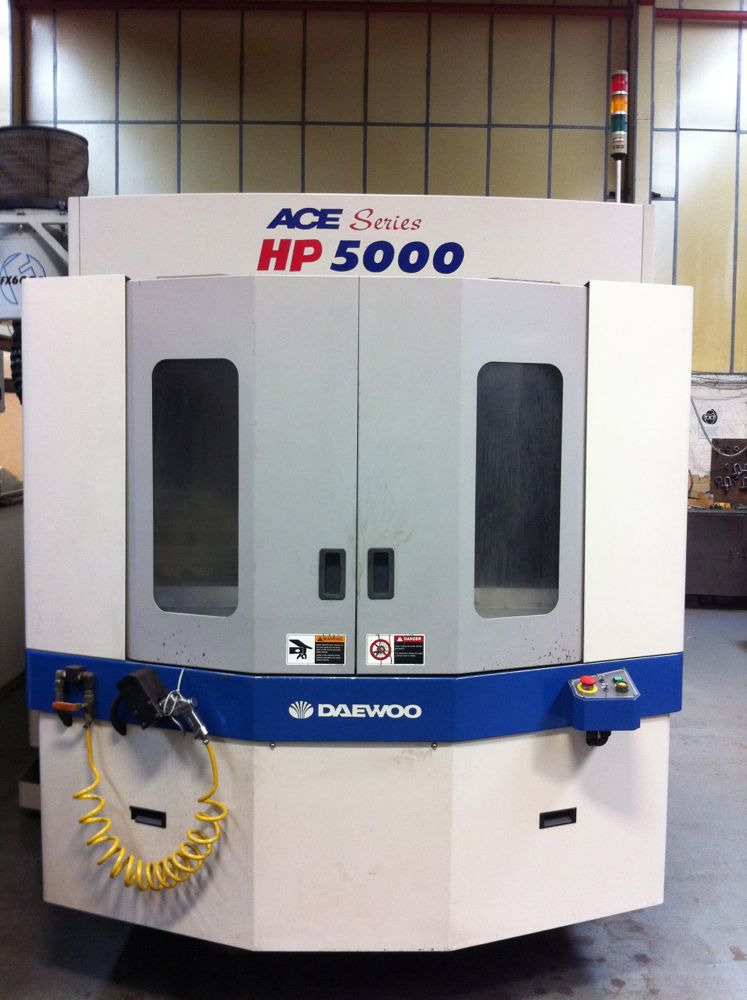

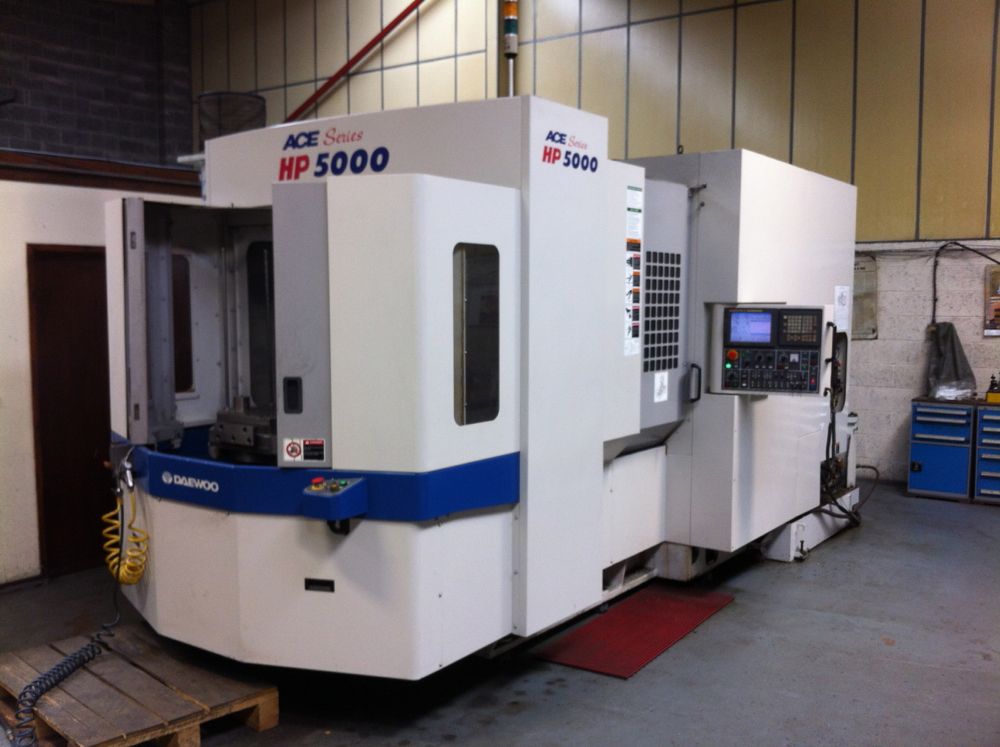

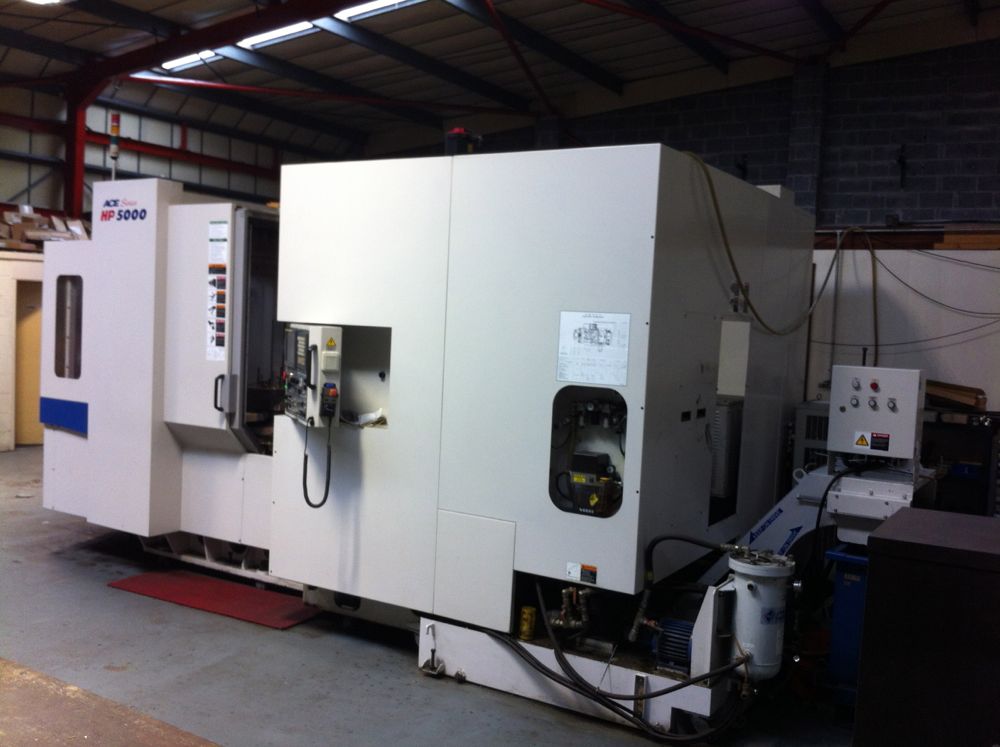

DAEWOO ACE HP5000 CNC Twin Pallet Horizontal Machining Centre

Installed from New December 2004,
Location: Manchester UK

They have 3 of these machines on-site,
This machine is in excellent condition,
but is now surplus to requirements.

Run Time: 5077 hours
Operator time: 8299 Hours
Power on Time: 27215 Hours

Please call to arrange an appointment to see this machine.
It is still under power and in Light Use.
Full Service History and Manuals.

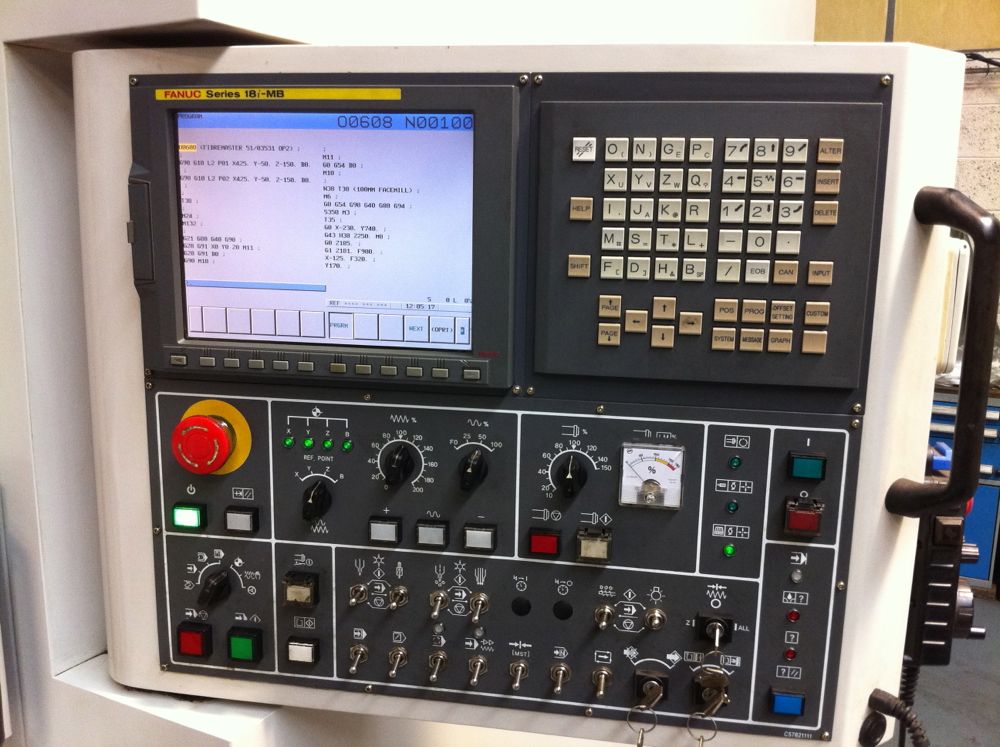

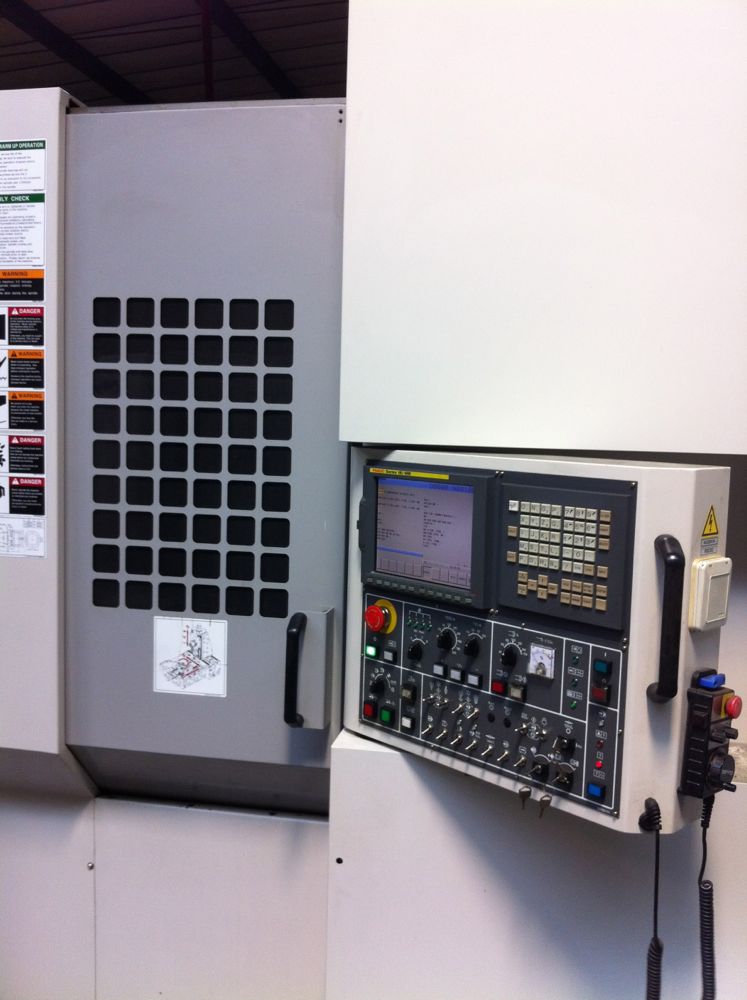

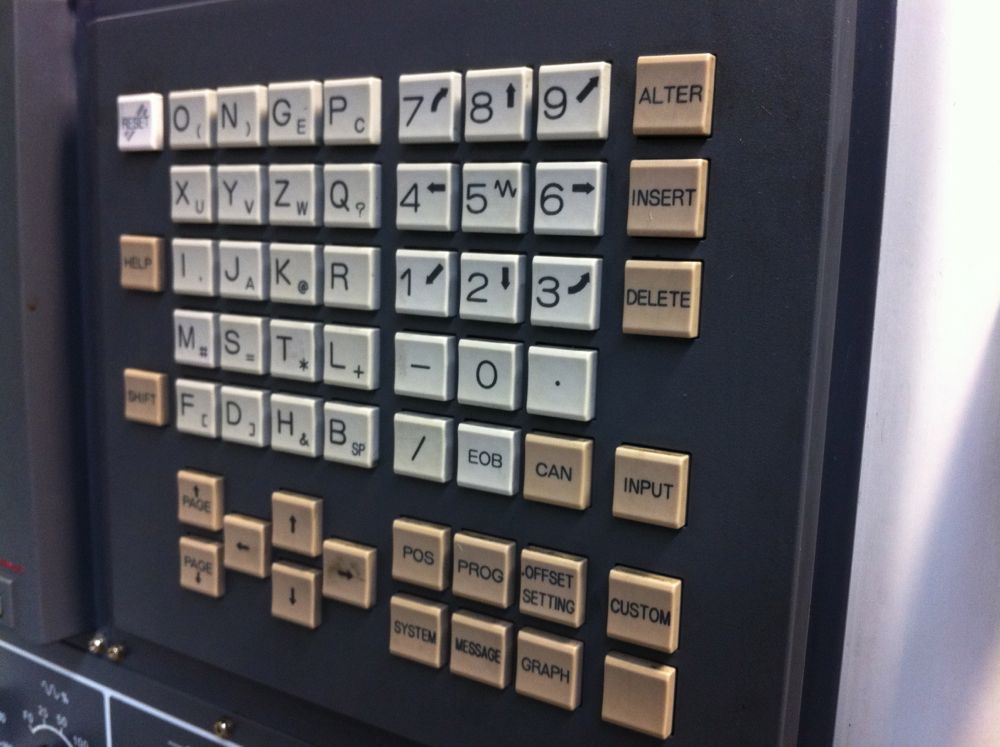

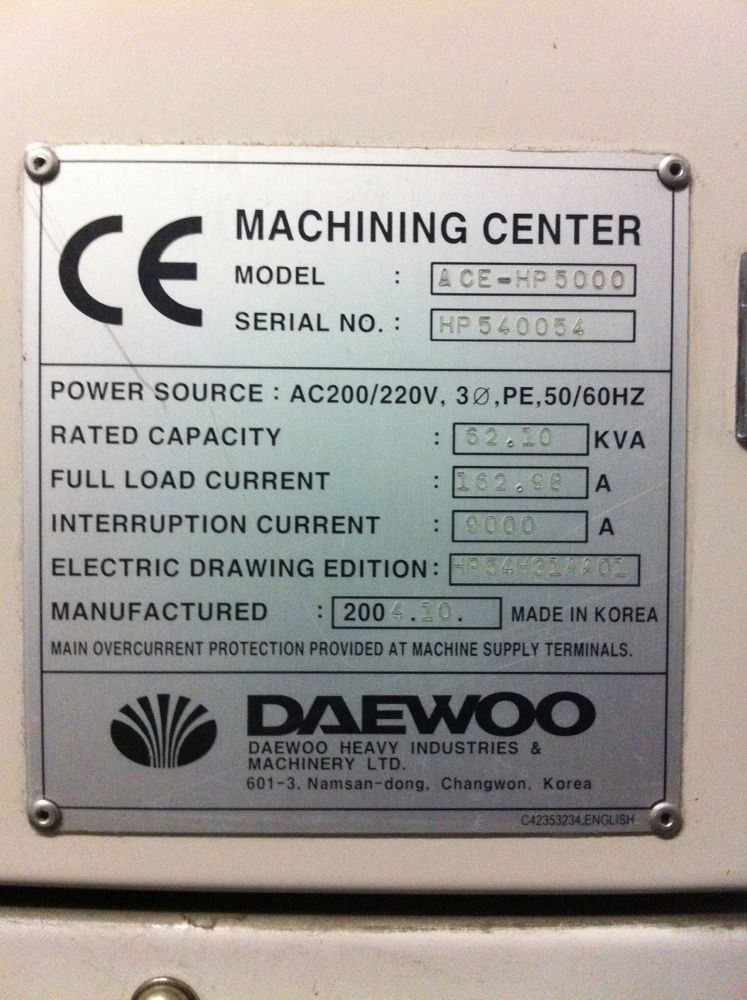

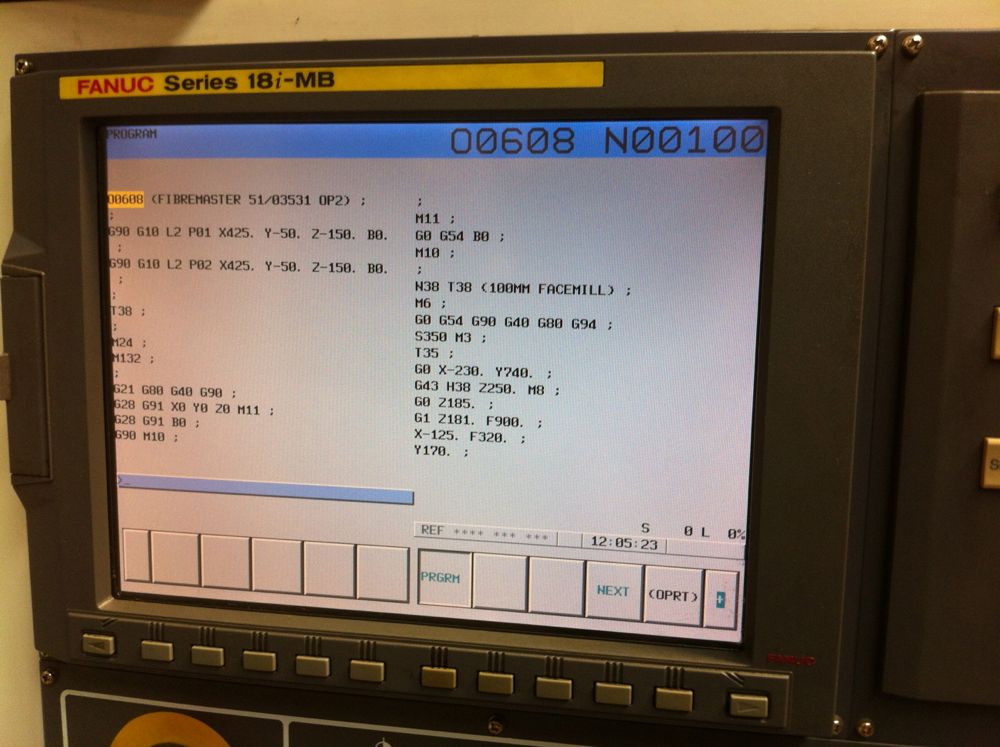

Control: Fanuc 18iMB Control system,
HP5000C.

sn. HP540054

Axis Stroke
X=850mm,
Y= 700mm,
Z=750mm (Pallet in/out),
Spindle Centre to Pallet top= 50 to 750mm,
Spindle nose to pallet centre 150mm to 900mm.

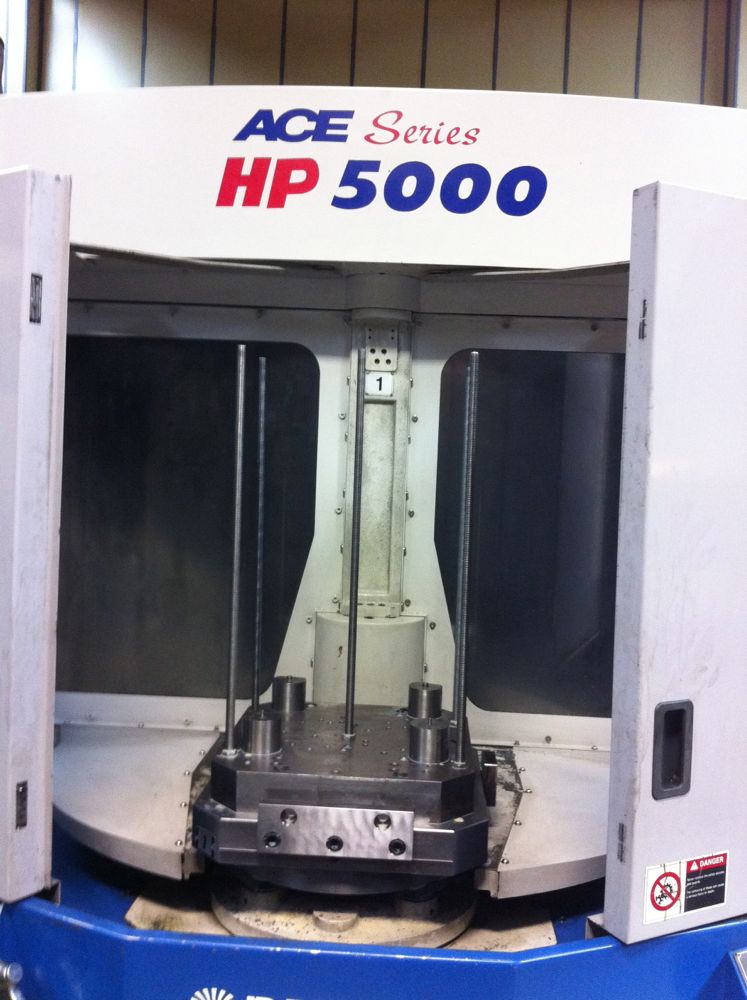

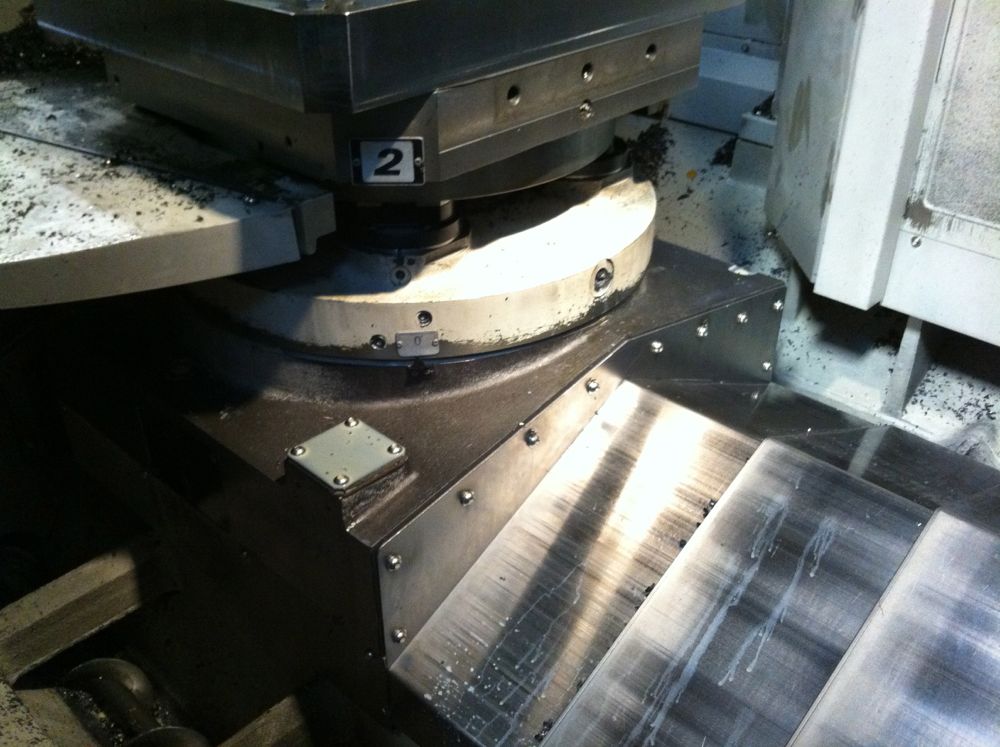

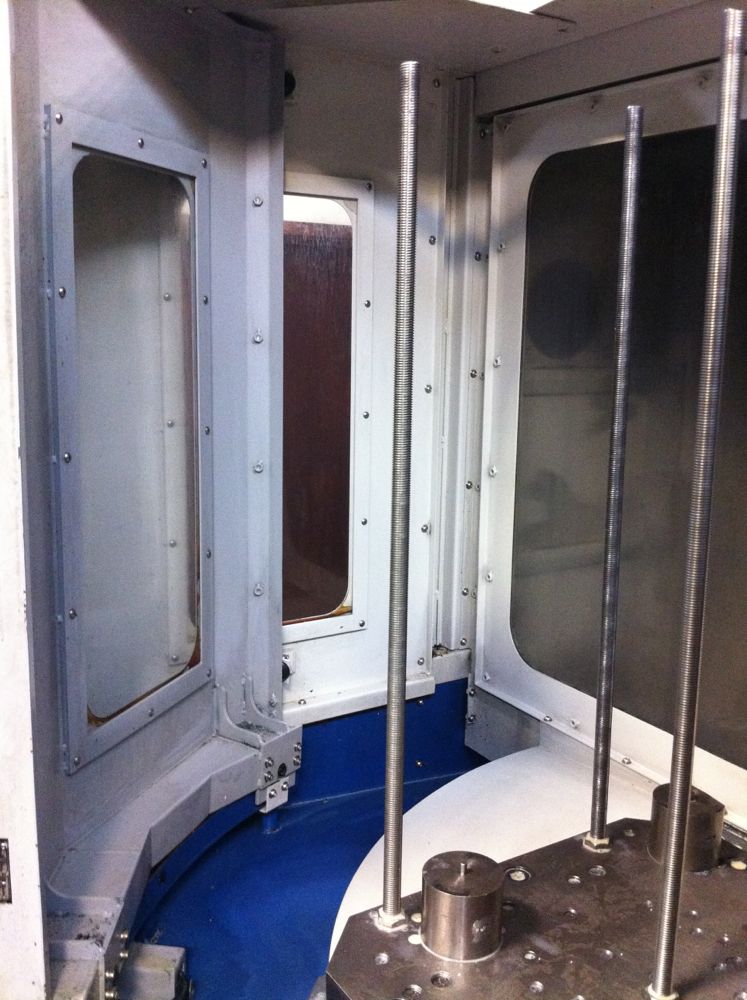

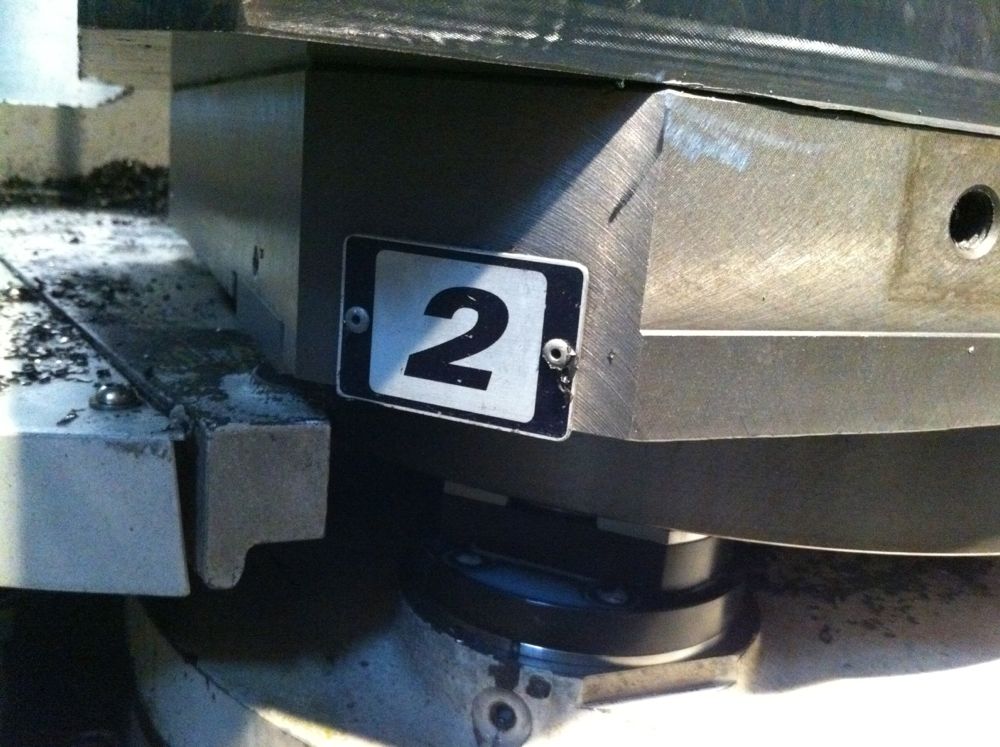

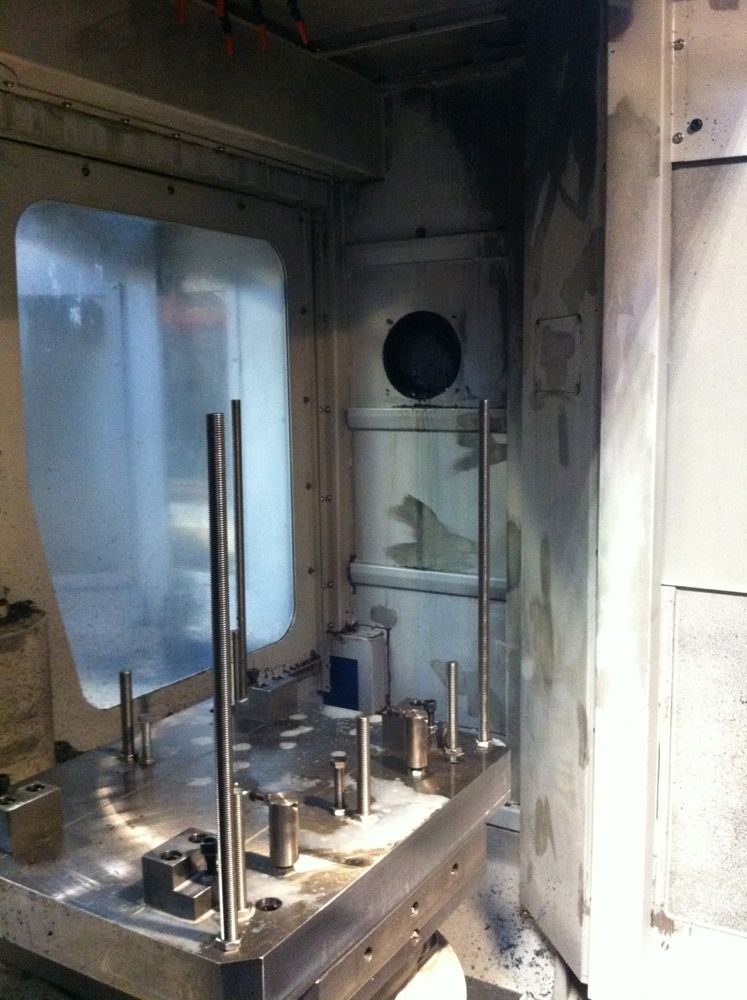

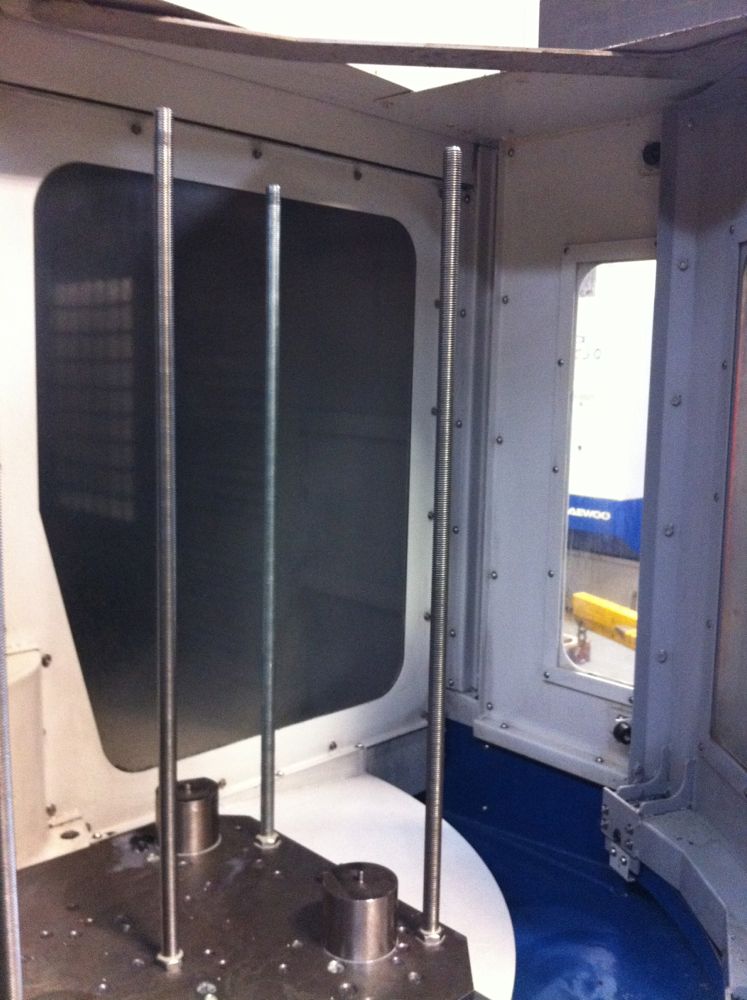

Table:
Pallet size 500mm square
Pallet Surface 24 x M16
Maximum Load 500KG,
Pallet indexing 0.001 degree B Axis
Pallet Change Time 8 Secs
Max workpiece envelope 800dia x 900mm height.

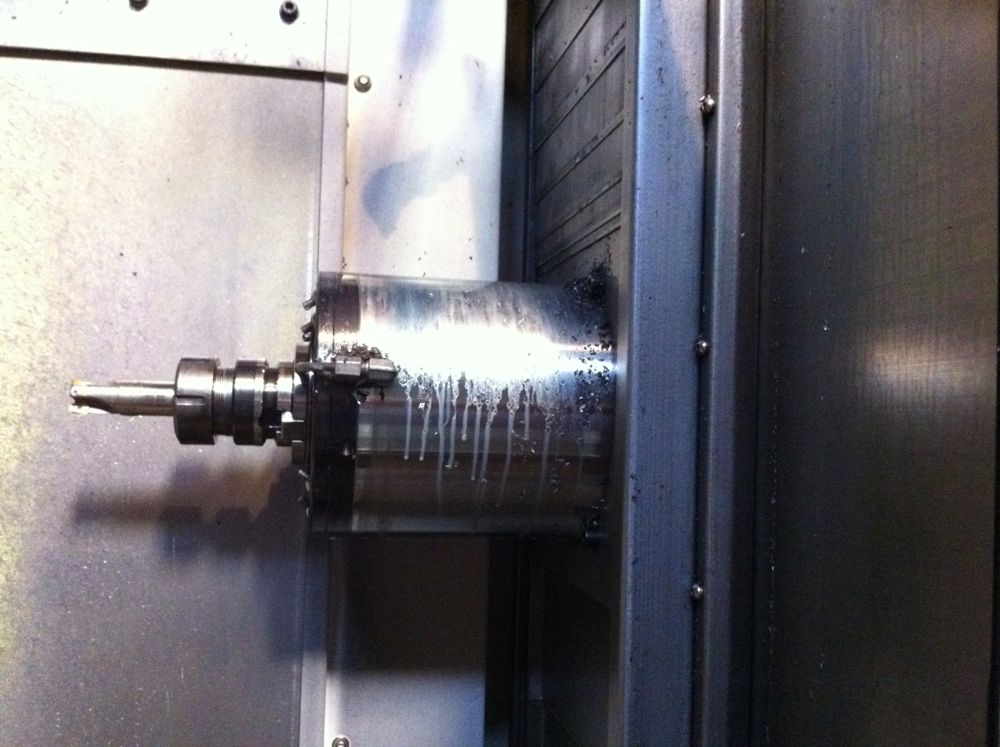

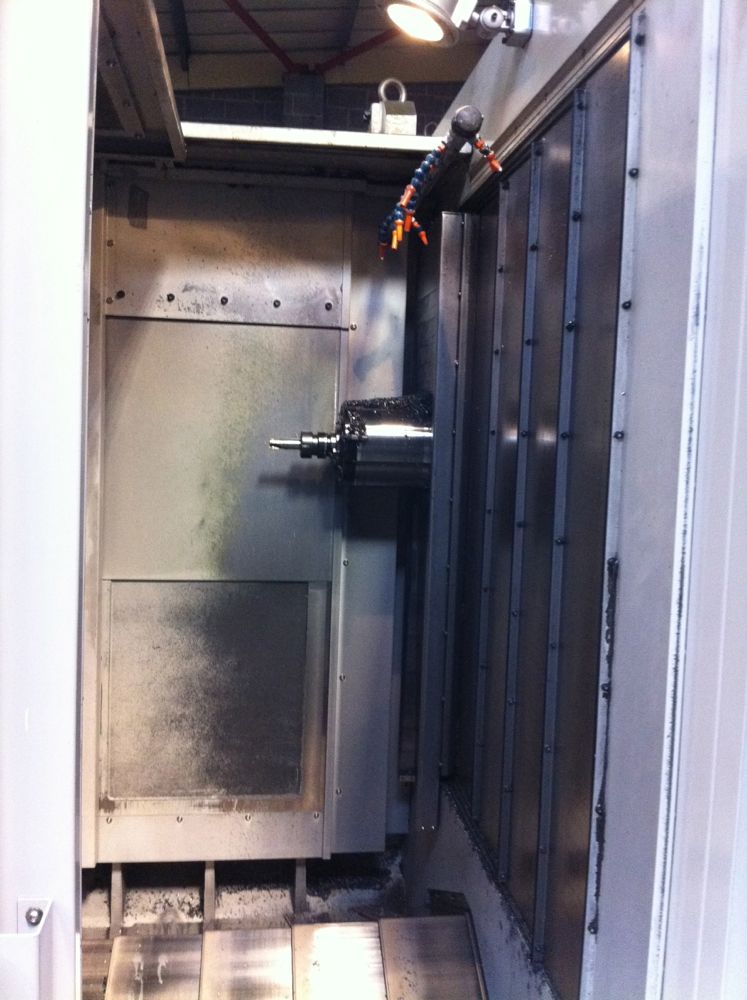

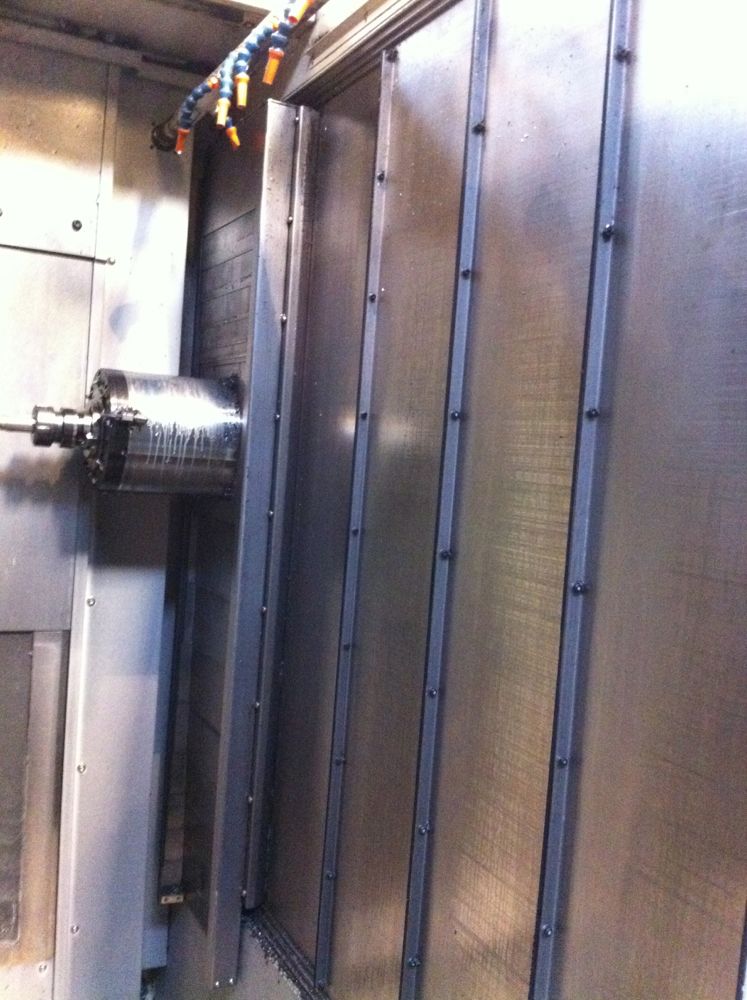

Spindle
Spindle speed 14000 rpm max,
Spindle Taper BT40,
Pullstud Nikken PS-806

Axis traverse rates
Rapid traverse (X,Y,Z) 48000mm/min
Maxium feed rate 24000mm/min

Motor sizes
Spindle motor 22kW,
Axis Motor (X,Z) 4kW
Axis motor (Y) 7kW

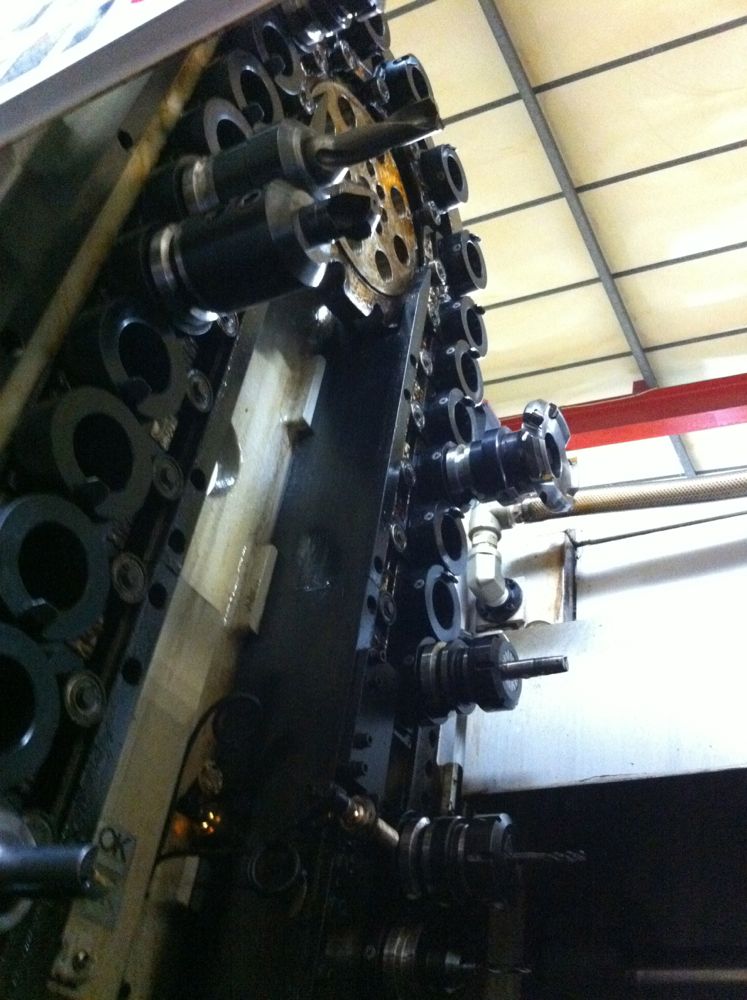

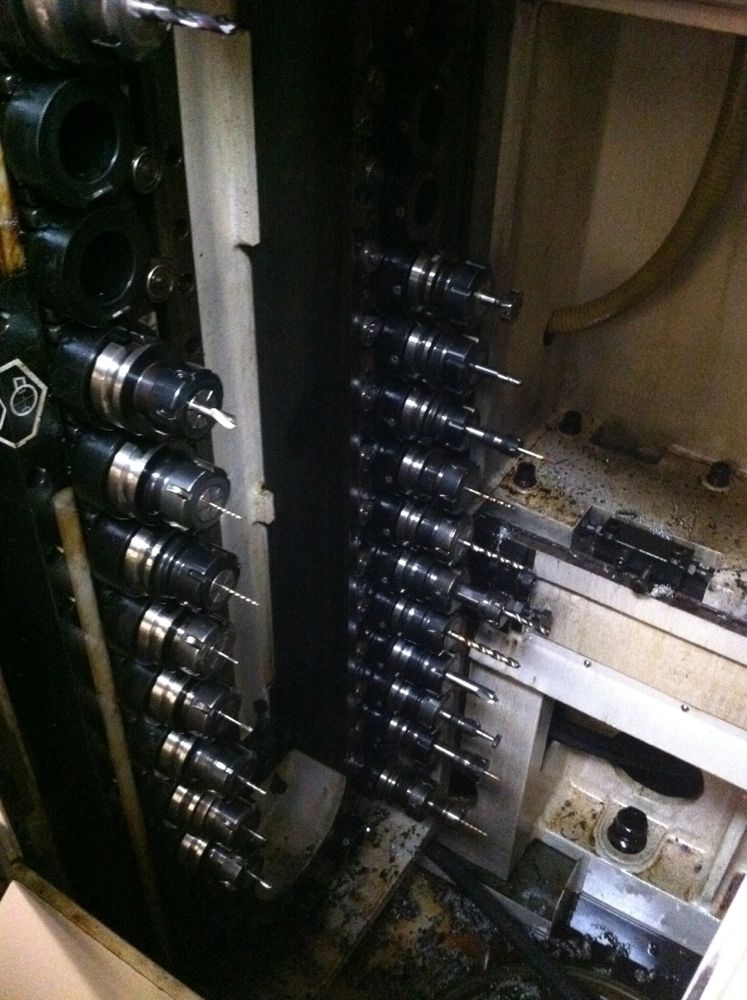

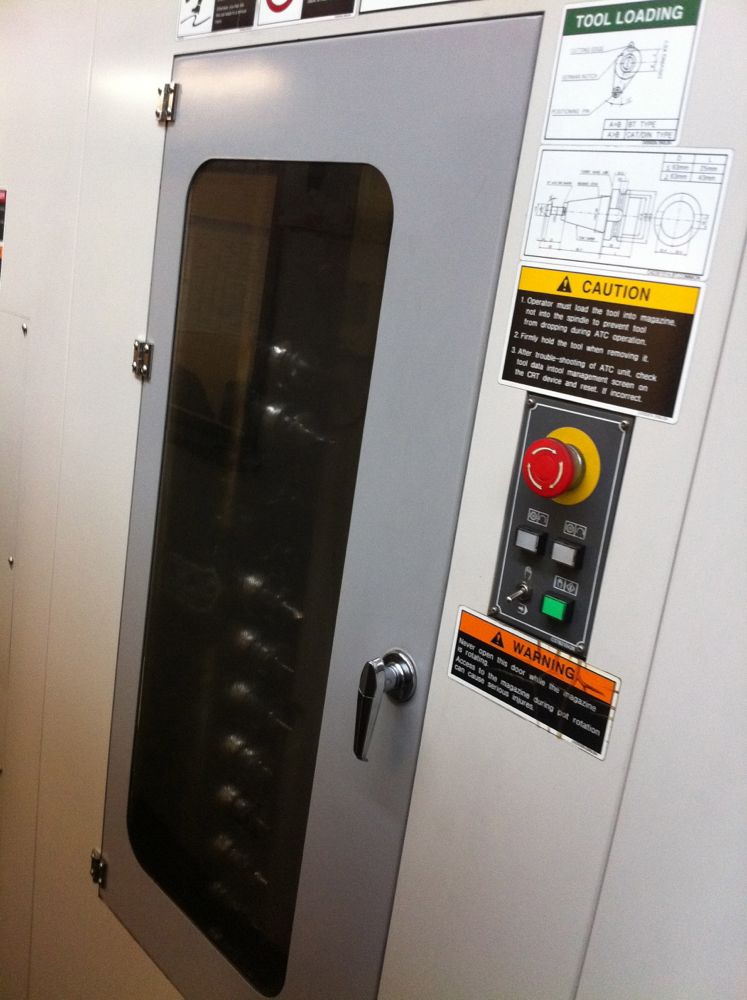

ATC Magazine
tool shank type BT 40
Max tool length 400mm
Max tool weight 10Kg
Max tool Diameter (any pocket) 75mm
Max tool diameter (Adj pocket vacant) 140mm
Tool Selection Random fixed address
Magazine capicity 60
Tool change time (tool to tool) 1.5 sec
Tool change time (Chip to chip) 4 sec

Machine Services
Power requirements 65Kva
Air Pressure 6kgf/cm2

Machine Dimensions
Machine Weight 12,500Kg
Machine floor space 2680mm x 5260mm

Standard Machine Equipment

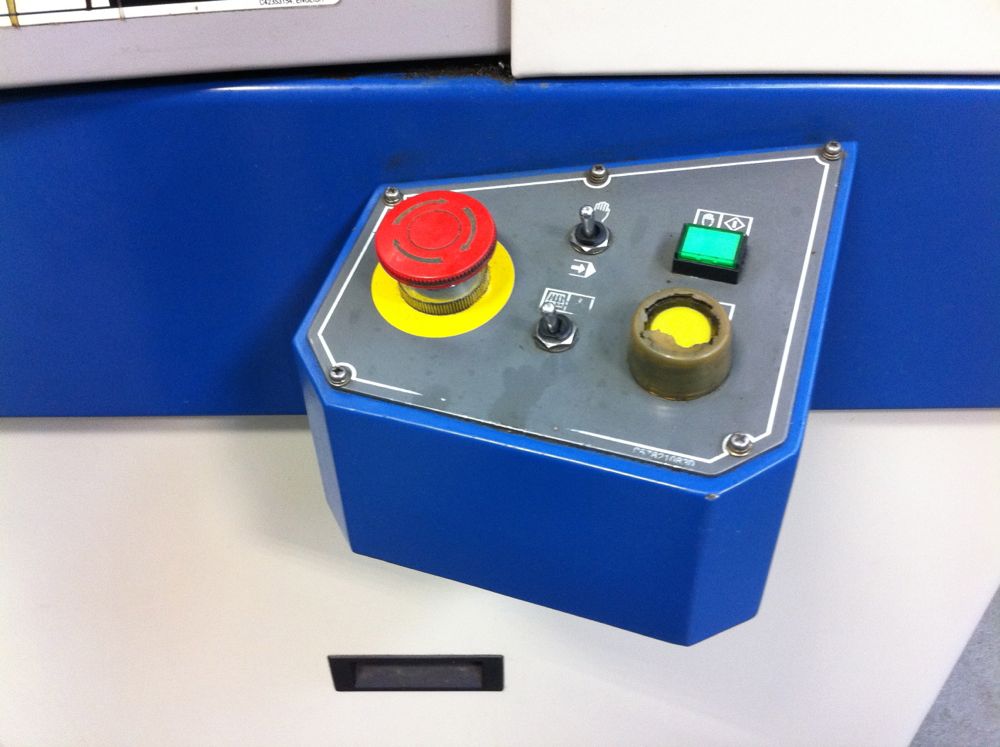

2 APC Unit (direct turn)

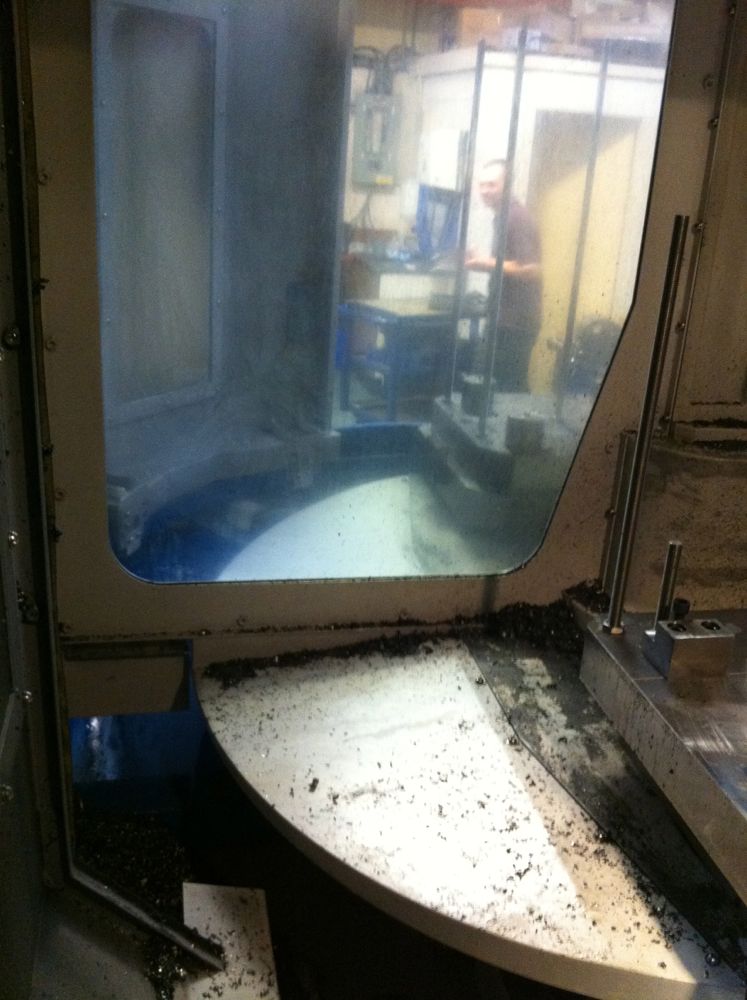

Fully enclosed splash guard

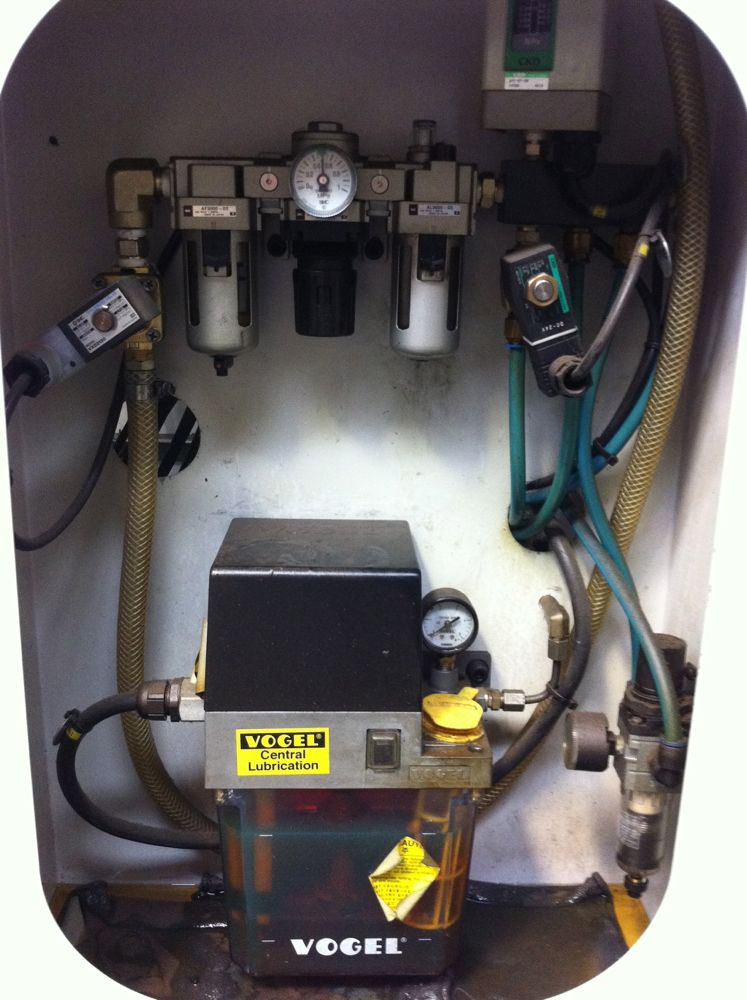

Automatic Lubrication unit

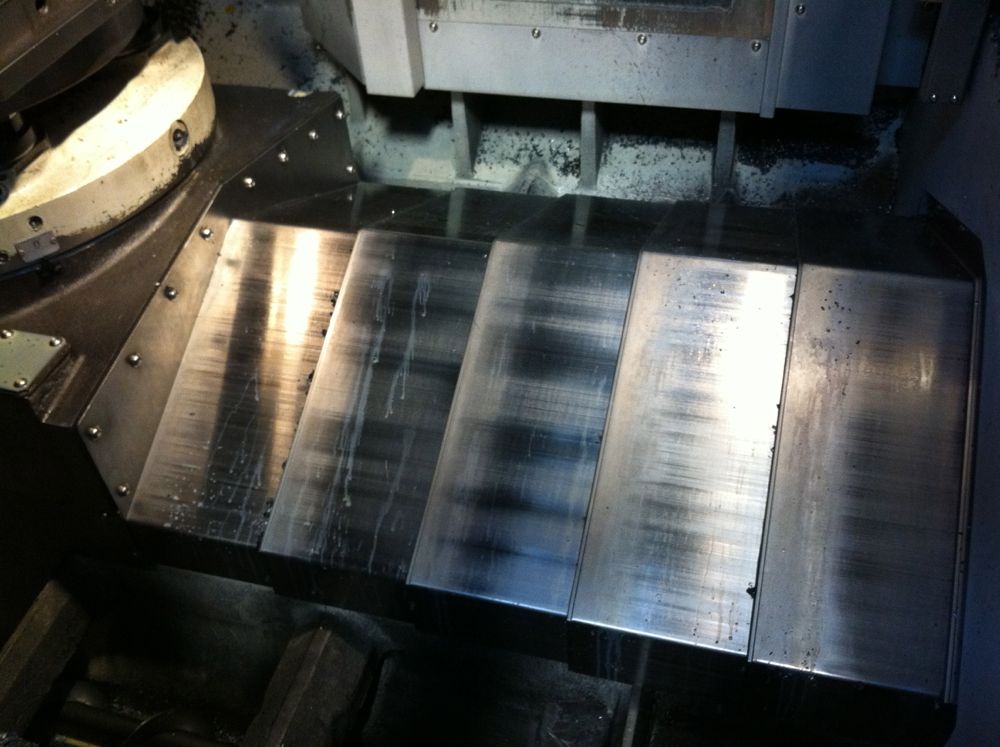

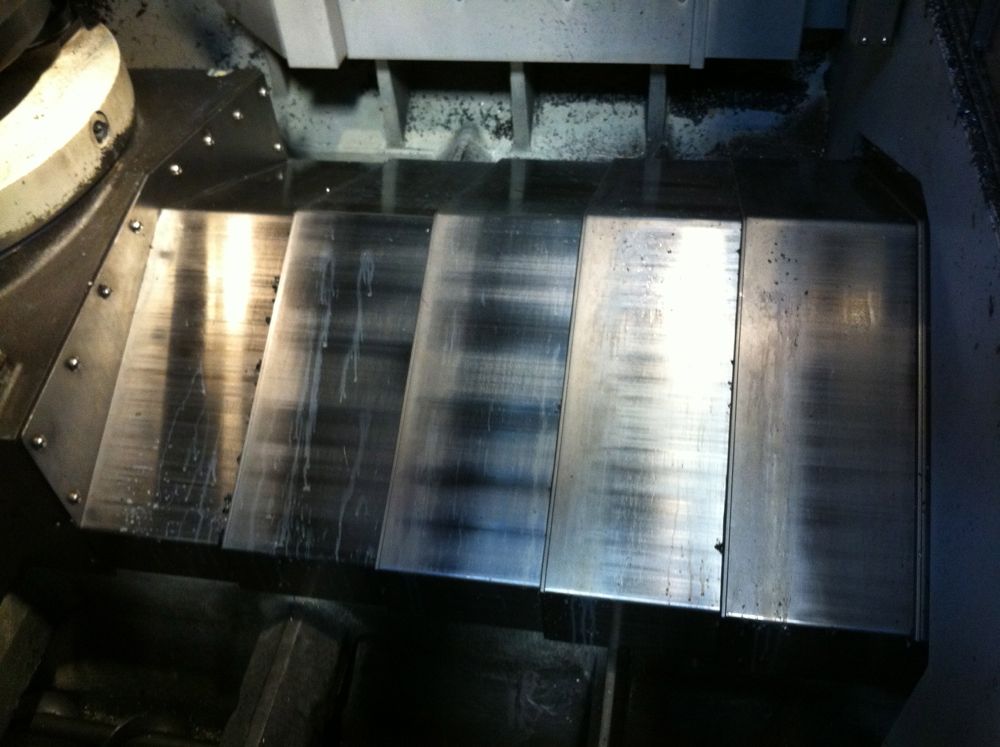

X/Y/Z axis Slide way cover

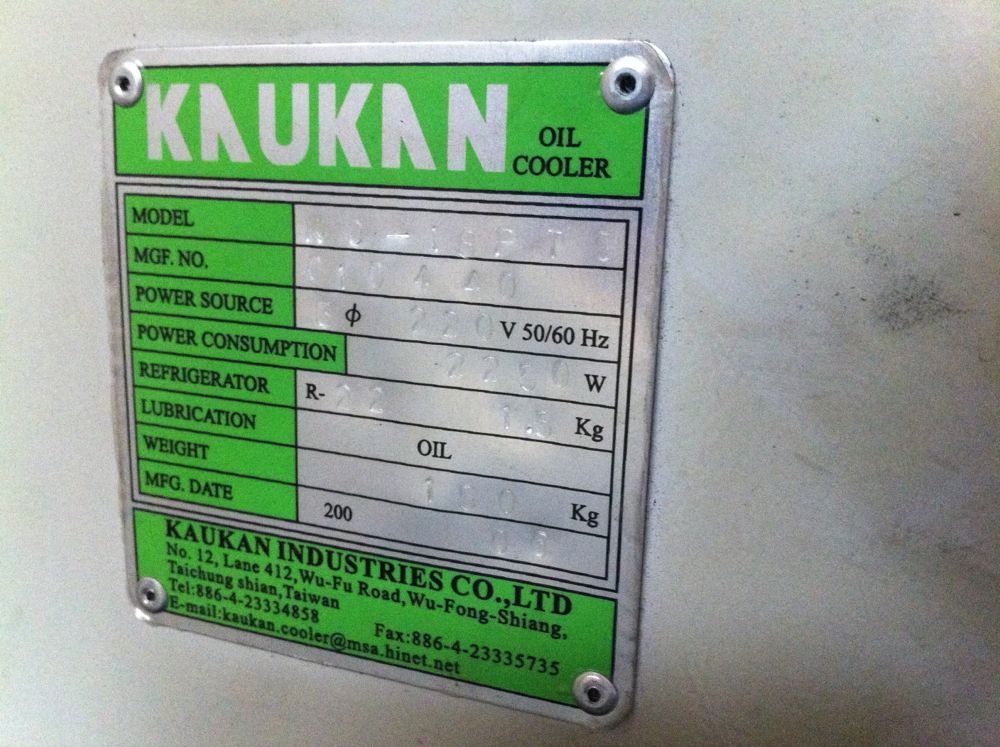

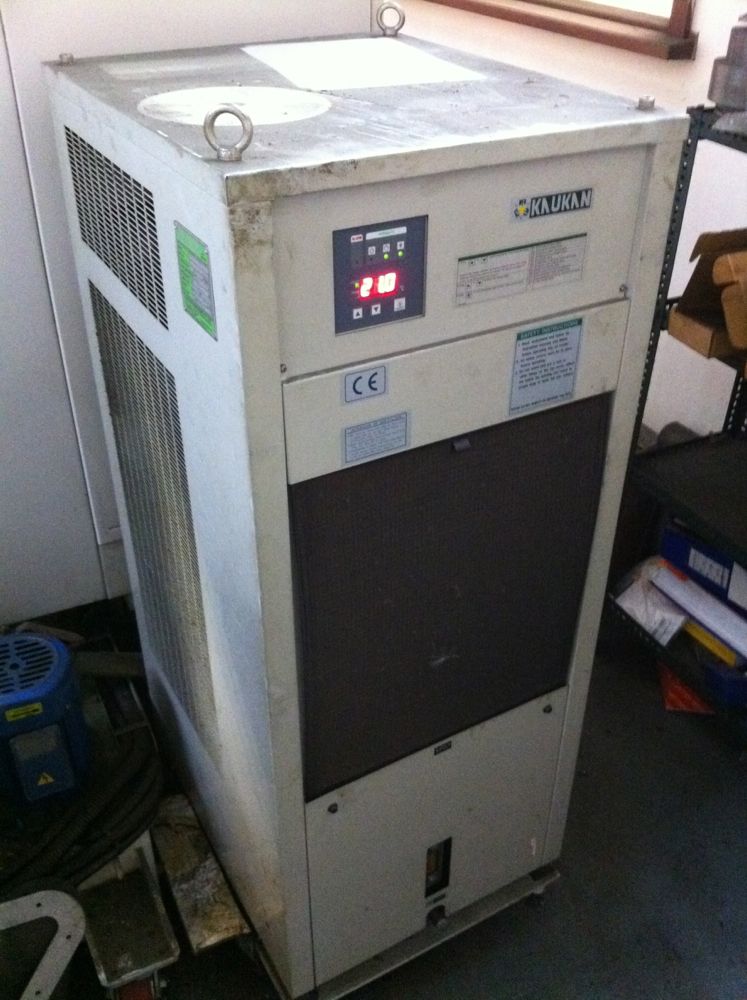

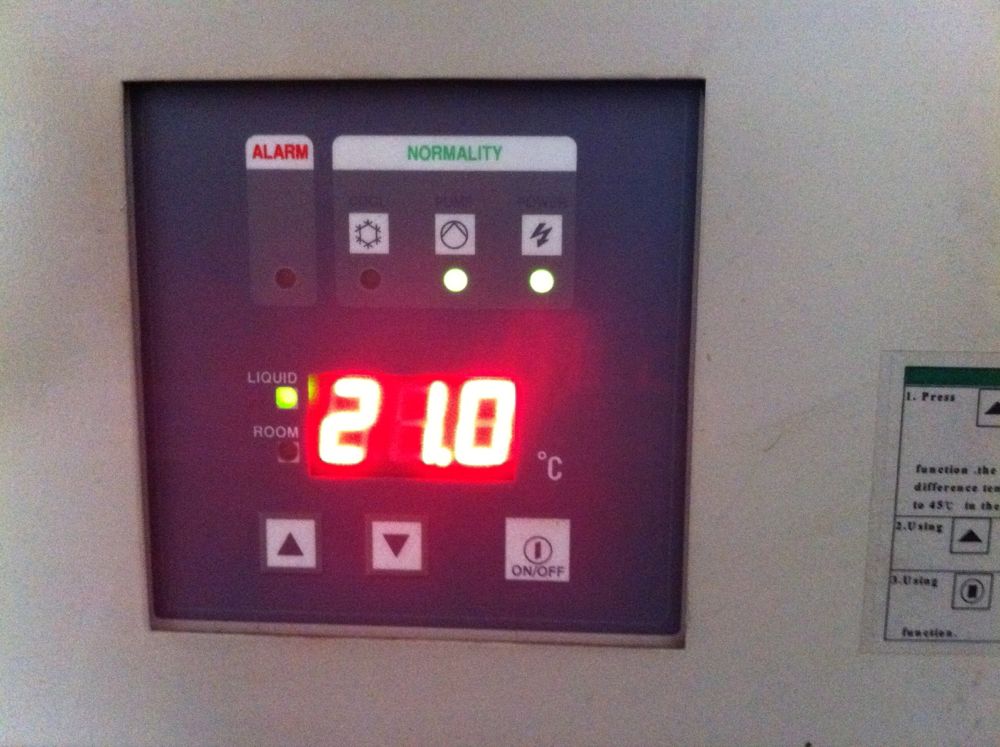

Oil cooler for spindle
Lighting
Edge locator

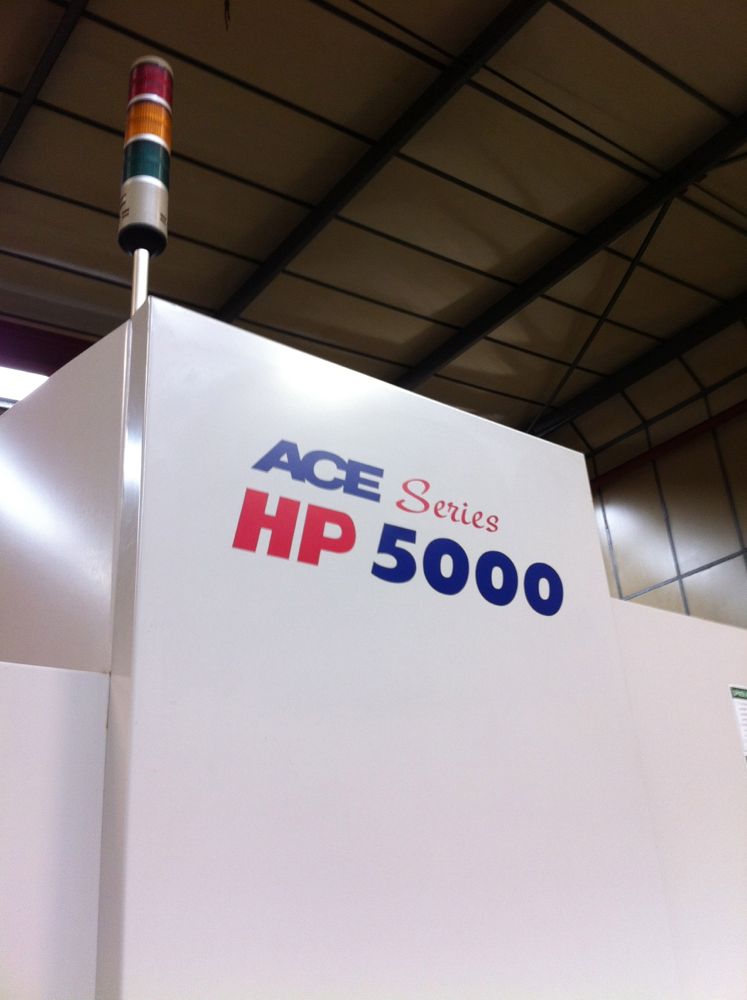

Operator call lamp

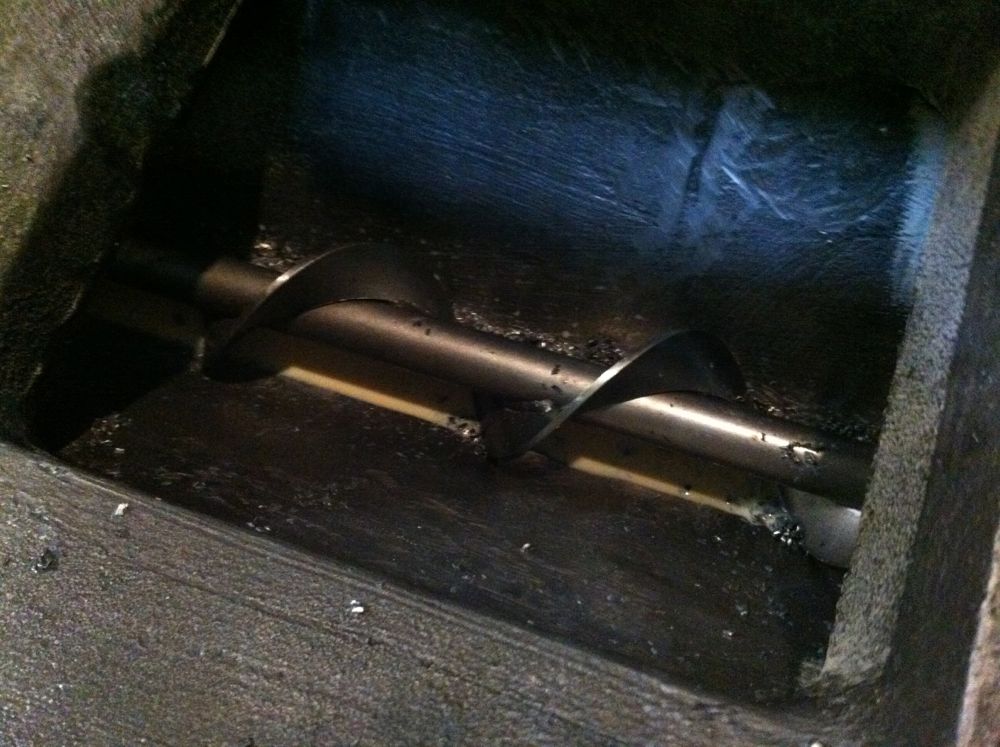

Twin exit swarf screws

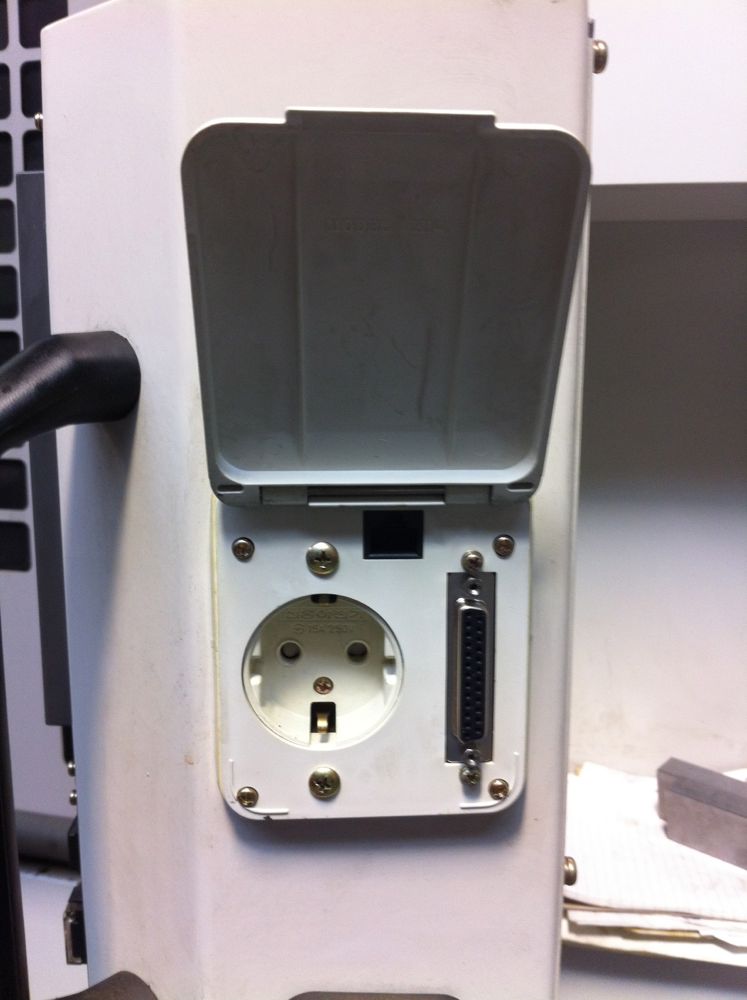

Memory card input socket
Embedded Ethernet Connection
RS 232 socket

Fanuc CNC options include:
Inch/metric programming,
Extended programme edit,
125 programme registrations,
180 metres memory,
Helical interpolation,
Custom macro B,
Programme data input G10,
Tool path Display and Background edit,
Rigid tapping,
Fanuc AICC look-ahead contouring control

Special options include:

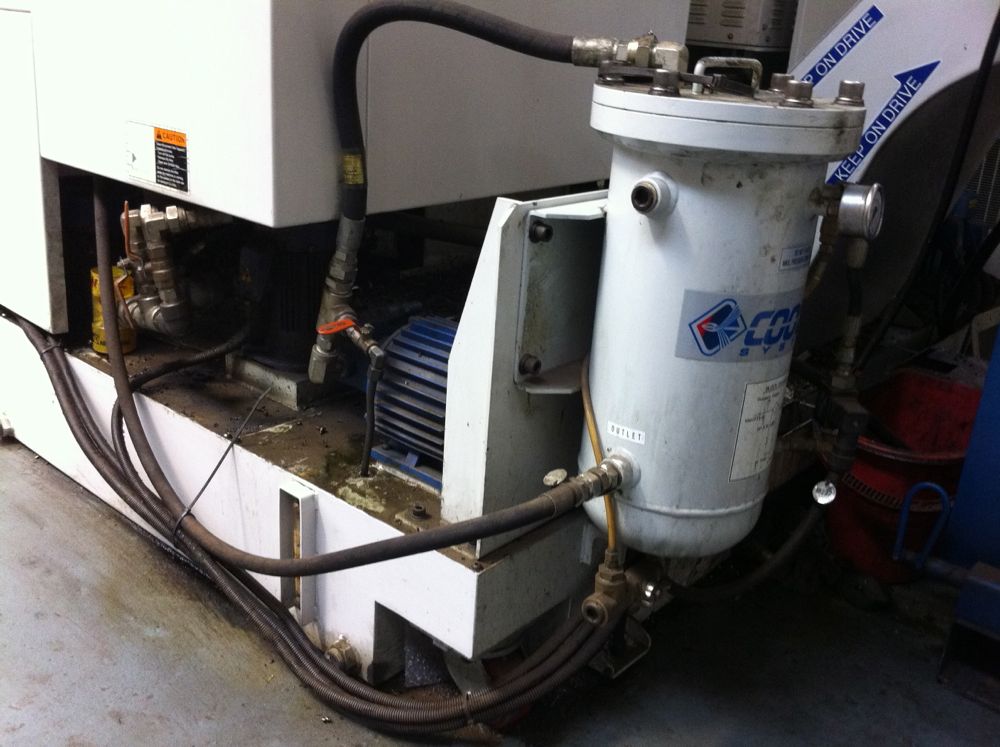

Coolant through spindle (20 bar),

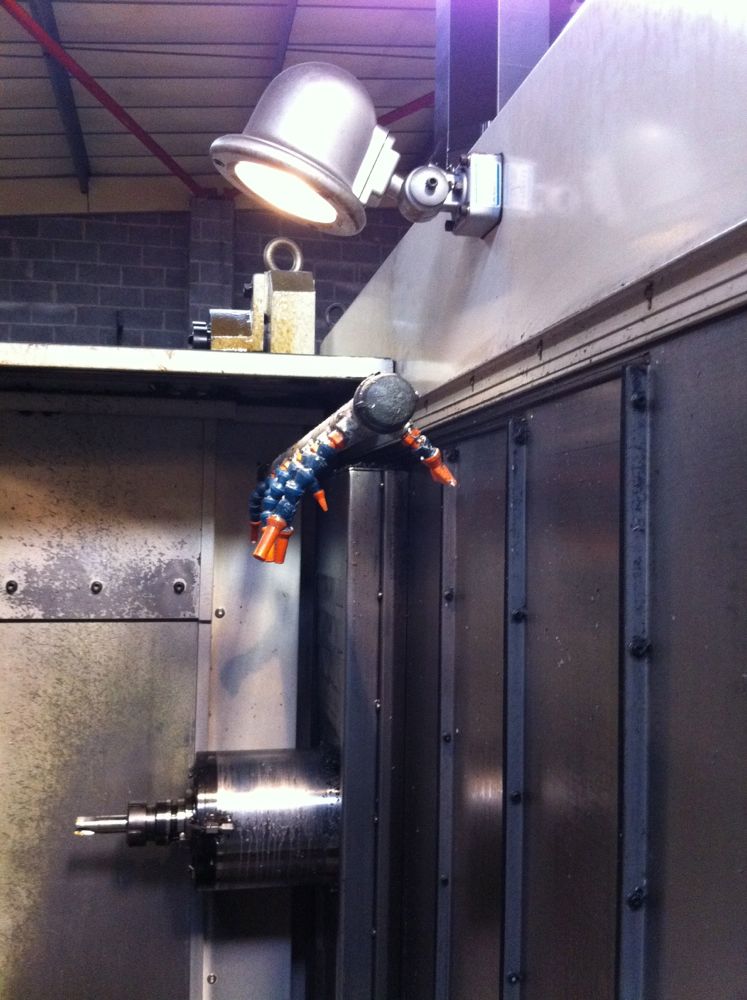

overhead shower coolant wash,

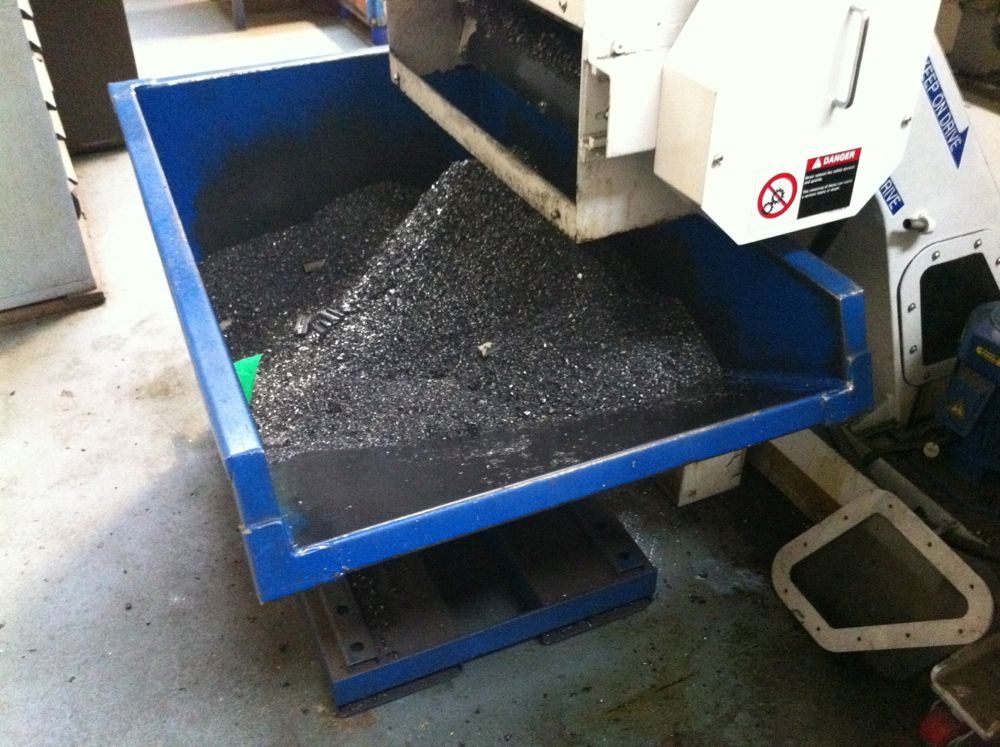

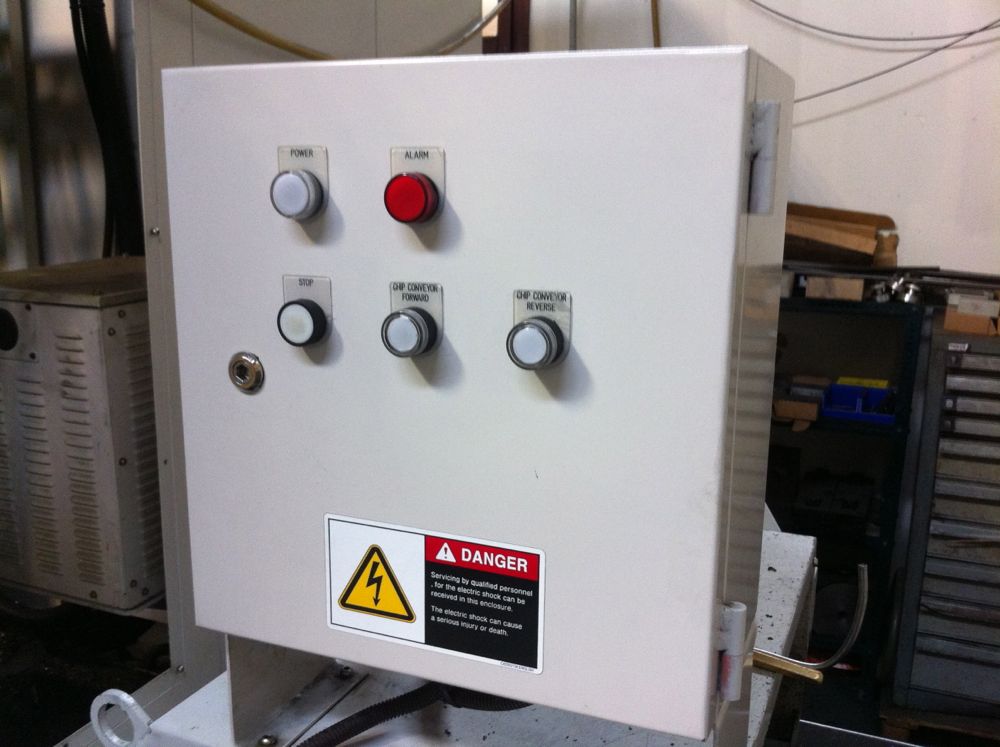

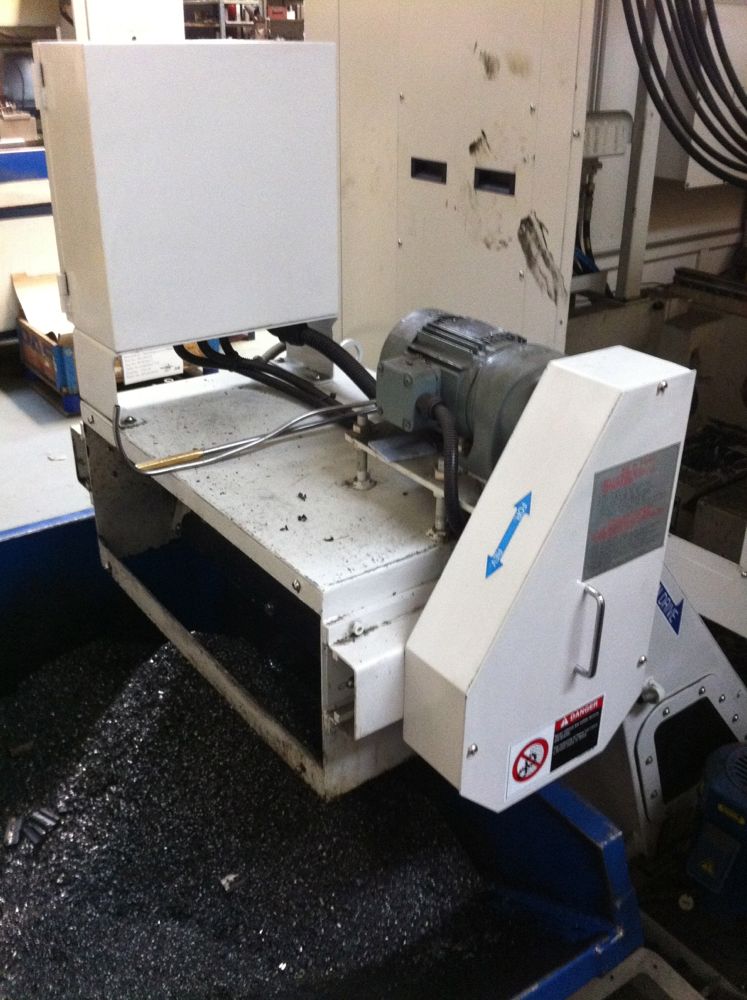

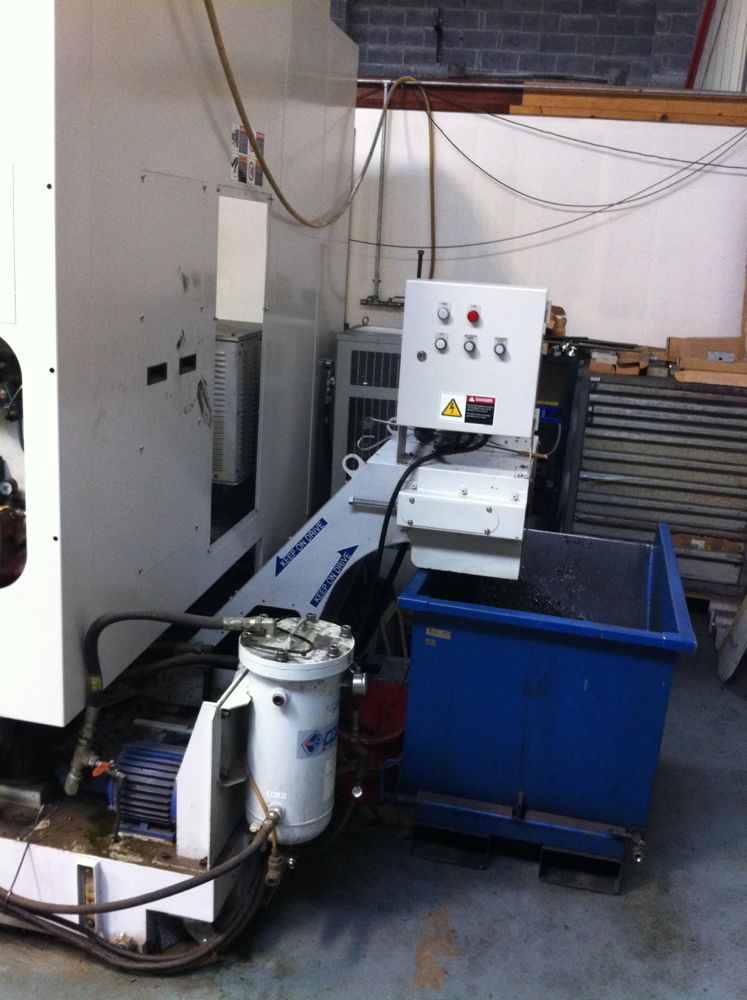

Rear exit lift up chip conveyor with rotating drum filter system,
belt type oil skimmer,

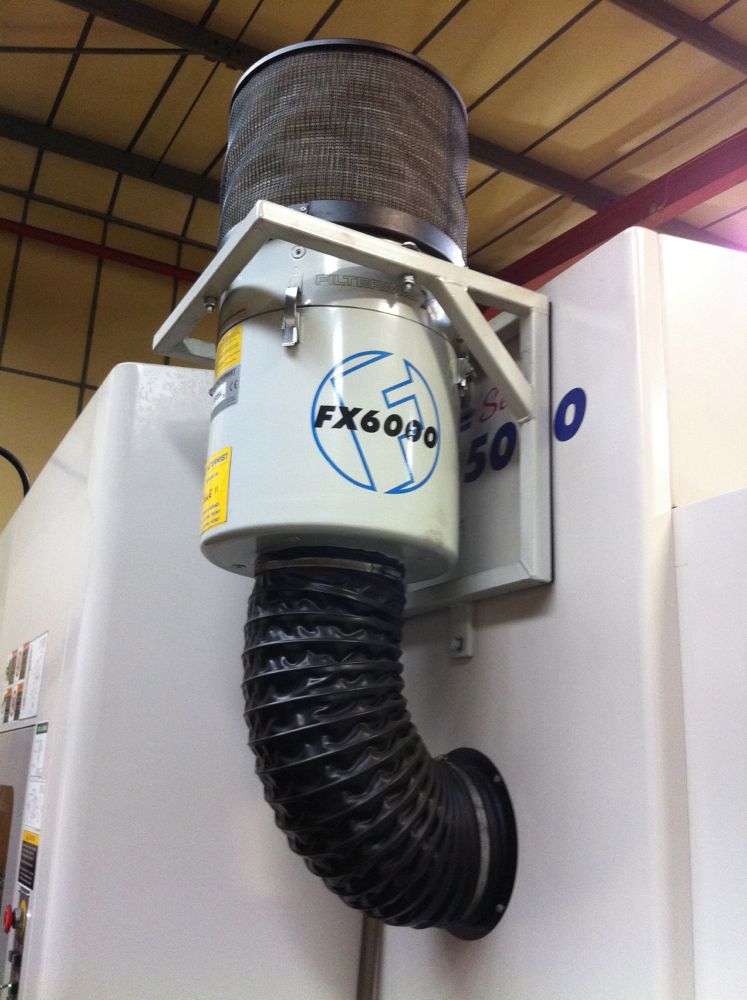

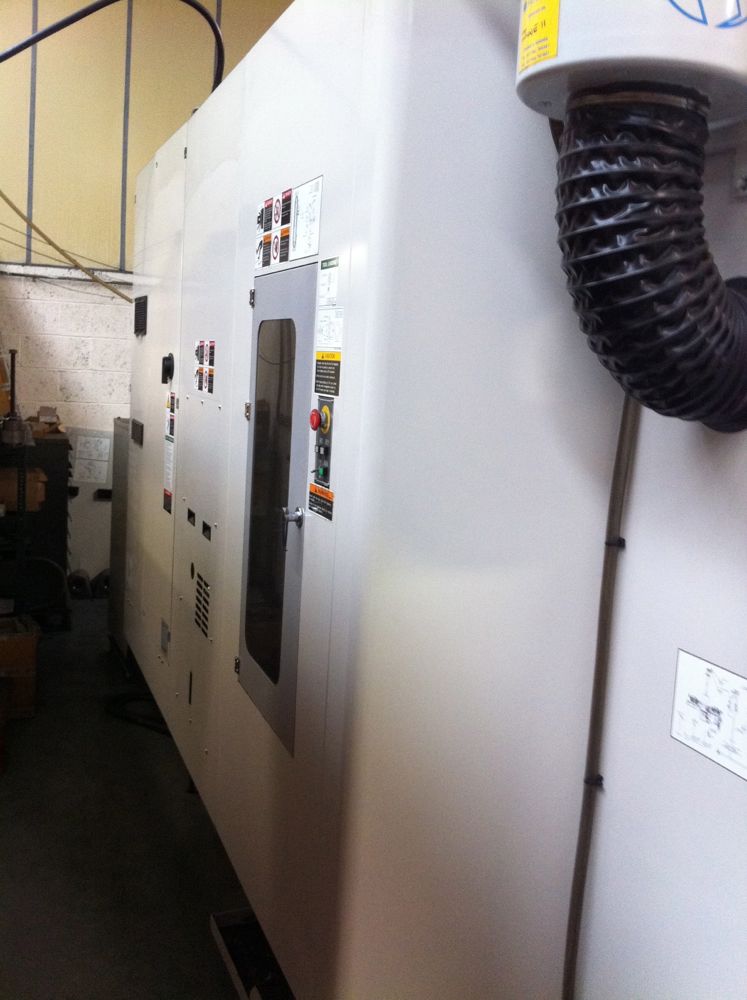

Filtermist extraction unit.

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
