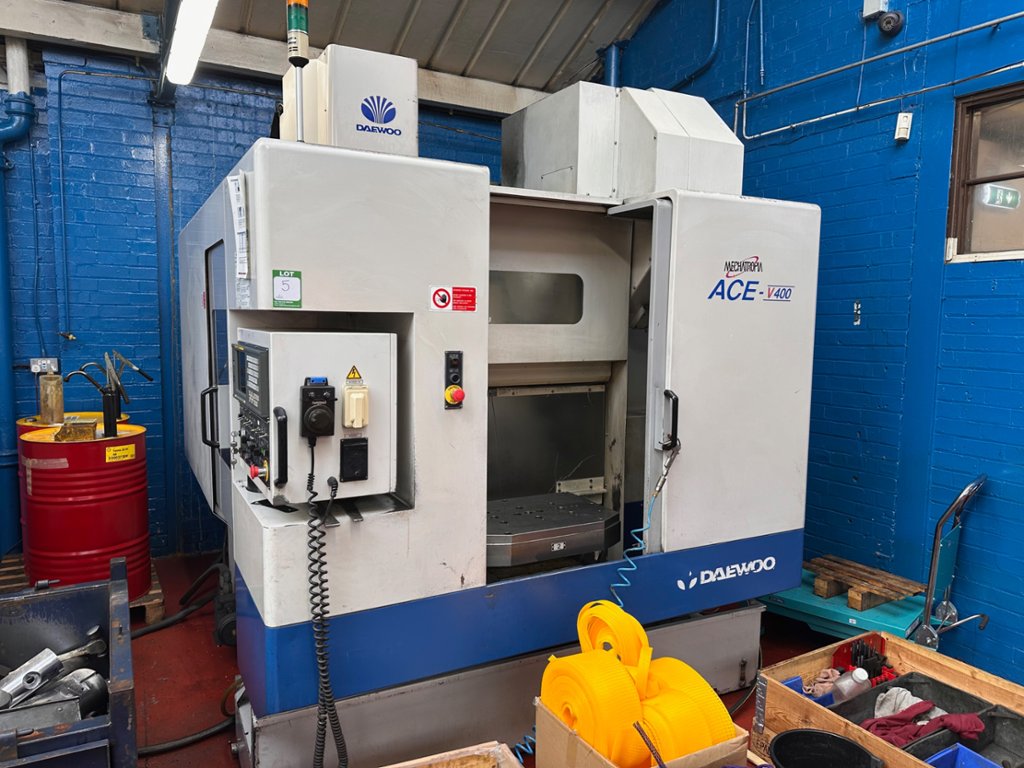

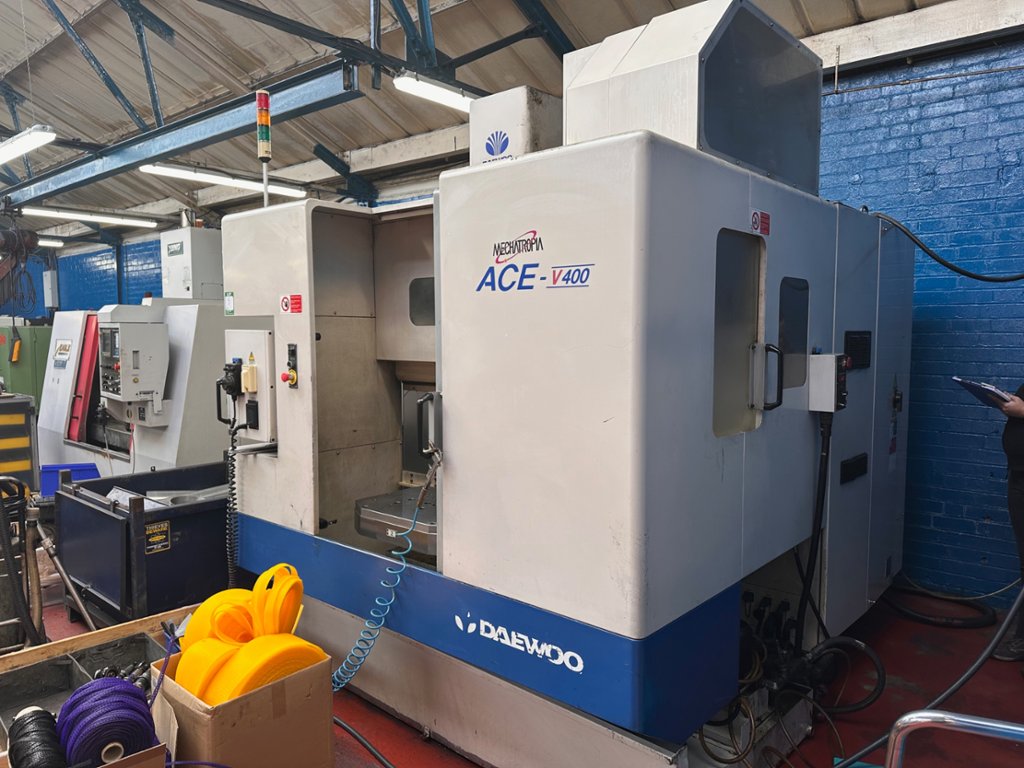

Daewoo Ace V400 twin-pallet Vertical Machining Center (1999)

Lot 5 - Daewoo Ace V400 twin-pallet Vertical Machining Center (1999)

Description:

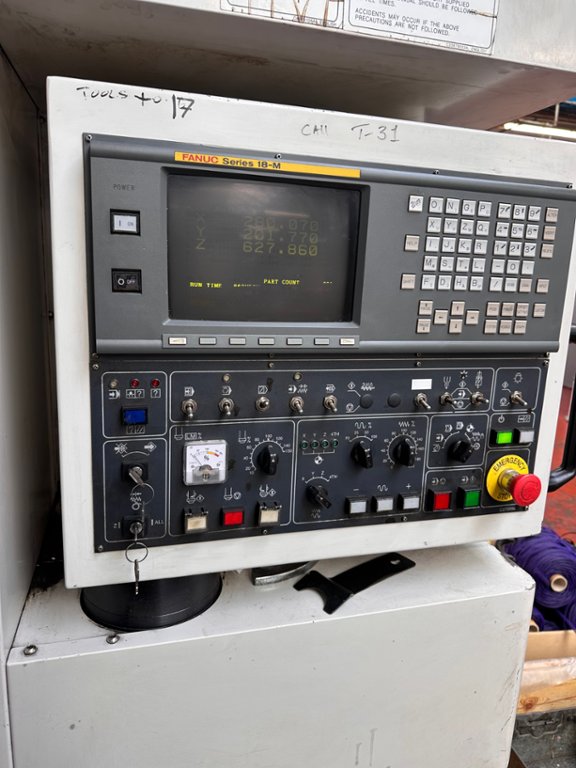

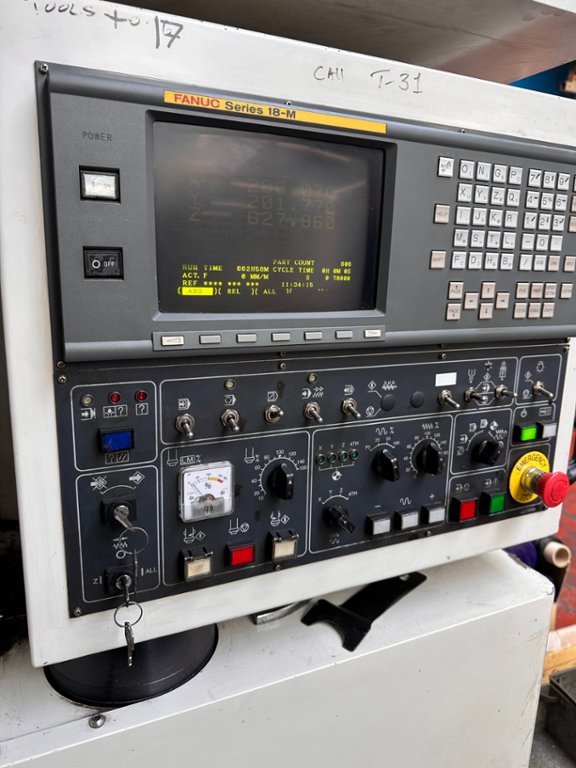

CNC Control Unit: FANUC Series 0-MD / 0-MC

Travel & Working Range

X-Axis Travel: 560 mm (22.0 in), Y-Axis Travel: 400 mm (15.7 in), Z-Axis Travel: 460 mm (18.1 in), Spindle Nose to Table Distance: 160 mm to 730 mm, Spindle Center to Column Guideway: 360 mm

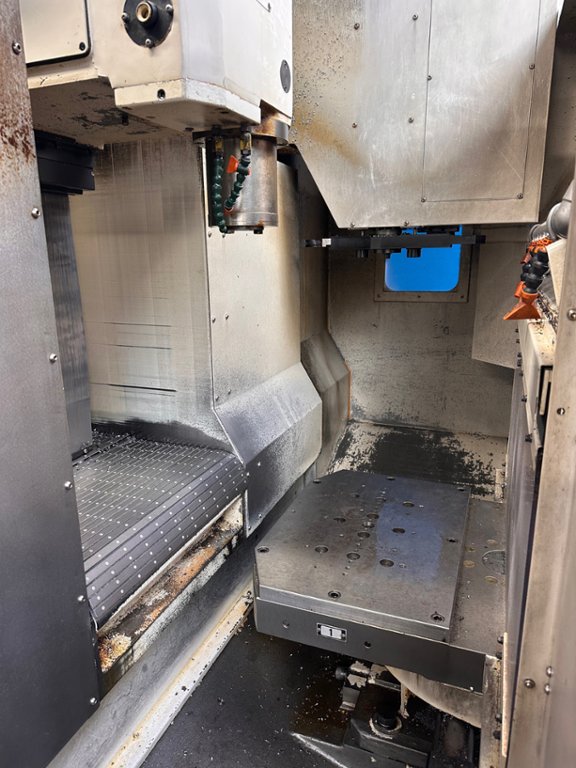

Table & Twin-Pallet System

Pallet Surface Dimensions: 650 mm × 450 mm (2 pallets), Pallet Change System: Automatic 180-degree rotary indexer, Maximum Workpiece Load: ~300 kg (661 lbs) per pallet

Spindle System

Spindle Speed Range: 60 to 6,000 RPM, Spindle Taper: BT40 / ISO 40 (or CAT-40 depending on original regional delivery), Main Spindle Motor Power: 5.5 kW continuous / 7.5 kW peak (approx. 10 HP

Automatic Tool Changer (ATC)

Tool Magazine Capacity: 16 positions (carousel style), Maximum Tool Diameter: 120 mm (or 80 mm with adjacent pockets occupied), Maximum Tool Length: 250 mm, Maximum Tool Weight: 6 kg

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
