Description:

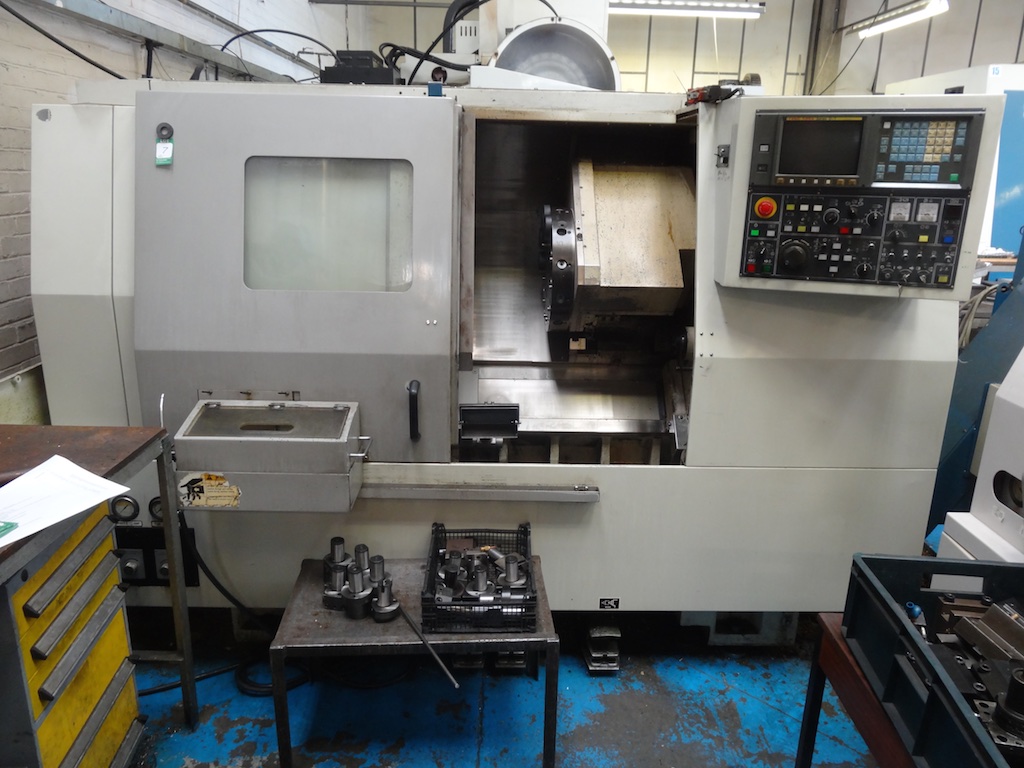

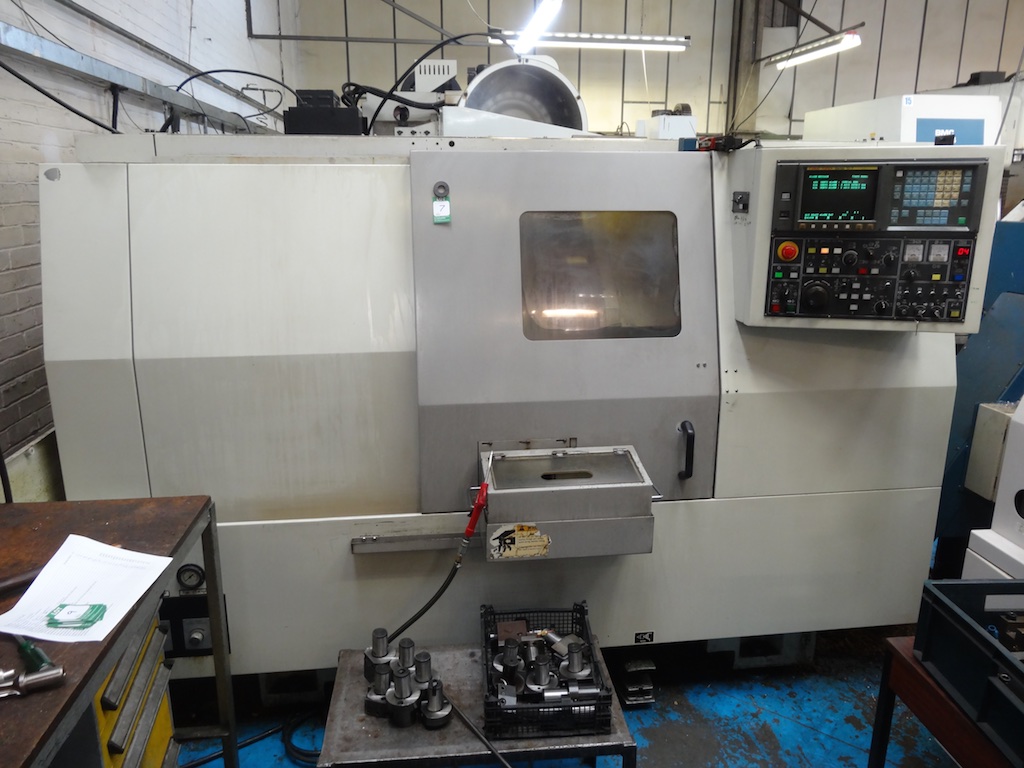

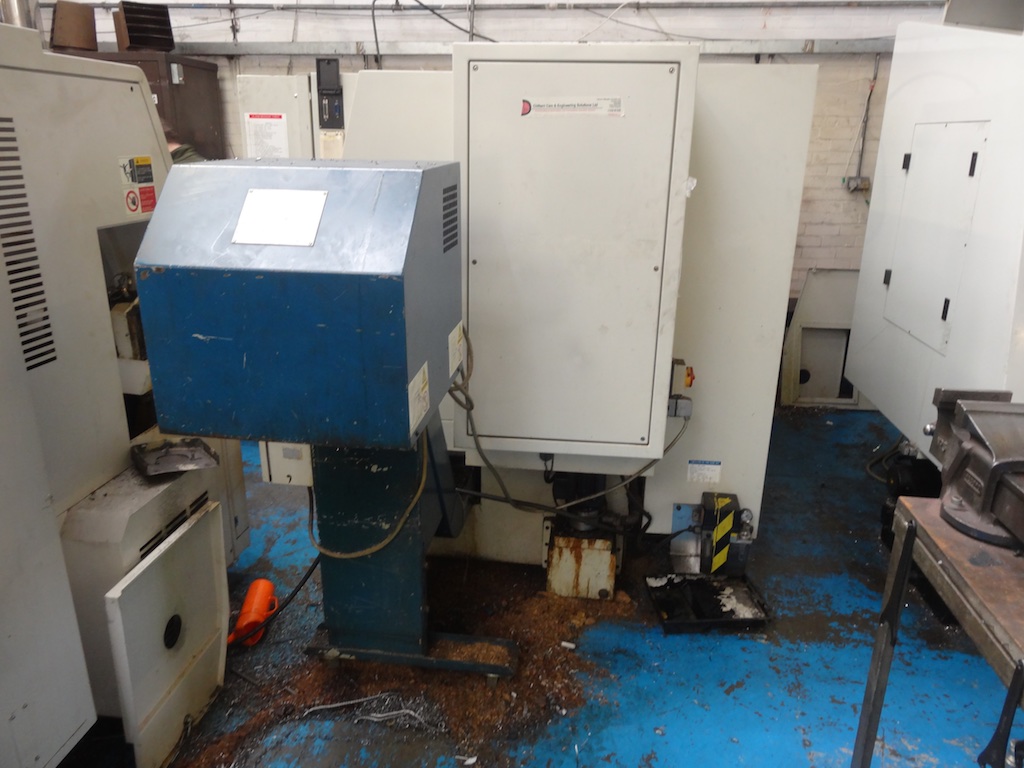

Daewoo Puma 8HC (1995) 2-Axis CNC Lathe

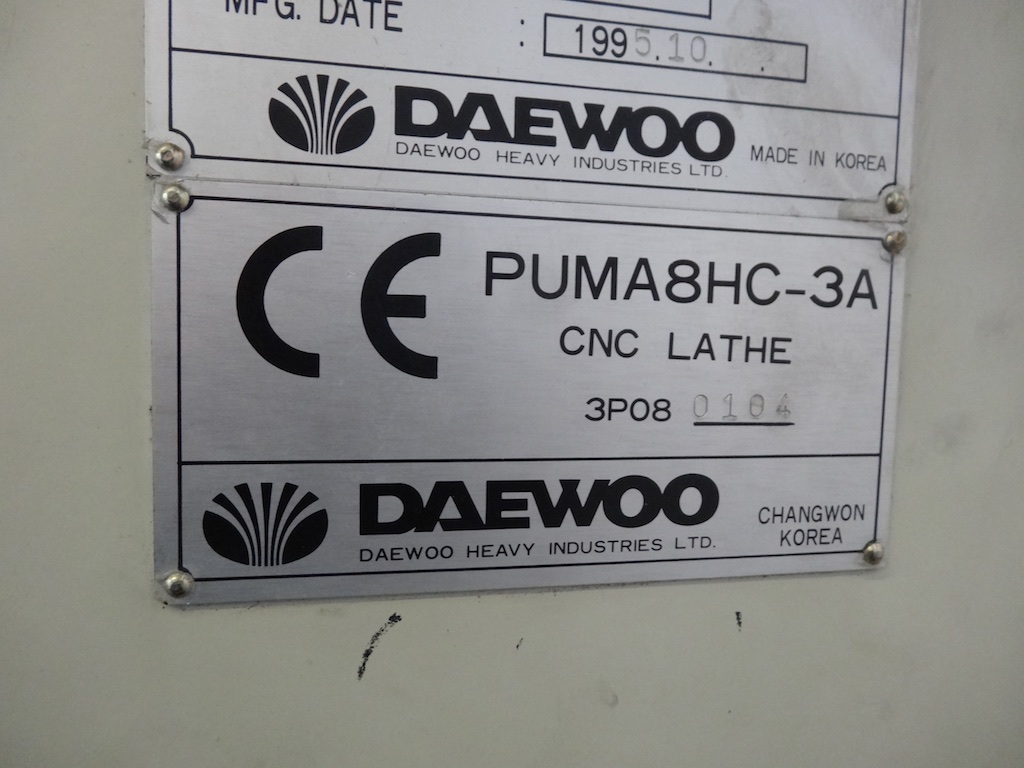

S/n: 3P080104
Date: 10/95

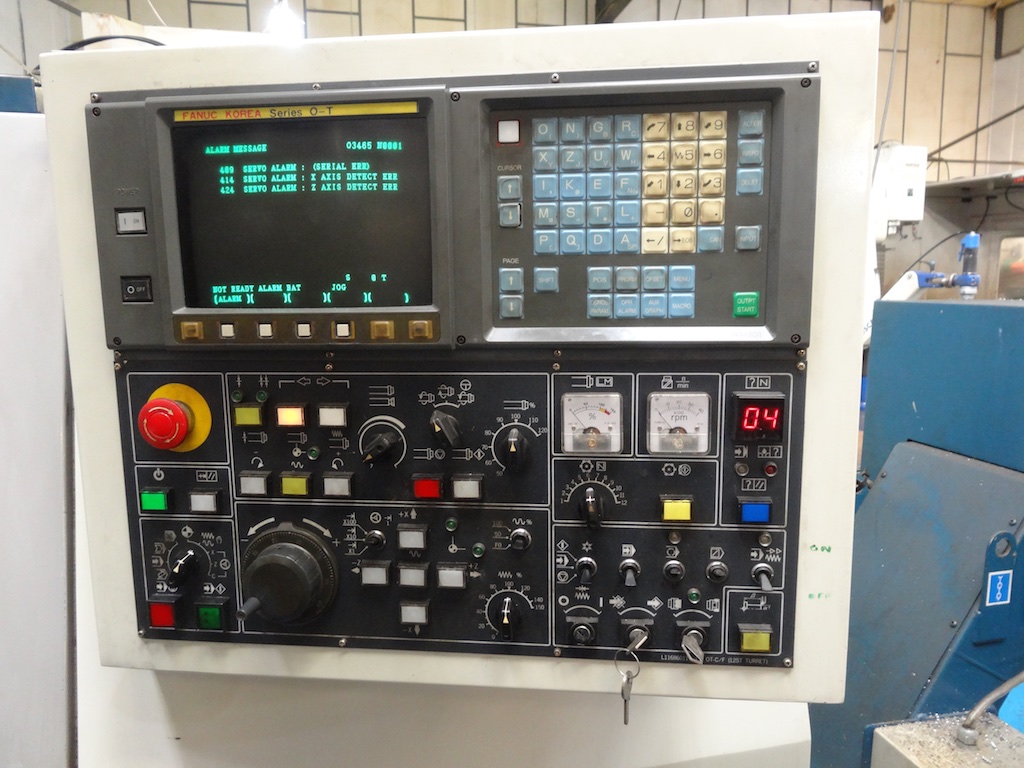

Fanuc Series O-T Control
Specifications:
Maximum Swing Over Bed/Carriage 19.7"/13"
Maximum Machining Diameter 14"
Maximum Center Distance 26"
Maximum Machining Length 20.9"
Spindle Motor 25 HP
Spindle Bore 2.44"
Spindle Speeds 40 - 4,000RPM
Maximum Bar Capacity 2"
Chuck Size 8" Hydraulic
X Axis Travel 8.3"
Z Axis Travel 21.7"
Rapid Traverse Rates X, Z 800/1,000 IPM

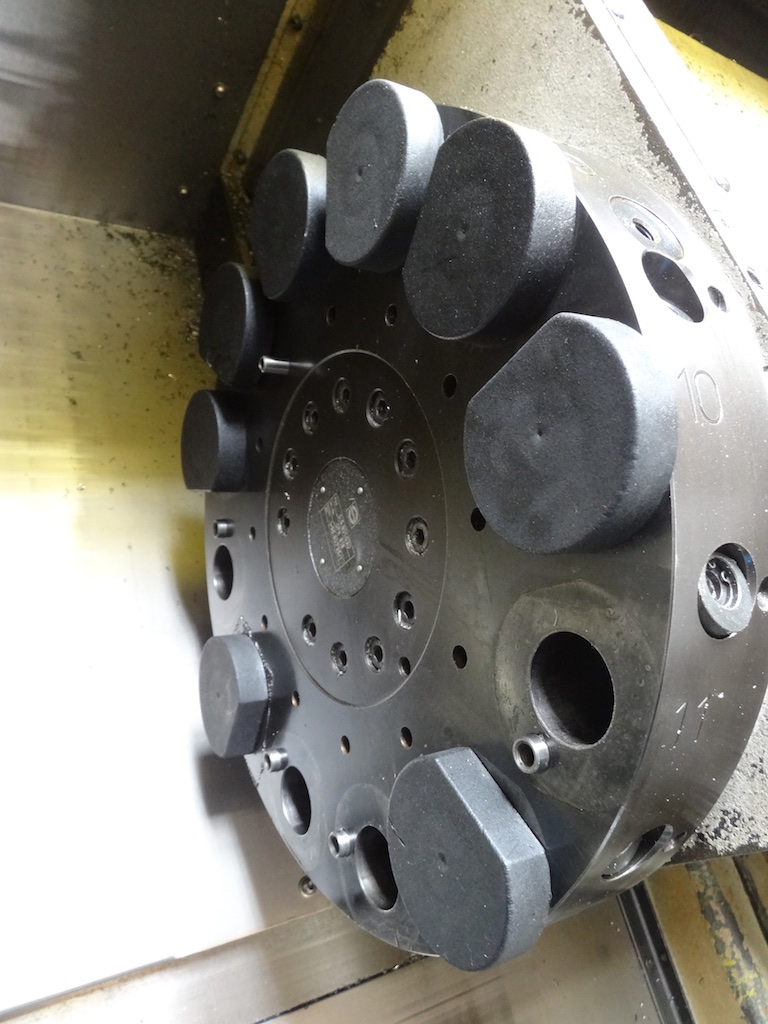

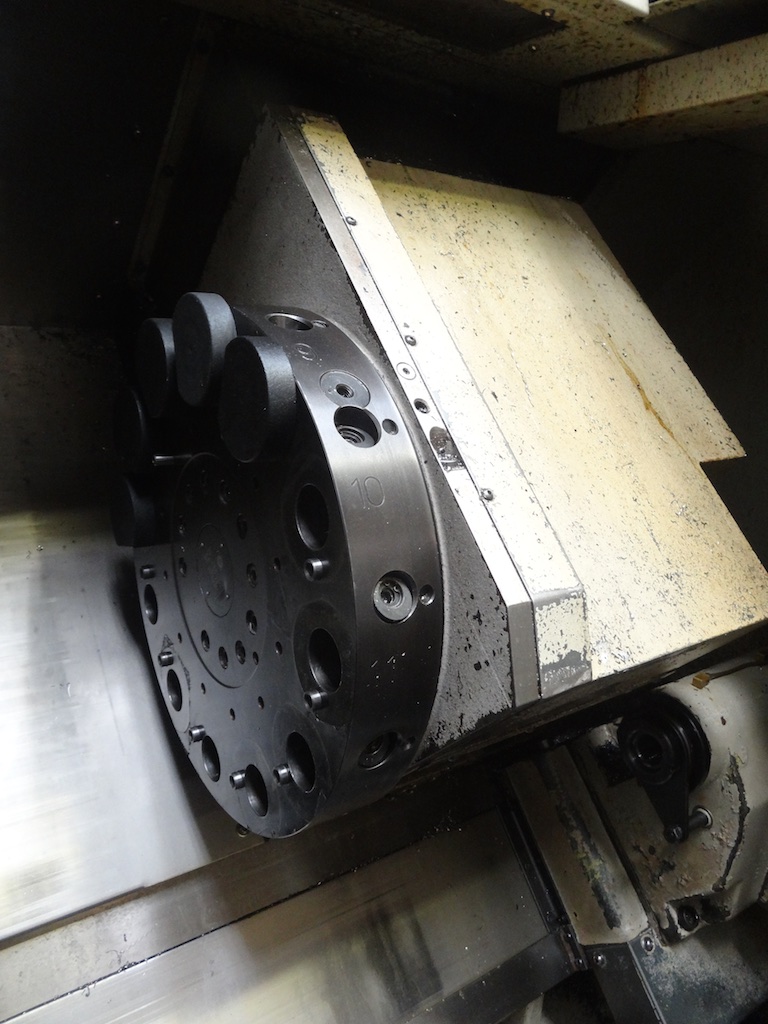

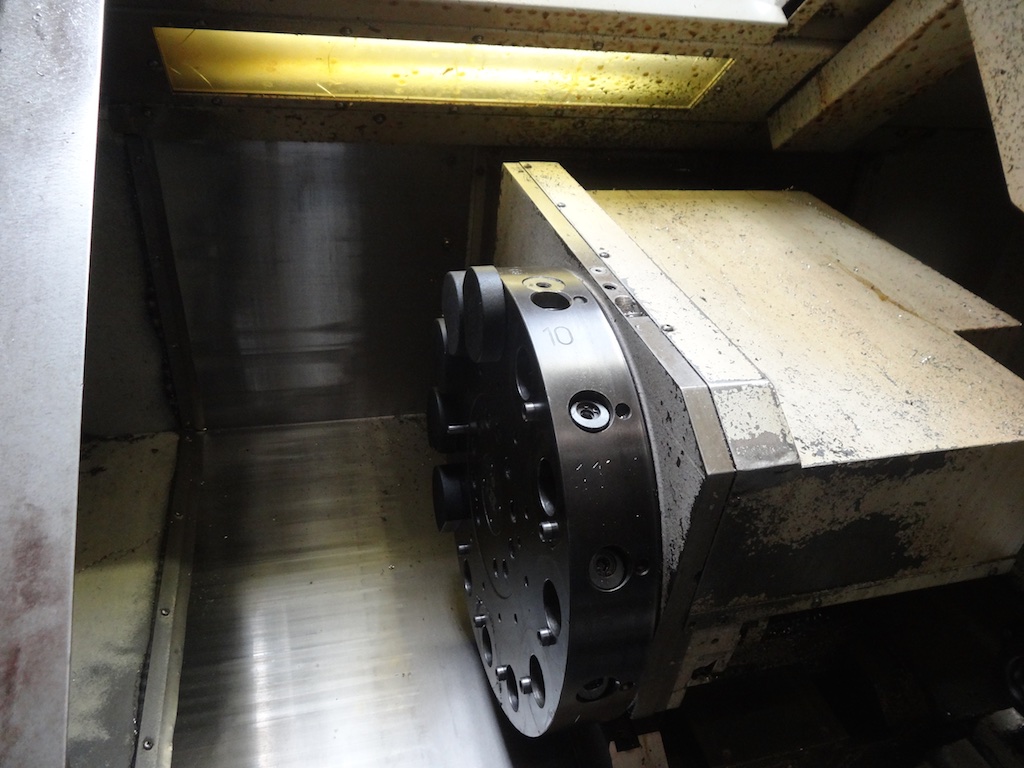

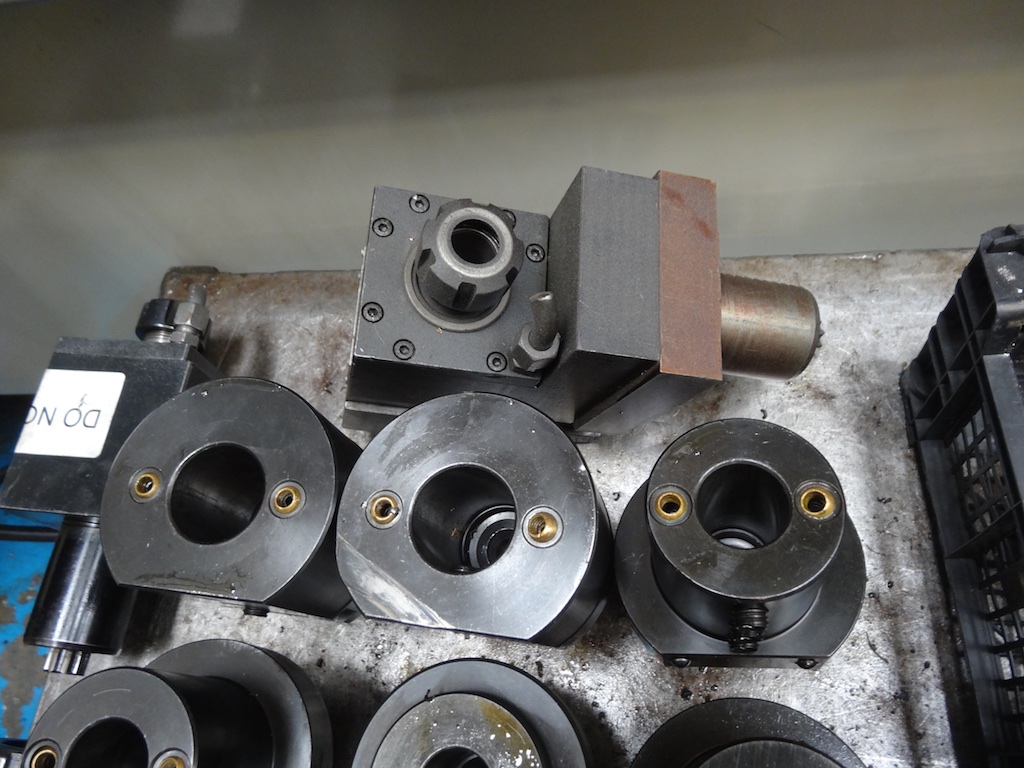

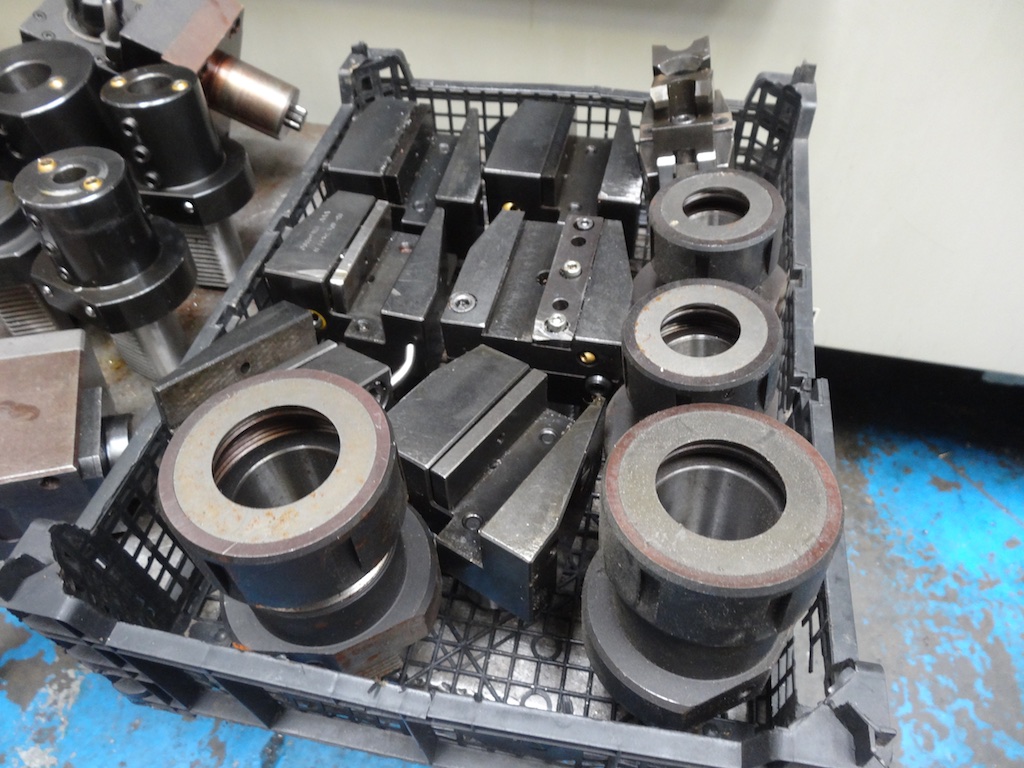

Number of Turret Positions 12 Positions

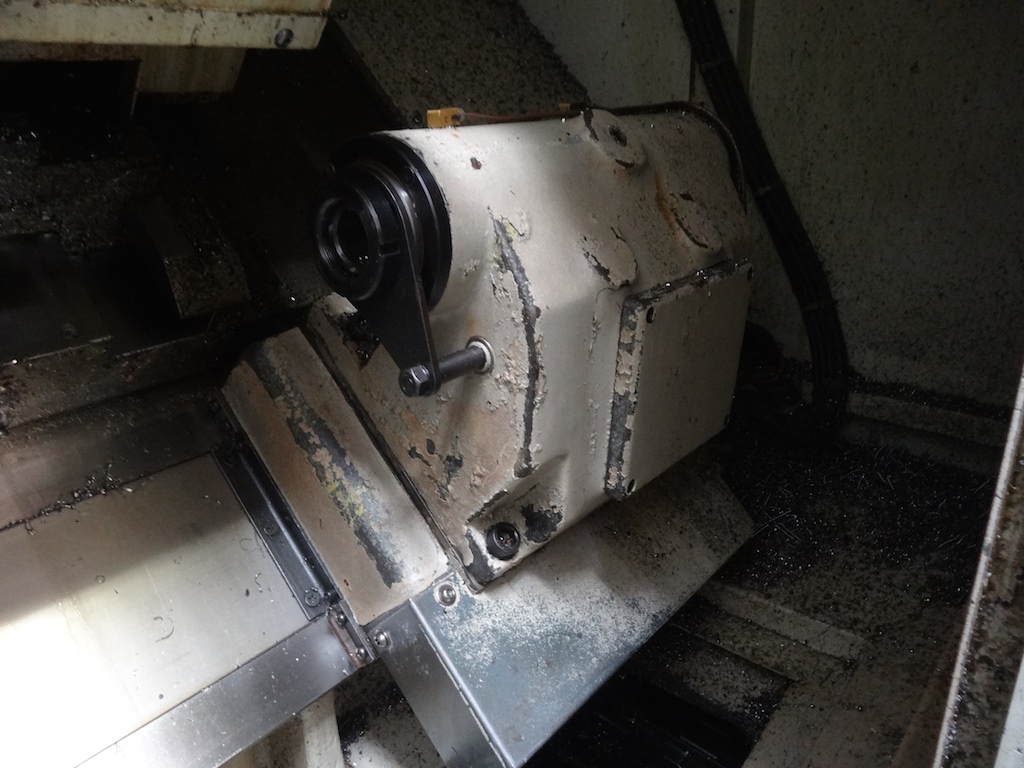

Tailstock

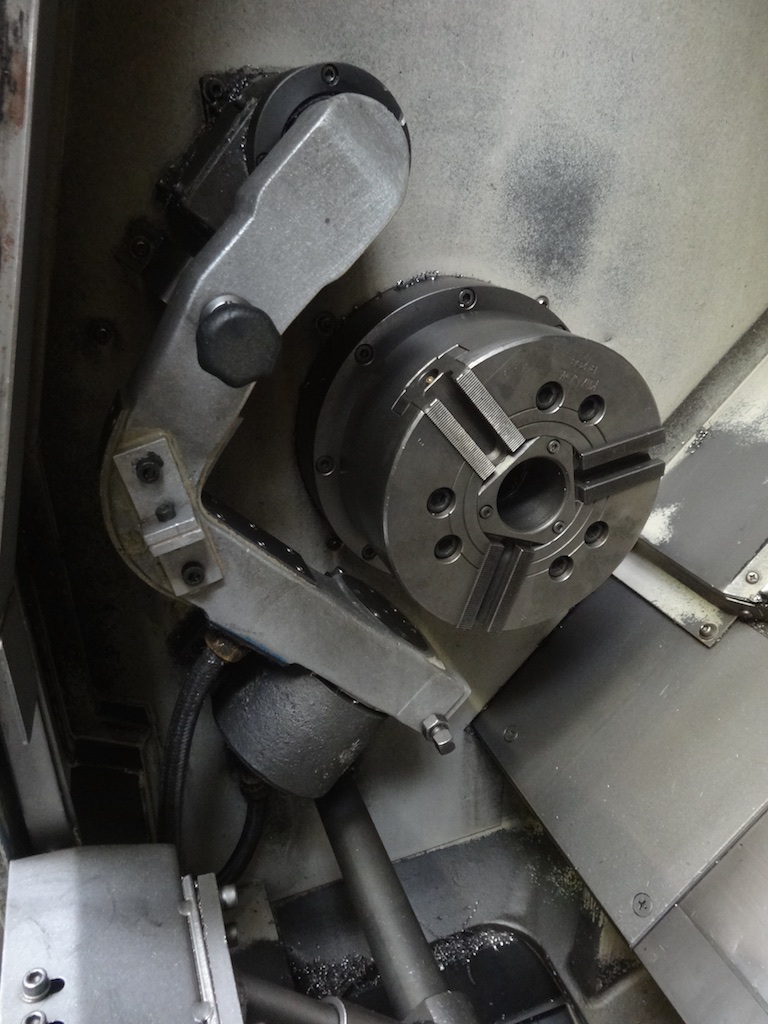

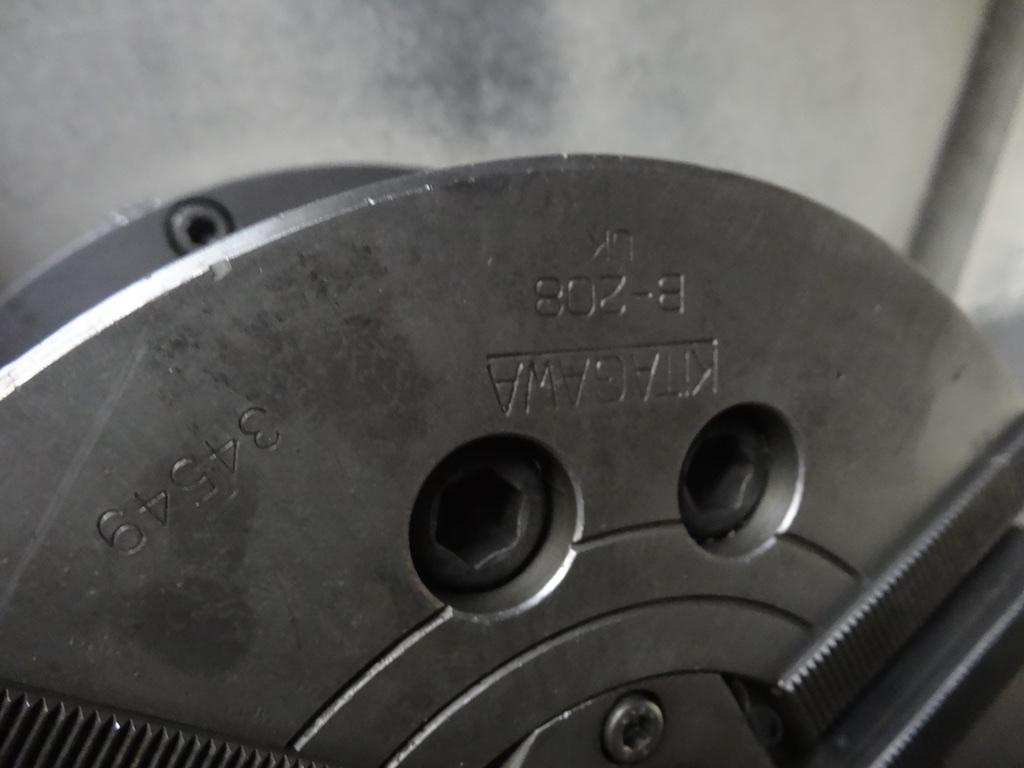

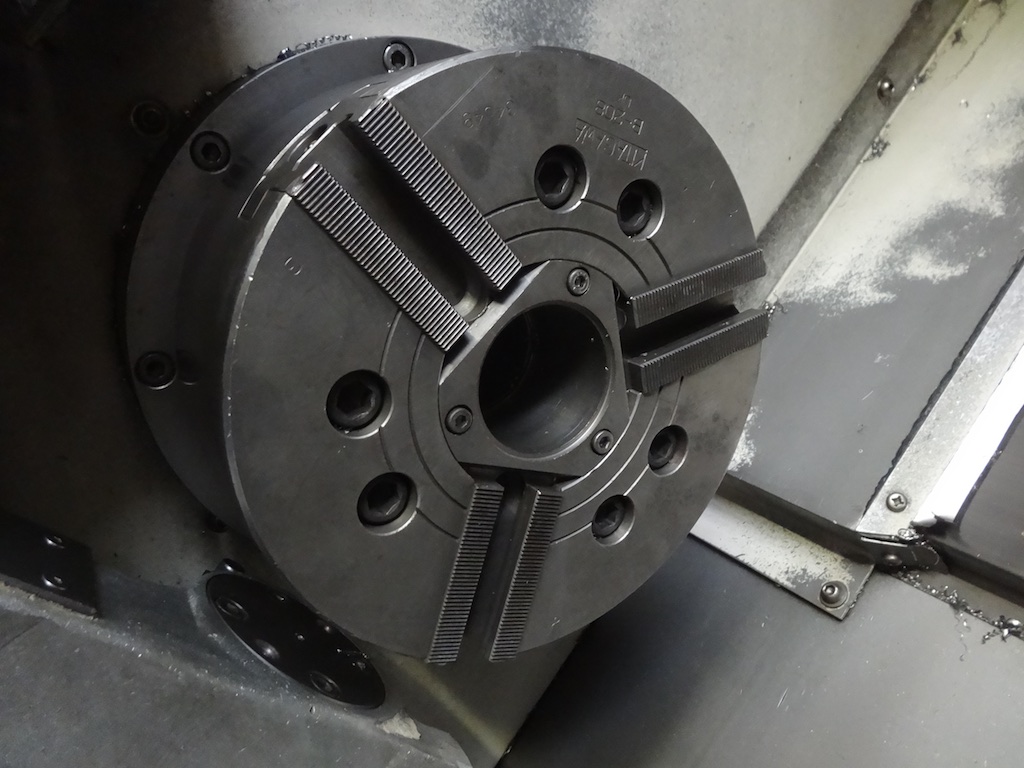

Kitagawa b-208 Chuck

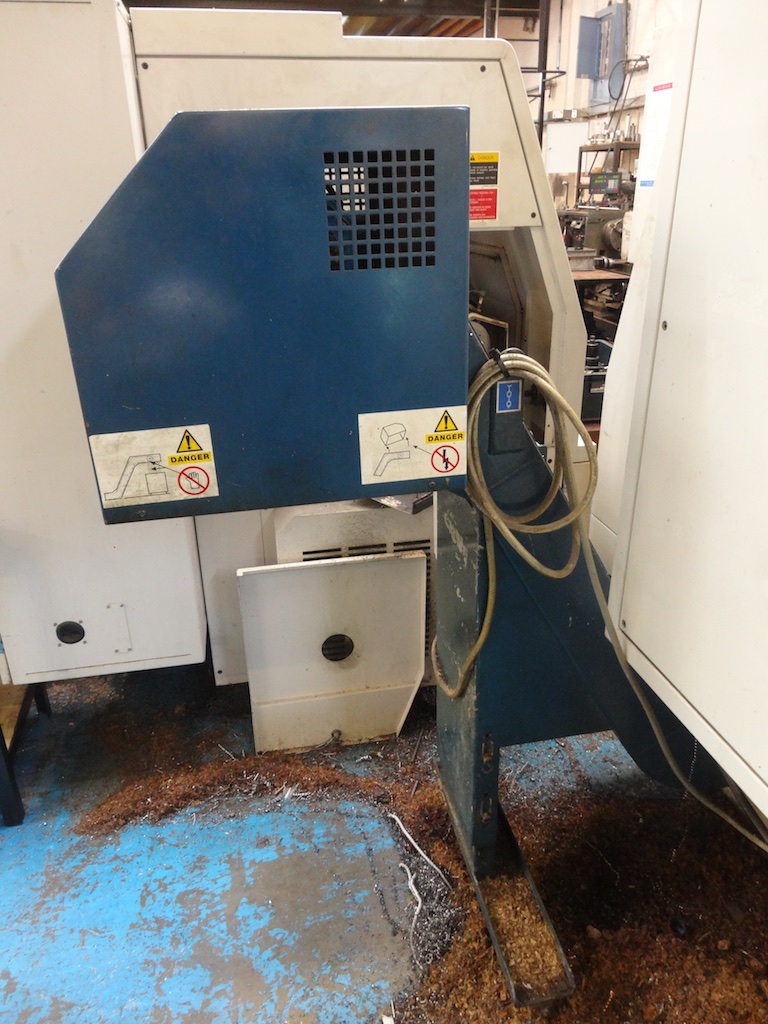

Swarf conveyor

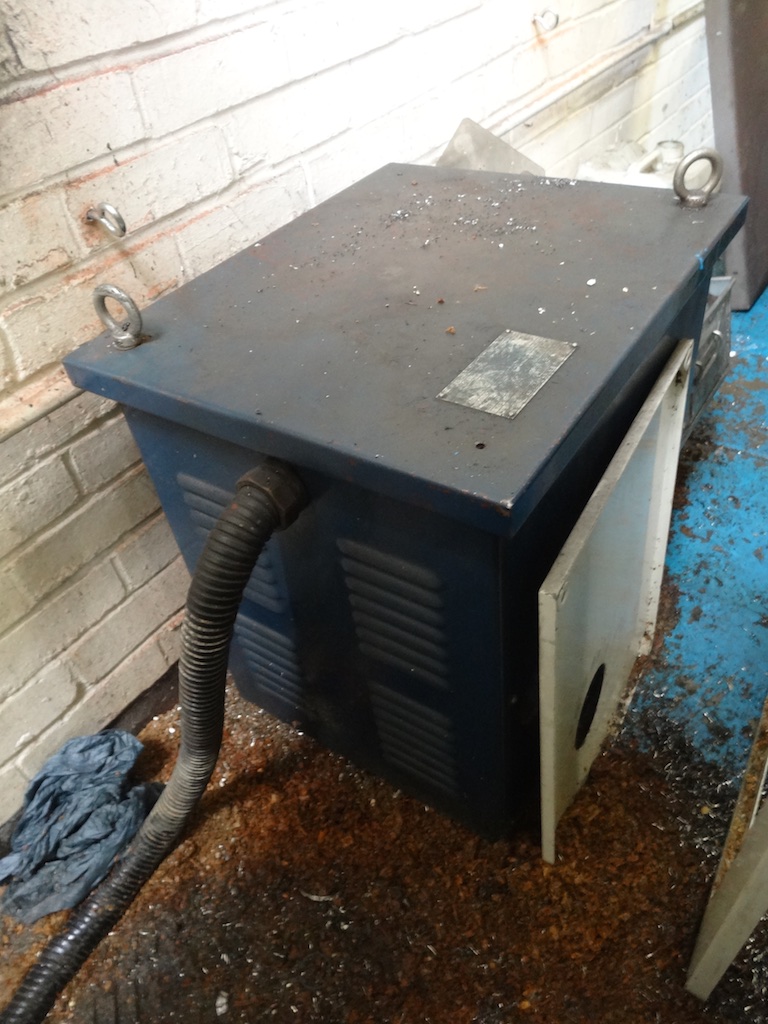

Transformer
Dimensions: 3000 x 1800 x 1800mm tall
Weight: Est. 5000kg
Location: Oxon UK
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
