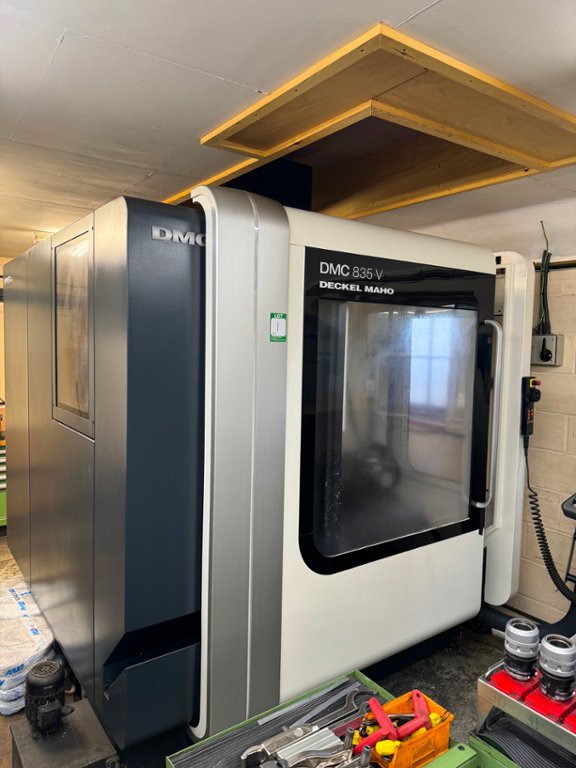

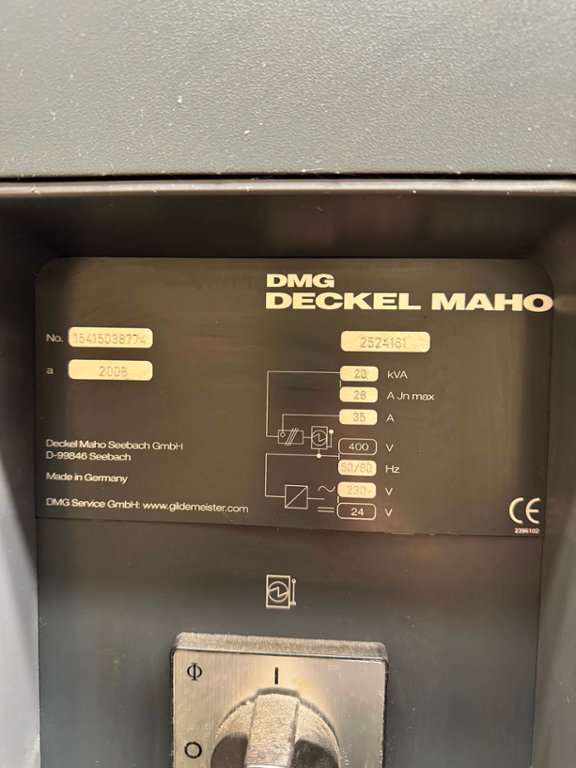

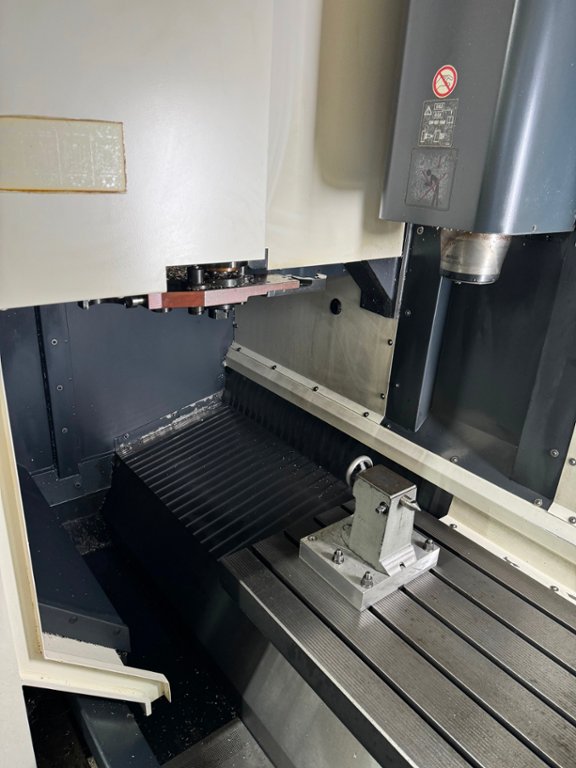

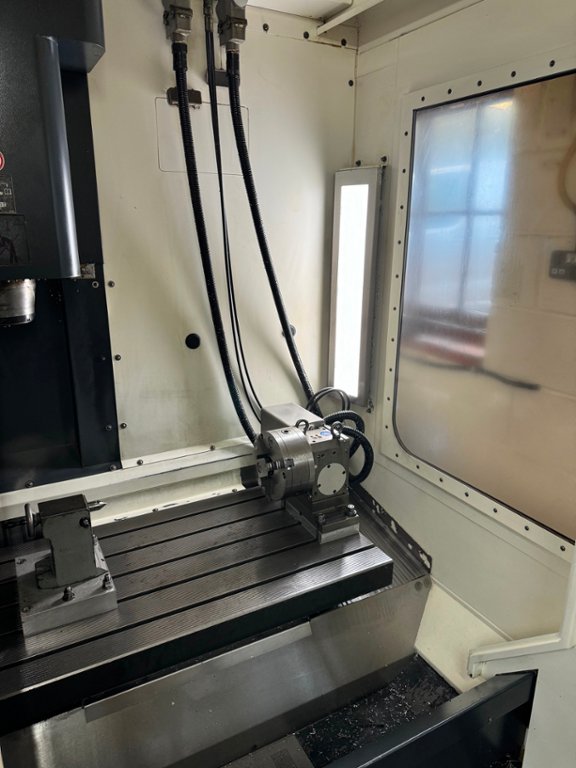

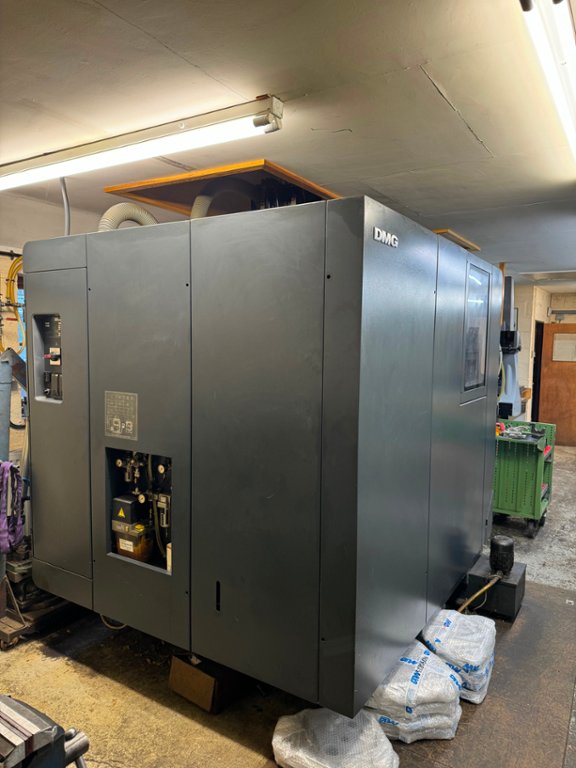

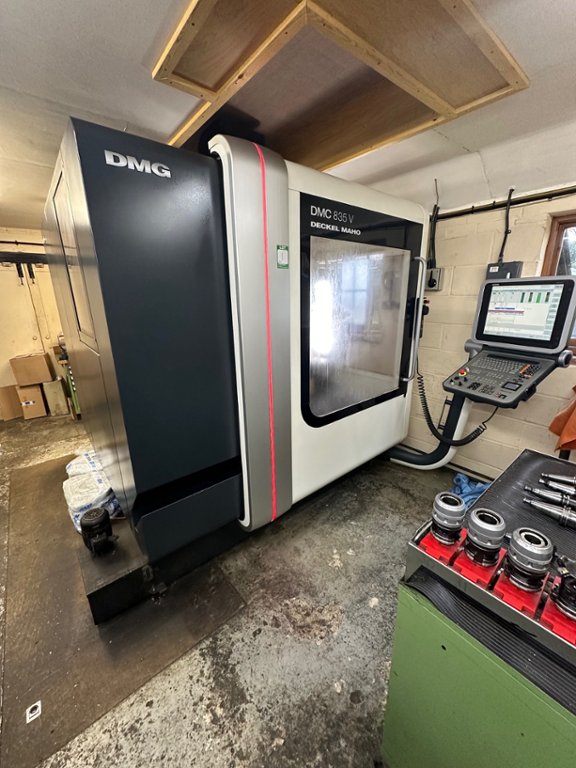

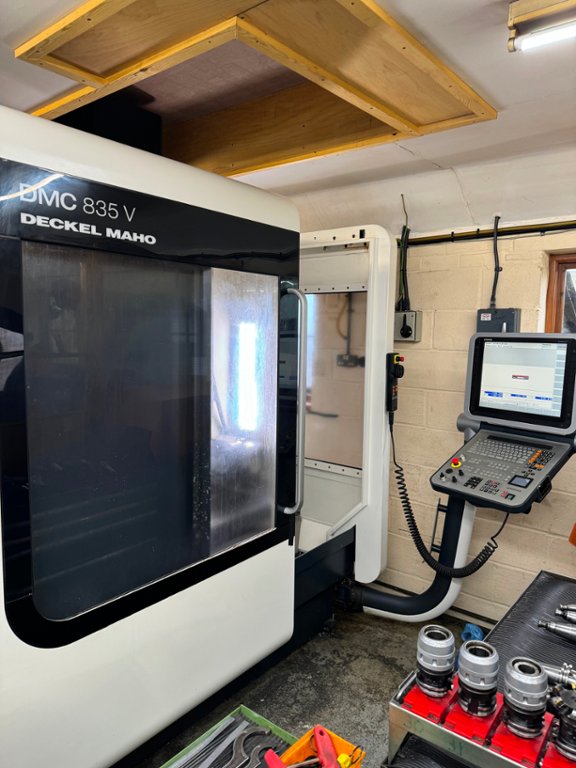

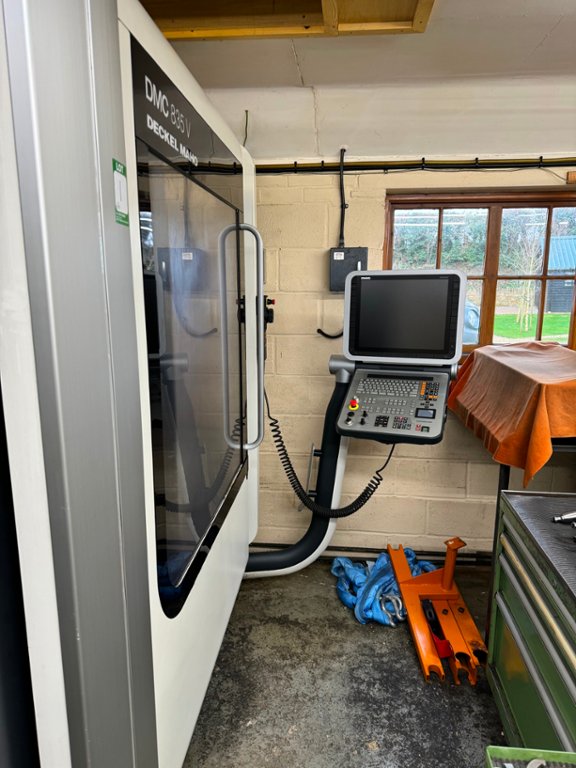

Deckel Maho DMC 835V CNC Vertical Machining Centre (2008)

Lot 1 - Deckel Maho DMC 835V CNC Vertical Machining Centre (2008)

Description:

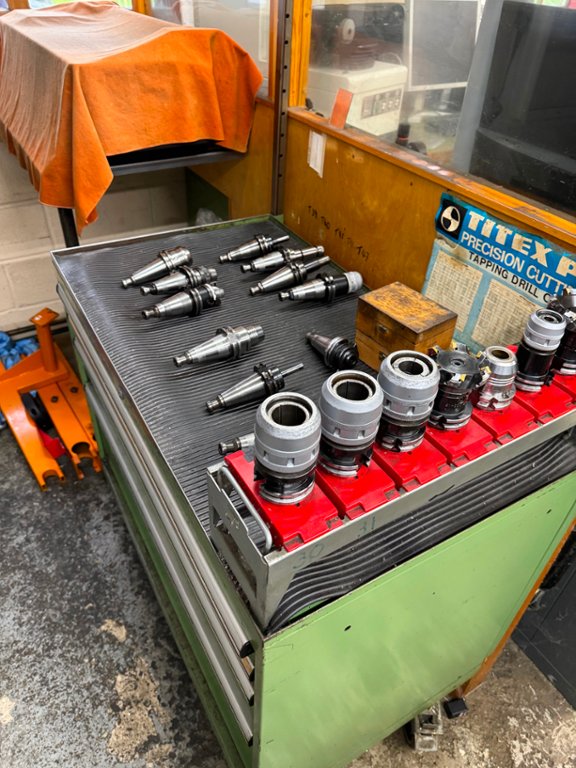

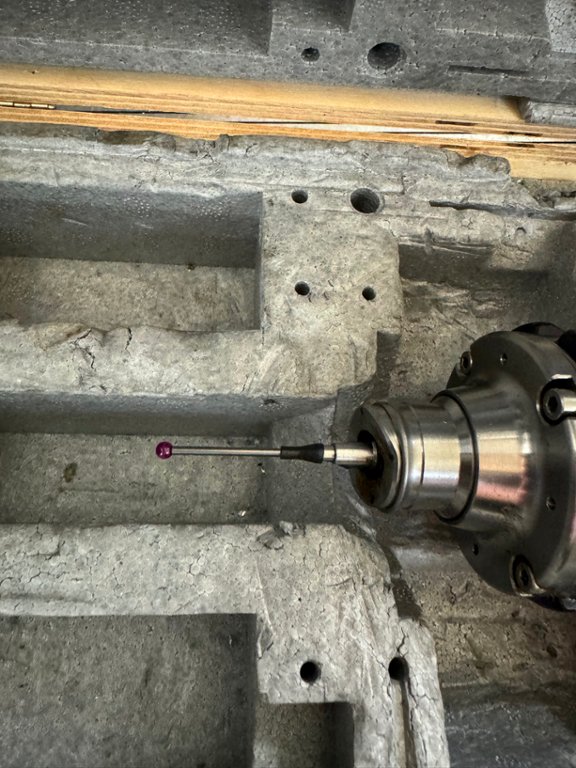

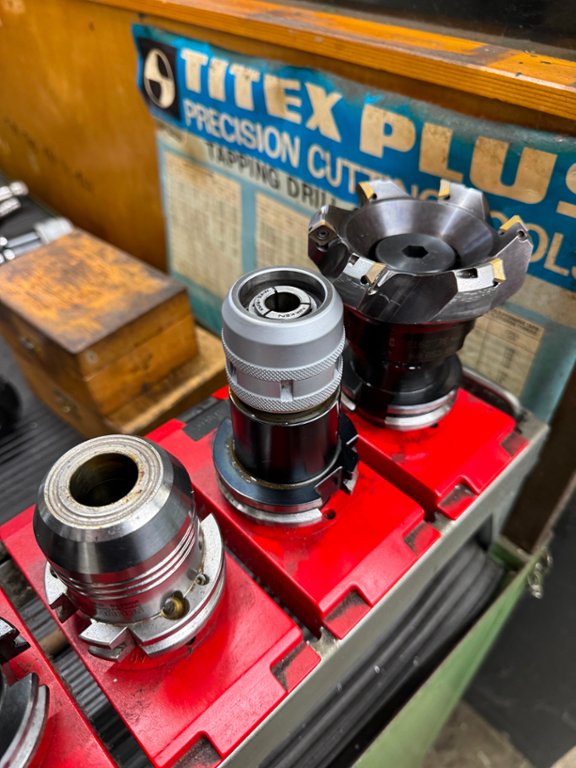

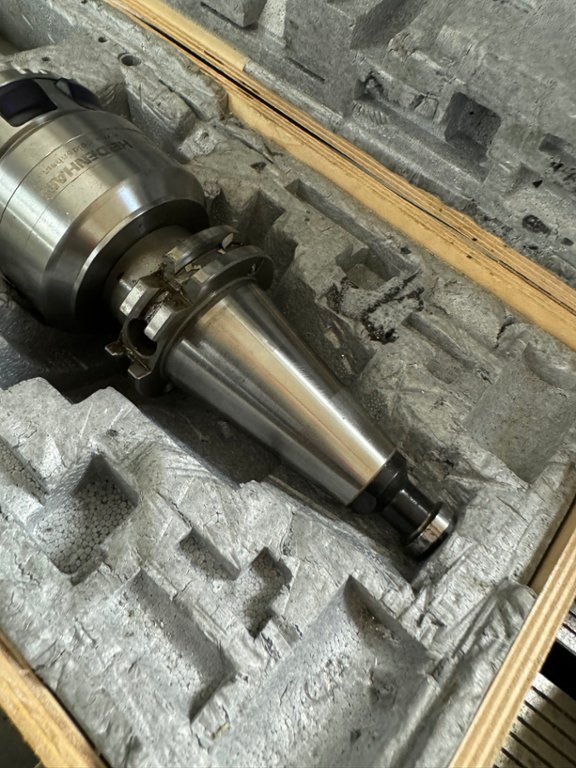

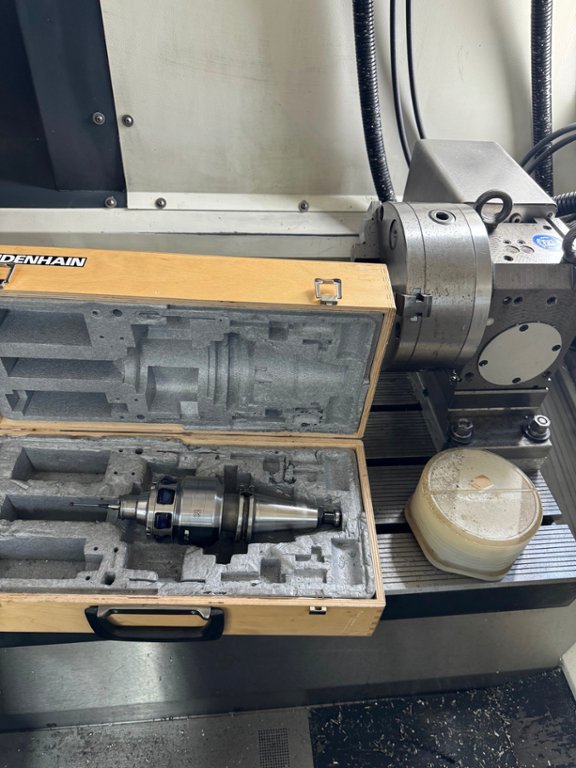

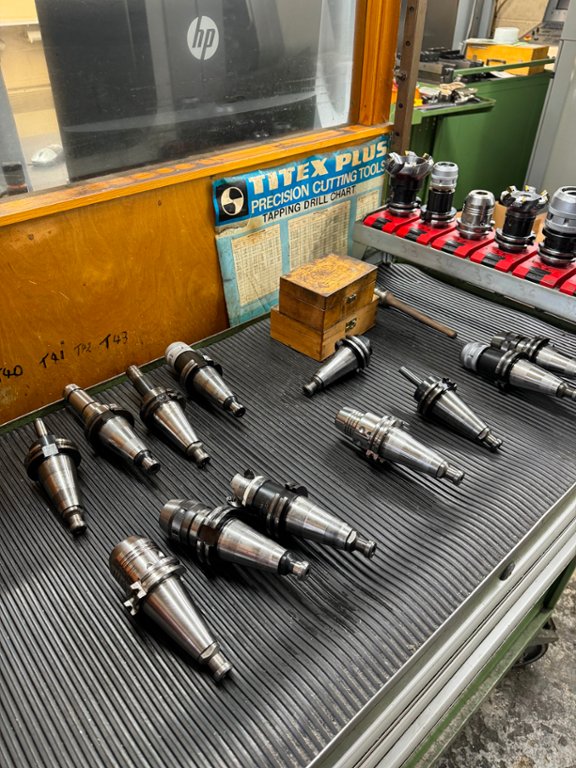

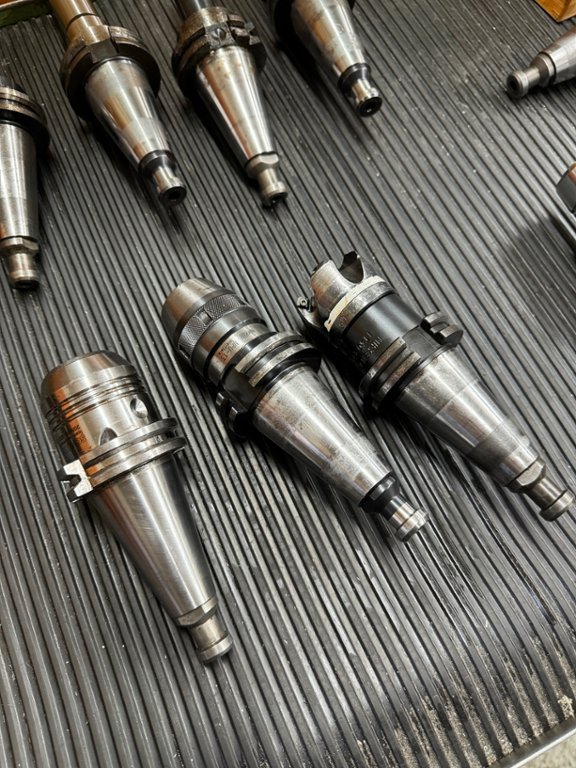

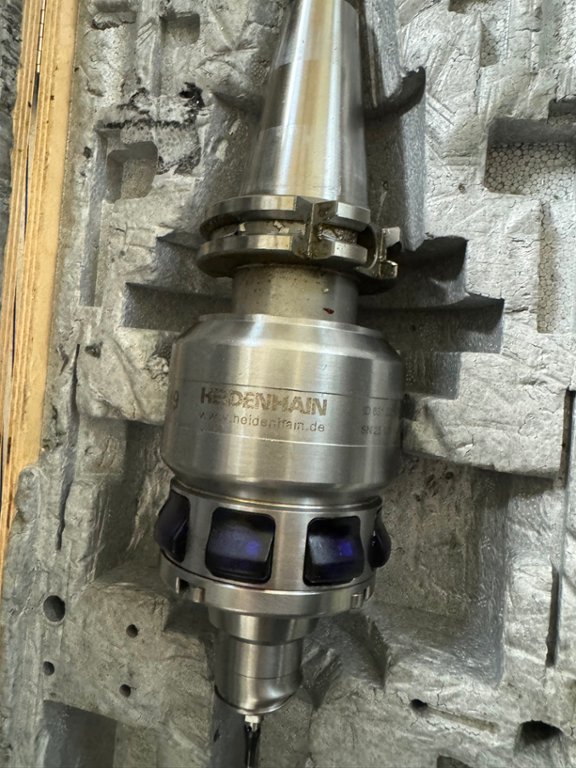

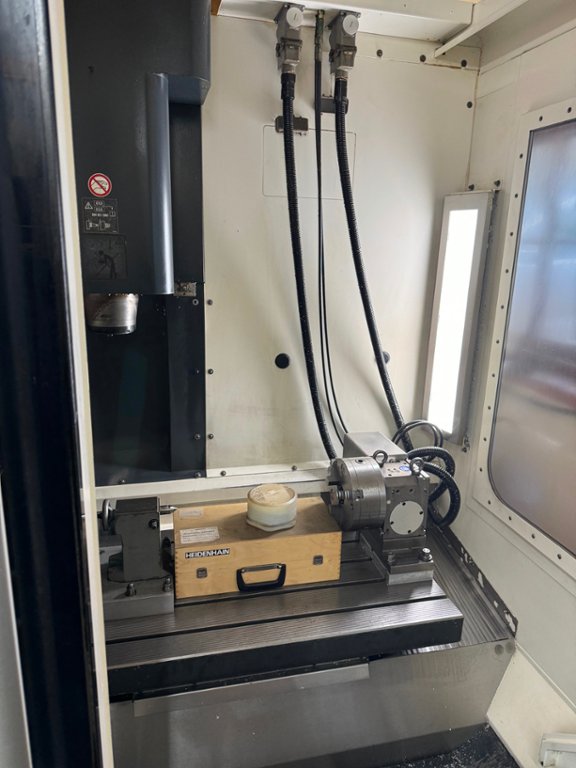

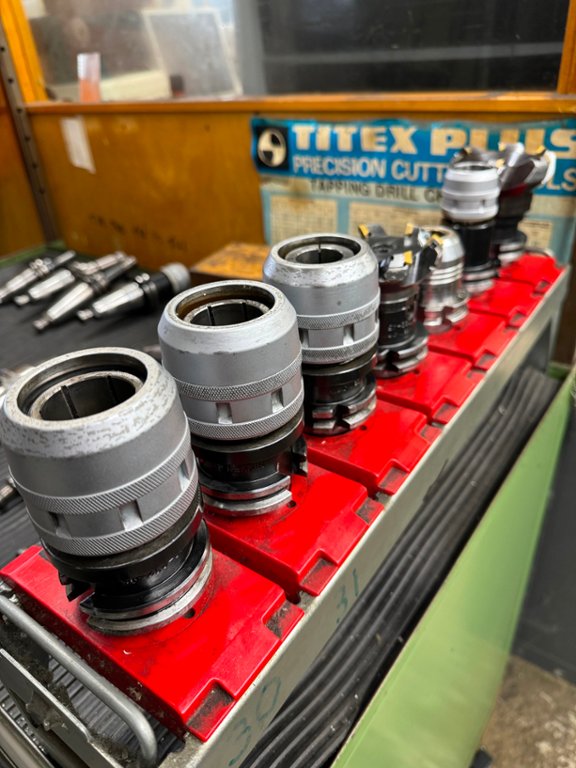

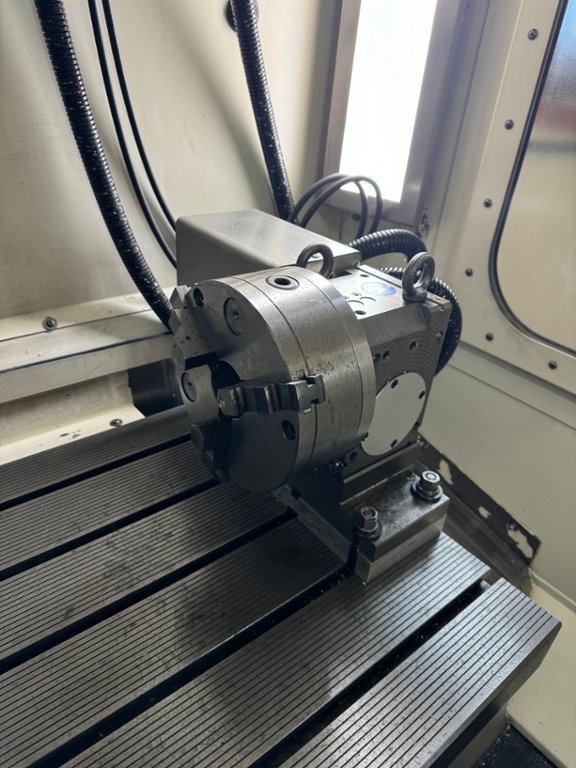

Comes with 8" Chuck, Heidenhain probe and a selection of tooling

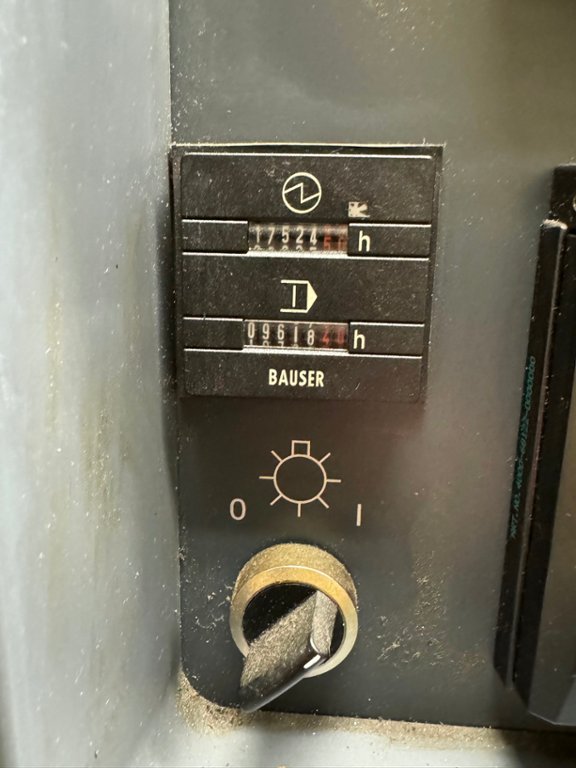

working hours 9618

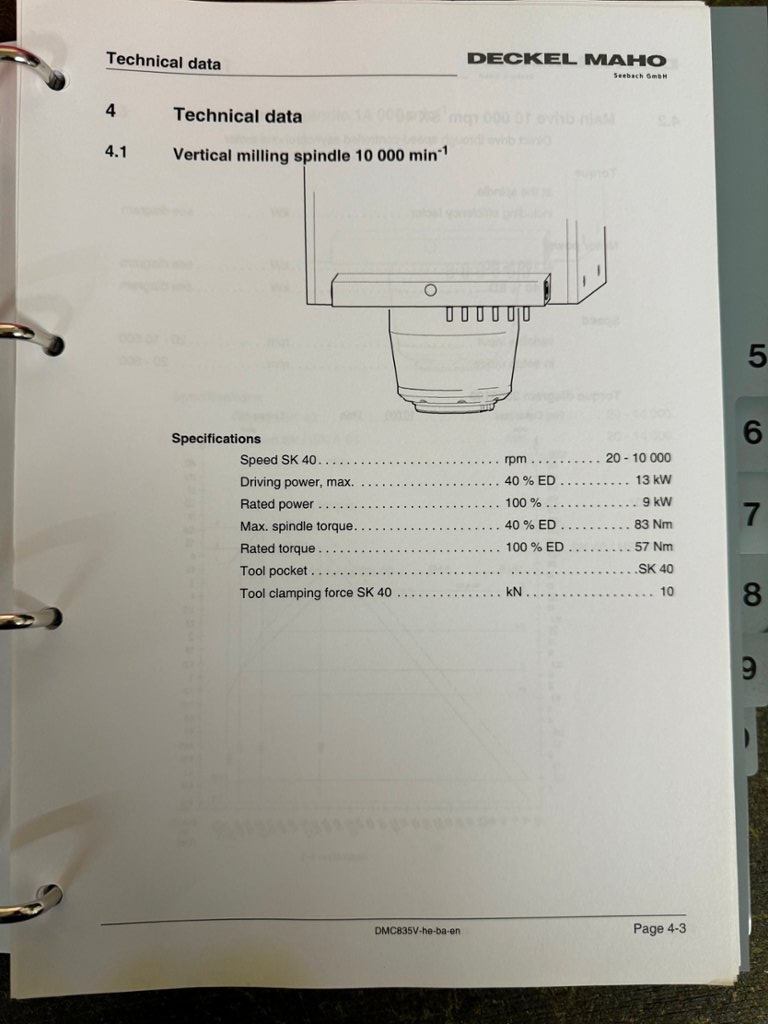

Vertical Milling Spindle 10,000 min -1

Speed SK40 - 20-10000 RPM, Driving Power max - 40% ED 13kW, Rated Power - 100% 9kW, Max Spindle Torque - 40%ED 83Nm, Rated Torque - 100%ED 57 Nm, Tool Pocket - SK40, Tool Clamping Force SK 40 - 10 kN

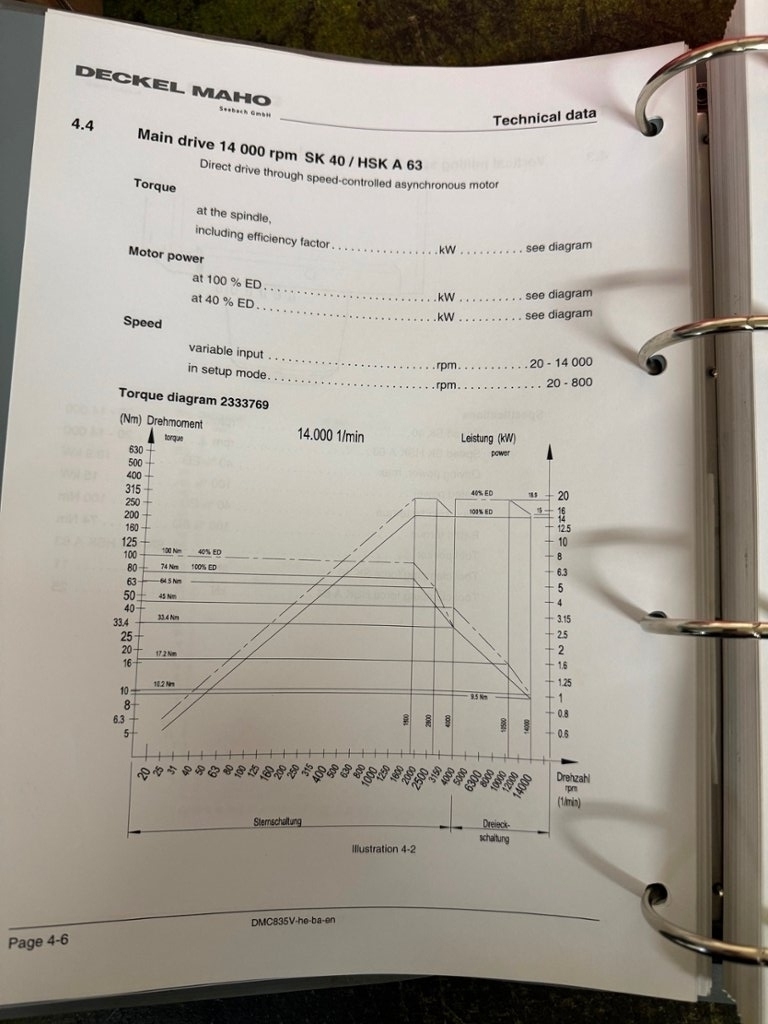

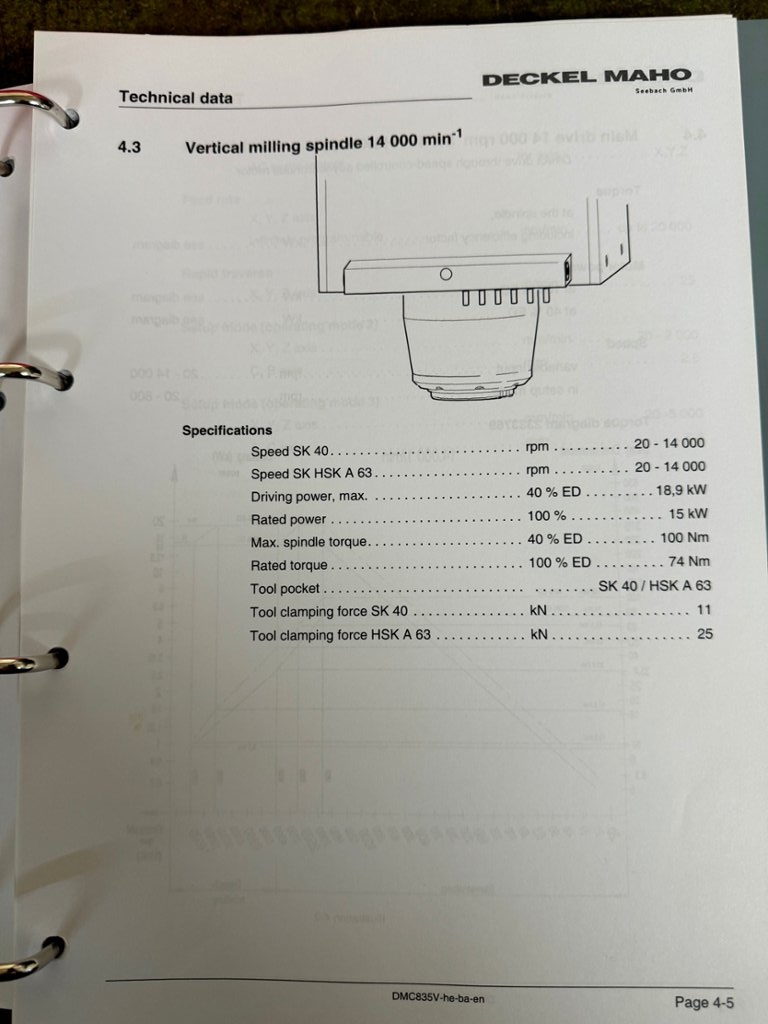

Vertical Milling Spindle 14,000 min -1

Speed SK40 - 20-14000 RPM, Speed SK HSK A 63 - 20-14000 RPM, Driving Power max - 40% ED 18.9kW, Rated Power - 100% 15kW, Max Spindle Torque - 40%ED 100Nm, Rated Torque - 100%ED 74 Nm, Tool Pocket - SK40/HSK A 63, Tool Clamping Force SK 40 - 11 kN, Tool Clamping Force HSK A 63 - 25kN

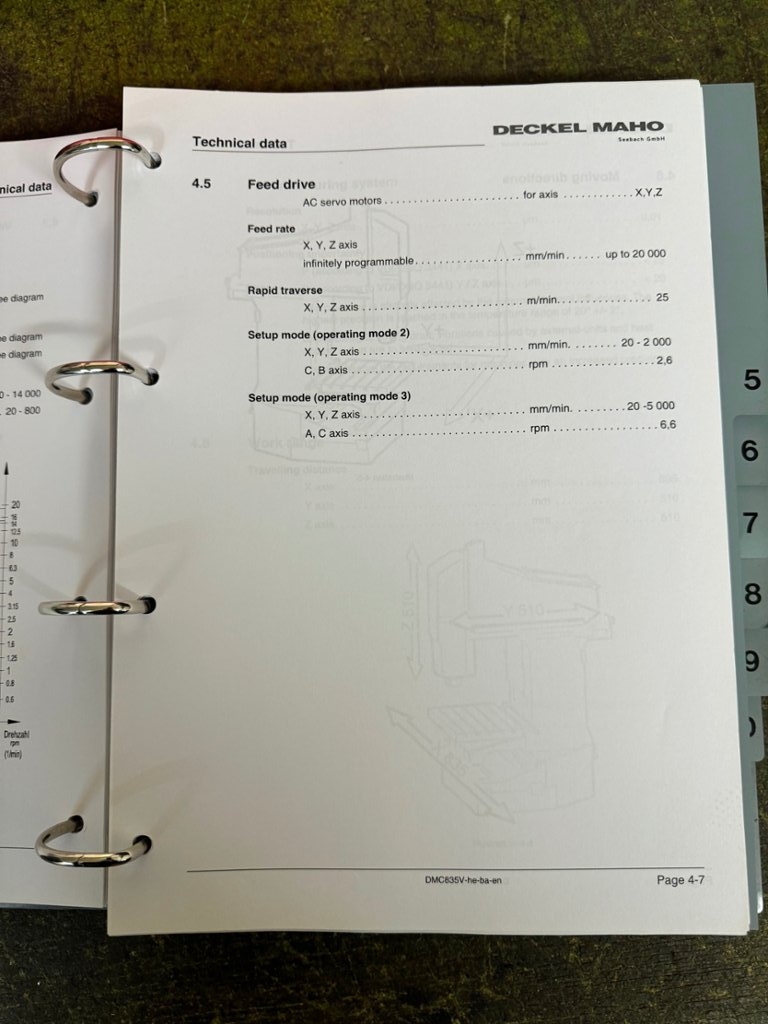

Feed Drive

AC Servo Motors - for axis X, Y, Z

Feed Rate

X, Y, Z Axis

Infinitely programmable - upto 20000 mm/min

Rapid Traverse

X, Y, Z Axis - 25 mm/min

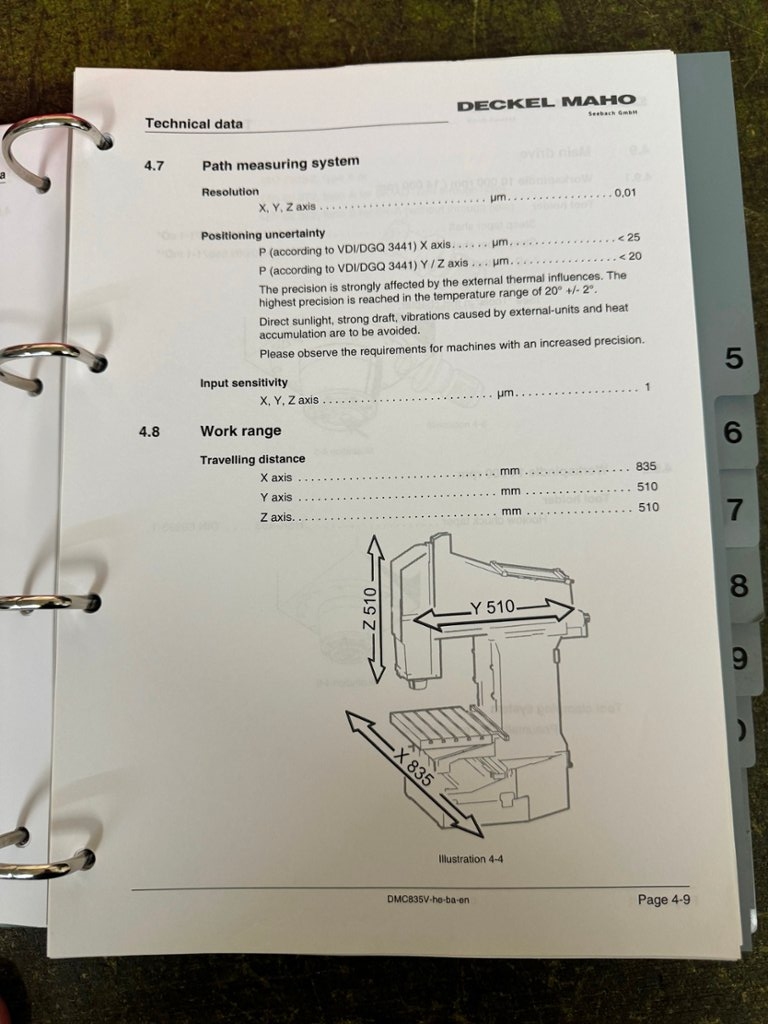

Work Range

Travelling Distance

X Axis - 835mm, Y Axis - 510mm, Z Axis - 510mm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
