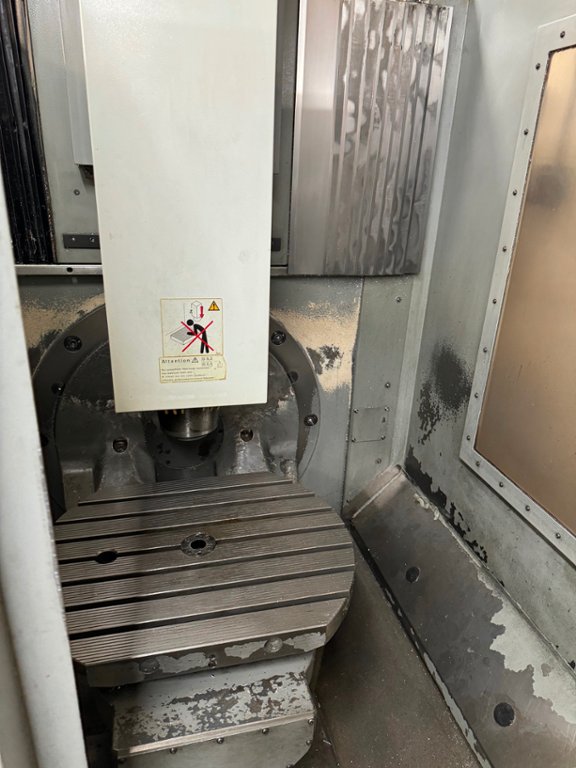

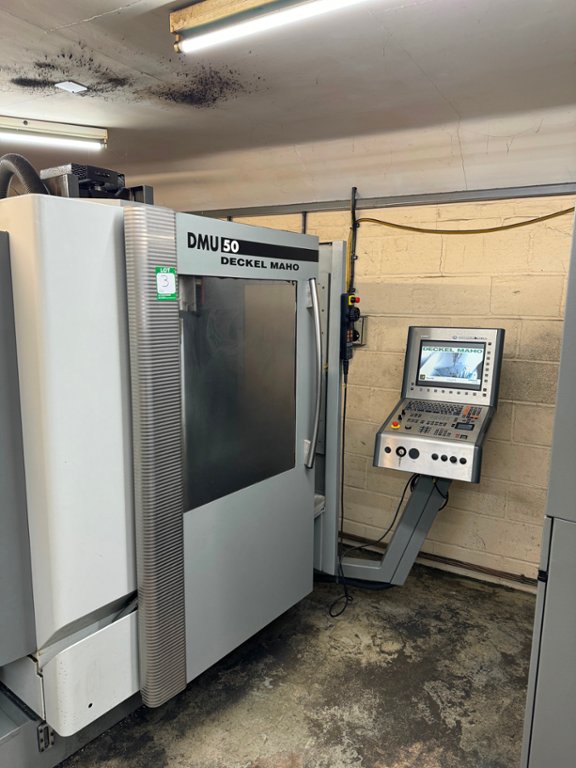

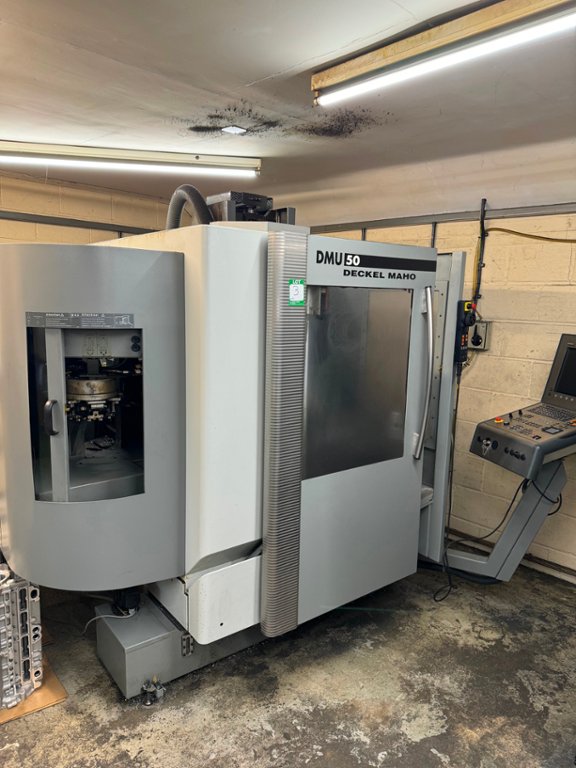

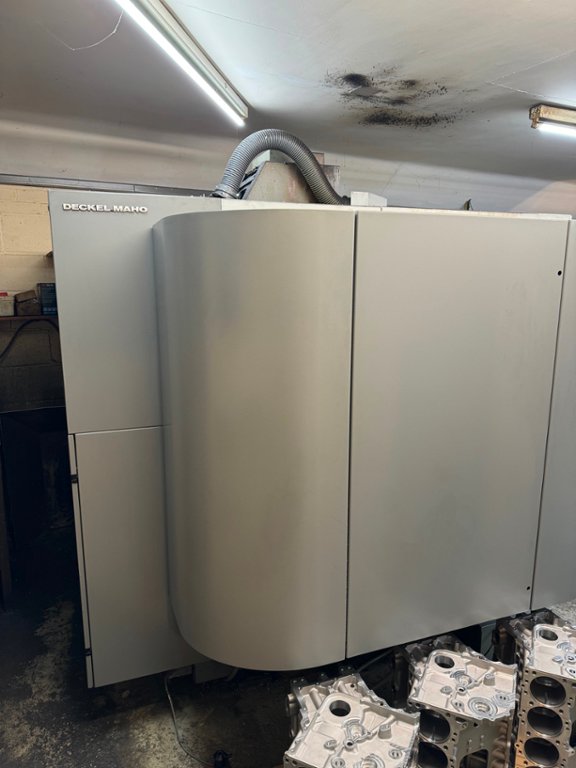

Deckel Maho DMU 50 CNC Vertical Machining Centre (2007)

Lot 3 - Deckel Maho DMU 50 CNC Vertical Machining Centre (2007)

Description:

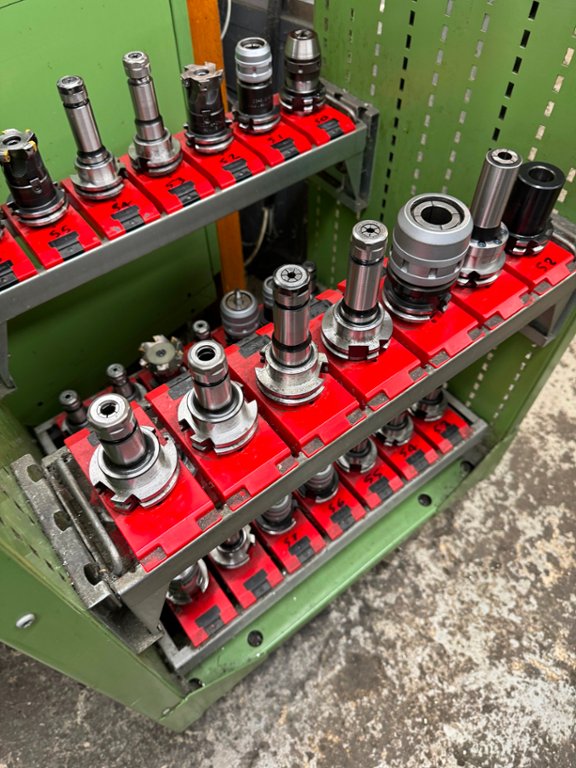

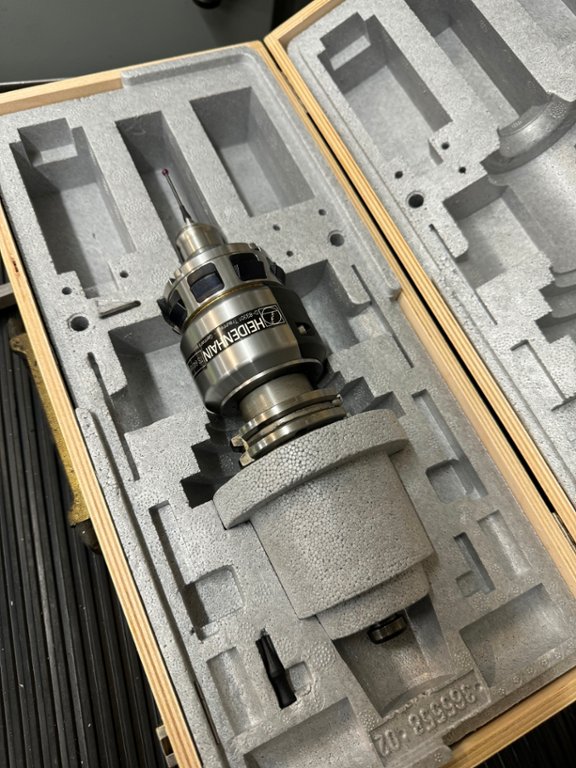

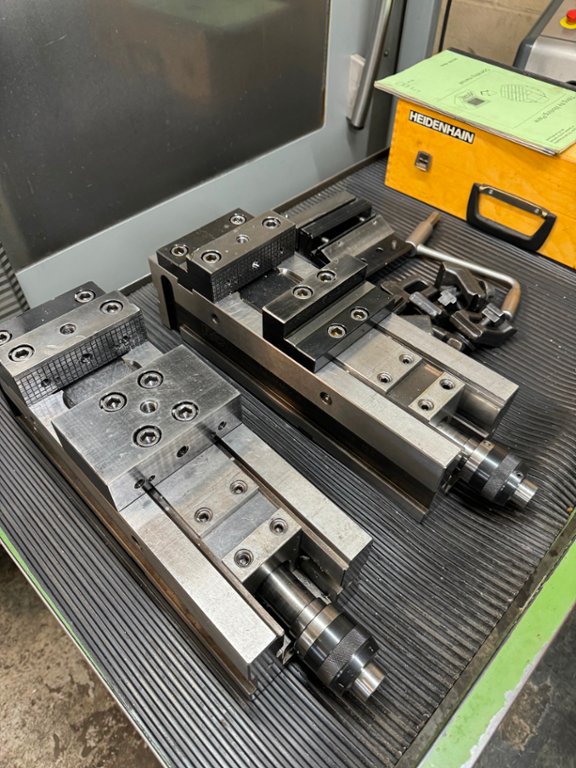

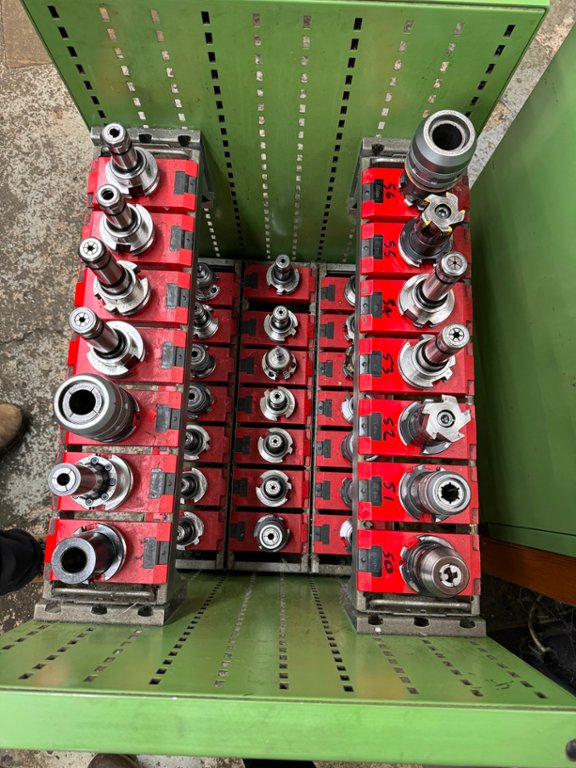

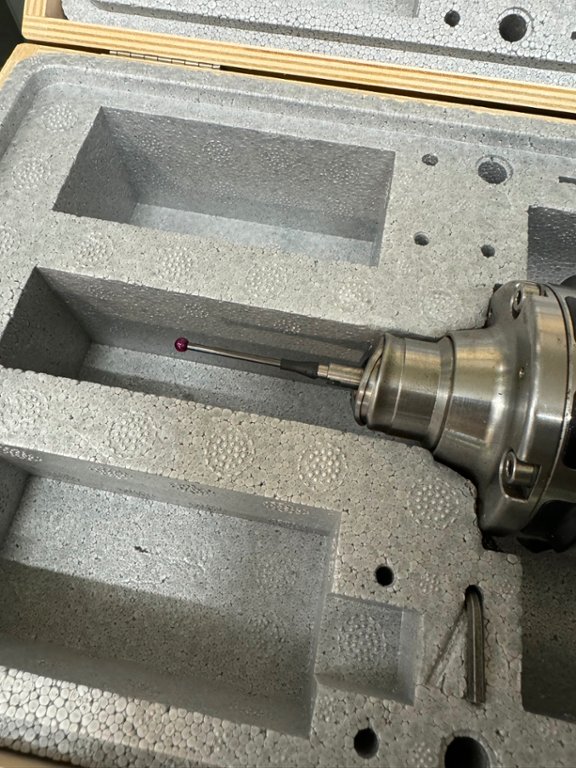

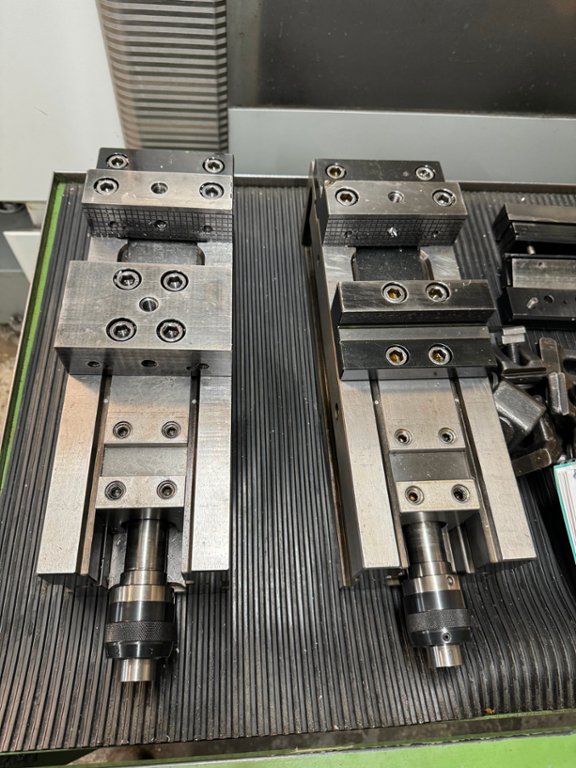

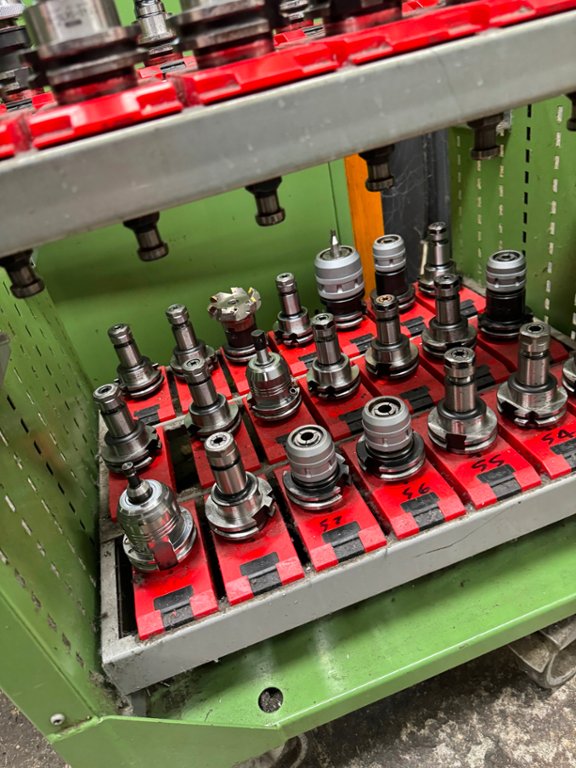

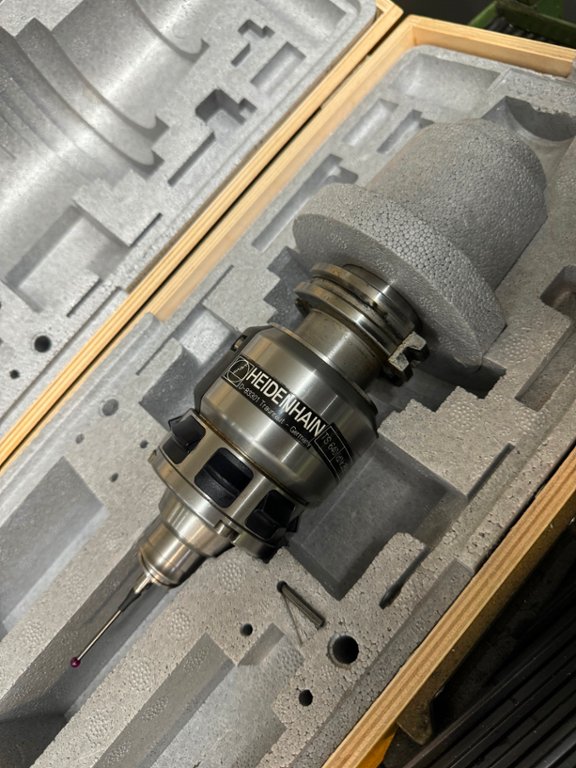

Comes with 2 x 5" Vices & jaws, Heidenhain Probe and a selection of tooling

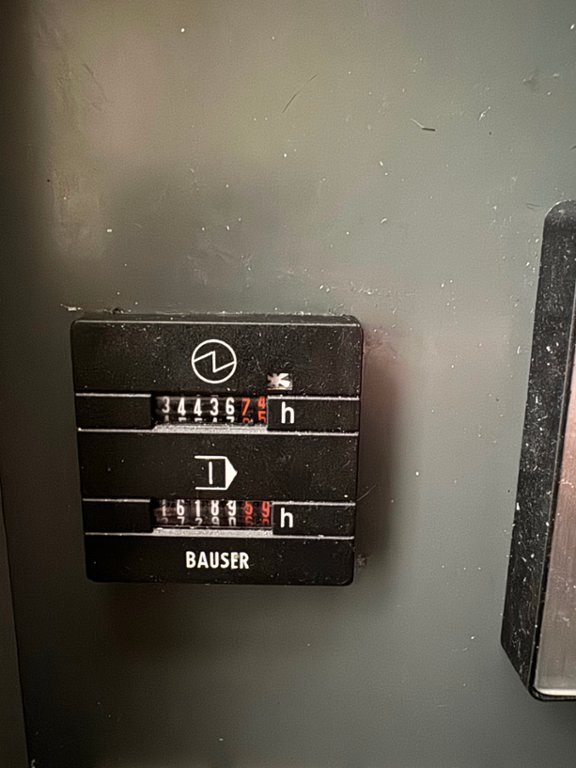

Working Hours 16189

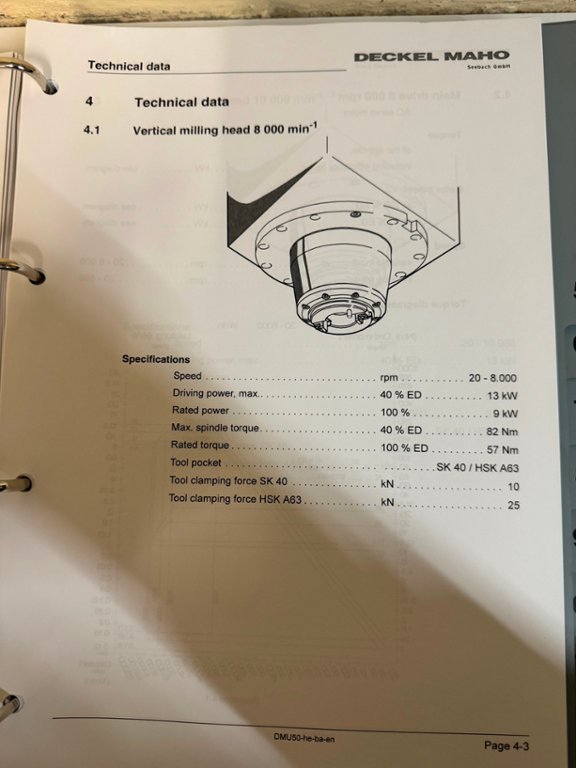

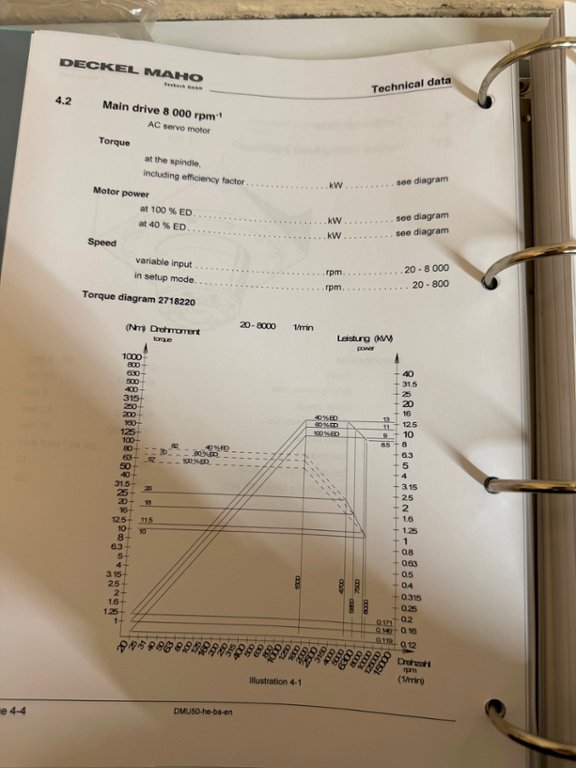

Vertical Milling Head 8,000 min -1

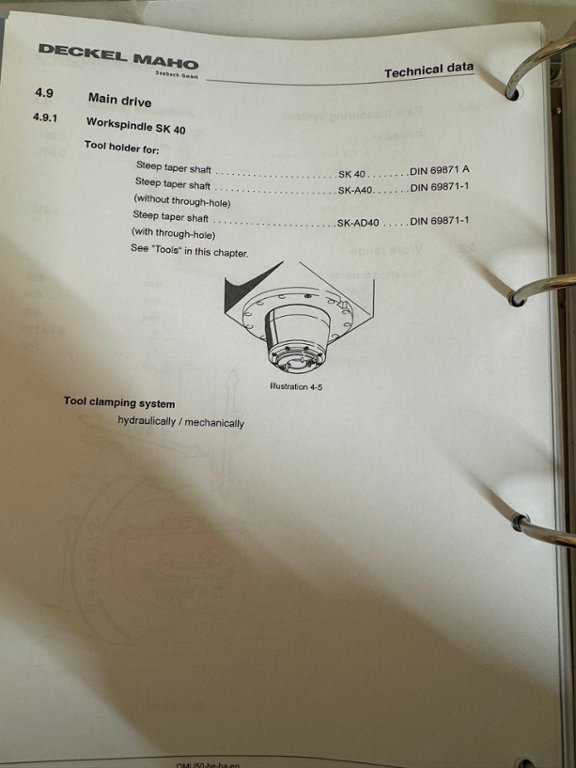

Speed - 20-8000 RPM, Driving Power max - 40% ED 13kW, Rated Power - 100% 9kW, Max Spindle Torque - 40%ED 82Nm, Rated Torque - 100%ED 57 Nm, Tool Pocket - SK40/HSK A 63, Tool Clamping Force SK 40 - 10 kN, Tool Clamping Force HSK A 63 - 25kN

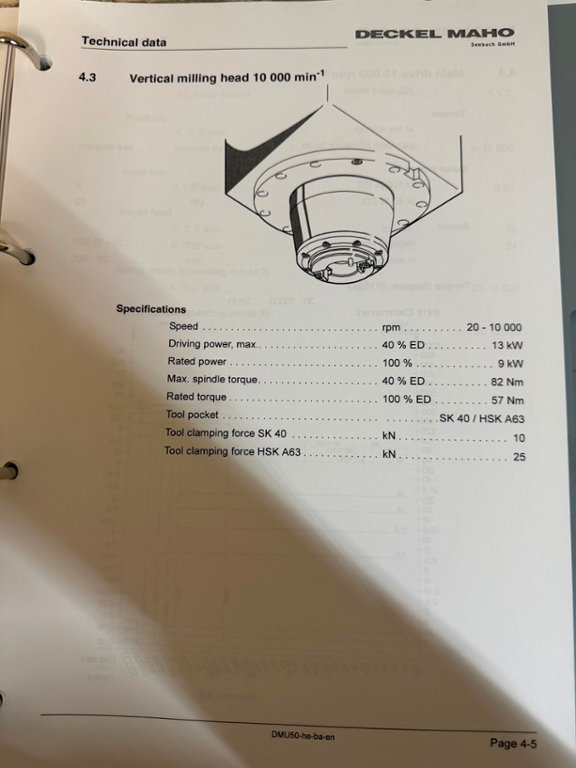

Vertical Milling Head 10,000 min -1

Speed - 20-10000 RPM, Driving Power max - 40% ED 13kW, Rated Power - 100% 9kW, Max Spindle Torque - 40%ED 82Nm, Rated Torque - 100%ED 57 Nm, Tool Pocket - SK40/HSK A 63, Tool Clamping Force SK 40 - 10 kN, Tool Clamping Force HSK A 63 - 25kN

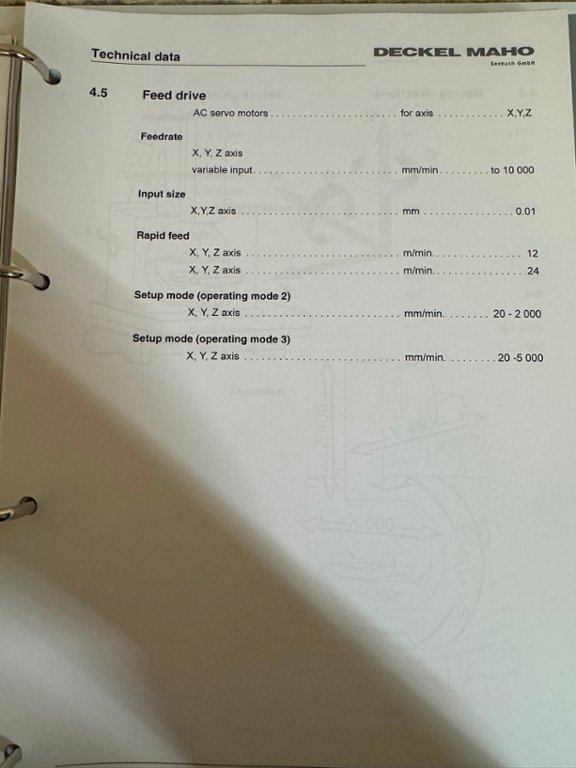

Feed Drive

AC Servo Motors - for axis X, Y, Z

Feed Rate

X, Y, Z Axis

Variable input - upto 10000 mm/min

Input Size

X, Y, Z Axis - 0.01 mm/min

Rapid Feed

X, Y, Z Axis - 12 mm/min

X, Y, Z Axis - 24 mm/min

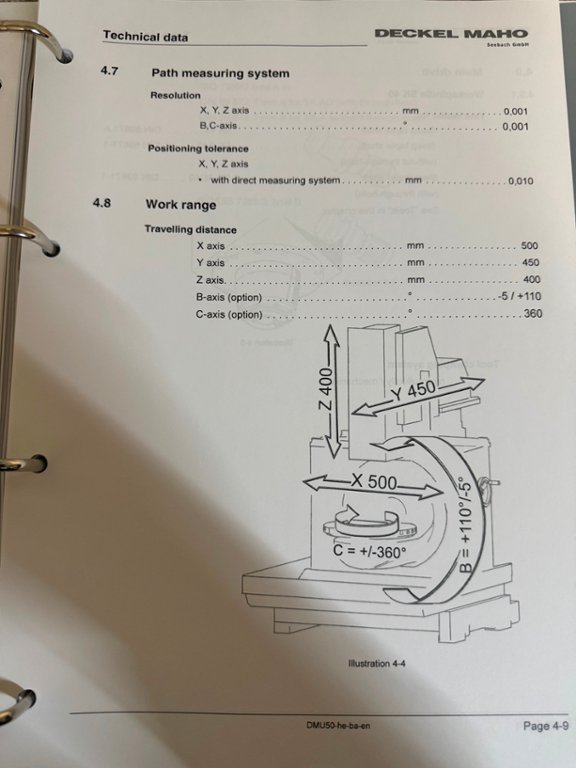

Work Range

Travelling Distance

X Axis - 500mm, Y Axis - 450mm, Z Axis - 400mm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
