Description:

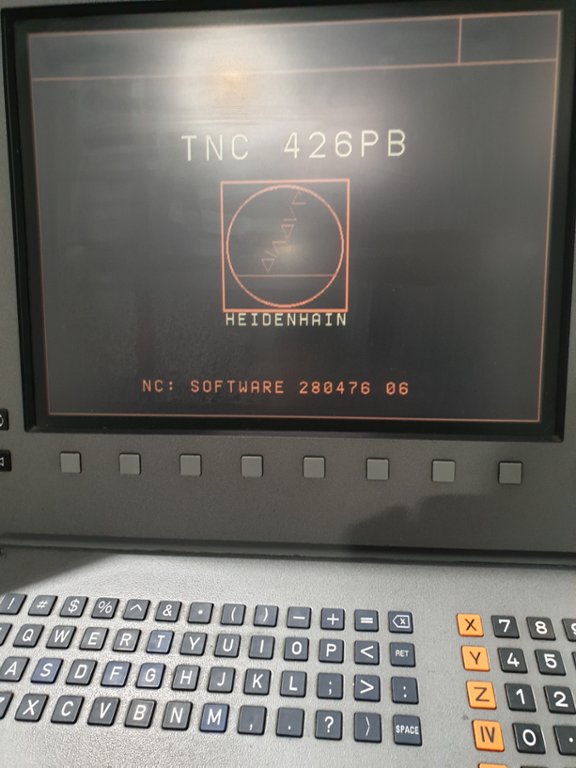

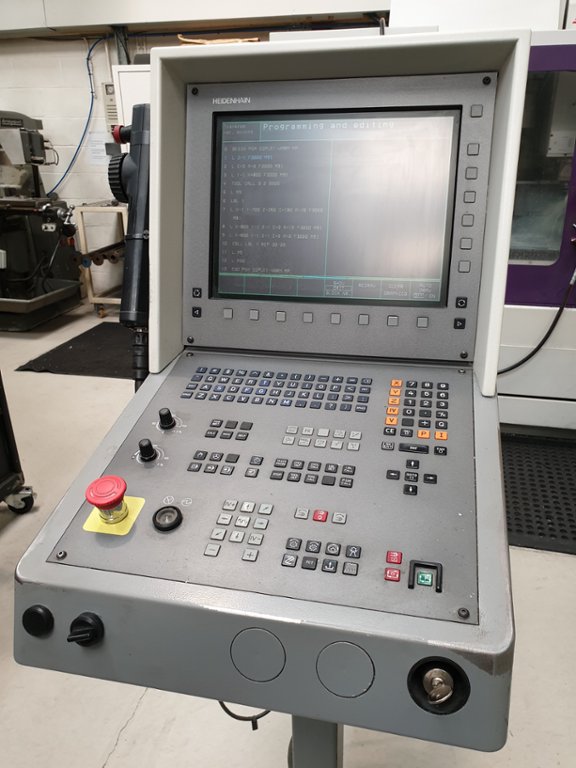

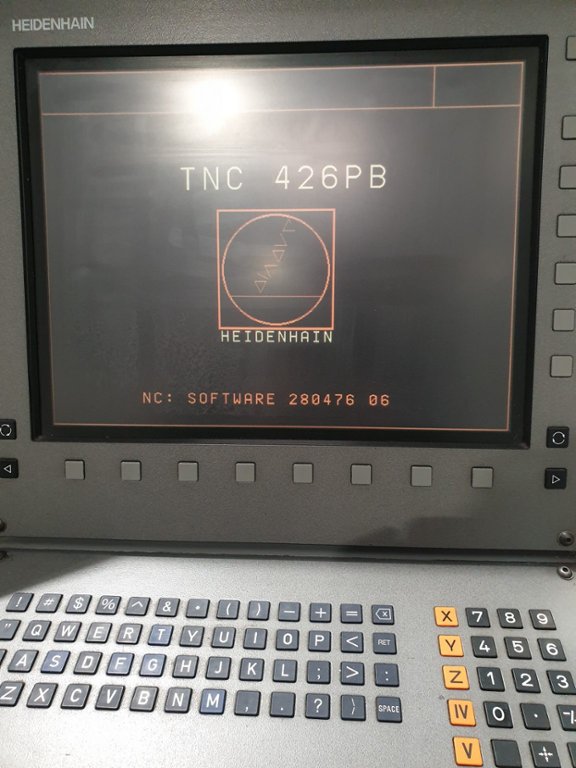

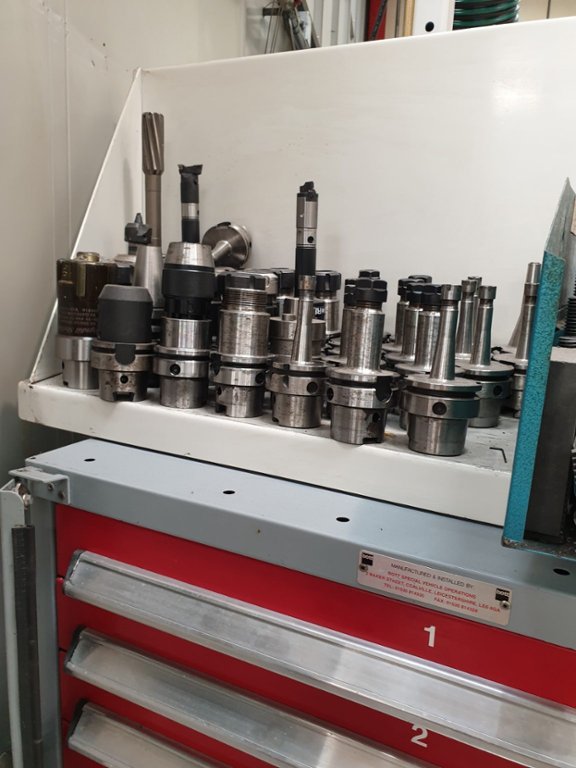

With HEIDENHAIN TNC 426PB five axis control Selection of SK40 spindle tooling

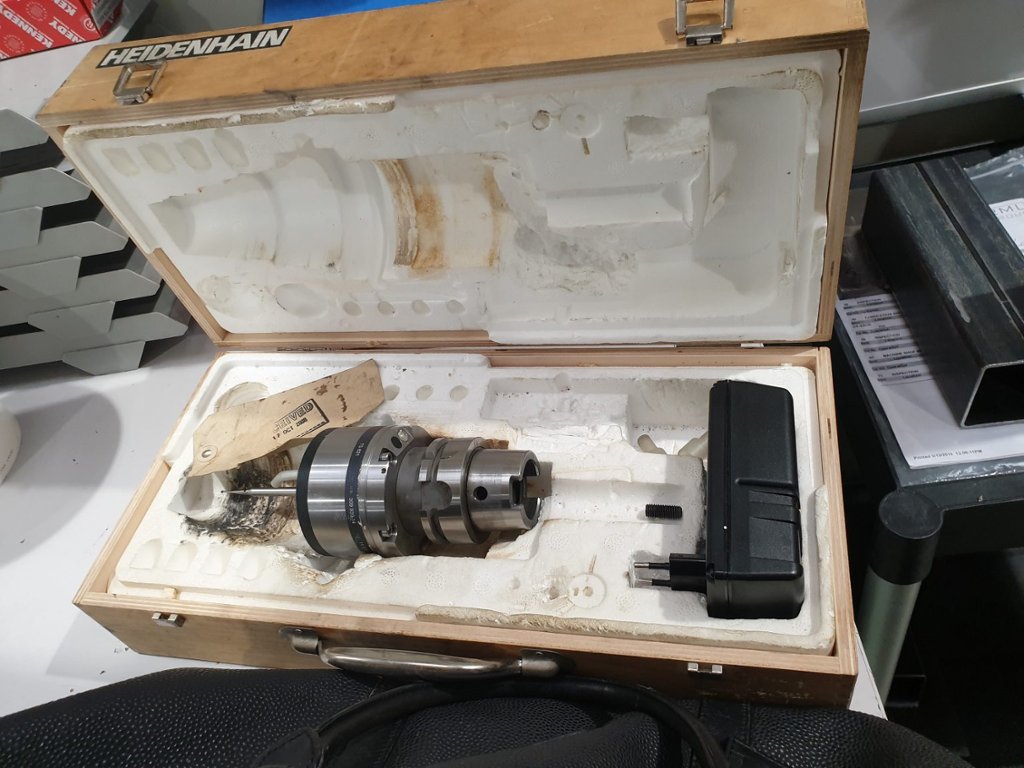

Heidenhain Measuring probe
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Specifications:
The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.
X-travel:800mm
Y-travel:700mm
Z-travel:600mm
Turning speed range - main spindle:max. 12.000min/-1
Power capacity - main spindel:15 / 10kW
Max. torque:475Nm
Tool taper:SK 40

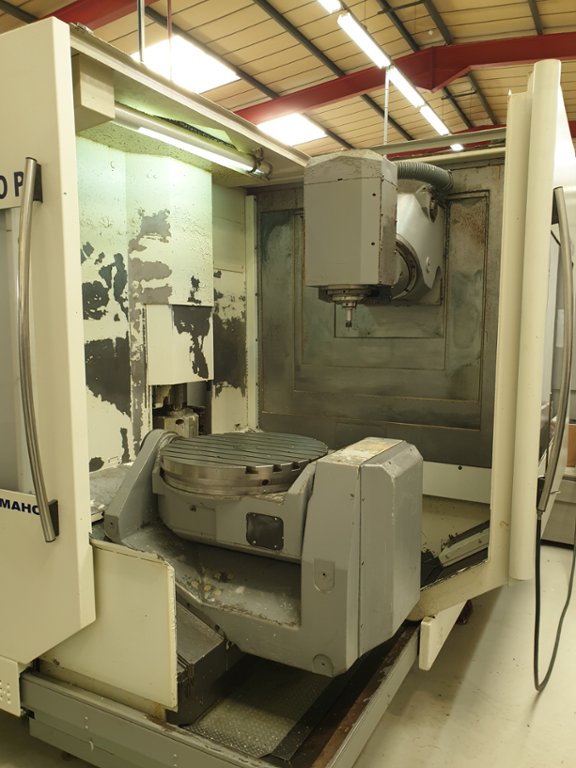

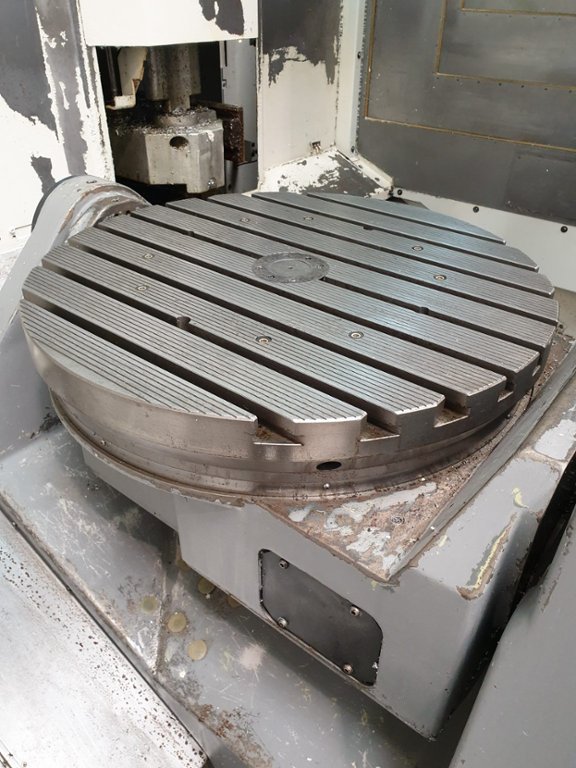

Surface area:Ø 630mm
Number of t-slots:9
T-slot - distance:63mm
T-slot - width:14 H7mm
Max. table load:600kg
Swival range +/-:A: 45 / 30°
Rotation range:C: .001°
Number of toolpositions:60pos.
Max. tool diameter:100mm
Max. tool-dia with free toolbox:160mm
Max. tool length:350mm
Max. tool weight:10kg
Feed speeds:20 - 15.000mm/min
Rapid traverse:40m/min

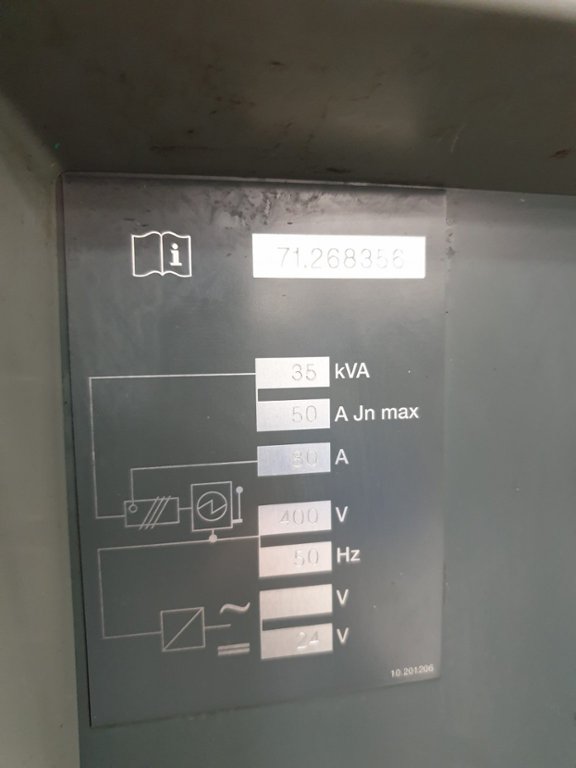

Total power requirement:35kVA
