Lot 2 - Delapena E2000 CNC Honer
Description:

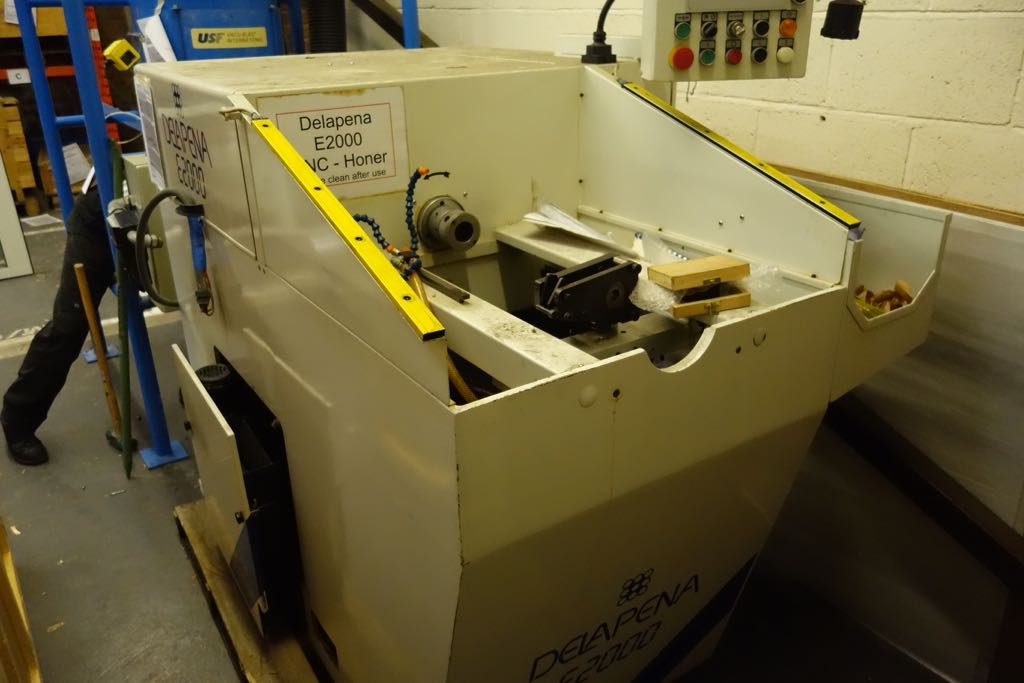

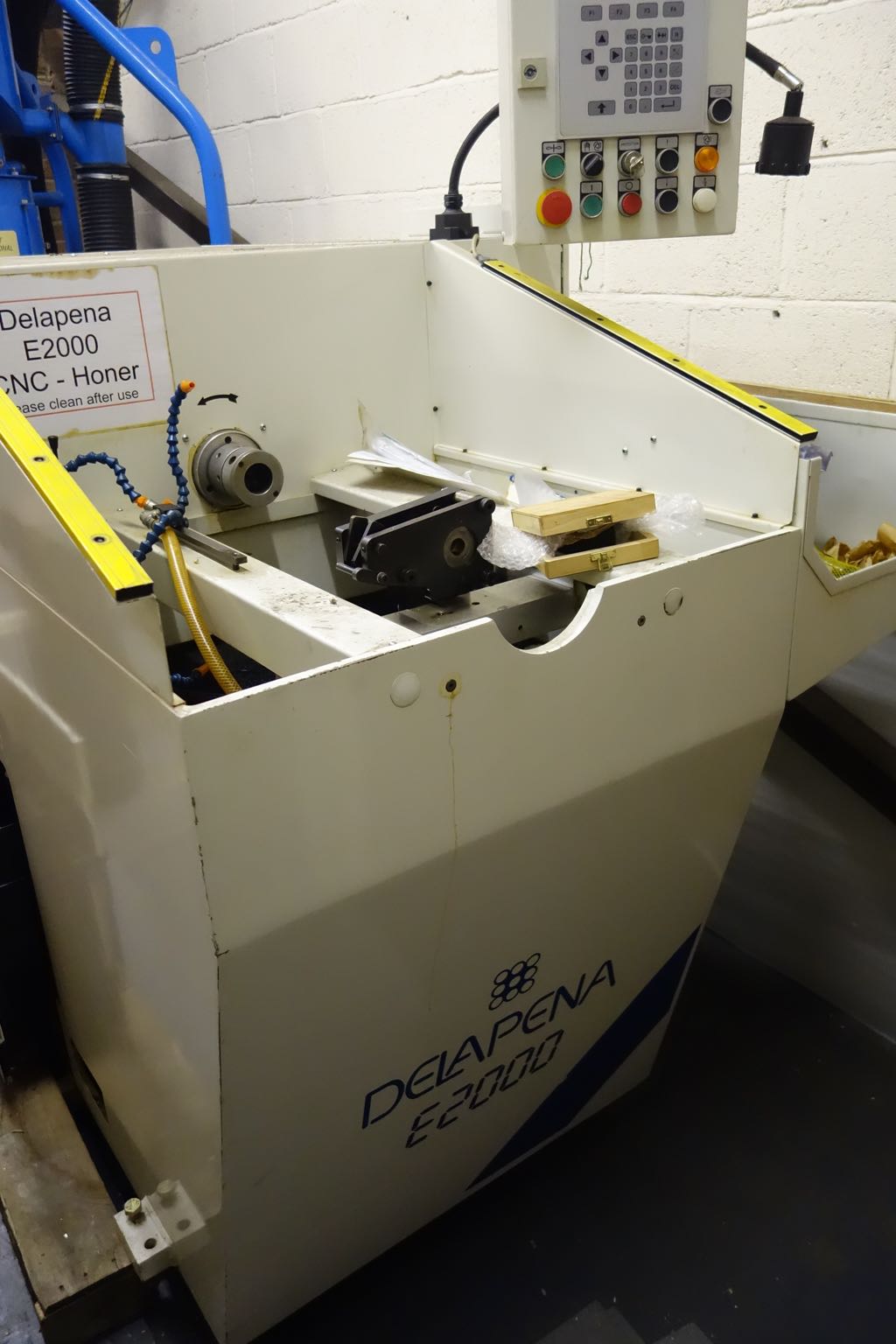

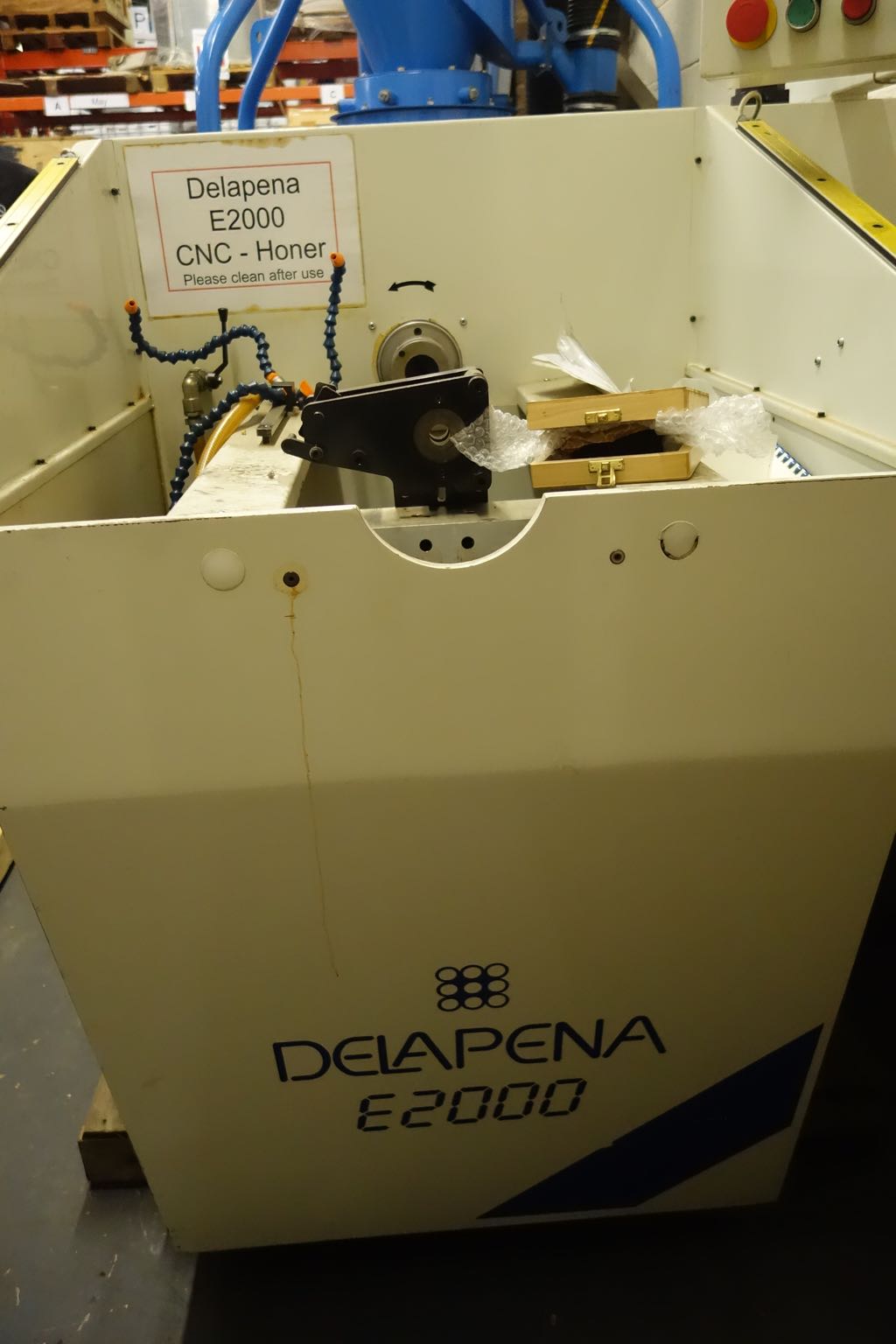

Delapena E2000 CNC Honer
Honing Machine with a fully programmable electronic management system.
Multi stage expansion to allow rough and finish in single set up.
Suitable for honing large batches of high precision parts
Maximum bore: 120 mm
Stroke length: 350 mm
Technical Specification
Diameter Range
- 114-120.00mm
Spindle Motor
- 3 kW high torque (6 pole)
Spindle Speed
- 150-3500 rpm Infinitely variable
Stroking Motor
- 1 .5 kW servo
Stroking Length
- 2.00-300.00 mm Infinitely variable to 0.1mm increments
Stroking Speed
- 0.1-25 m/min. Infinitely variable
Short Stroking
- Fully programmable, length and frequency
Stone Feed
- Up to four stages of feed with variable increments of time
Stone Pressure
- Variable increments approximately 1000 N
Controller

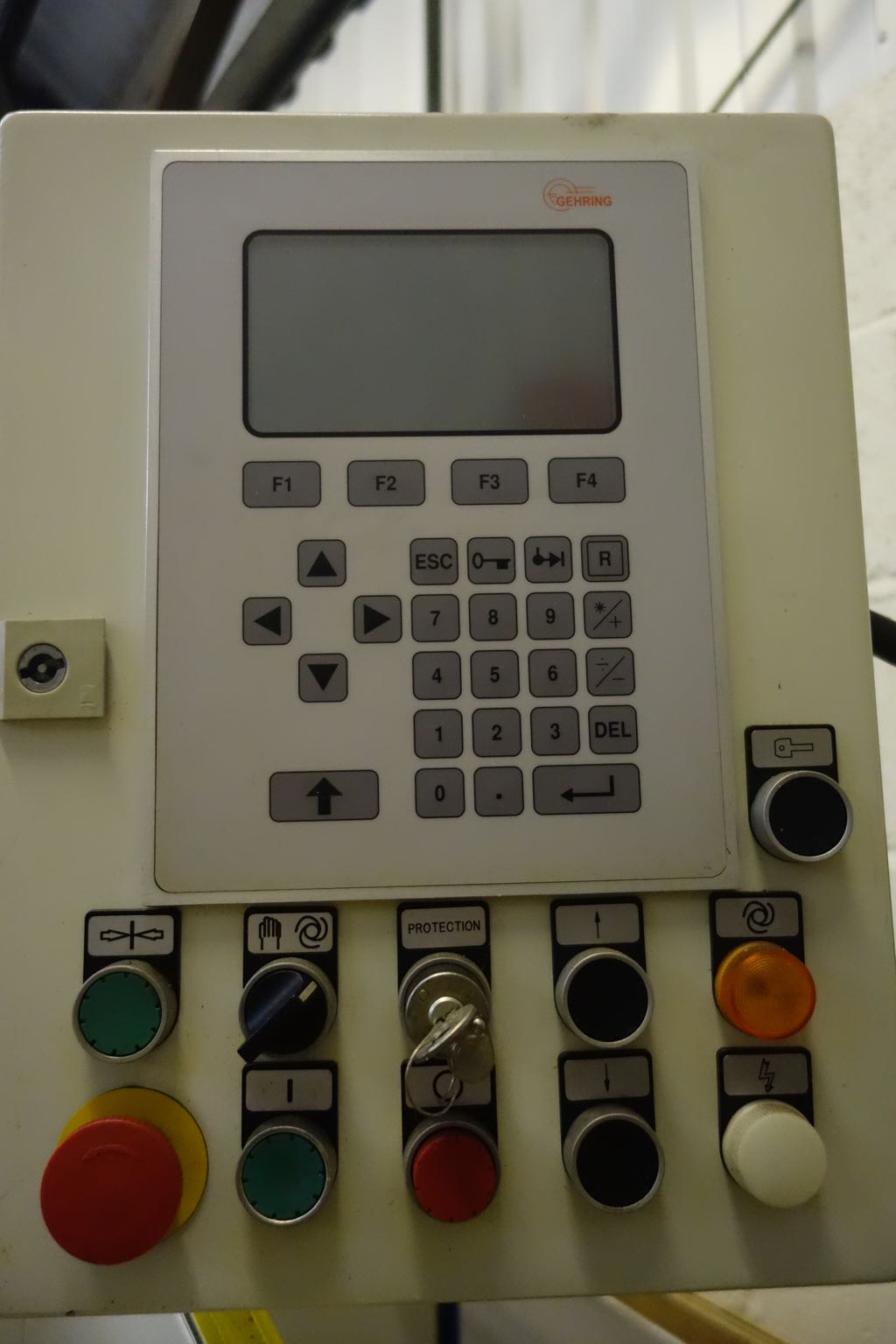

- Gehring digital honing control system
Honing Fluid Filtration
- Three stage, magnet, fabric and weir capacity 75 litres
Electrical Equipment
- Conforms to IEC 204 European Standard BS2771 British Standard 24 V DC control
Electrical Supply
- 380/420 V, 3 ph, 50 Hz
Hardly used
Location: Northamptonshire
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
