Lot 16 - Denford Cyclone Lathe
Description:
Sold Subject to payment

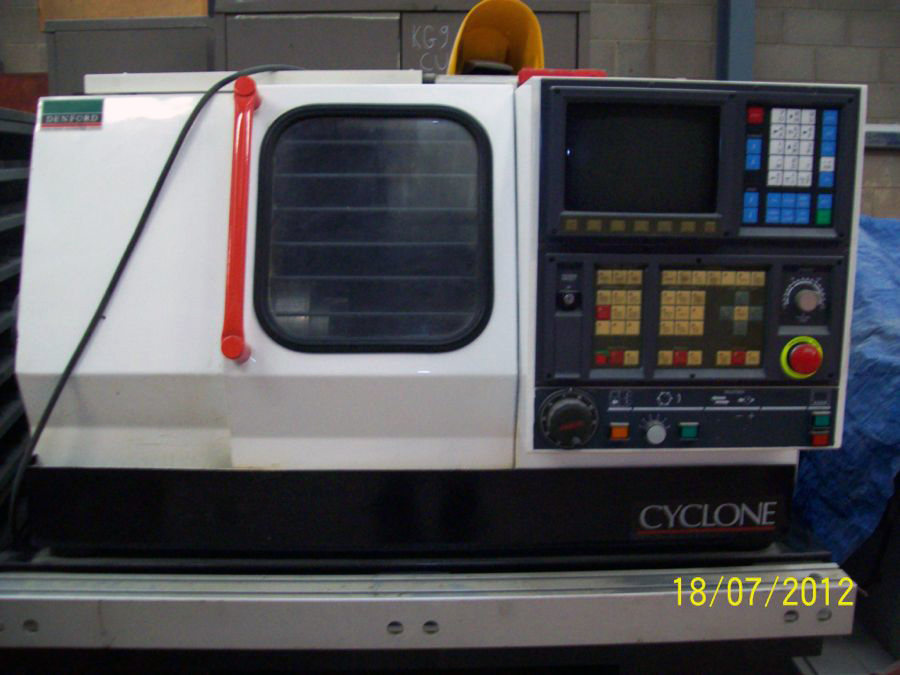

Denford Ccylone Lathe
Swing over Bed: (Dia) 300mm
Max Turning Dia. 158mm
Max Turning Length: 210mm
Spindle Bore: 26mm
Spindle Nose: A2-3"
Spindle Bore Taper: No 4 M.T.
Distance Between Centres: 200mm
X Axis Travel: 94mm
Y Axis Travel: 210mm
Bed: Hardended and Ground Ways
System Resolution: .001mm
Mechanical Resolution: .01mm
Machine Dfinensions:
Length: 1145mm
Width: 1100mm
Height: 700mm
Coolant Capacity: 12 litres

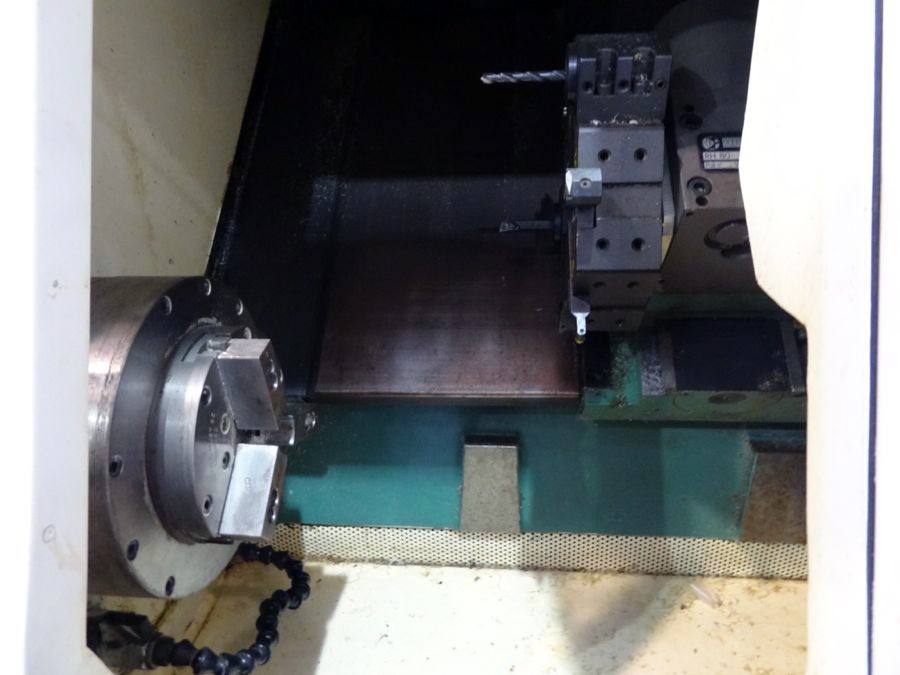

6 Satation Indesab;e Turret:
External Tool Size: 12mm x 12mm
Internal Tool Size (Dia): 32mm
Index Time - Station to Station: 0.65 Seconds
Index Time - Full Revolution: 1.75 Seconds
Location: Leicester
Can be loaded for free to flatbed truck
