Description:

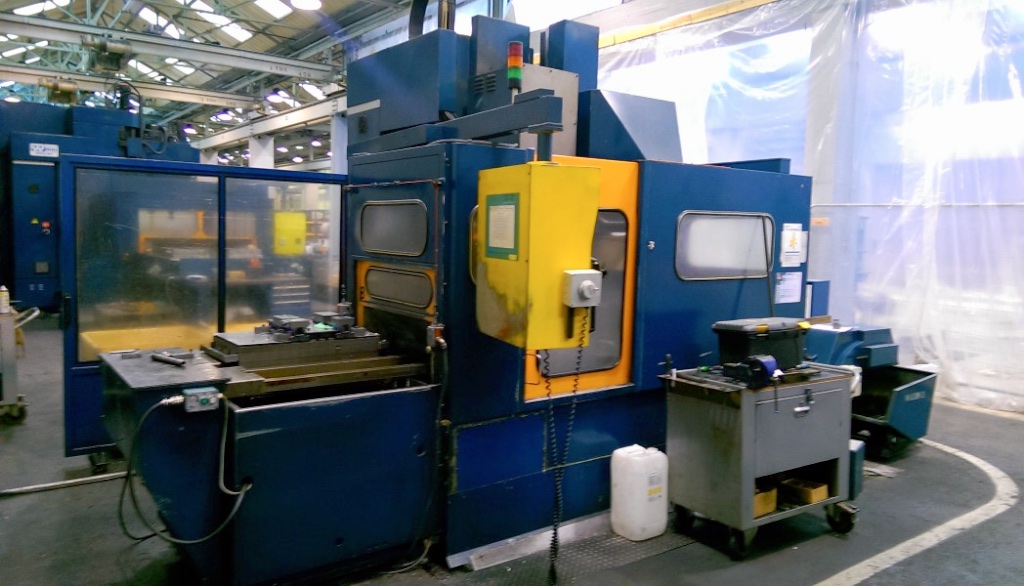

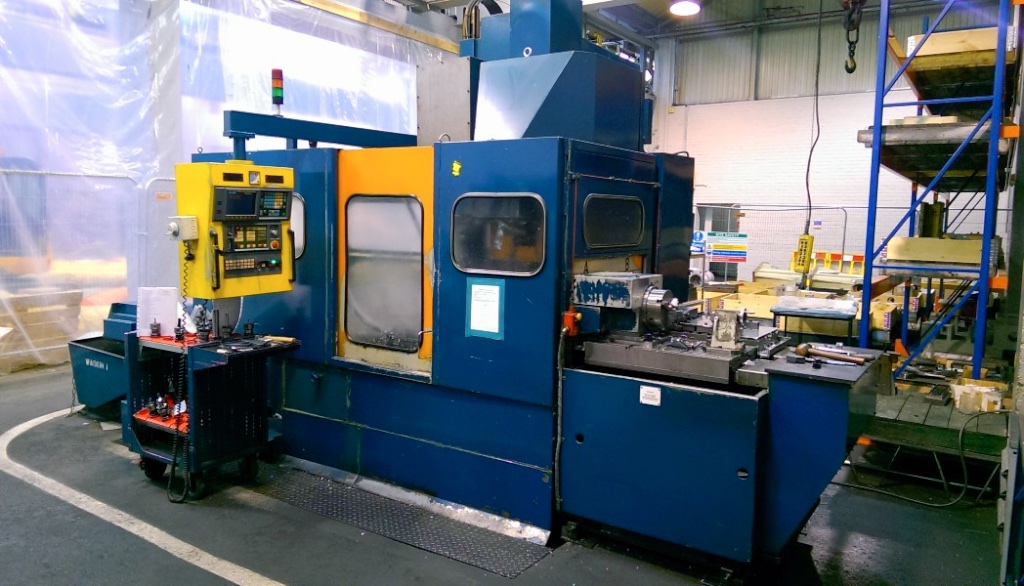

Devlieg V4/6F VMC Fanuc Control Twin Pallet With 4th Axis

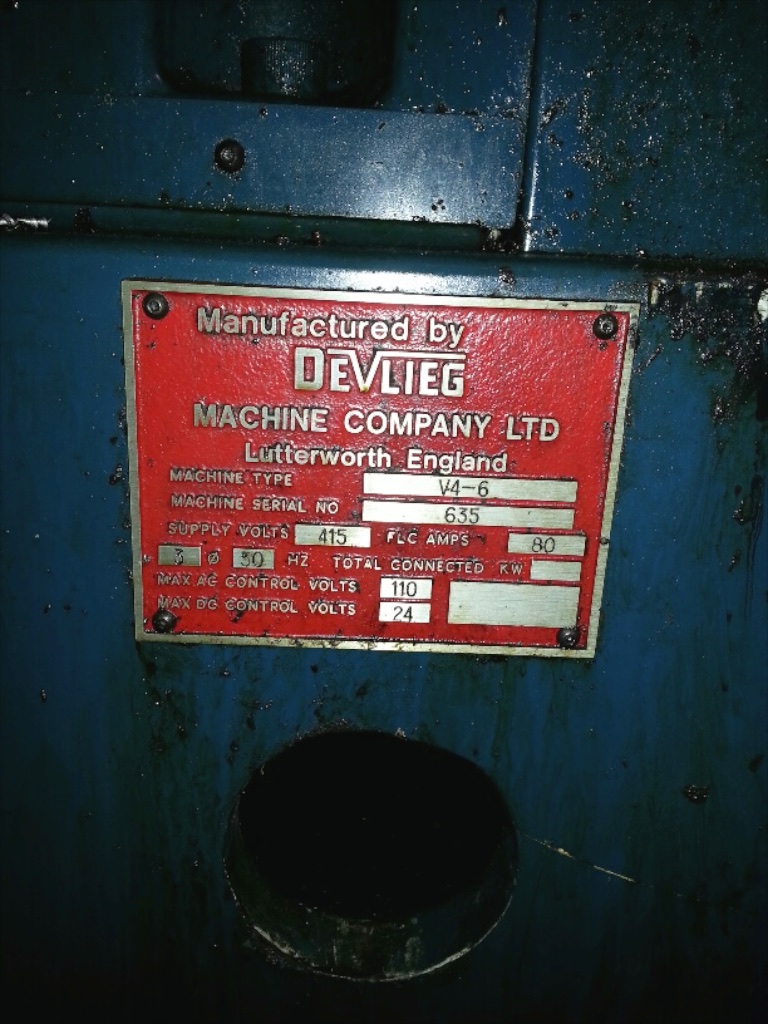

S/n: 635
Machine Height: 3200mm
Weight of machine 5000kg
Weight of pallet loader (approx) with both pallets: 1000kg
Spindle speed: 40-5000rpm
Nose Taper: 40 ISO
Spindle nose to machine table distance: 100 - 725mm without pallets
Spindle nose to machine table distance: 50 - 553mm with pallets
Longitudal traverse X Axis: 600mm
Cross traverse: Y axis: 460mm
Vertical traverse Z axis without pallets: 625mm, with pallets 503mm
Axes feed rates:
Normal X and Y: up to 10m/min
Rapid X and Y: 18m/min
Rapid Z: 12m/min
Cutting Capacity (mild steel):
Milling steel: 600cm3/min
Tapping: M25
Drilling: 50mm
Pallet size: 750 x 450mm
Pallet Working Area: 600 x 460mm
Normal Pallet Specifications:
4 tee slots x plane 18mm wide, 130mm Centres for 16mm bolts
2 Tenon Slots X and Y Planes, 20mm H7
Pallet height (approx): 972mm
Pallet load: max: 300kg
Tool Types: 40 Iso Din Vee BT
60 Double drum
Tool weight: 8kg
Pallet changeable fourth axis.

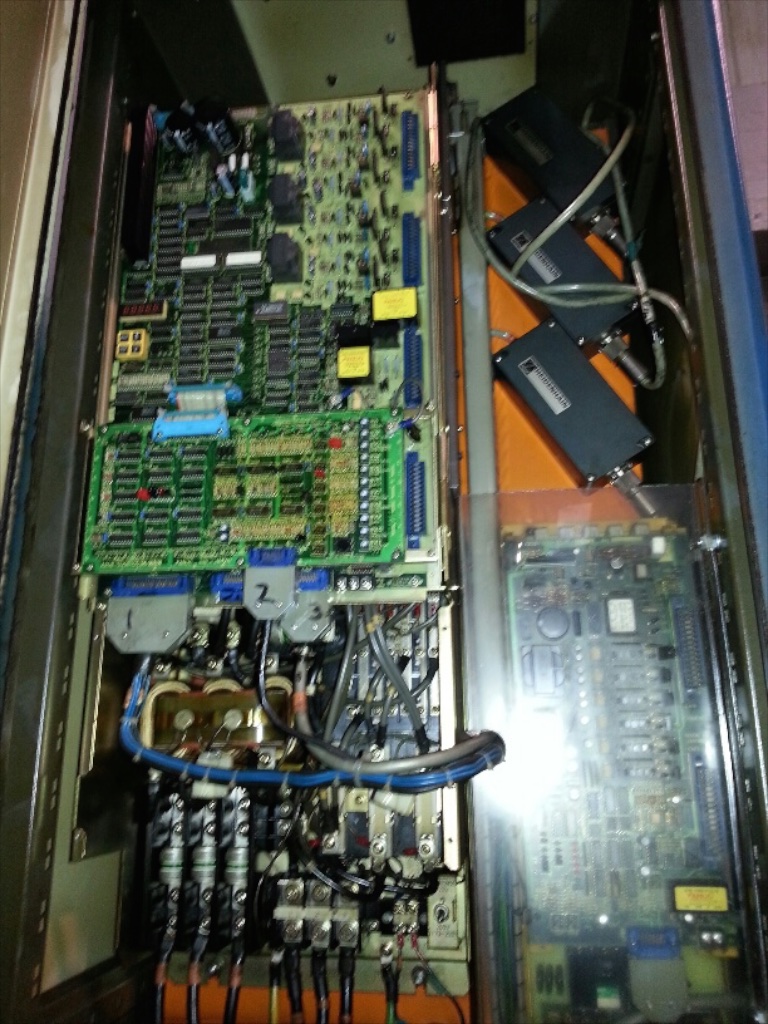

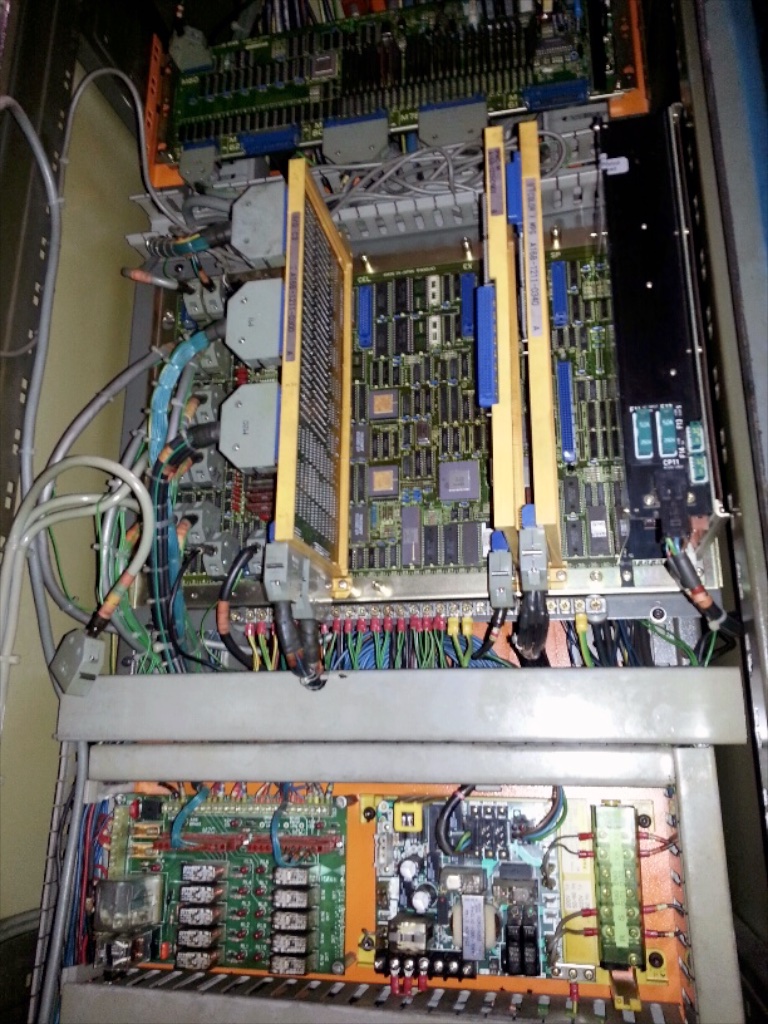

Fanuc system,drives and motors.
Heidenhain scales on X and Y axes.

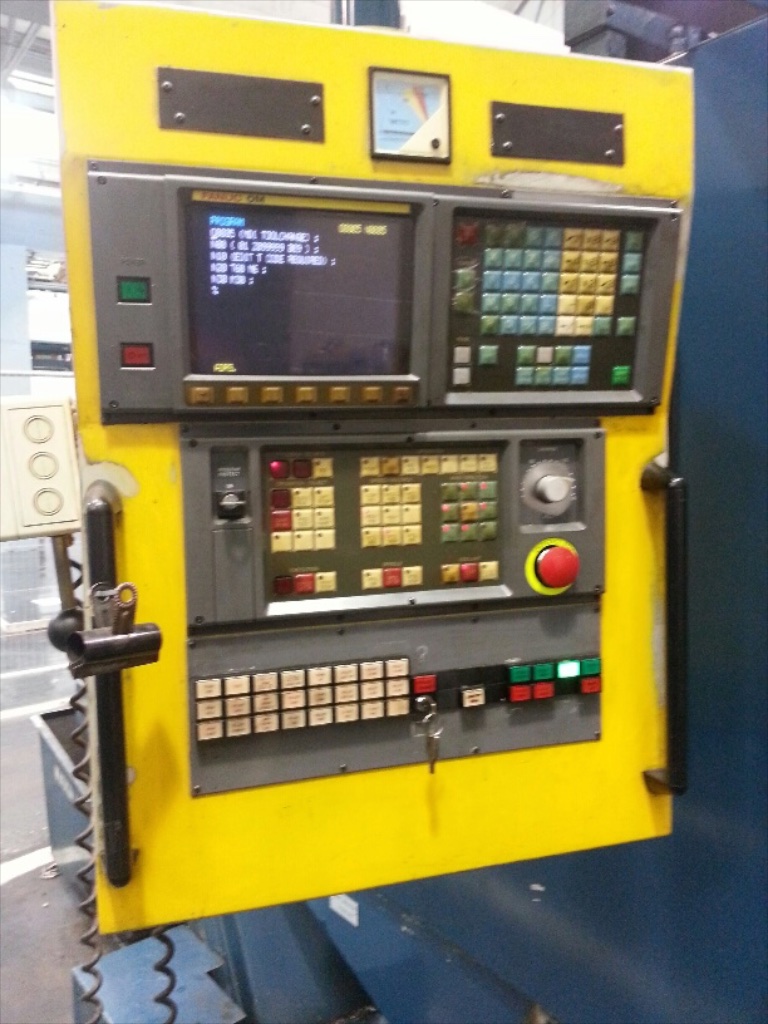

Colour TFT screens fitted in last 9 months.
Machine has been Decommissioned and is now in storage due to new machine delivery.
If installation, service or spares for this are required. please ask.
Location: Dudley
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
