Lot 2 - DMG 63V (2003)

Description:

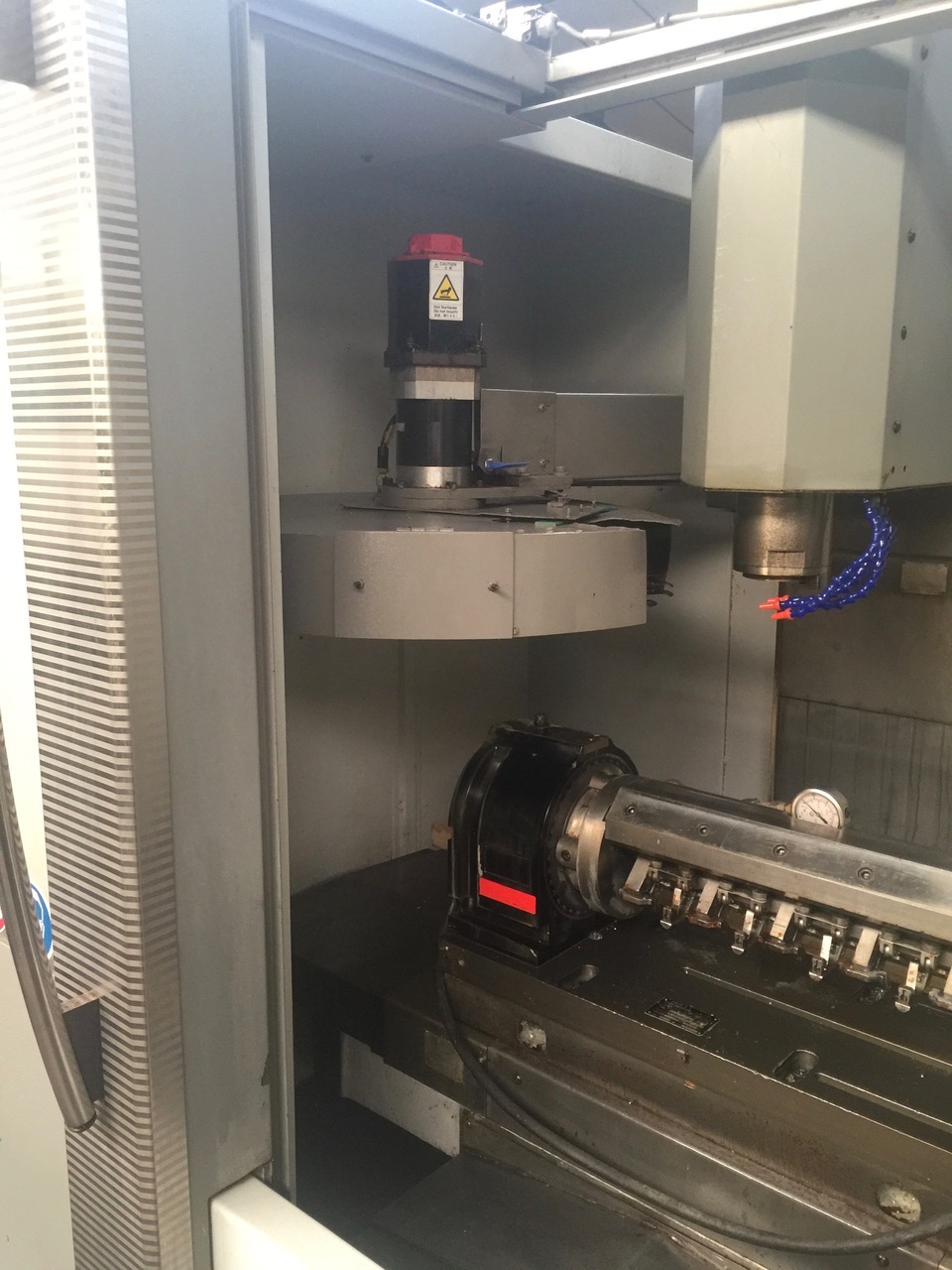

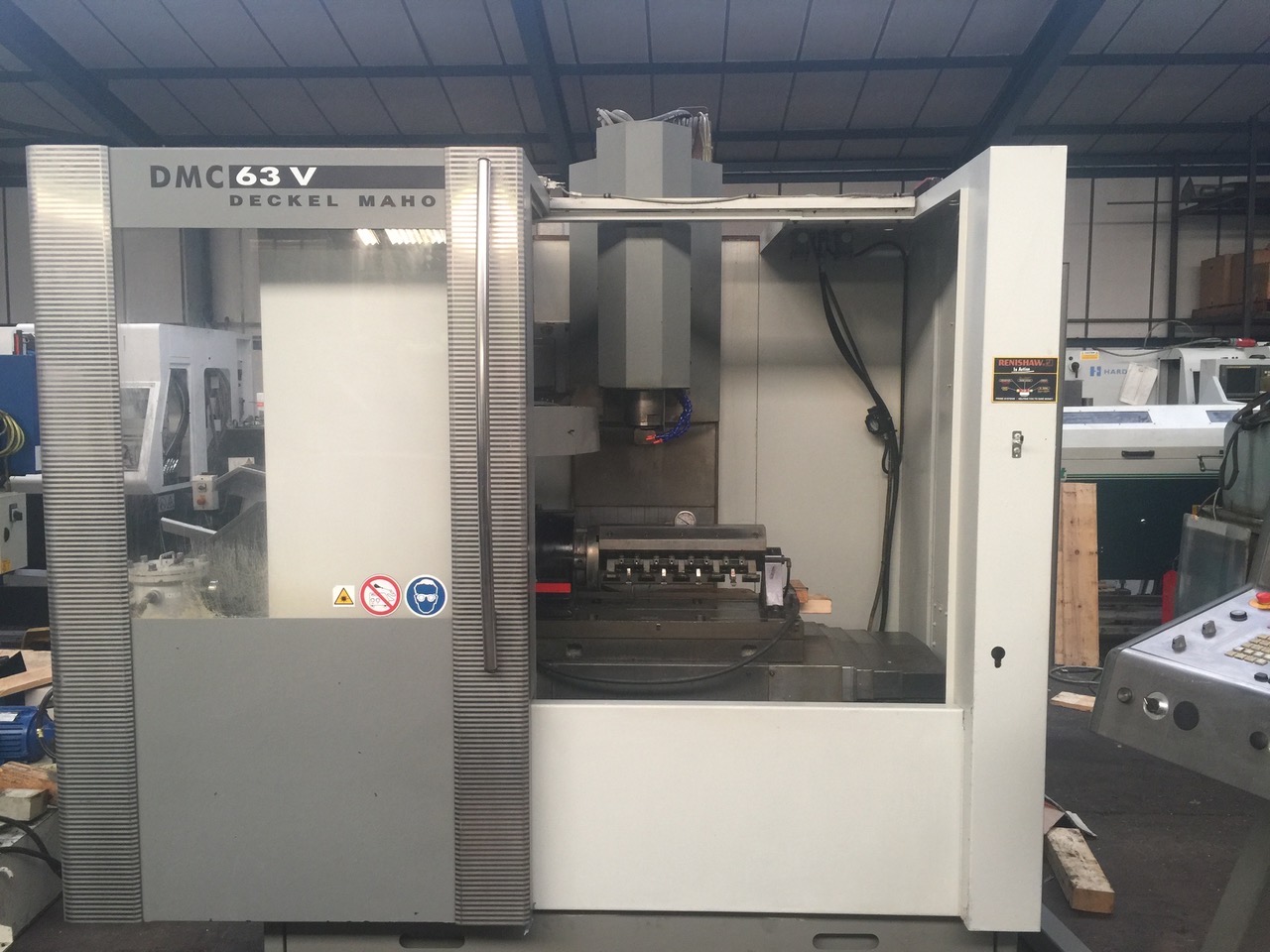

DMG 63V (2003)



Table:-

Size - 800 X 500 mm, Permissable Load  - 500 kg, Length of Tool - 240 mm, Distance between spindle and table 150 mm - 650 mm

Tool Chucks - SK 40 A,AD

Tool Magazine:-

    Number of Tools - 24

Tool Diameter :-

    Standard Tools - Max 80 mm, Special tools next to unoccupied adjacent operating           positions - Max 140 mm, Tool length from spindle nose - Max 300 mm, Tool weight - Max 7 kg, Magazine load - Max 72 kg





* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

HRSMINSEC
000000

23 Feb 2017 15:10:00 GMT


Final remove by date: 09/Mar/2017

Location: Coventry

Lot location

Transport information

  • Width: 2.1 Metres
  • Depth: 3.1 Metres
  • Height: 2.4 Metres
  • Weight: 4200 kg
  • Other Transport Details: Can be loaded free of charge
