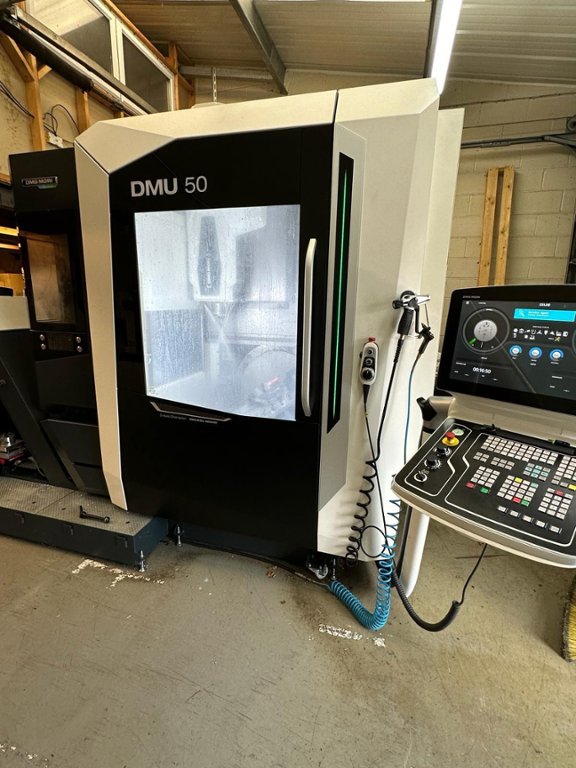

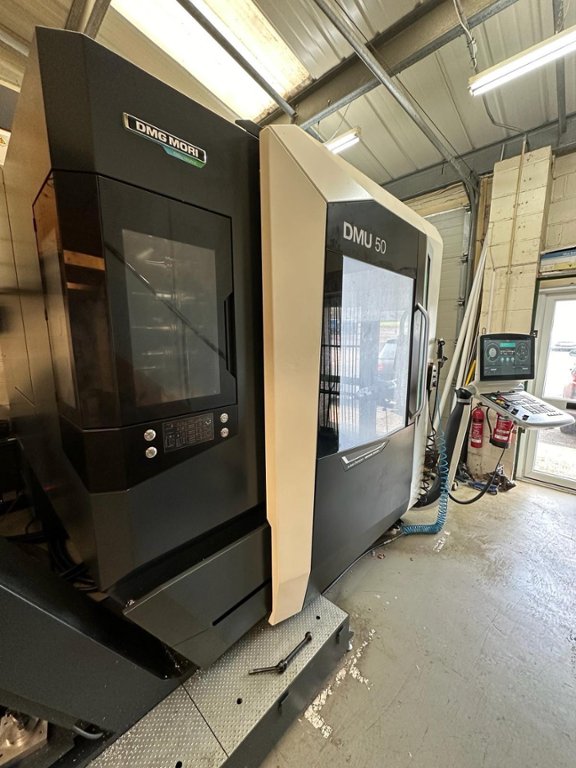

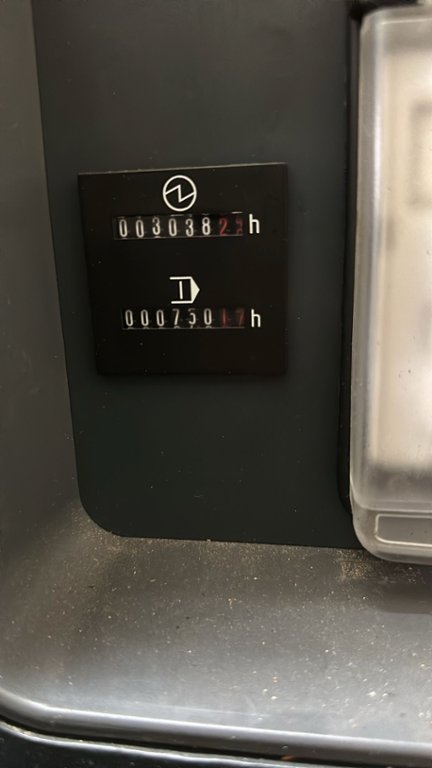

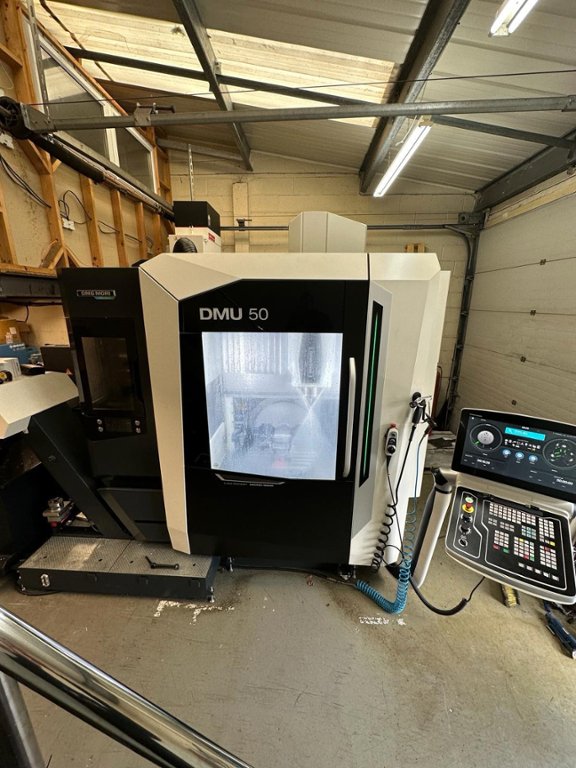

DMG DMU 50 5 Axis CNC Machining Centre (2021) * Low Hours

Lot 1 - DMG DMU 50 5 Axis CNC Machining Centre (2021) * Low Hours

Description:

DMG DMU 50 5 Axis CNC Machining Centre (2021) - LOW HOURS

Basic machine

Universal Milling Machine DMU 50 3rd Stealth Design
X = 650 mm, Y = 520 mm, Z = 475 mm
X = 25,59 inch, Y = 20,47 inch, Z= 18,70 inch

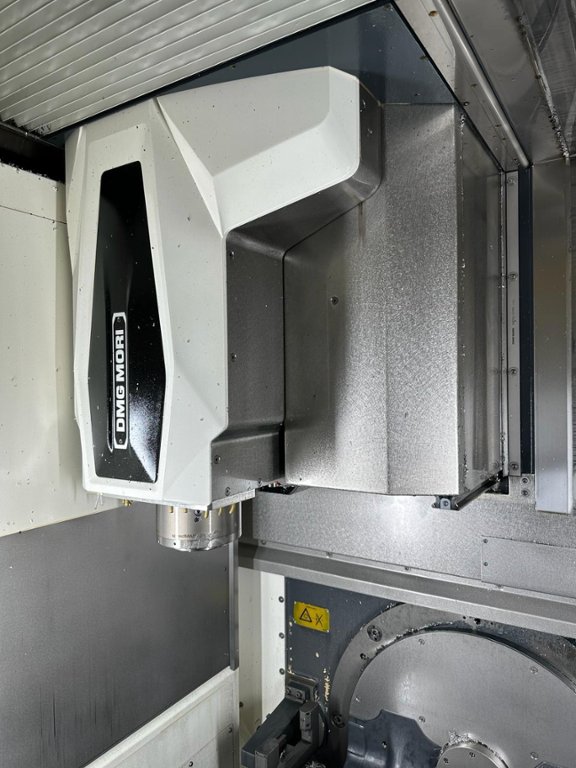

42 m/min / 137,7 ft/min Rapid feed direct drives motorspindle speedMASTER® SK 40
speed range 20 - 15.000 min-1 SK40
suitable for BIG-PLUS® tools
21 kW (40% ED); 16 kW (100% ED)
28 hp (40% DC); 21.5 hp (100% DC) tool taper SK40 (DIN ISO 7388-1-A, AD) for Pull-Studs DIN ISO 7388-3-A, AD active cooling for spindle
Toolchanger 30 places SK40 with set up station for tool loading
NC swivel rotary table
Chip tray
Direct Measuring system X,Y,Z
Half cabin
Control
S-B3252*

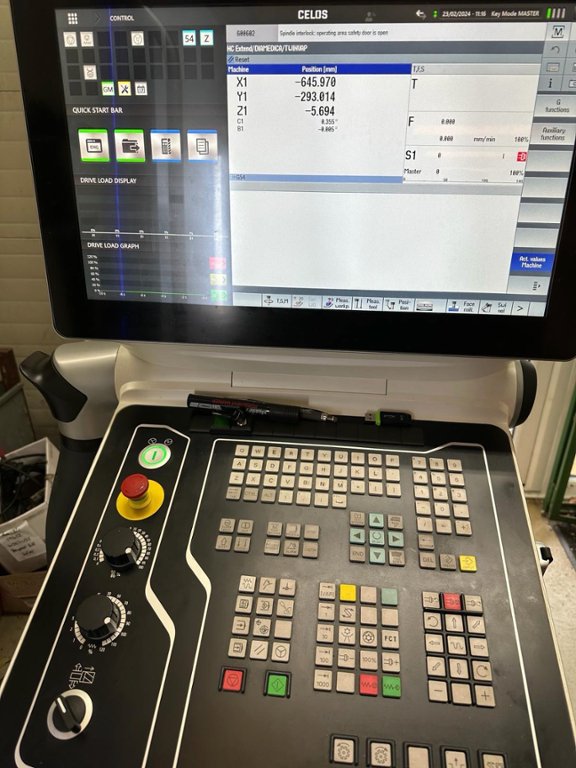

CELOS with Siemens 840D si Operate includes 21,5" ERGOline® Control with Multi-Touch-Screen.
Working table
S-C3074*

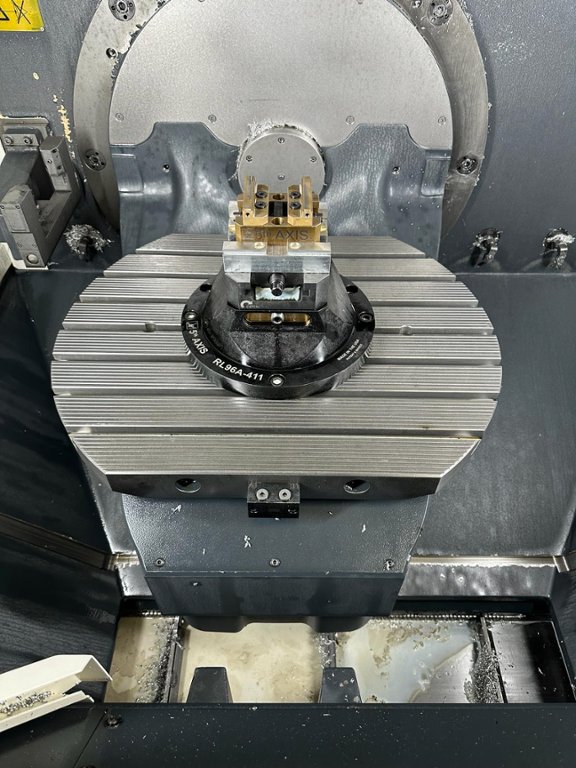

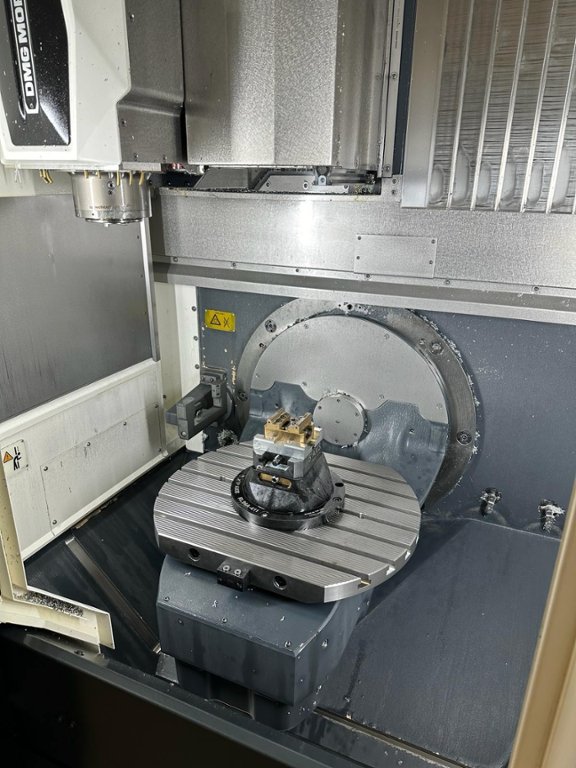

Swivel Rotary Table for simultaneous machining
Clamping surface dia. 630 x 500mm / 24.8 x 19.6 in
'swivel range -35 to +110°, rotary axis 360° including direct measuring system for B- and C-axis and working plane transformation
Tool magazine
S-D3130*

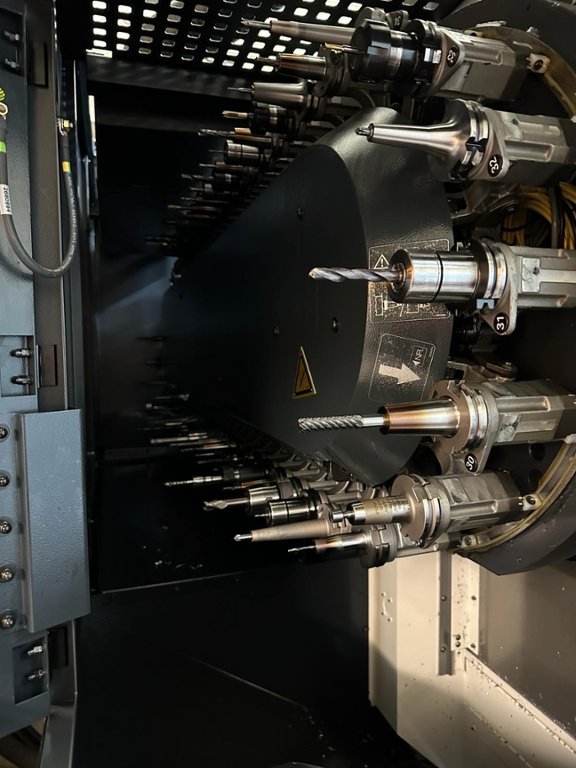

Tool magazine 60 places SK40
Vertical chain with double gripper incl. set up station for tool loading
Cooling media / chip removal
S-K3793*

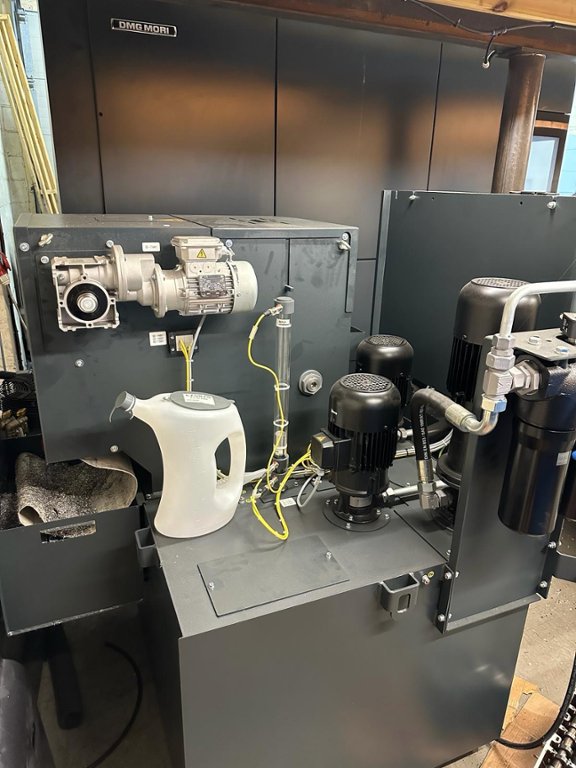

Internal coolant supply (ICS)
with paper type filter, 40 bar/23 I/min / 600-1 tank
580 psi/6 gallon/min /160 gallon incl. cabin roof, rotary joint in spindle, double cartridge filter 50um for internal coolant (differently from standard)
S_K3792*
Swarf conveyor, scraper type with cleaned slot screen, Specifically for material with floating chips like e.g. aluminium
S-N3004
Spray gun for swarf removal

Measuring / Monitoring

Infrared touch Probe
make Renishaw PP 60 optical (OMP 60)
S-K3605*
Laser tool measuring,
fix mounted at machine column
Tool length and diameter measuring automatically cleaning through external airblast
Calibration tool with taper
S-K3493
3D quickSET
Tool kit for control and compensation of the cinematic accuracy of 5 axis machine configurations (only with option touch probe)
Automation
S-K3648*
DMG MORI Interface PROFIBUS loading door at right machine side
PROFIBUS communication between robot and machine for loading cycle
2 channel safety circuits
Only in combination with an additional clamping method option!.

Pneumatic actuation zero point
clamping system EROWA UPC including rotary joint
2 active pneumatic channels
pneumatic release pressure 6 bar actuation of other clamping systems only with prior consultation of Technical Sales!)
Options for CELOS with Siemens / Siemens
S-H3095
Electronic handwheel
Documentation
S-GB/1
Documentation-1 English
Screen Text Language
S-D/GB
Screen text English
DMG MORI Connectivity
D-CO100* loTconnector
The loT connector allows the use
of online services of DM MORI (e.g. NETservice)
D-CO102*
Machine Data Connector (MDC)
Uniform machine data interface.

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
