Lot 51 - DMG DMU 50 EVO (2001) 5 Axis VMC
Description:

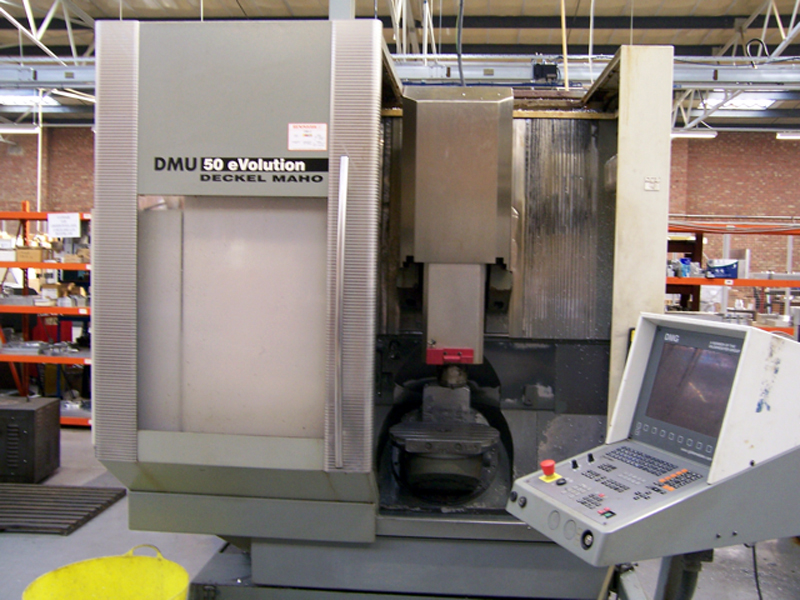

DMG DMU 50 EVO (2001) 5 Axis VMC

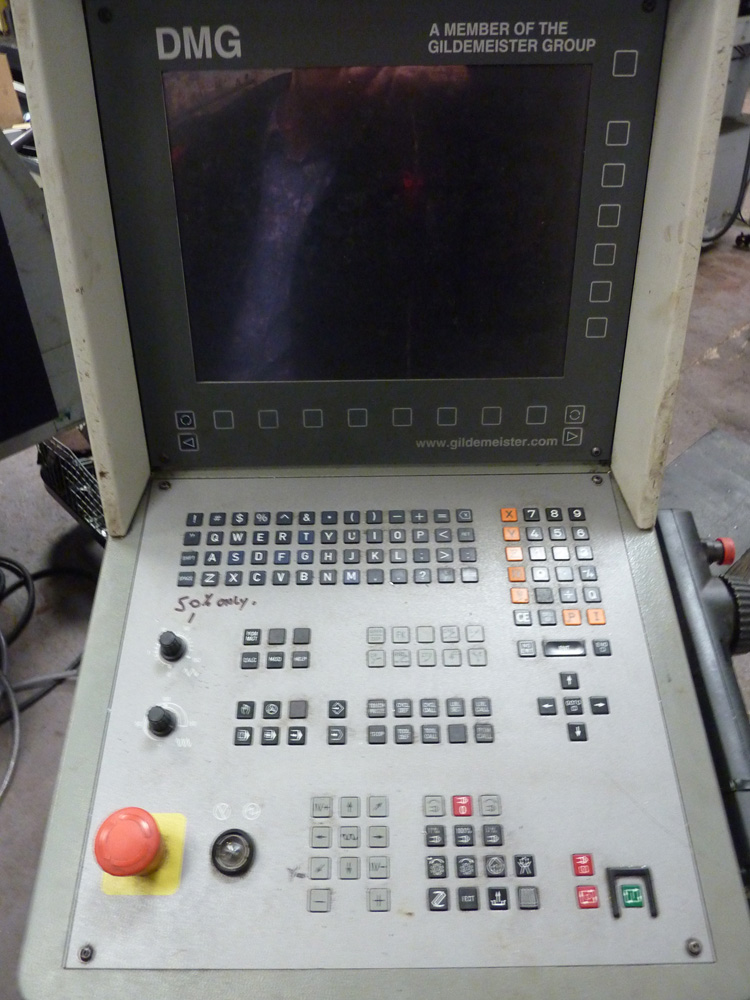

Control: Heidenhain TNC530

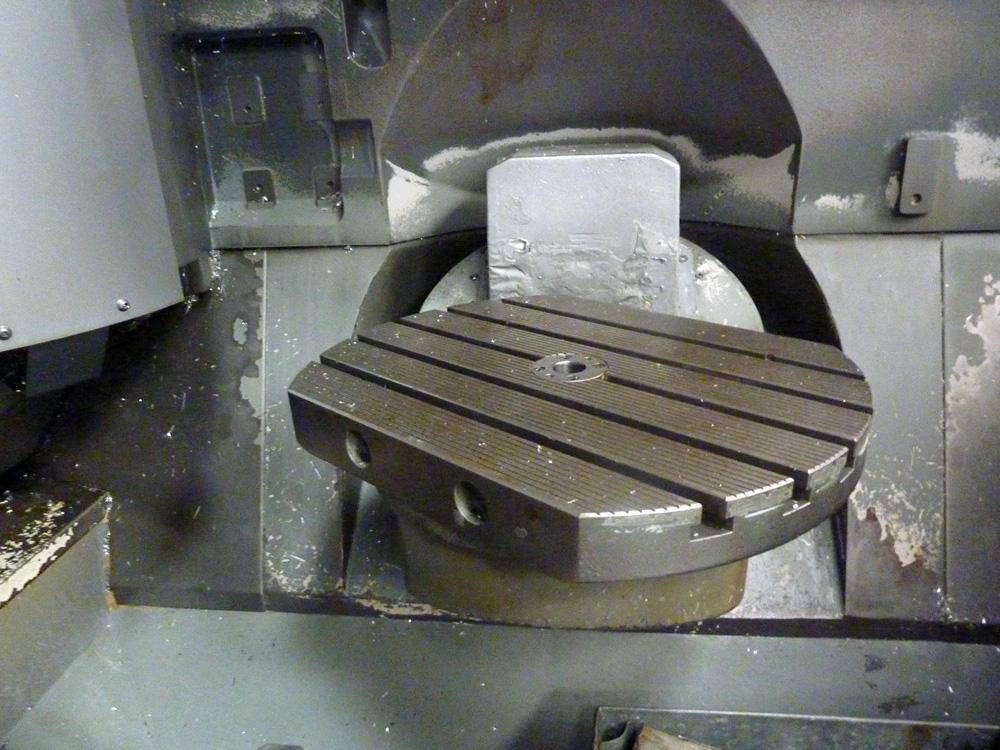

B axis Movement: 0 - 180 degree 0.001 increment
C axis: 360 degree 0.001 increment
Spindle Speed: 10,000rpm
Spindle Taper: HSK50
Table Size: 500 x 380mm
Traverses XYZ: 500 x 380 x 380mm
Spindle Motor Power: 13kW

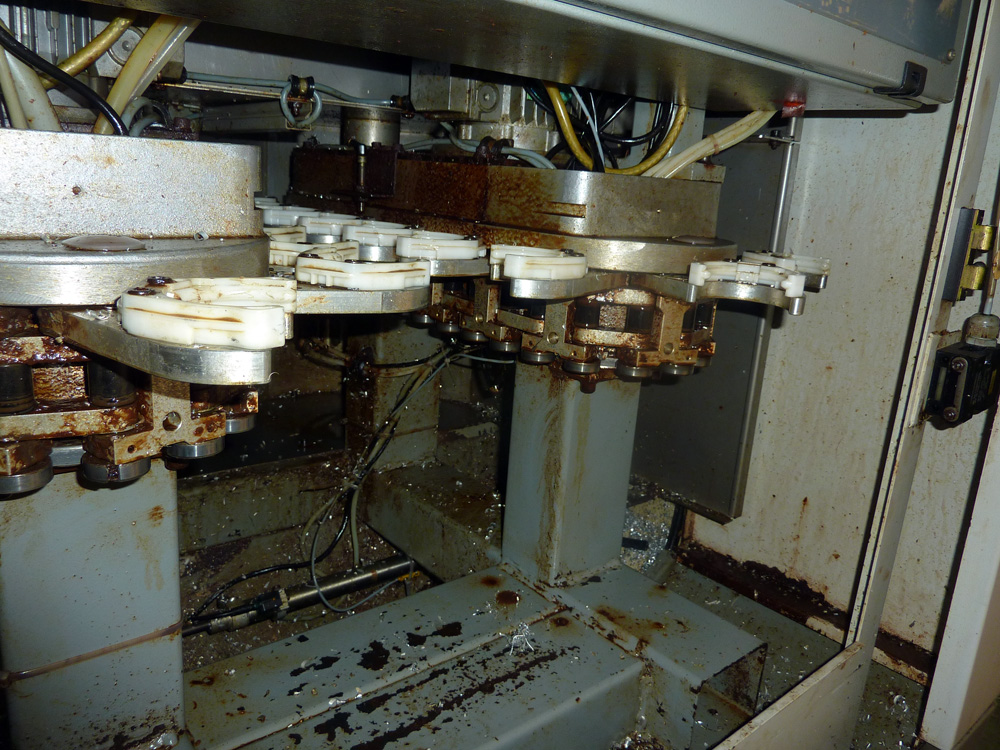

Tool Change Capacity: 24 ATC Description:
Tool setter, Coolant, Interlocked guards, Low Volt Light, B axis, C axis, 5 Axis
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
29 Mar 2012 15:00:00 BST
