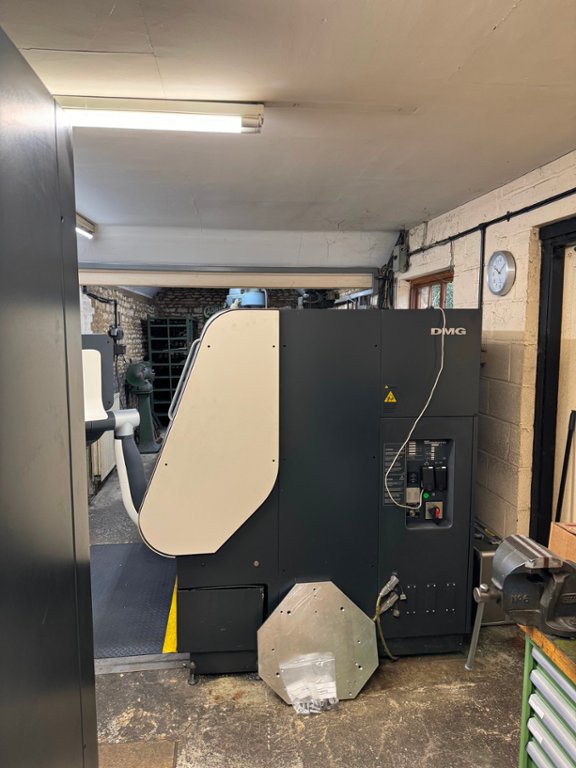

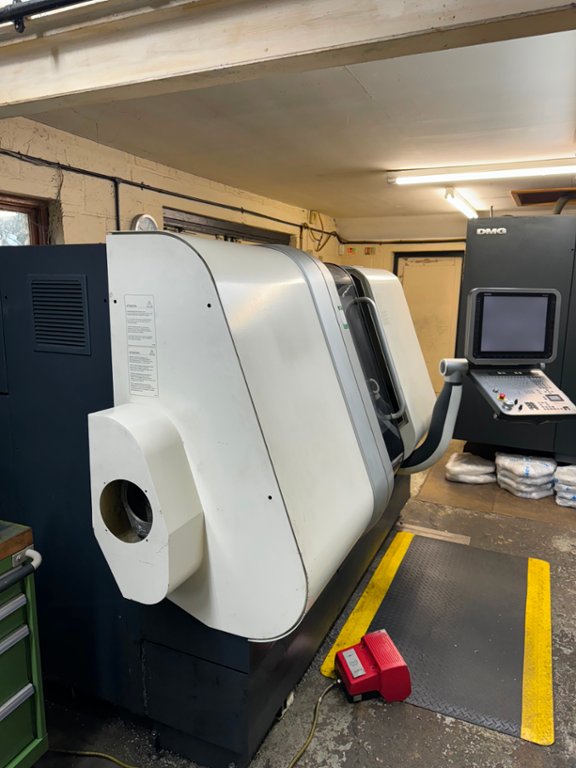

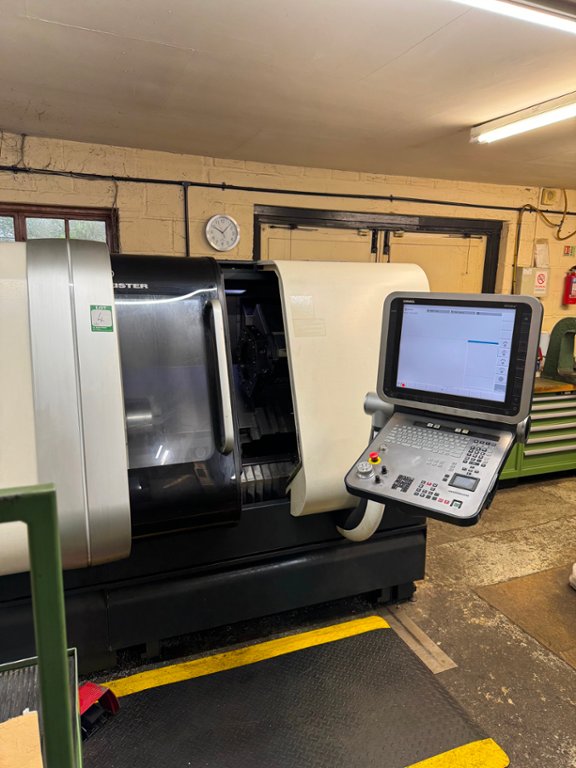

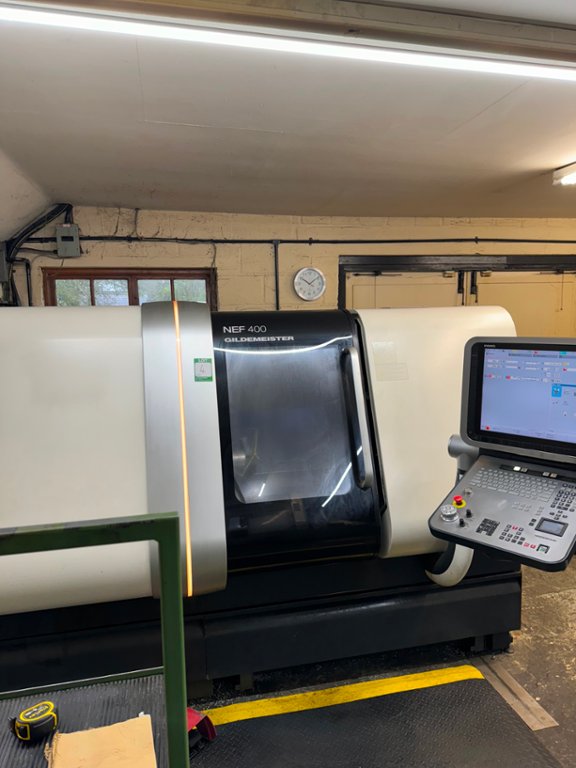

Lot 4 - DMG Gildermeister NEF 400 CNC Lathe (2011)
Description:

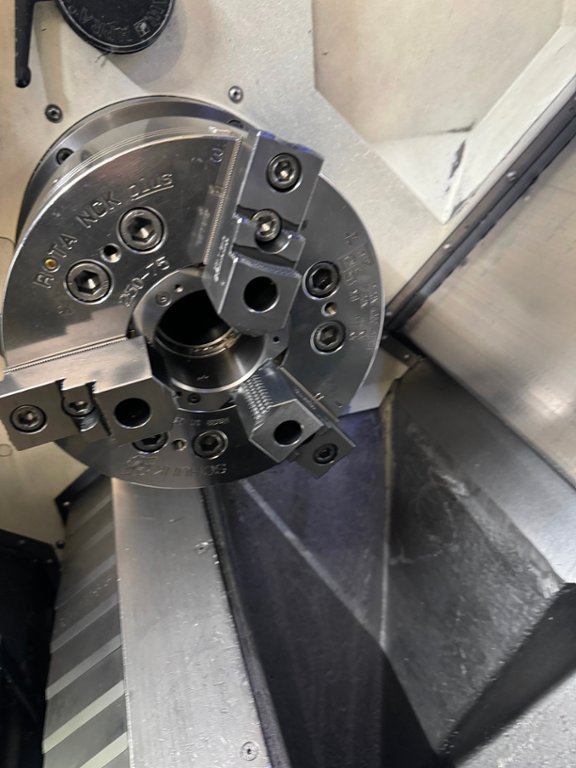

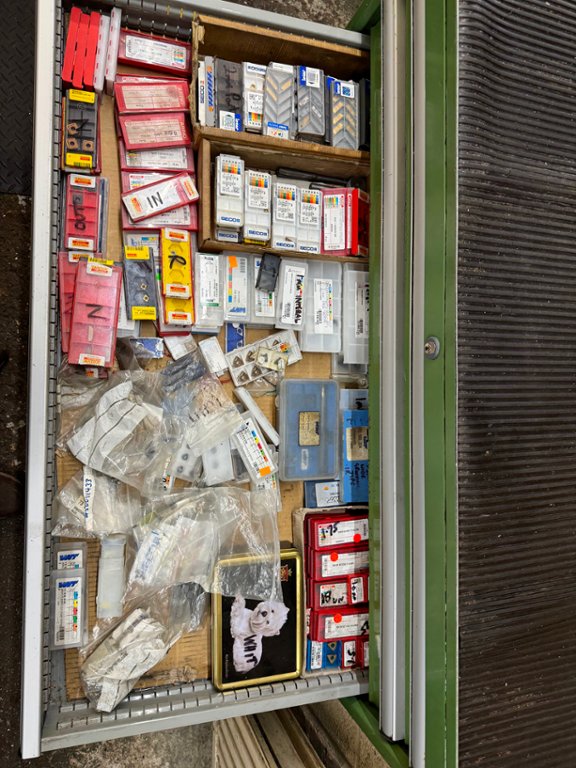

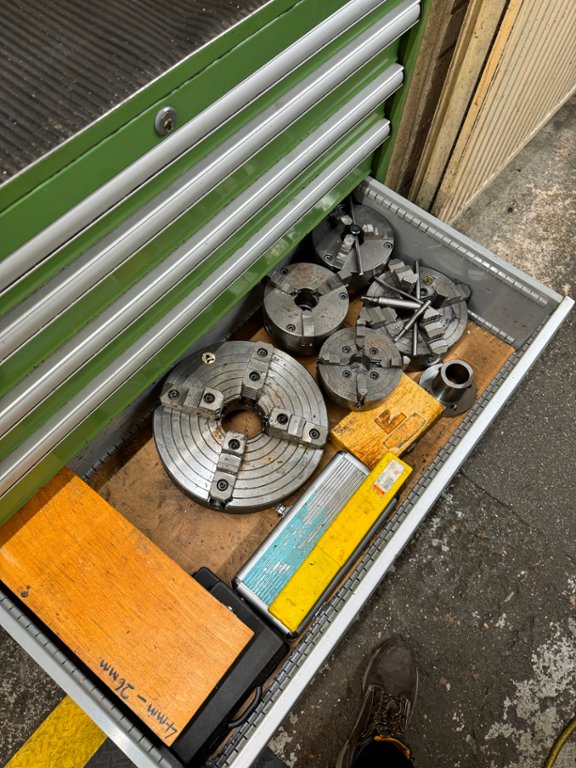

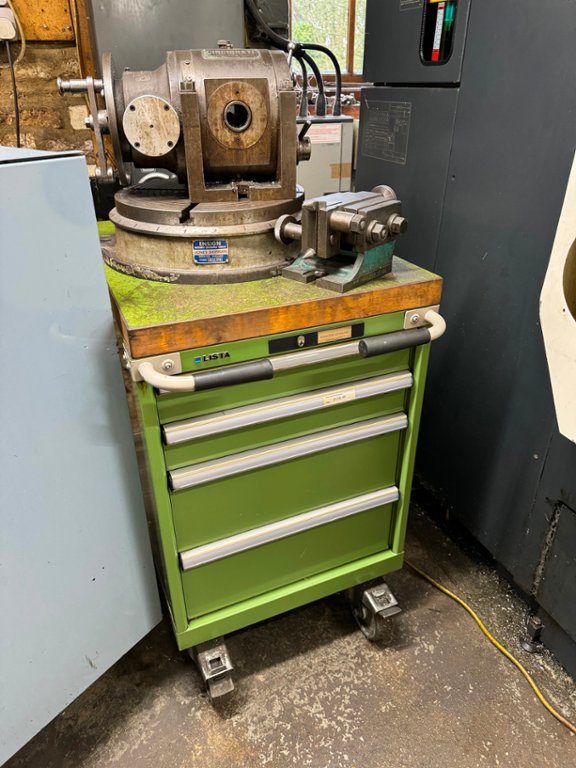

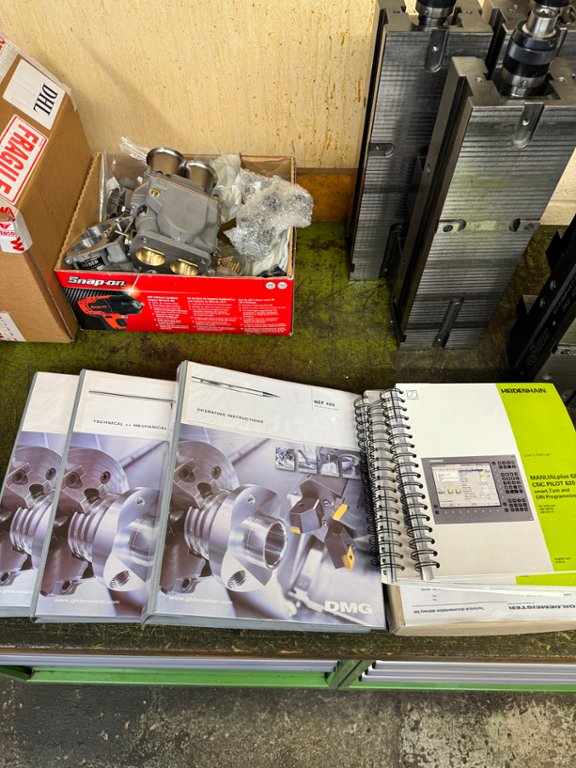

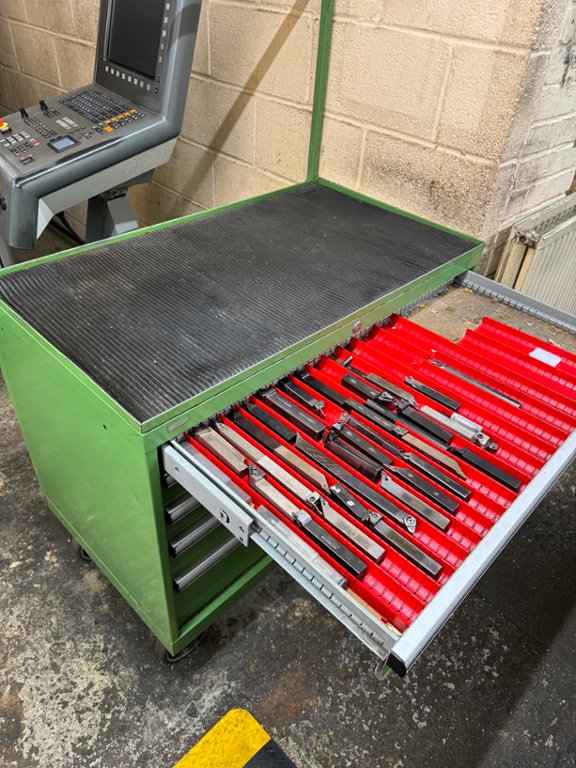

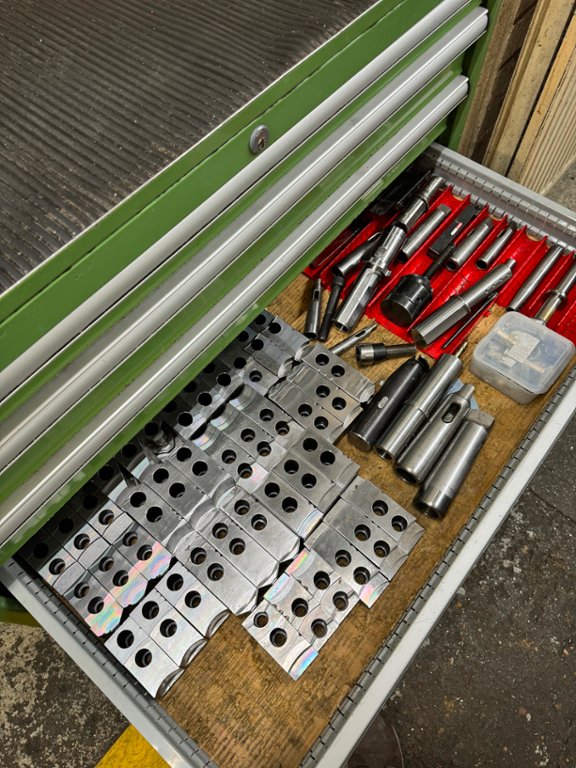

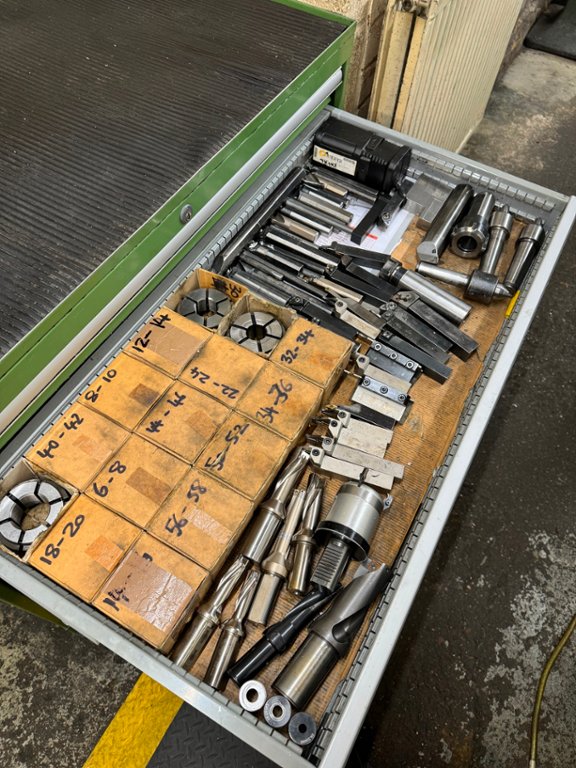

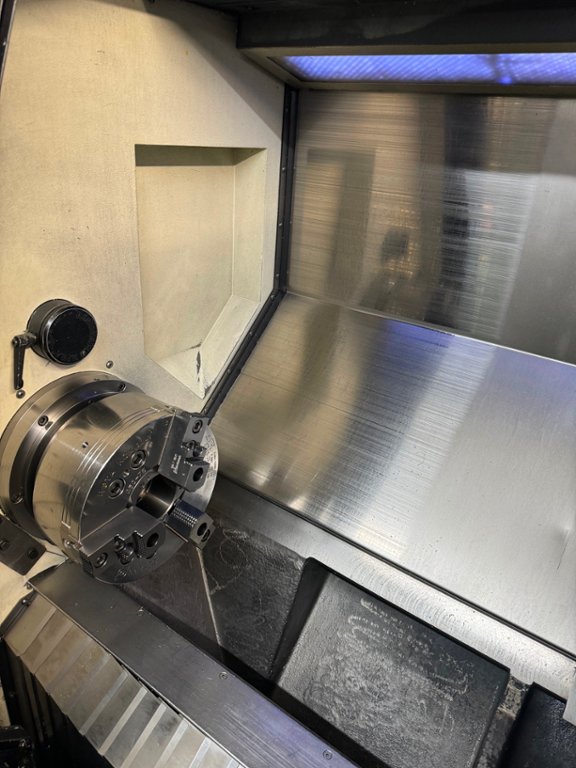

Comes with 10" chuck and 2 x wheeled trolleys with selection of tooling.

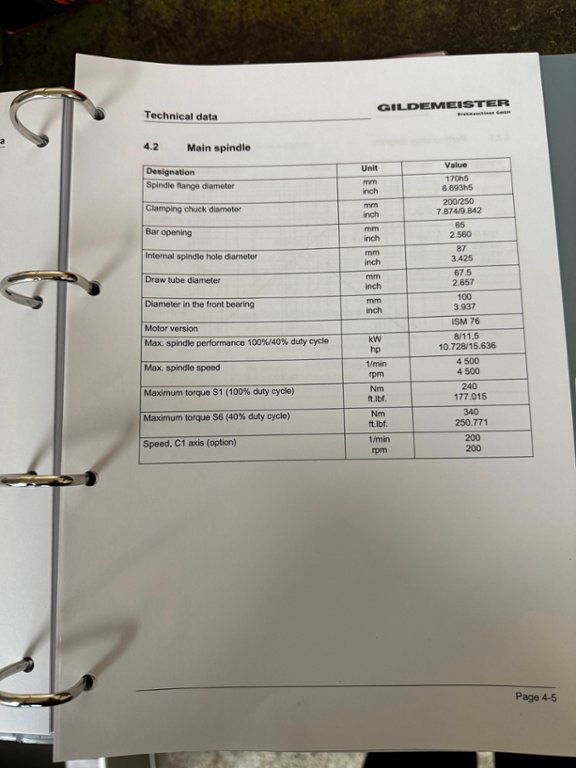

Main Spindle
Spindle Flange diameter - 170h5mm, Clamping Chuck diameter - 200/250mm, Bar Opening - 65mm, Internal Spindle Hole diameter - 87mm, Draw Tube diameter - 67.5mm, Diameter in the Front Bearing - 100mm, Motor Version - ISM 76, Max Spindle Performance 100%/40% duty cycle - 8/11.5 kW, Max Spindle Speed - 4500 1/min, Maximum Torque S1 (100% duty cycle) - 240 Nm, Maximum Torque S6 (40% duty cycle) - 340 Nm
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
21 Mar 2024 15:00:00 GMT

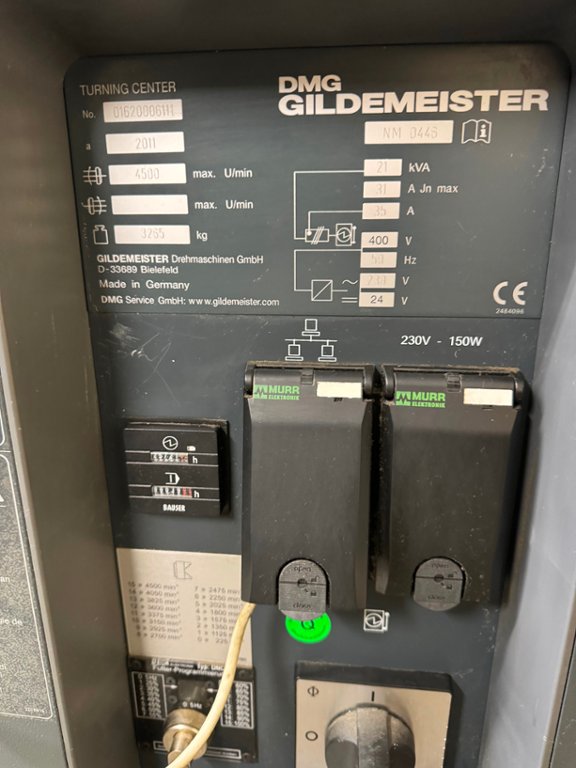

Serial Number: 01620006111
Location: Olney
Transport information

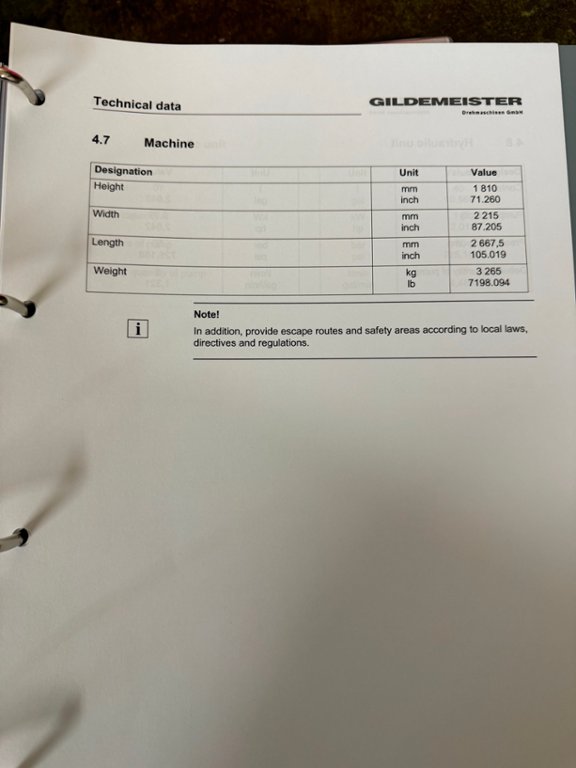

- Width: 2215mm
- Depth: 2667mm
- Height: 1810mm
- Weight: 3265kg
- Other Transport Details: Loaded to suitable transport £150
