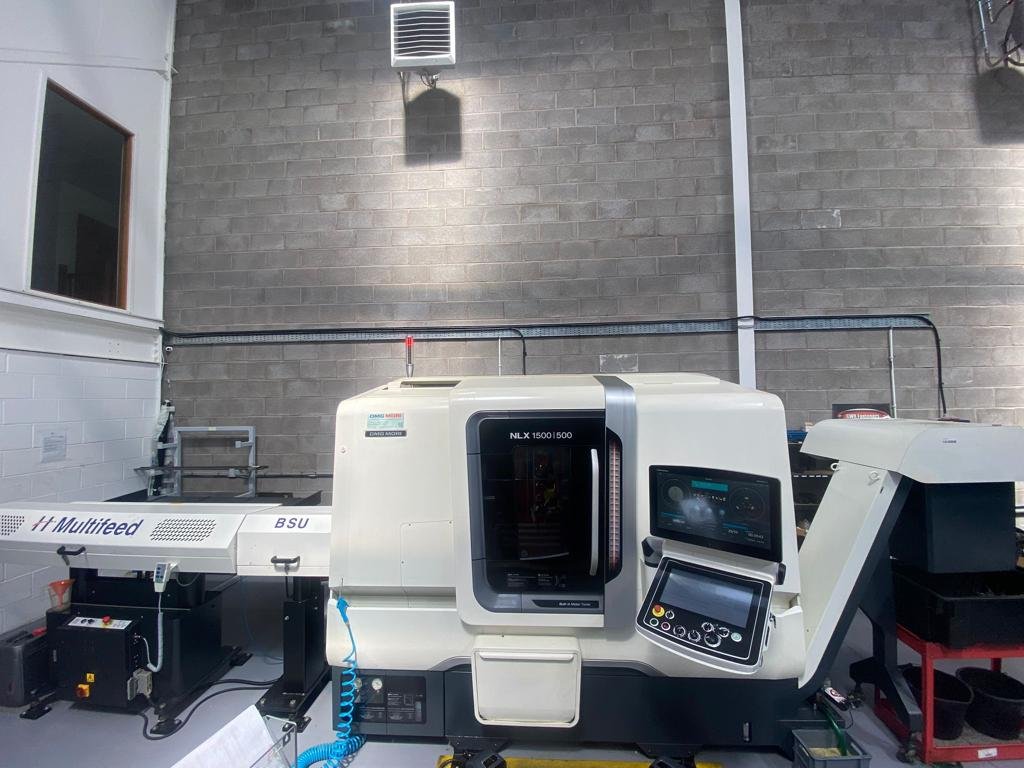

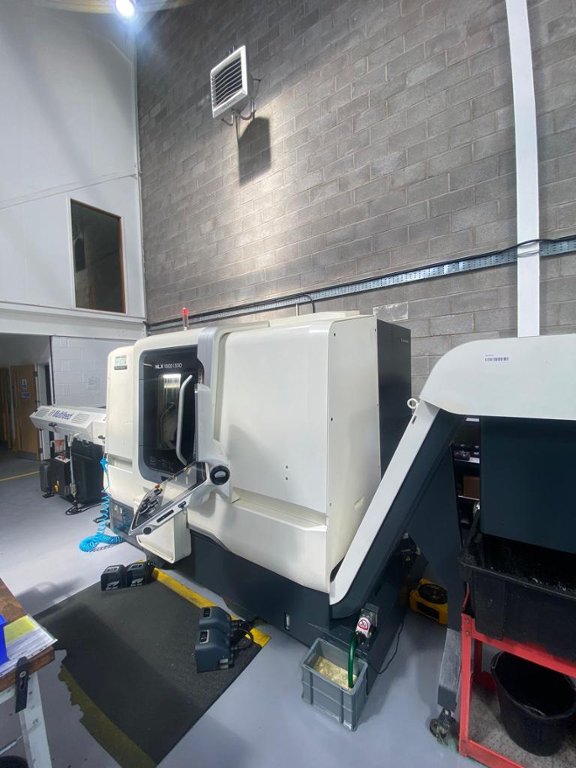

DMG Mori NLX 1500/500SY CNC Lathe

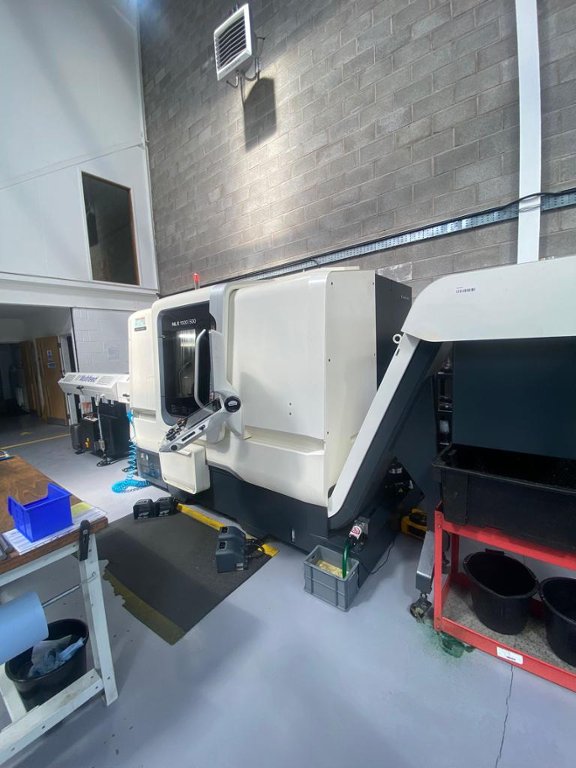

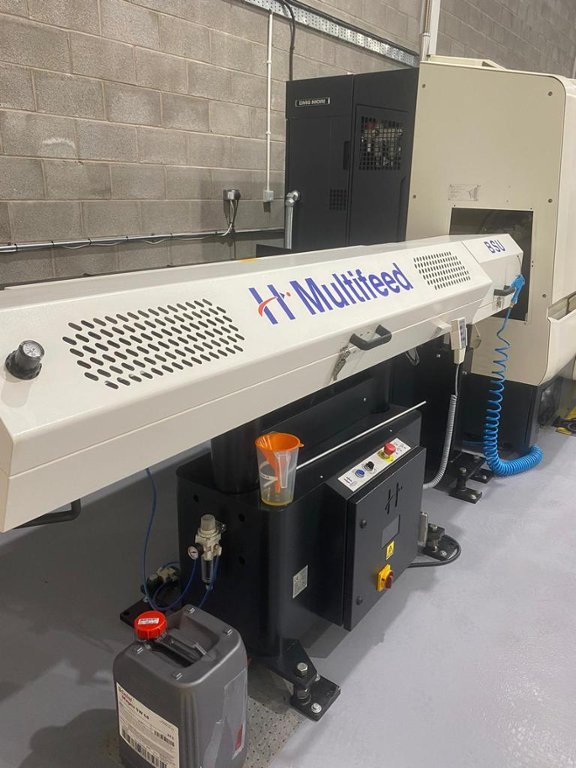

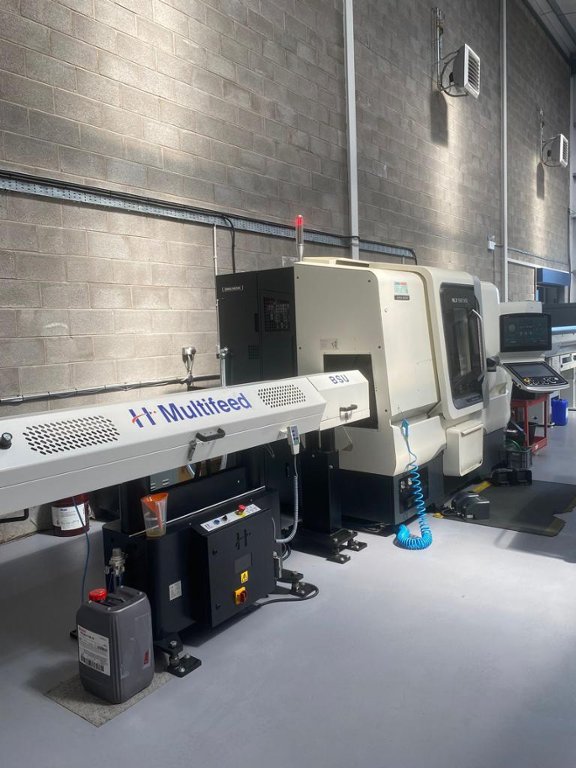

Lot 1 - DMG Mori NLX 1500/500SY CNC Lathe

Description:

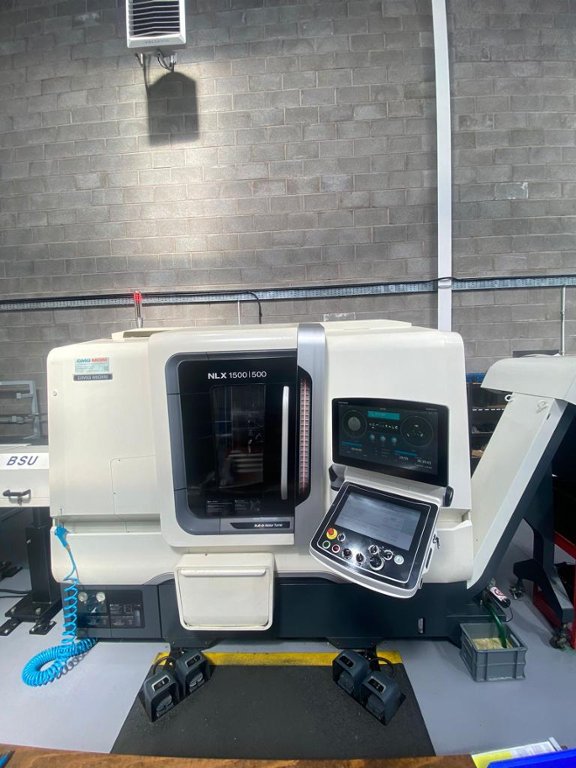

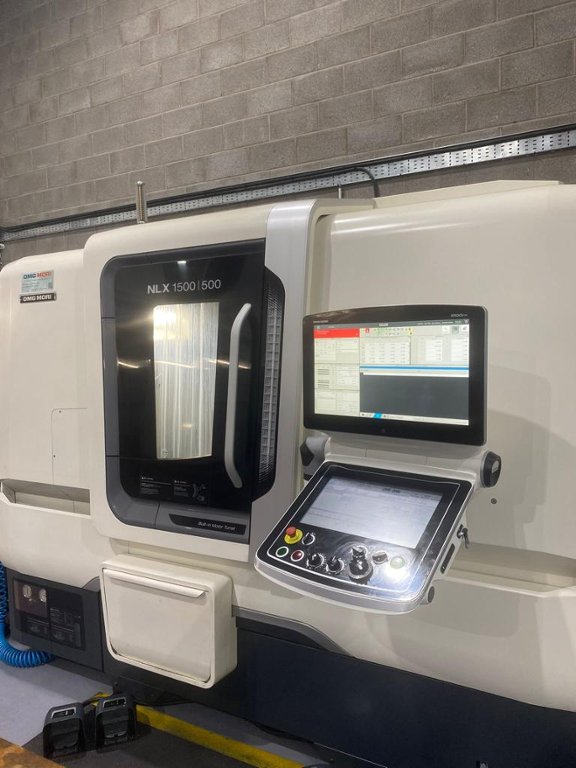

DMG Mori NLX 1500/500SY CNC Lathe
NLX1500/500 - Milling Specification
Control M730UM with CELOS

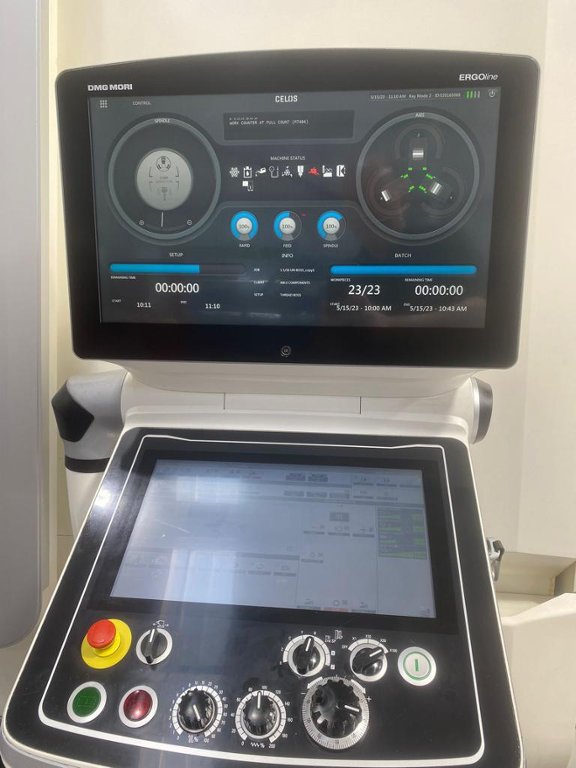

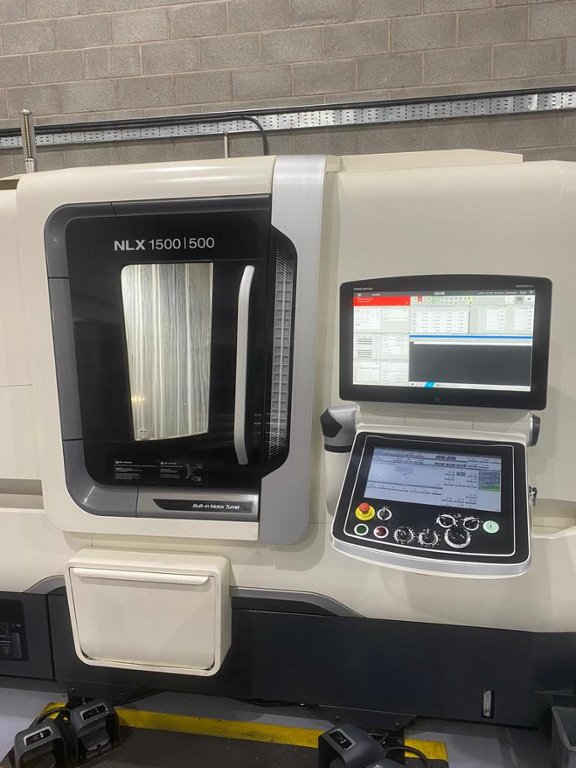

CELOS - ERGOline Touch
to facilitate machine operation incl. 21.5 " ERGOline Touch ® control with multi touch screens. Uniform management, documentation and visualization of order, process - and machine data.
Networkable with CAD / CAM
User friendly and productive
MAPPS system
(Spindle 1) Standard spindle 11 / 7.5 kW, 6,000min- 1
(Spindle 2) Standard spindle 11 / 7.5 kW, 6,000min- 1

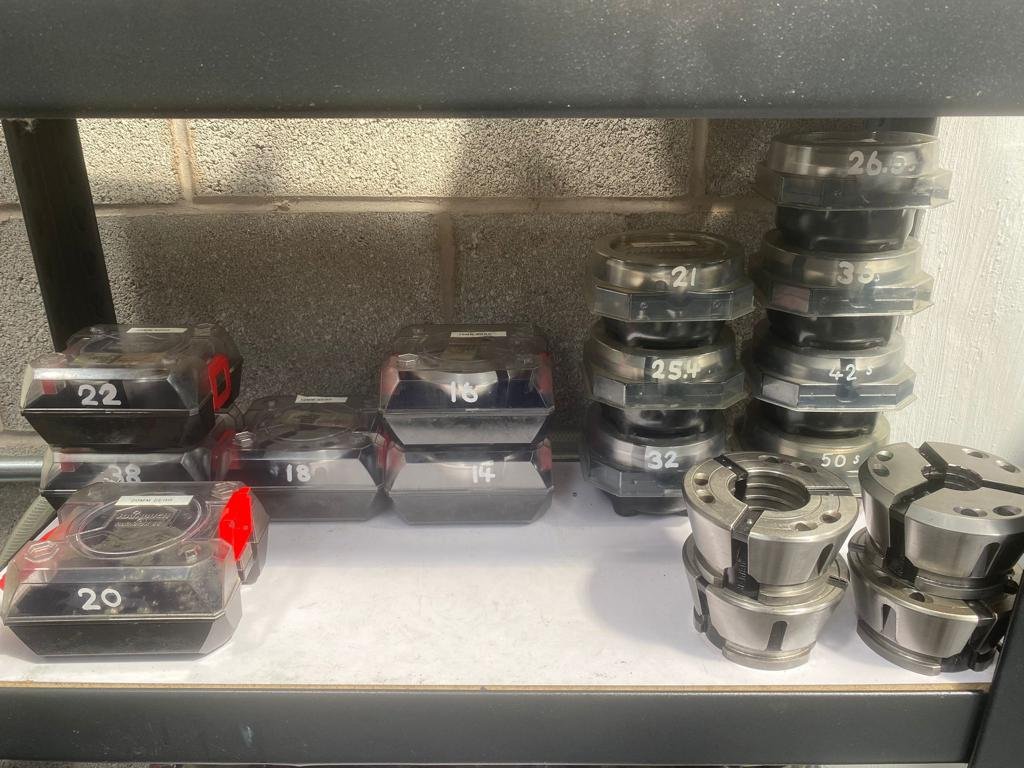

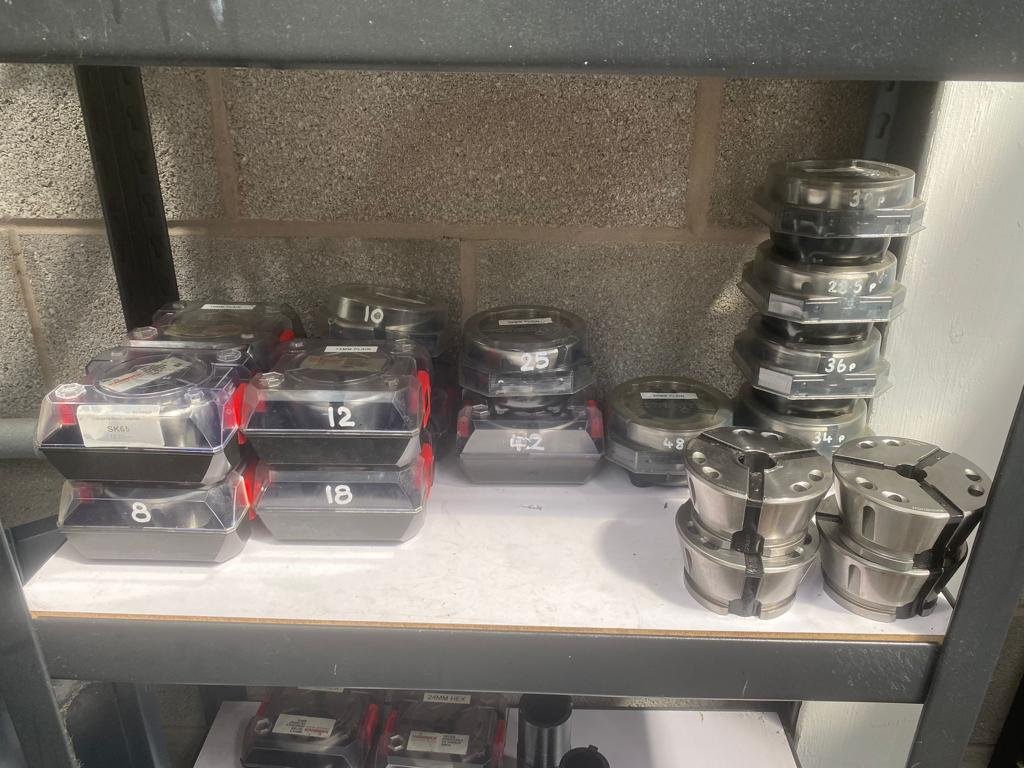

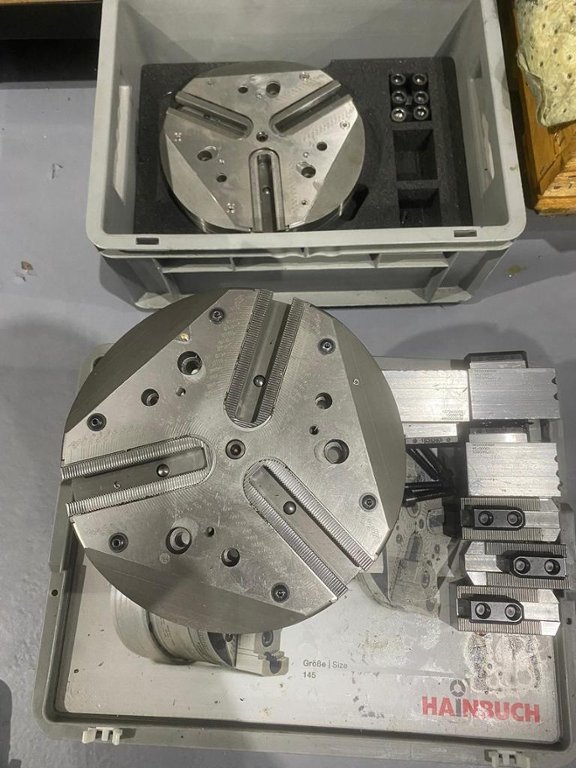

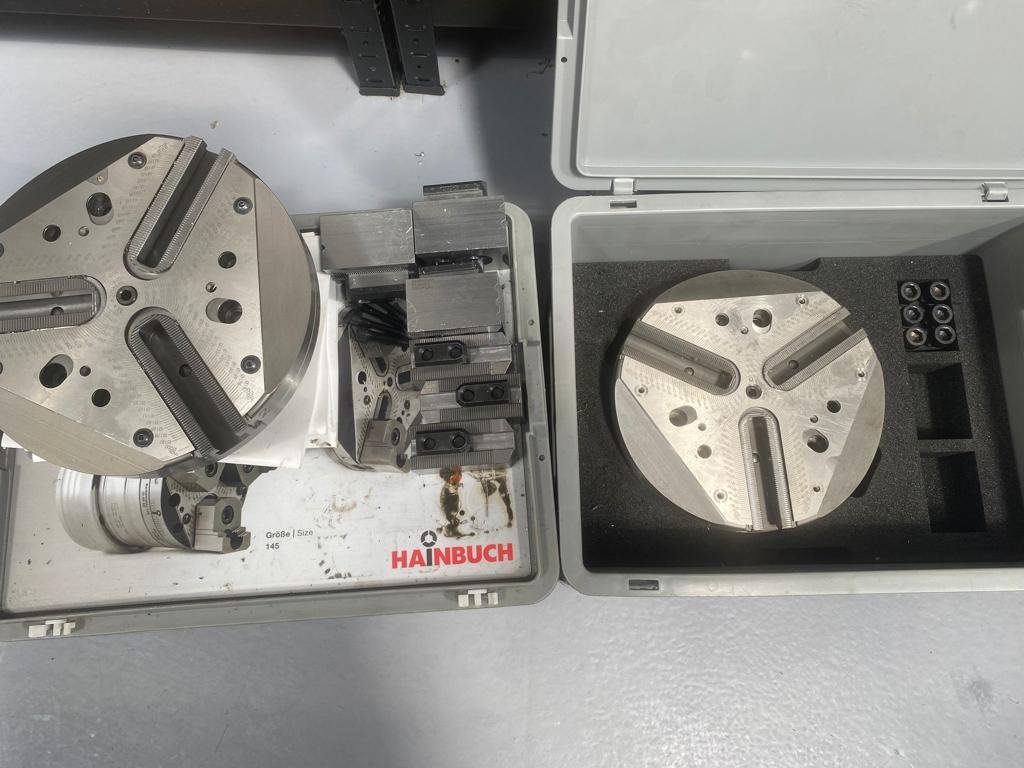

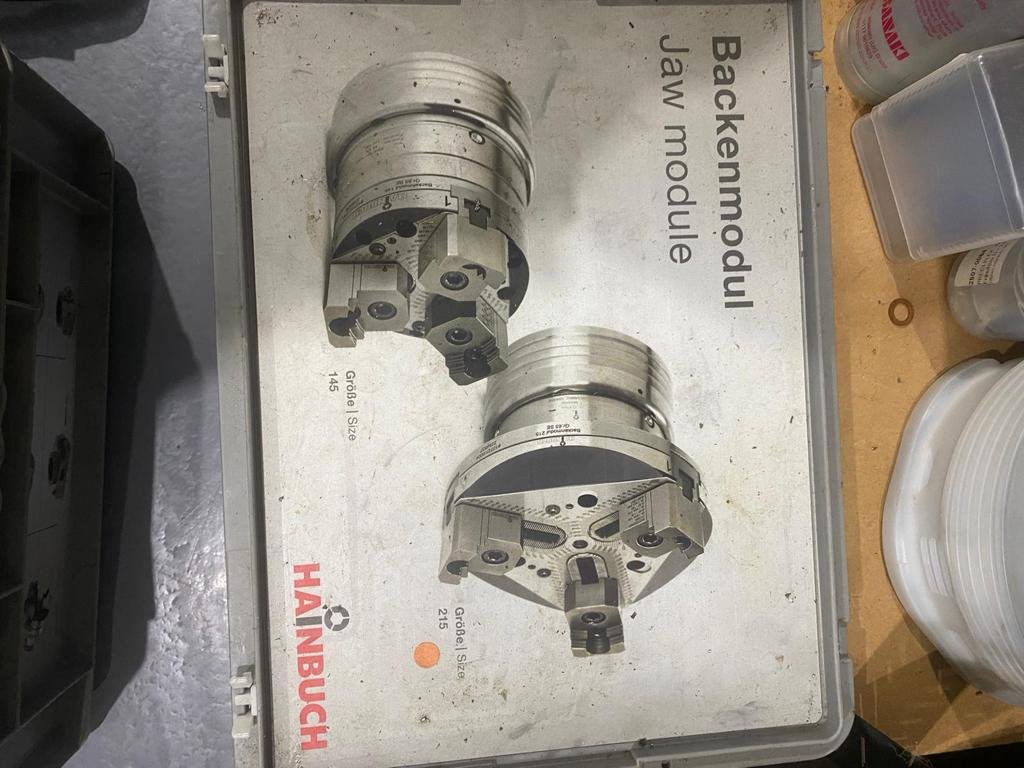

Chuck for Main spindle
J-017083 (Spindle 1) KITAGAWA 6in. Hollow Chuck BB206A521
J-017078 (Spindle 1) Hollow Cylinder set for 6 in. chuck
Chuck for Counter spindle
J-020340
(Spindle 2) KITAGAWA 6 Inch Hollow Chuck B206A521F
Three-jaw hydraulic chuck manufactured by Kitagawa Iron Works.
Through-hole diameter: Ø45 mm [1.77 inch] Gripping diameter: max 169 mm [6.65 inch], min 16 mm [0.63 inch]
Jaw stroke (diameter): 5.5 mm [0.216 inch]
Plunger stroke: 12 mm [0.472 inch]
Max allowable pull force: 22 kN [4.94 klbf]
Max static gripping power: 57 kN [12.81 klbf] Dynamic gripping force at max speed:
19 kN [4.27 klbf]
Max allowable speed: 6000 min-1
Mass: 13.7 kg [30.1 lb]

(Spindle 2) Solid Cylinder Set For 6 Inch Chuck (Howa)
Includes Howa solid cylinder C1SB115 and draw pipe R74279, for use with 6 inch hollow chuck Kitagawa B206A521F. Chuck is not included. Cylinder inner diameter: 115 mm [4.527 inch] Piston stroke: 20 mm [0.787 inch]
Piston surface area: push side 84.2 cm 2 [13.05 inch 2], pull side 90.0 cm 2 [13.95 inch 2]
Max hydraulic pressure: 3.5 MPa [573 psi]
Max allowable speed: 6000 min-

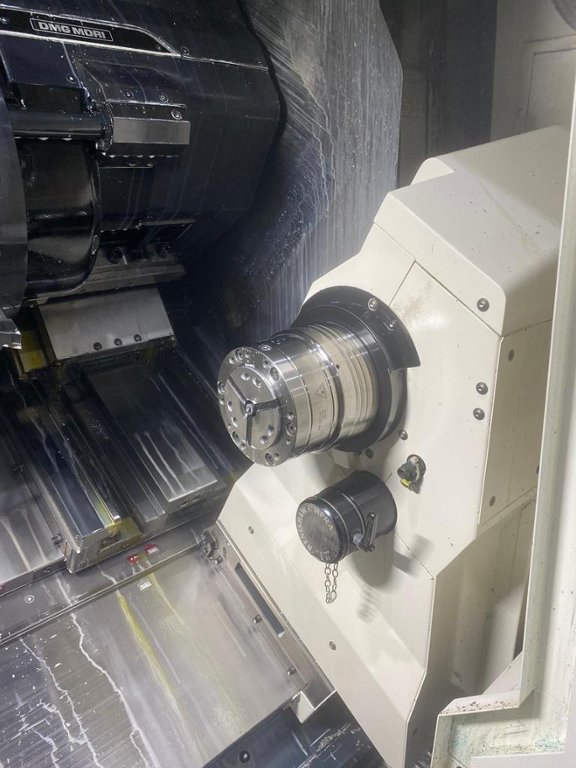

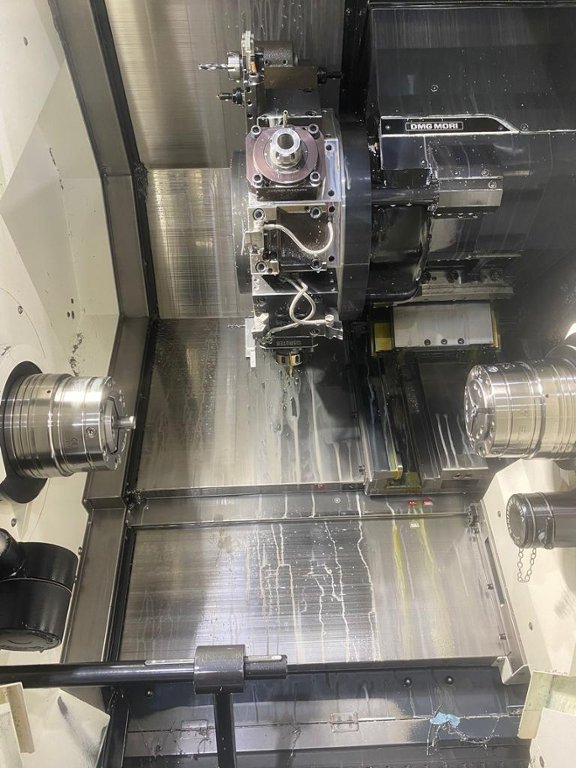

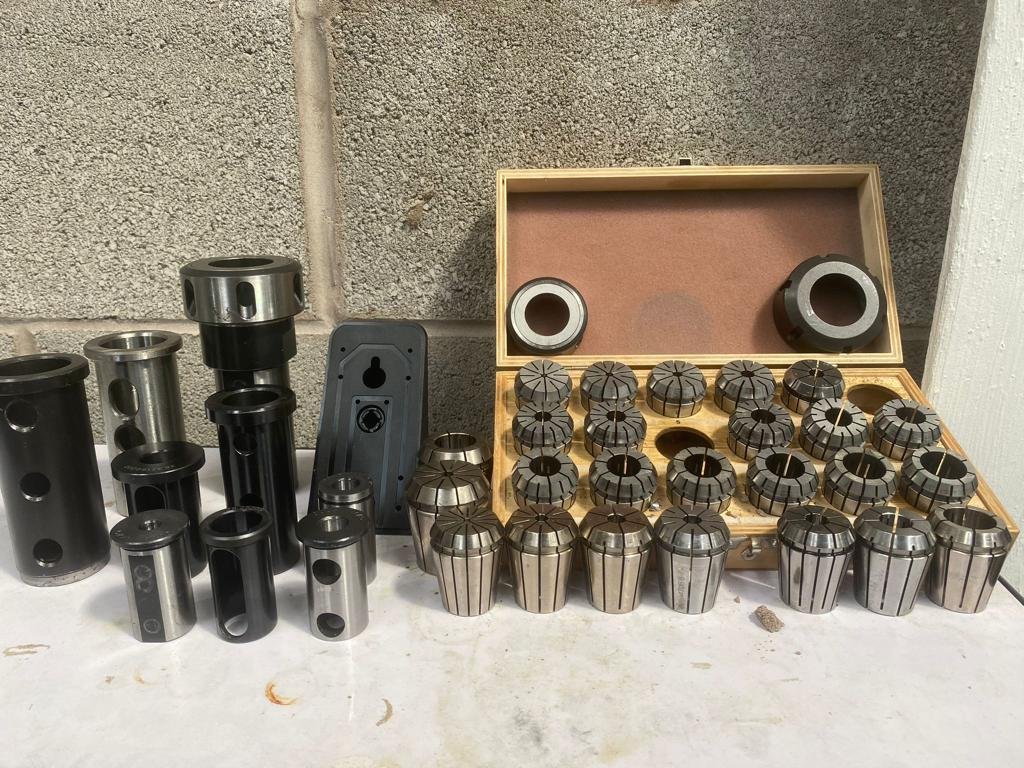

Turret

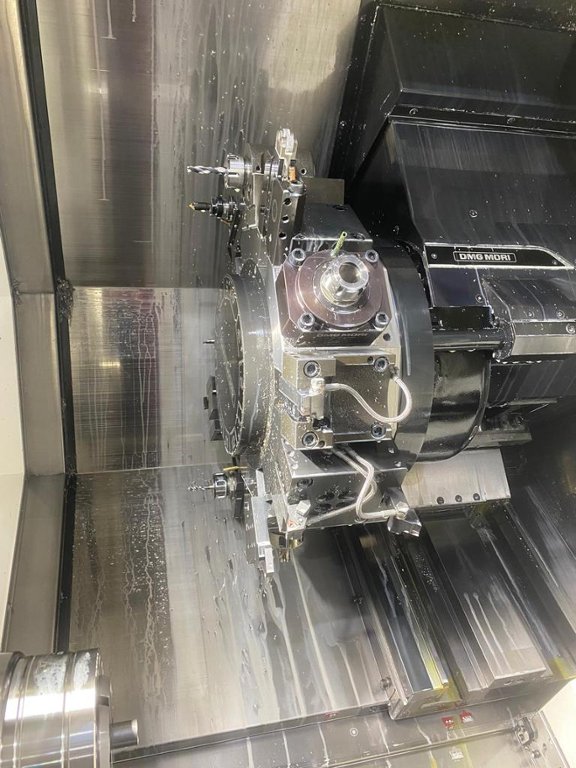

Turret : Y-axis

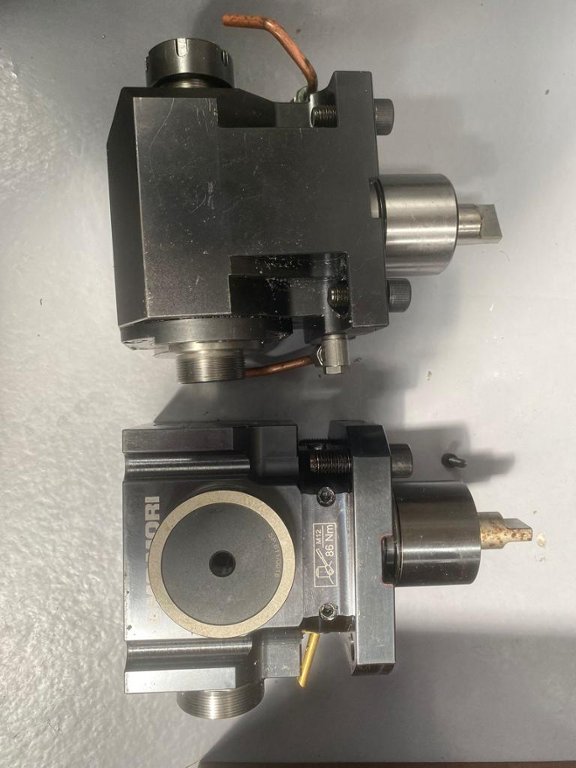

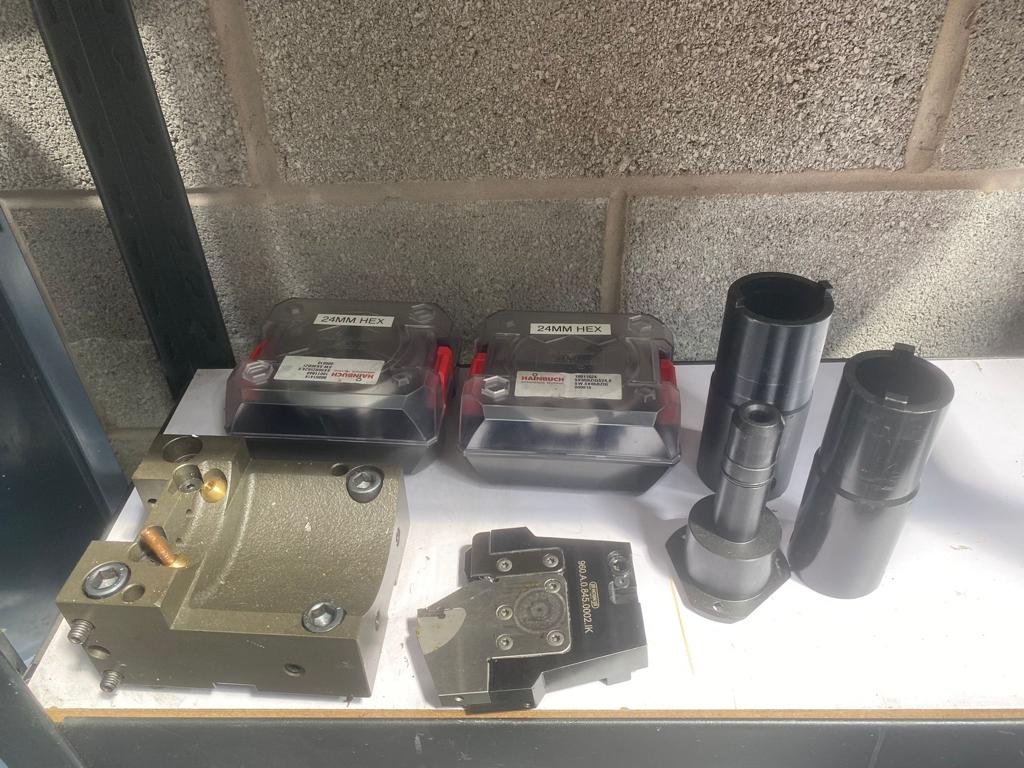

Standard rotary tool spindle 29/ 14 Nm, 10,000 min- 1
12 Station Bolt-Tightened Turret(Standard Specification)

Tailstock

Spindle 2 tailstock specifications
Provides a center holder which can be mounted into spindle 2 to use it as a tailstock. This allows you to process the tip of the workpiece. The tailstock positioning motor includes a brake, to prevent the sub spindle from being pushed back when used as a tailstock.
× The center is not included with this option.

Coolant supply / Chip removal

Usable coolant type: Water-soluble
High-Pressure Coolant System (Max Pressure 0.8 MPa, Output 800/1100 W)
Improves chip flushing performance and tool and workpiece cooling. This option changes the coolant pump supplying the turret to high-pressure specification.
Output (50/60 Hz): 800/1100 W
Maximum pump pressure: 0.8 Mpa (116 psi)

Measuring / Monitoring

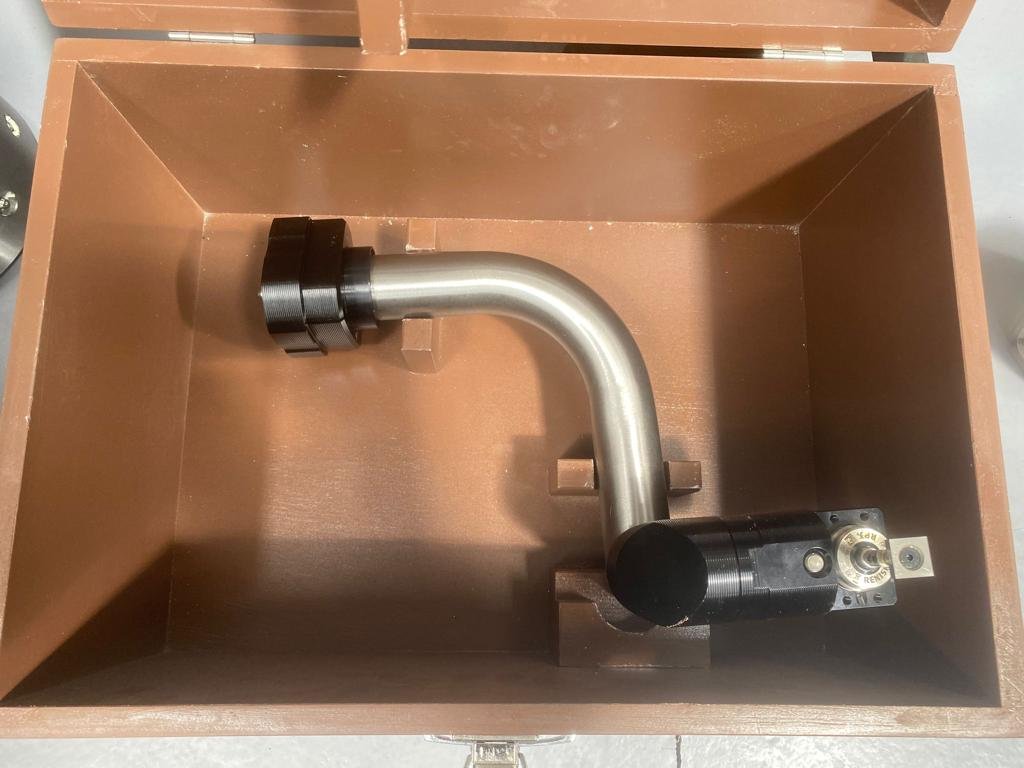

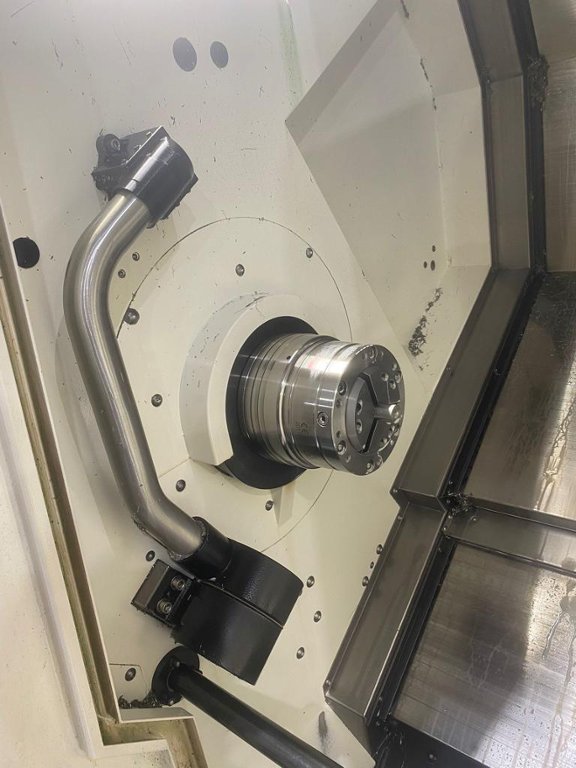

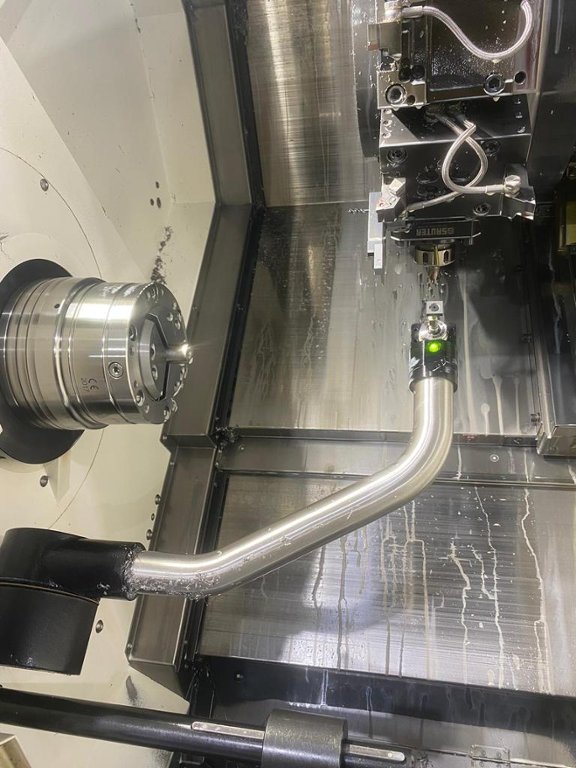

Manual In-Machine Tool Presetter (Pivoting Type) (Standard)
Simplifies tool offset measurement following tool change. The position of the tool nose is measured precisely by just bringing the tool nose into contact with the sensor, and the measured value is fed back to NC. The tool presetter manually swivels into a protective housing when not used. Measures both X and Z tool offsets.
(Arm specification)
Repeatability: 0.005 mm [0.000196 inch] (2 value) Protection Level: IP 67
Manufacturer: Marpos
(Probe specification)
Repeatability: 0.001 mm [0.00039 inch] (2 value, when the stylus length is 25 mm [0.984 inch]) Protection Level: IP 67
Measuring force: 3.15 N to 6.7 N [0.70 lbf to 1.50 lbf] Manufacturer: Marpos

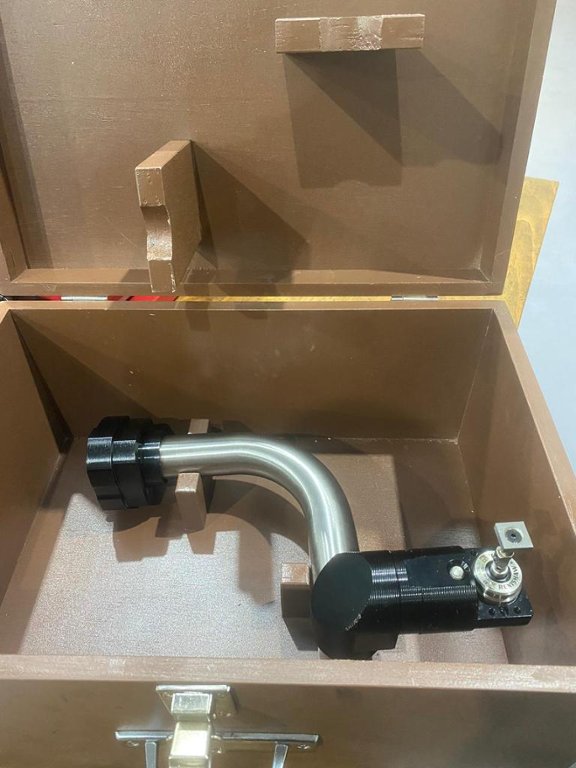

Manual in-machine tool presetter (removable type)
(Spindle 2)

General Options

Setting Unit MM
Preconfigures control to use millimeters as display
and input unit.
Turning machine : turret (mm) type Horizontal MC : pallet (mm) type
