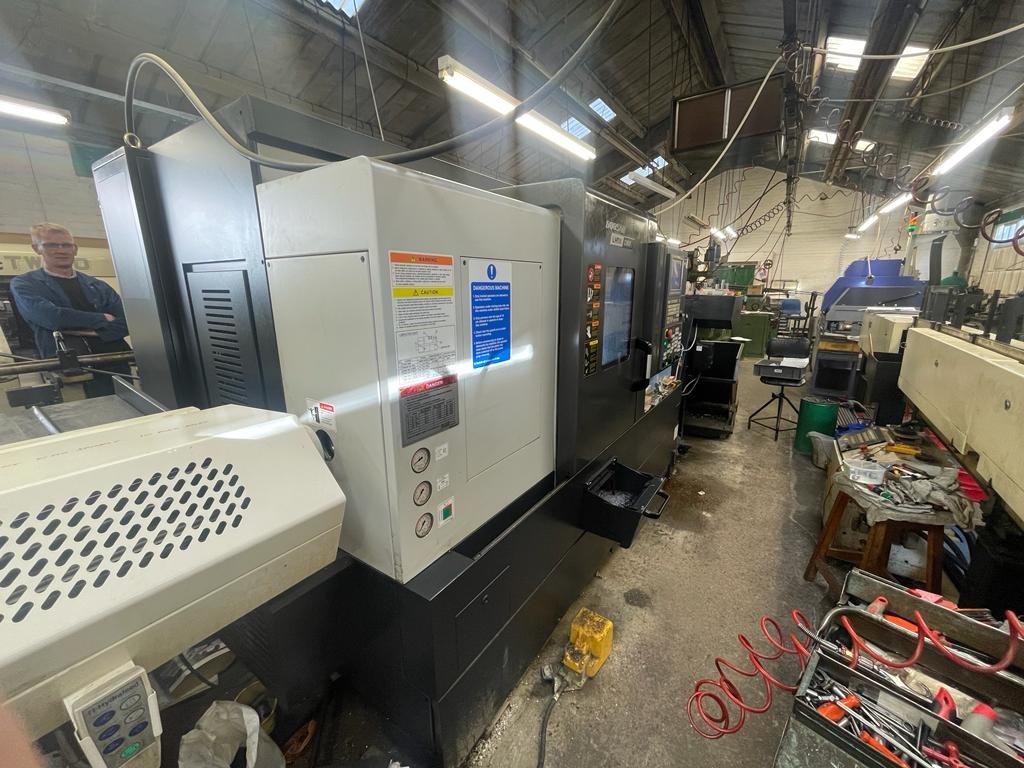

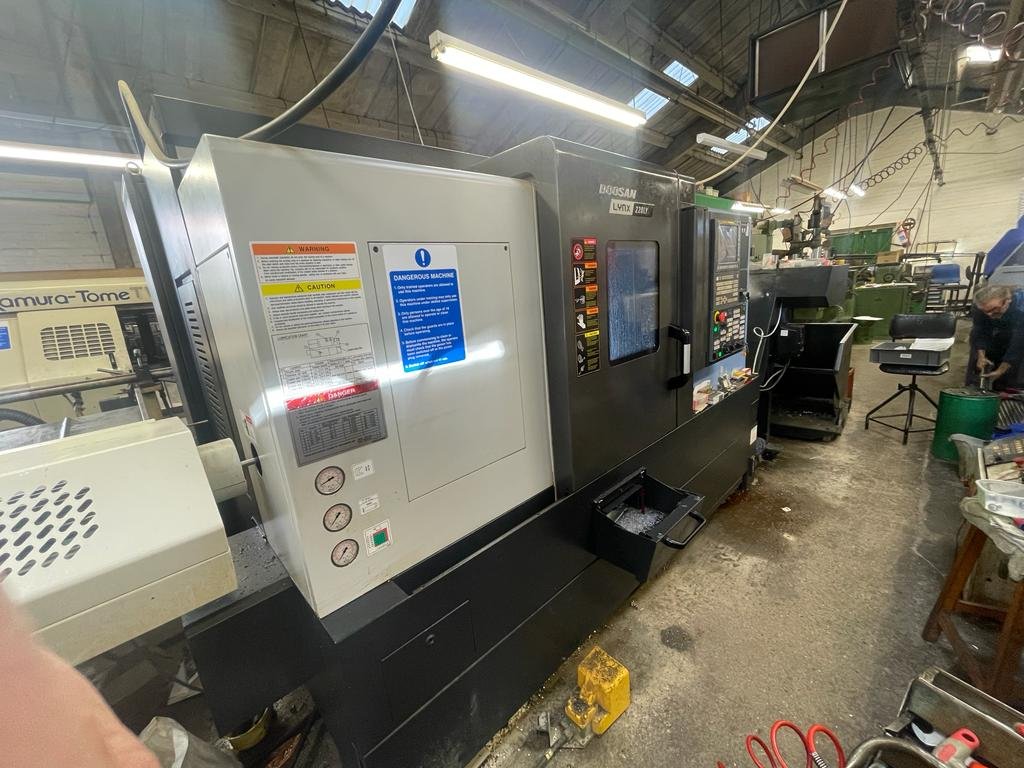

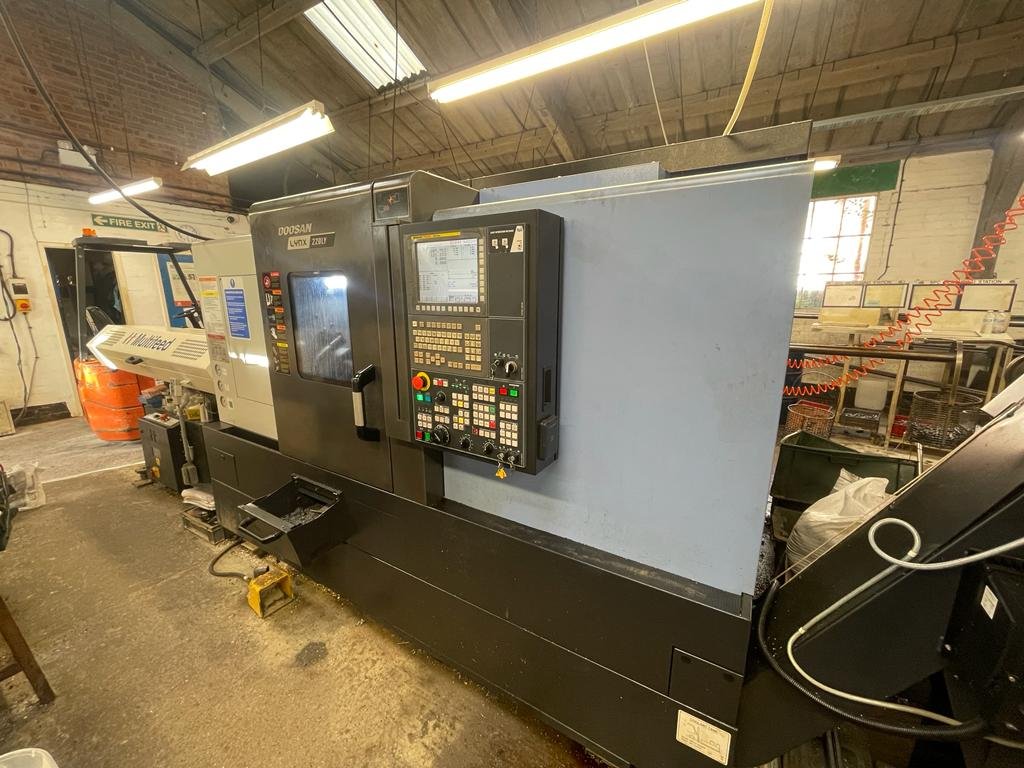

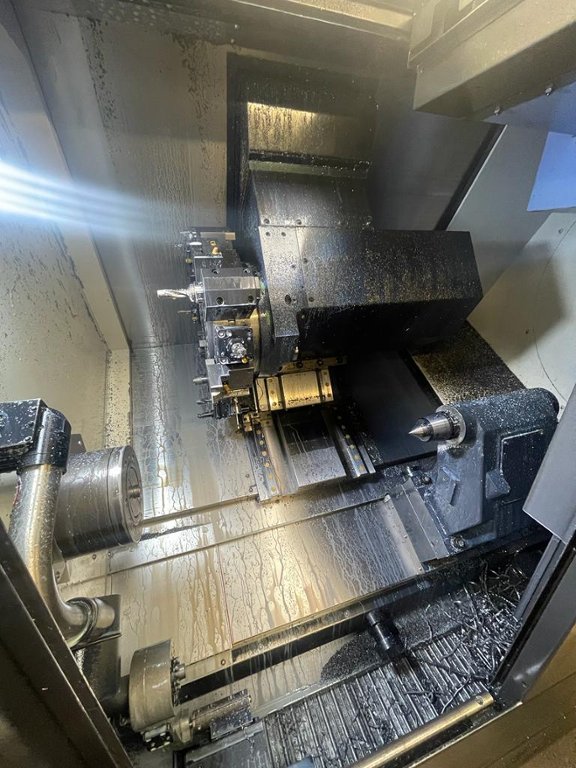

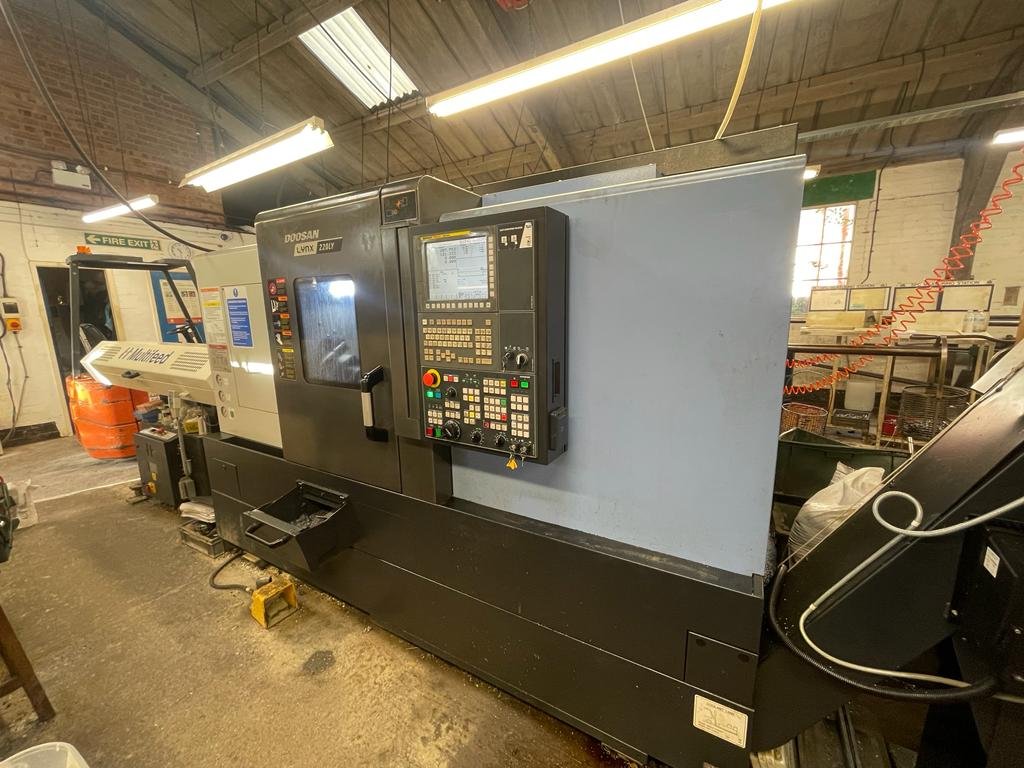

Lot 1 - Doosan Lynx 220LY CNC Lathe (2017)

Description:

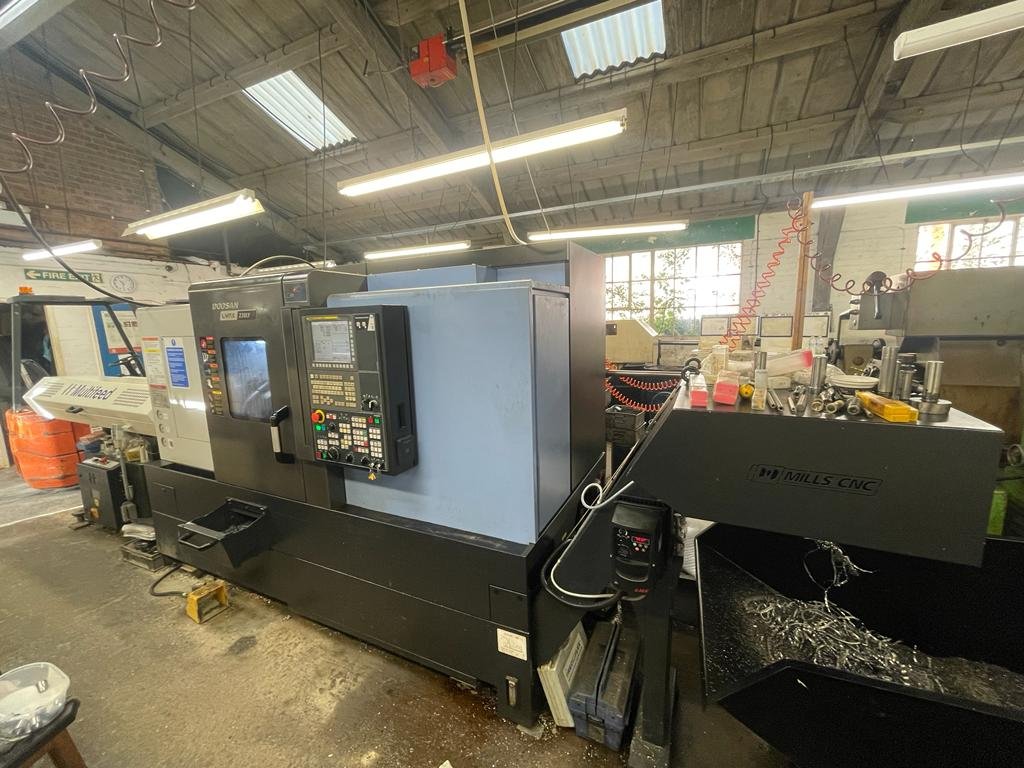

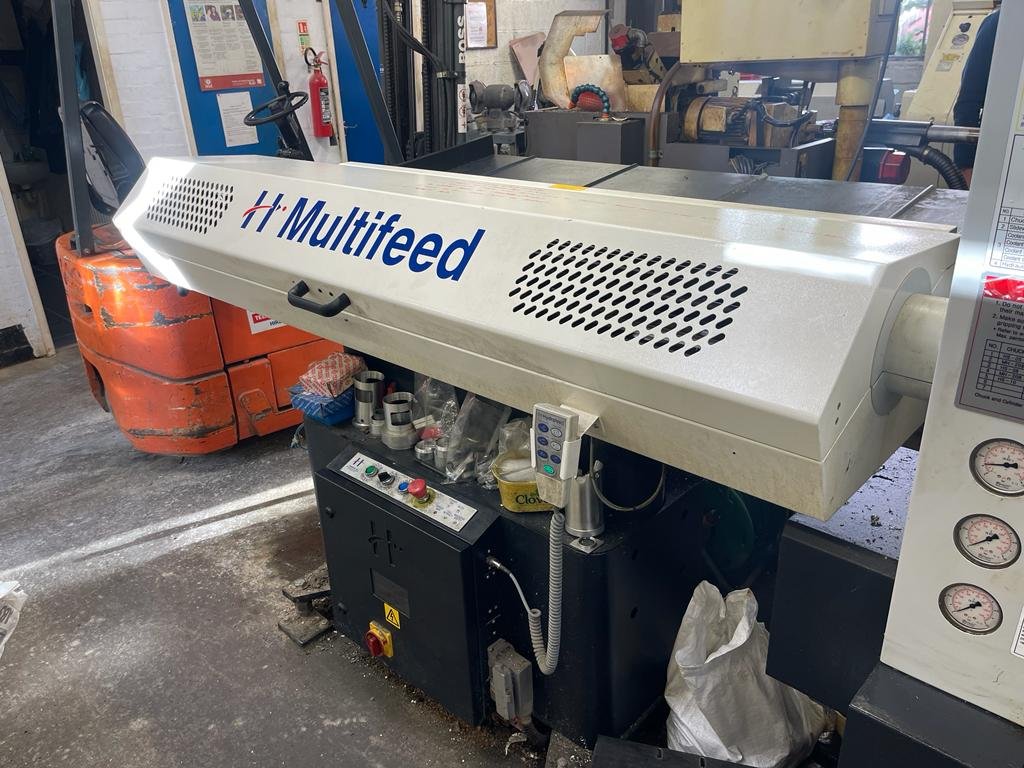

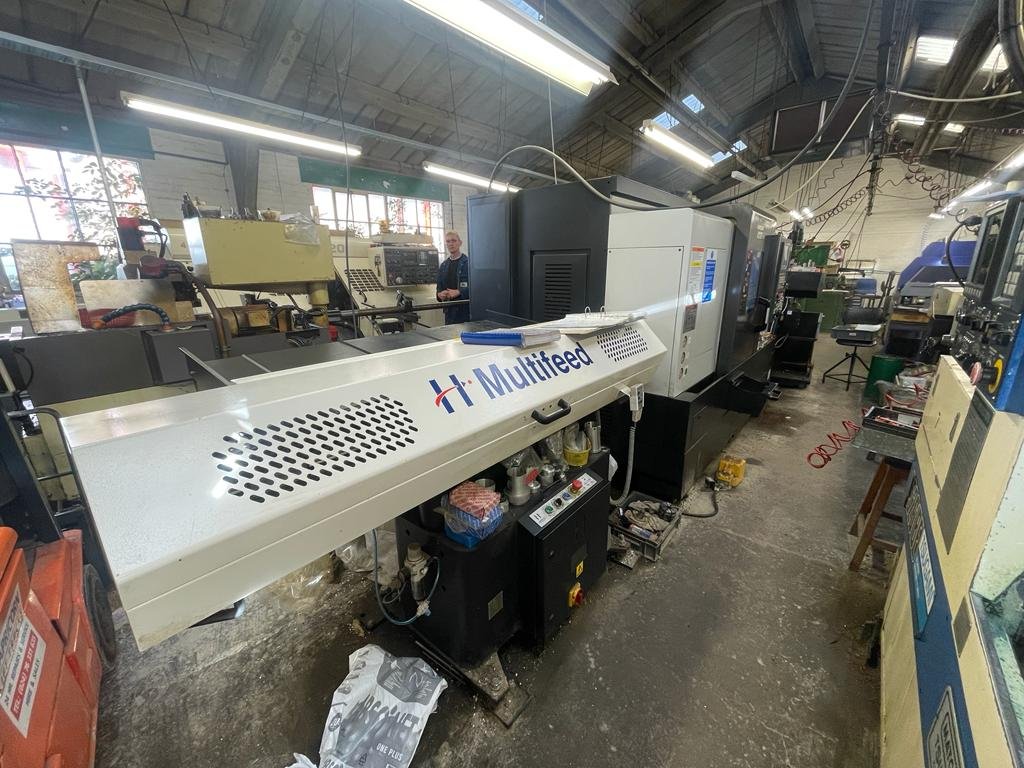

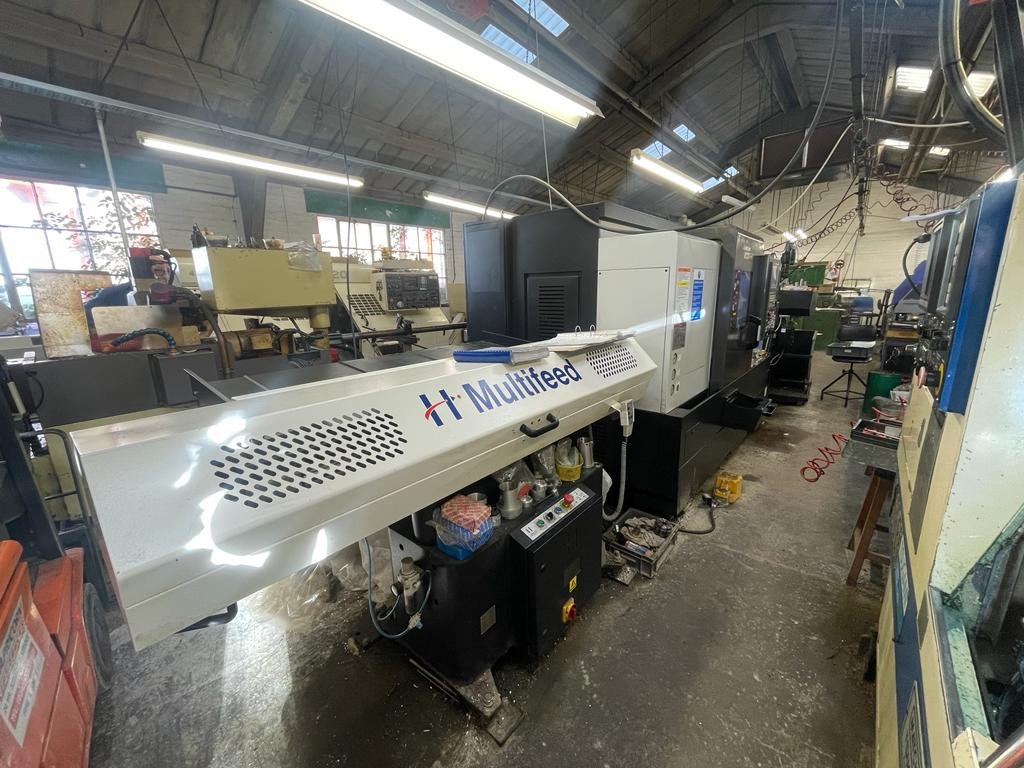

With MX1B Multifeed Barfeed S/N - 6656 - 210mm Long

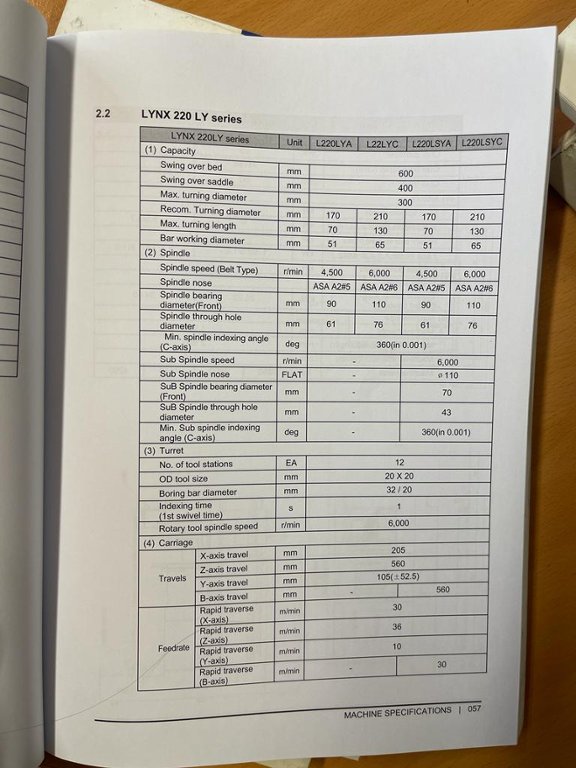

Capacity

Swing Over Bed - 600mm, Swing Over Saddle - 400mm, Max Turning Dia - 300mm, Recom Turning Diameter - 210mm, Max Turning Length - 130mm, Bar Working Diameter - 65mm

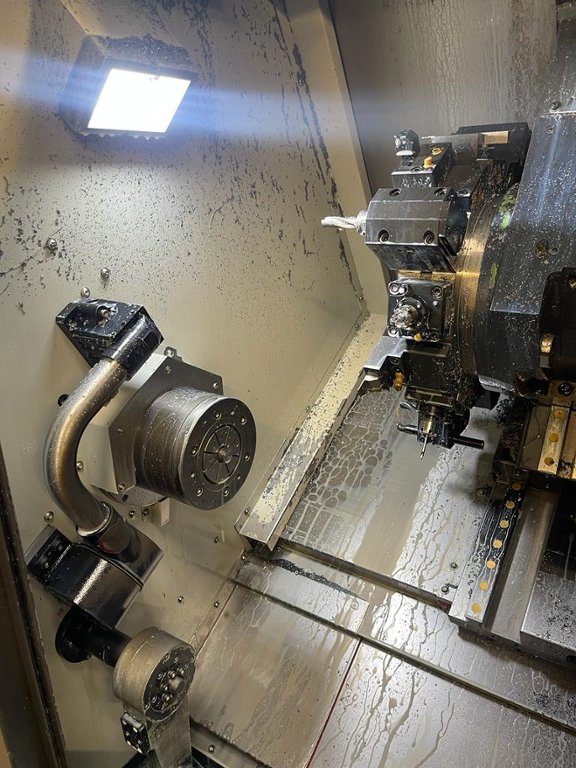

Spindle

Spindle Speed (Belt Type) - 6000r/min, Spindle Nose - ASA A2#6, Spindle Bearing Diameter (Front) - 110mm, Spindle Through Hole Diameter - 76mm, Min Spindle Indexing Angle (C Axis) - 360deg,

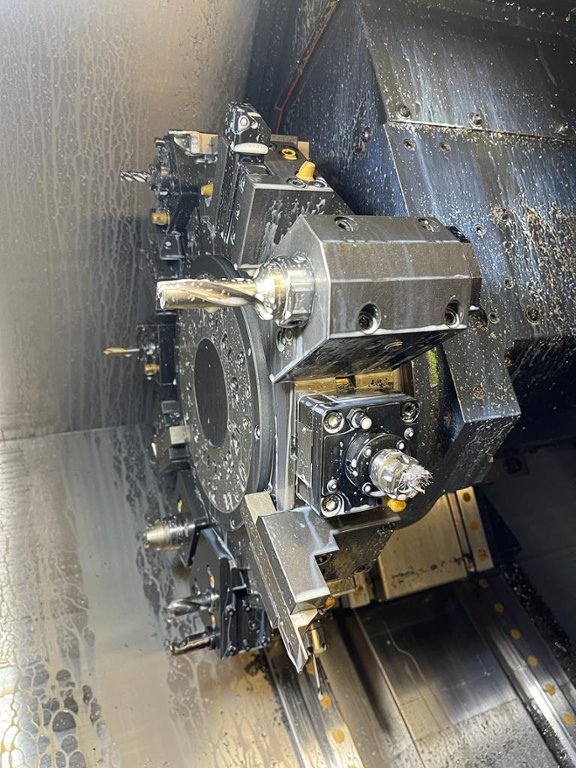

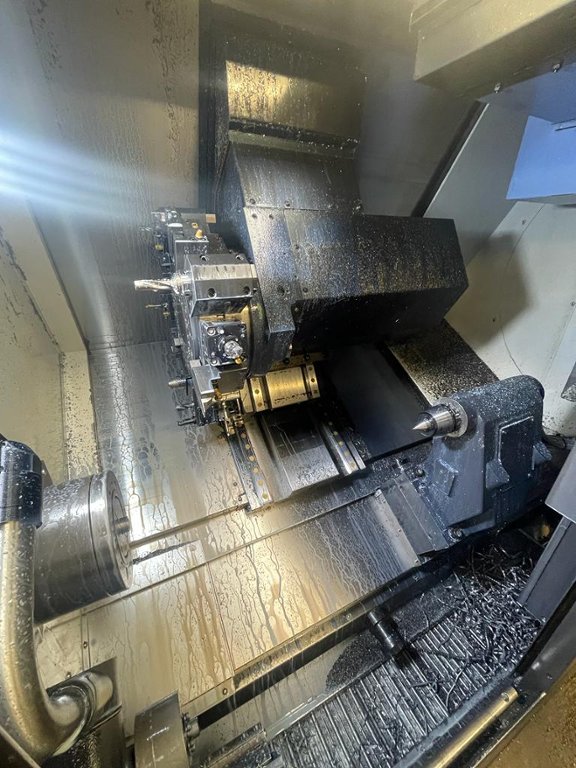

Turret

No of Tool Stations - 12, OD Tool Size - 20 x 20mm, Boring Bar Diameter - 32/20mm, Indexing Time (1st Swivel time) - 1, Rotary Tool Spindle Speed - 6000r/min

Carriage

X Axis Travel - 205mm, Z Axis Travel - 560mm, Y Axis Travel - 105(±52.5)mm, Rapid Traverse (X Axis) - 30m/min, Rapid Traverse (Z Axis) - 36m/min, Rapid Traverse (Y Axis) - 10m/min

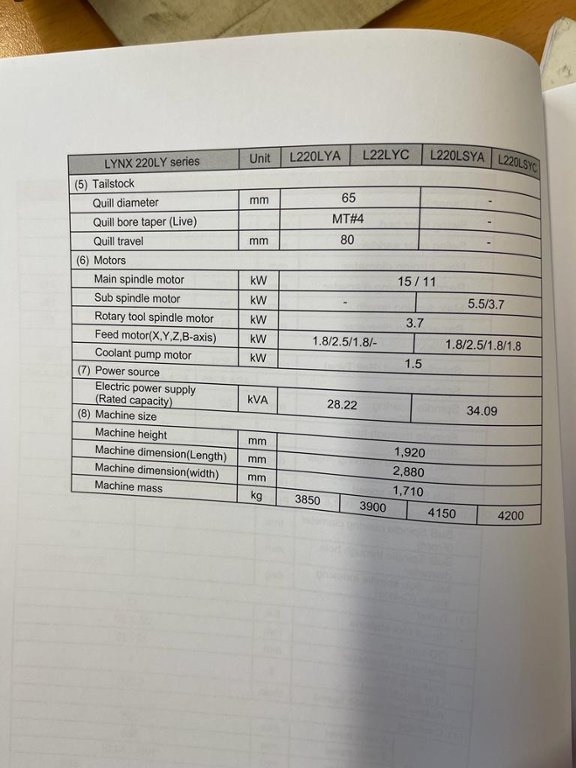

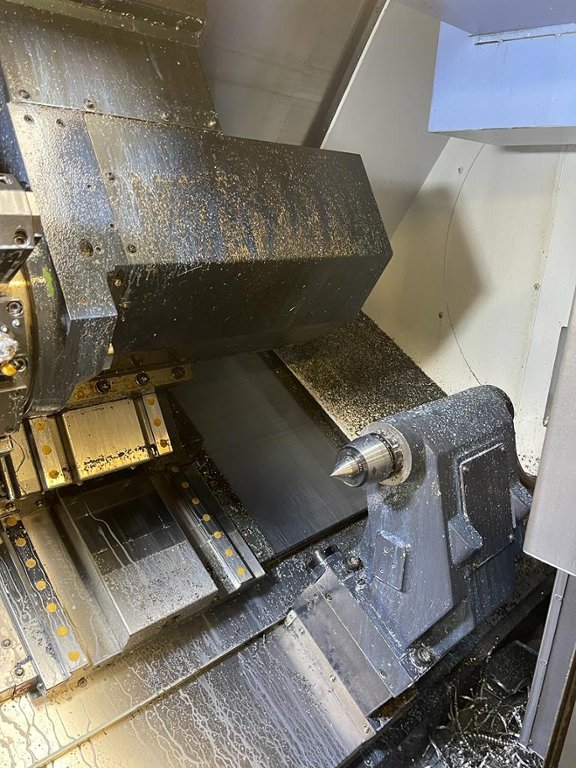

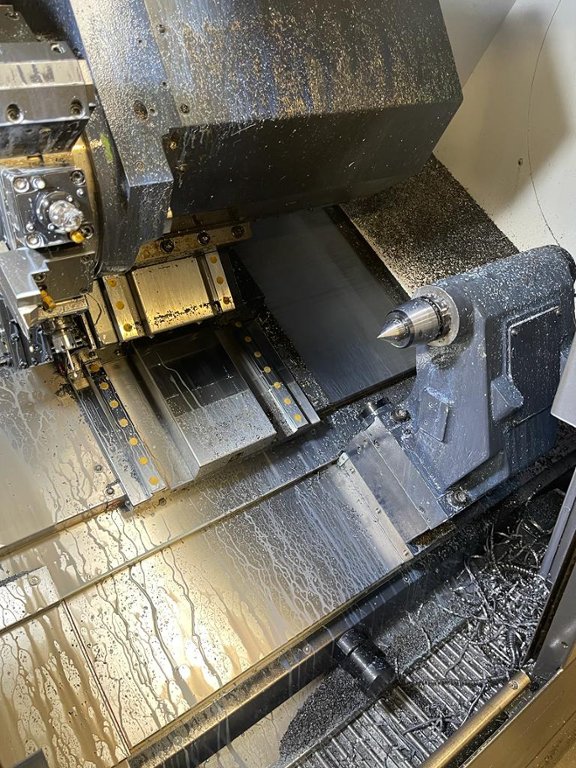

Tailstock

Quill Diameter - 65mm, Quill Bore Taper (Live) - MT#4, Quill Travel - 80mm

Motors

Main Spindle Motor - 15/11kW, Rotary Tool Spindle Motor - 3.7kW, Feed Motor (X,Y,Z Axis) - 1.8/2.5/1.8kW, Coolant Pump Motor - 1.5kW

Power Source

Electric Power Supply (Rated Capacity) - 28.22kVA

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

HRSMINSEC
000000

15 Dec 2022 15:40:00 GMT


Final remove by date: 19/Jan/2023

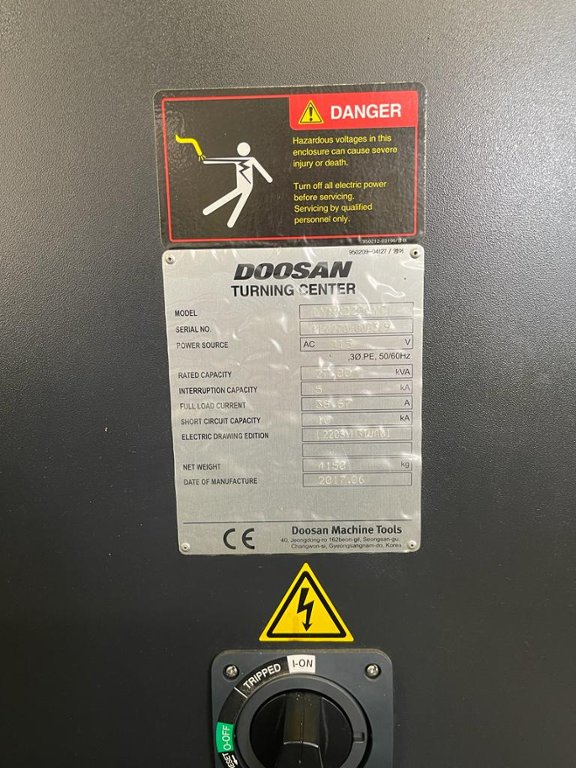

Serial Number: ML0270-000329

Location: Coventry

Lot location

Transport information

  • Width: 2880mm
  • Depth: 1710mm
  • Height: 1920mm
  • Weight: 4150kg
