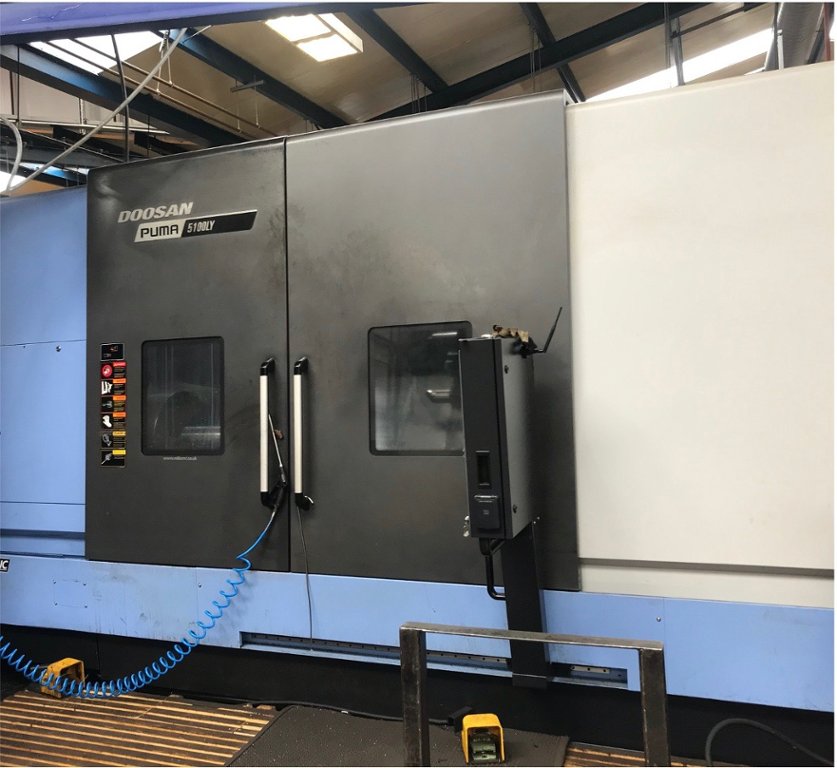

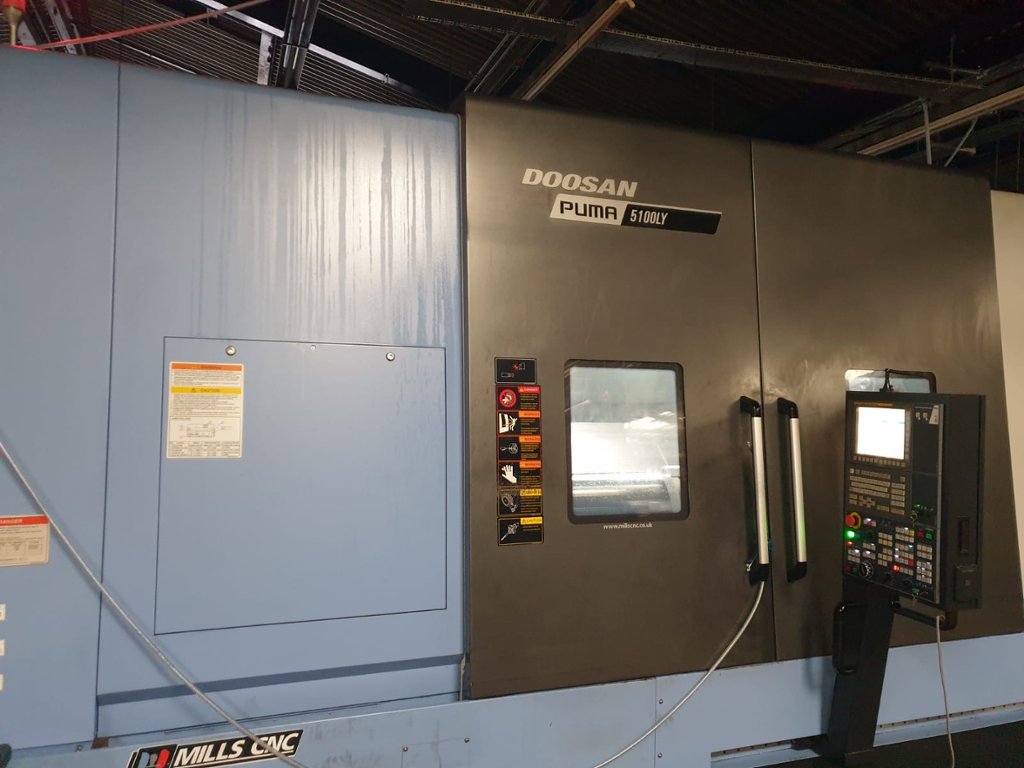

Lot 1 - Doosan Puma 5100LYB CNC Lathe (2017)

Description:

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport

• Photos

Enlarge

Specifications:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

Machine Options included

Cromar Swarf conveyor -standard slat type

Swarf bin,


Filtermist FX6002F oil mist separator,

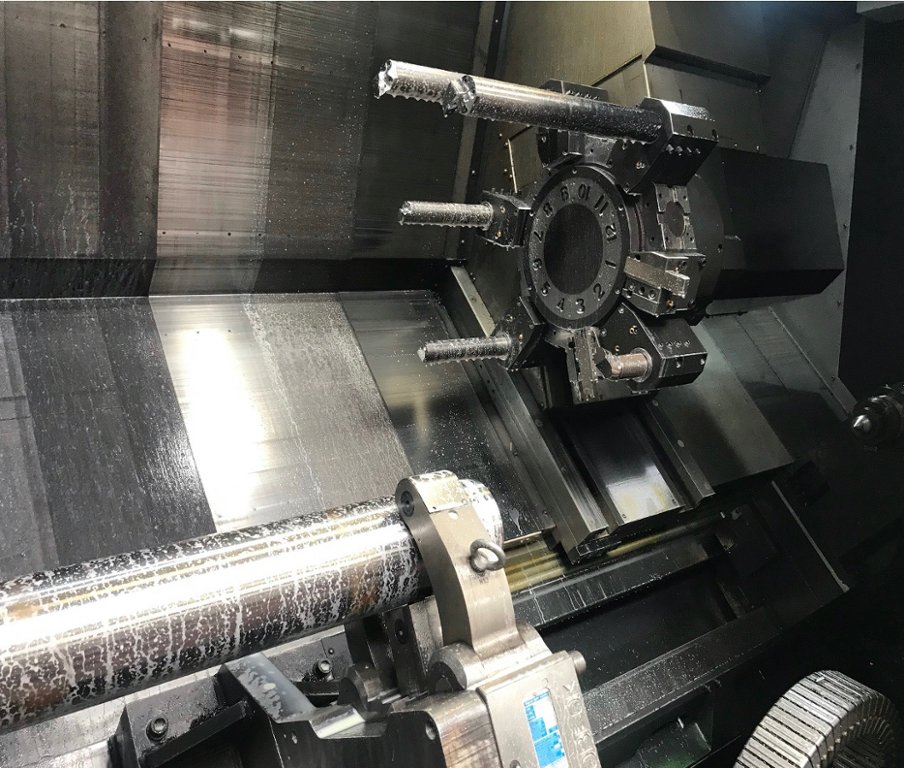

Fully programmable SMW SLUX5.1 steady rest rangeØ85mm to Ø352mm with automatic clamp


High Pressure 70 bar coolant system - WB10-1000-2


Bulkhead recess above chuck to clear longer turret tools


Outline Machine Specification


Max swing 880mm


Max turning Length 2020mm


Y axis travel - 150mm ( +/- 75mm )


Chucking capacity - 530mm (21 inch)


Bar Capacity 165.5mm


Main Spindle Motor 45Kw with 2 speed 1500rpm


Turret 12 station turret – BMT75P


Driven Rotary Tools – 15kw, 3000rpm

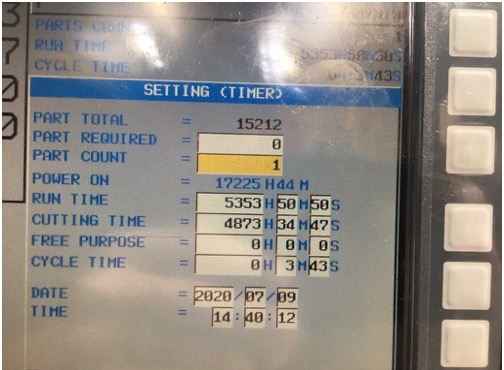

As of 14:40 on Thursday 9th July 2020 the machines recorded hours are as follows

Power On – 17,225 hours
Run Time – 5,353 Hours
Cutting Time - 4,873 Hours

Length
5,980 mm (235 in.)
Height
2,885 mm (113.6 in.)
Width
2,522 mm (99 in.)

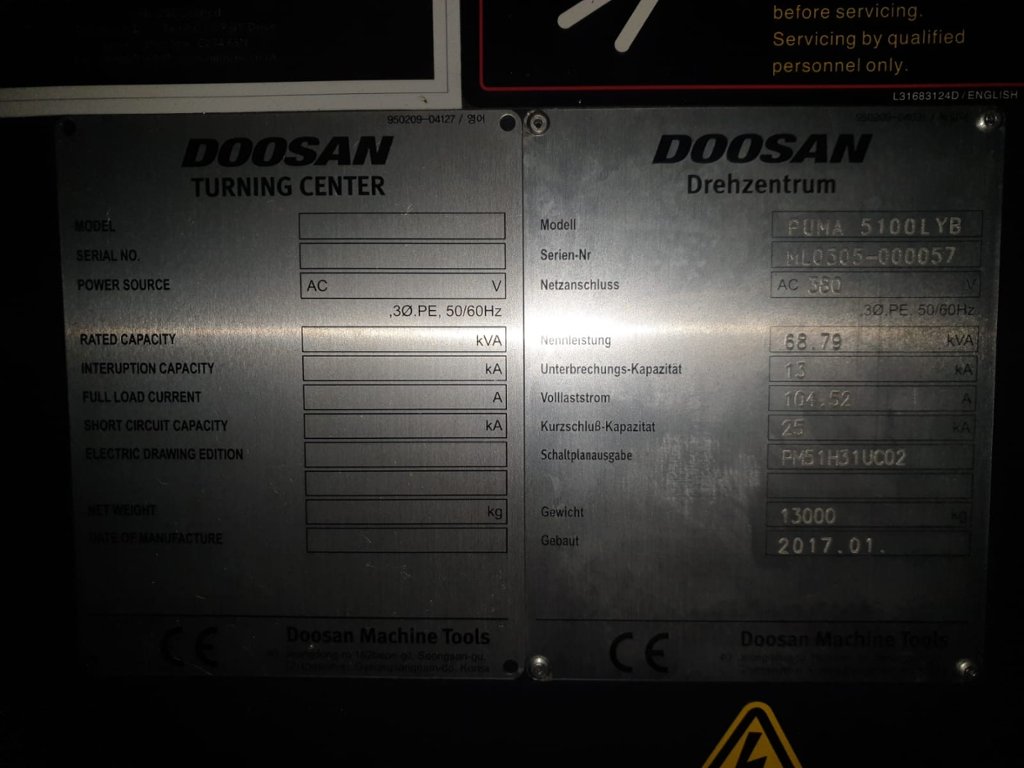

Weight
13,000 kg (28,660 lbs.)
