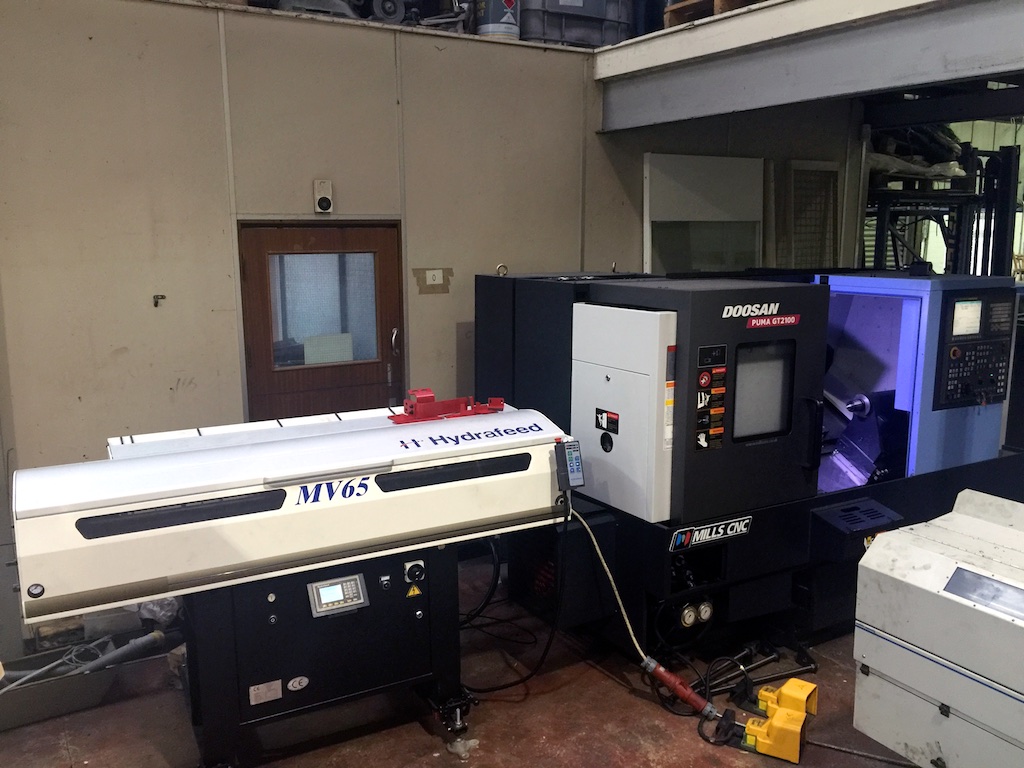

DOOSAN PUMA GT2100 CNC Lathe (2013) With Fanuc i Series Control & Hydrafeed MV65 Bar Feed

Lot 1 - DOOSAN PUMA GT2100 CNC Lathe (2013) With Fanuc i Series Control & Hydrafeed MV65 Bar Feed

Description:

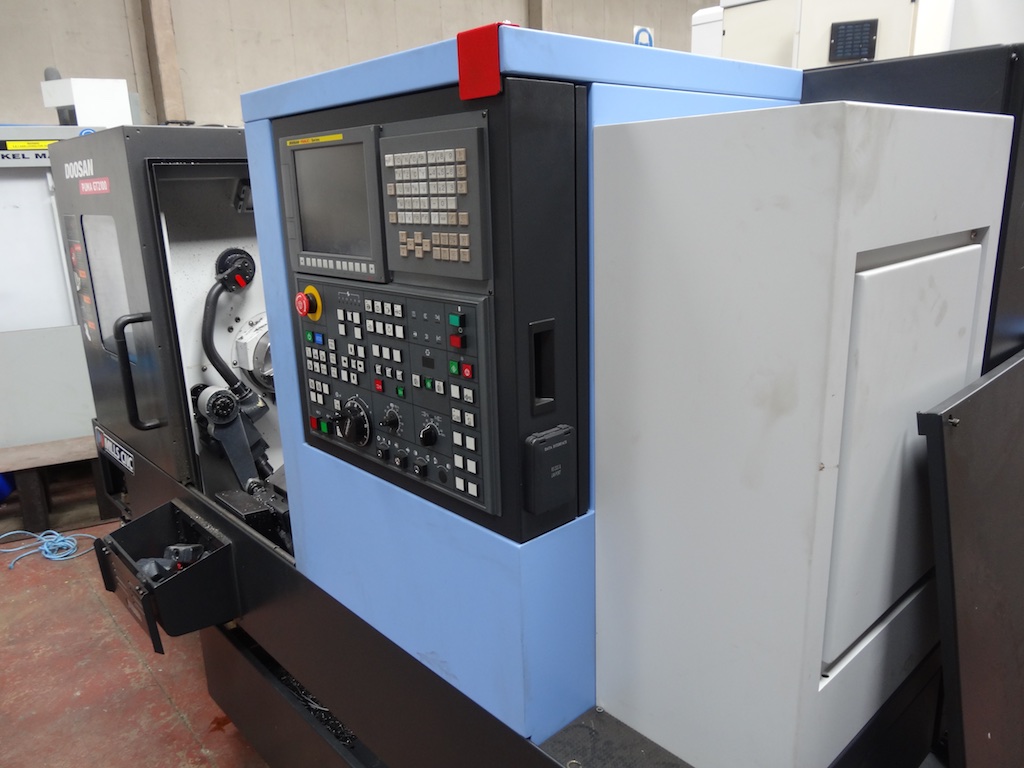

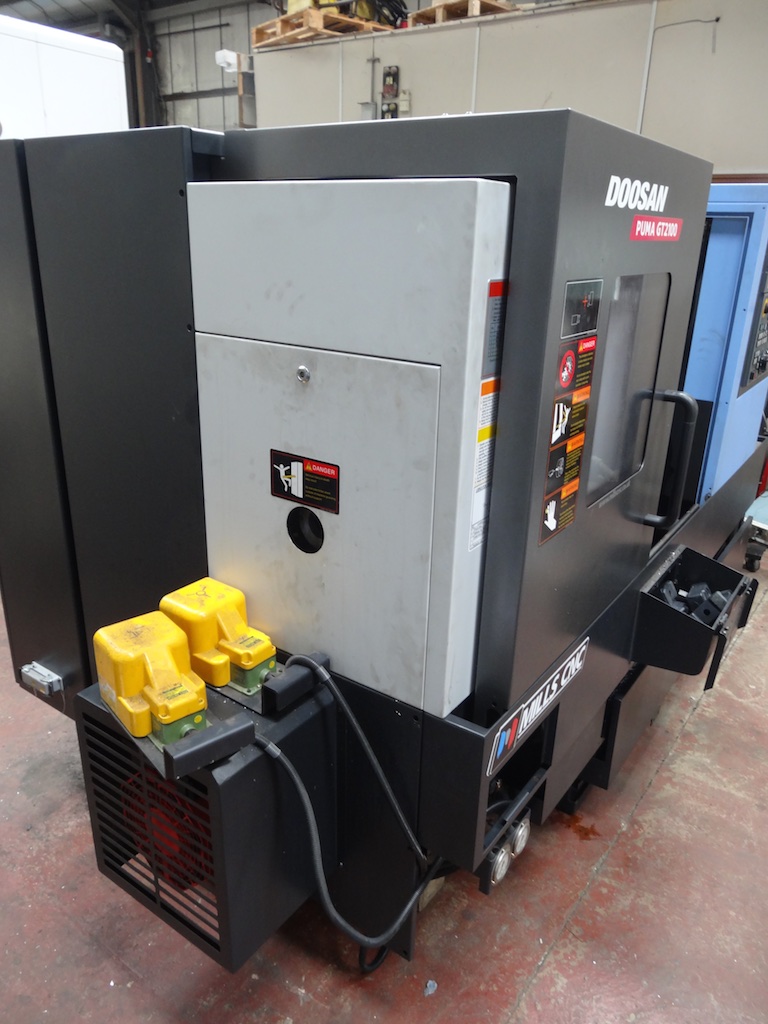

DOOSAN PUMA GT2100 CNC Lathe (2013) With Fanuc i Series Control

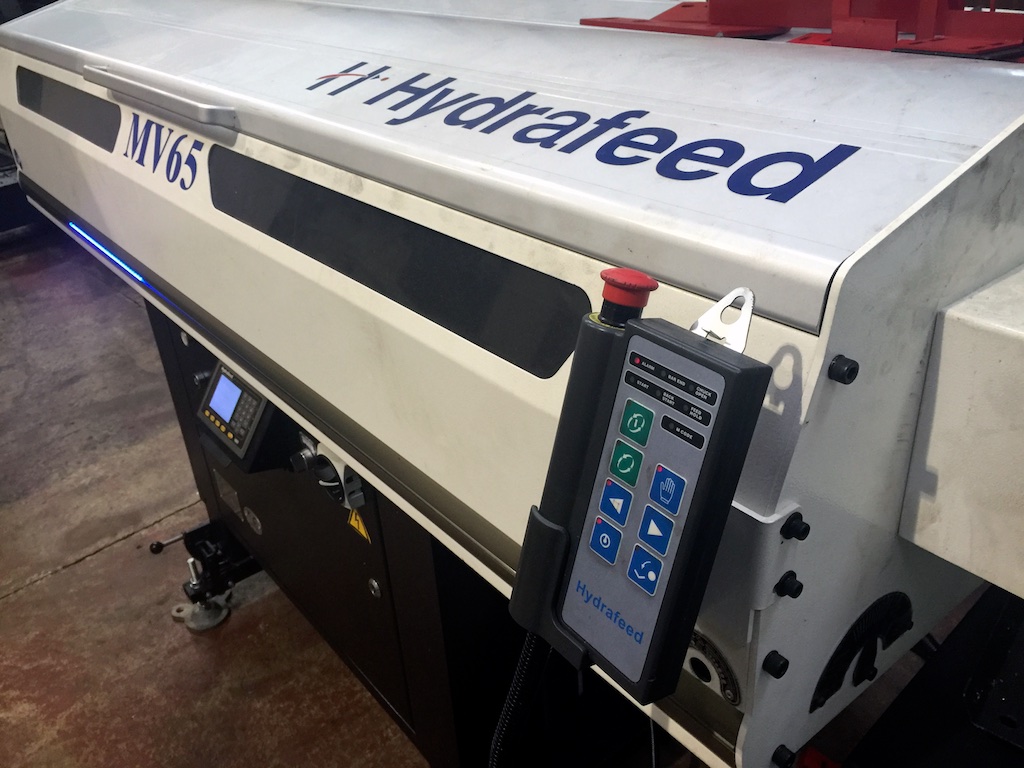

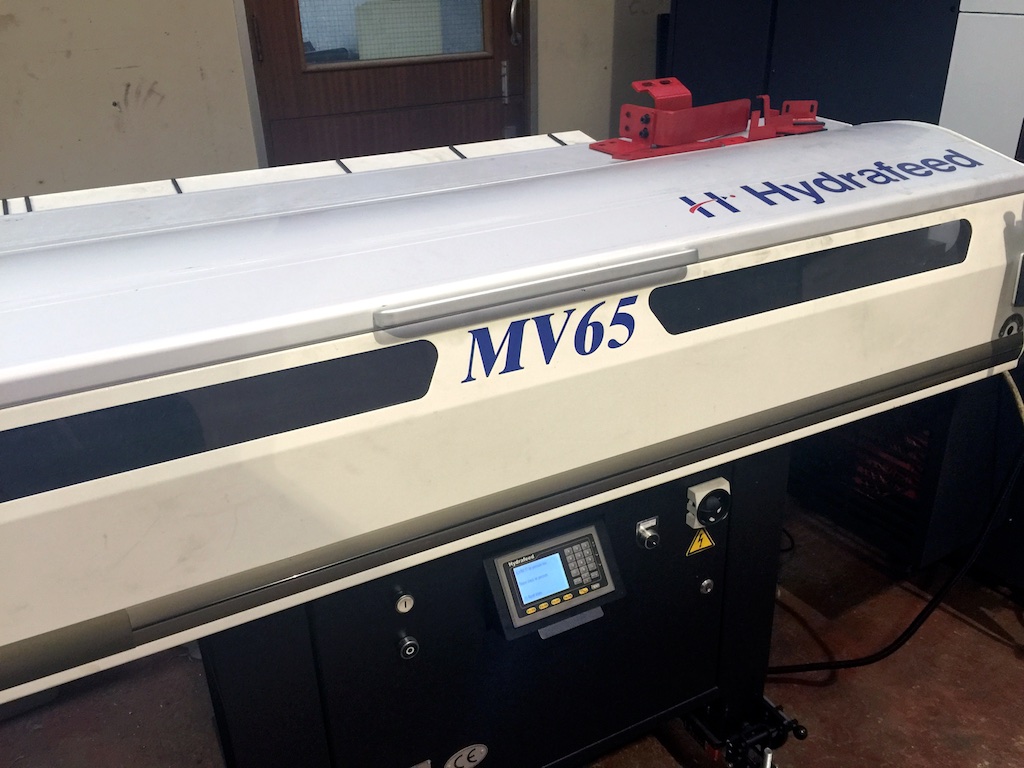

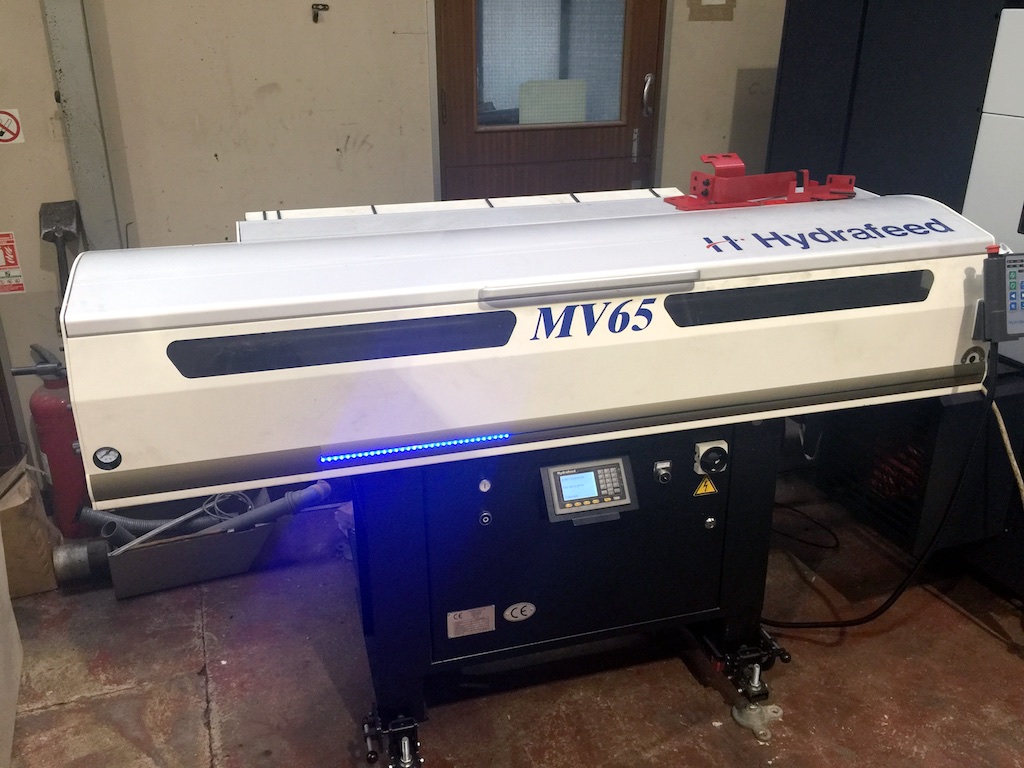

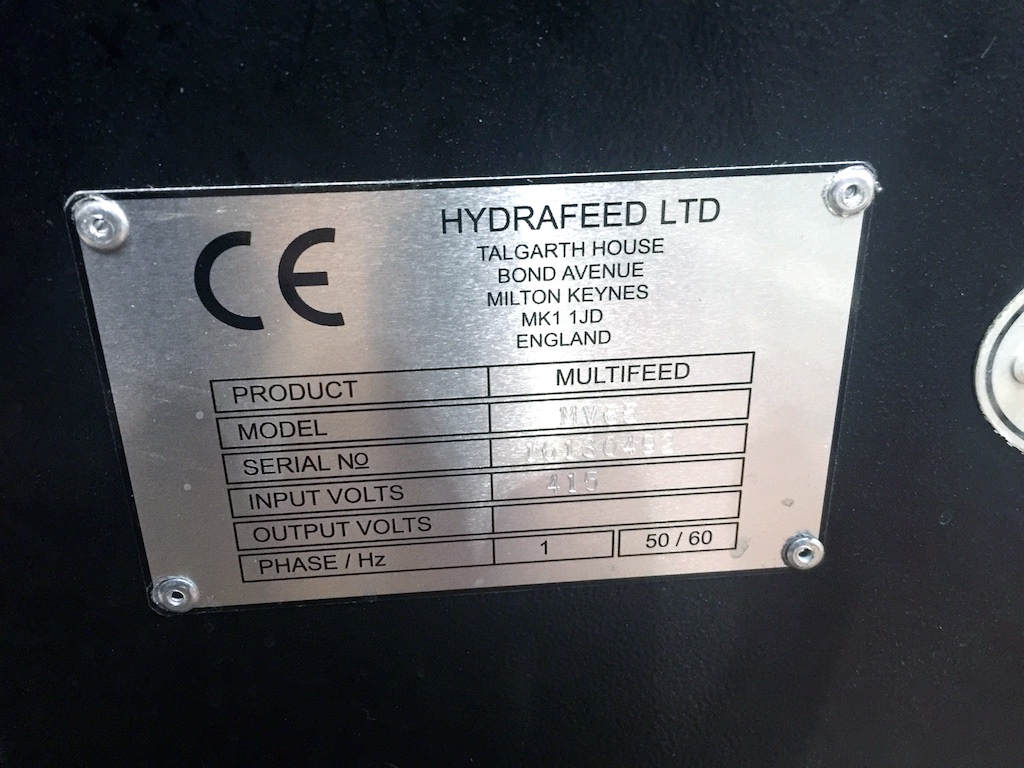

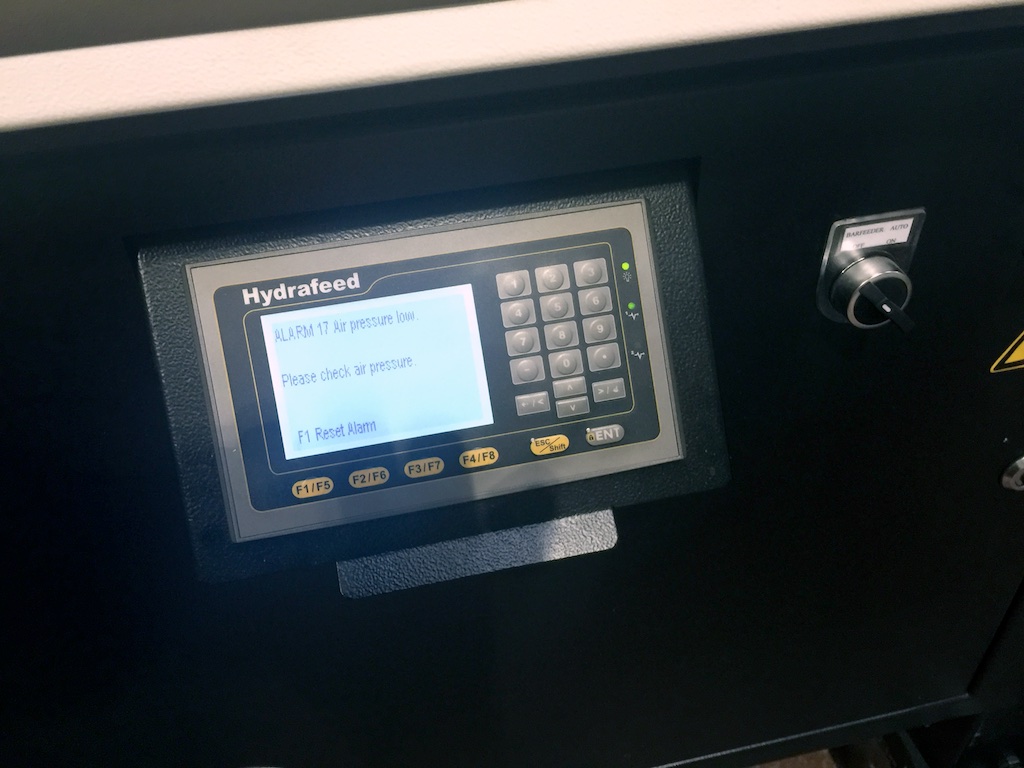

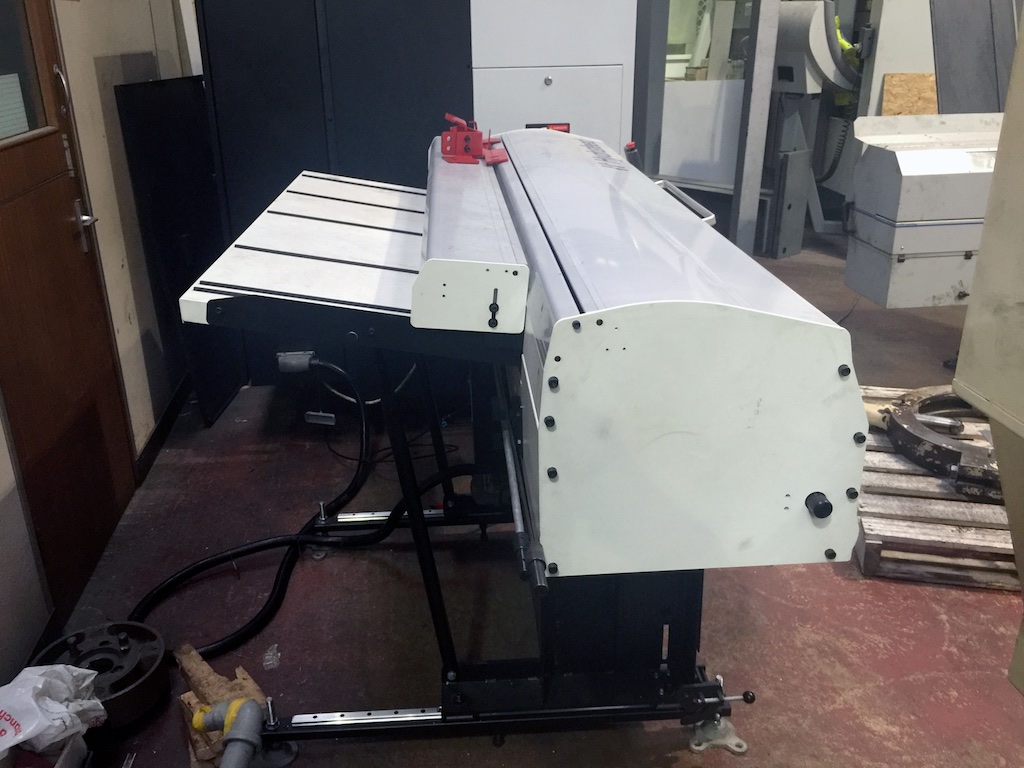

Hydrafeed Multifeed MV65 Barfeed

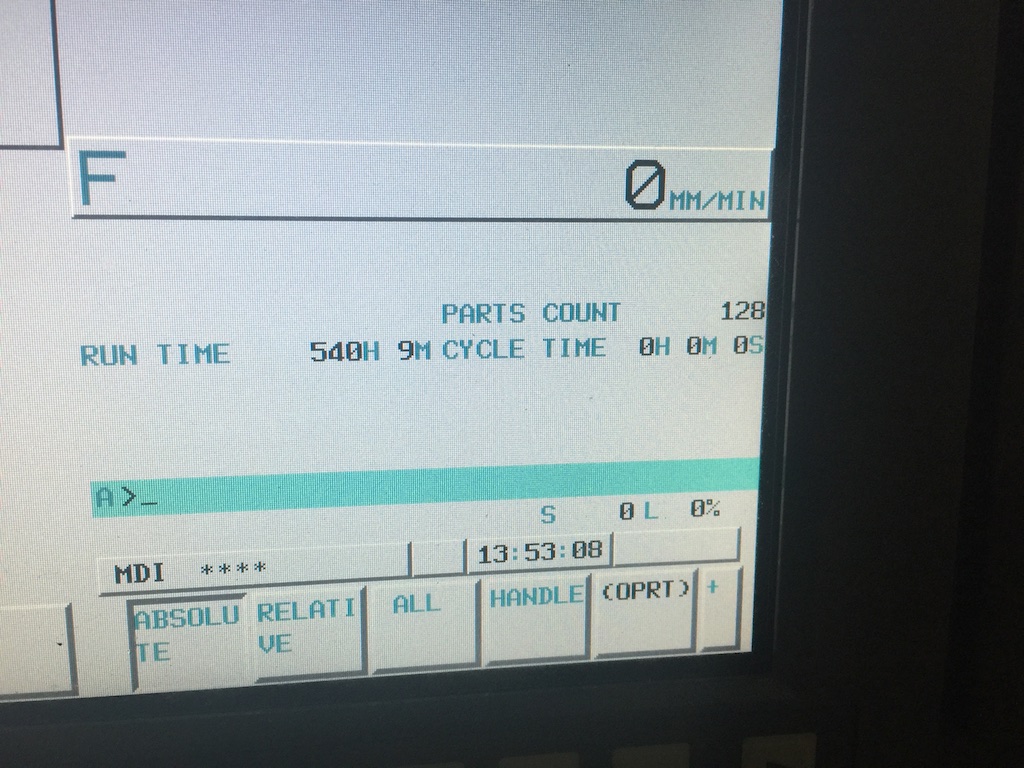

Very Low Running Hours: Only 540 Hours

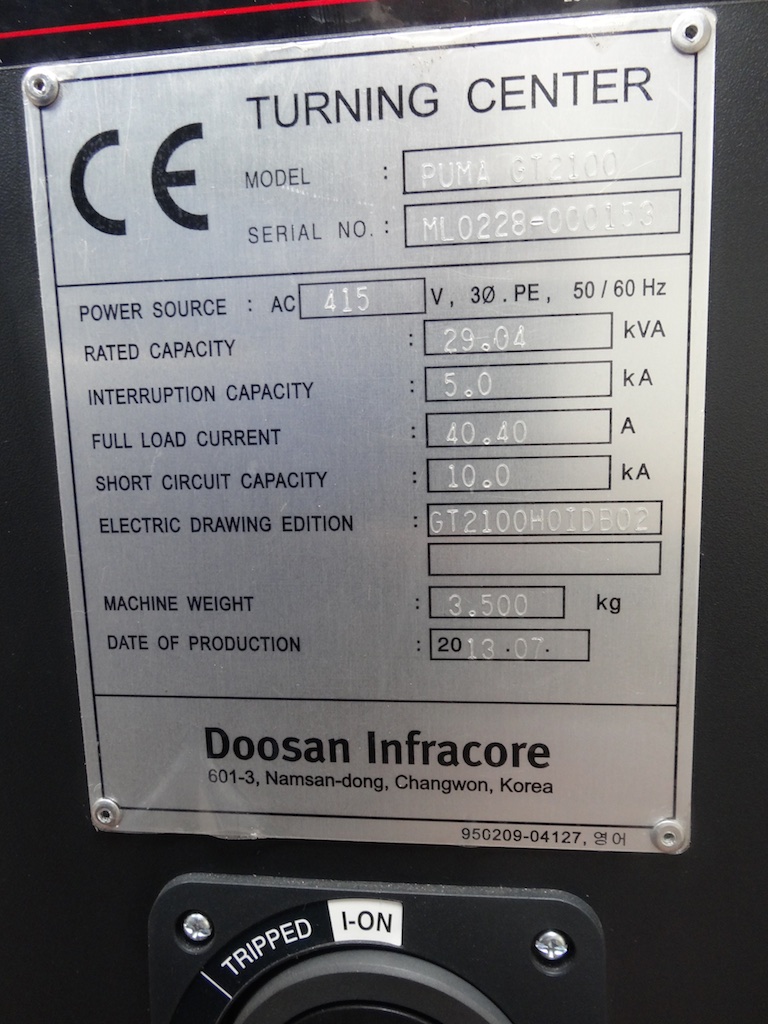

Model: Puma GT2100
S/n: ML0228-000153
Weight: 3500kg
L x W x H: 1700 x 2834 x 1628mm
Date: 2013-07

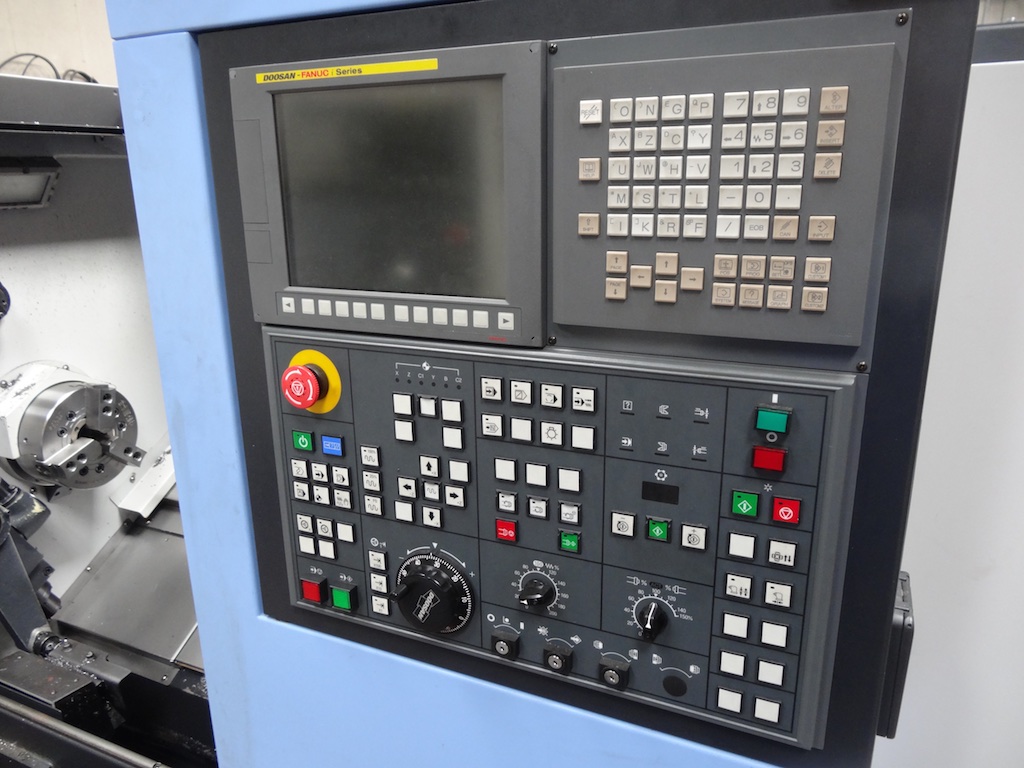

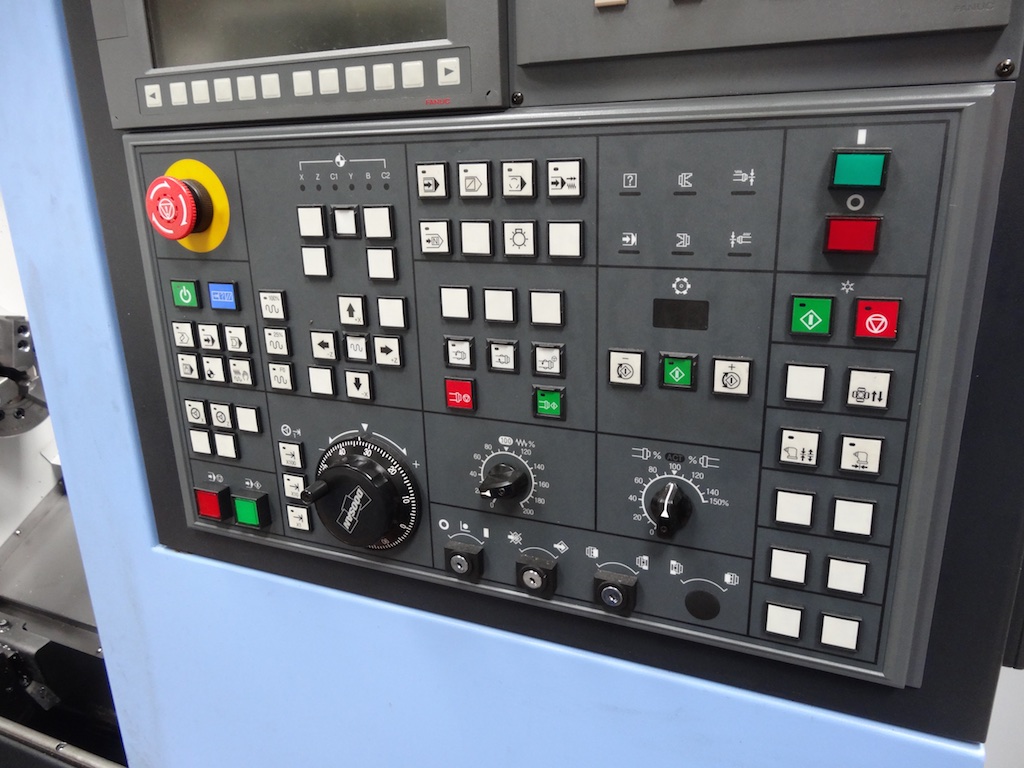

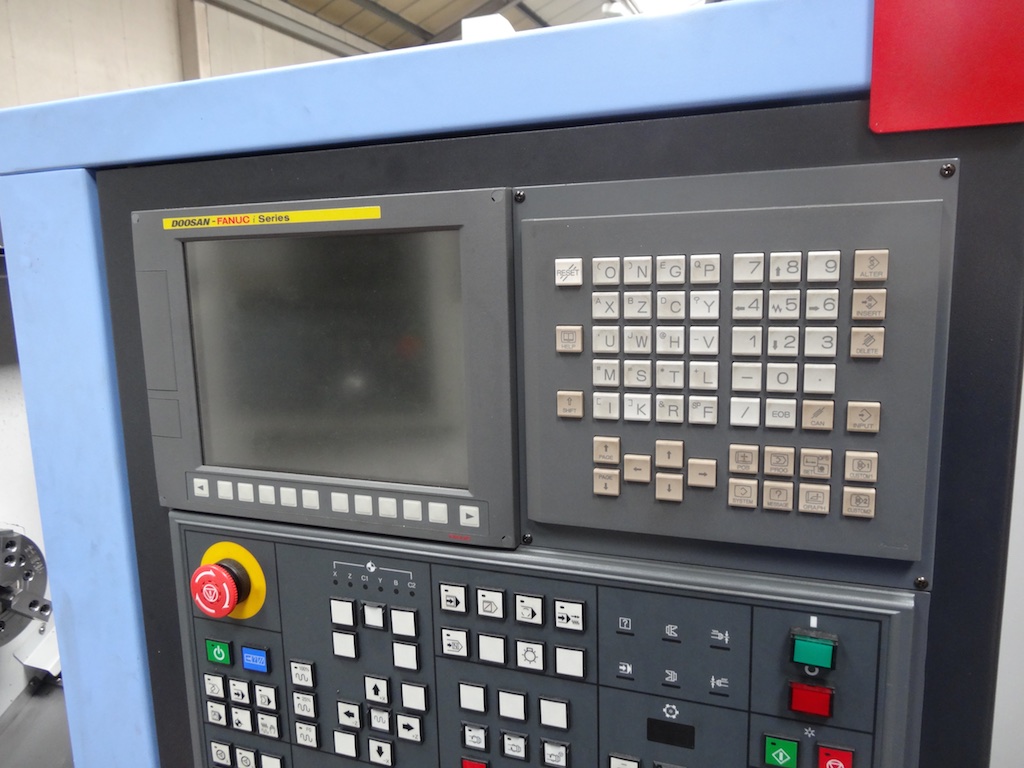

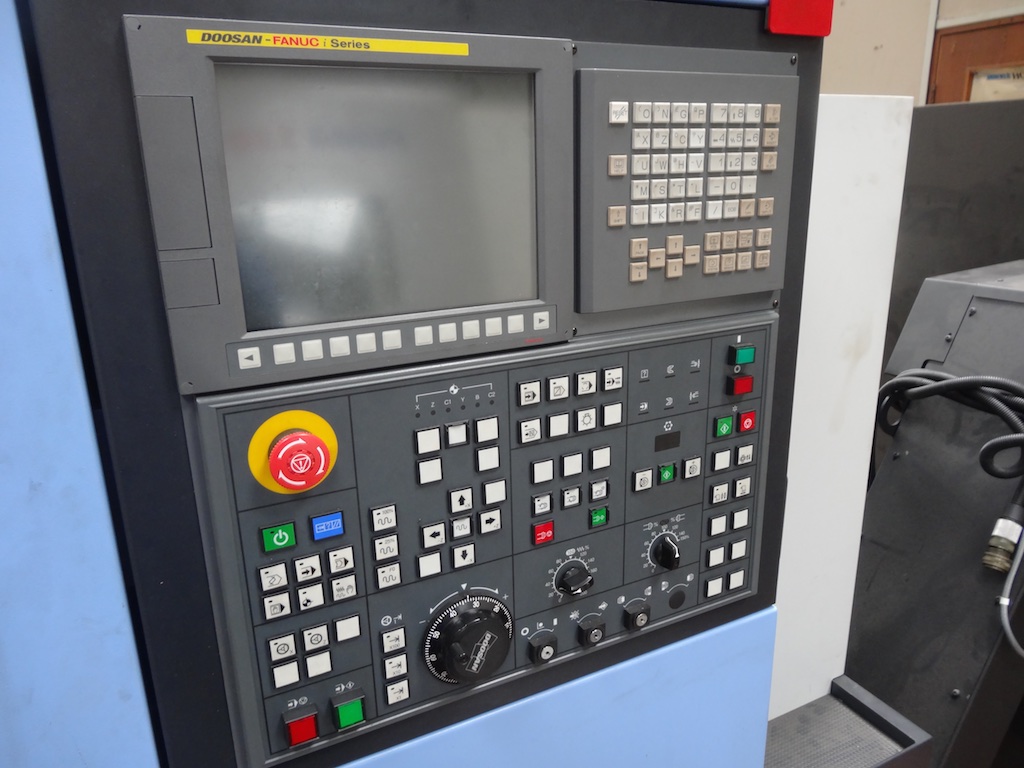

Fanuc i series control.

Swing over bed: 600mm
Swing over saddle: 390mm
Recom. turning dia: 210mm
Max turning Dia: 390mm
Max turning length: 562mm
Bar working dia: 65mm
Spindle speed: 4500
Spindle bearing dia (front): 110mm

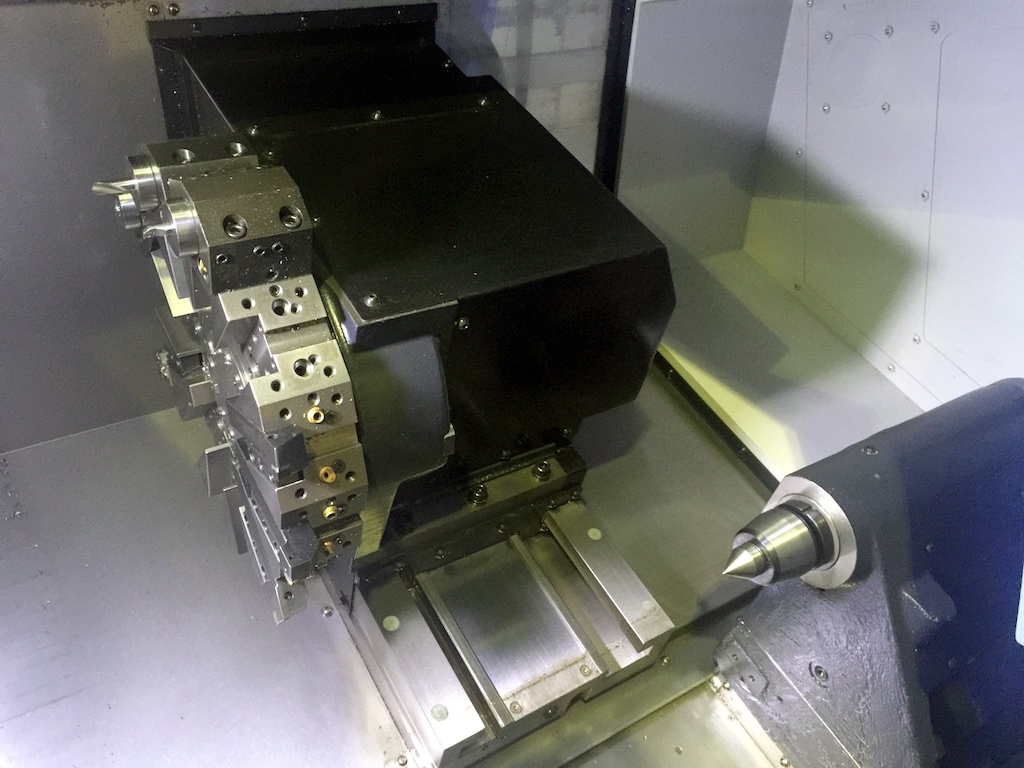

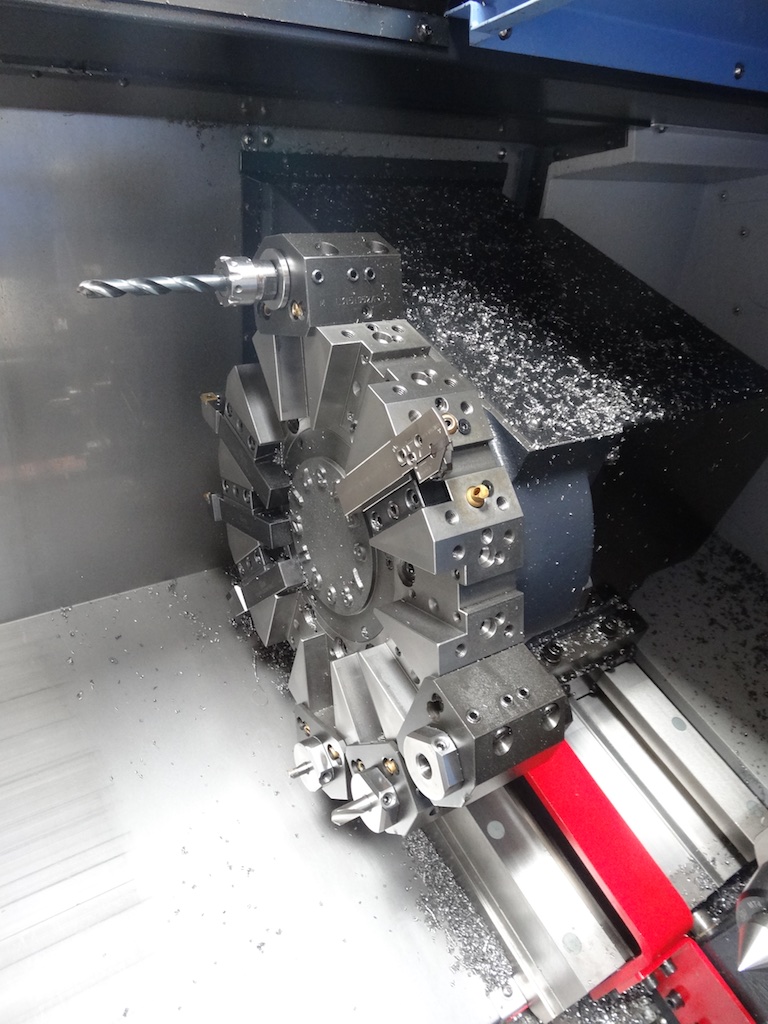

Number of tools: 12
OD tools size: 25mm
Boring bar dia: 40mm
Indexing time (1st swivel time): 0.3s
X axis travel: 230 (35+195)
Z axis travel: 580mm
Rapid traverse: X: 24mm, Z: 30mm

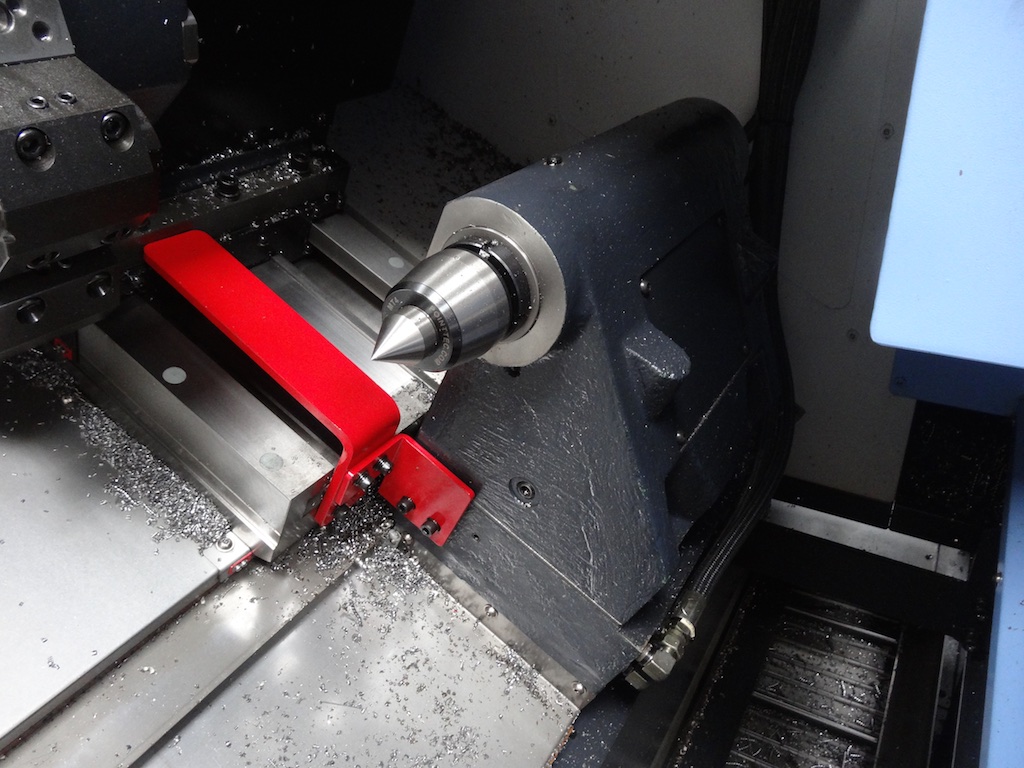

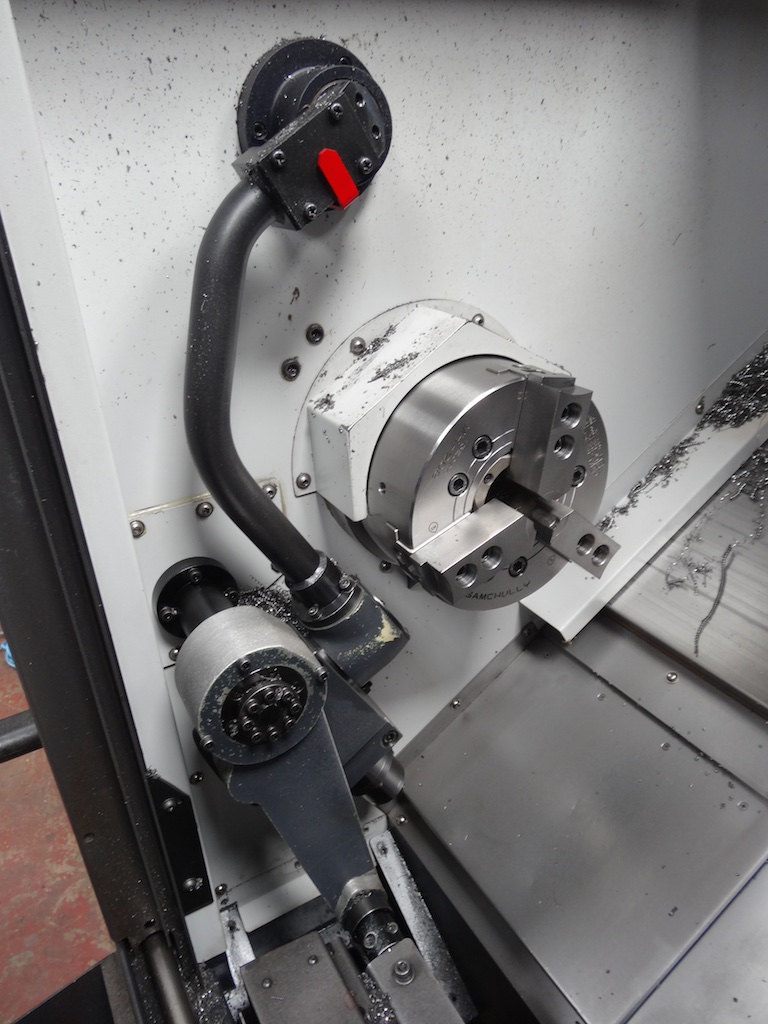

Tailstock:
Quill dia: 80mm
Quill bore taper (live): MT4
Quill travel: 80mm

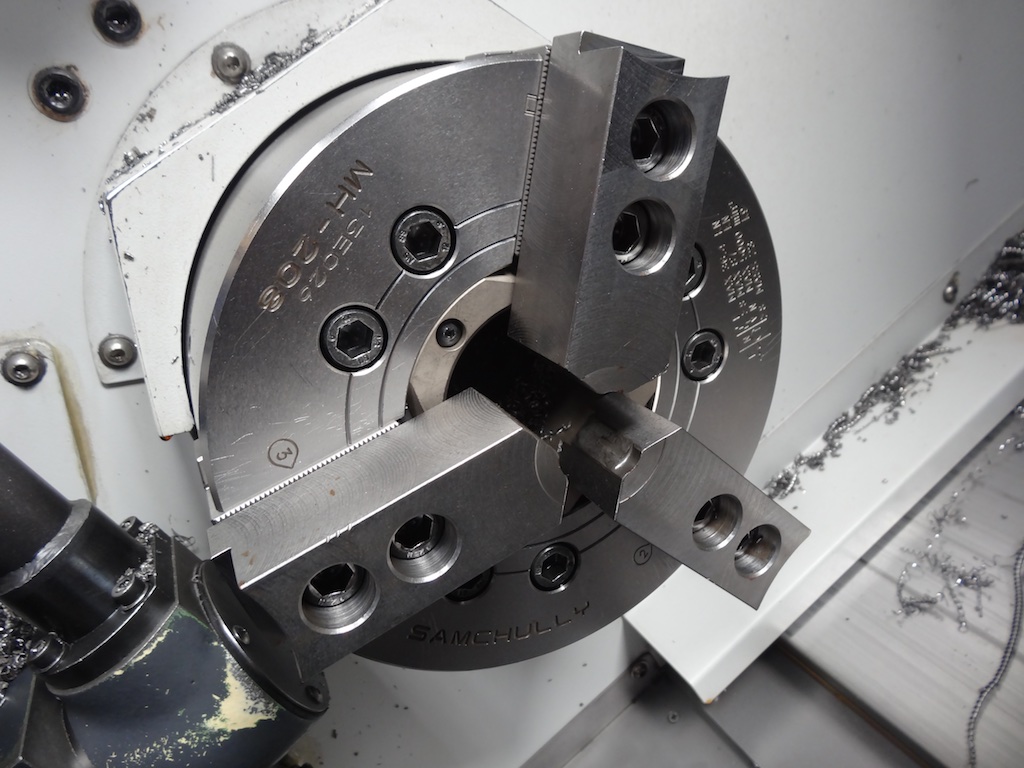

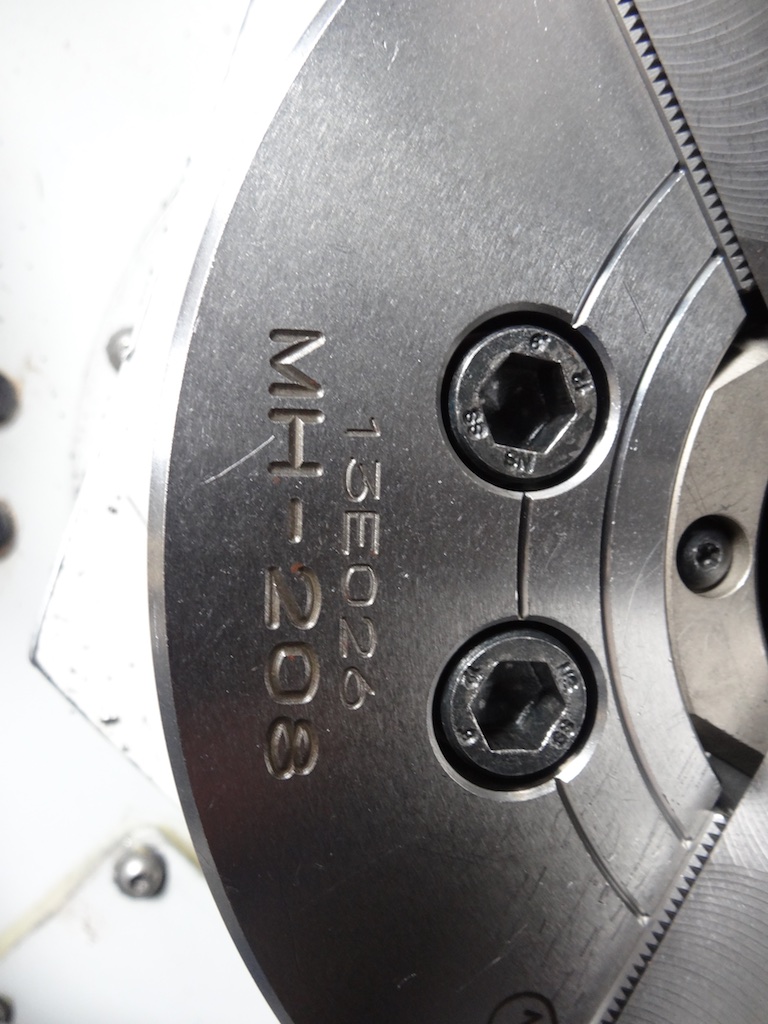

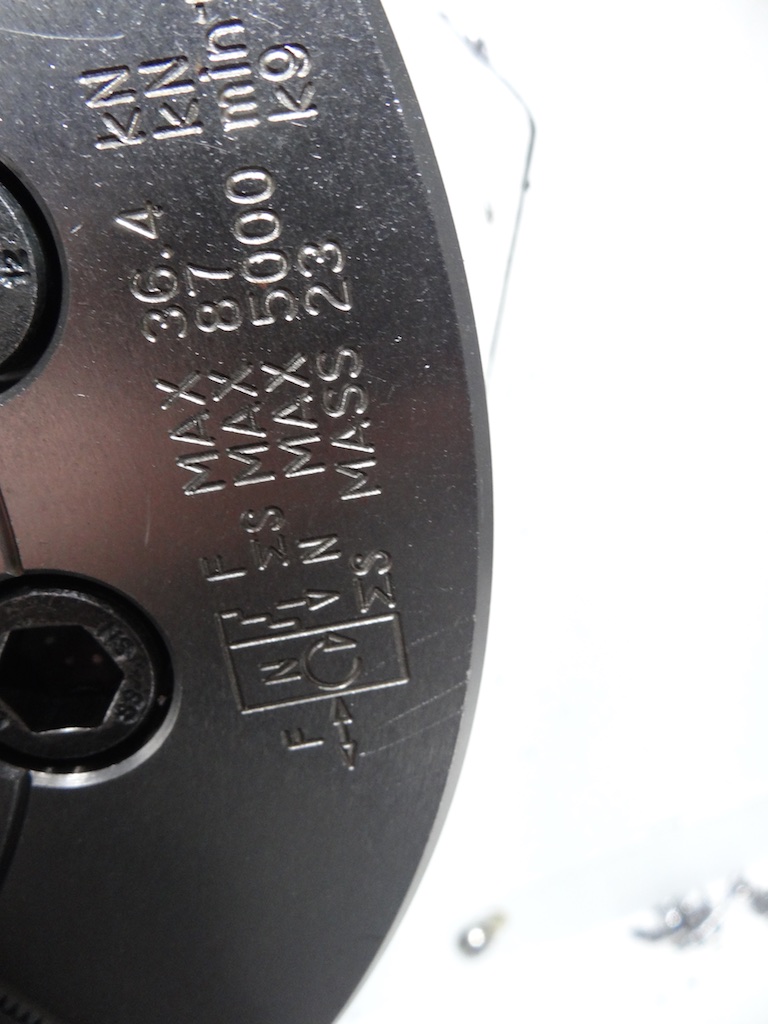

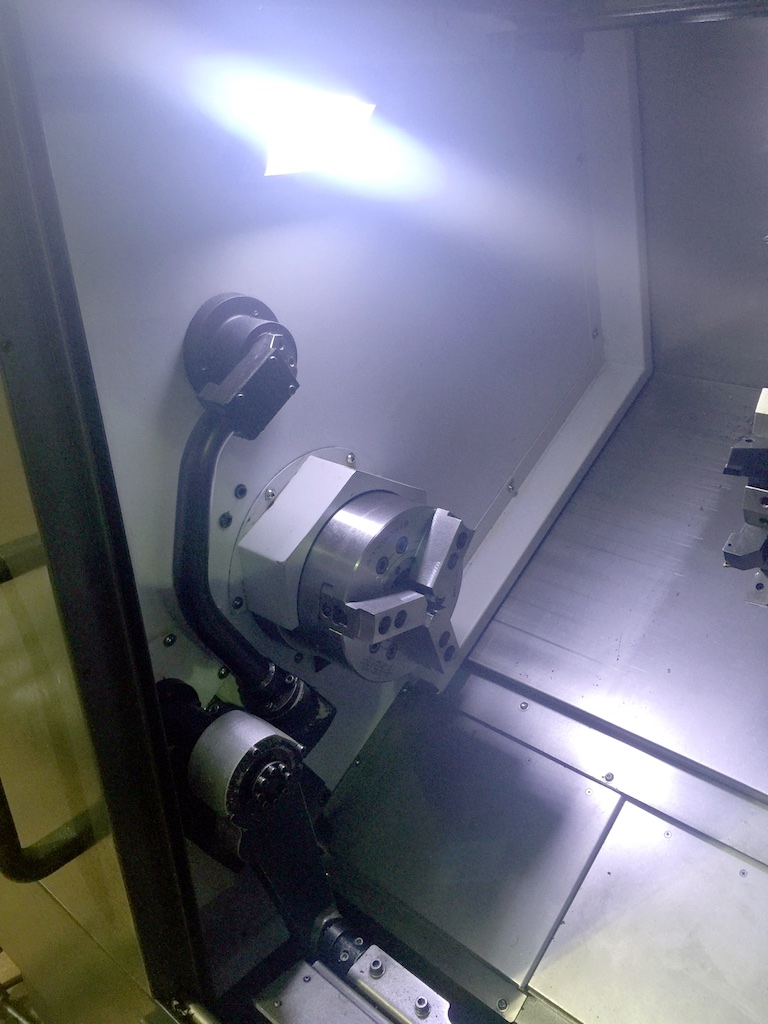

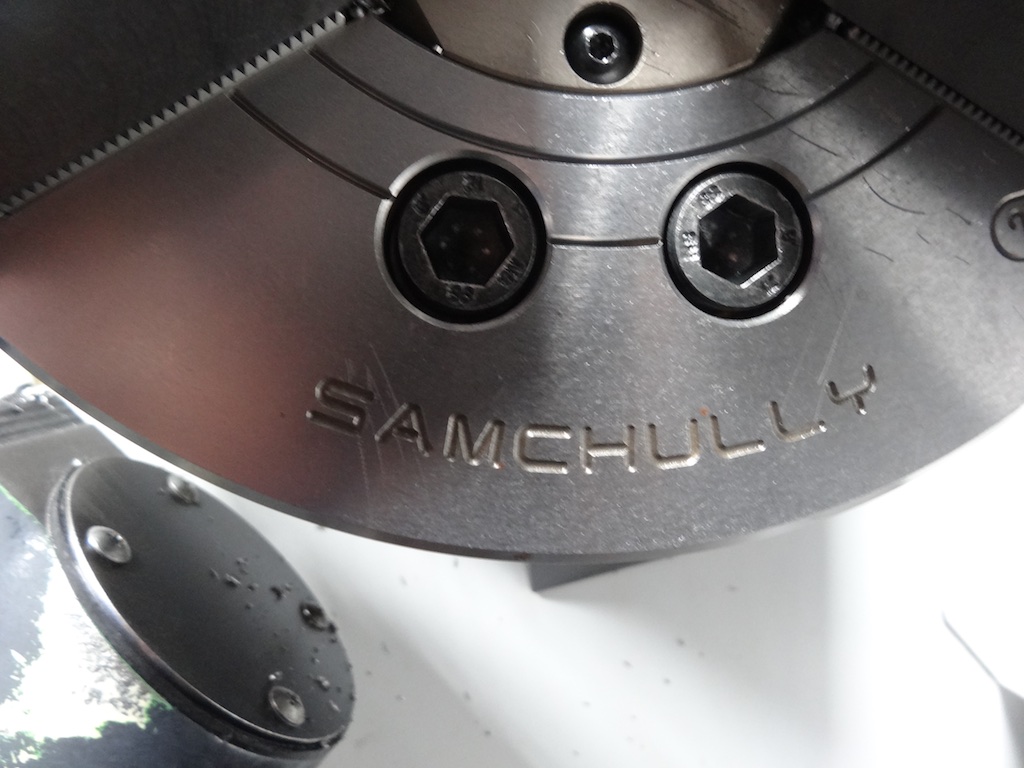

Samchully 3 Jaw Chuck: MH-208 ISE026

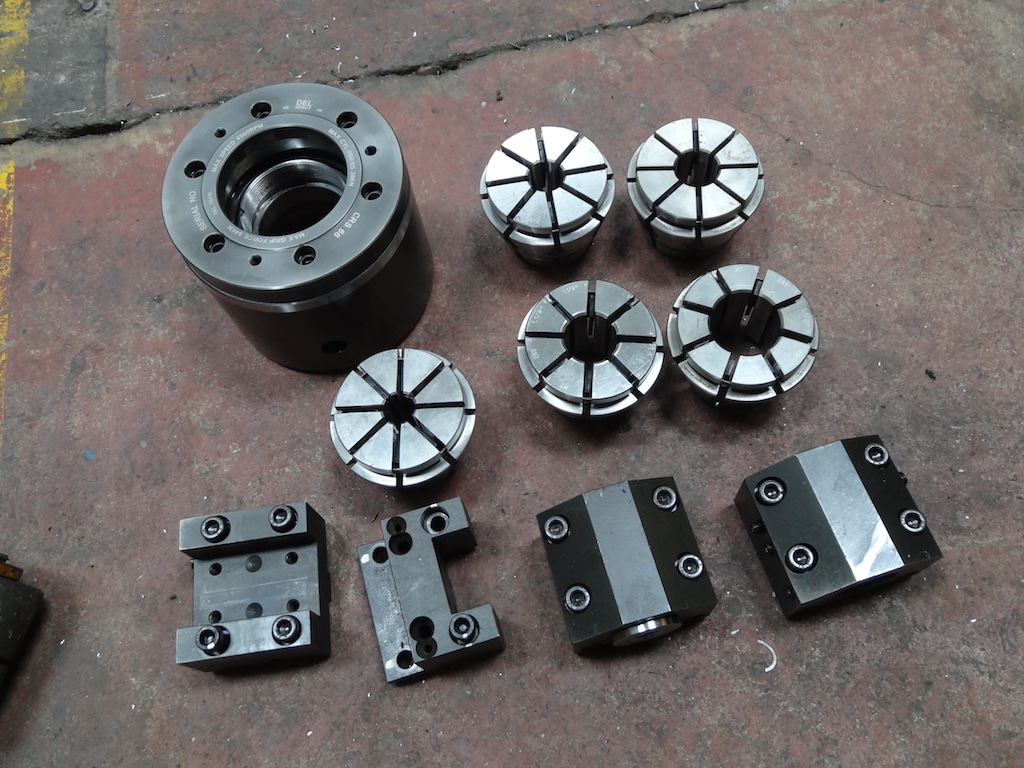

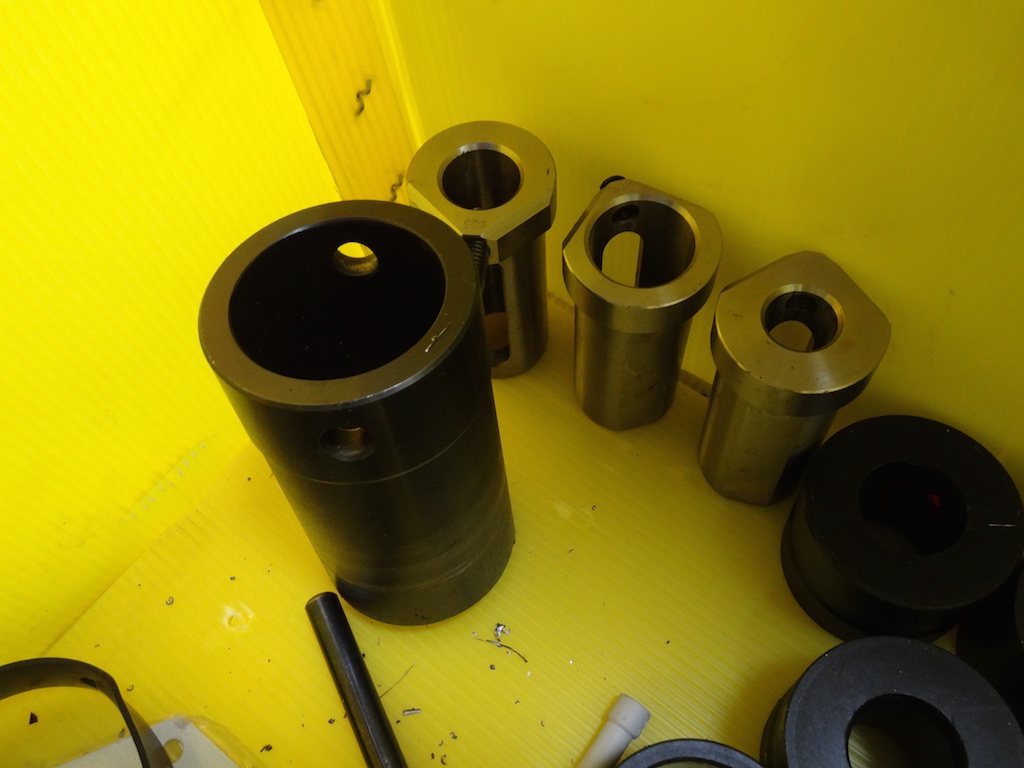

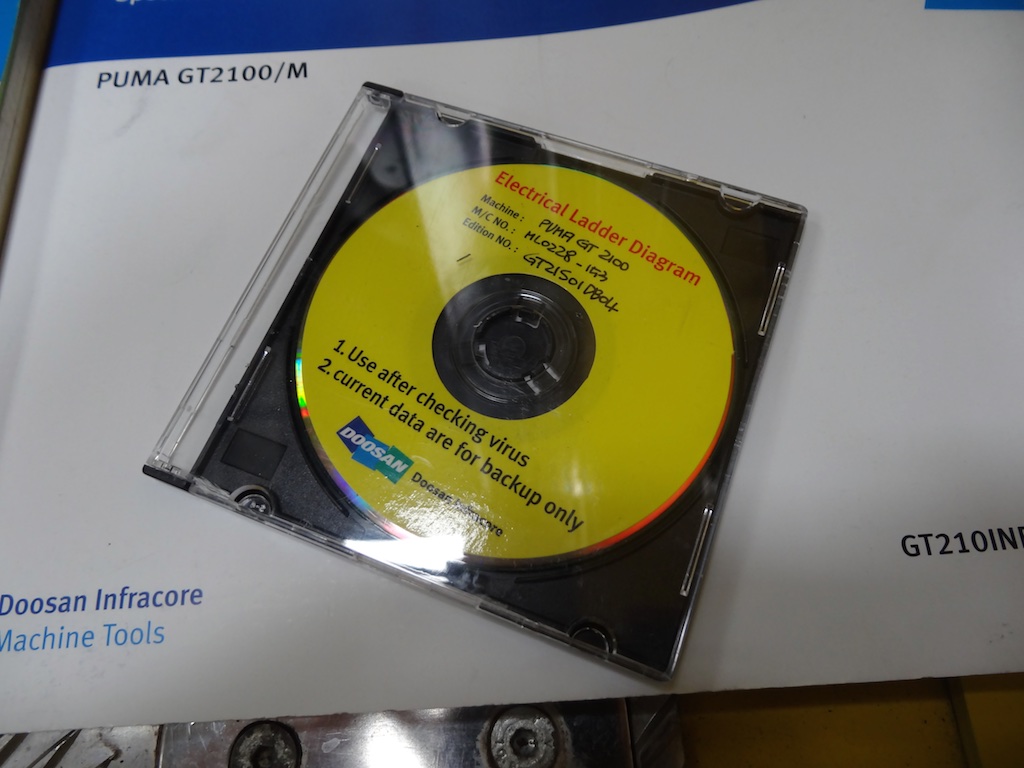

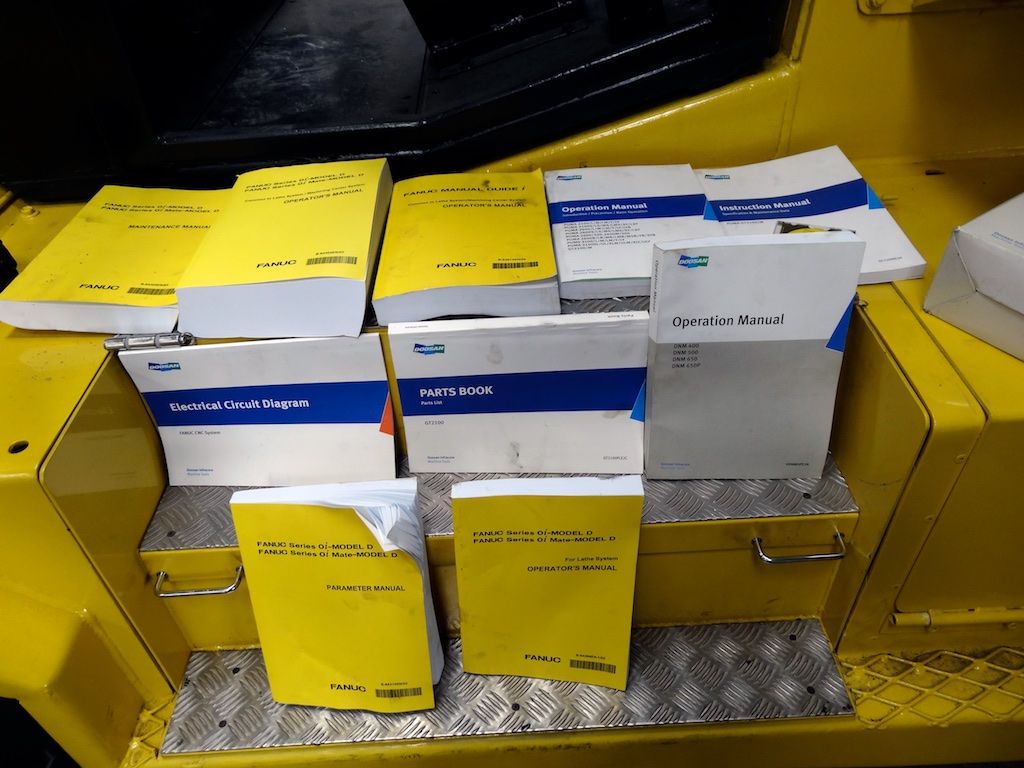

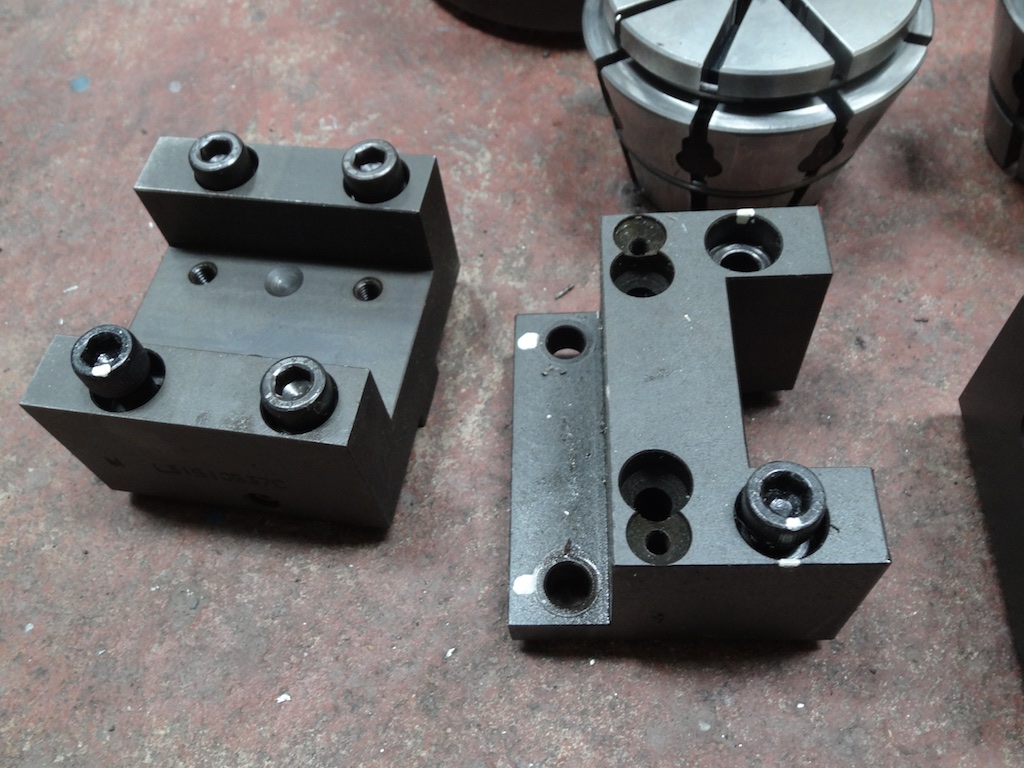

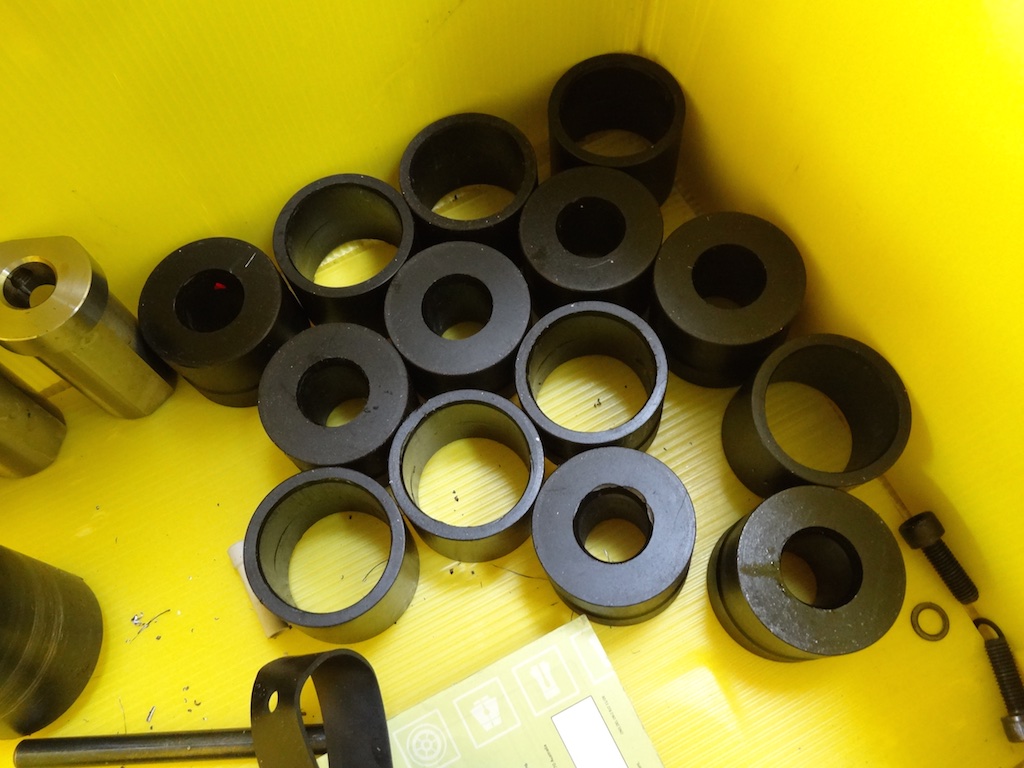

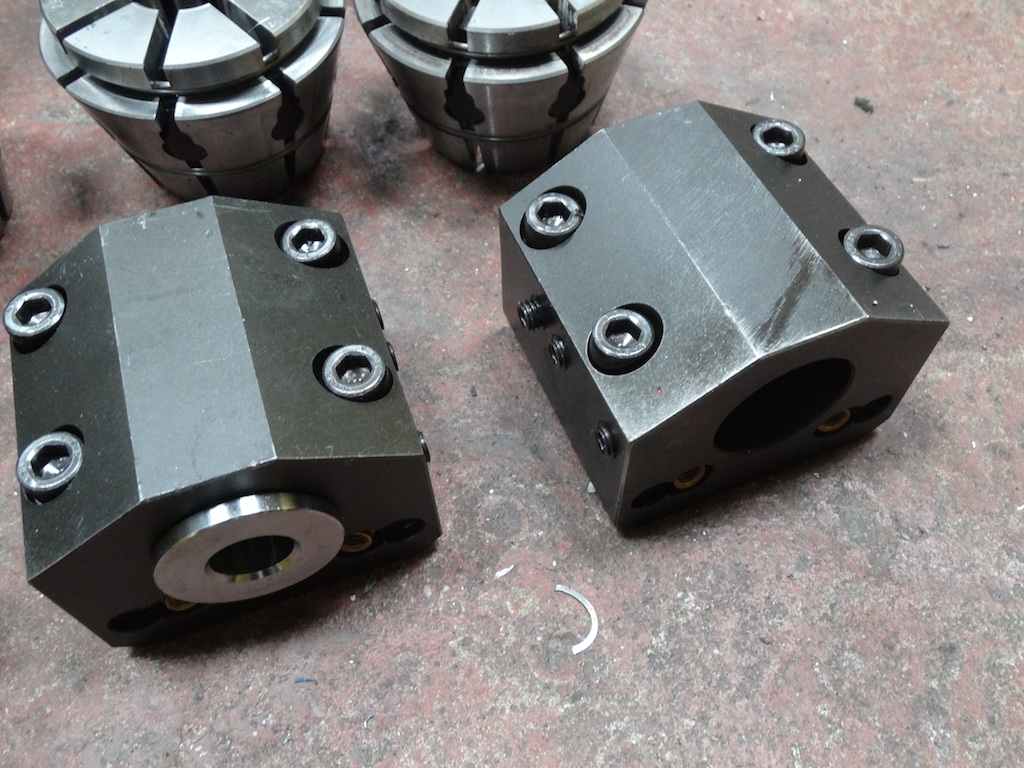

Manuals and Toolholders

Location: Coventry

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
