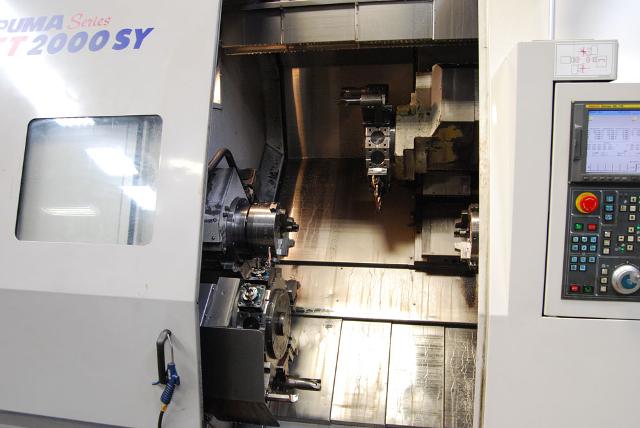

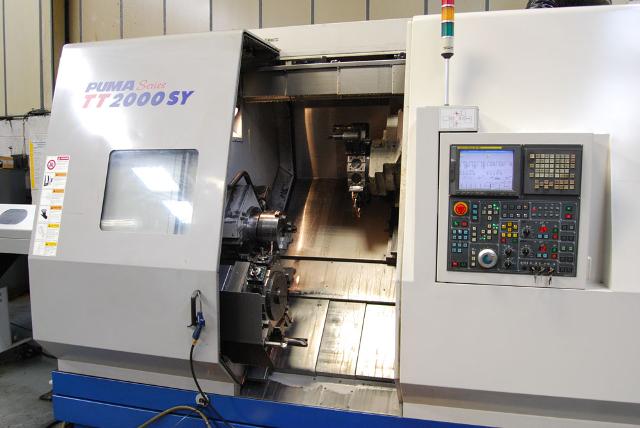

DOOSAN Model: PUMA TT2000SY (2005) - Twin Turret CNC Lathe

Download Doosan TT2000SY Brochure

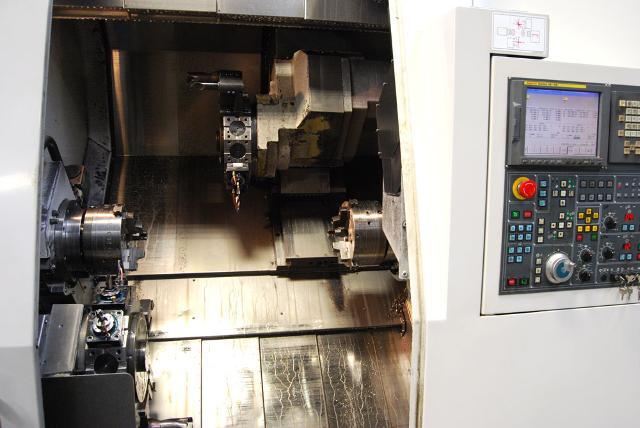

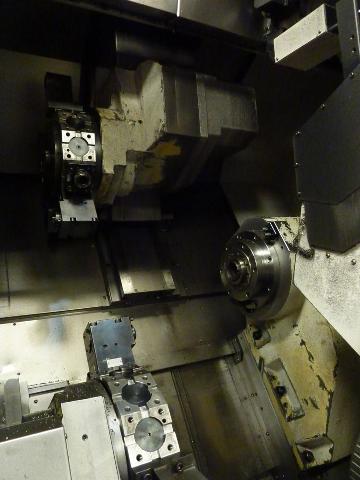

Driven Tools on Both turrets.
Bar Capacity: 65mm
Chuck Size: 200mm
C axis & Milling,
Sub Spindle,
Y-Axis,

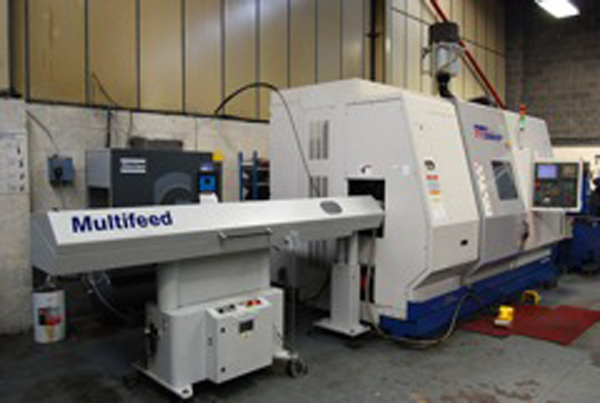

Magazine Barfeed,

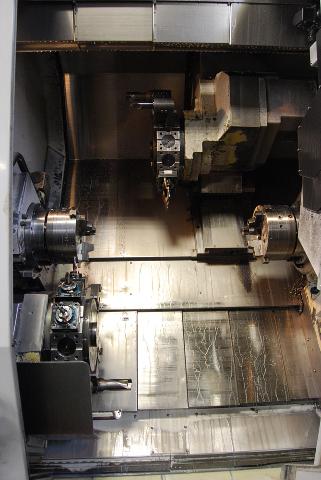

Twin Turret

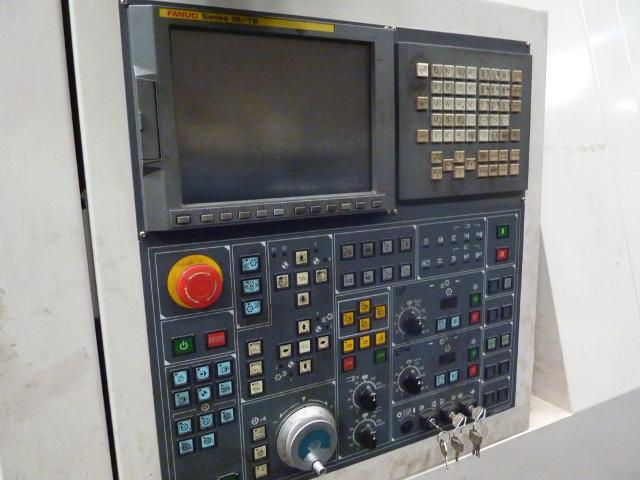

EQUIPPED WITH FANUC 18iTB CONTROL SYSTEM

Capacity

Chuck size both spindles (standard): 200mm

Swing Over bed: 800mm

Swing over saddle: 620mm

Maximum turning diameter (Upper turret): 390mm

Maximum turning diameter (Lower turret): 315mm

Maximum workpiece length: 740mm

Maximum weight on spindle (inc chuck)

Chucking work: 120kg

Maximum bar diameter (both spindles): 65mm

LH and RH Spindles (Built in type)

Spindle nose: A2#6

Spindle power: 18/22kw

Spindle speed: maximum 5000 rpm

Carriage

Travel distance X axis (Upper turret): 255mm

Z axis (Upper turret): 800mm

X axis (Lower turret): 190mm

Z axis (Lower turret): 900mm

Y axis (Upper turret): 120mm (+/- 60mm)

B axis (RH spindle): 810mm

C axis (LH / RH spindles): 360 (0.001 increment) deg

Rapid traverse X axis (Upper / lower turret): 20m/min

Z / B axis: 24m/min

Y axis: 7.5m/min

C axis: 200 rpm

Maximum cutting federate

XZY axis: 500mm/rev

C axis: 500mm/min

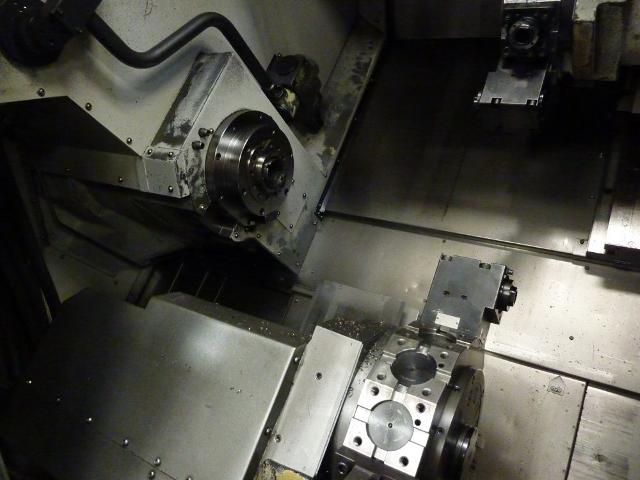

Upper and Lower Turrets (Non lift Servo type)

Type: BMT65

Number of stations: 12

OD tool size: 25mm square

Boring bar size: 40mm diameter

Rotary tool power: 5.5kw

Rotary tool speed: 4000rpm

Rotary tool collet size: ER32 (3-20mm diameter)

Machine Services

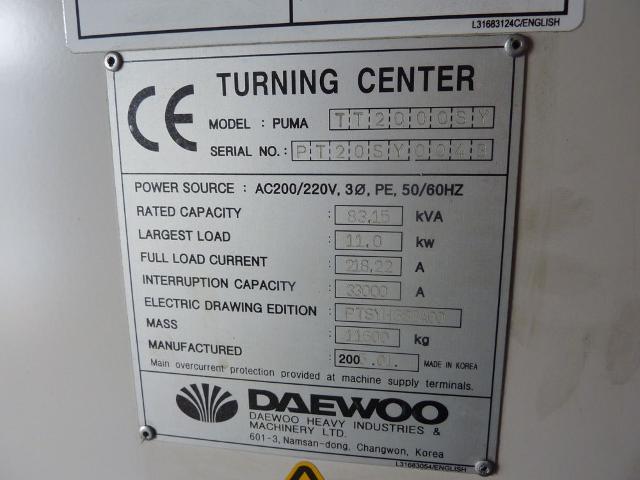

Power requirements: 75Kva

Air pressure: 6kgf/cm2

Machine dimensions

Machine weight: 11,600kg

Machine floor space: 4050mm x 2210mm

1.2 STANDARD MACHINE EQUIPMENT

Box guideway construction

Spindle oil cooling system (LH and RH spindles)

Fully enclosed splash guard

Temperature controlled hydraulic power unit

Automatic lubrication unit

Lighting

RS 232 socket

Memory card input socket

Embedded Ethernet connection

Transformer

1.3 ADDITIONAL FANUC CNC OPTIONS INCLUDED

160mb memory

10.4” Colour screen

Registable program 125

Tool offset 32 pairs

Custom macro B

Extended program editing

Tool life management

Multi repetitive cycle 2

Increment system 1/10

Direct drawing dimension input

F15 Tape format

G10

Auto chamfering/Corner radius

Tool path display

Helical Interpolation XYZ

1.4 ADDITIONAL MACHINE OPTIONS INCLUDED

Automatic tool touch setter

Automatic parts catcher

Output Parts conveyor

Bed wash

Tool load monitor function

External air blast to LH and RH spindles

Static Tool holder package

10 off boring holder

2 off U drill plates

2 off double turning tool holders

10 off normal turning tool holders

4 off narrow turning tool holders

Polygon turning function (NC side only)

2 off Preci-Flex face milling tool holders

2 off Preci-Flex cross milling tool holders

1.2 ACCESSORIES INCLUDED

SMW KNCS NB 210 quick change chuck

SMW KNCS NB 260 quick change chuck

Swarf conveyor

Swarf bin

Hydrafeed 3-80 MX2 SC short magazine barfeed

Hydrafeed Bar Support Unit

Oil Skimmer

Filtermist unit (machine mounted)
