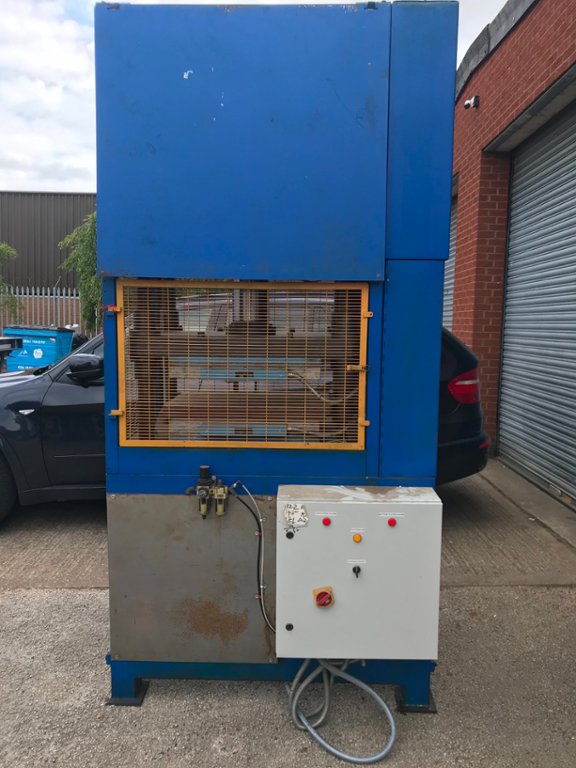

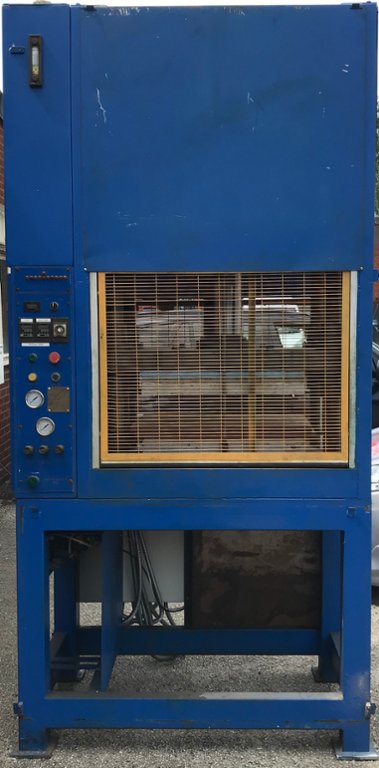

Downstroke Hydraulic Press

Lot 21 - Downstroke Hydraulic Press

Description:

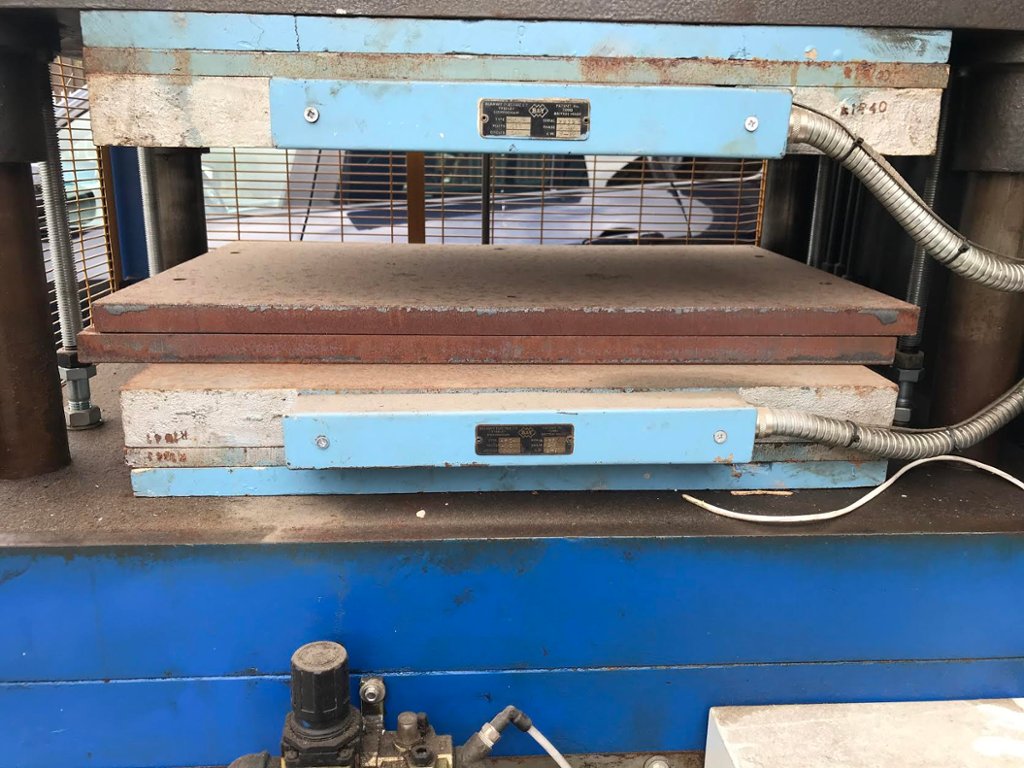

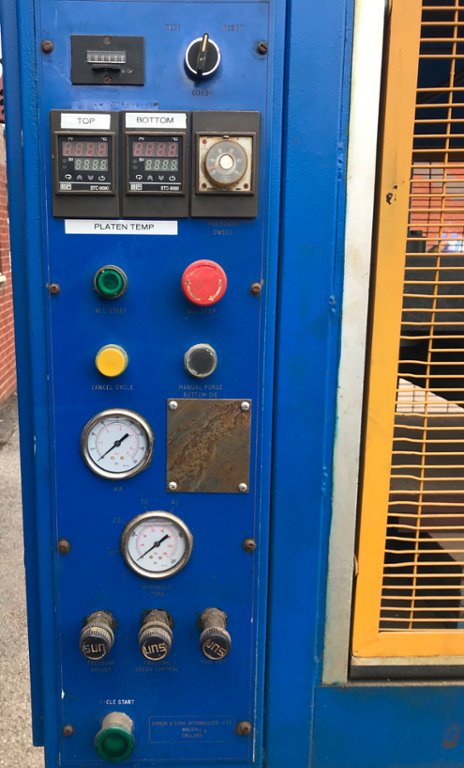

Top & bottom platen temperature controls - adjust using the central up & down arrows

Pressure Dwell - Cycle speed (timer) adjust this by turning the dial

All start

All Stop

Cancel Cycle

Manual purge bottom die (not used)

Air pressure indicator - This should be 5bar/70psi

Hydraulic tons - this is an indication as the tonage the press is set to (10 tons) & is adjusted using the pressure adjust valve

Pressure adjust - This is used to adjust the pressure of the press (set to 10 ton). Clockwise to increase the pressure.

Pressing speed control - This is used to set the speed of the compression cycle (set to fast)

Tool set - This is used to close the press in free fall - *this must be closed before operating the press

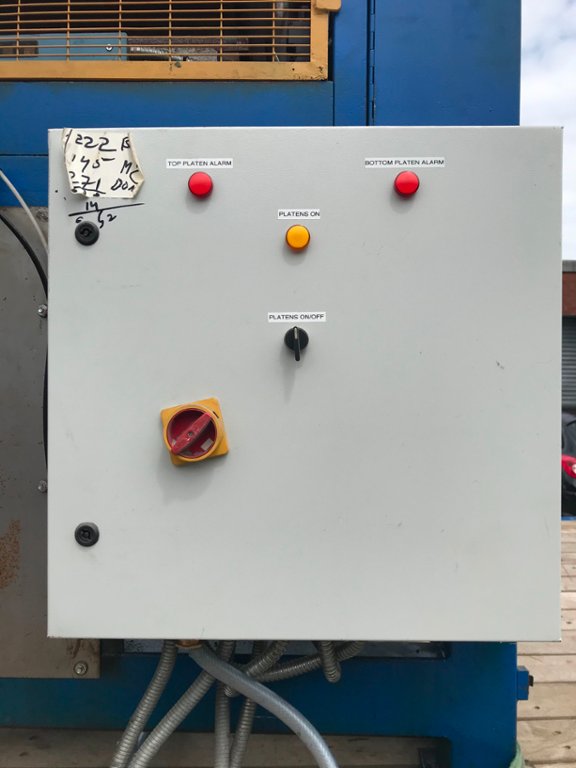

Main control cabinet - Located at the rear of the press

Cycle start

Please Note - The electrical supply is 63amp, 3 phases & neutral, if the press has no function the phases will need to be changed as the pump will be running in reverse.
