Lot 8 - DSG 13x42 Straight Lathe with lots of Accessories

Description:

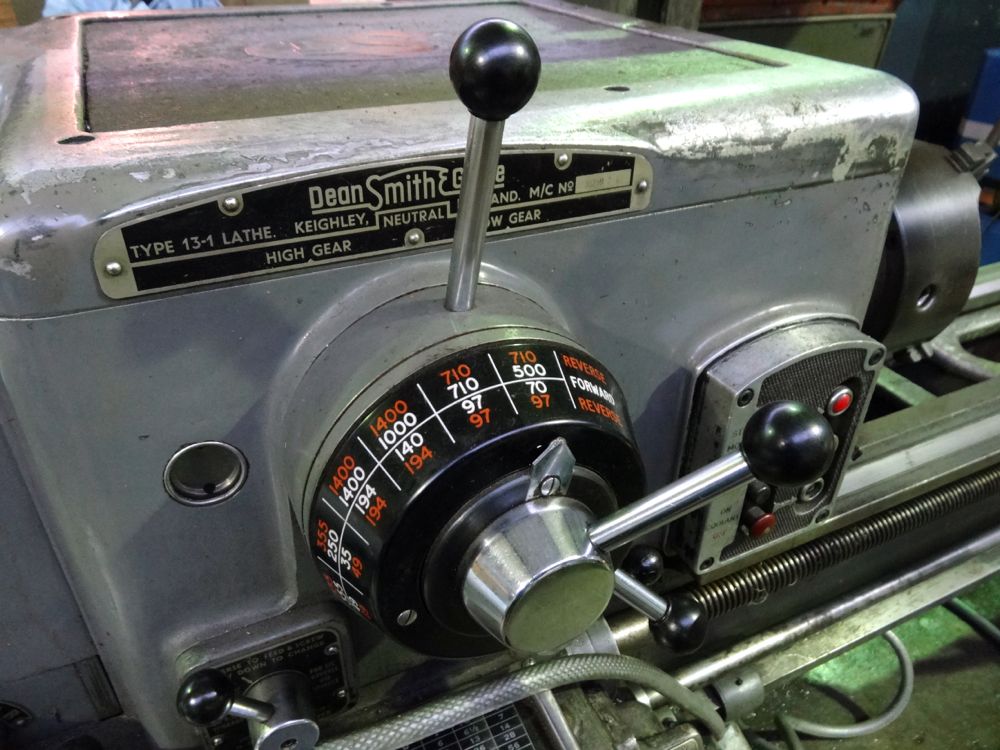

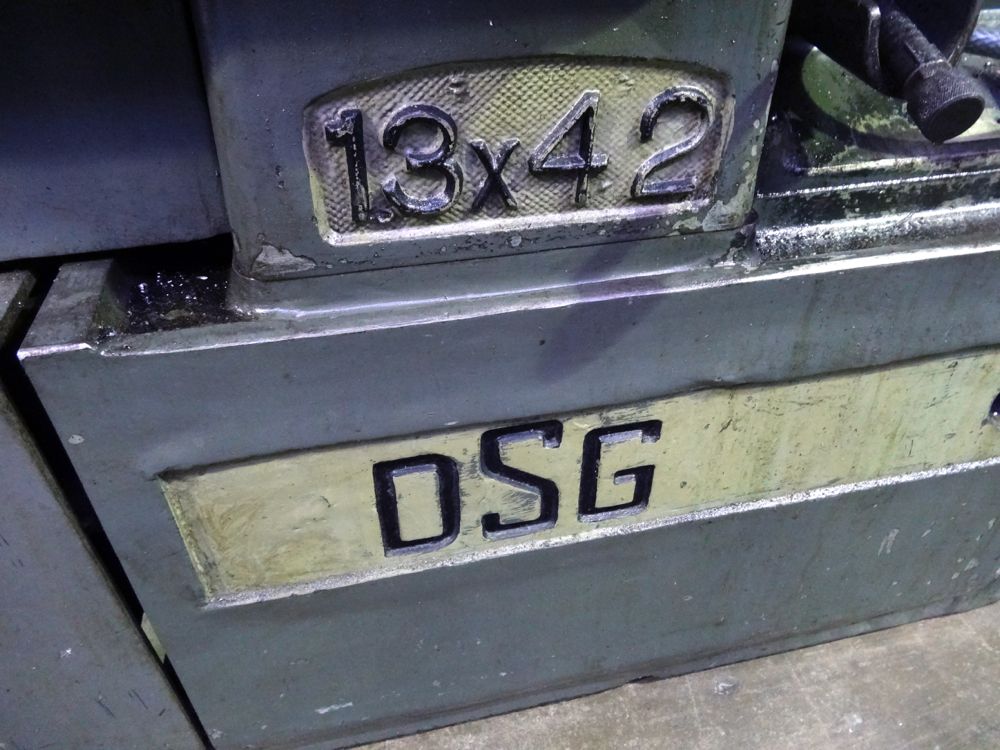

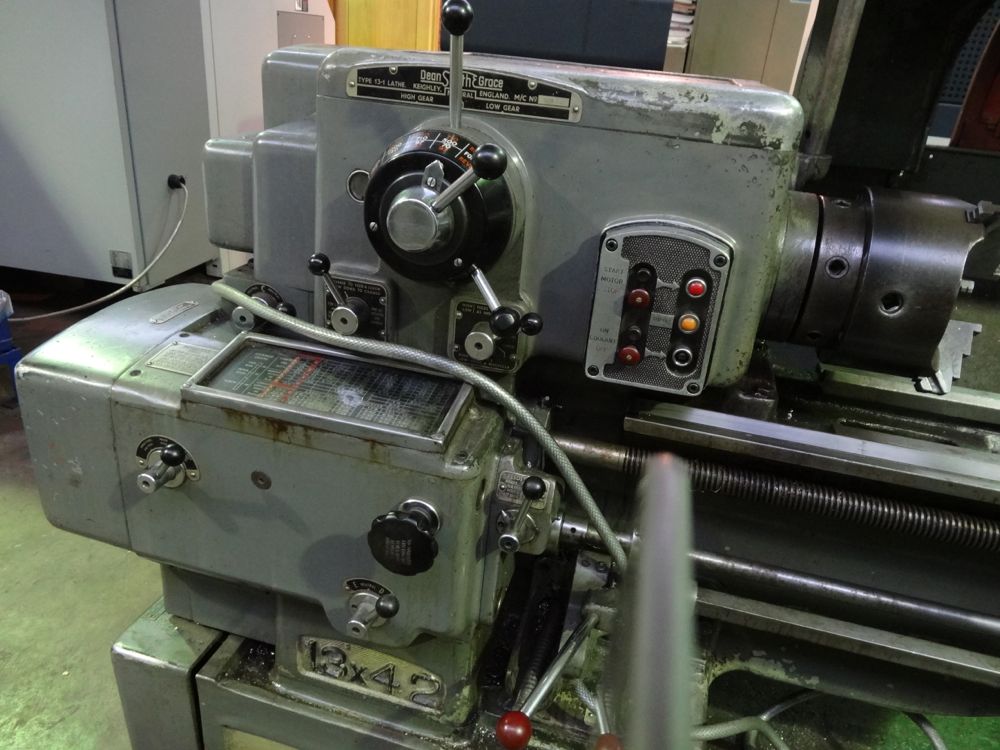

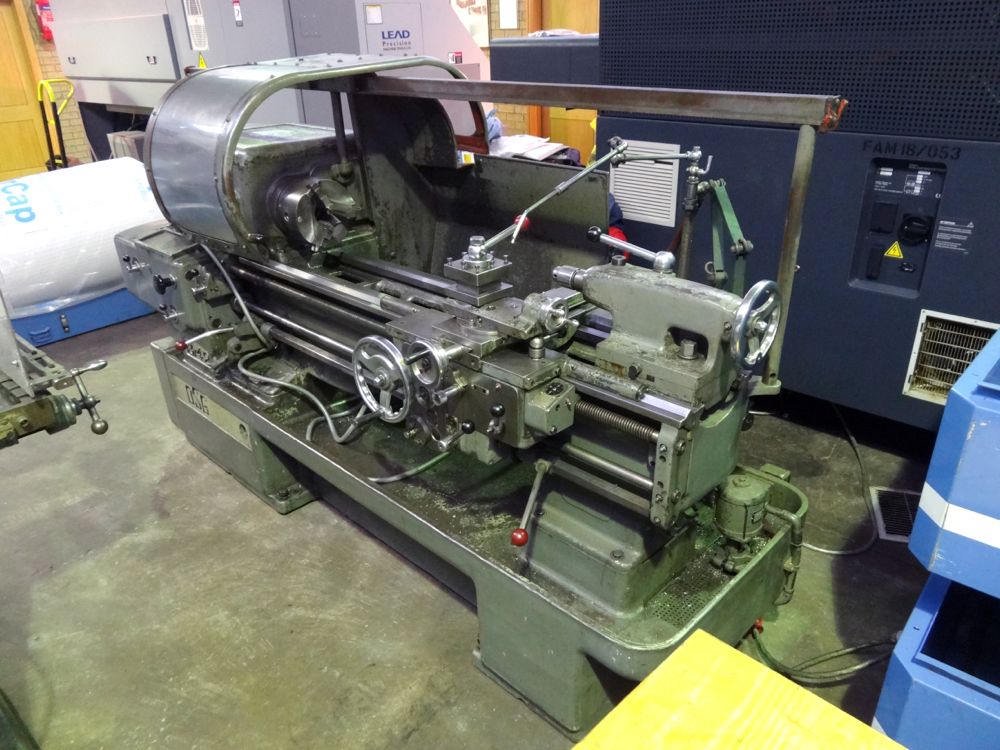

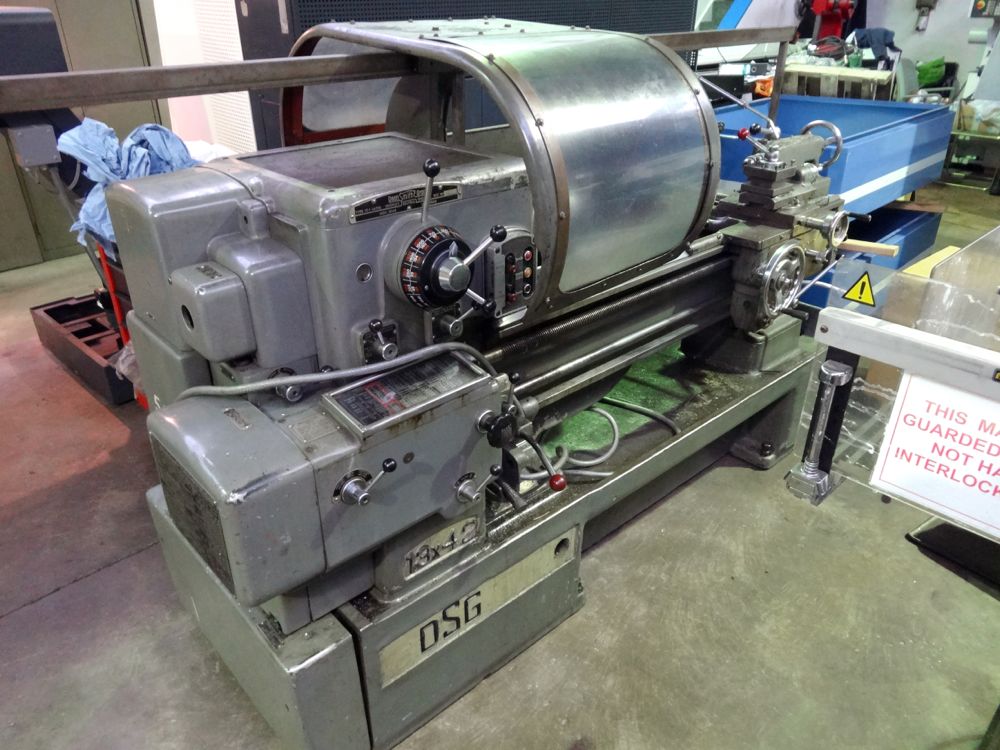

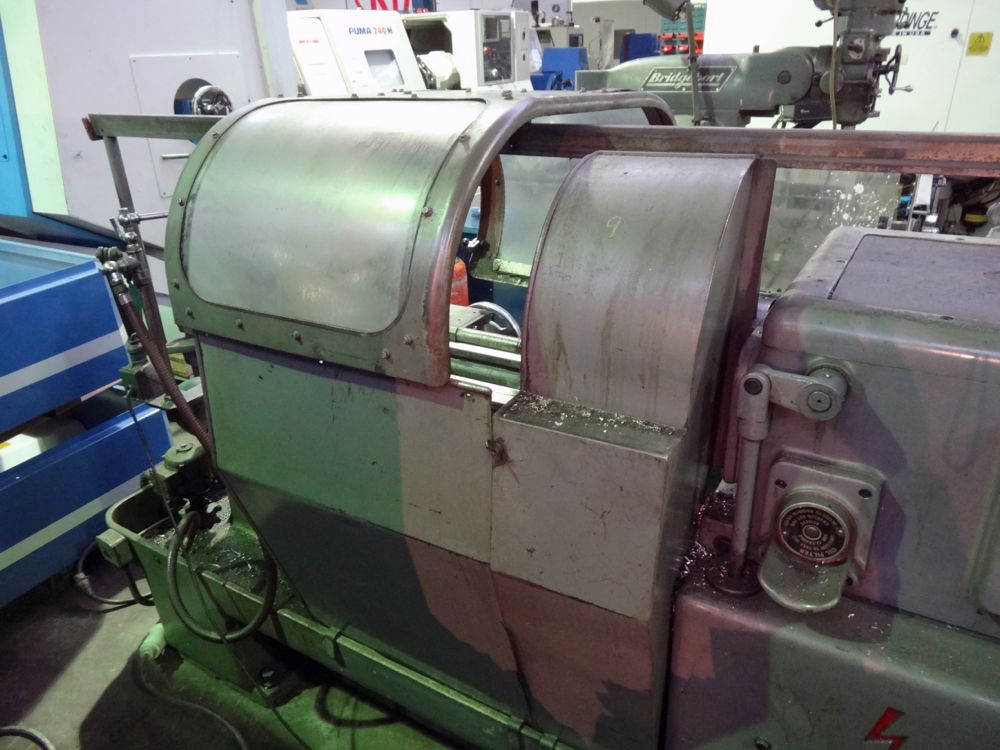

DSG 13x42 Straight Lathe with lots of Accessories

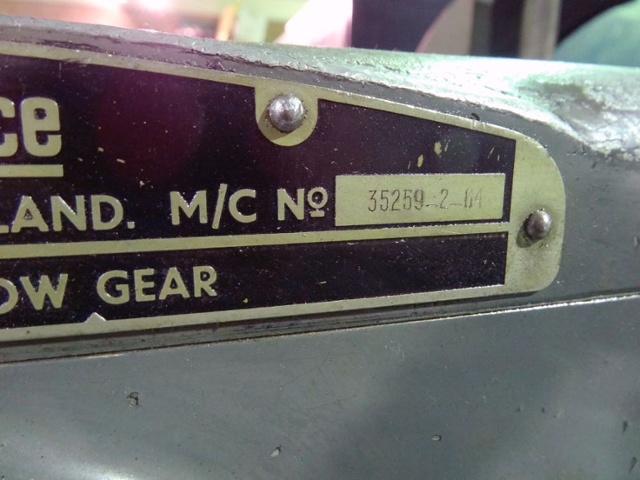

Machine Number: 35259-2-64

Swing Over Bed: 344mm,
Swing Over Saddle: 190mm,
Distance Between Centres: 1070mm,
Spindle Speeds: 35 – 2240rpm,
Spindle Bore: 45mm,
Feeds: Sliding: 0.91 – 25.6 thou per rev,
Surfacing: 0.60 – 17.06 thou per rev,
Screw Cutting: TPI: 4 – 112, Metric: 0.5 – 7mm pitch
Tailstock Taper: 4MT,
Graduations: Inch/ Metric, Motor:

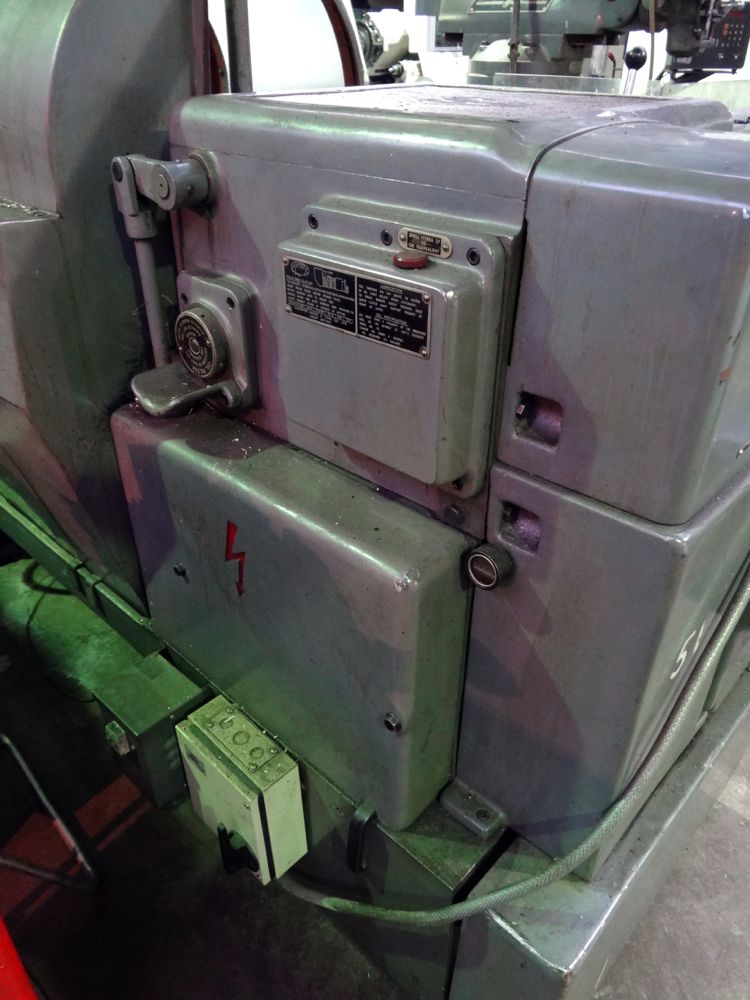

5HP, Electrics: 415v,
3ph, 50 Cycles,

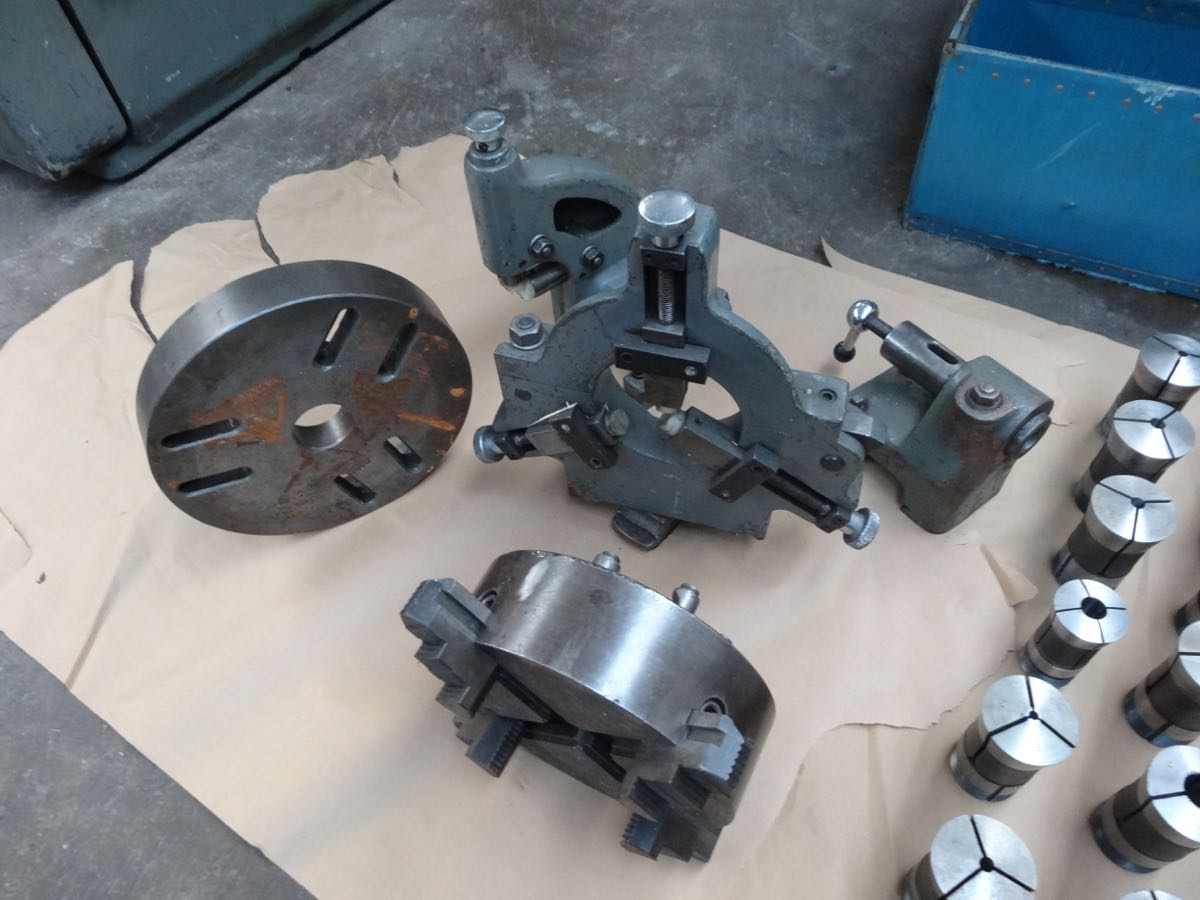

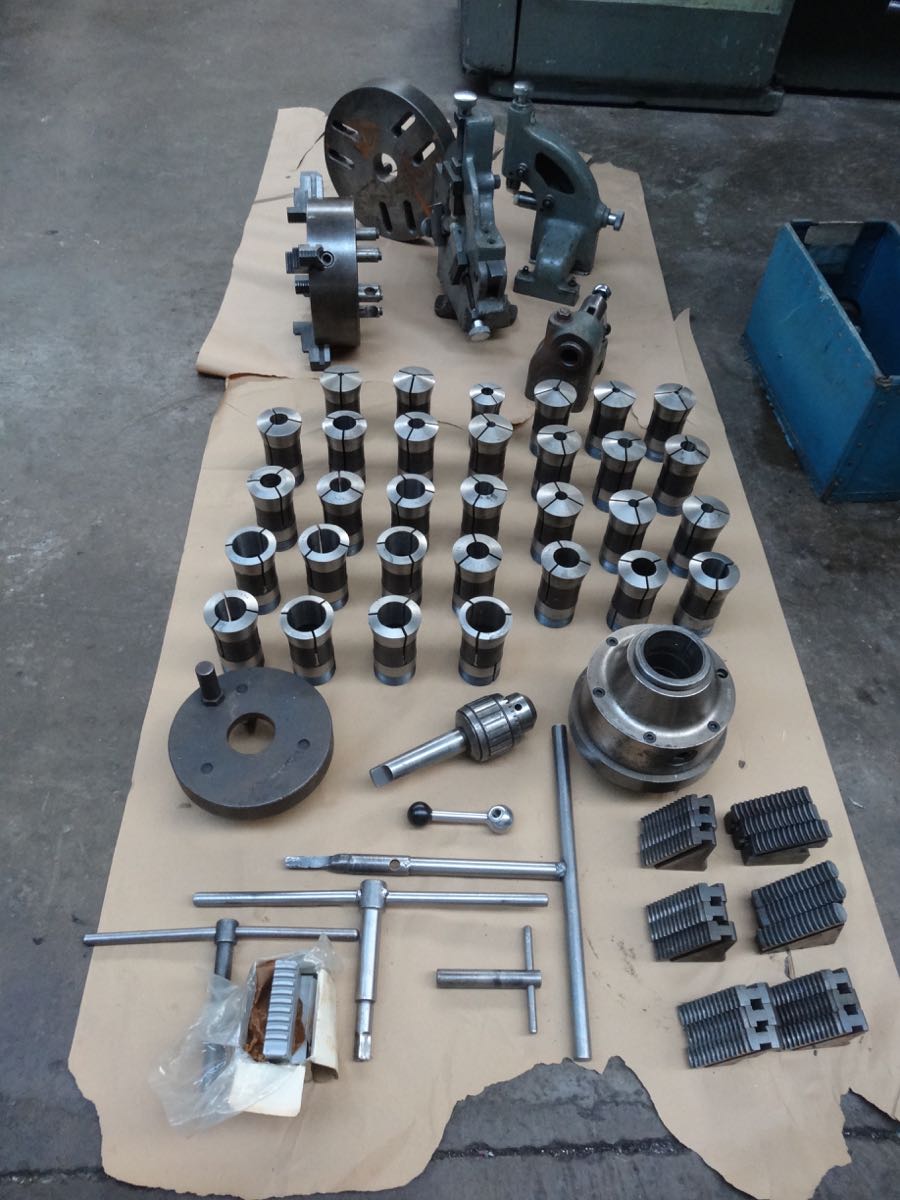

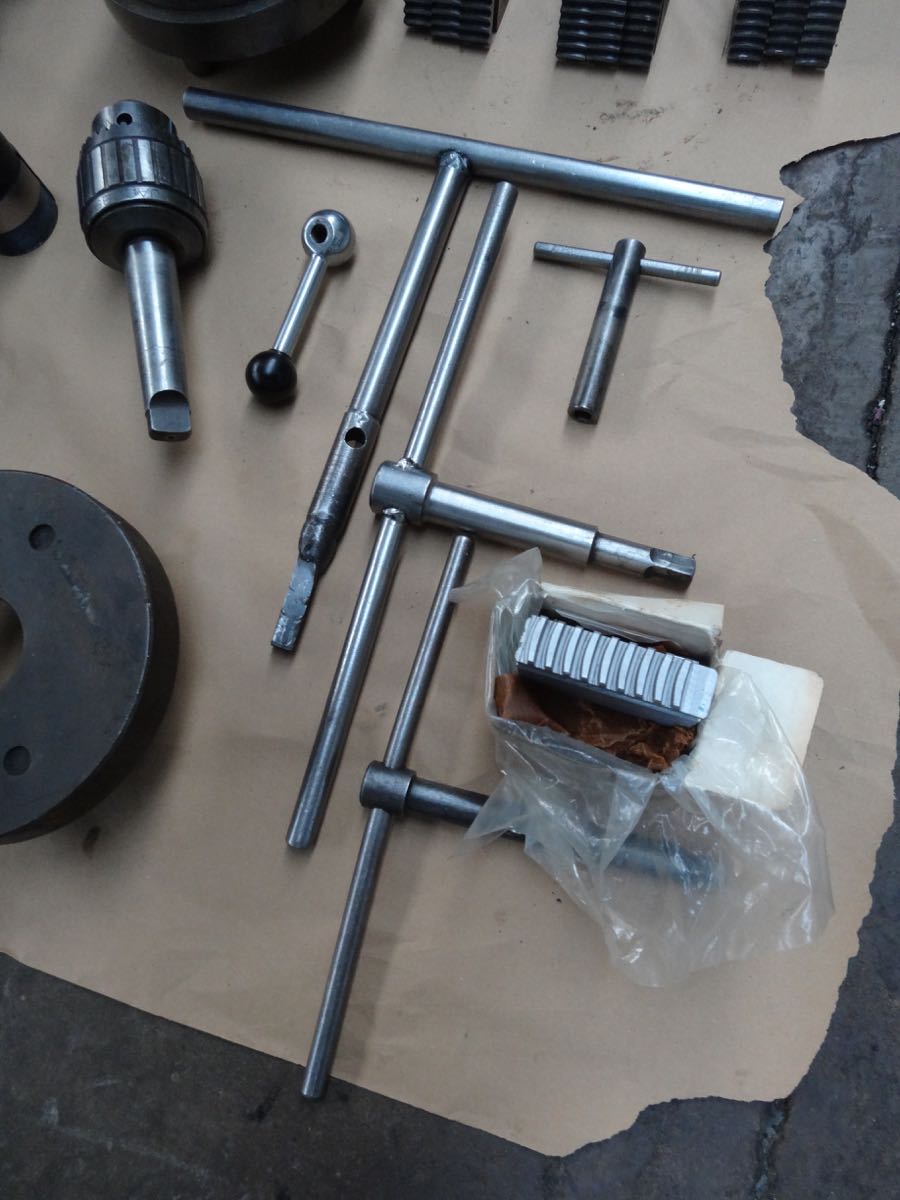

Complete With:

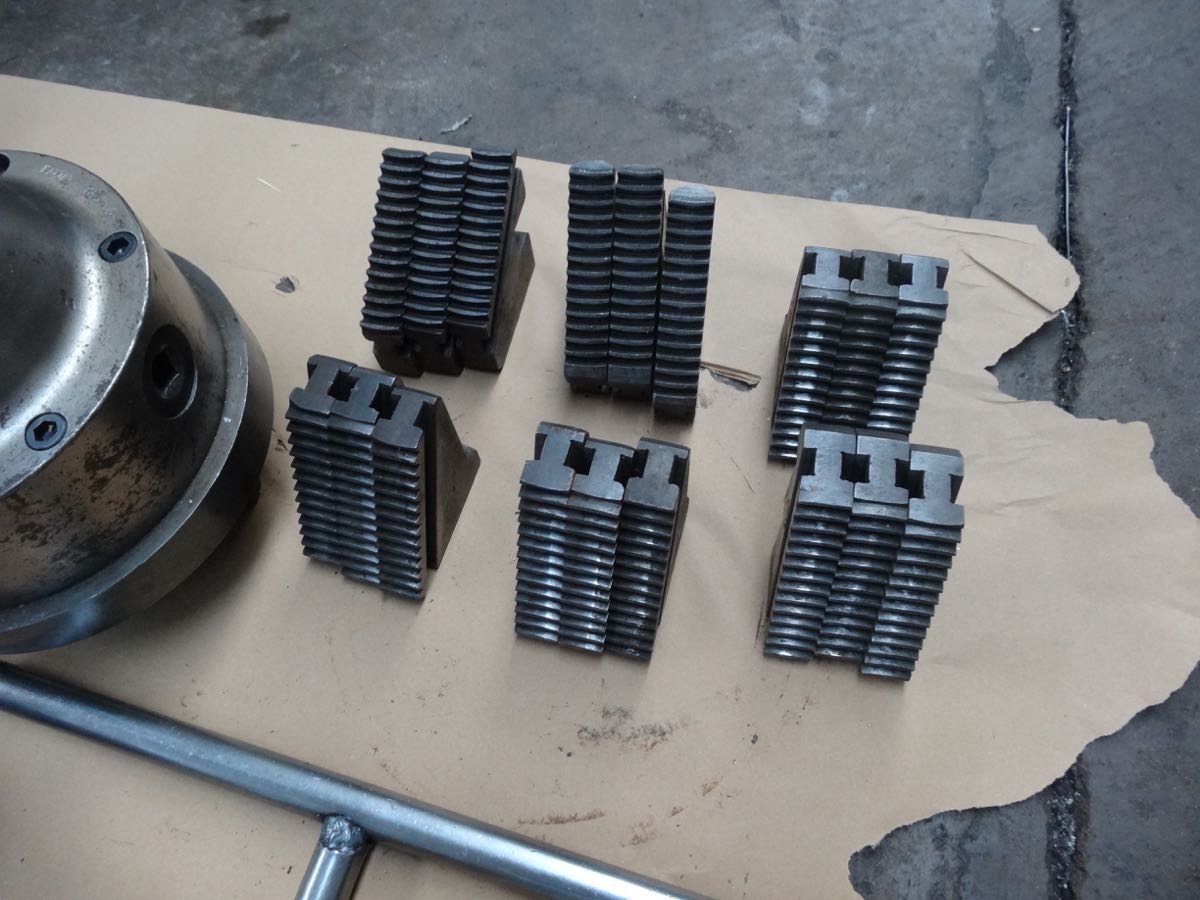

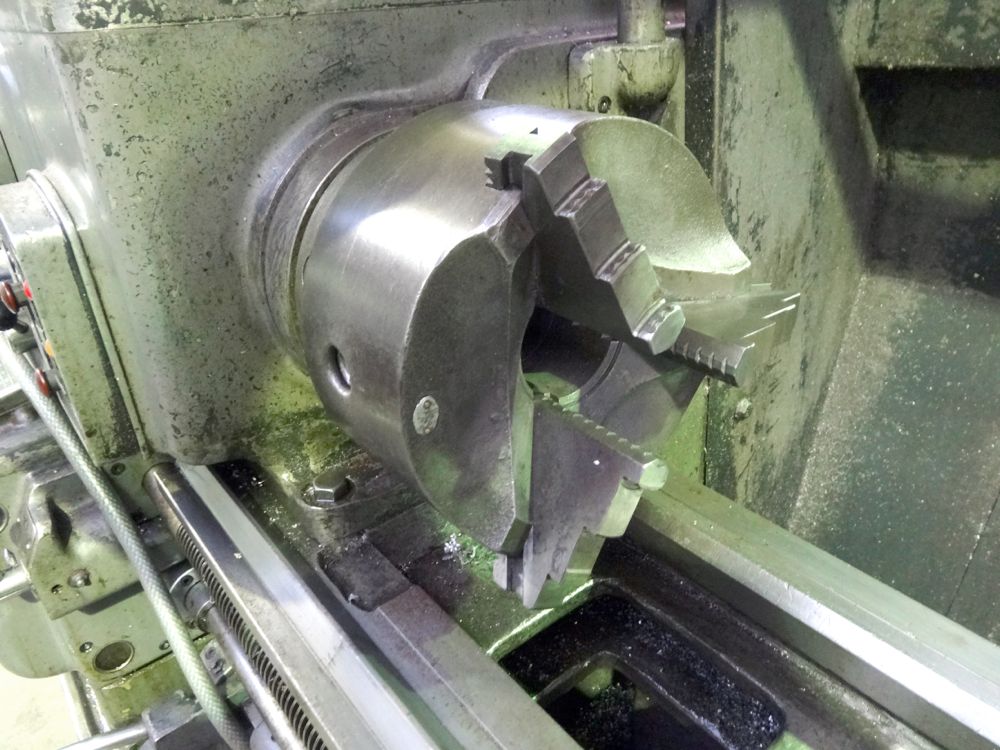

3 Jaw Chuck with lots of Jaws

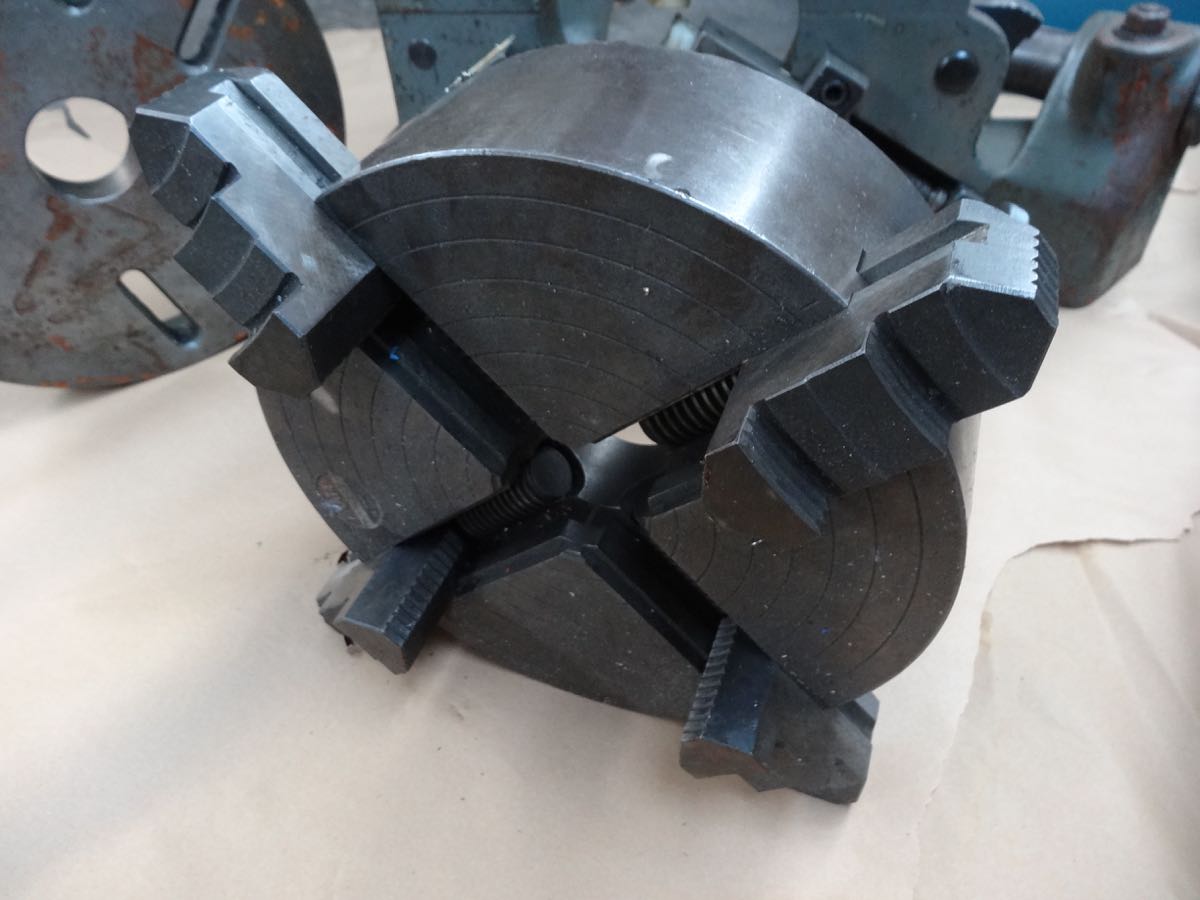

4 Jaw Chuck with Set of Jaws

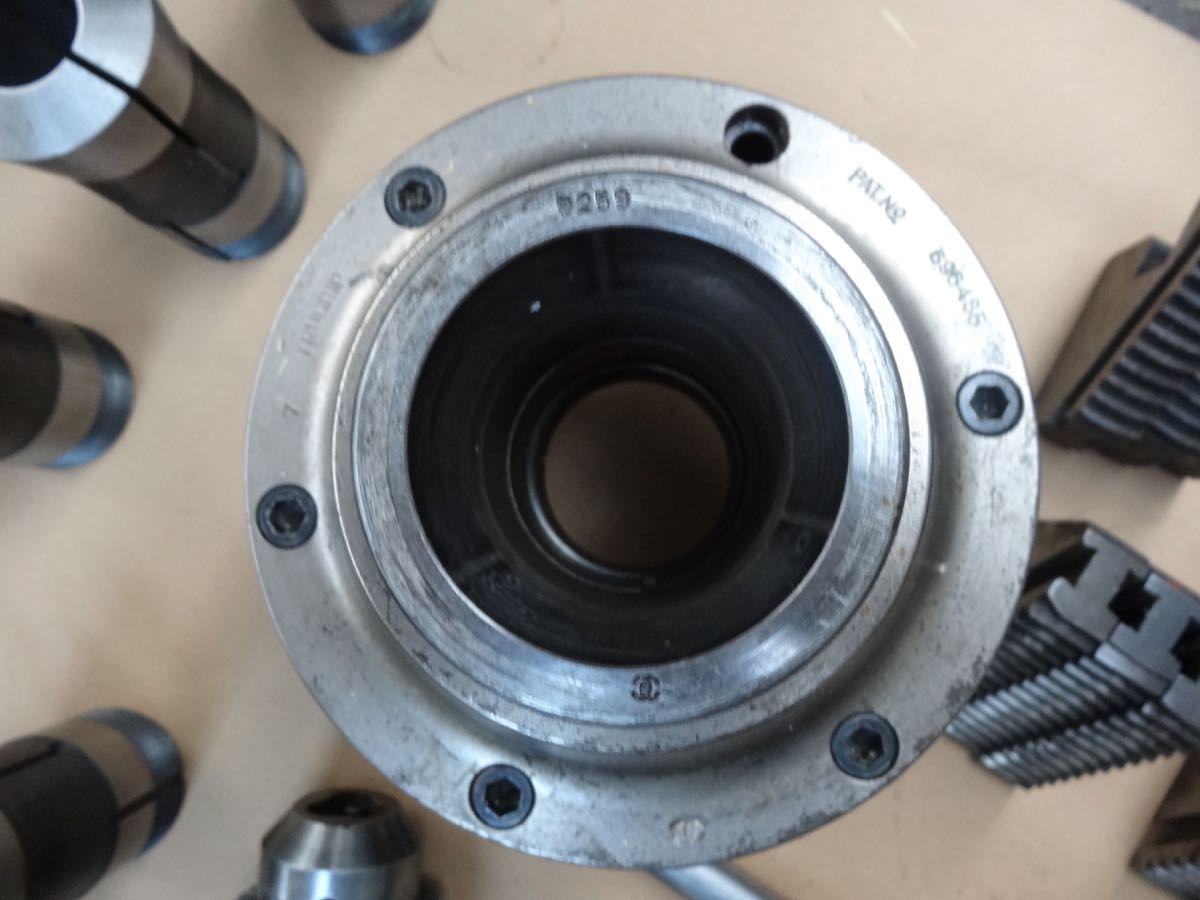

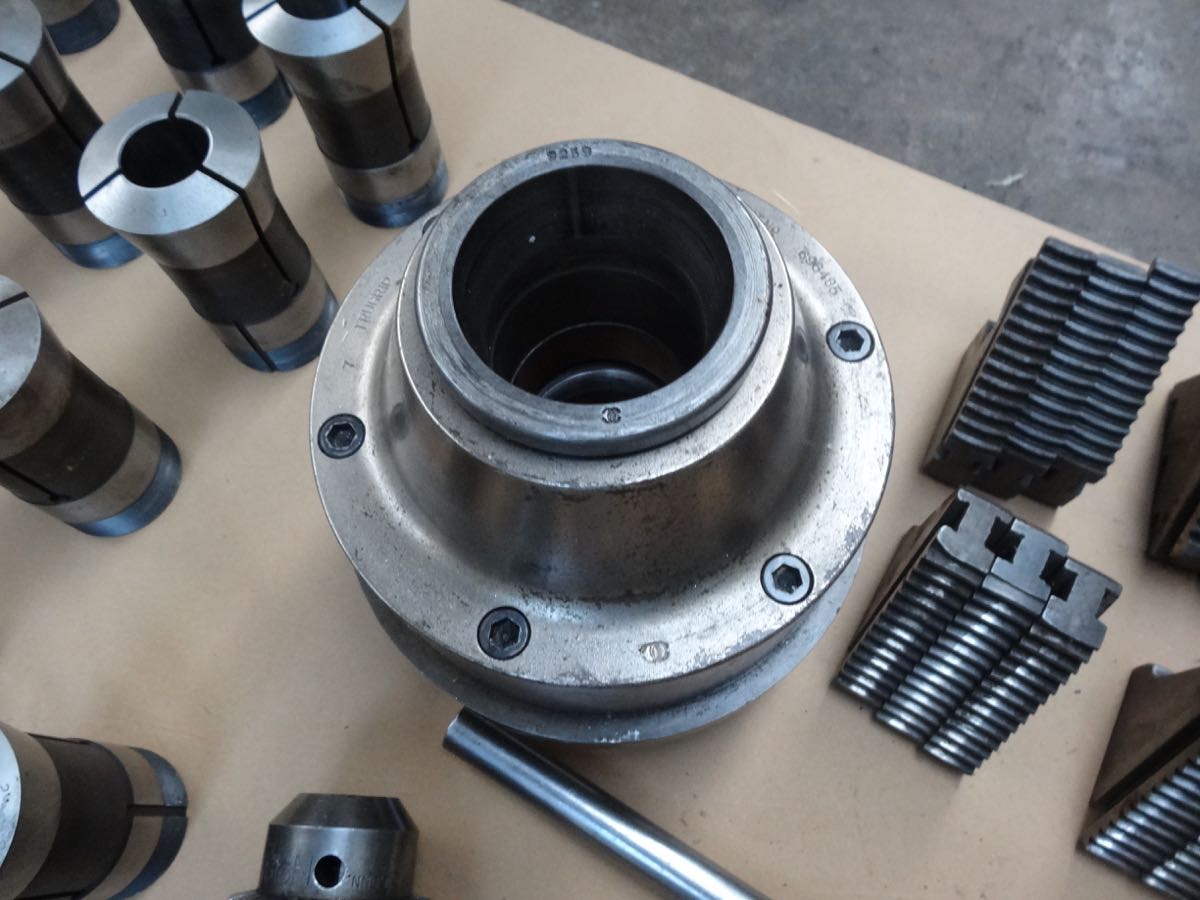

Collet Chuck

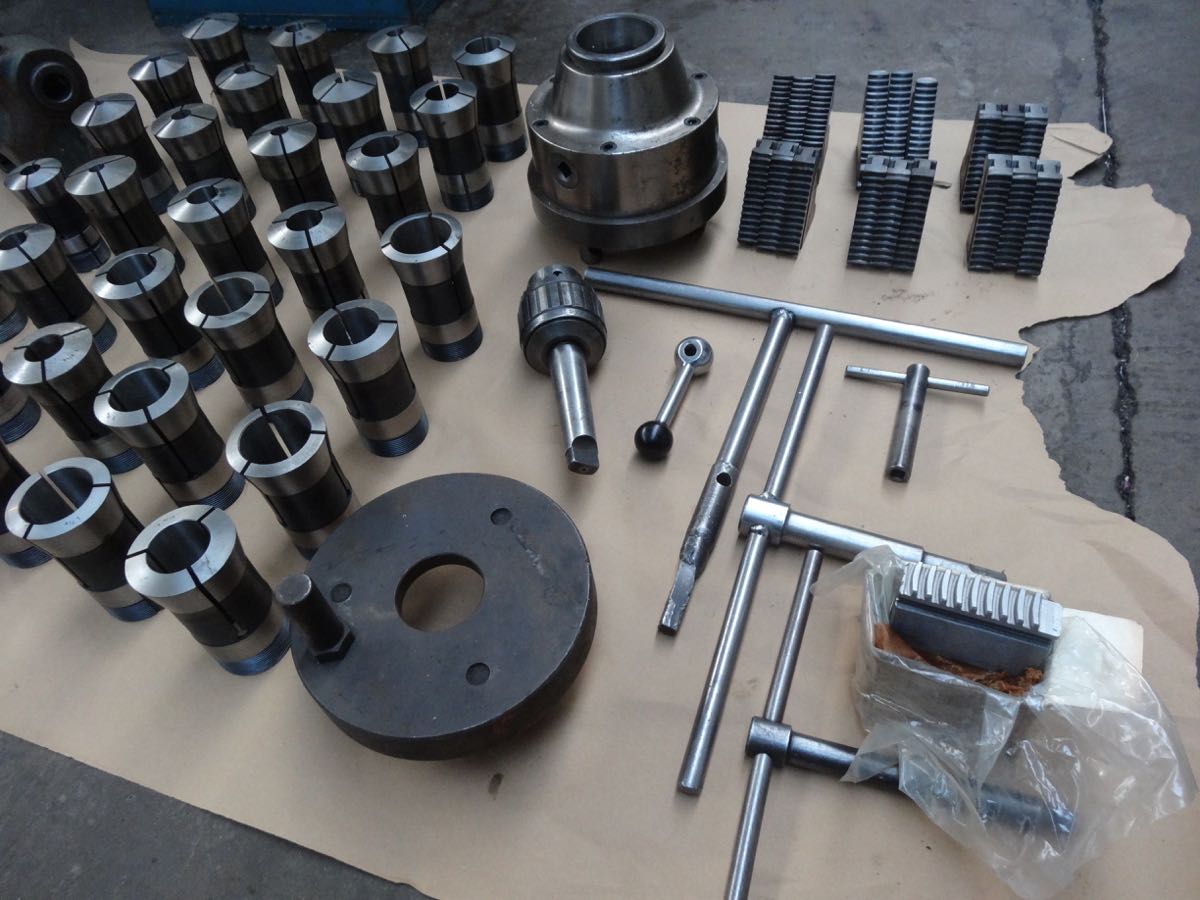

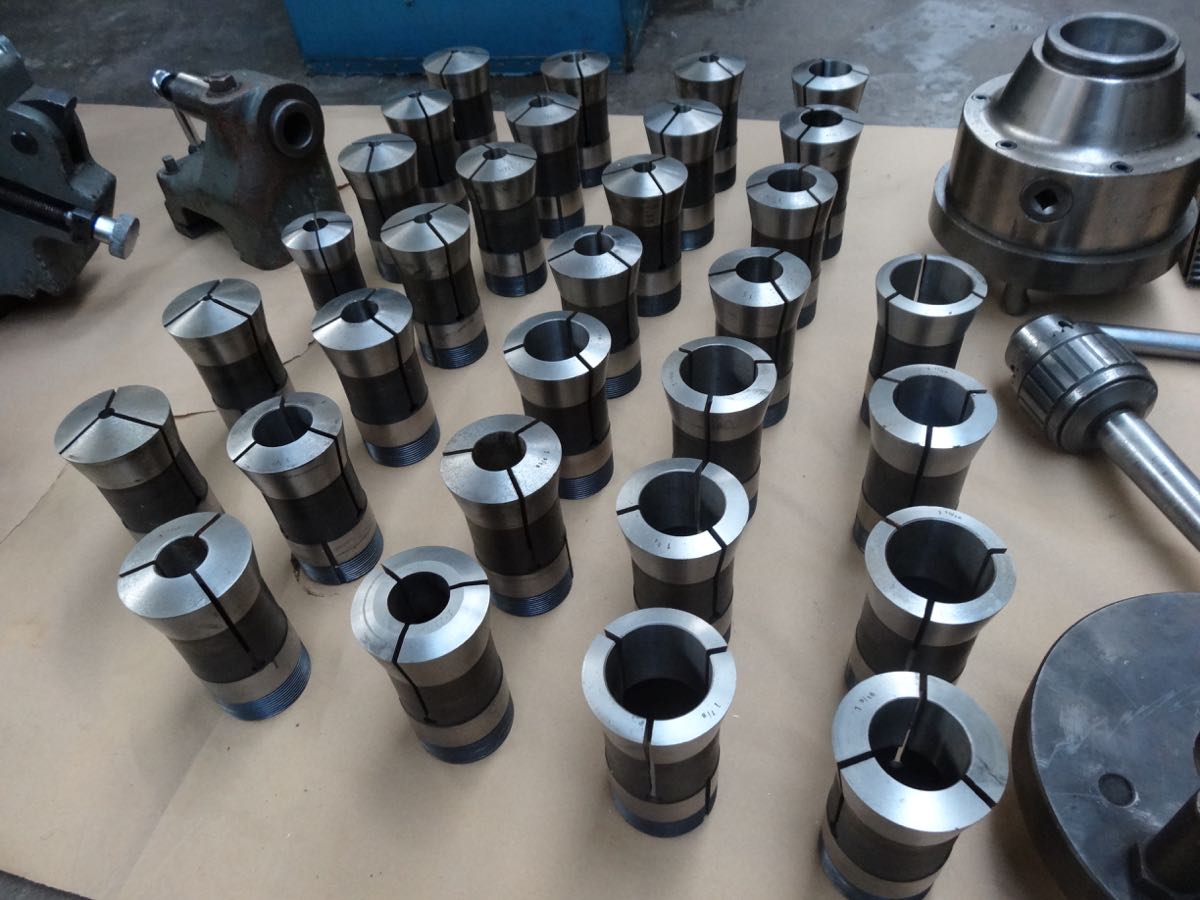

Selection of Collets

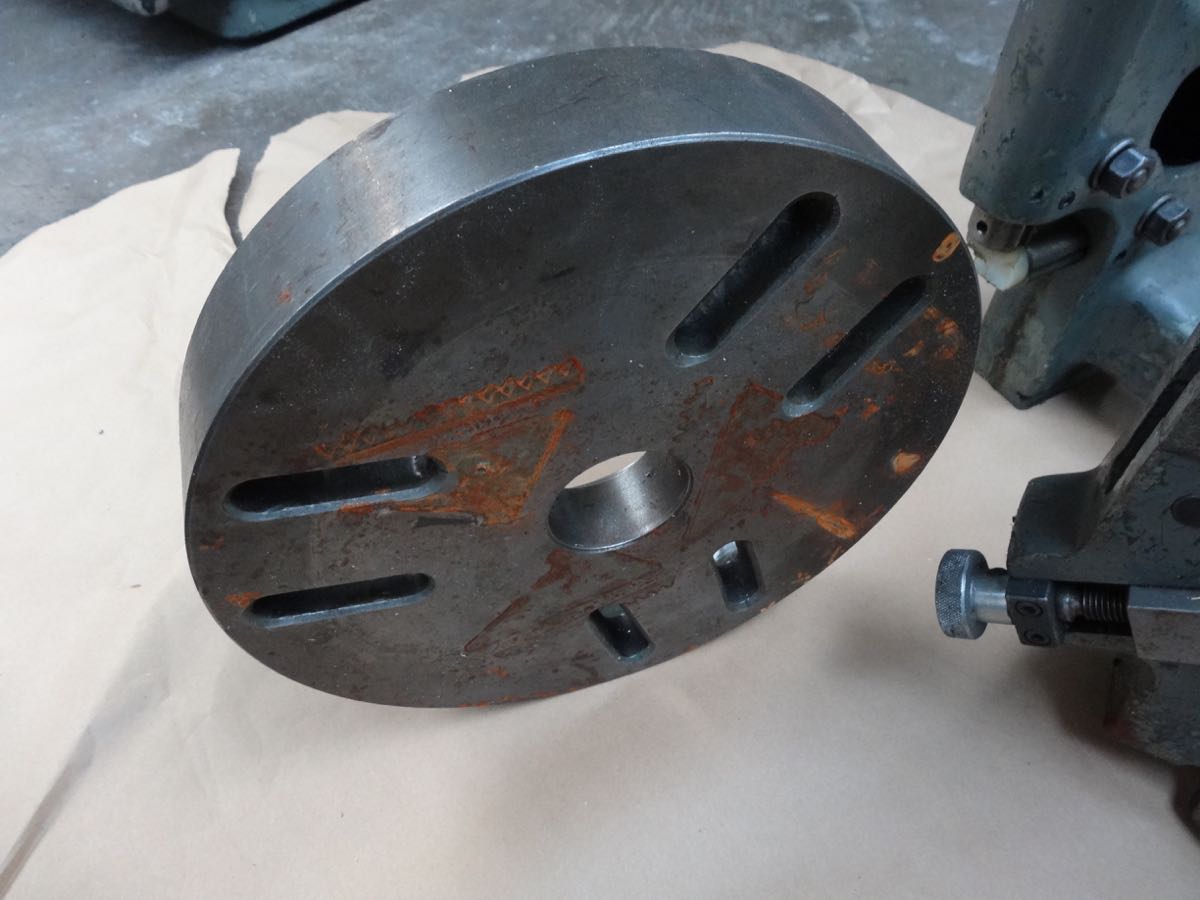

Flace Plate

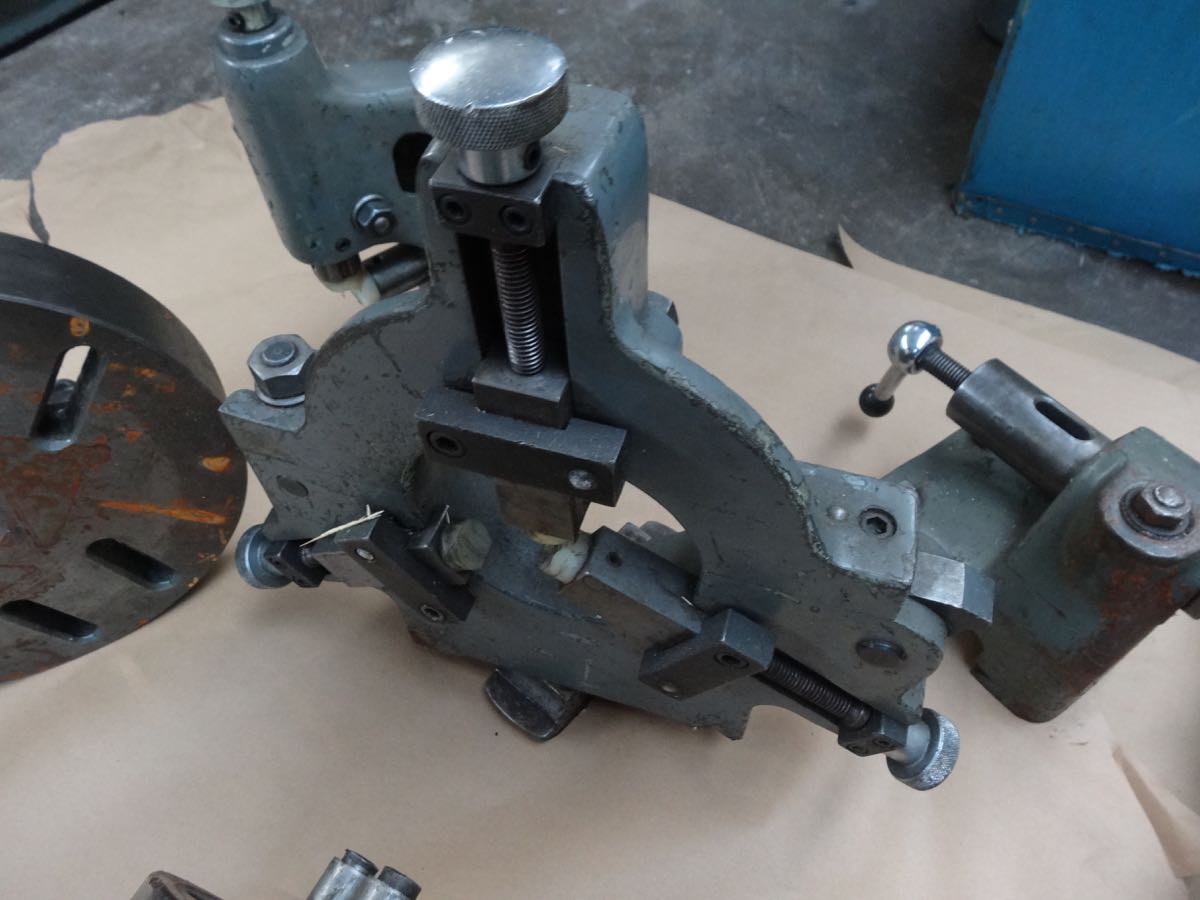

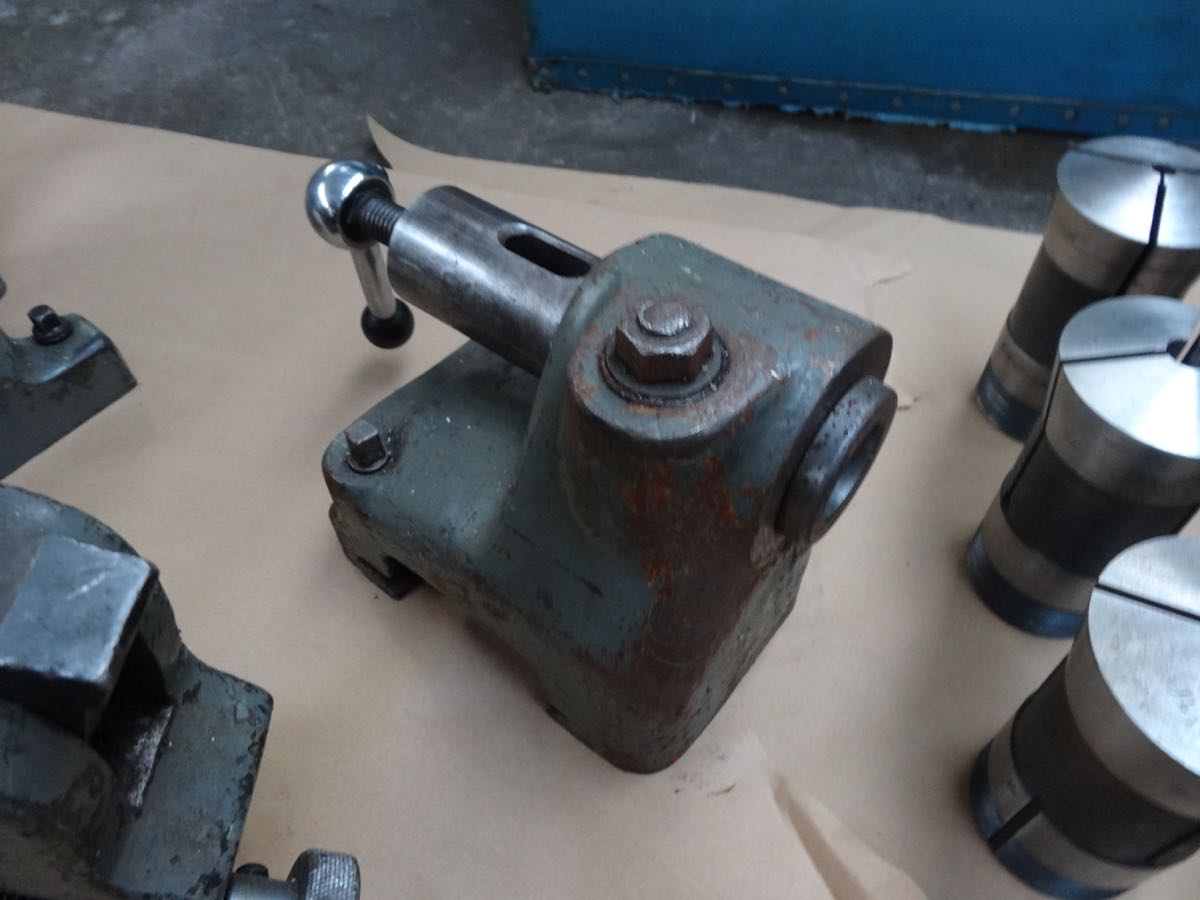

3 Point Fixed Steady

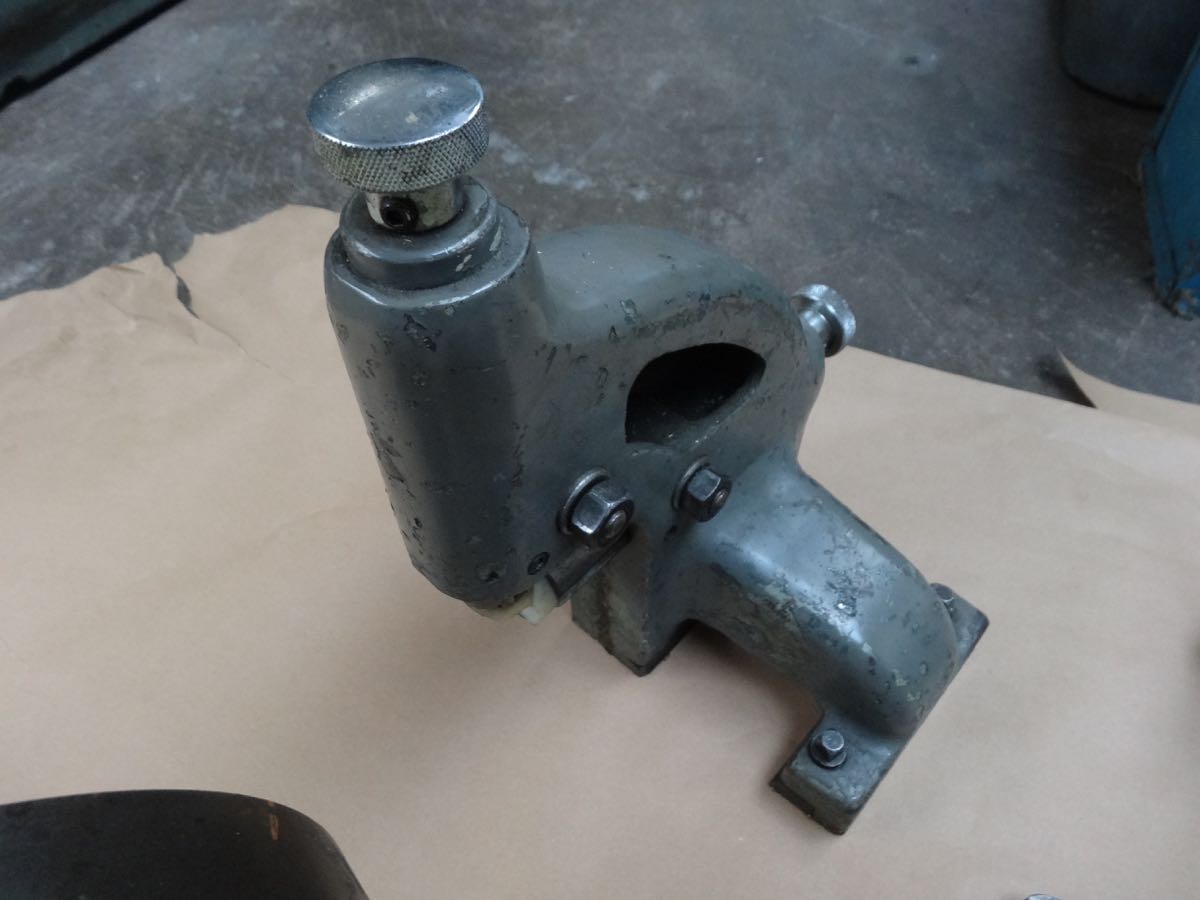

Traveling Steady

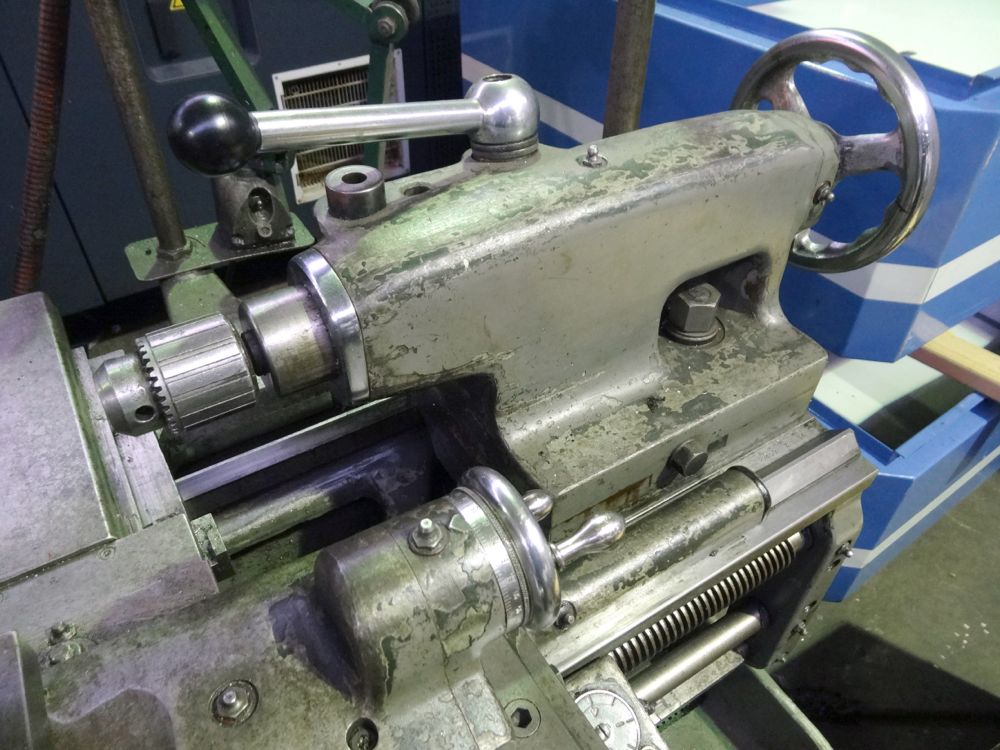

Tail Stock

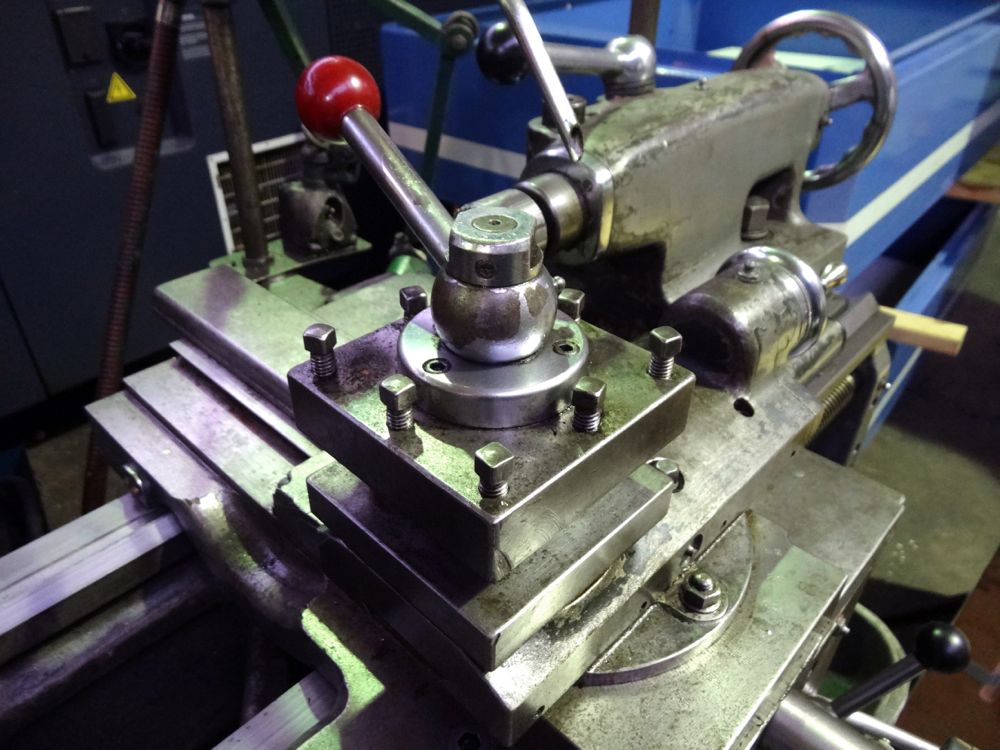

4 Way Tool Post,
Chuck Guard,
Coolant

Approximate Dimensions: 2600 x 1200 x 1400mm
Approximate Weight: 1800kg

Location: Coventry, can be loaded free of charge to flatbed truck.

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
