Lot 11 - DSG 13x42 Straight Lathe with lots of Accessories
Description:
SOLD Subject to payment

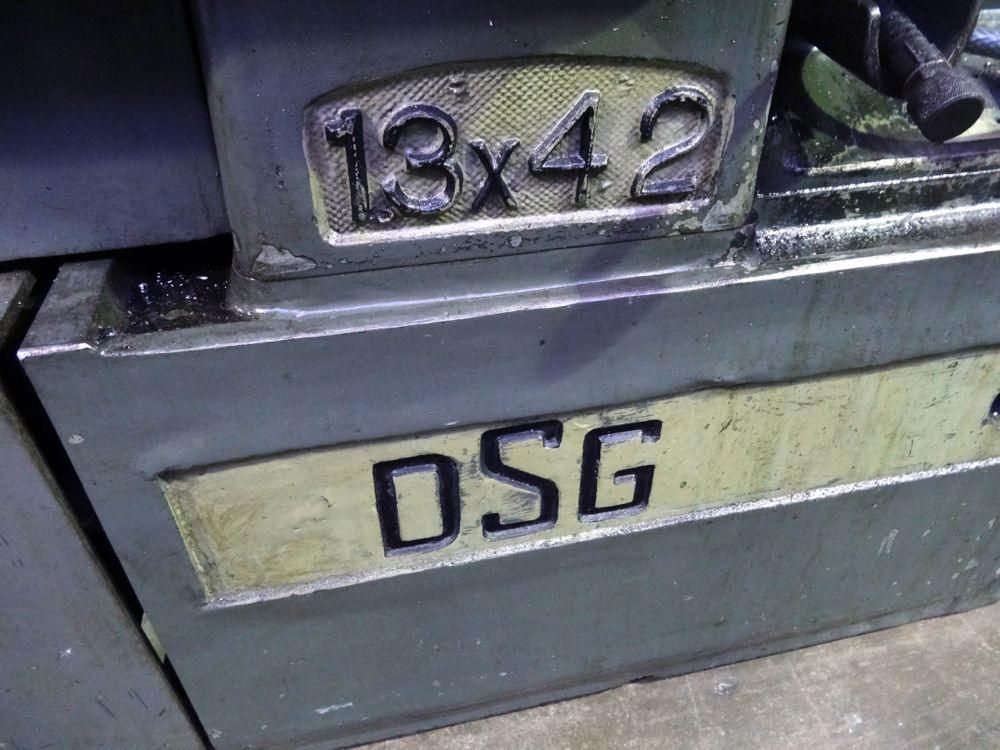

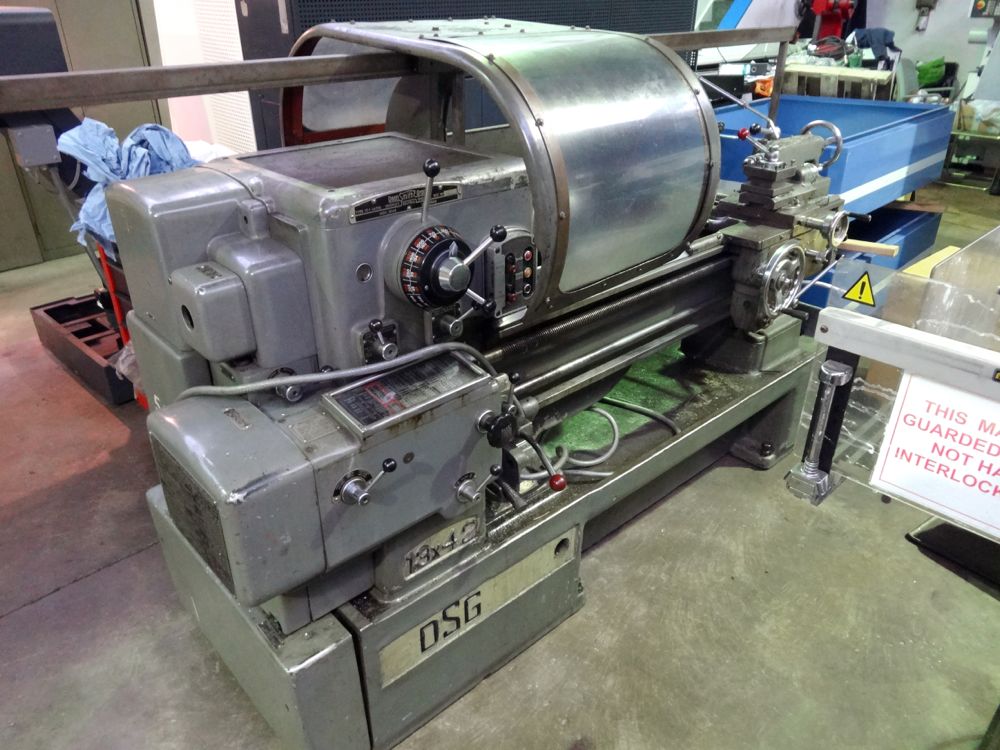

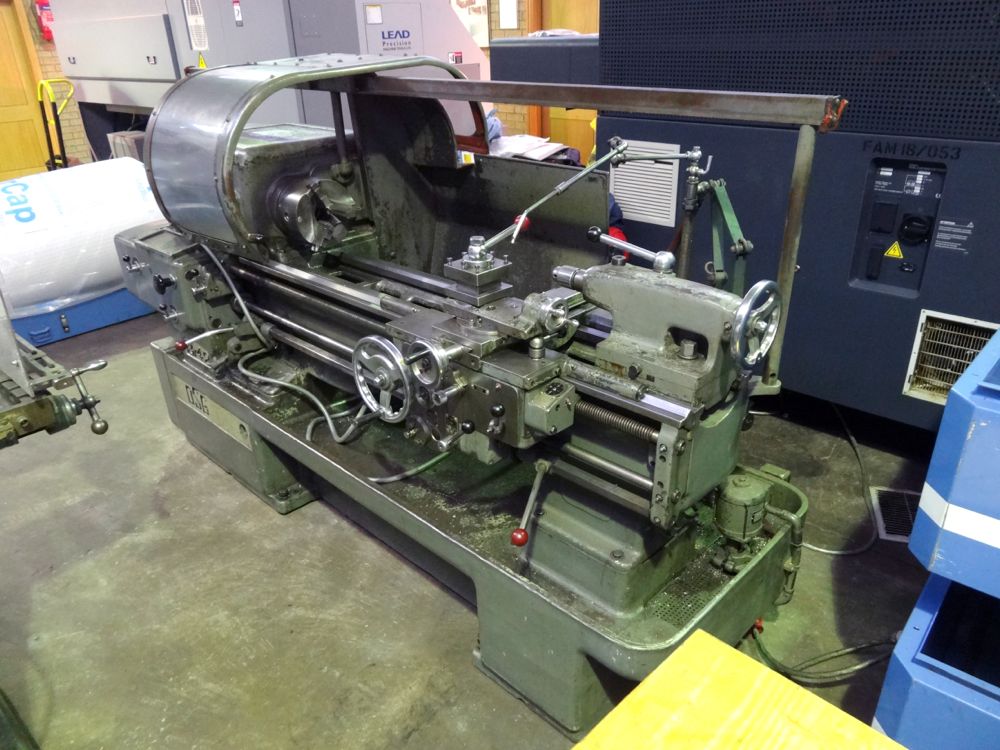

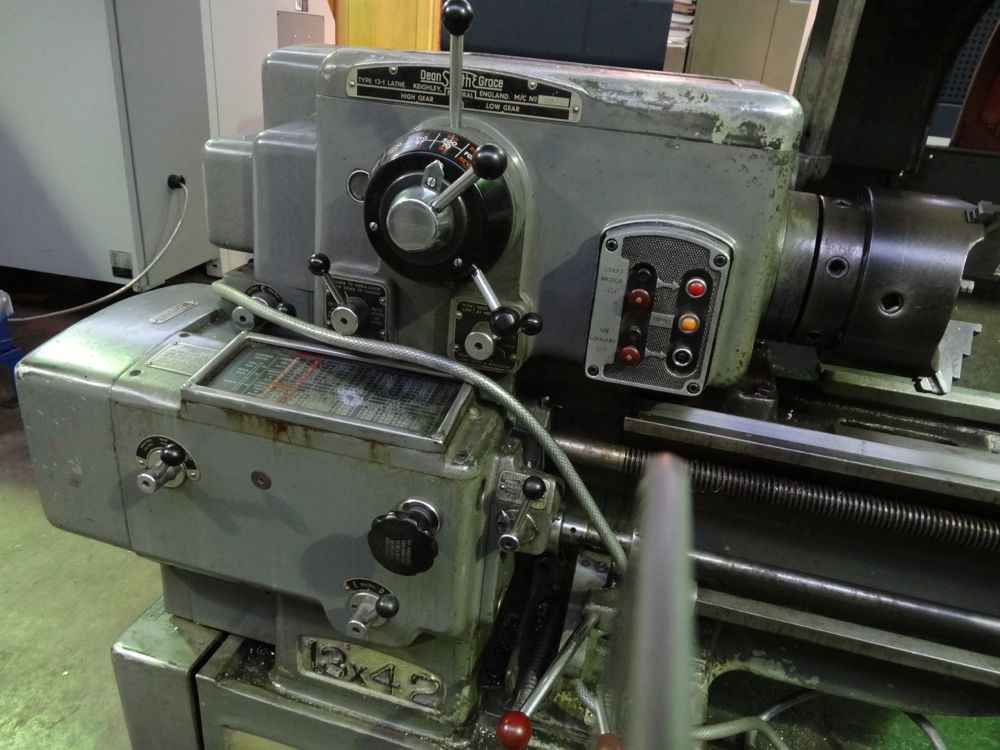

DSG 13x42 Straight Lathe with lots of Accessories

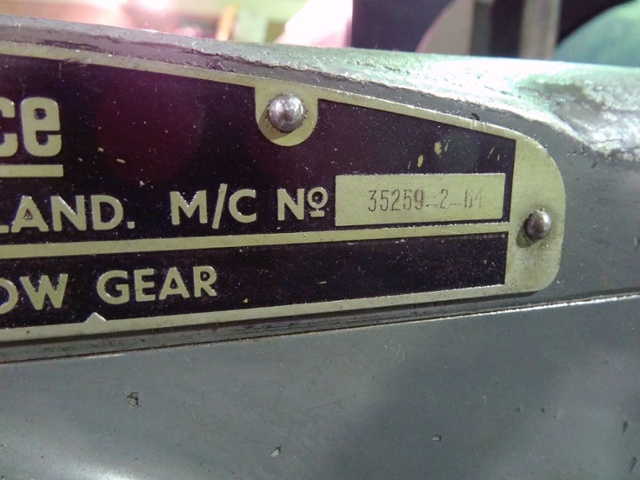

Machine Number: 35259-2-64
Swing Over Bed: 344mm,
Swing Over Saddle: 190mm,
Distance Between Centres: 1070mm,

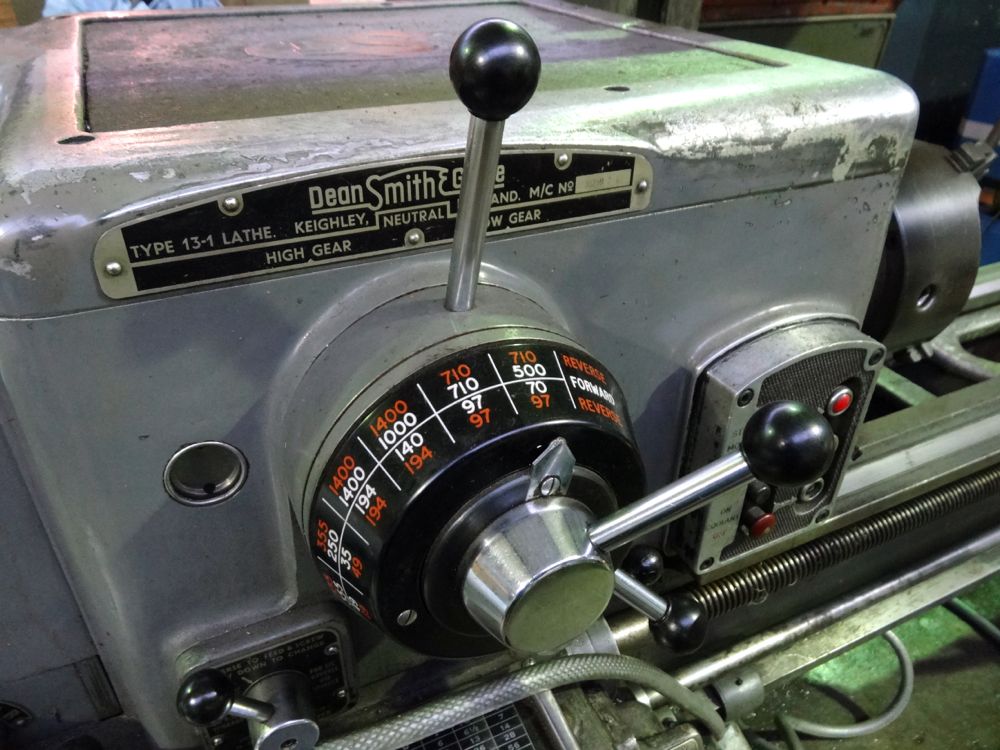

Spindle Speeds: 35 – 2240rpm,
Spindle Bore: 45mm,
Feeds: Sliding: 0.91 – 25.6 thou per rev,
Surfacing: 0.60 – 17.06 thou per rev,
Screw Cutting: TPI: 4 – 112, Metric: 0.5 – 7mm pitch
Tailstock Taper: 4MT,
Graduations: Inch/ Metric, Motor:
5HP, Electrics: 415v,
3ph, 50 Cycles,

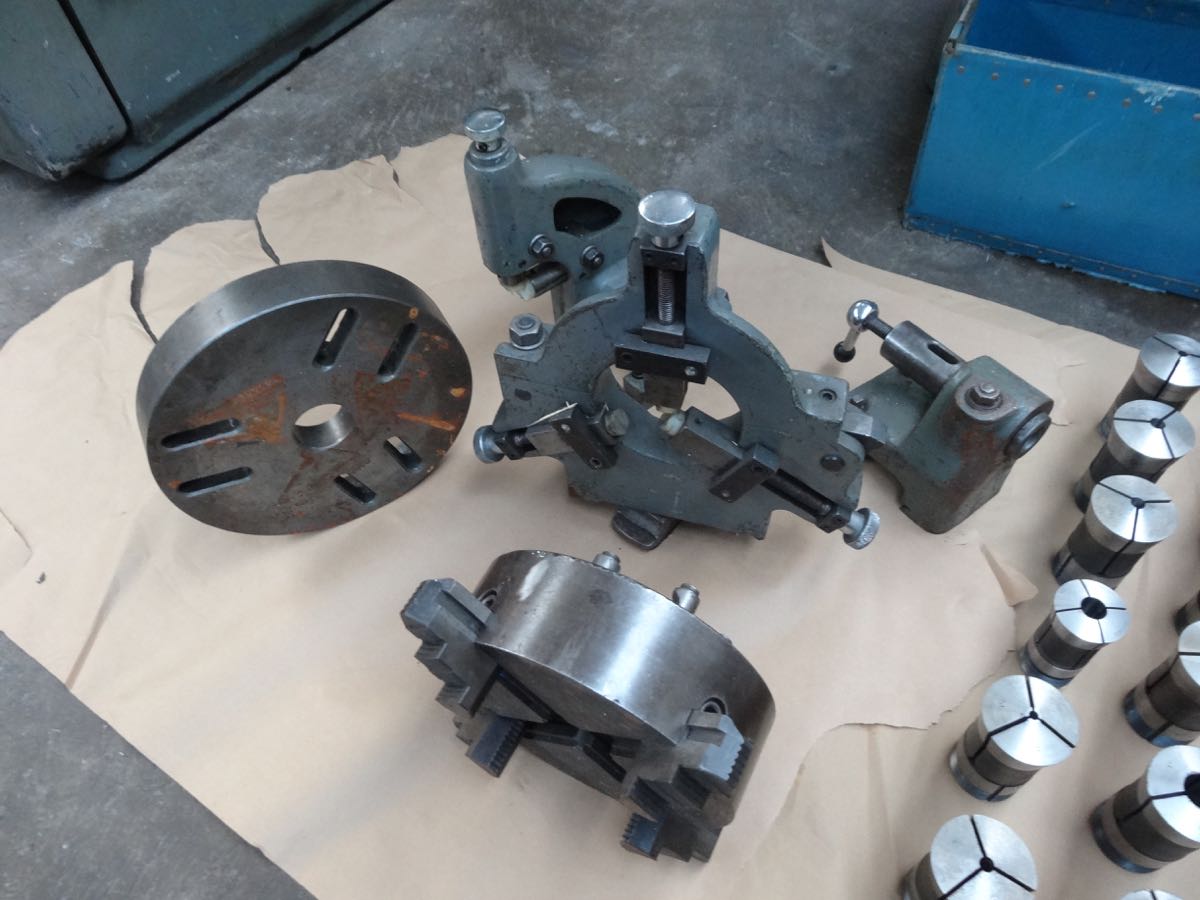

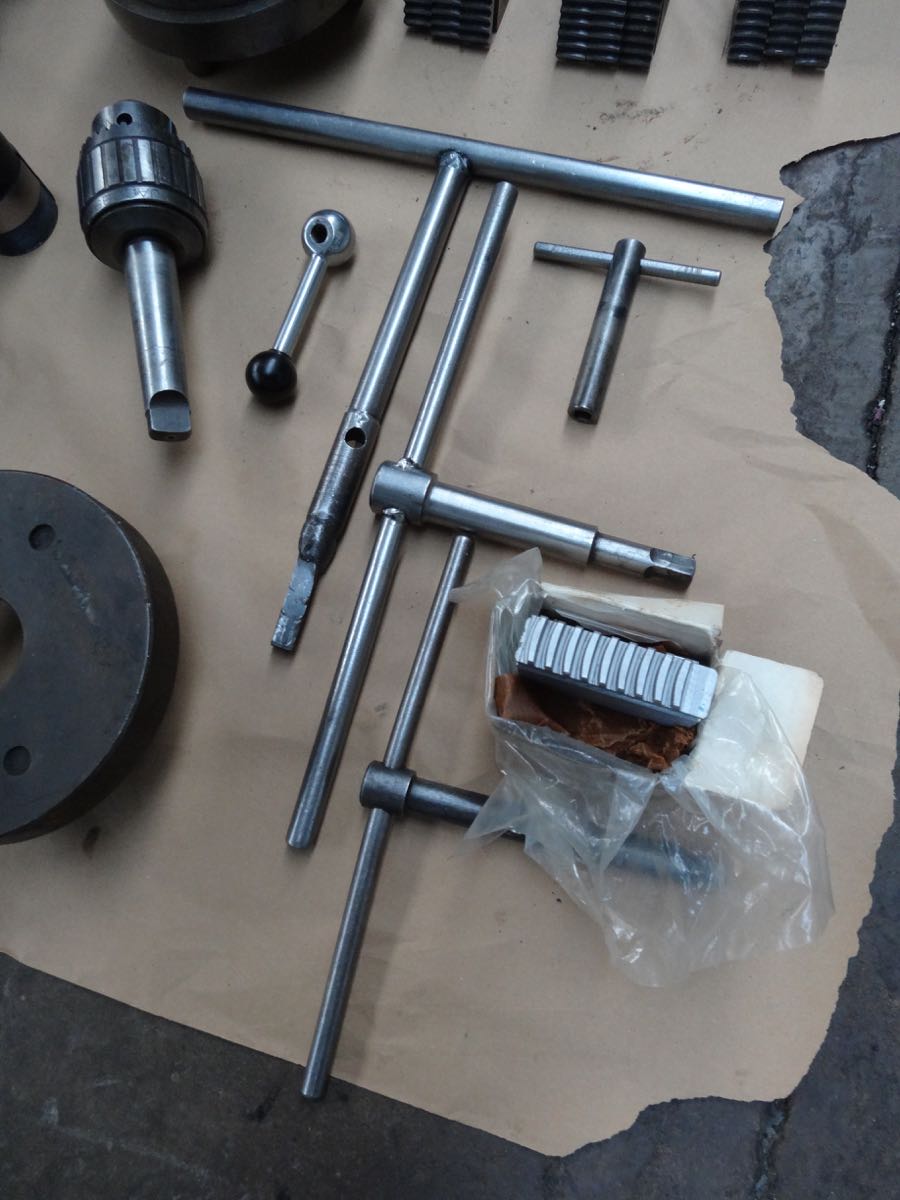

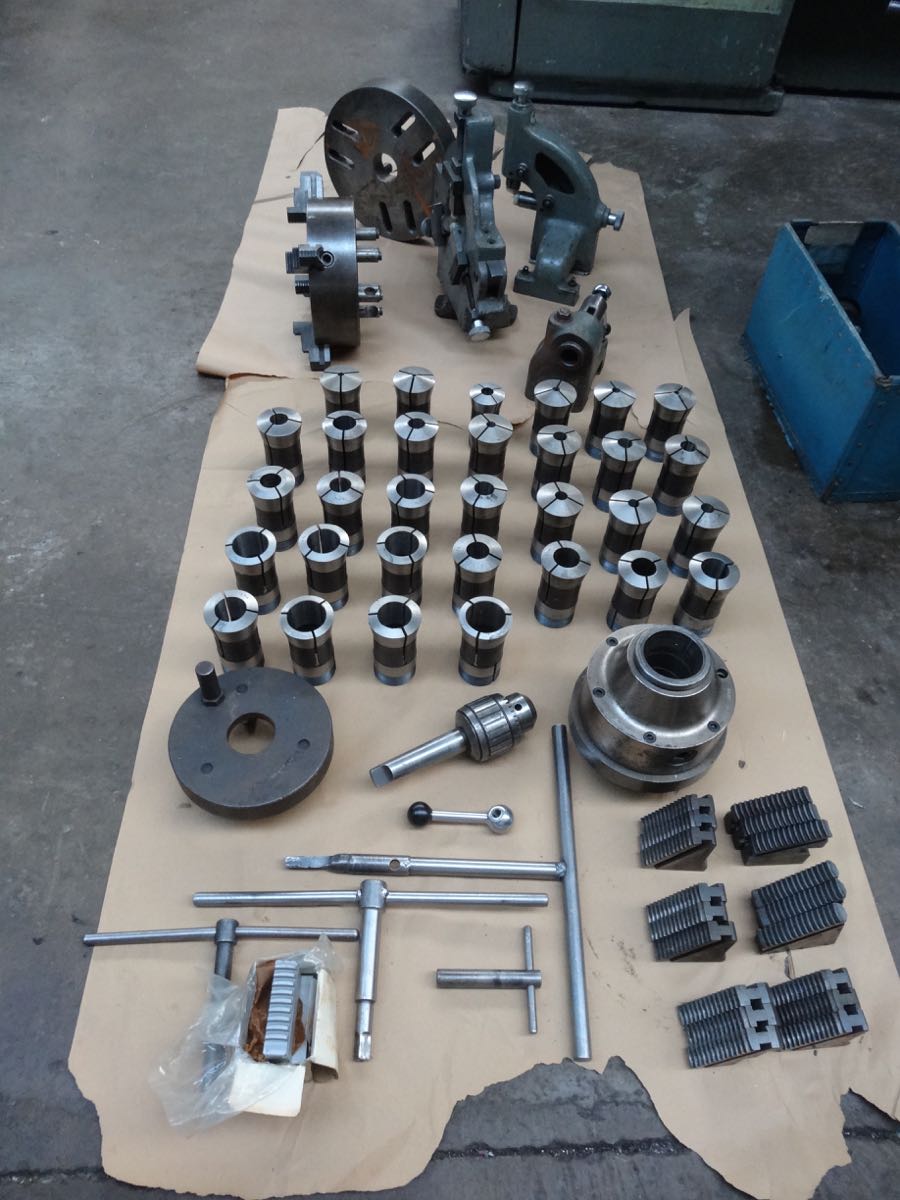

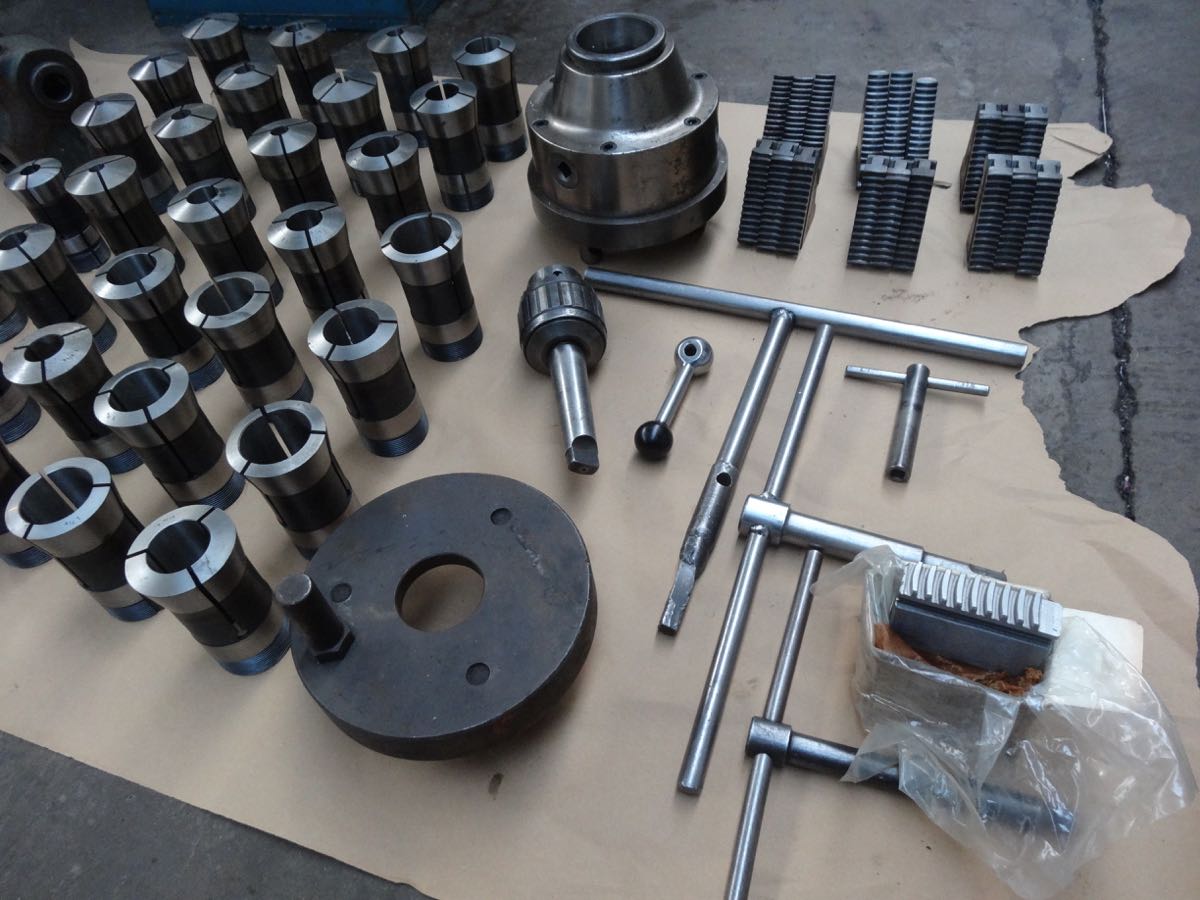

Complete With:

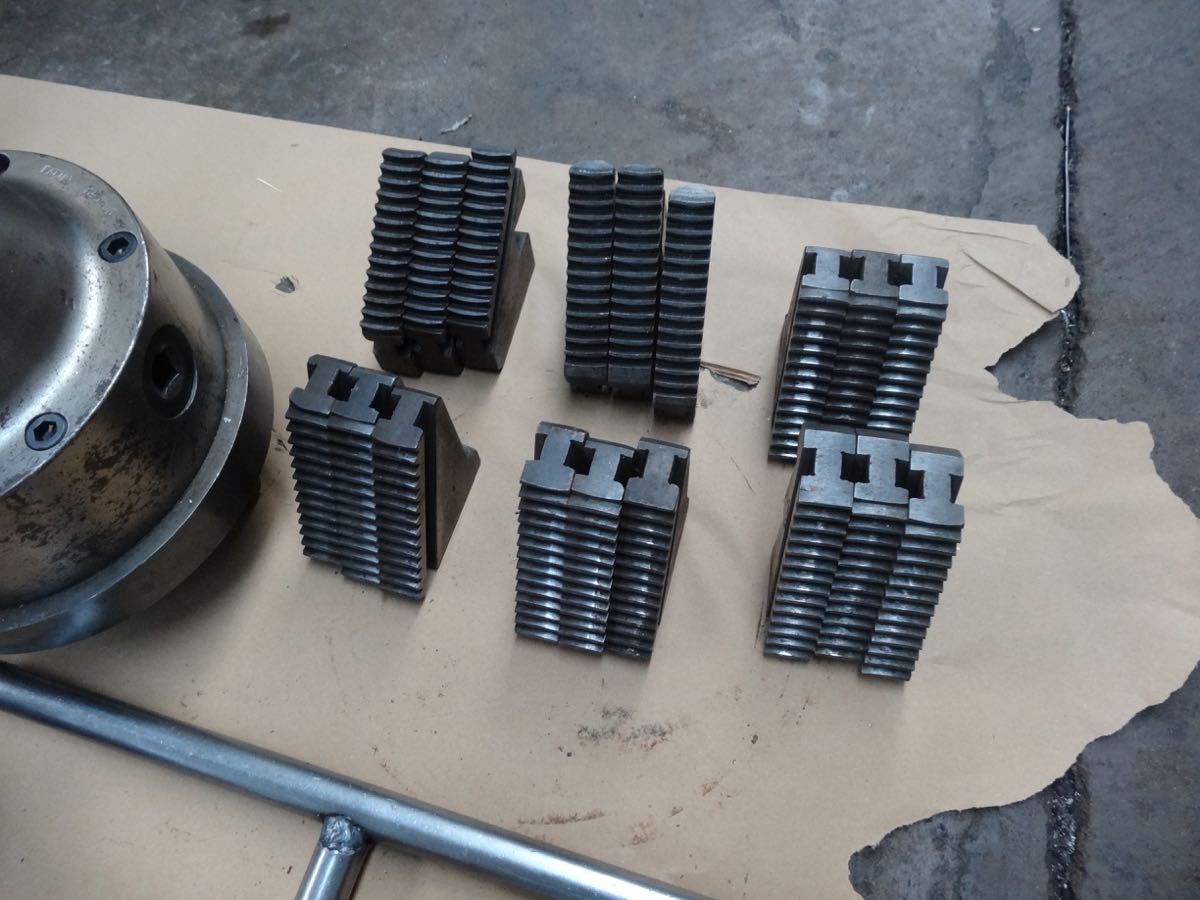

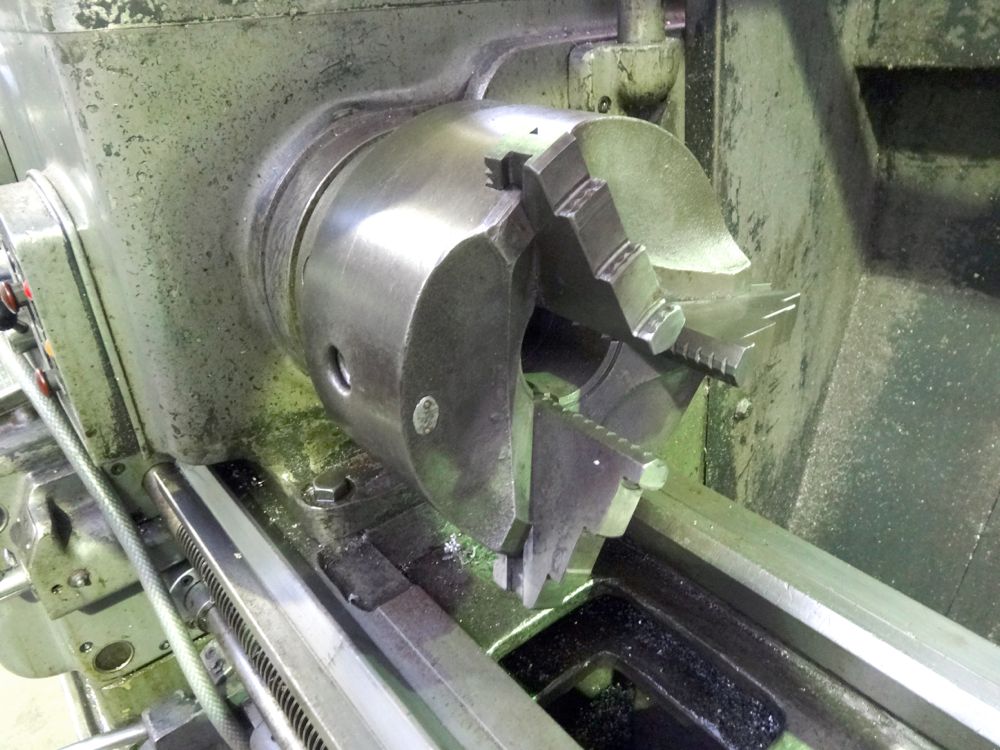

3 Jaw Chuck with lots of Jaws

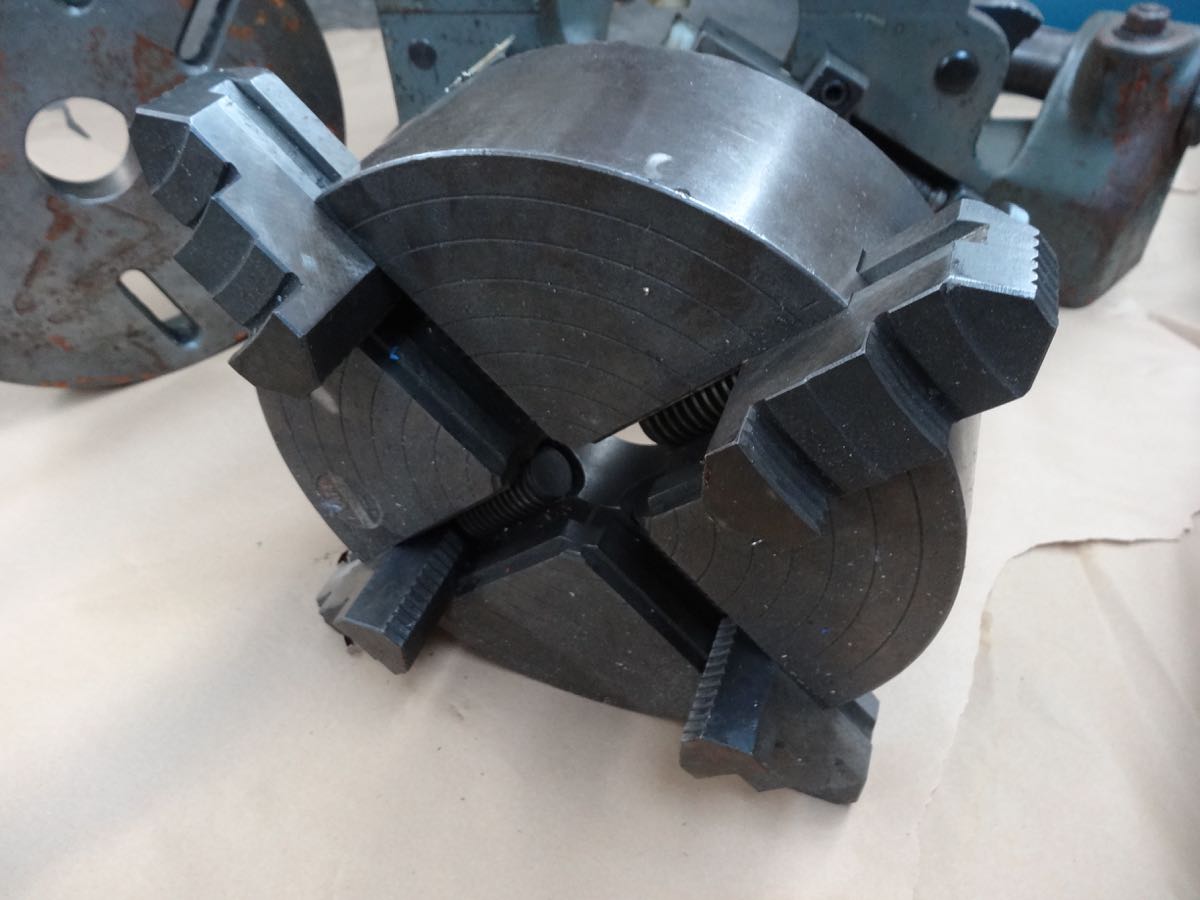

4 Jaw Chuck with Set of Jaws

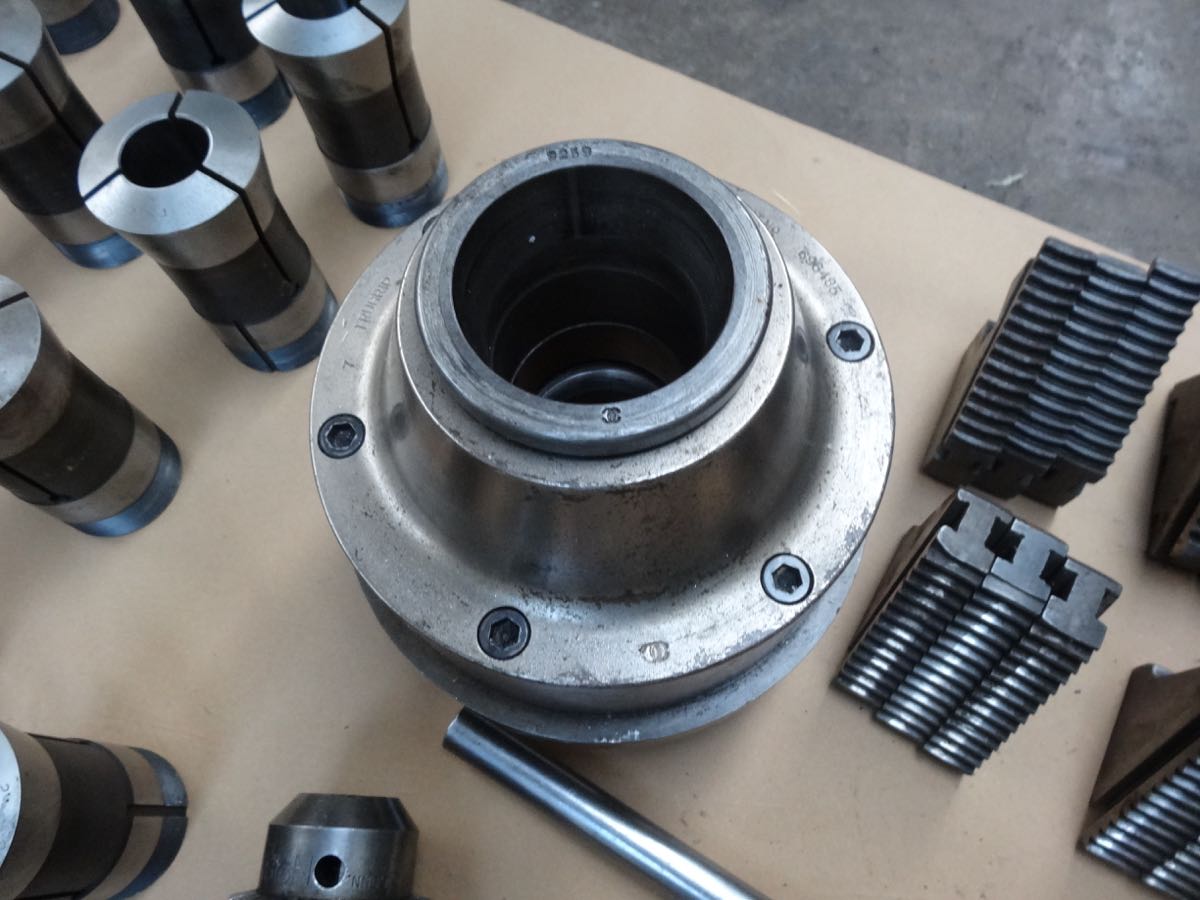

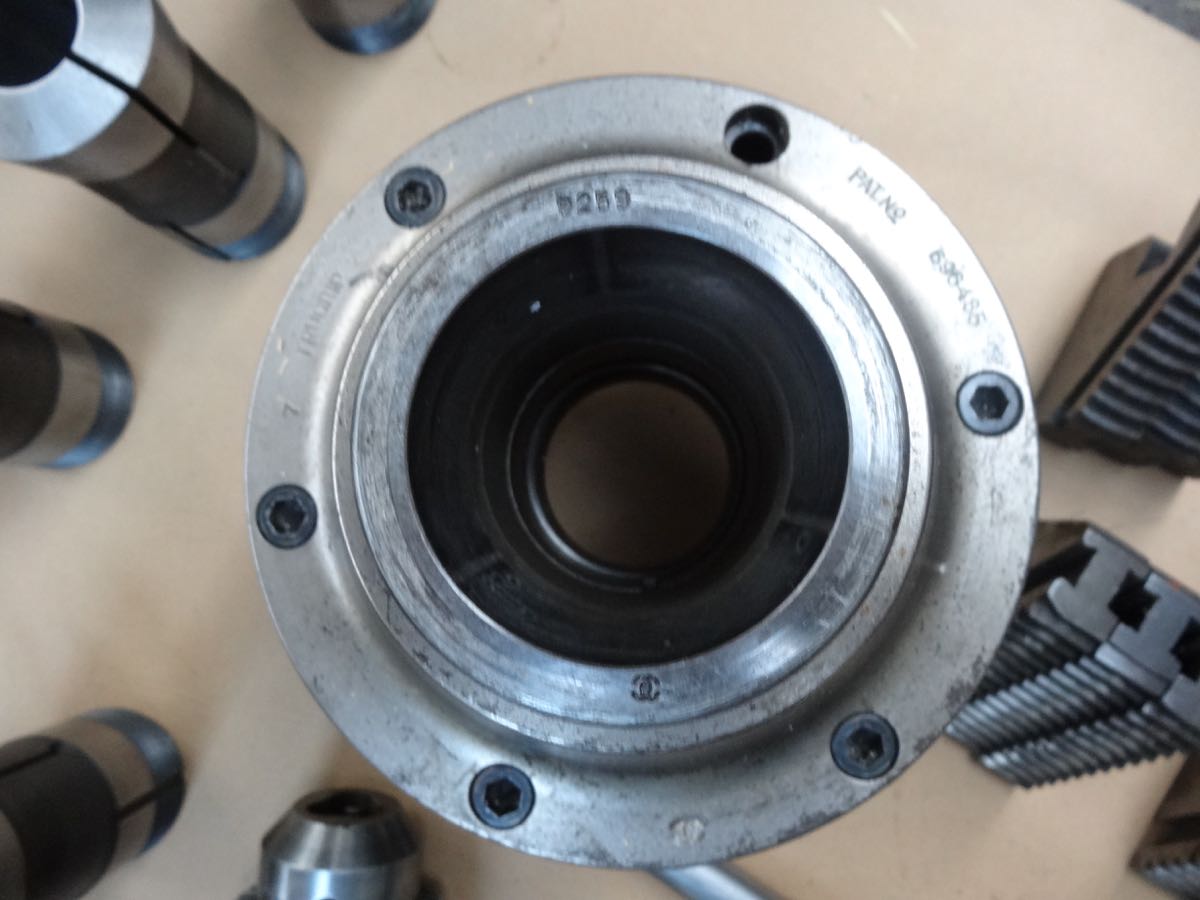

Collet Chuck

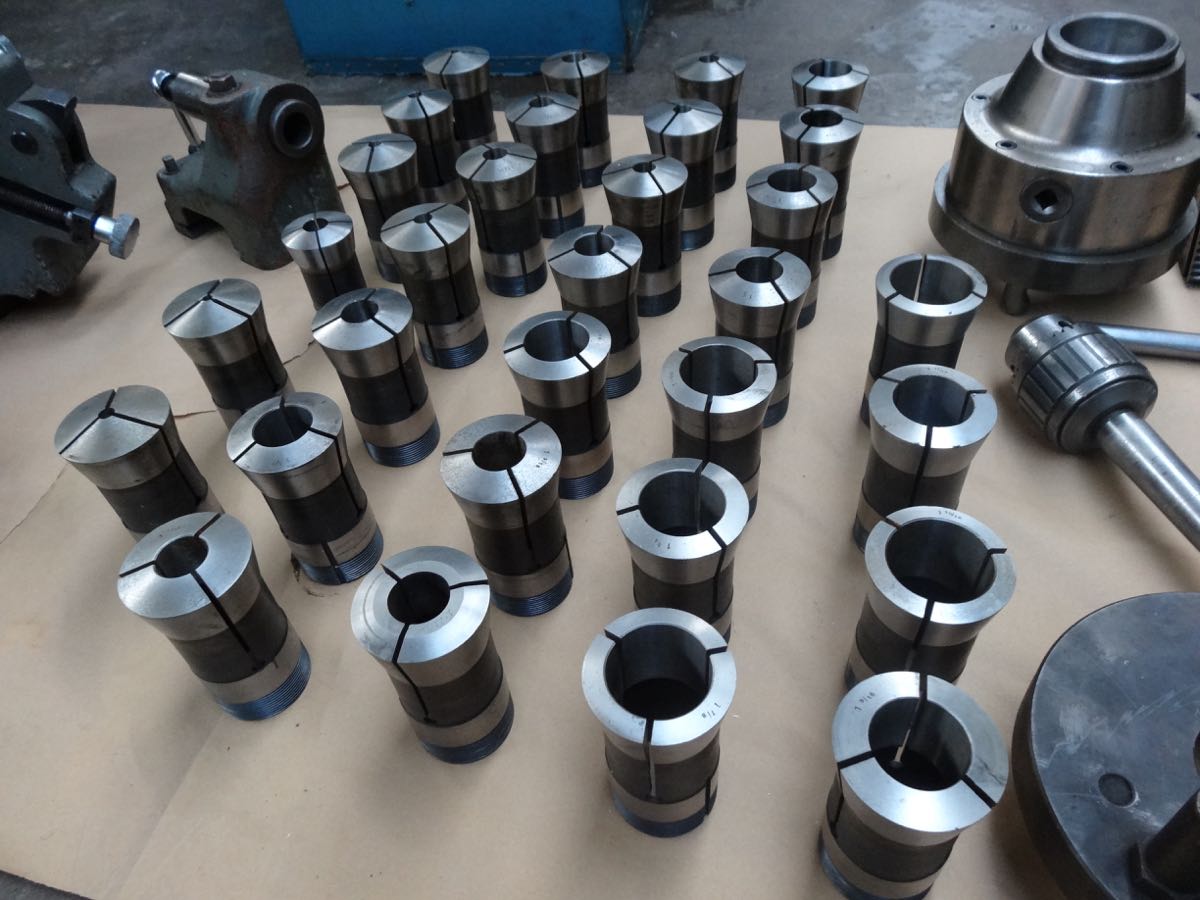

Selection of Collets

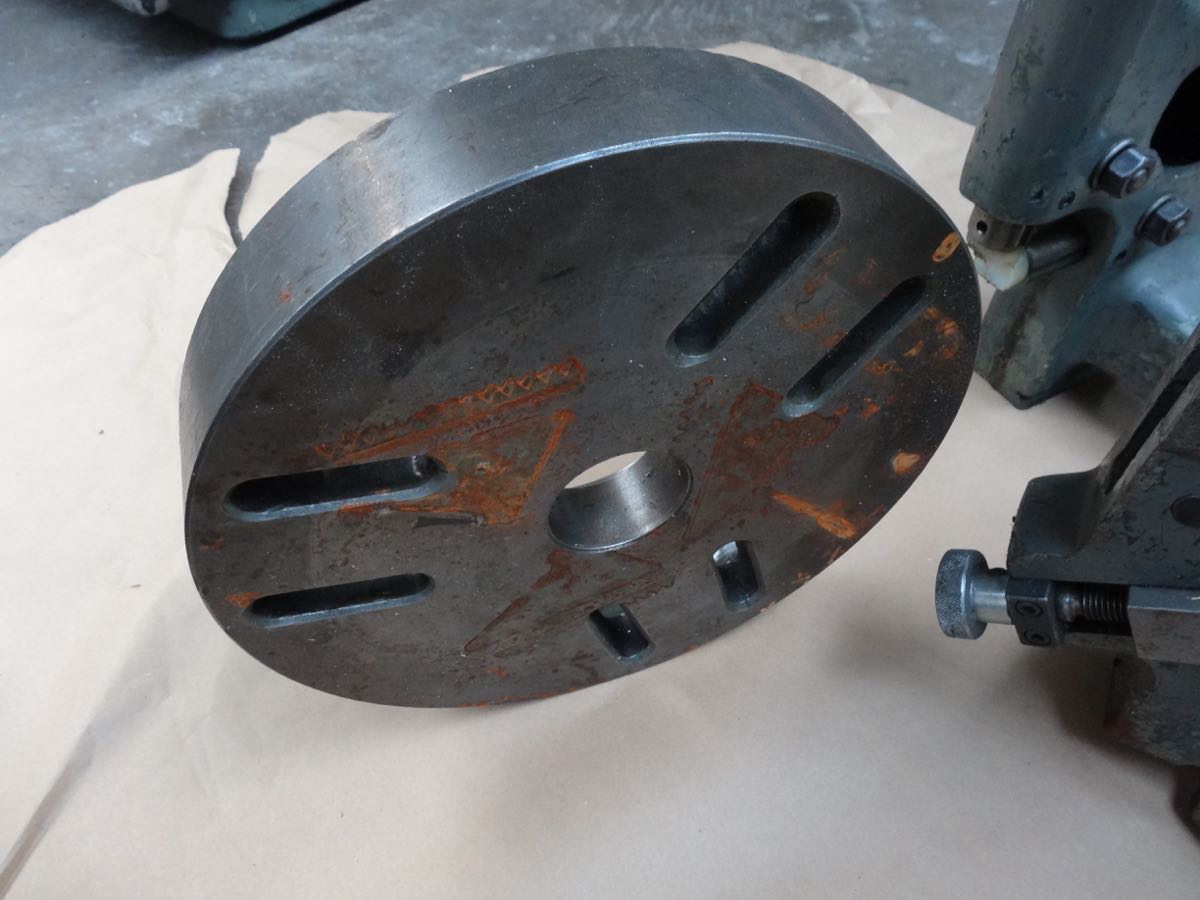

Flace Plate

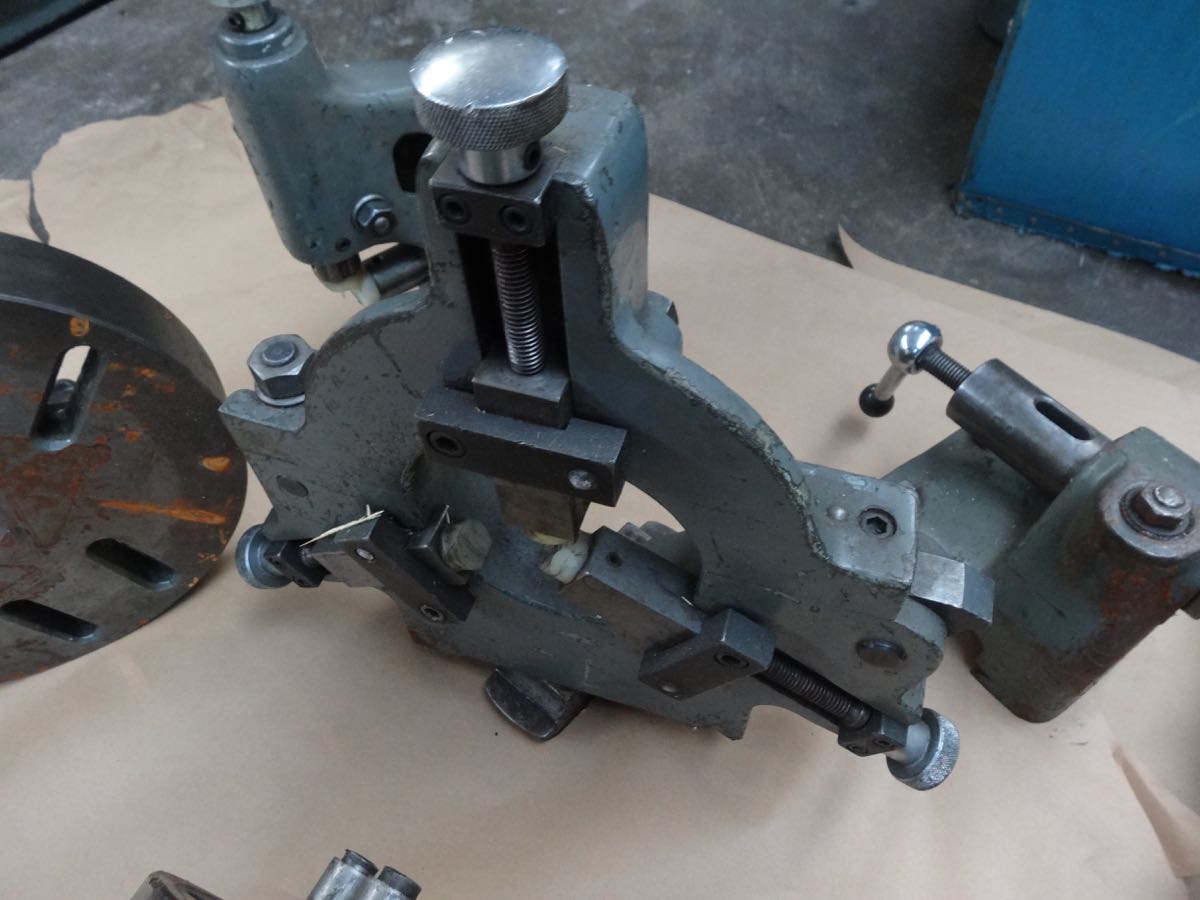

3 Point Fixed Steady

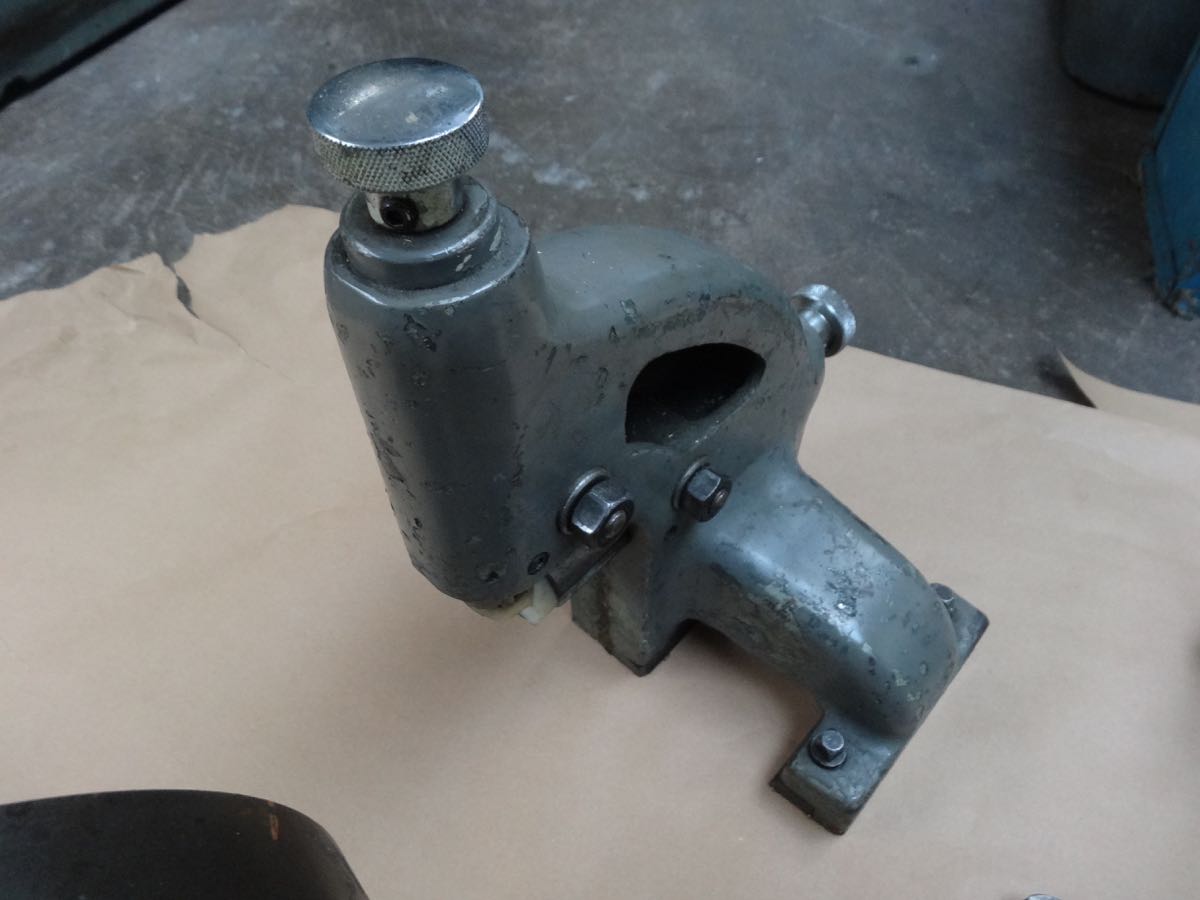

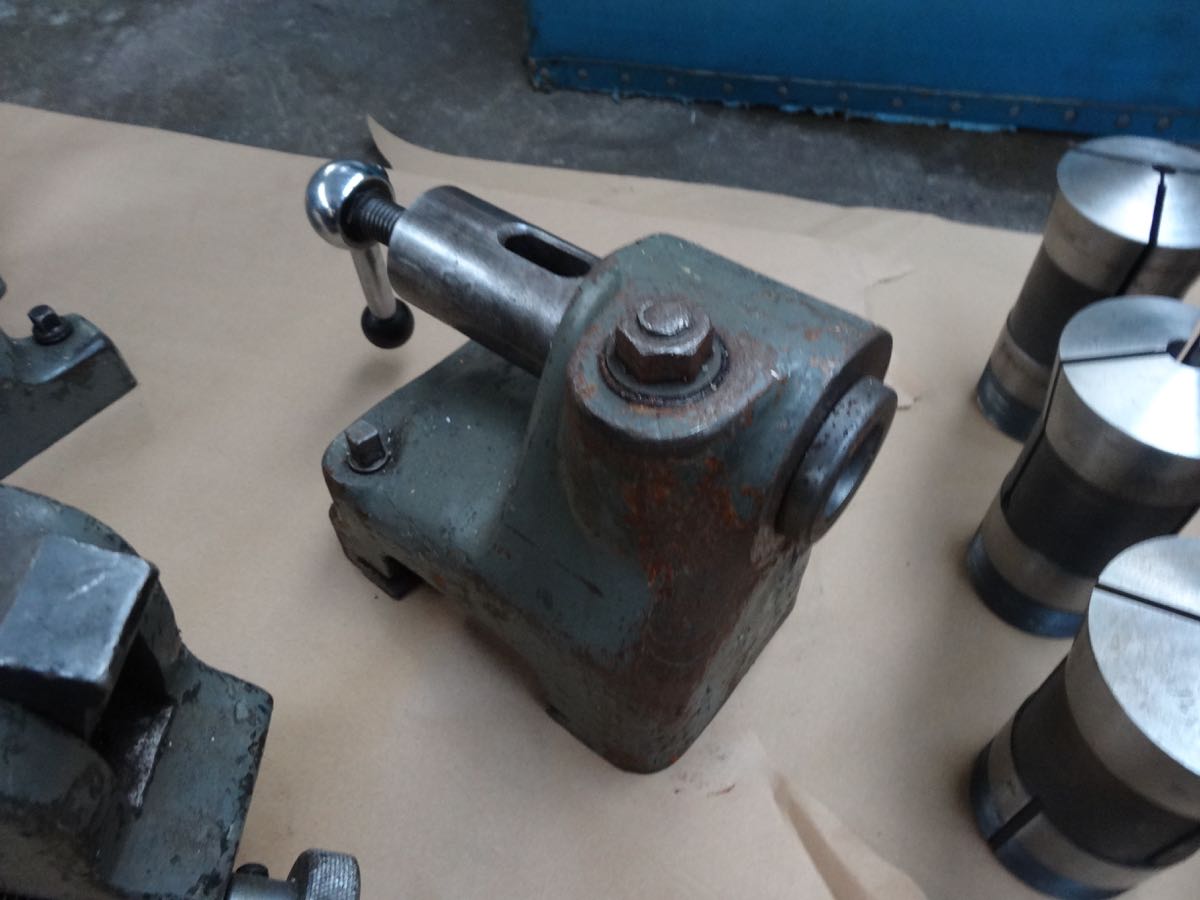

Traveling Steady

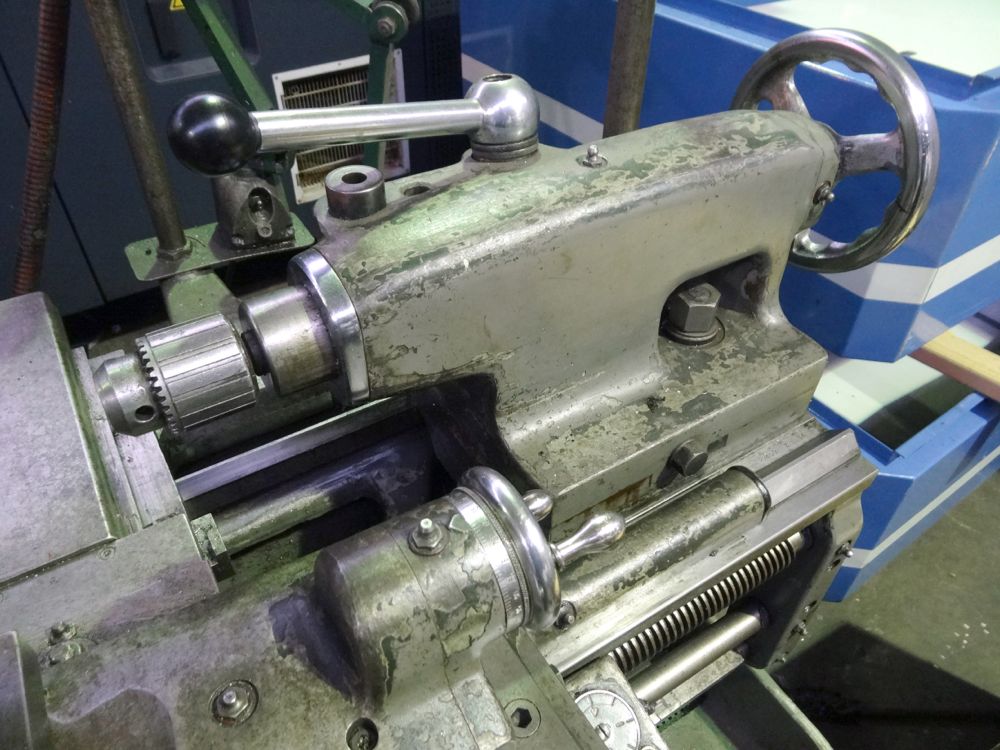

Tail Stock

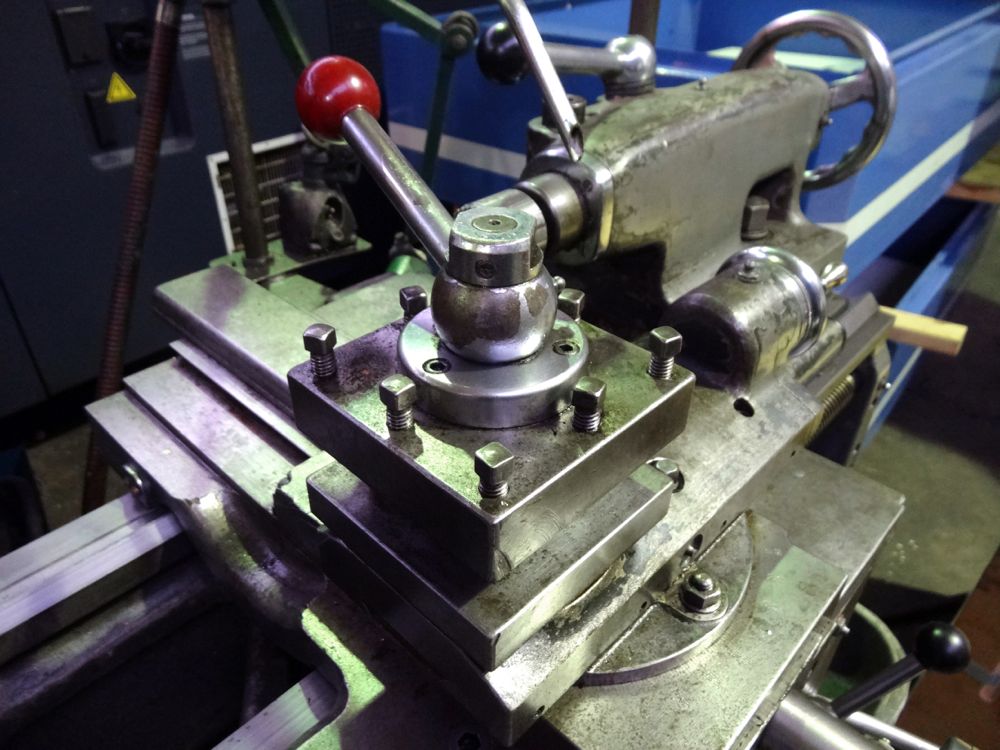

4 Way Tool Post,

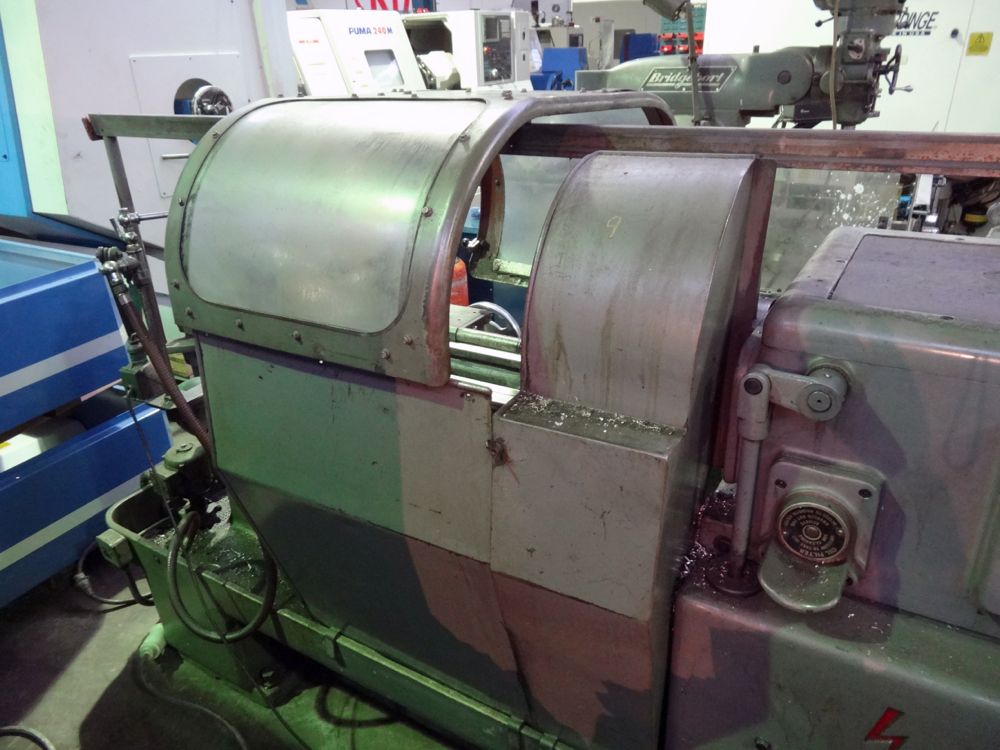

Chuck Guard,
Coolant
Approximate Dimensions: 2600 x 1200 x 1400mm
Approximate Weight: 1800kg
Location: Coventry, can be loaded free of charge to flatbed truck.
