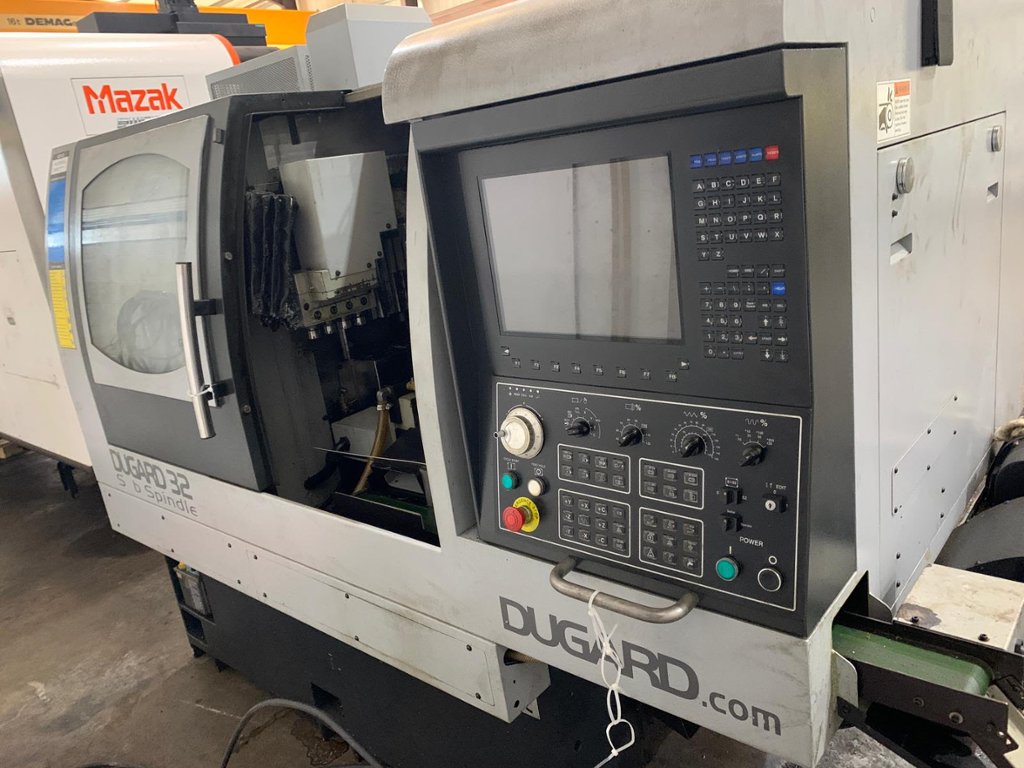

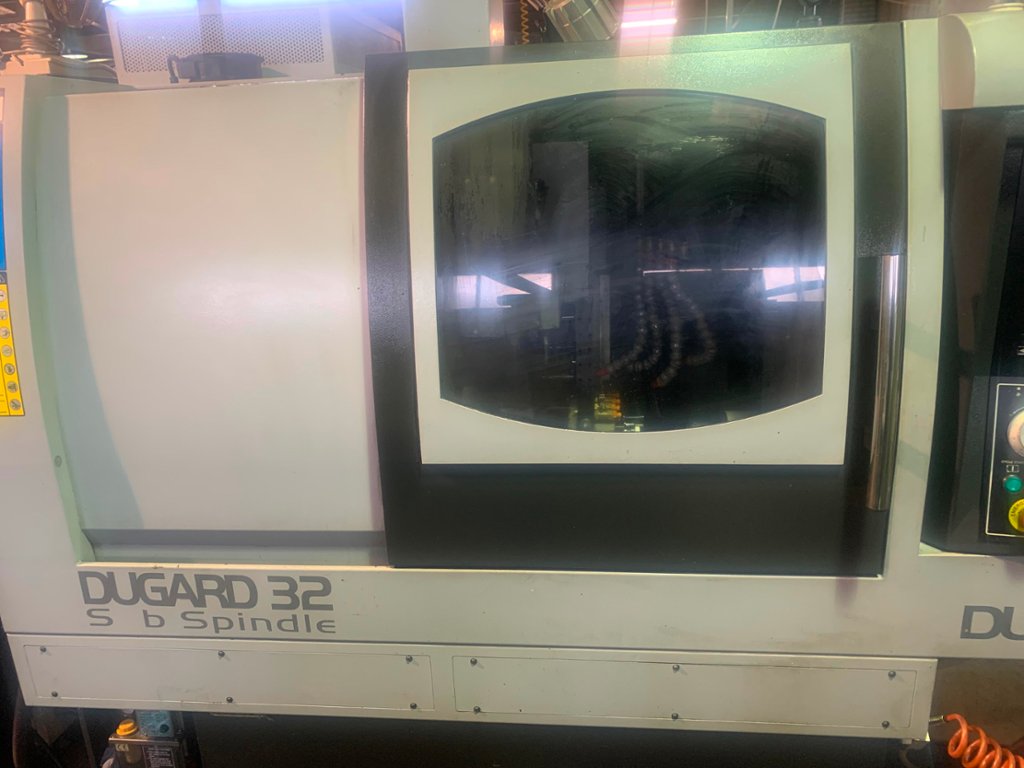

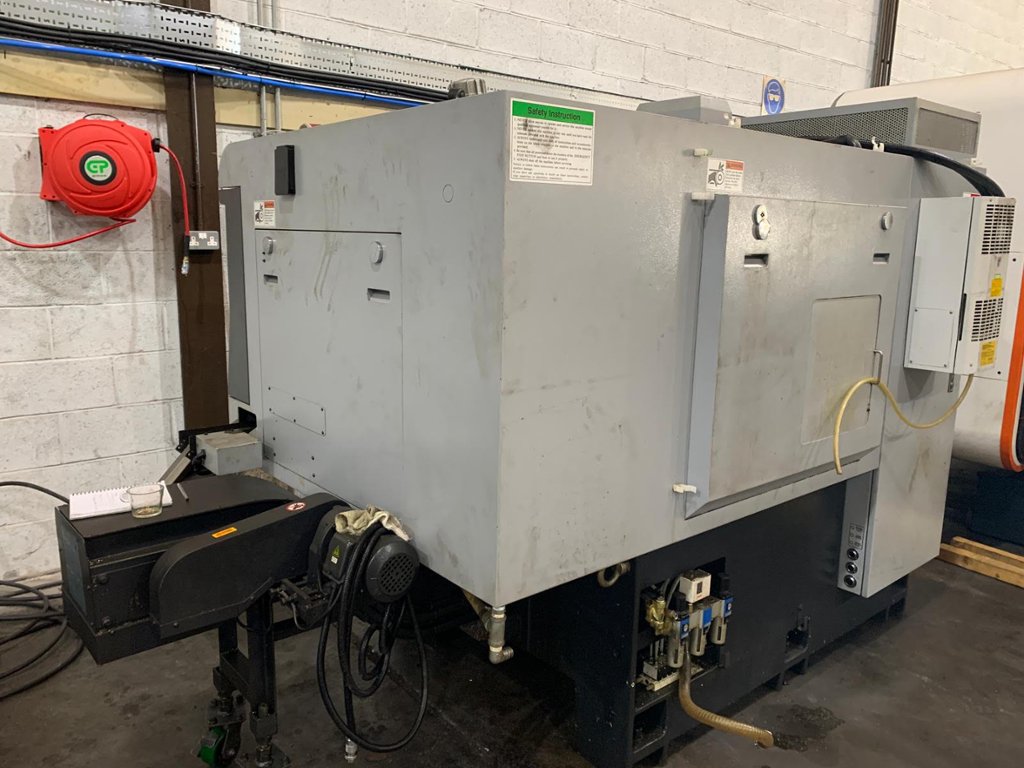

Dugard 32 Subspindle Sliding Head Lathe and barffed (2011)

Lot 2 - Dugard 32 Subspindle Sliding Head Lathe and barffed (2011)

Description:

Machine Specification Bar Capacity - 32mm

Max. length turned –165mm

Max X axis travel (vertical) - 190mm

Max Y axis travel (longitudinal) - 300mm

Max Z axis travel (cross) - 165mm

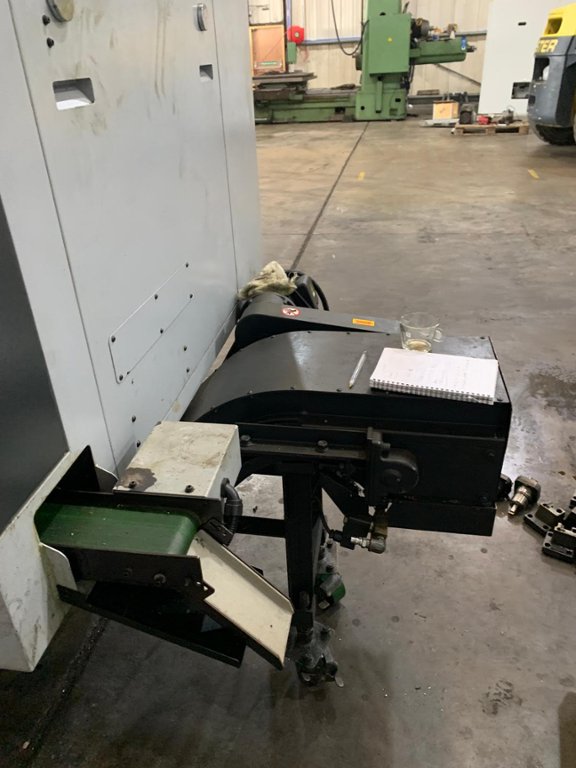

Max component length via parts catcher - 140mm

Full C-axis Collet system

Spindle speeds range 100-6000 RPM

Spindle power Fanuc Drive - 7 kW A.C.

Tool shank - 12mm2 Boring bar size (maximum) - 25mm

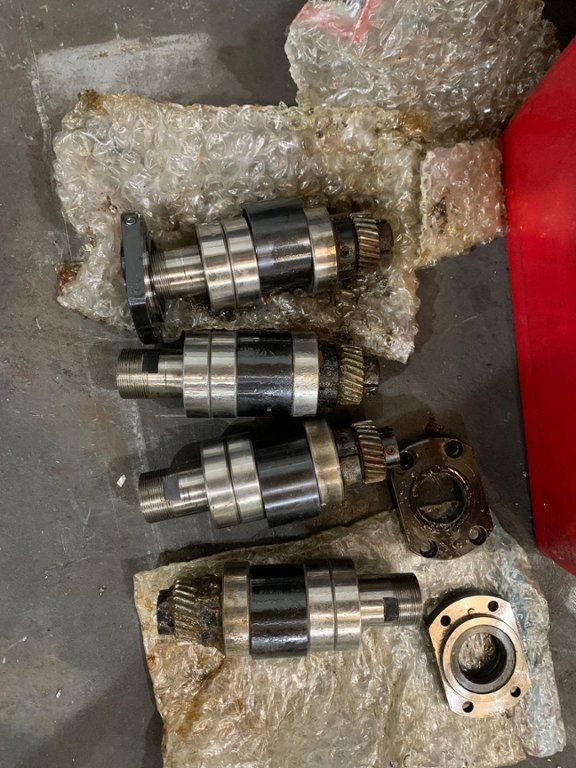

Rapid traverse speed on all axes - 30m/min Mill/drill heads - R 20 Collet Mill/drill head speeds - 0~ 6,000RPM

Standard Equipment Collet Chuck Spindle Collet - TRB32

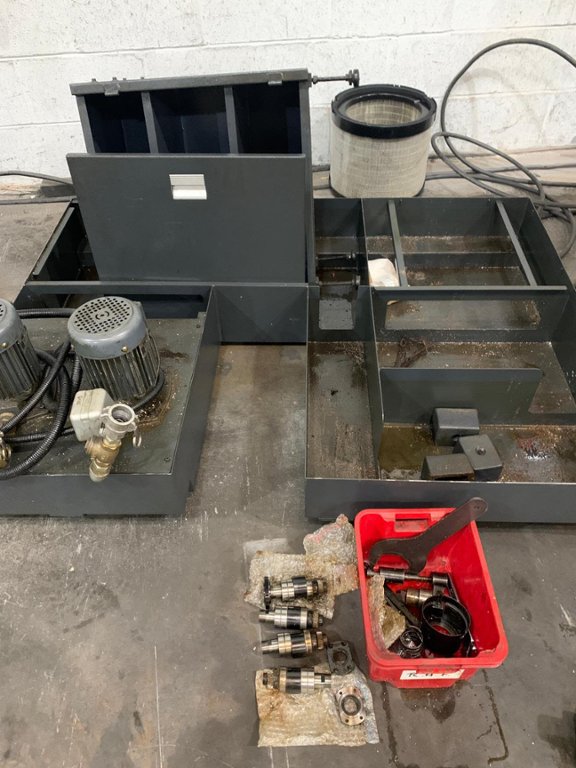

Coolant Tank and pumps

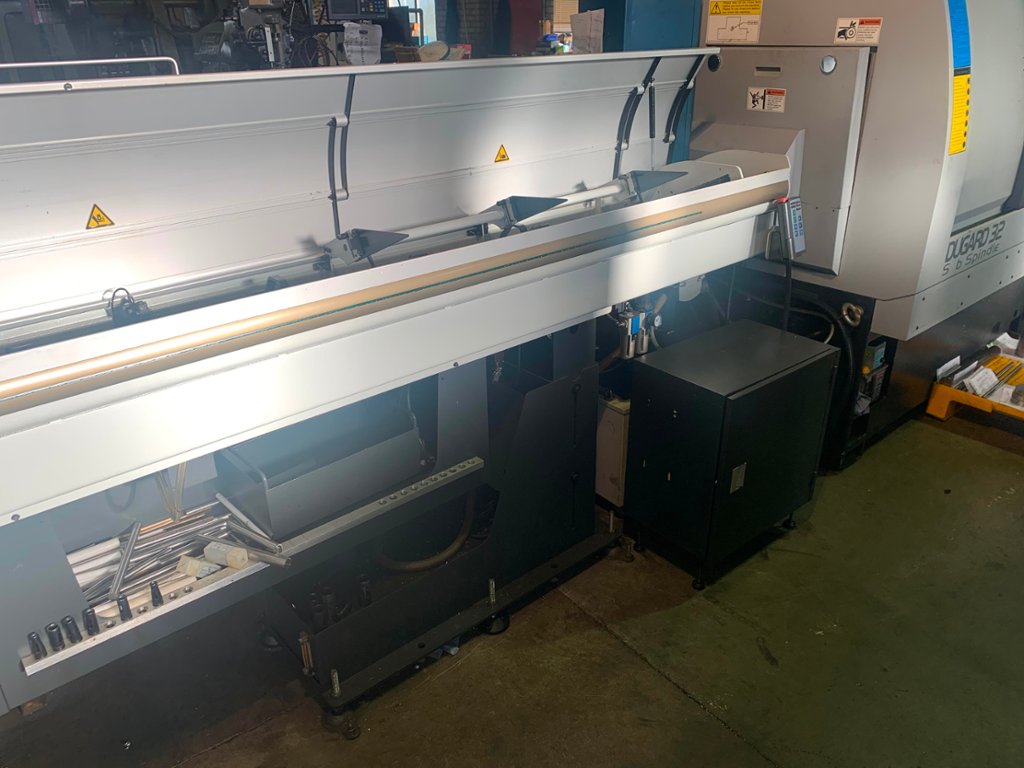

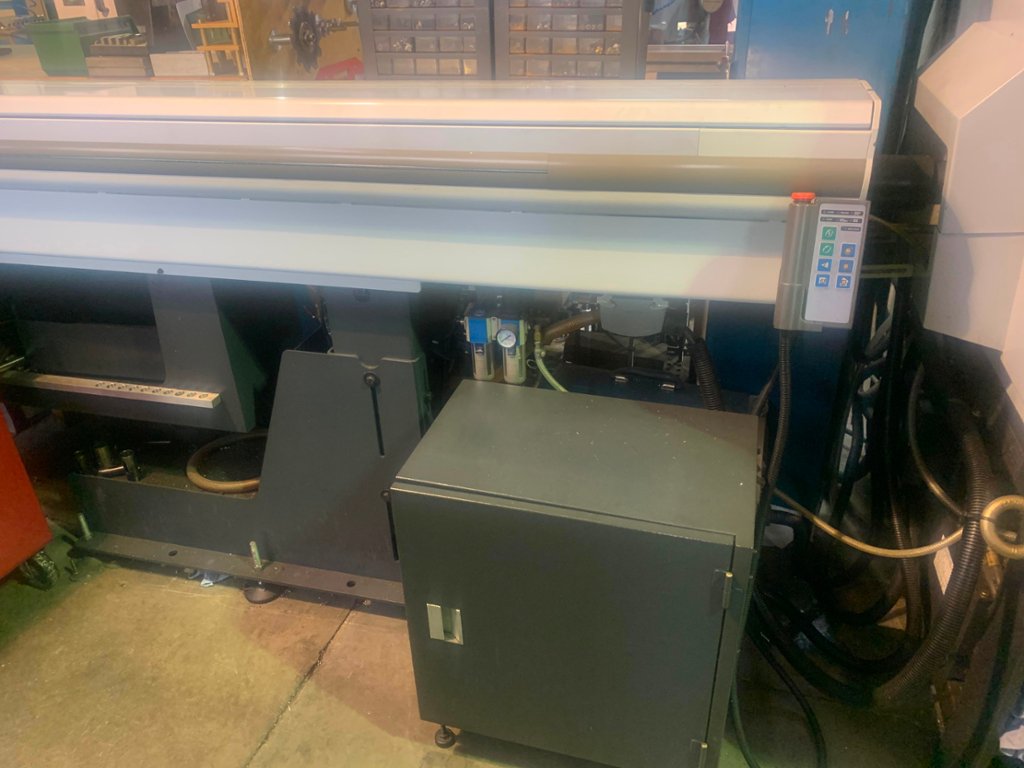

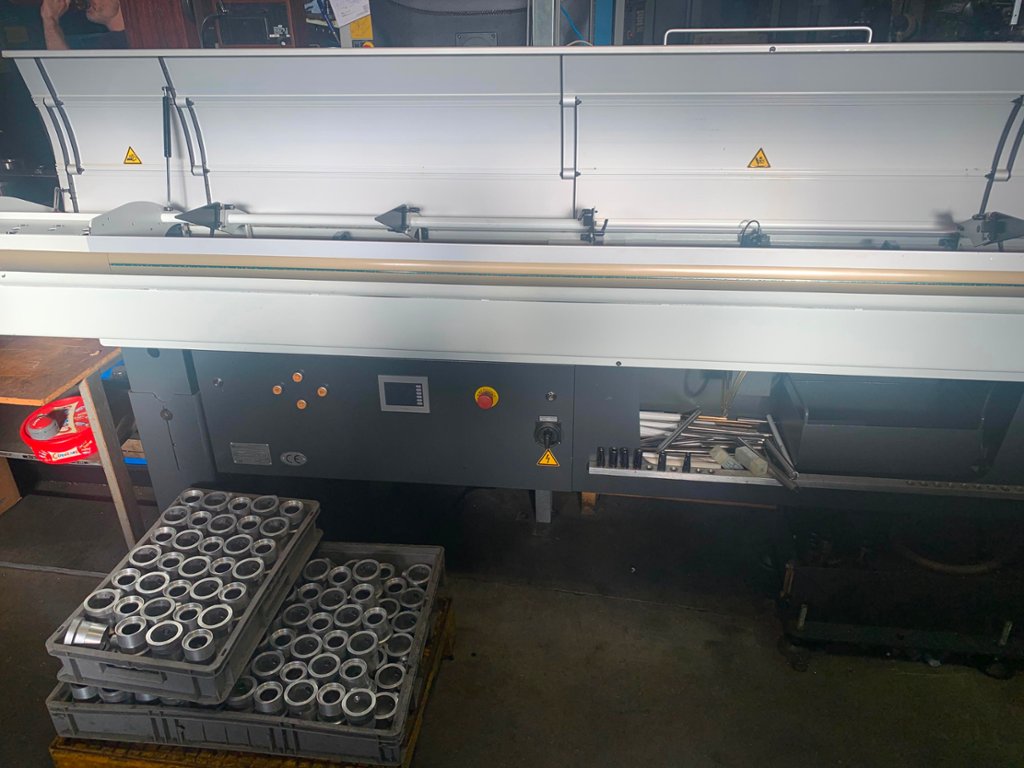

magazine bar feed Inc interface - 32mm capacity x 3m length

Swarf conveyor

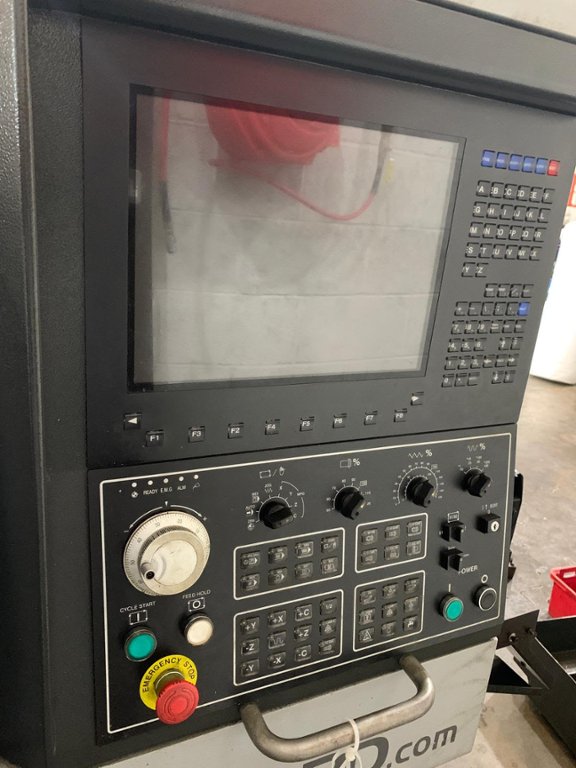

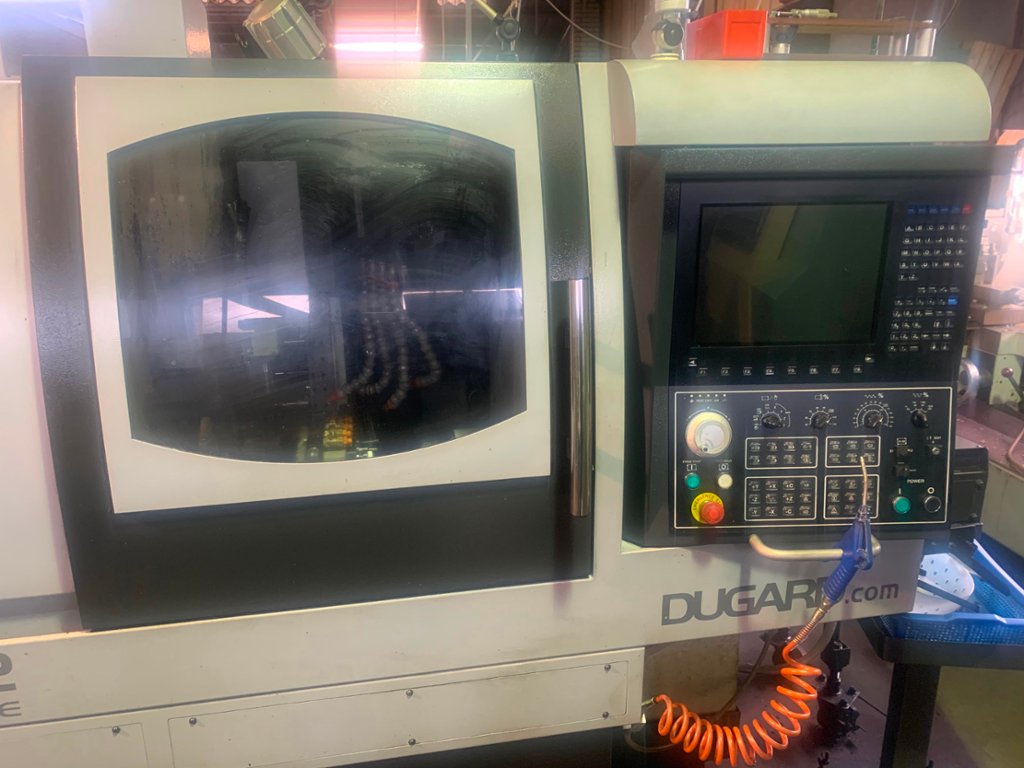

Syntec PC based control, with 10" TFT colour screen, graphics and Mitsubishi drives and motors.

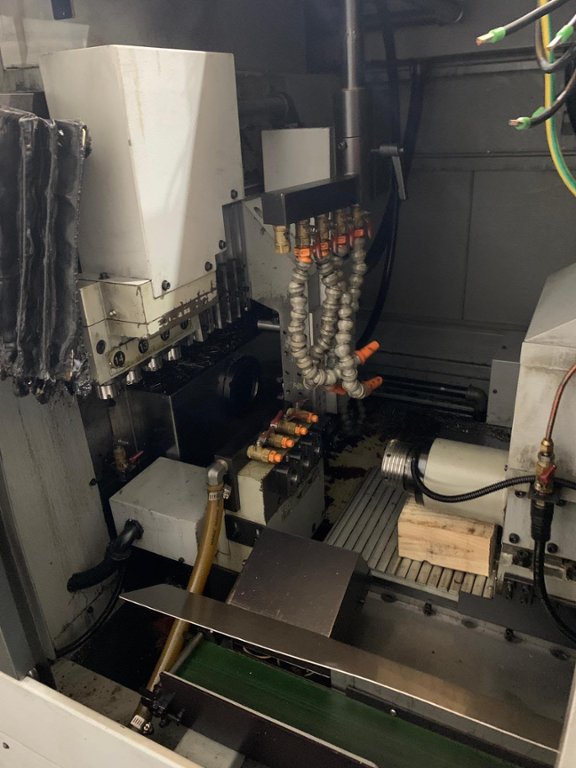

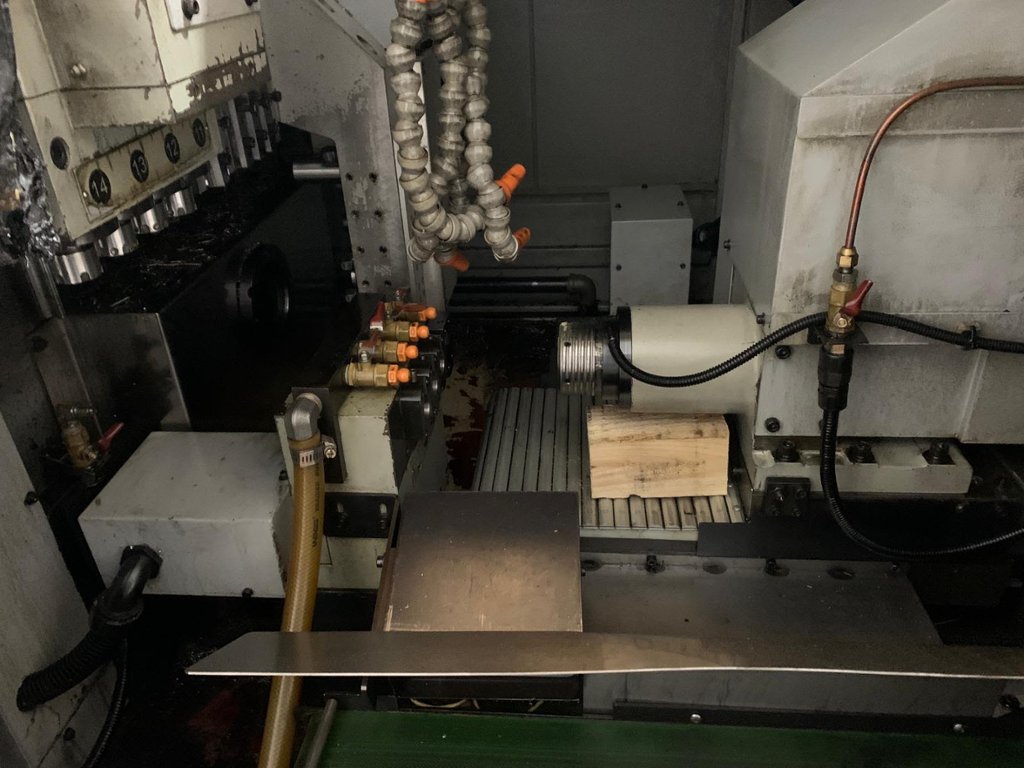

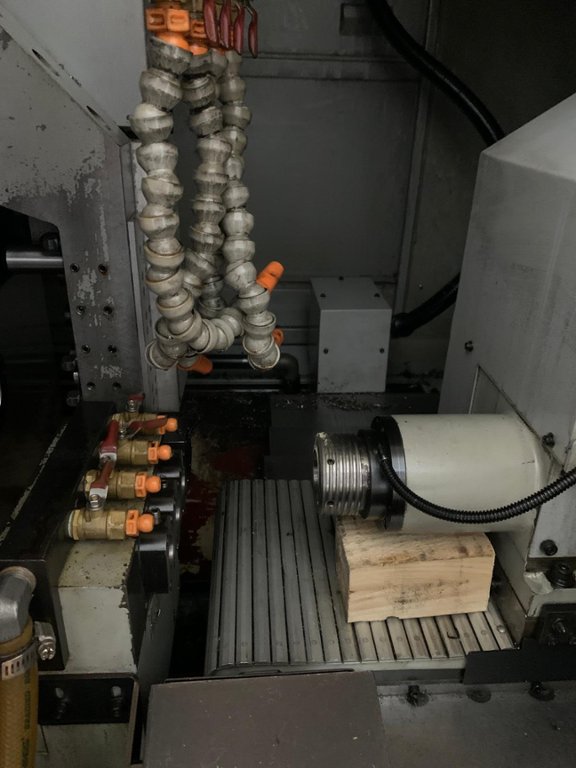

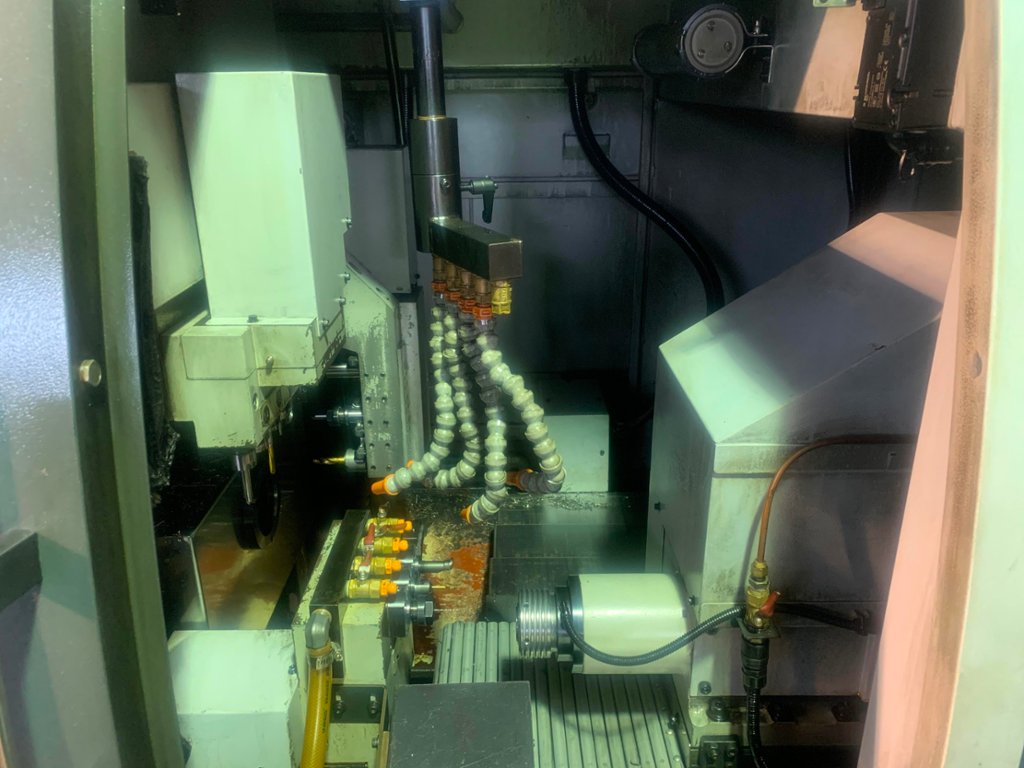

Sub Spindle with full C axis and parts ejector including 4 station tool post

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
