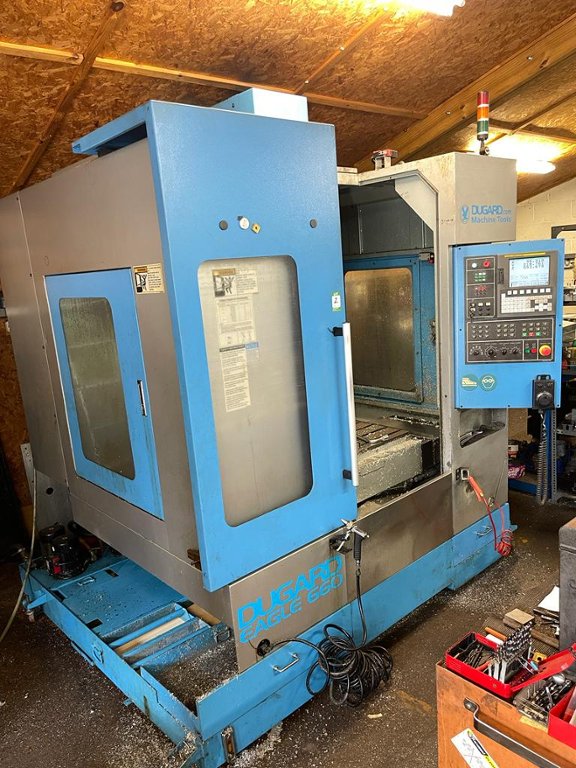

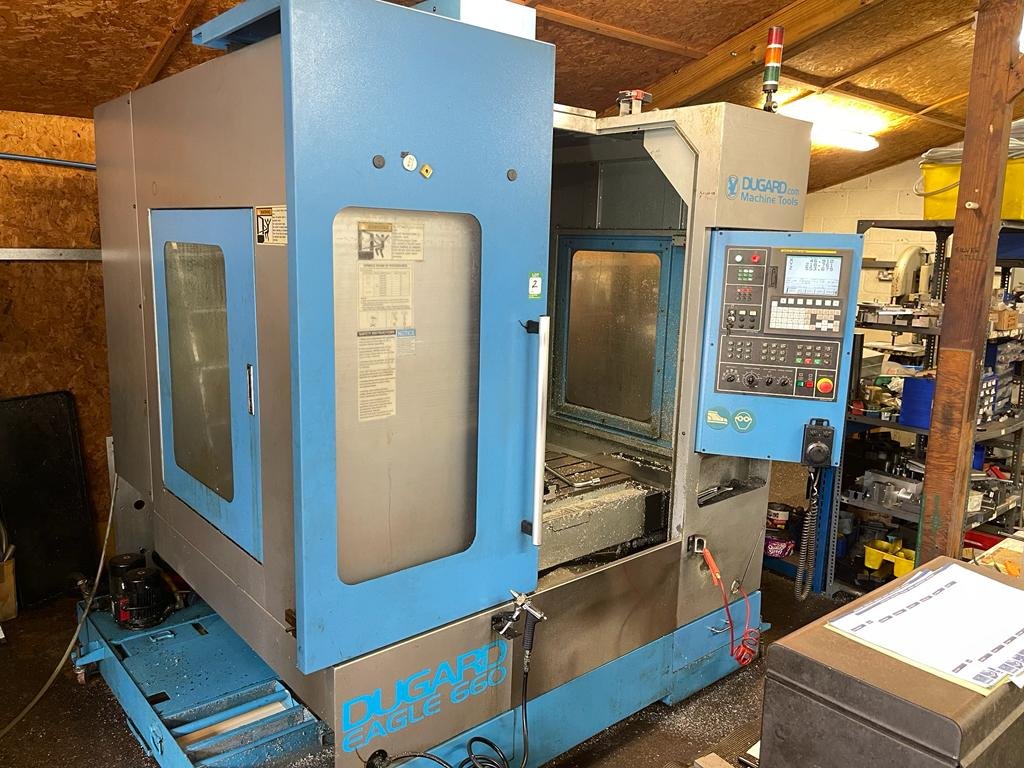

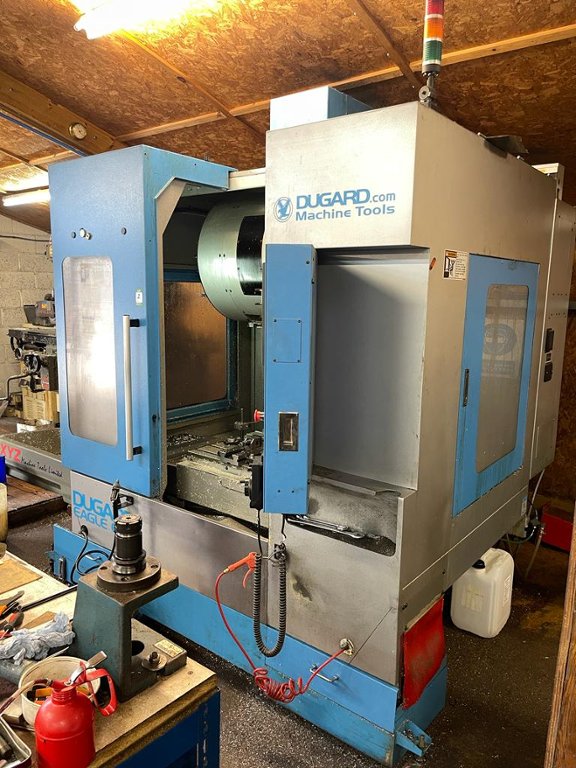

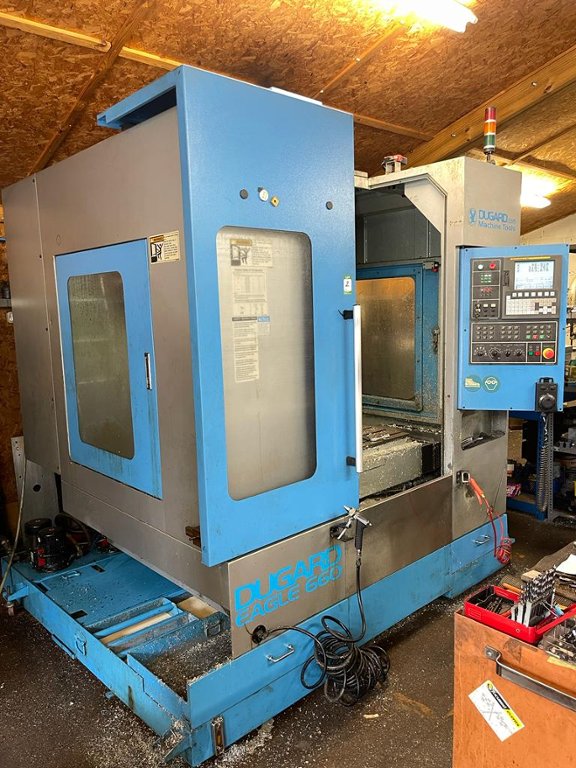

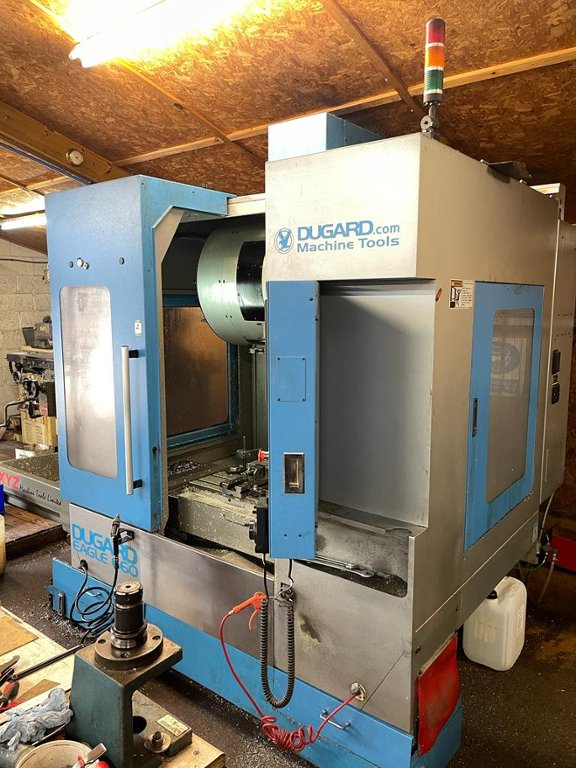

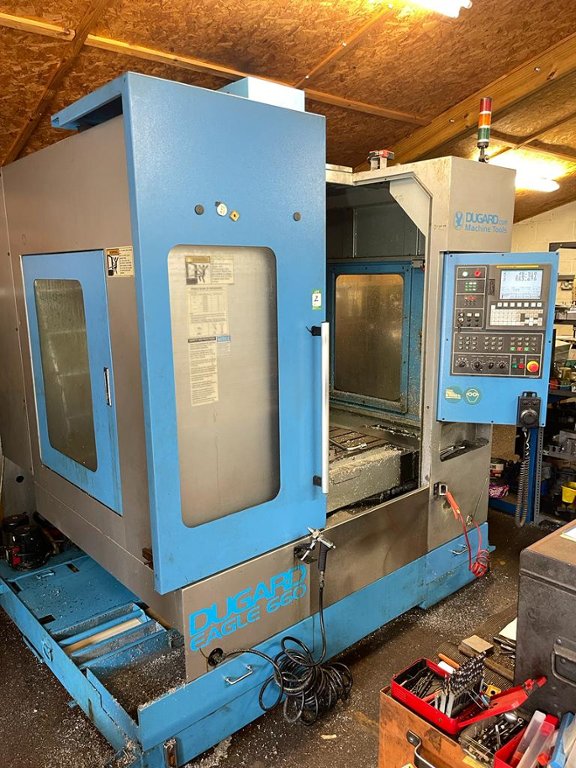

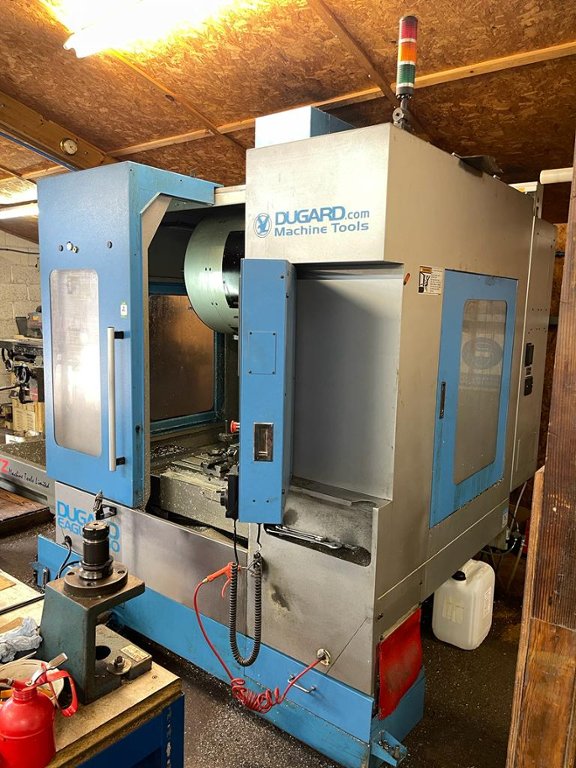

Dugard Eagle 660 CNC 3 Axis Mill (2009)

Lot 2 - Dugard Eagle 660 CNC 3 Axis Mill (2009)

Description:

Vice not included

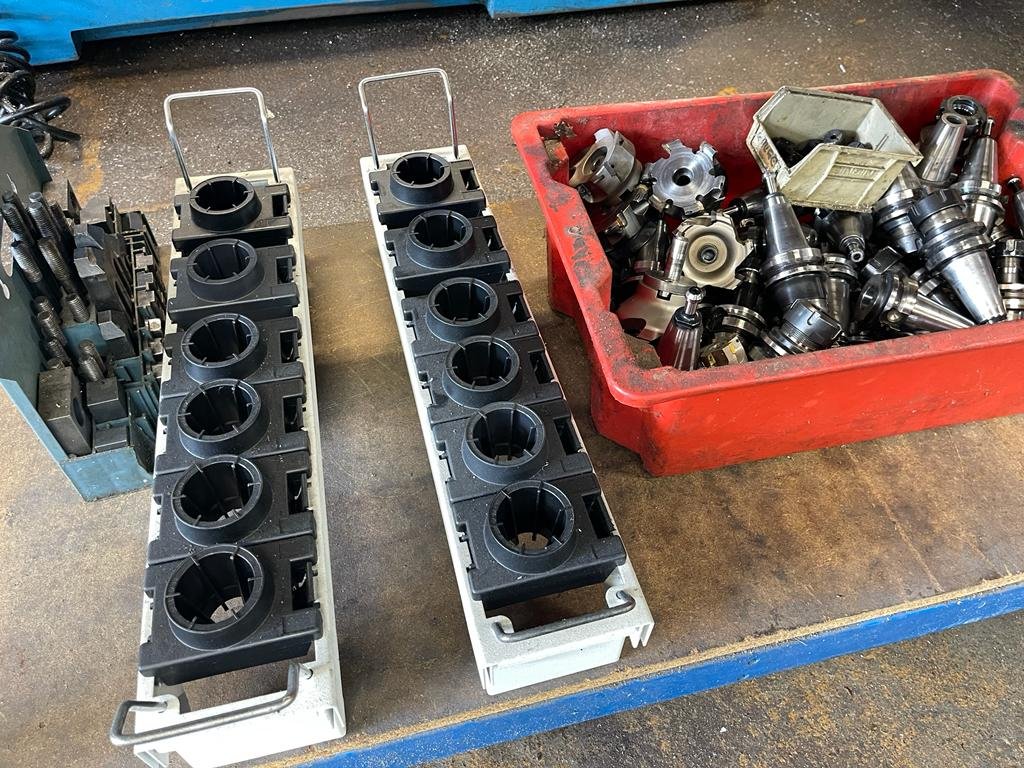

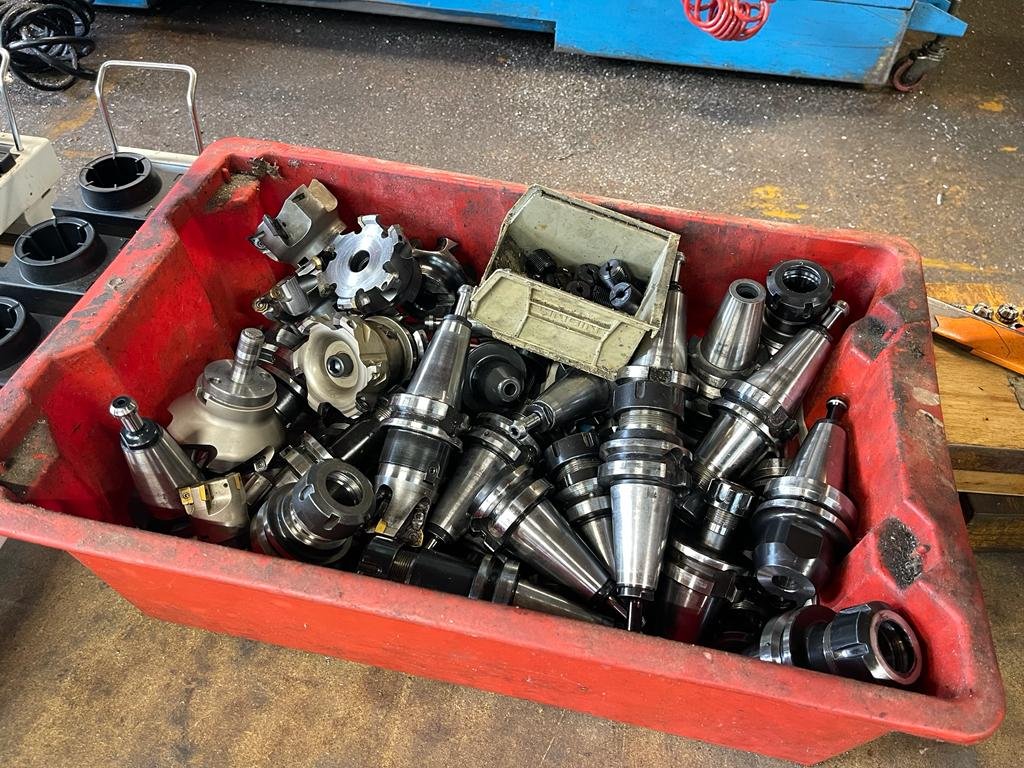

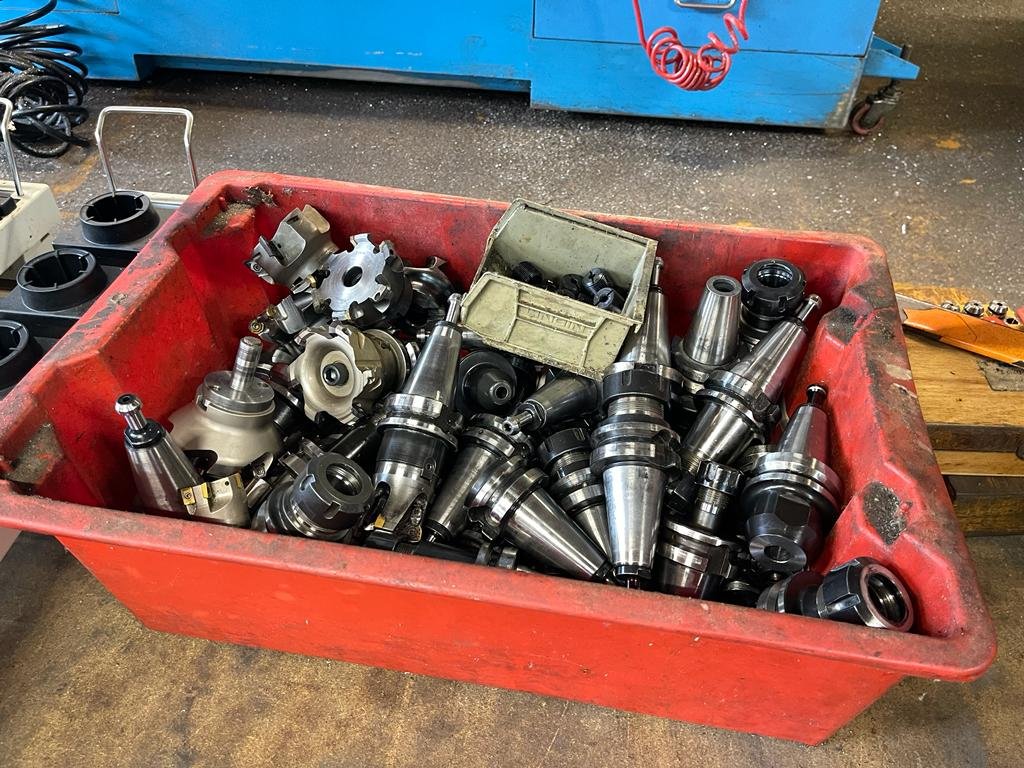

20 Tools

X Axis Traverse - 660mm

Y Axis Traverse - 520mm

Z Axis Traverse - 510mm

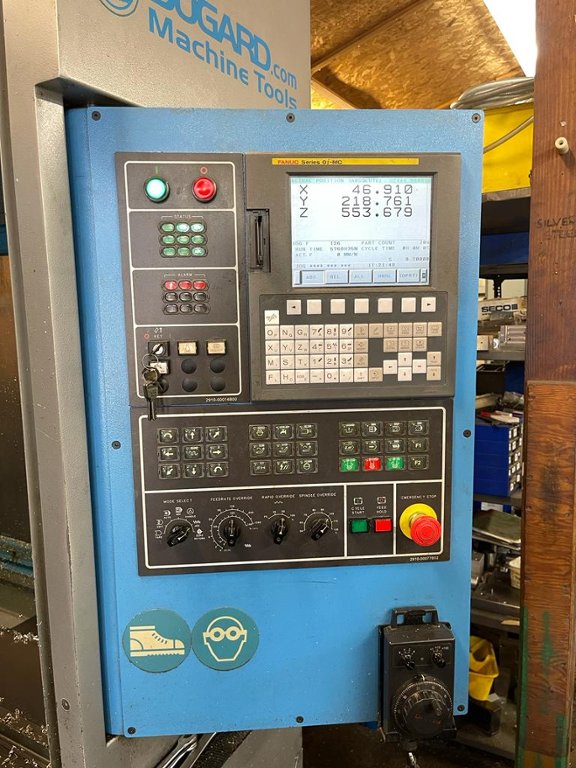

Max Feed Rate - (See control info)

Rapid Traverse Rate X/Y/Z - 30/30/24 m/min

Speed Range - 80 - 8000 RPM

Spindle Power - 15kW

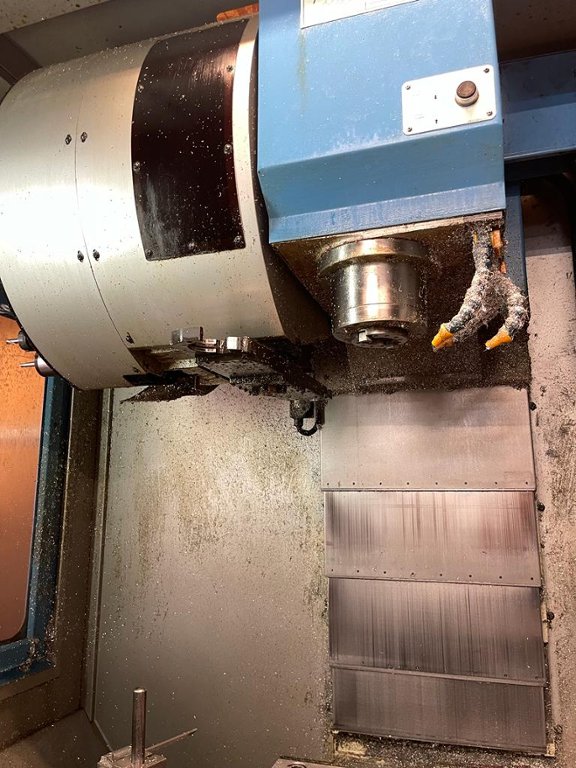

Spindle Taper - 40BT

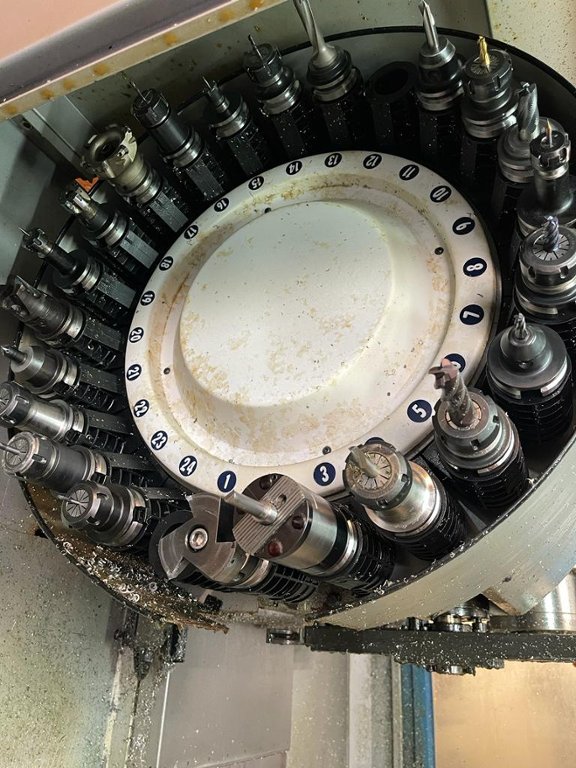

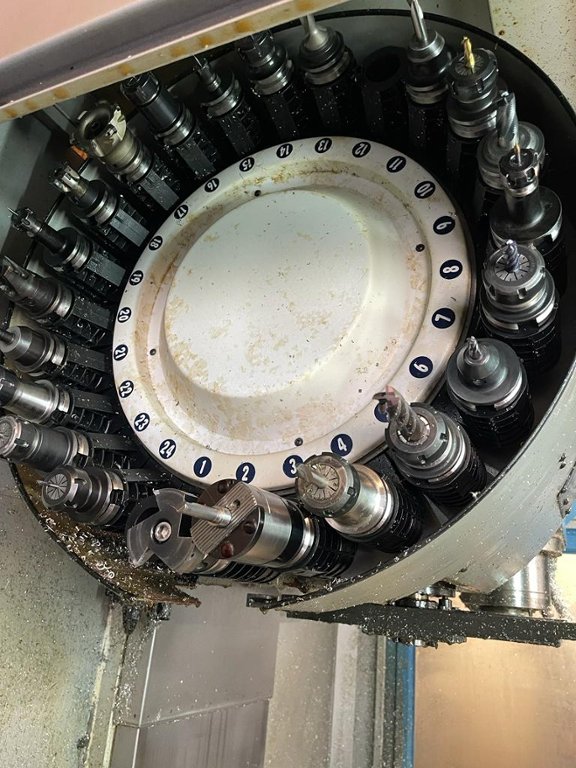

Bi-Directional Auto Tool changer - 24 twin arm opt

Table Size - 810 x 510mm

Max Table Load - 500kg

Spindle Nose Line to Table Surface - 150 - 660mm

Spindle C/Line to Column - 585 x 76mm

Max Tool dia x Length - 76mm

Max Tool Weight - 7kg

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
