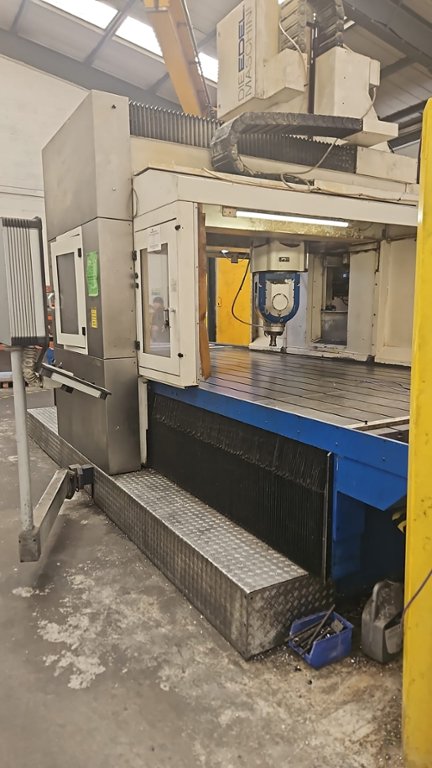

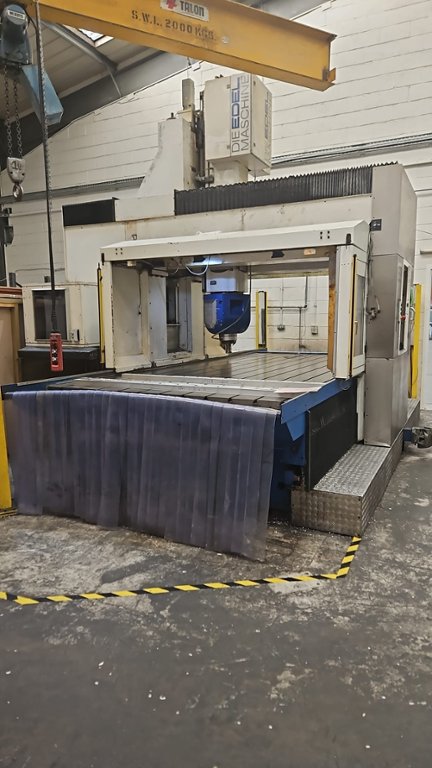

Edel CP 3020 5 axis Machining Centre in Gantry Design (2006)

Lot 1 - Edel CP 3020 5 axis Machining Centre in Gantry Design (2006)

Description:

Operating hours:approx. 1h
Weight:27000 kg
Travel x/y/z:3,000 / 2,000 / 960 mm
Gantry passage y/z:2,280 / 1,150 mm
Rapid traverse x/y/z:20/20/15m/min
Feed force per axis:10.000N
Swivel range a-axis +/-110°. swivel range c-axis:+/- 360 Powerful CYTEC milling spindle
Tool holder:HSK-A63
Rotational speed:12,000 rpm
Power:27/32 kW (100% /40% ED)
Torque:130/170 Nm (100% /40% ED)
Tool magazine number of places:52 HSK-A63
Max. tool diameter:105/130 mm
Max. tool length:300 mm
Max. tool weight:8 kg

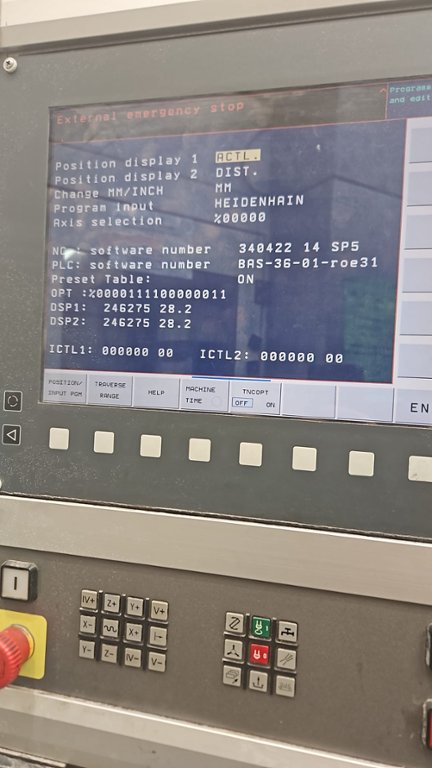

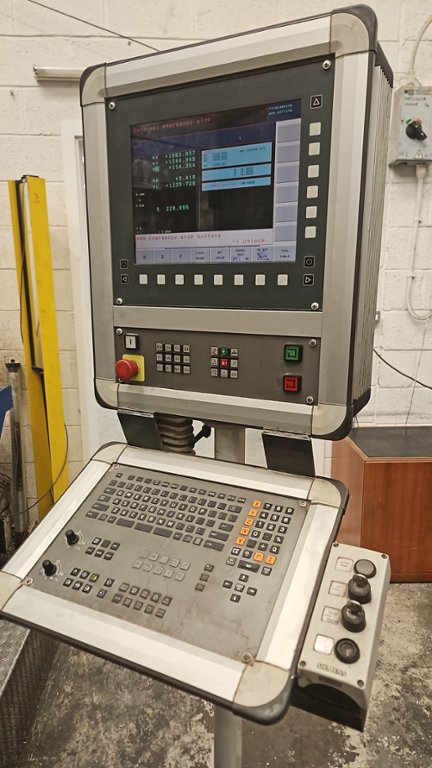

Control system:HEIDENHAIN iTNC 530
Tank volume:800 L
External coolant supply:20 bar
Internal coolant supply:40 bar

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
