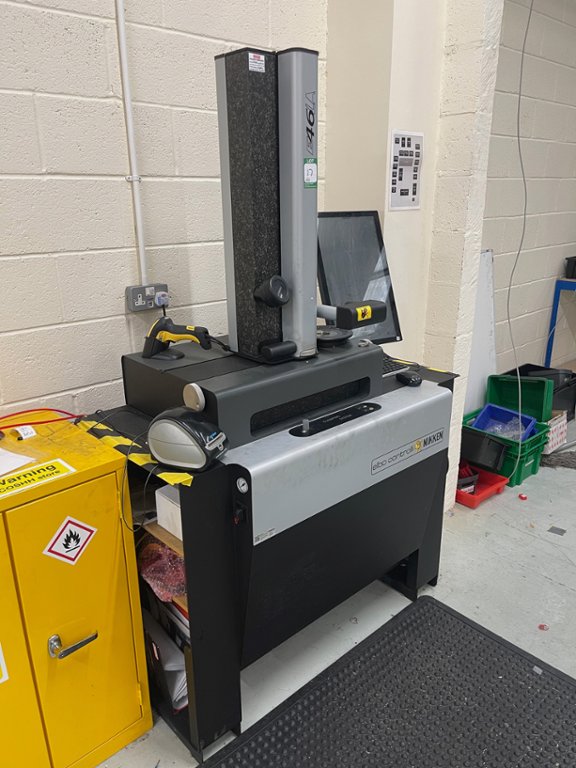

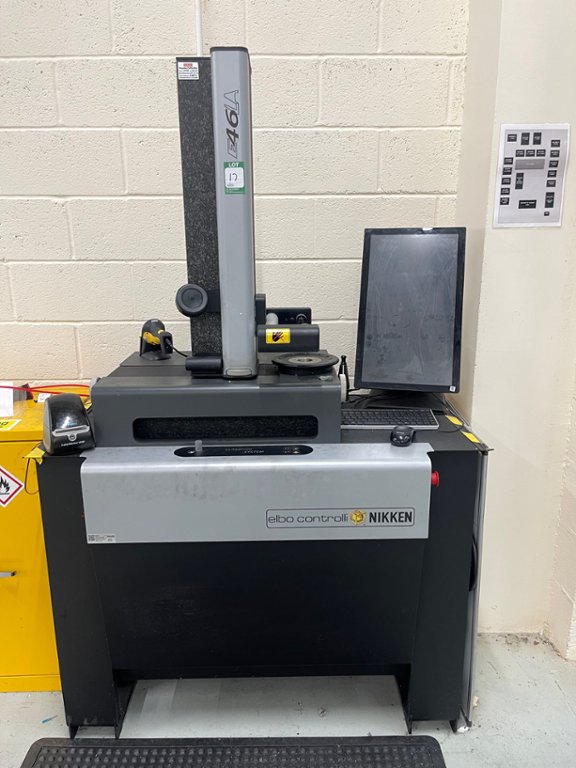

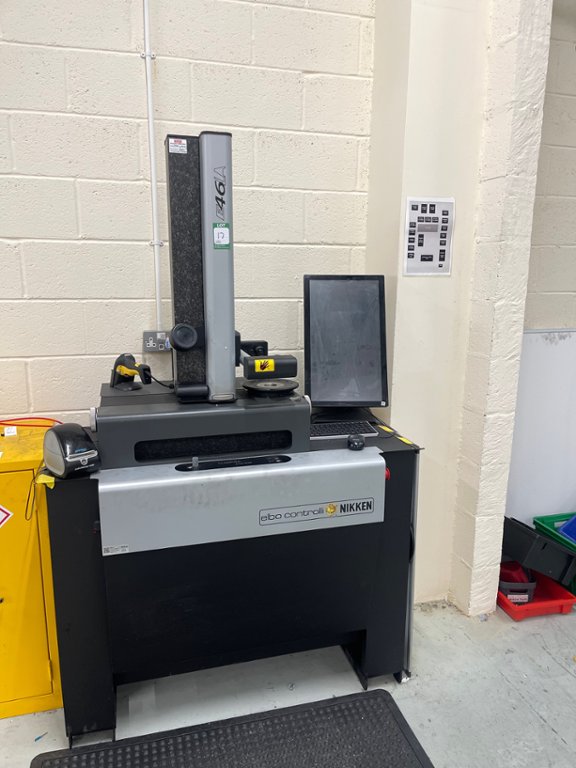

Lot 17 - Elbo-Control L1 E46LA Tool Presetter

Description:

Measuring range: Diameter max 400 mm (radius 200 mm); height max 600 mm.

Motor providing automatic rotation of the spindle with pneumatic engagement of the motion transmission providing zero backlash (patented system).

C Axis display for both spindle body and spindle-holder.

Standard mechanical/electronic and optical equipment:

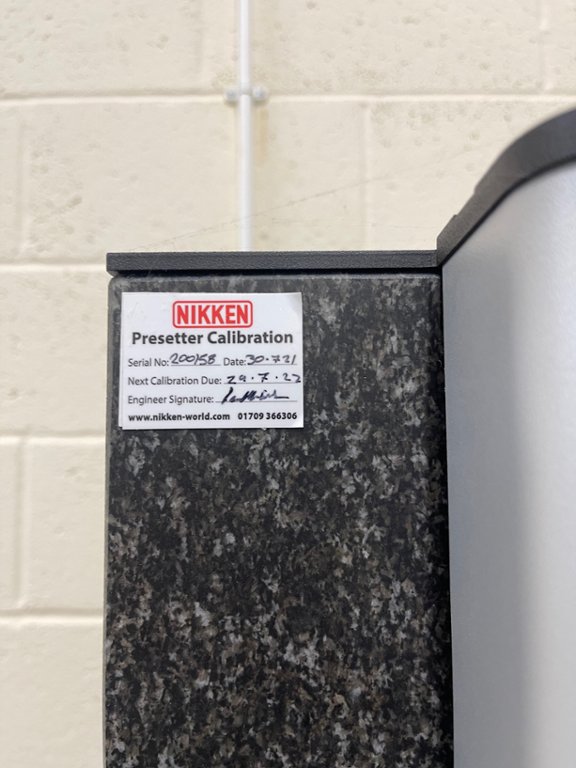

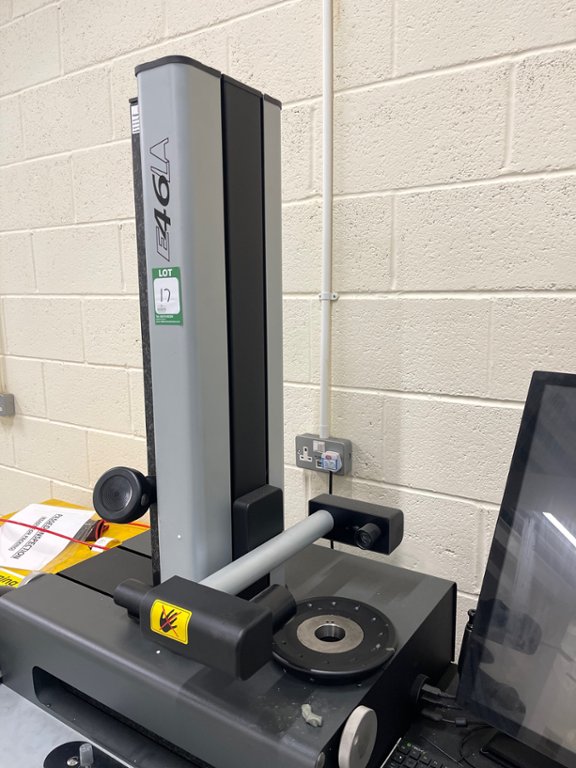

Base and column made of natural granite to guarantee the maximum accuracy: linearity max error 2 μm/Mt – certification with Taylor Hobson res.1 μm/Mt. electronic millesimal level.
ELBO CONTROLLI NIKKEN Linear Transducers in optical glass type AS 371 certified HP laser: Axes resolution: X= 1 μm, Z= 1 μm.
Machine structure in stainless steel offering high mechanical strength and long life, floor mounted with 3 fixed supports and one adjustable support in steel.
ISO / BT / HSK / VDi... etc. Interchangeable rotating spindle-holder (to be specified) max run-out error < 2 μm.
Spindle Index in four angular positions: 0°-90°-180°-270°.
Spindle-holder Identification System (SP-ID) with NFC technology to automatically identify the spindle-holder after each replacement.
Linear slideways: 2 for X axis slideways and 1 for Z axis slideway.
Double re-circulating ball bearing slides (four in total), lubricated for life. Universal electro-mechanical tool clamping (ISO only).
Pneumatic-mechanical braking of the spindle-holder rotation with radial compensation of the clamping force – no axis angular run error.
Constant load Archimedean spiral spring (as opposed to a mass counter-balance system).
Vision-system for tool measuring and cutting inspection consisting of:

C-MOS sensor – Framed image area 10 x 10 mm.
Magnification around 26X.
Bi-telecentric lens.
Optical doublets at low F/Number in order to eliminate the error of the clearness circle.
Red light episcopic LED’s illuminator with ring lens, red light diascopic LED puntiform illuminator.

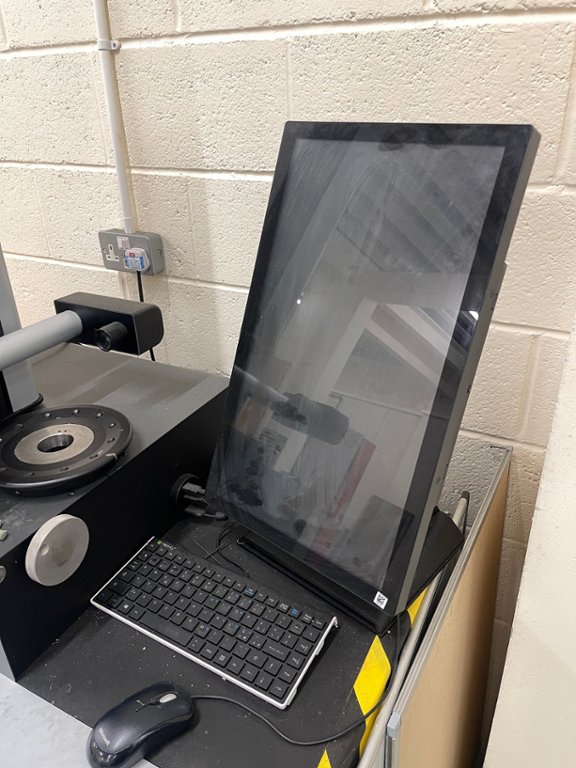

Machine operator interface through:

Full HD LCD 22” colour Touch Screen monitor.
Intel I3 Quad Core Processor.
UBUNTU LINUX 14.04 LTS operating system.
Data storage on solid state disk SSD.
X and Z axes lock management for a translation speed lower than 2 mm/sec.
Four USB ports.

Theoretical measurement and tolerance management.
Tool set and Post Processor universal generator.
Automatic change of CNC machine origin allocation.
Printable tool set report.
Spindle holder auto rotation with automatic tool measurement cycles for single cutter or multi-edged cutters. DXF format drawings import capability for overlaying a drawing on a live tool profile.
Tool profile acquisition exportable in DXF format.
Ready for TiD infrastructure for tool identification and data transfer using a data matrix tag/code.

Overall dimensions: Length = 1282 mm, Height = 1874 mm, Depth = 672 mm. Net weight: 270 Kg.

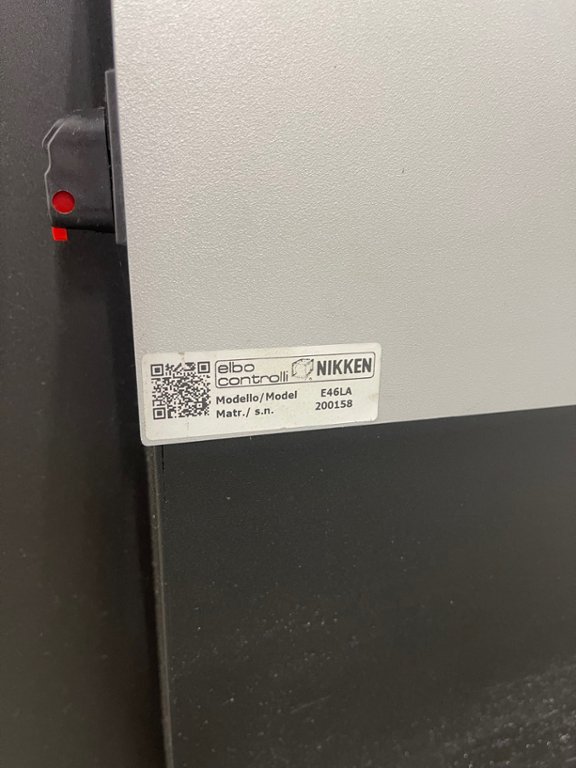

E46LA
X Axis Measure (Diameter) 400
Z Axis Measure (Length) 600
Natural Granite Base & Column ✓
Interchangeable Spindle Cartridge ✓
C Axis Display Spindle Body and Spindle Cartridge ✓
Interchangeable Spindle Max. Run-Out Error 2µm
Automatic Rotation of the Spindle ✓
Spindle Index in four Angular Positions (0º, -90º, -180º, -270º) ✓
Spindle Rotation Brake Pneumatics
Spindle Identification System (NFC recognition) ✓

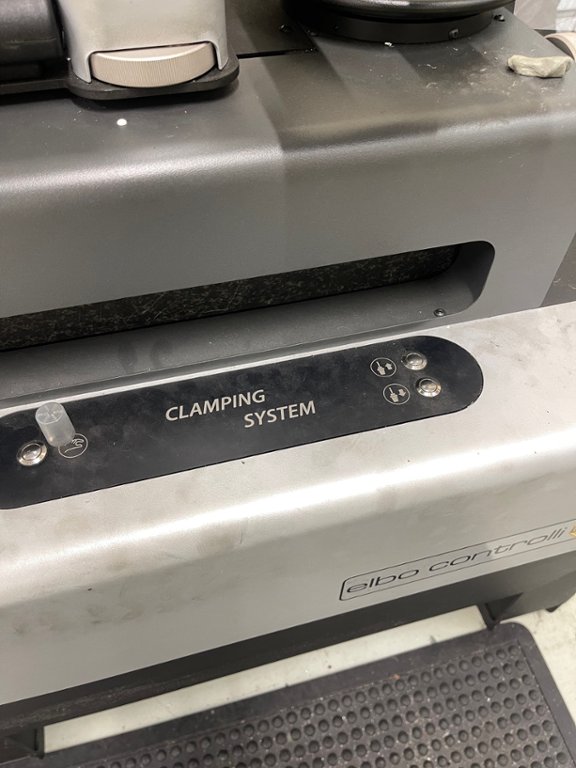

Clamping System Manual Mechanics
Tool Inspection Function/Capability ✓
Elbo Controlli NIKKEN Triple Camera System (Cutting Edge Inspection) ✗
Main Camera System Resolution 1µm
Main Camera System Measuring Range (C-MOS Sensor Framed Image Area) 10mm x 10mm
Secondary 'Twin' Camera System Measuring Ranges (Framed Image Area) ✗
Main Camera Magnification 26X
Secondary 'Twin' Camera System Magnifications ✗
Elbo Controlli NIKKEN Certified Optical Scale Axes Resolution 1µm
Elbo Controlli NIKKEN GS371 Certified 'Natural Granite' Optical Scale Axes Resolution ✗
Touch Screen System (Operator Interface) TFT 22" HD Colour Touch Screen
Keyboard and Mouse ✓
Electronics/Processor Intel i3 Quad Core Processor
Firmware/Operating System Ubuntu Linux LTS
Data Storage SSD
Elbo Controlli NIKKEN Tool Management Software E46L software
Tool Set Management and Post Processor Universal Generation ✓
DXF File Import and Creation ✓
Balluff Read/Write Ready (Balluff Hardware Required)? ✓
Elbo Controlli NIKKEN TiD Ready? ✓
Elbo Controlli NIKKEN TP32 Ready? ✓
Elbo Controlli NIKKEN IS 'Integrated Solution' with Twin Screen and Dual OS Option Ready? ✓

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
