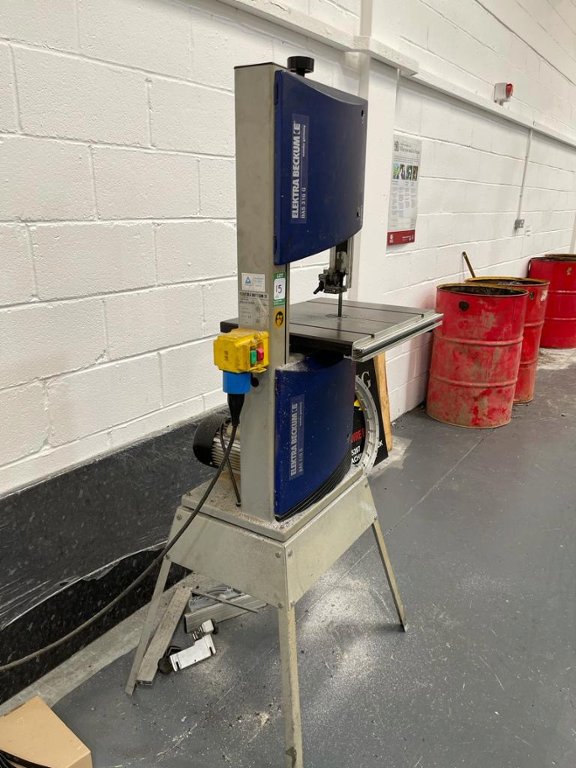

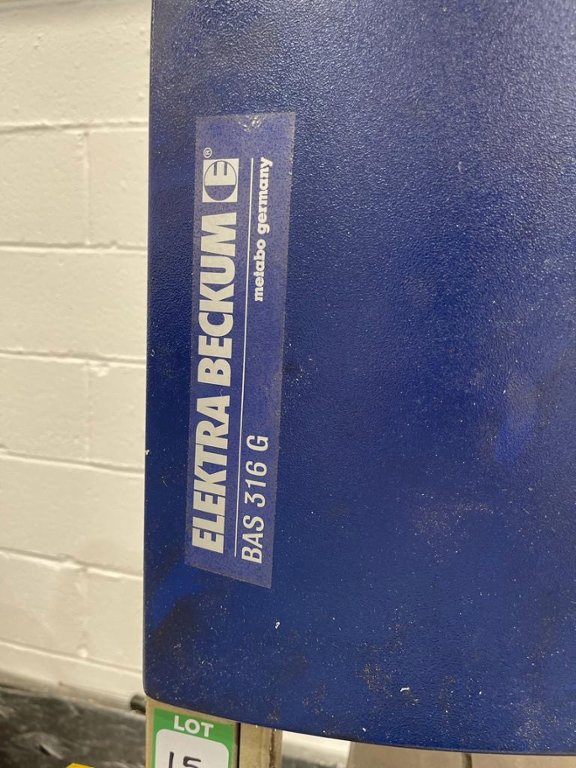

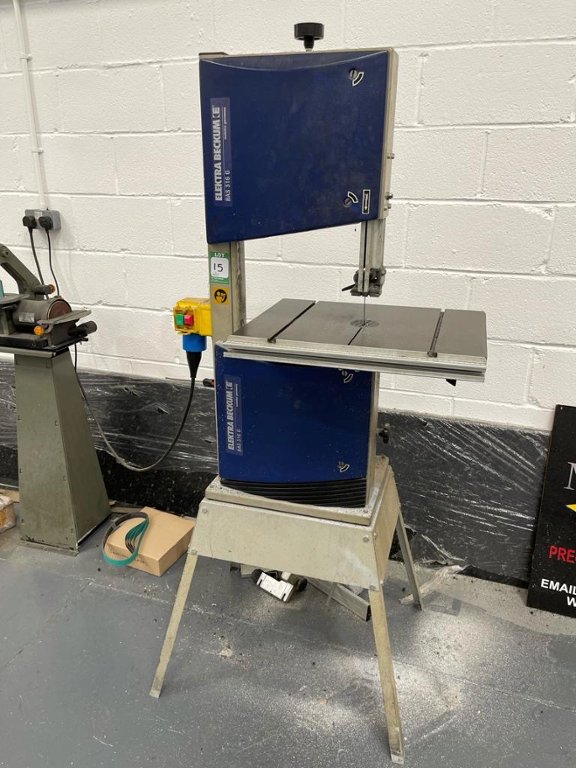

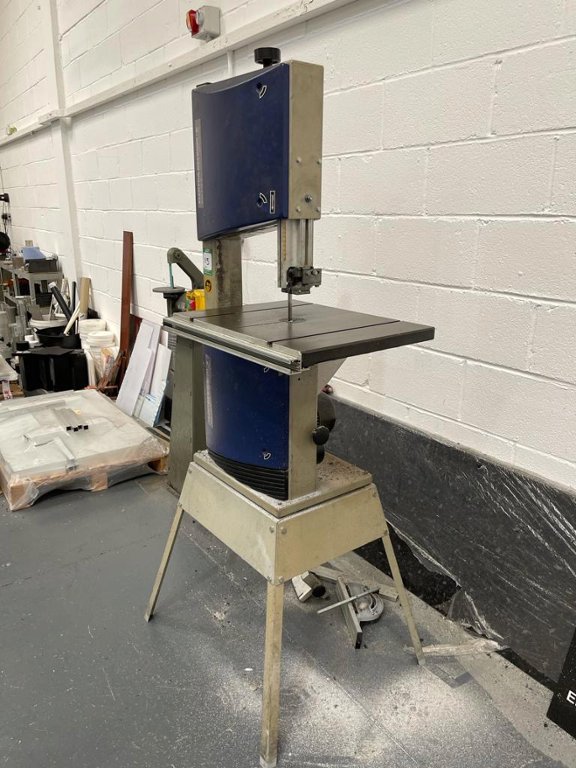

Elektra Beckum BAS316G Bandsaw

Lot 15 - Elektra Beckum BAS316G Bandsaw

Description:

Voltage - 400 (3~ 50 Hz) V

Capacity - power input P1 - 0.74 kW. Effective shaft output P2 - 0.55 kW

Nominal current - 1.5 A

Fuse protection - 10 (time-lag or K-Auto-mat) A

Protection class - IP 44

Rated no-load speed - 1400 ±10% min-1

Cutting speed - High speed transmission ratio - 800 ±10% m/min. Low speed transmission ratio - 370 ±10% m/min

Band saw blade length - 2240mm

Max. throat capacity - 300mm

Max. capacity under guide - 160mm

Max. band saw blade width - 15mm

Max. band saw blade thickness - 0.5mm

length saw table - 400mm

width saw table - 548mm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
