Lot 3 - EMCO MAIER PC Mill 155 Vertical Machining Centre
Description:

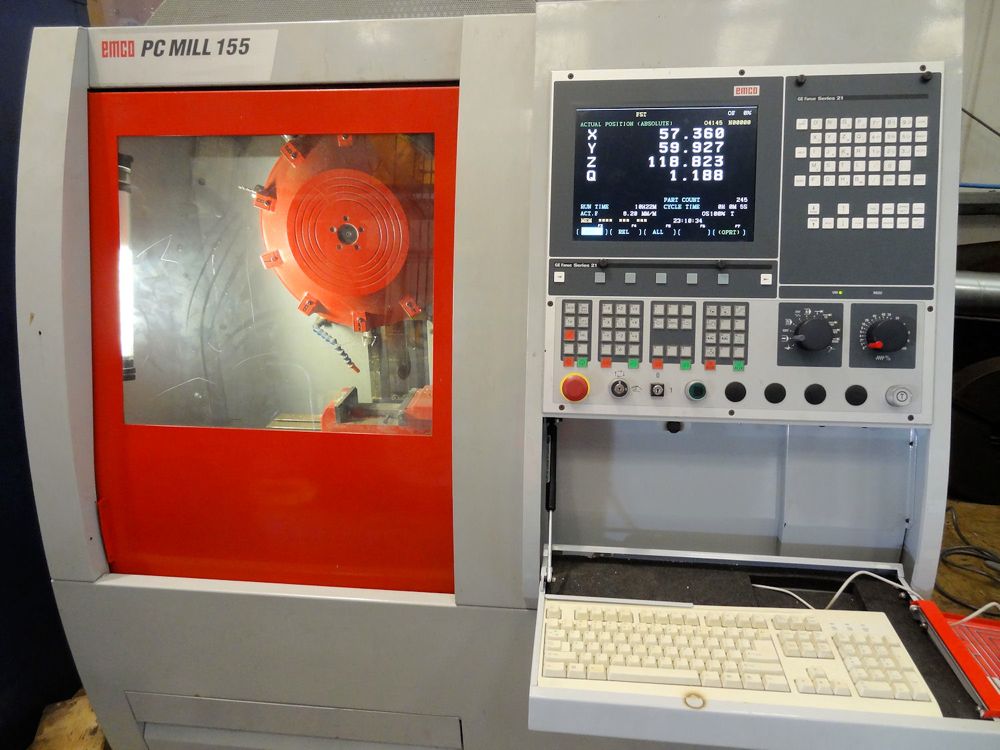

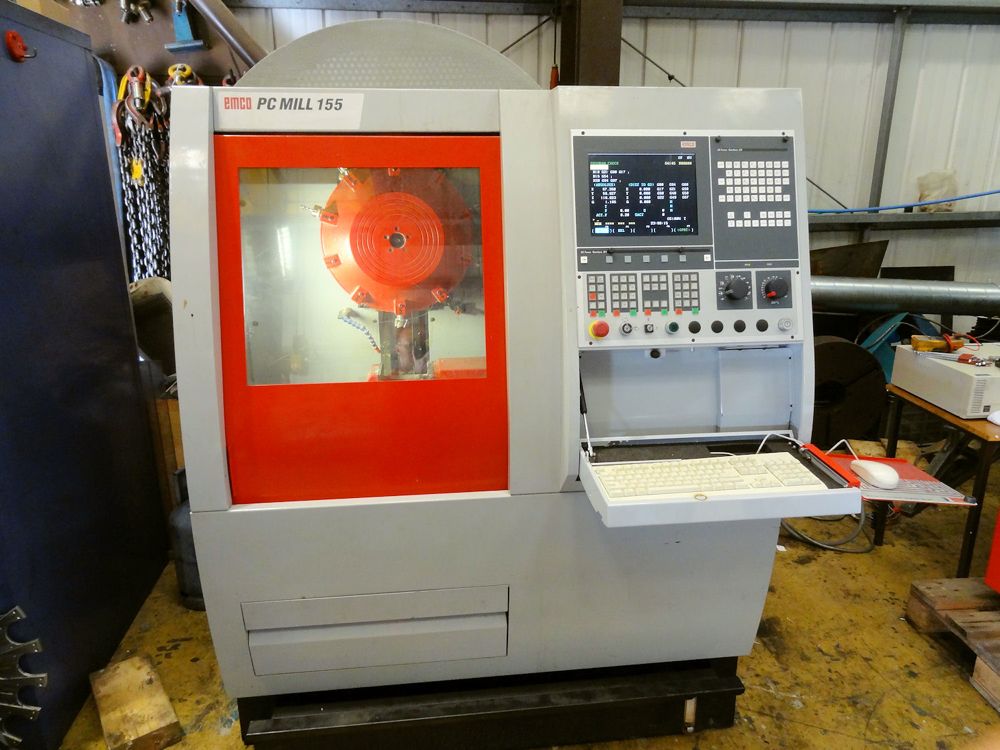

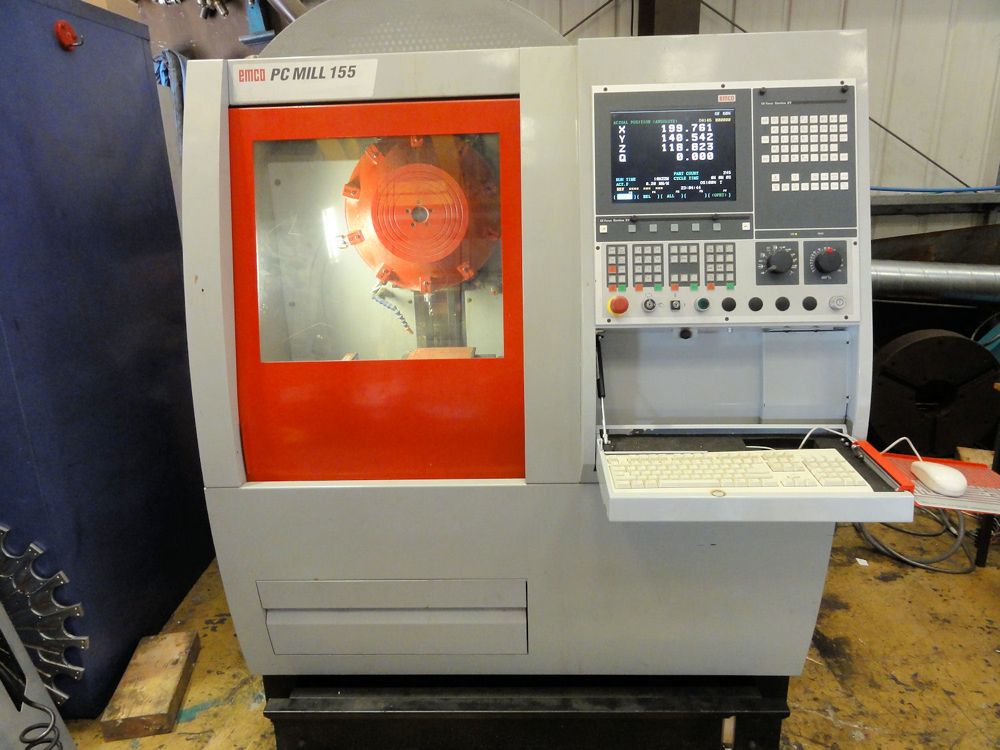

EMCO MAIER PC Mill 155 Vertical Machining Centre

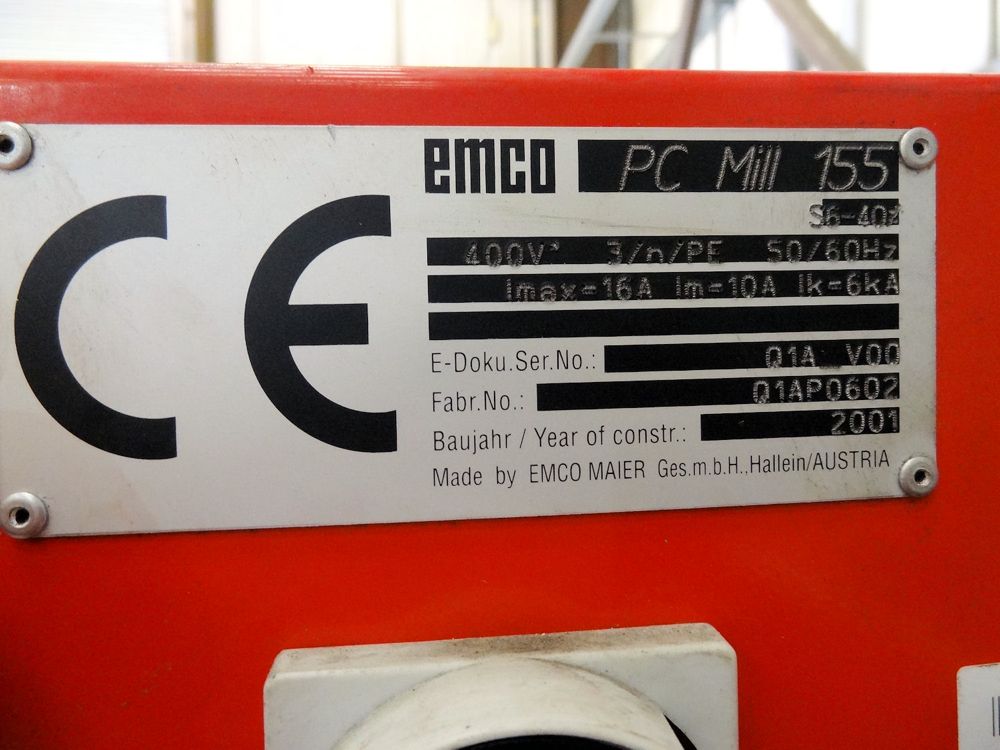

Serial # Q1AP0602
New 2001

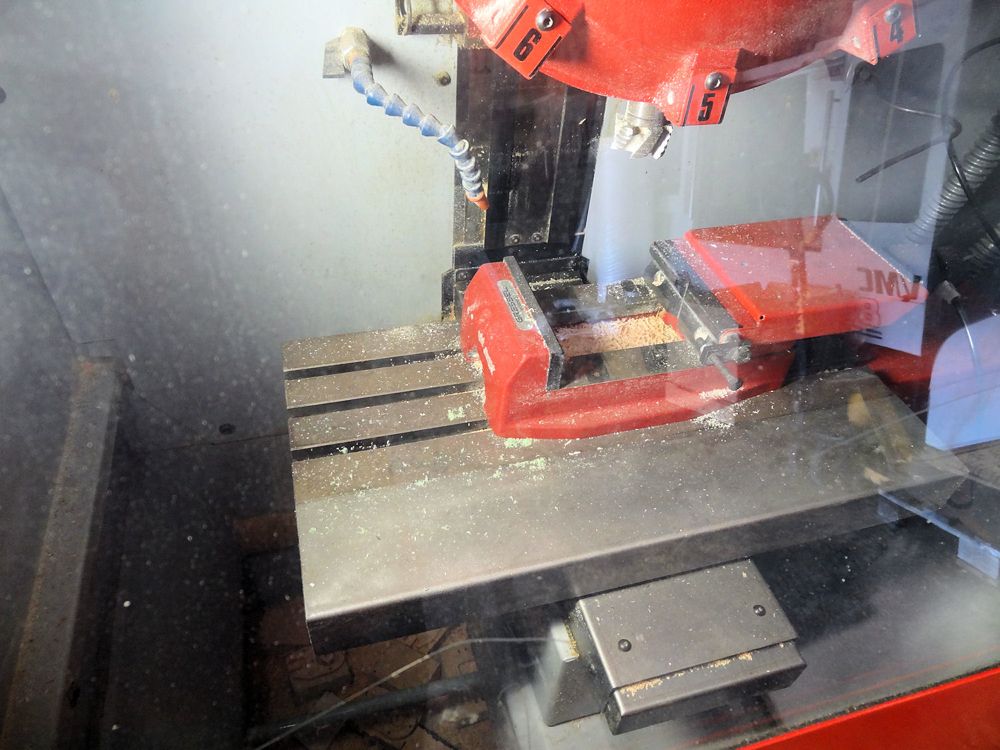

Table Size: 520 x 180mm with (3) T-Slots
Maximum Table Load: 45kg (Evenly Distributed)
Spindle Nose to Table Top: 50mm Min. to 250mm Max.
X-Axis Travel: 300mm
Y-Axis Travel: 200mm
Z-Axis Travel: 200mm
Rapid Traverse Rates: 7.5m/minute on All Axes
Cutting Feed Rates: 5m/minute on All Axes
Spindle Speeds: 150 to 6000 RPM
Spindle Taper: Emco Maier #30
EQUIPPED WITH:

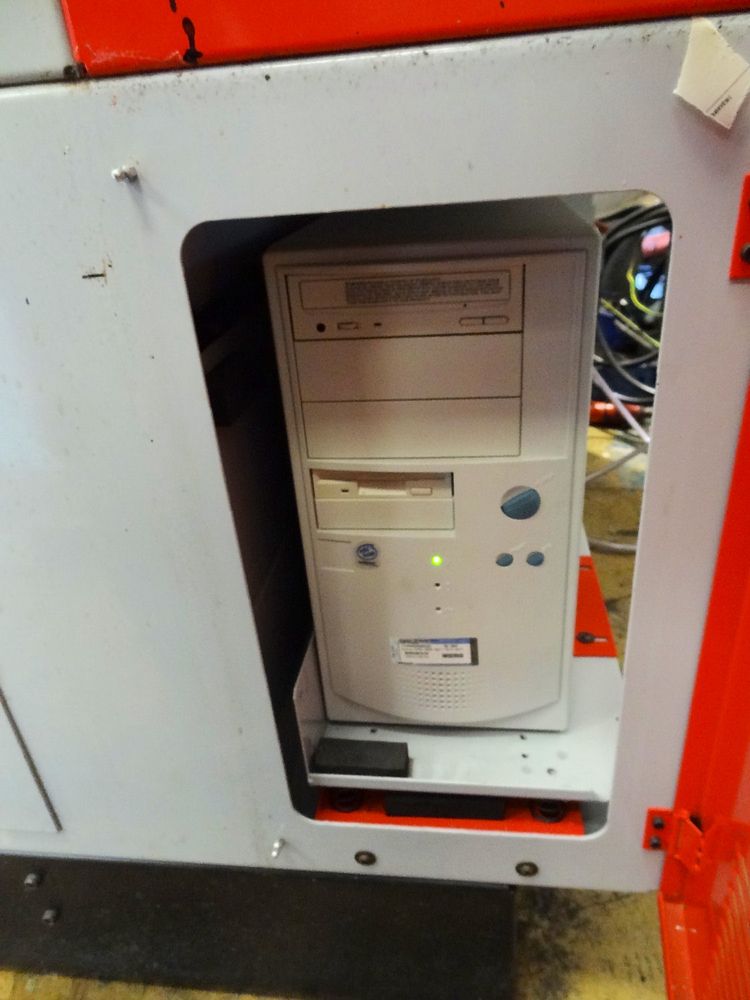

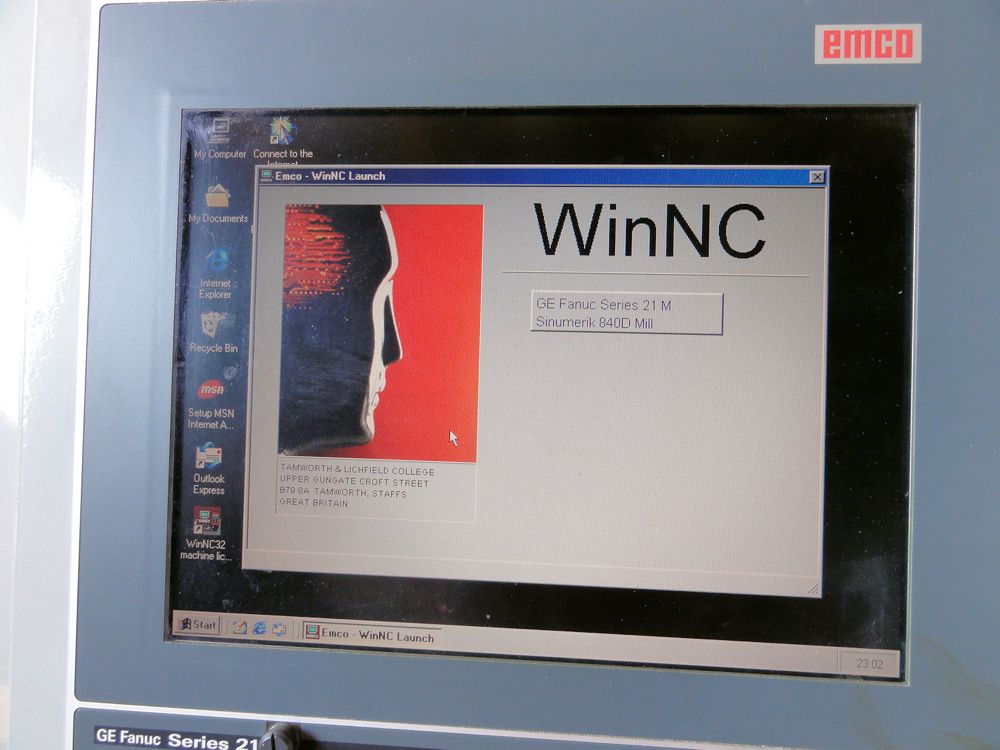

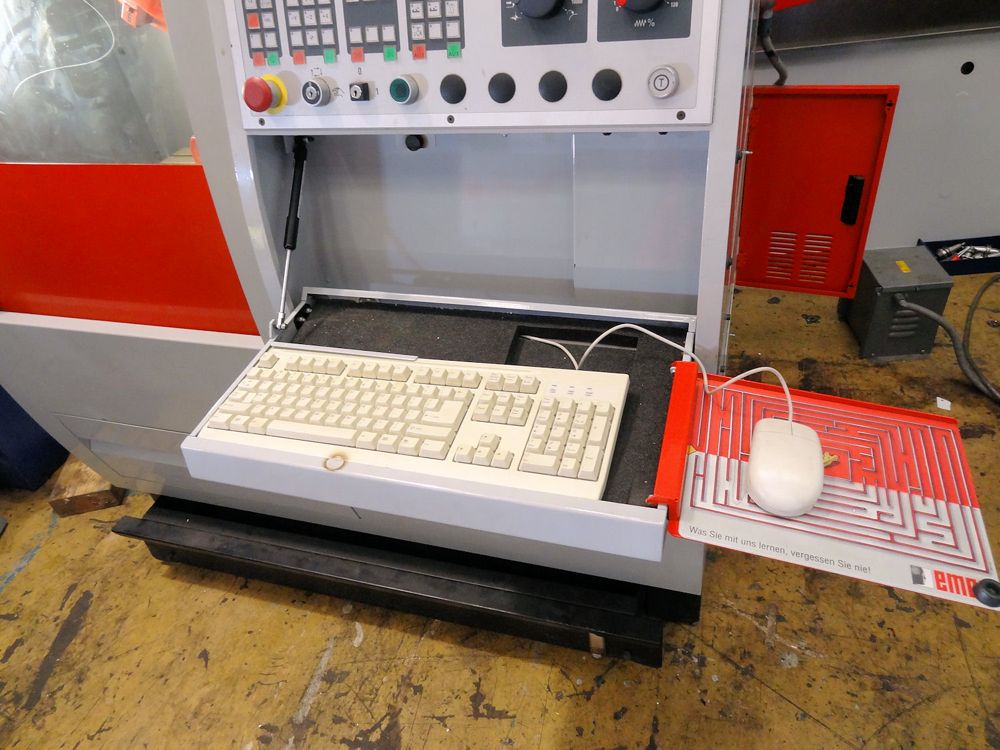

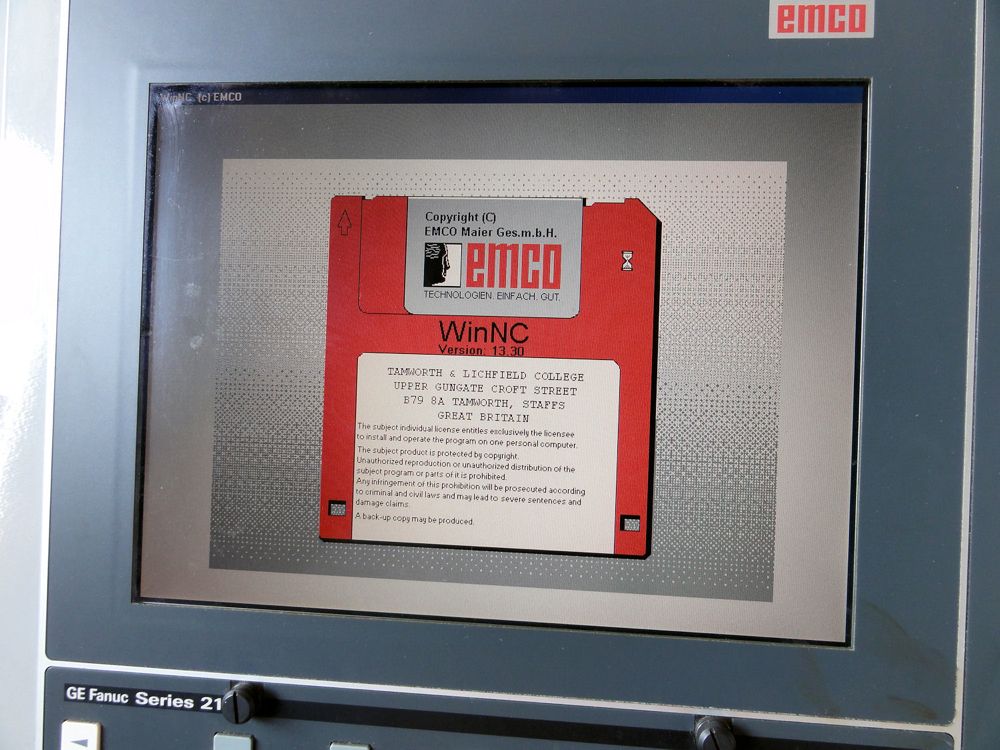

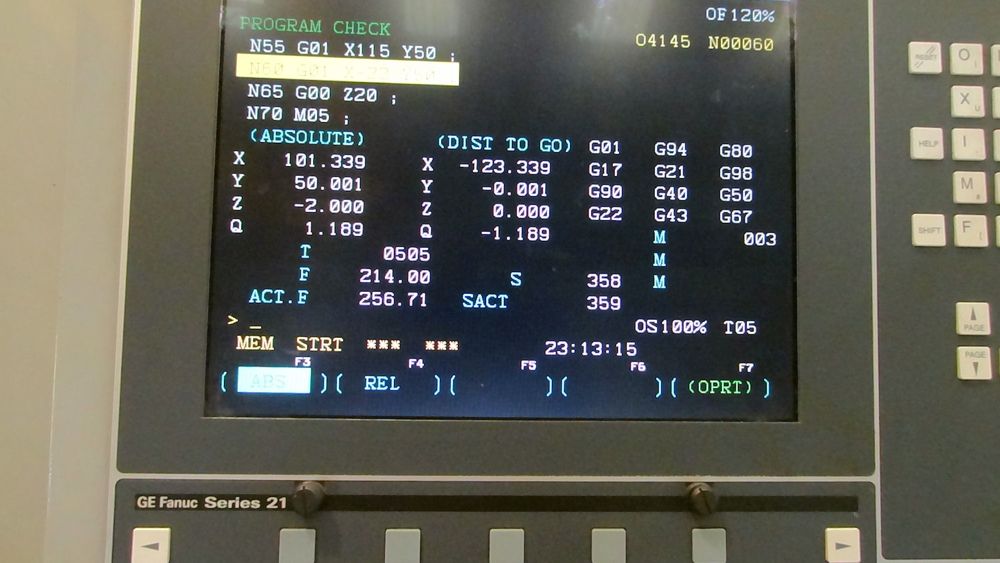

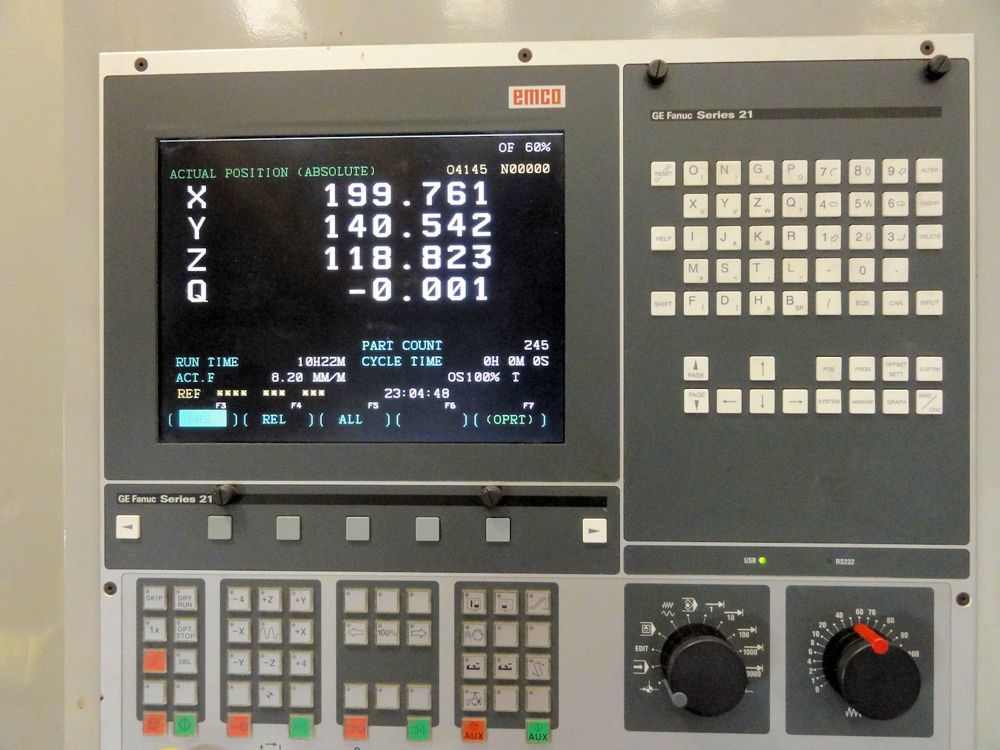

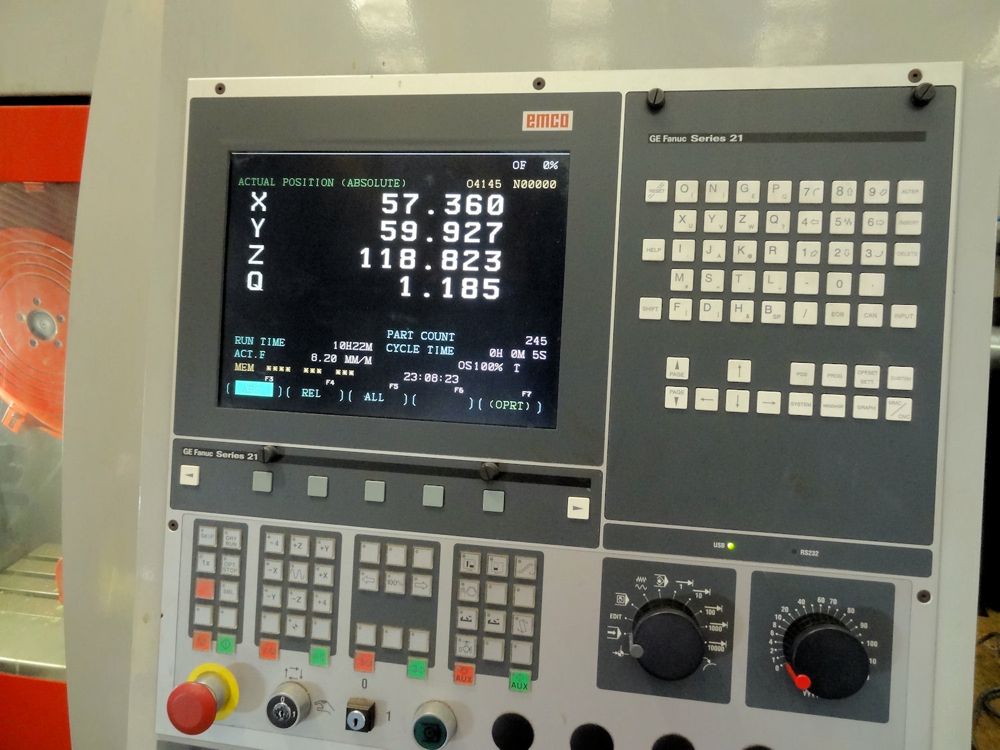

PC Based CNC Fanuc Series 21 Control

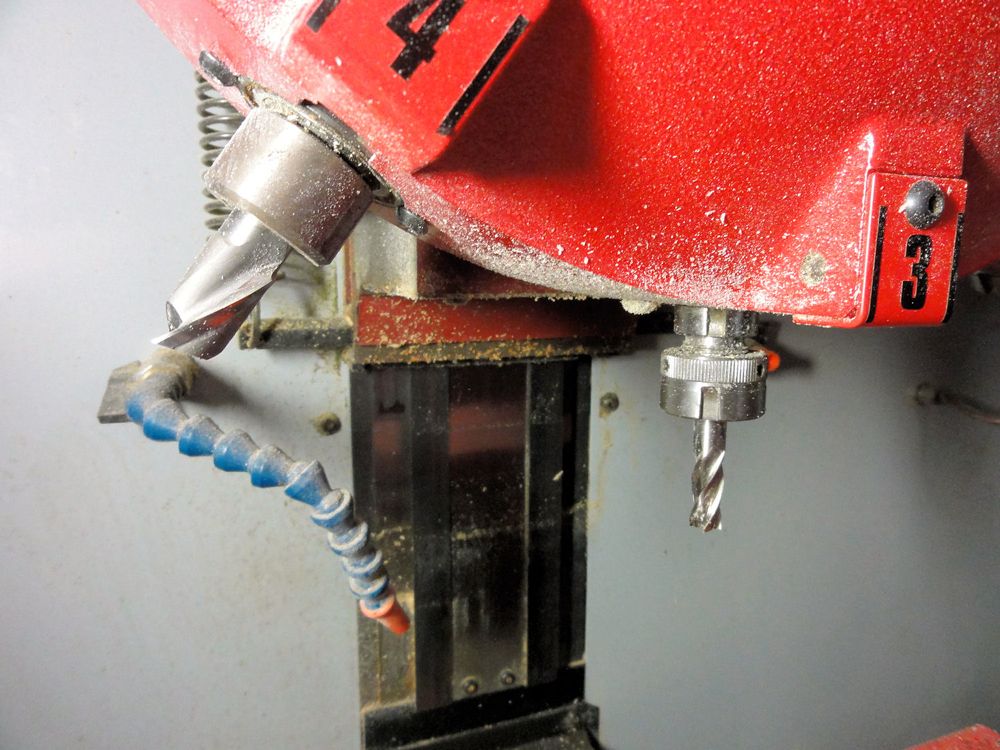

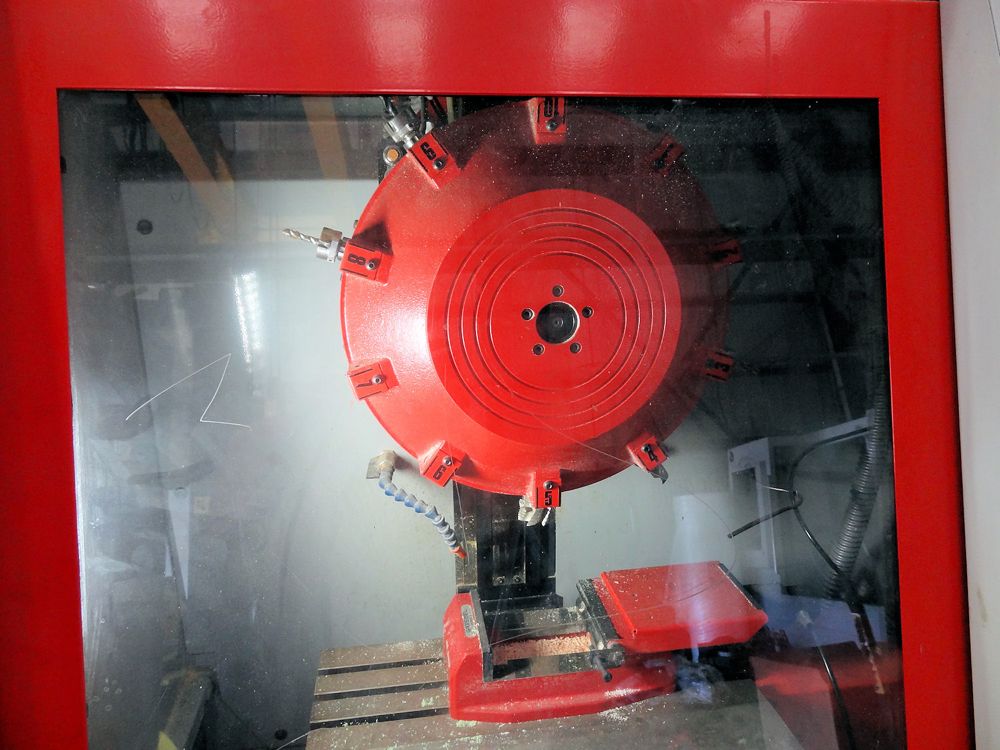

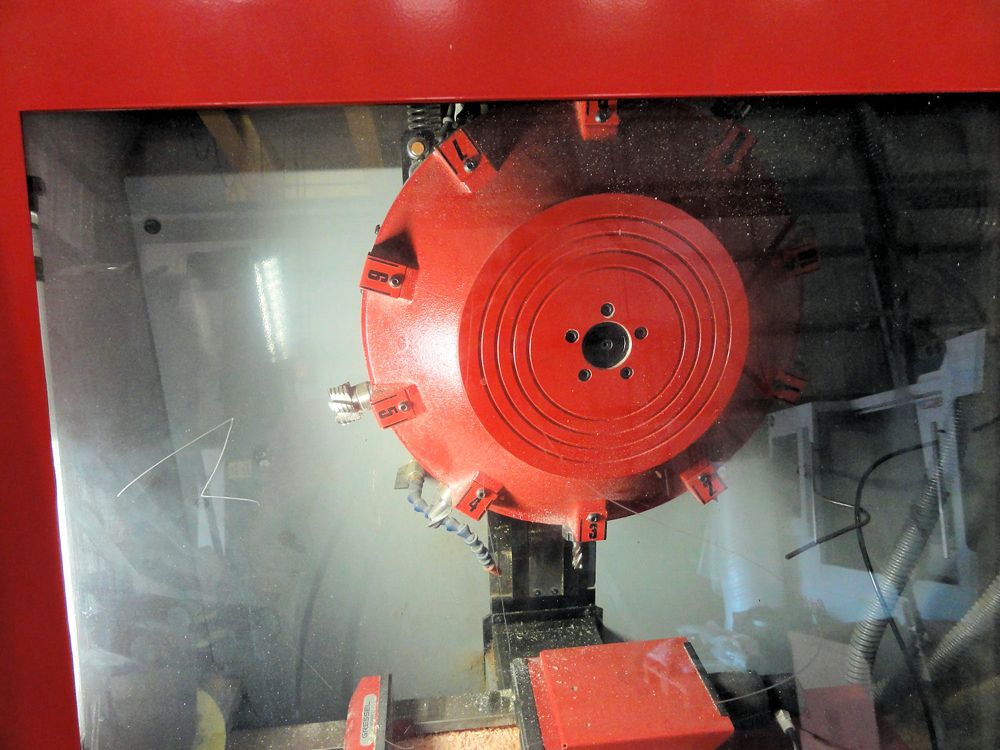

10 Position Turret Type Tool Changer
Tool holders included
Manuals Included

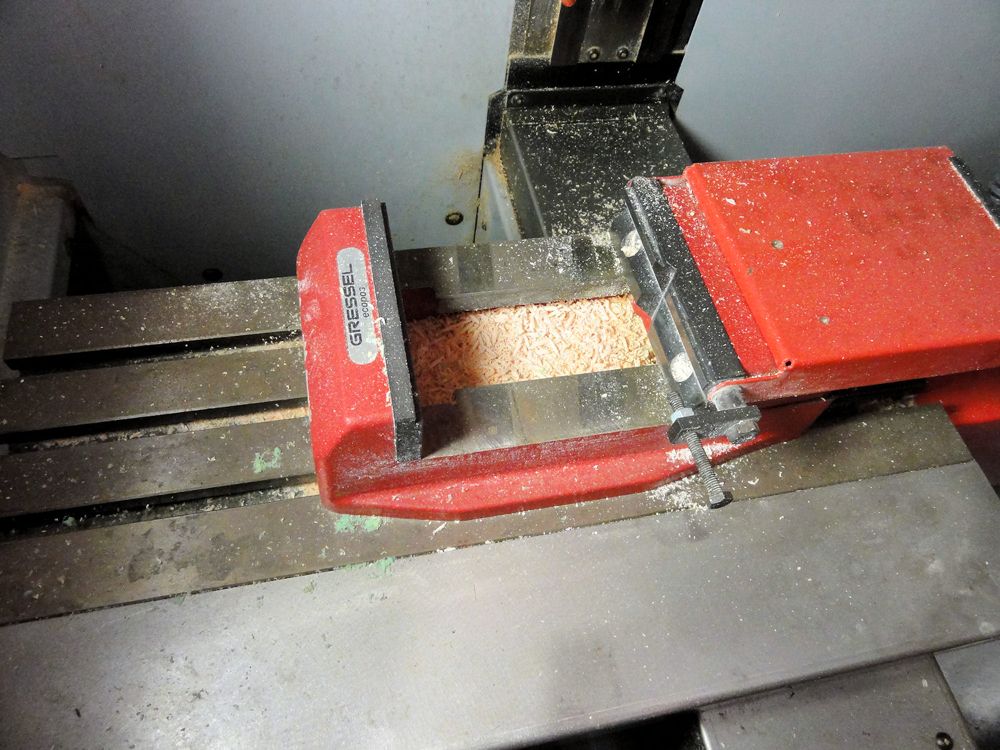

Machine Vice Included
Wired for 3 Phase, 50 Cycle, 400 Volts
Requires Special 400 Volt Transformer with Dedicated Neutral Leg - Included
Machine is in Excellent Condition
Machine Size: 1524mm L-R x 1270mm F-B x 2032mm
Machine Weight: 909kg
Location: Leicester, Can be loaded Free to flat bed truck.
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
