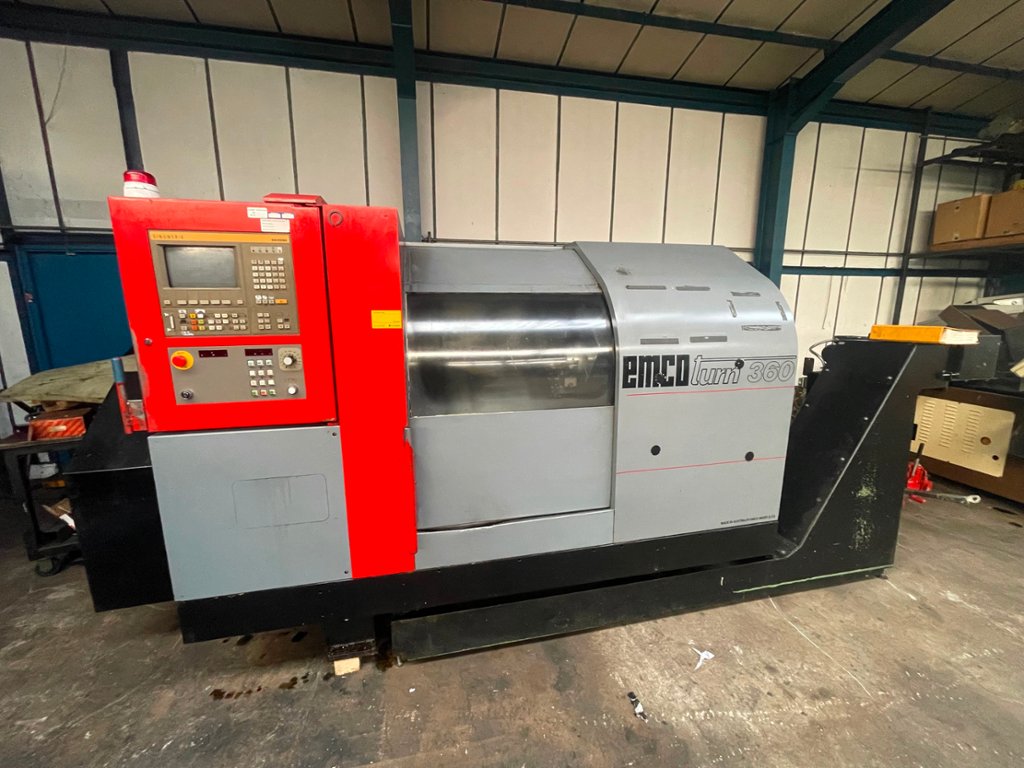

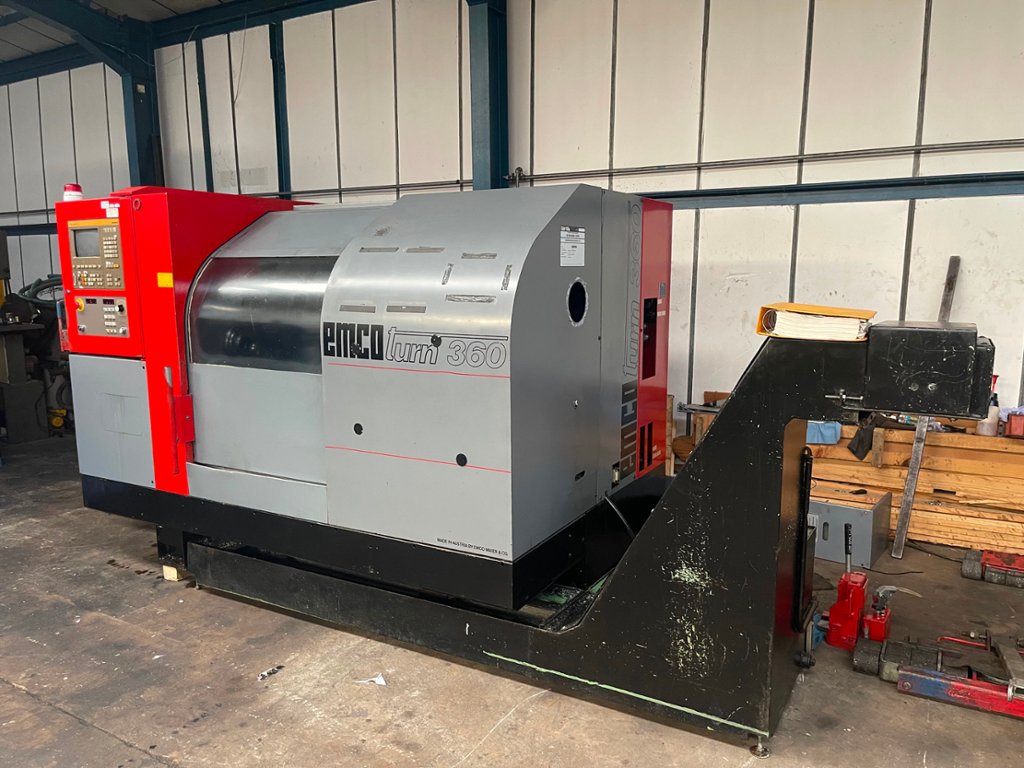

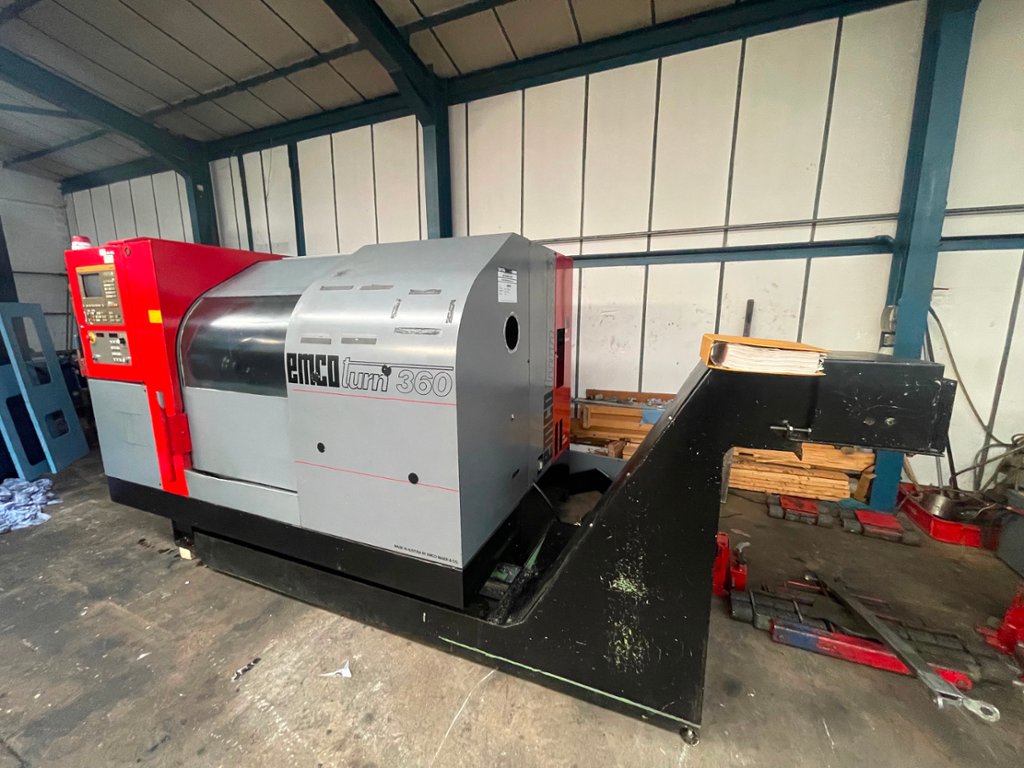

Lot 3 - Emco Turn 360 CNC Lathe

Description:

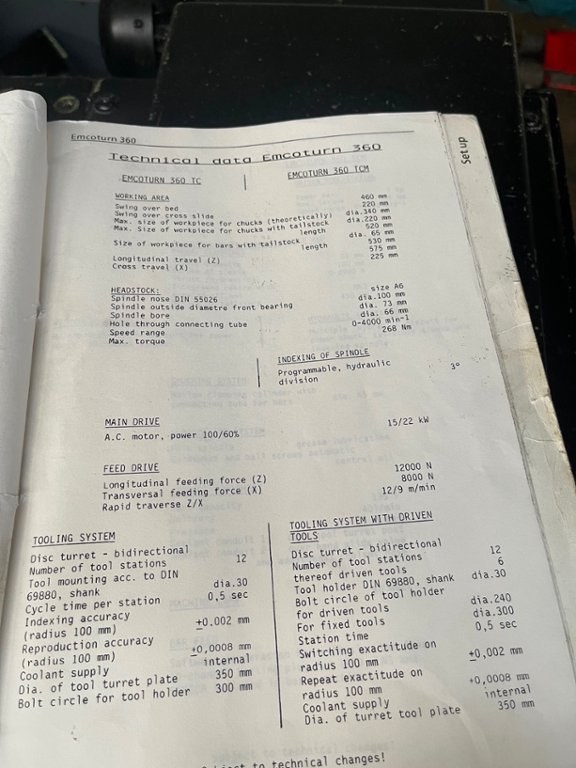

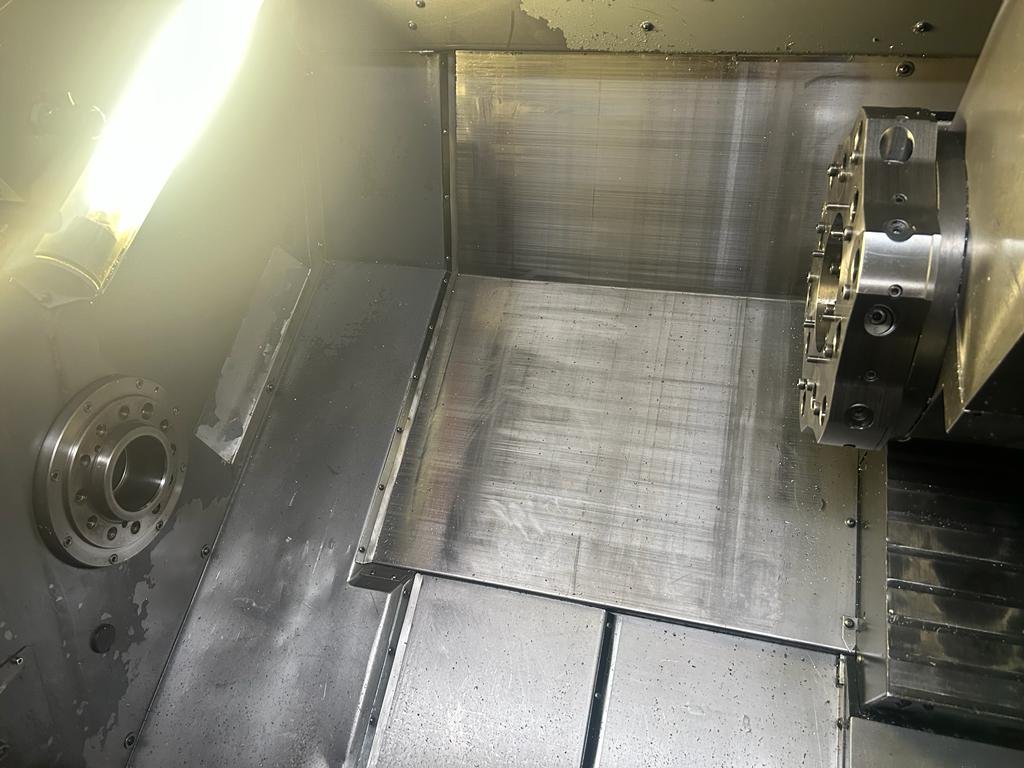

Working Area

Swimg over bed - 460mm, Swing over cross slide - 220mm, Max size of workpiece for chucks (theoretically) - dia 340mm, Max size of workpiece for chucks with tailstock - dia 220mm - Length - 520mm, Size of workpiece for bars with tailstock - dia 65mm - Length - 530mm, Longitudinal travel (Z) - 575mm, Cross travel (X) - 225mm

Headstock

Spindle nose DIN 55026 - Size A6, Spindle outside diameter front bearing - dia 100mm, Spindle bore - dia 73mm, Hole through connecting tube - dia 66mm, Speed range - 0 - 4000 min-1, Max torque - 268Nm

Main Drive

A.C. Motor, Power 100/60%

Feed Drive

Longitudinal feeding force (Z) - 12000 N, Transversal feeding force (X) - 8000 N, Rapid traverse Z/X - 12/9 m/min

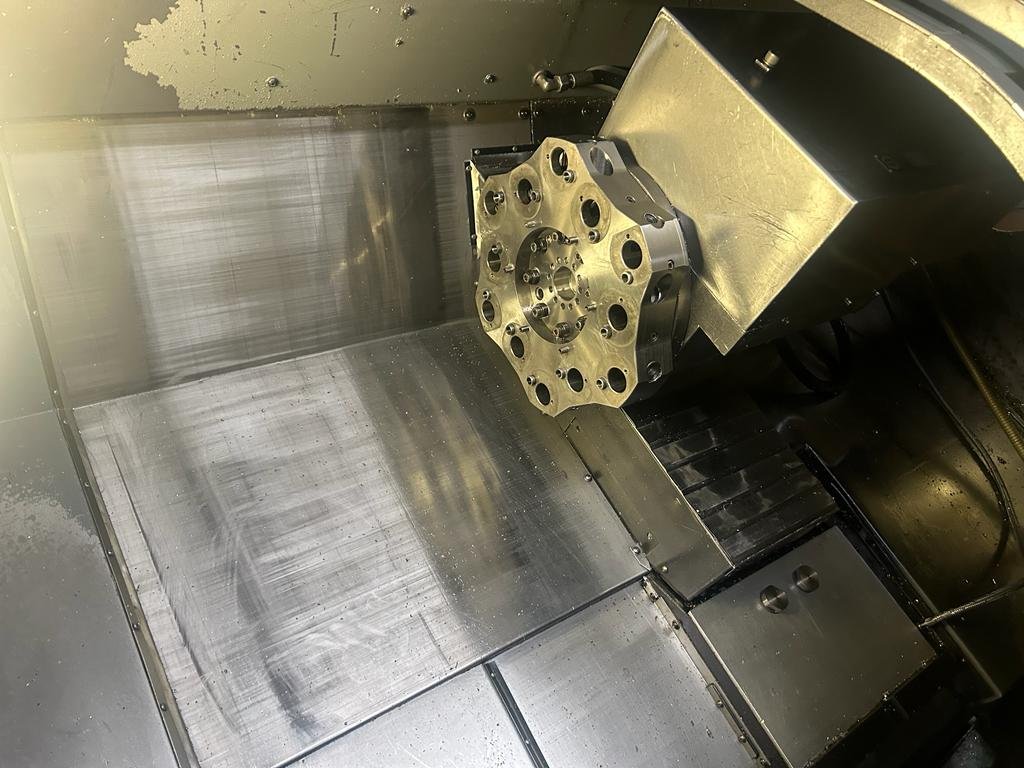

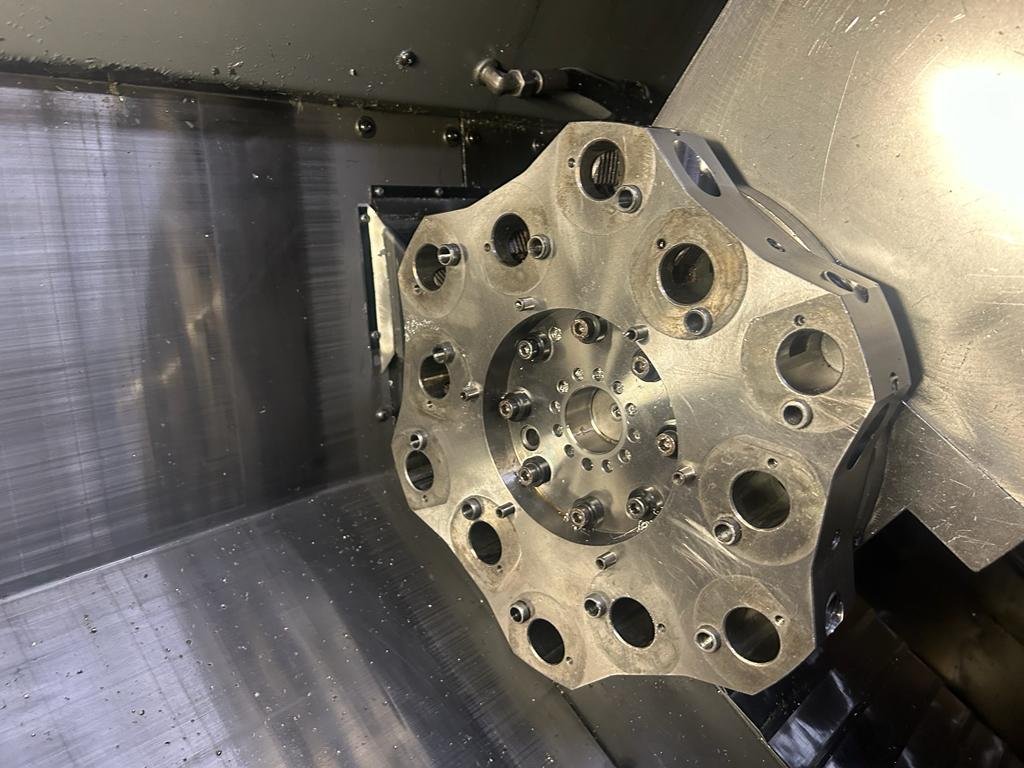

Tooling System

Disc turret - Bidirectional, Number of tool stations - 12, Tool mounting acc - to DIN 69880 shank - dia 30, Cycle time per station - 0.5 sec, Indexind accuracy - ±0.002 mm, Reproduction accuracy - ±0.0008 mm, Coolant supply - Internal, Dia of tool turret plate - 350mm, Bolt circle for tool holder - 300mm

Disc turret - Bidirectional, Number of tool stations - 12, Thereof driven tools - 6, Tool holder - DIN 69880 shank - dia 30, Bolt circle of tool holder - for driven tools - dia 240 - for fixed tools - dia 300, Station time - 0.5 sec, Switching exactitude on radius 100mm - ±0.002 mm, Repeat exactitude on radius 100mm - ±0.0008 mm, Coolant supply - Internal, Dia of tool turret plate - 350mm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
