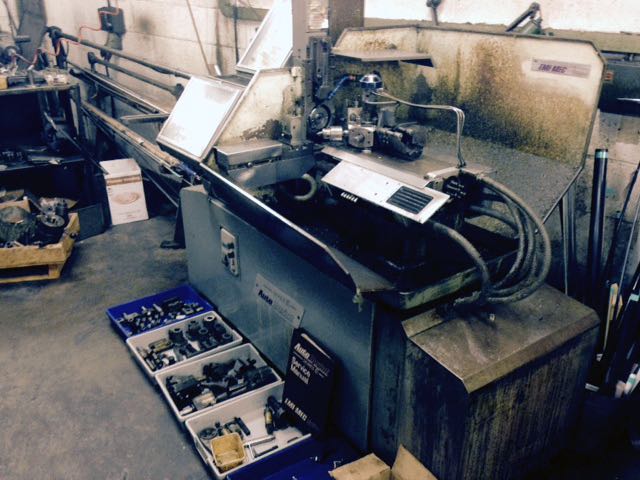

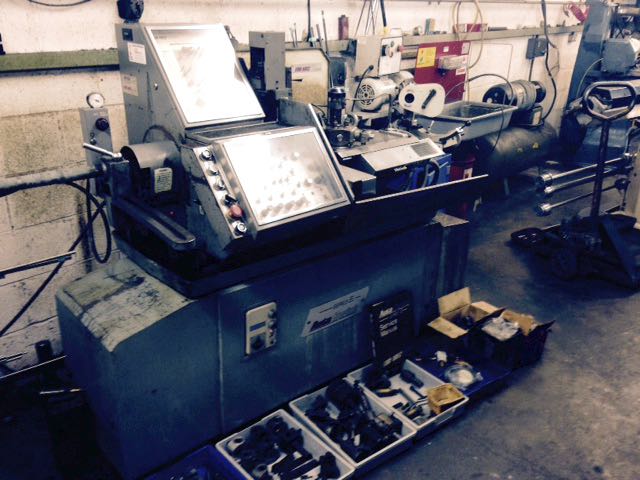

Lot 10 - Emi-MEC Model E CNC Lathe
Description:
Emi-MEC Lathe
Model E
3m bar feed,

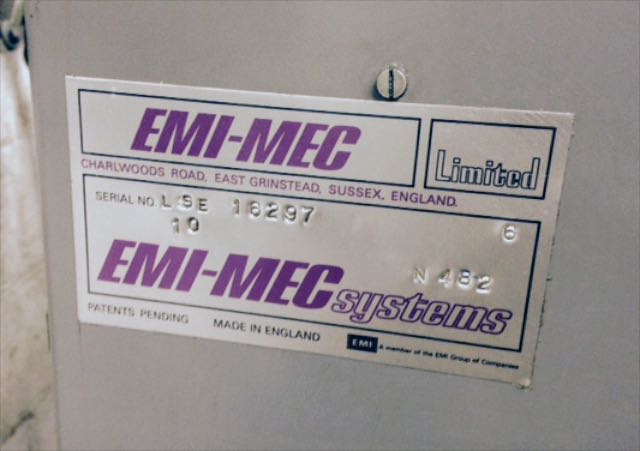

Serial LSE 16297
Year 1985
Headstock:
Bar capacity: 26.0mm
Diameter of hole through spindle: 27.8mm
Max Diameter swing over cross slide: 178.0mm
Height of centre over top of bed: 140.0mm
Turret: Six stations
Diameter of tool holes: 25.4mm
Max effective working stroke: 76.0mm
Max stroke, inc indexing: 130.0mm
Height from top of turret slide to centre of tool hole: 46.0mm
Cross Slides:
Adjustment along bed: 178.0mm
Max distance between tool posts: 203.0mm
Stroke either side of centre line: 76.0mm
Tool size: 12.7sq
Vertical Slide:
Stroke: 76.0mm
Max distance from tool post to centre line: 95.0
Spindle speeds - forward & reverse - r.p.m
Range 1: 85 185 505 1015
Range 2 : 200 395 1115 2225
Range 3: 305 610 1725 3500
Main Drive Motor:
Power rating - two speed, reversible: 2/3 h.p.
Electrical rating: 400/440 Volts, 3Phase, 50Hz, A.C.
Location: Tewkesbury, Gloucestershire
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
