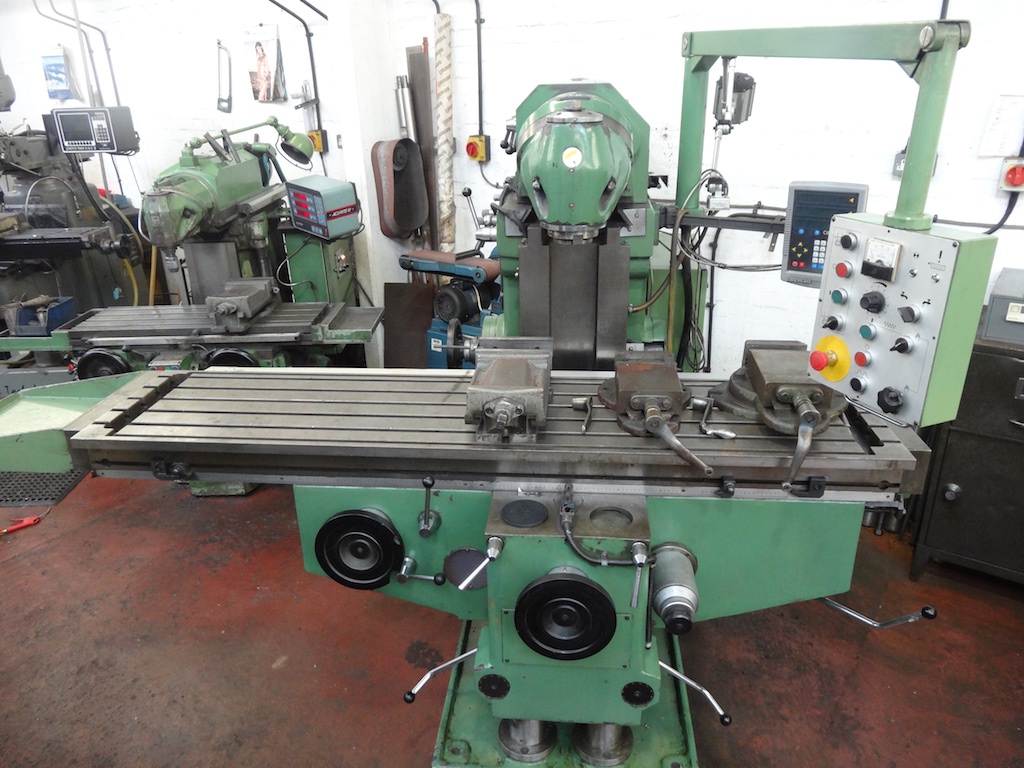

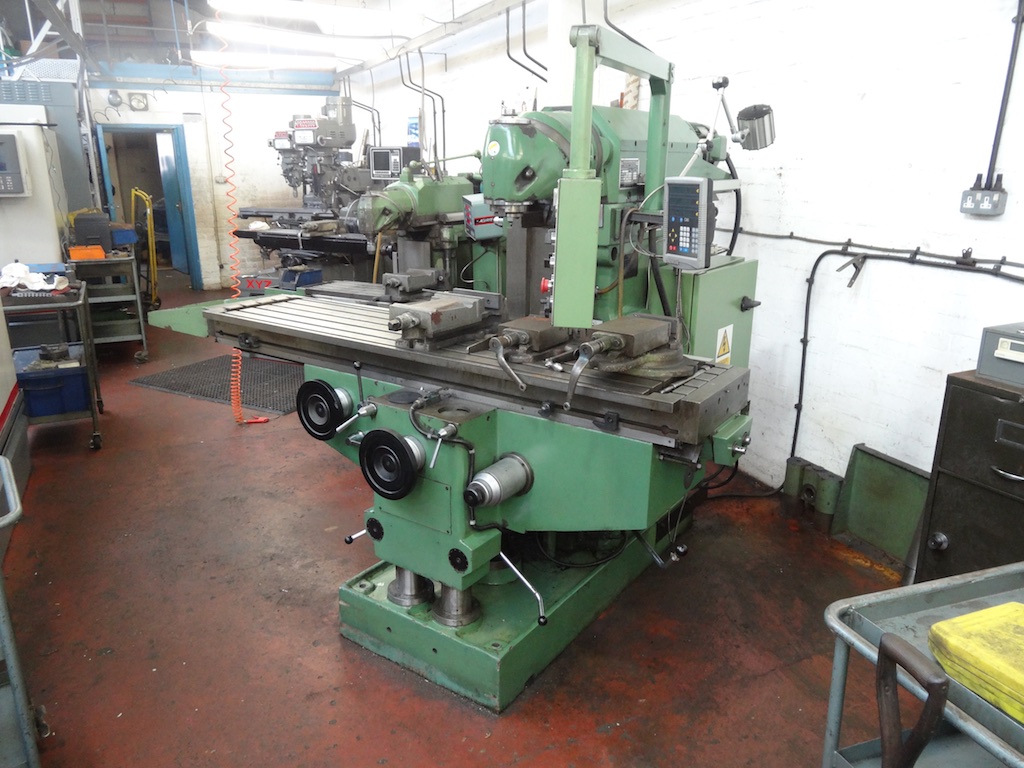

Europa Centurion CU6 Universal Milling Machine

Lot 7 - Europa Centurion CU6 Universal Milling Machine

Description:

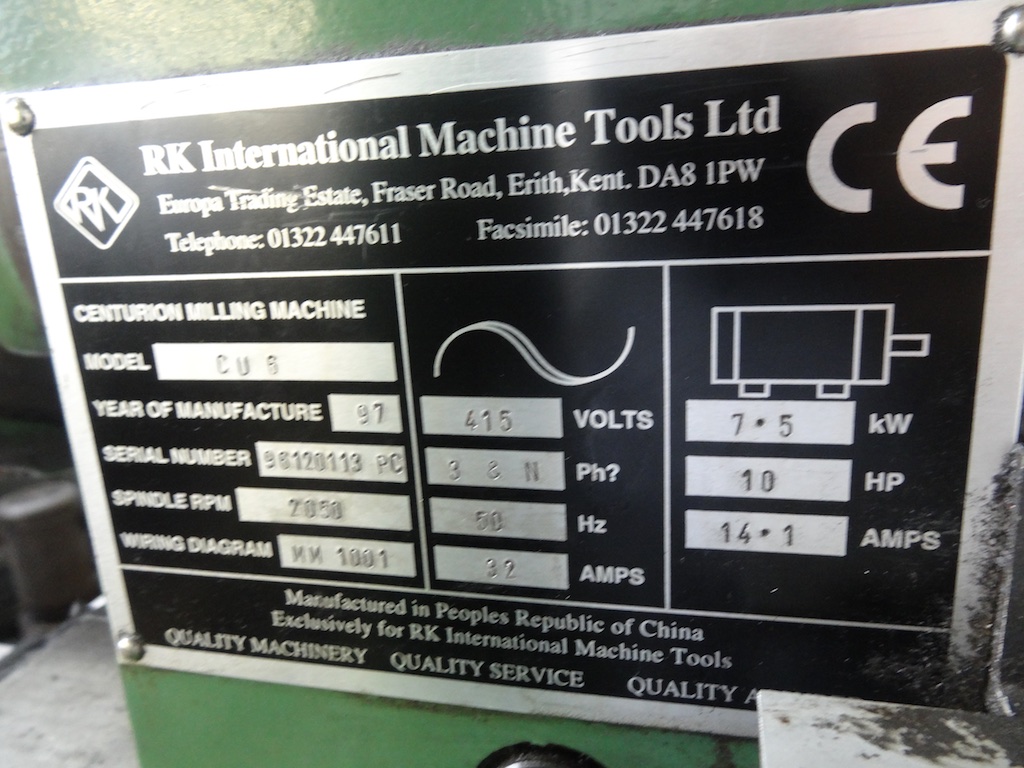

S/n: 96120113
Date: 1997

Load bearing is approx 1800kg
equipped with lubricating system

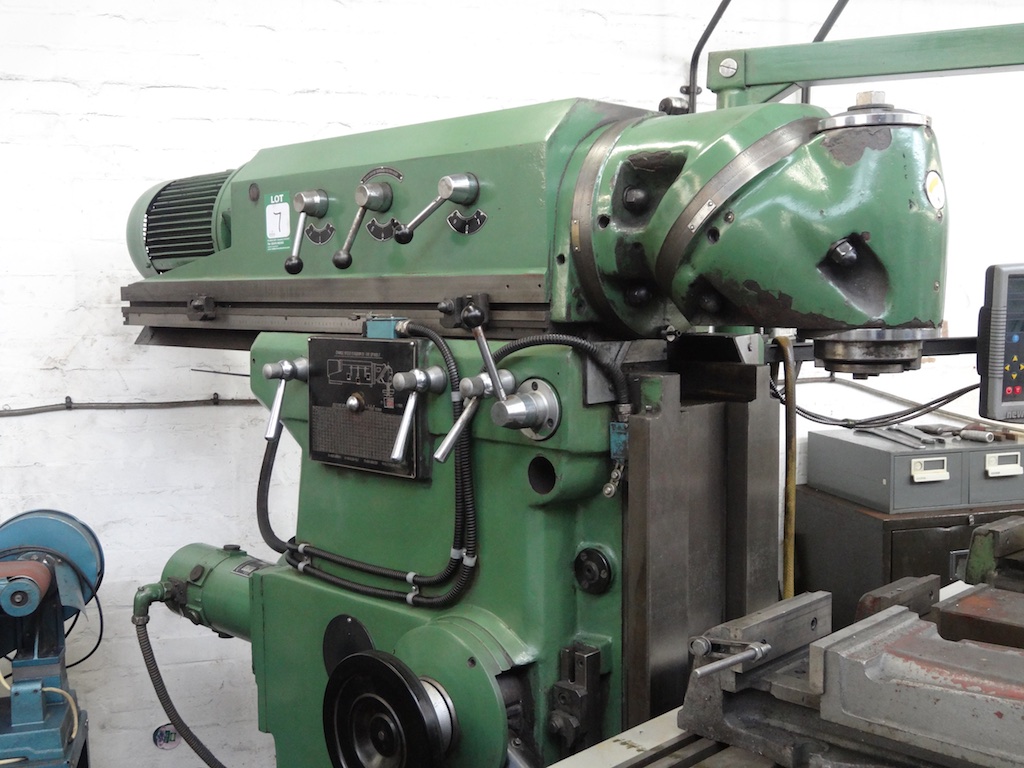

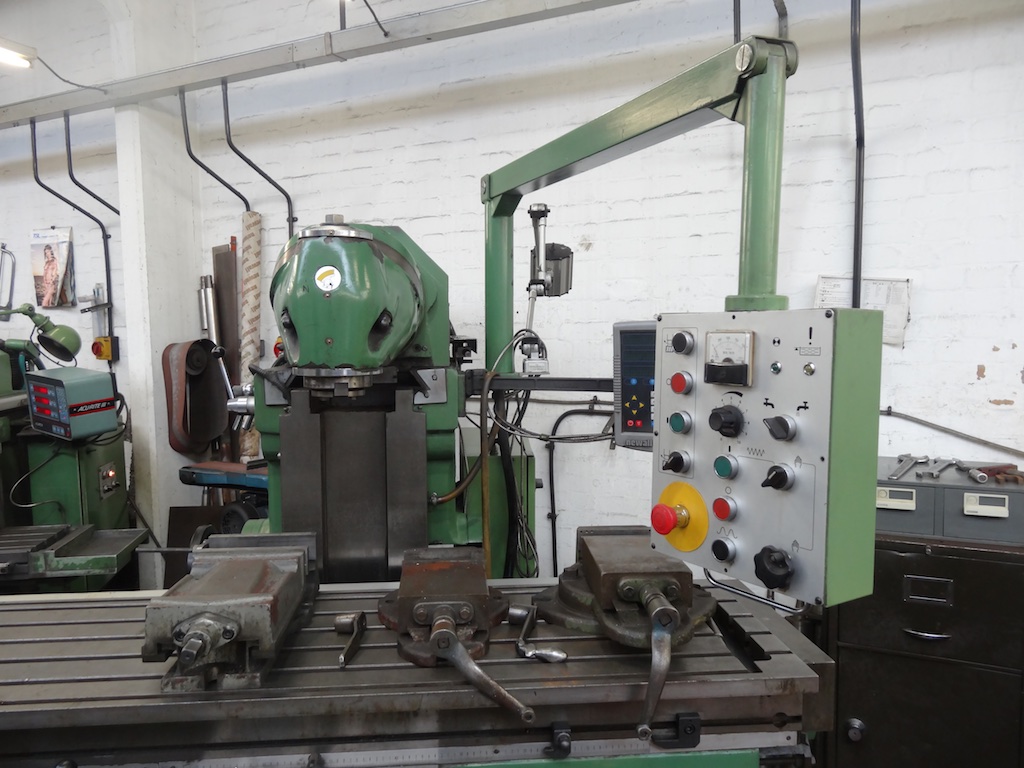

Sliding Head 1m approx.

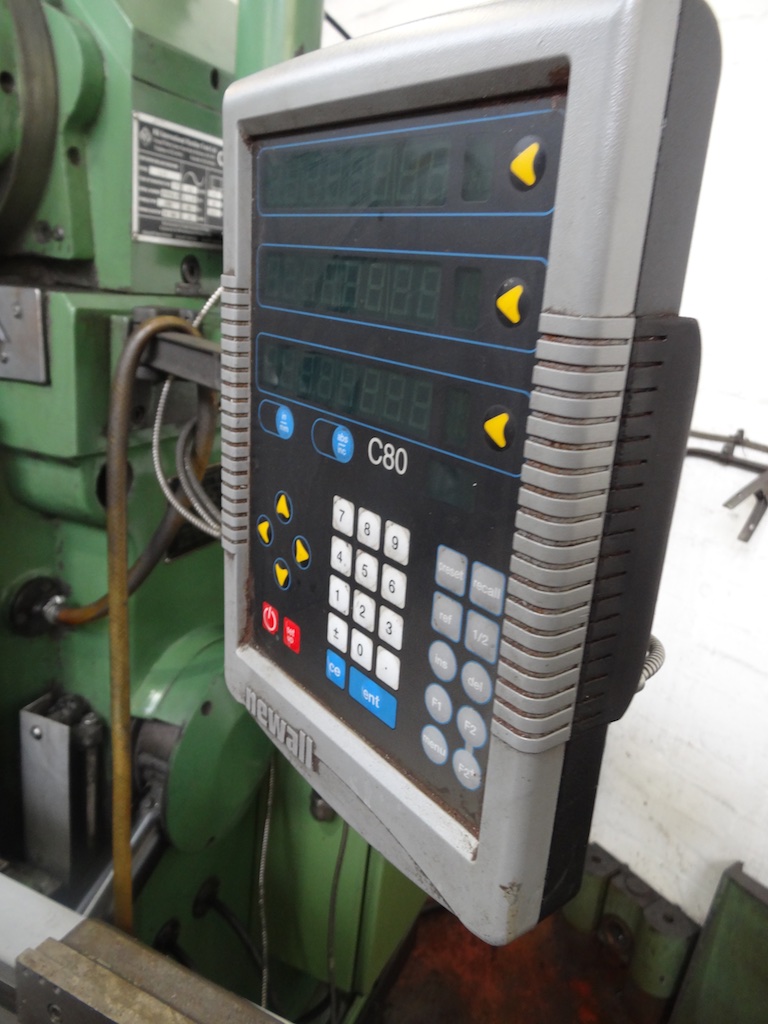

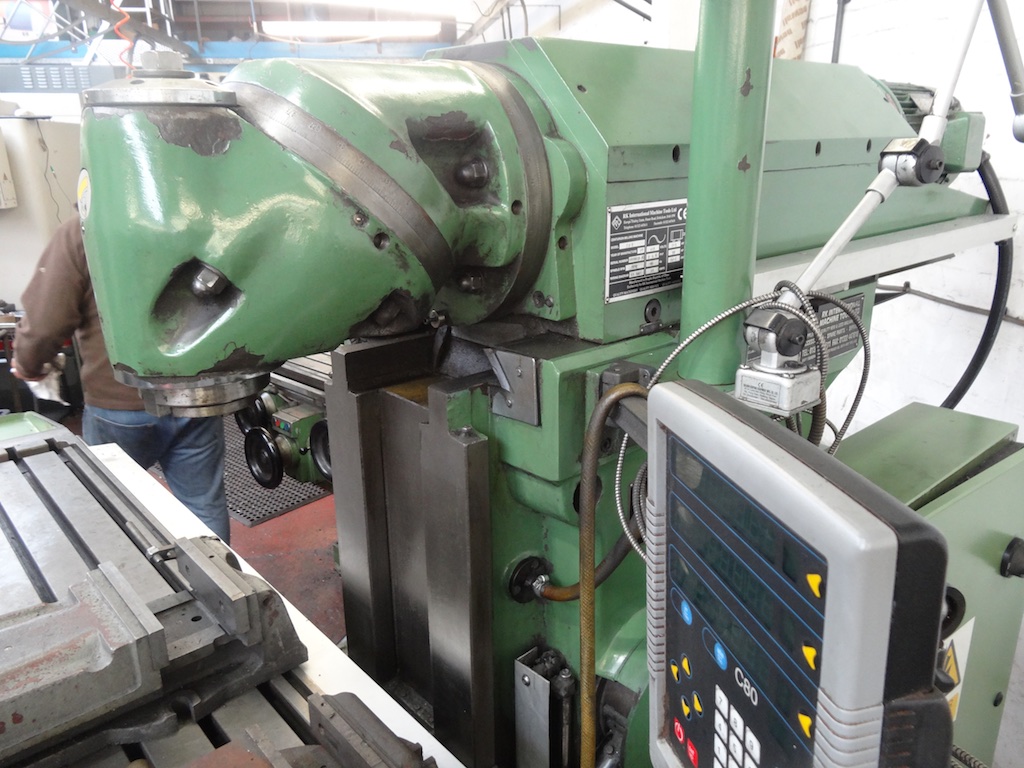

Newall DRO (C80)

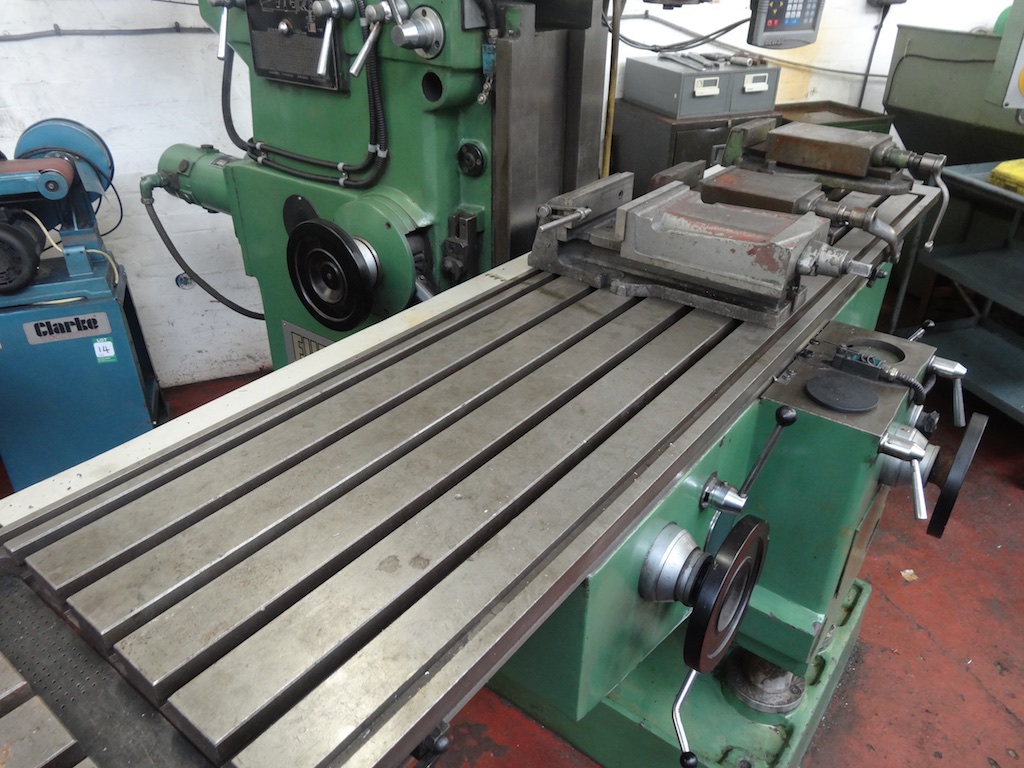

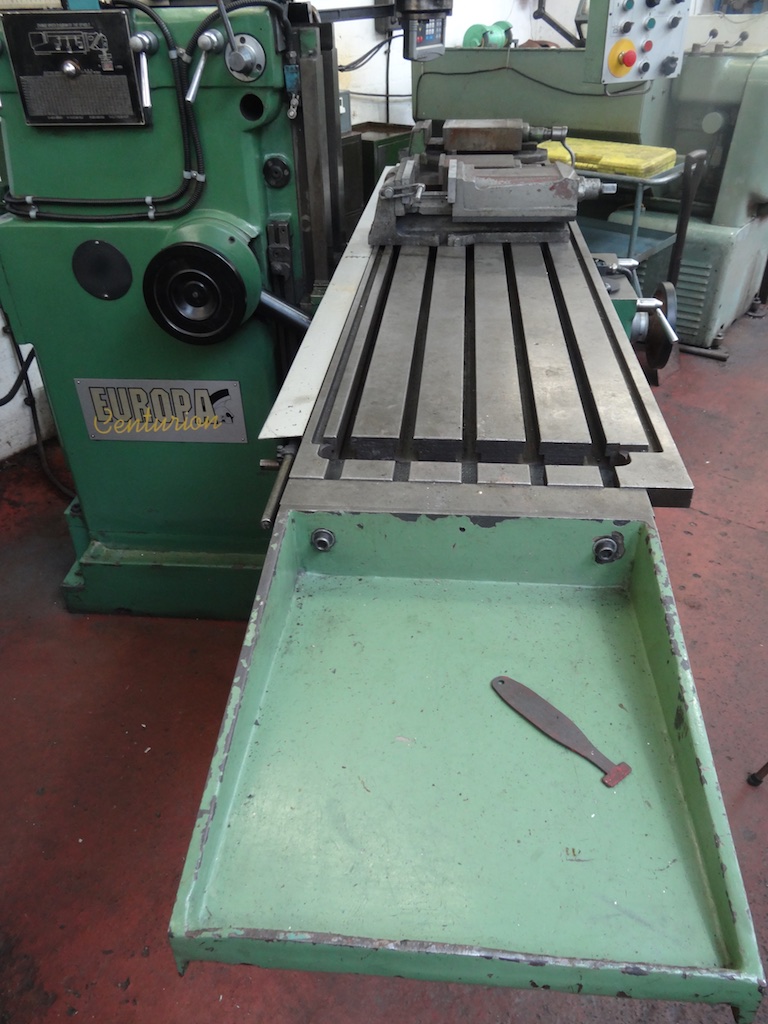

5 x 3cm T slots on 2000 x 460mm bed
Distance between slots: 80mm
L x W x H: 2700 x 2000 x 2100
Longitudinal travel: 1500mm
Vertical travel: 500/470mm
Spindle taper: 7.24mm

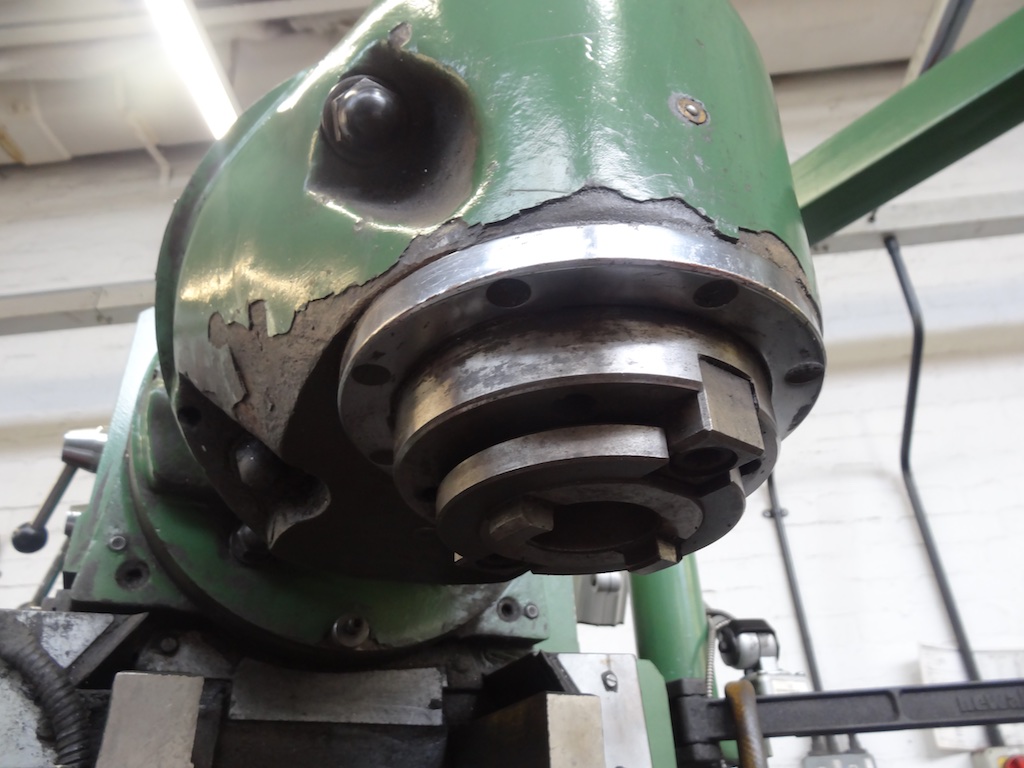

Spindle nose dia: 128.57
Big head dimension of spindle taper hole: 69.85mm
Distance between spindle nose to surface table: 510/40mm (max/min)
Distance between spindle axis to vertical guideway of column: 713/63mm (min/max)
Cross travel of ram: 700/650mm (manual/power)
Number of spindle speeds: 27
Range of spindle speeds: 30 - 2050r/min
Number of table and ram feeds: infinitely
Rapid feed of table:
Longitudinal: 2540 mm/min
Vertical: 1270mm/min
Rapid feed of ram: 2540mm/min

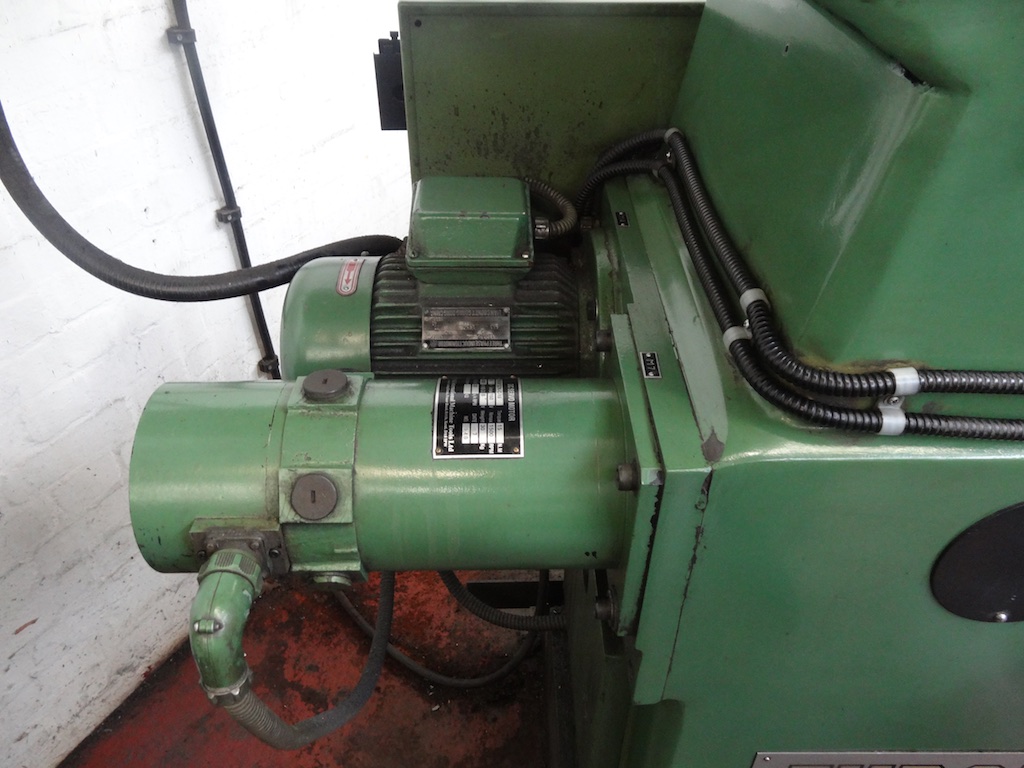

Main motor power: 7.5Kw
Main motor speeds 1440 r/min / power: 1.5kw
L x W x H: 2021 x 2986 x 1950mm
Weight: 3700kg
Machine vices not included

Location: Bishops Stortford

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
