EWAG EWAMATIC CNC Tool & Cutter Grinder (1998)

Lot 5 - EWAG EWAMATIC CNC Tool & Cutter Grinder (1998)

Description:

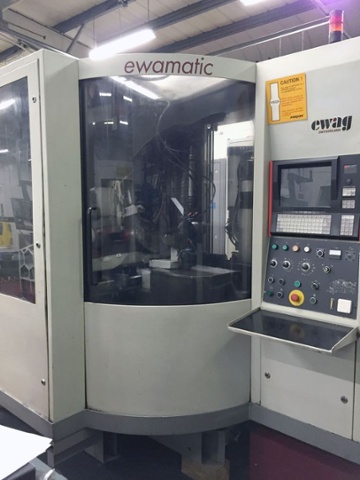

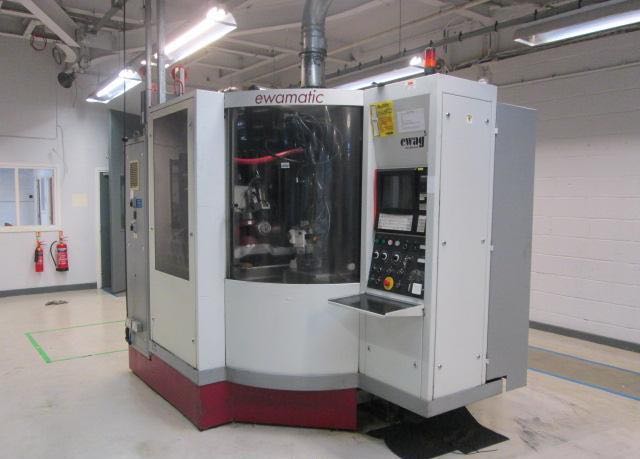

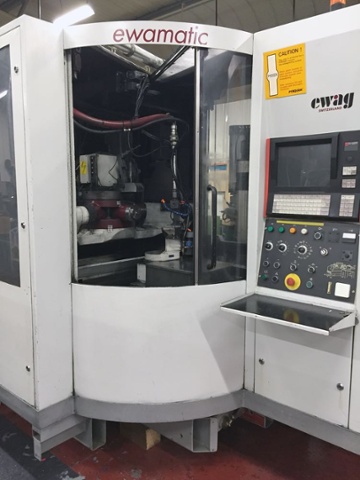

EWAG EWAMATIC CNC Tool & Cutter Grinder (1998)

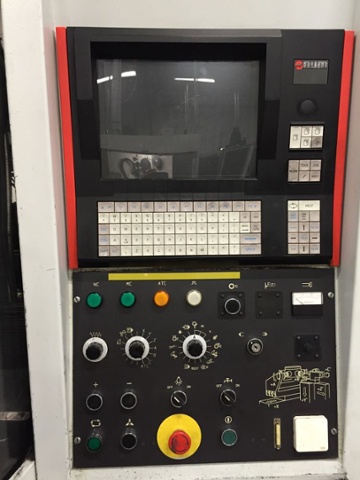

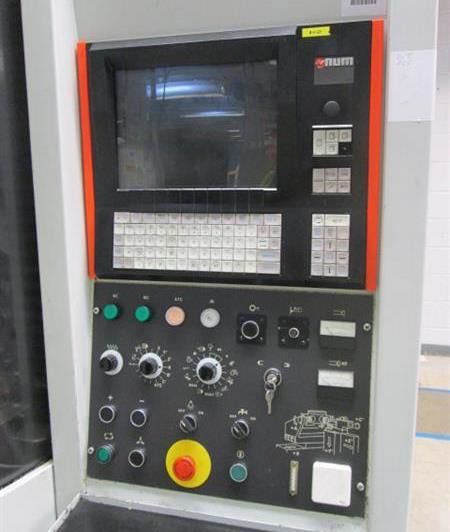

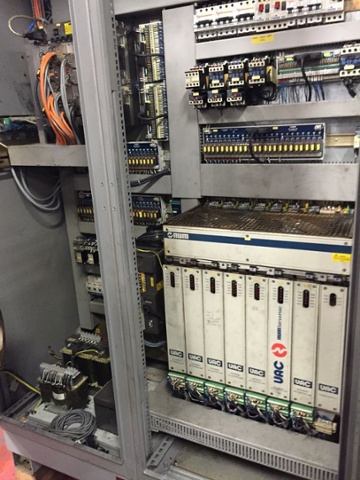

NUM1060 CNC Control,

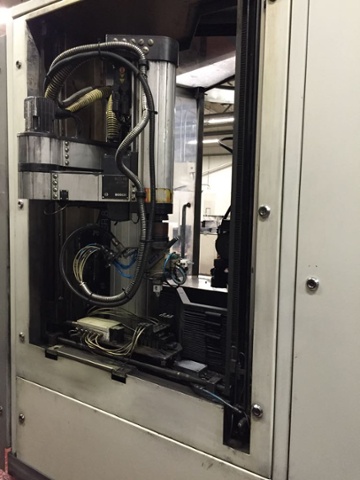

Bosch SR80 pick & place robot system,

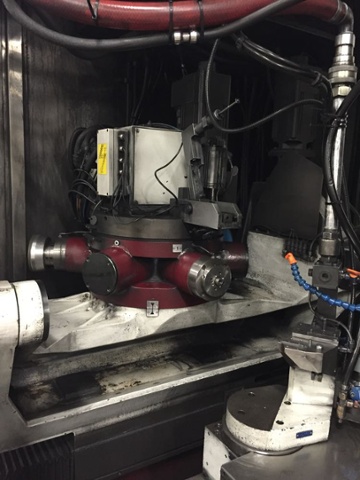

6 turrett spindle,
Coolant system.

X-axis, transverse adjustment mm: 360/ 14.7"
Y-axis, height adjustment mm: 150/ 5.9"
Z-axis, infeed stroke mm: 230/ 9.05"
Axis resolution mm: 0,0001/ 0.000004"
B-axis, swivelling range degrees: +- 120 deg
Axis resolution degrees: 0,0001
C-Achse, Axis resolution degrees: 0,0001
Rapid Feed: 6500deg/min
Number of revolutions area spindle 1000 - 12000 RPM
Number of revolutions C axis (max.) 800 - 1000 RPM
Voltage: 400V/50Hz
Machine Dimensions: 3265 x 2920 x 2490
Grinding head SK 2000 Degrees: -15...+25
Grinding spindle drive kW: 7,5
Grinding wheel diameter max. mm: 250
PEK Axis
Full Enclosure
Double V Reciprocating Linear Roller Bearings
Direct Measuring Glass Scale
AC Servo Motor Coupled Directly With Ball Screw

Location: UK, South Lanarkshire

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
