Lot 17 - Excel CS250 Cut Off Saw

Description:

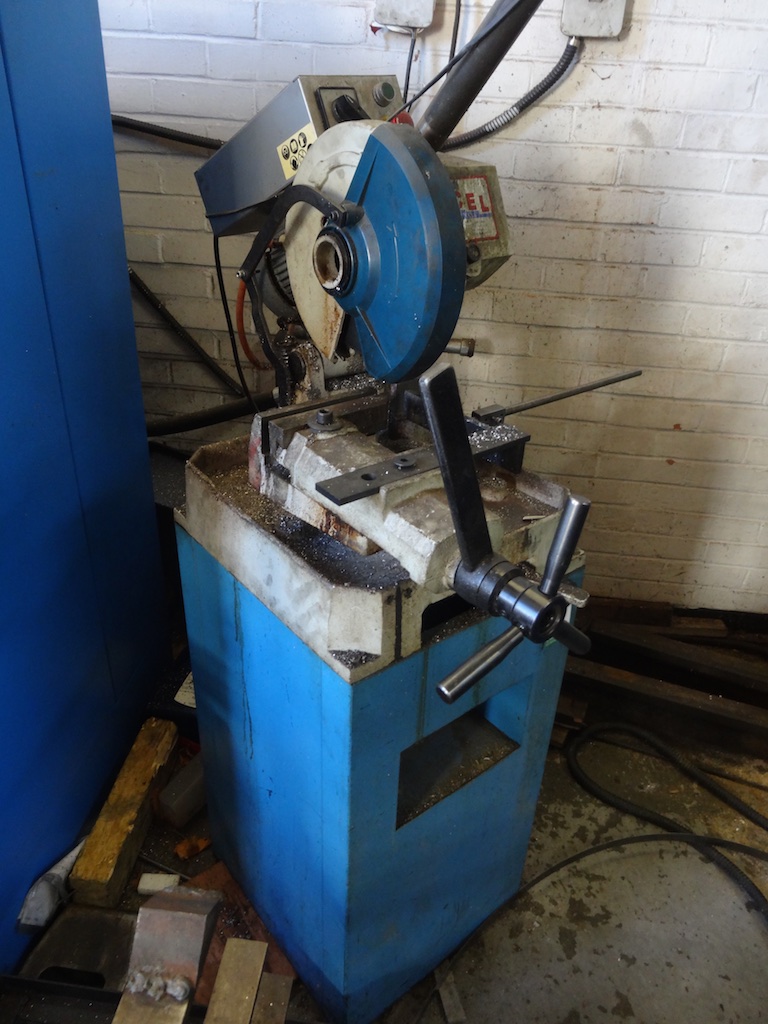

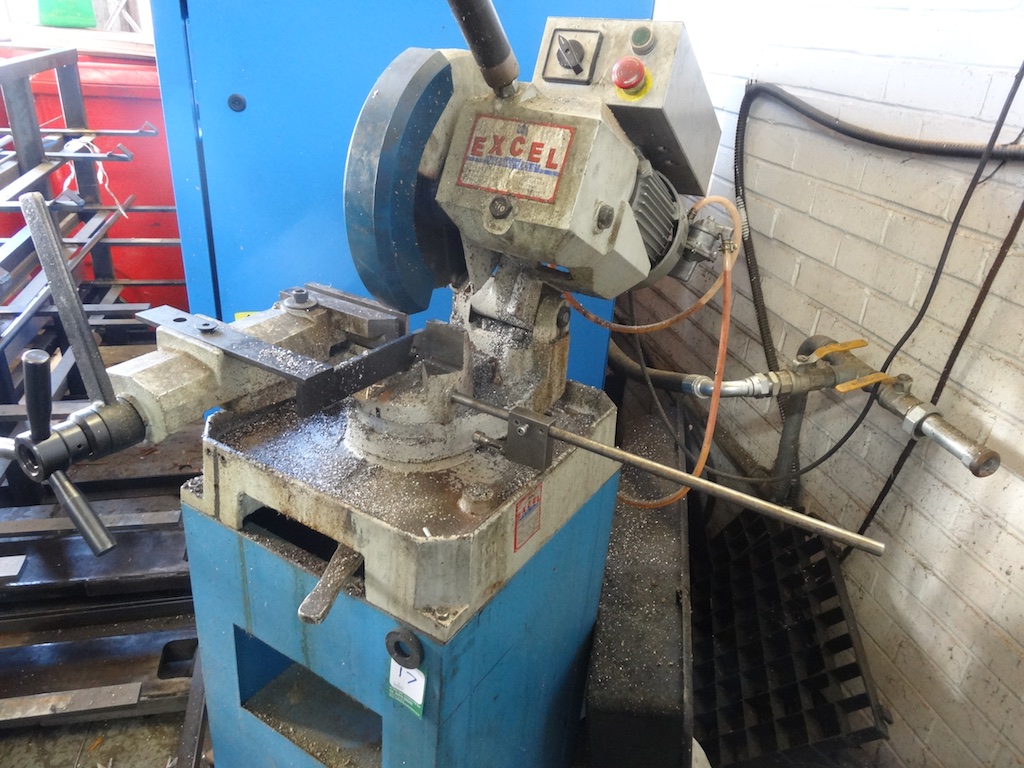

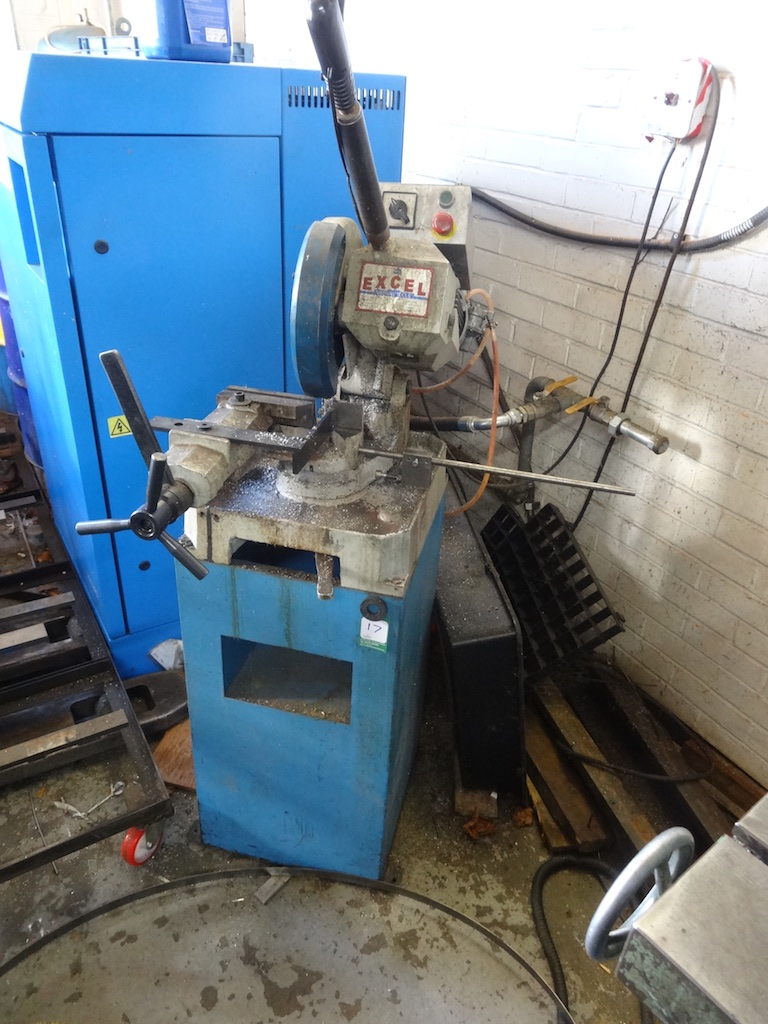

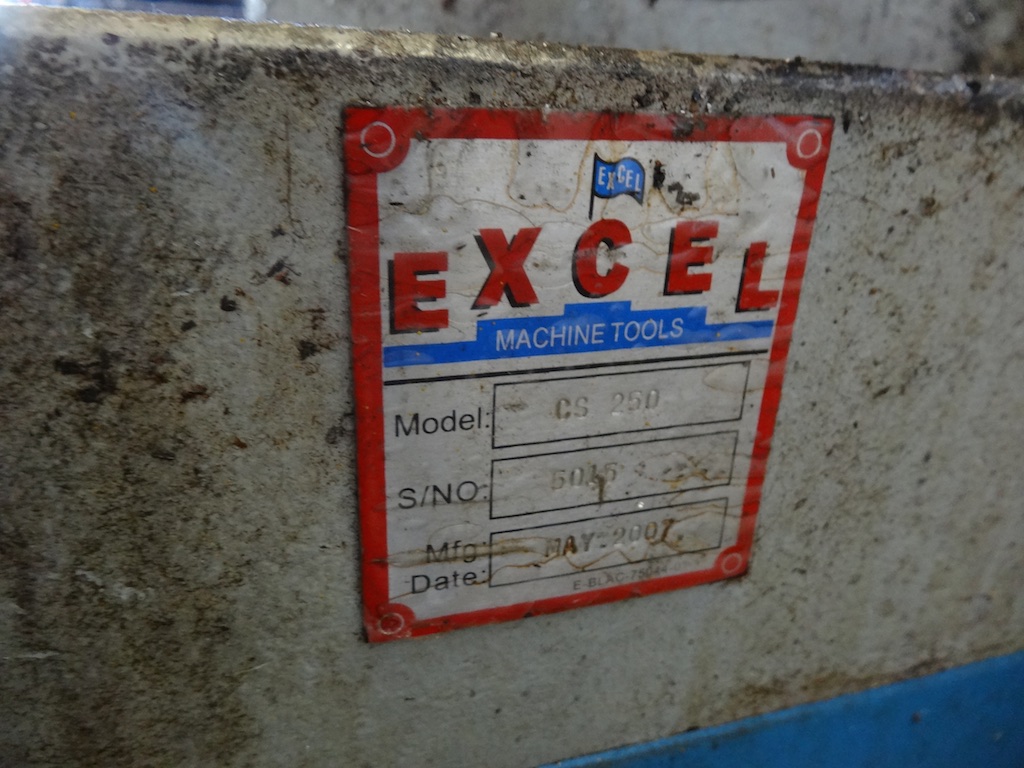

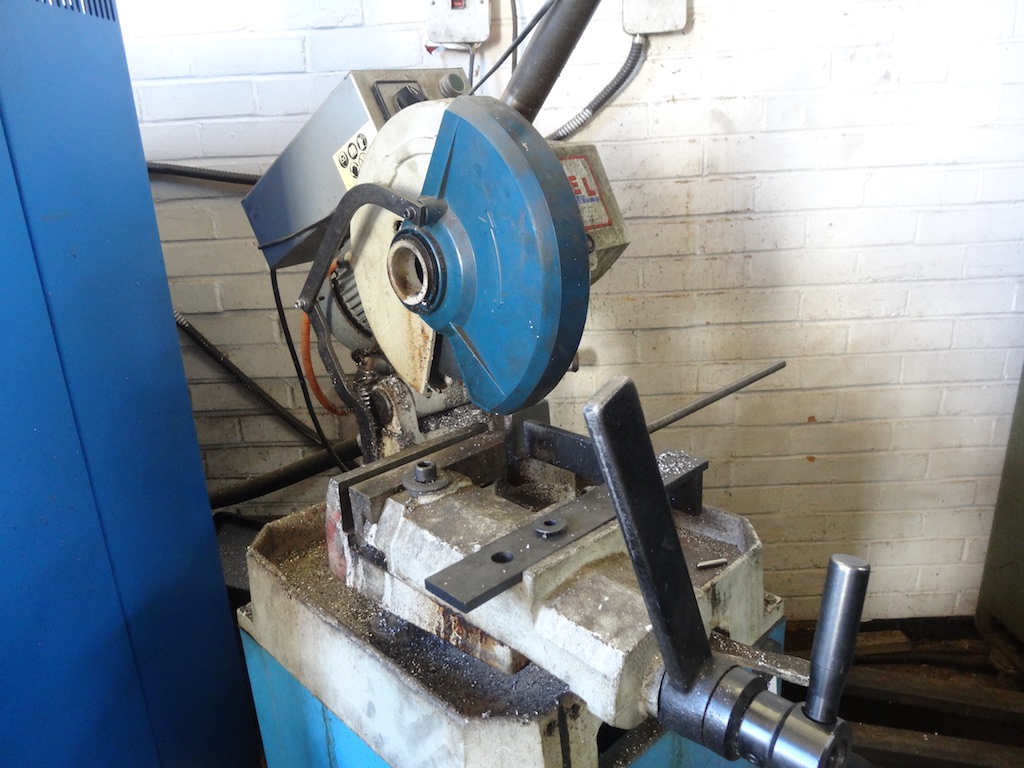

Excel CS250 Cut Off Saw

Head rotation 90° & 45° to L/R
• Gear reduction unit with Nickel Bronze Gear &

hardened & ground worm Screw • Coolant Pump

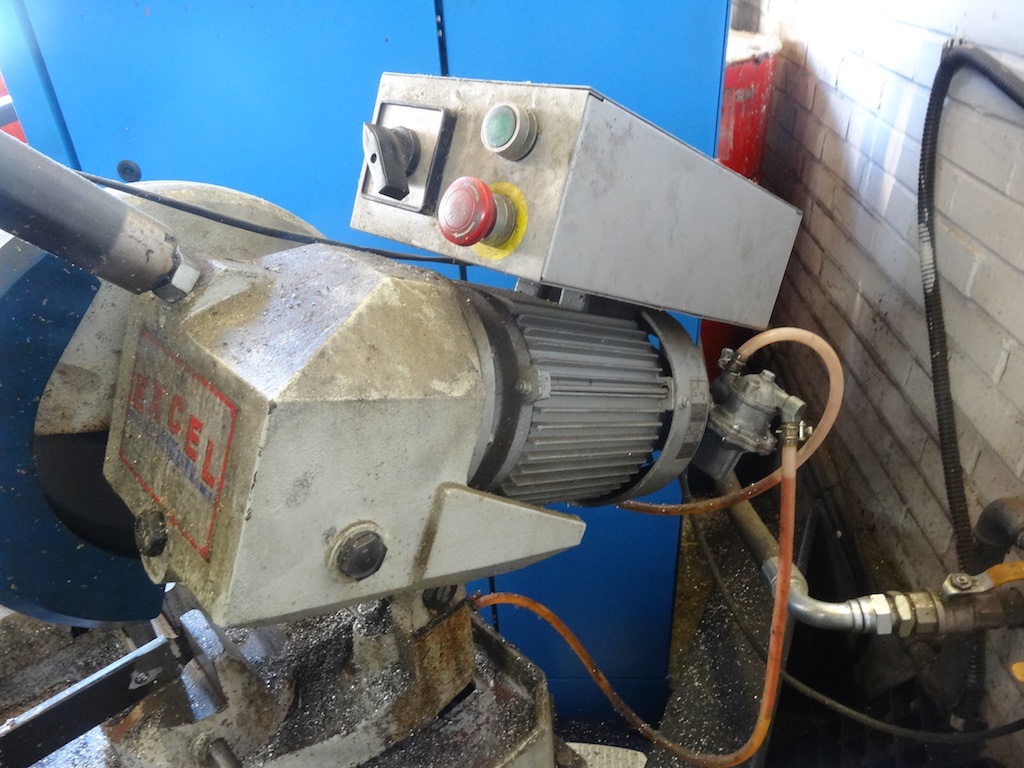

• Enclosed electric motor &

outside ventilation system.

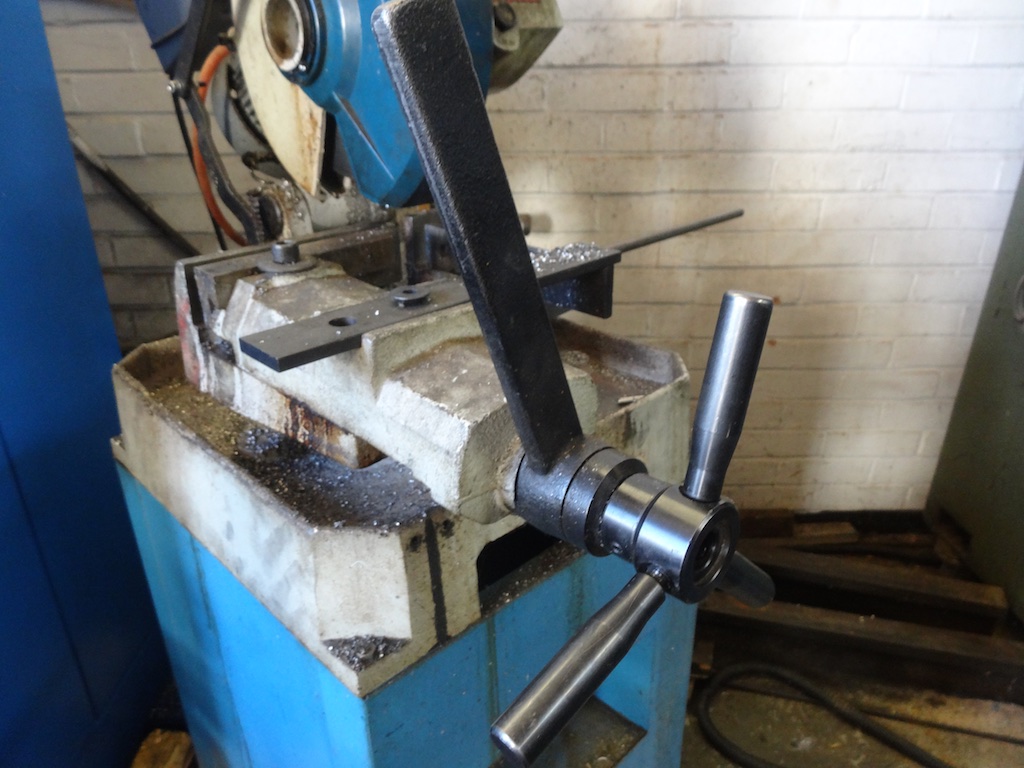

• QuickClampingViceHandle • QuickPositioning

Clamp for Head
• Solidconstruction.

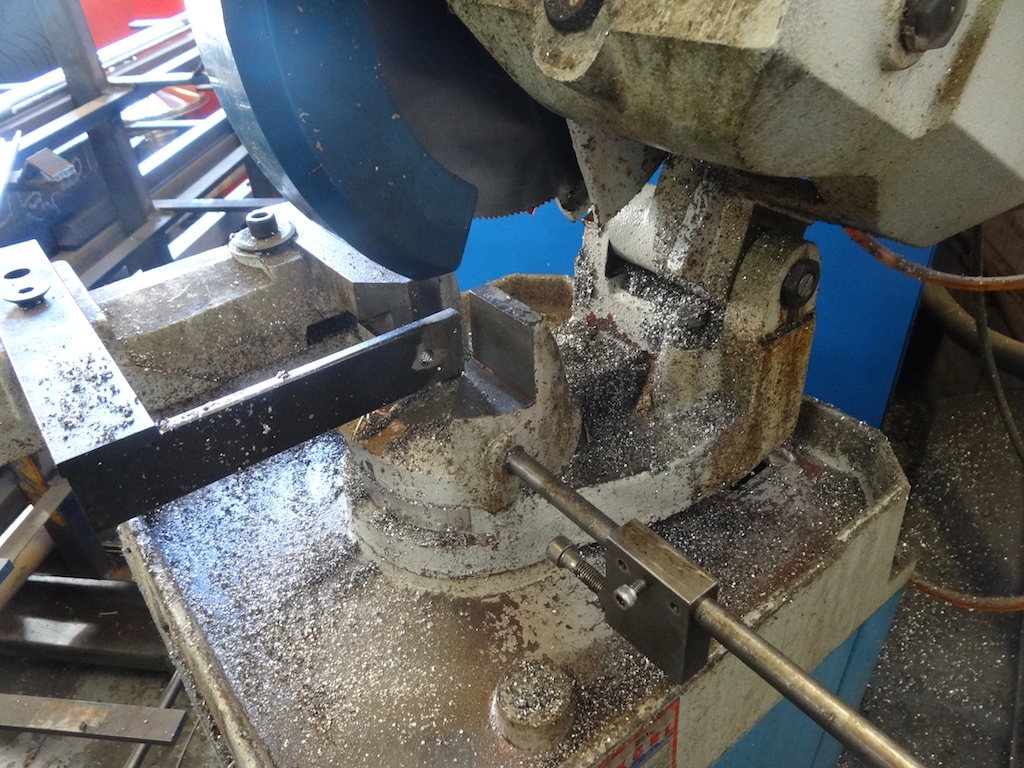

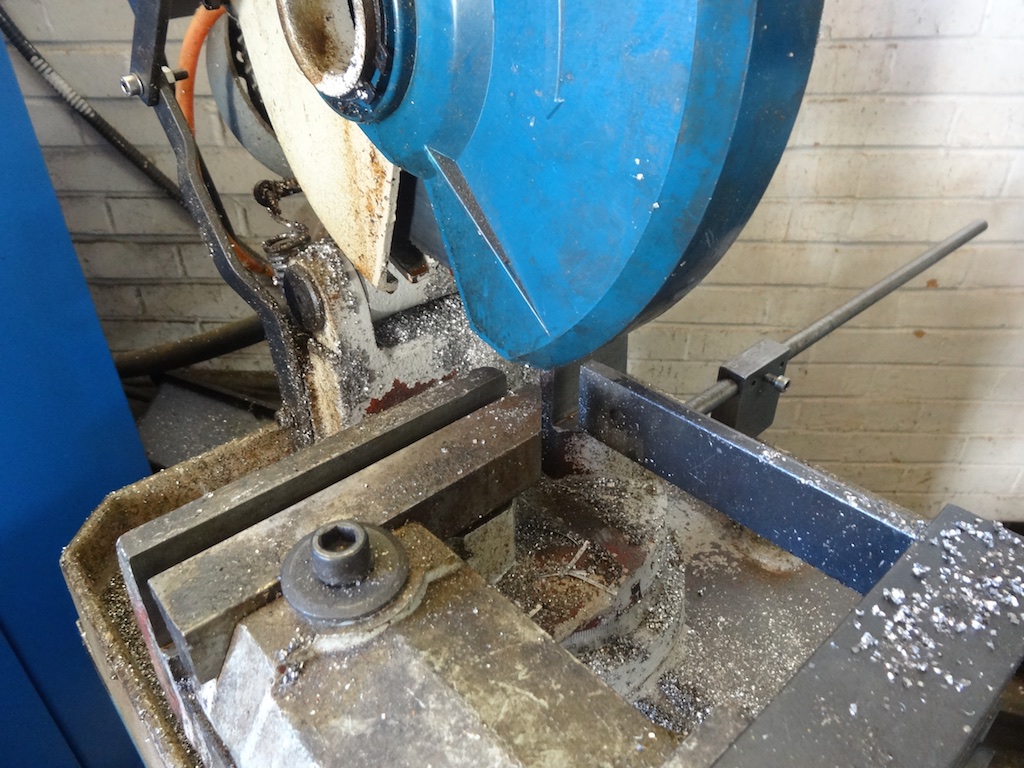

Quick Clamping Vice
• Headstockquickpositioning

Clamp 45°L, 45°R & 90°.
Vice Opening 100mm
Cap. Round Solid 90° 40mm
Cap. Round Pipe 90° 75mm
Cap. Rect. 90° 90x50 mm
Cap. Sqaure 90° 65 x 65 mm
Cap. Round Solid 45° 35mm
Cap. Round Pipe 45° 65mm
Cap. Rect 45° 75 x 50mm
Cap. Square 45° 58 x 58mm
Blade Speed 42 or 42/84 rpm
Blade Size O/Dx ID 250 x 32 mm
Motor 1.3 or 1.3/1.5 HP

Dimensions: 90 x 55 x 136cm
Weight 150 Kgs

3 Phase Model

Location: Oxon UK

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
