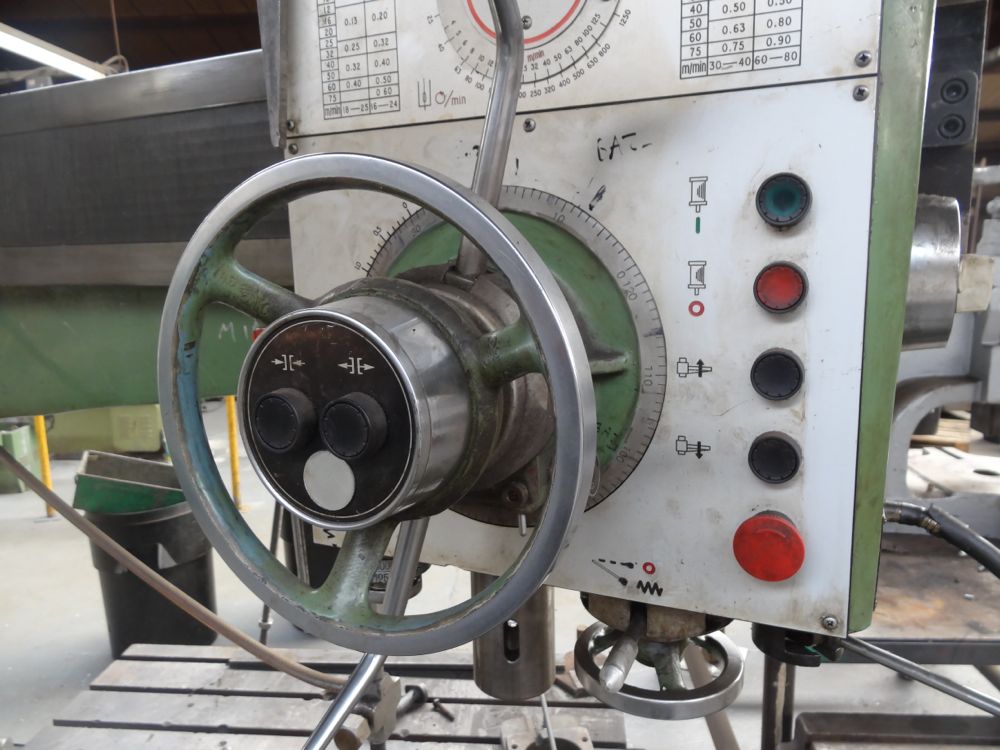

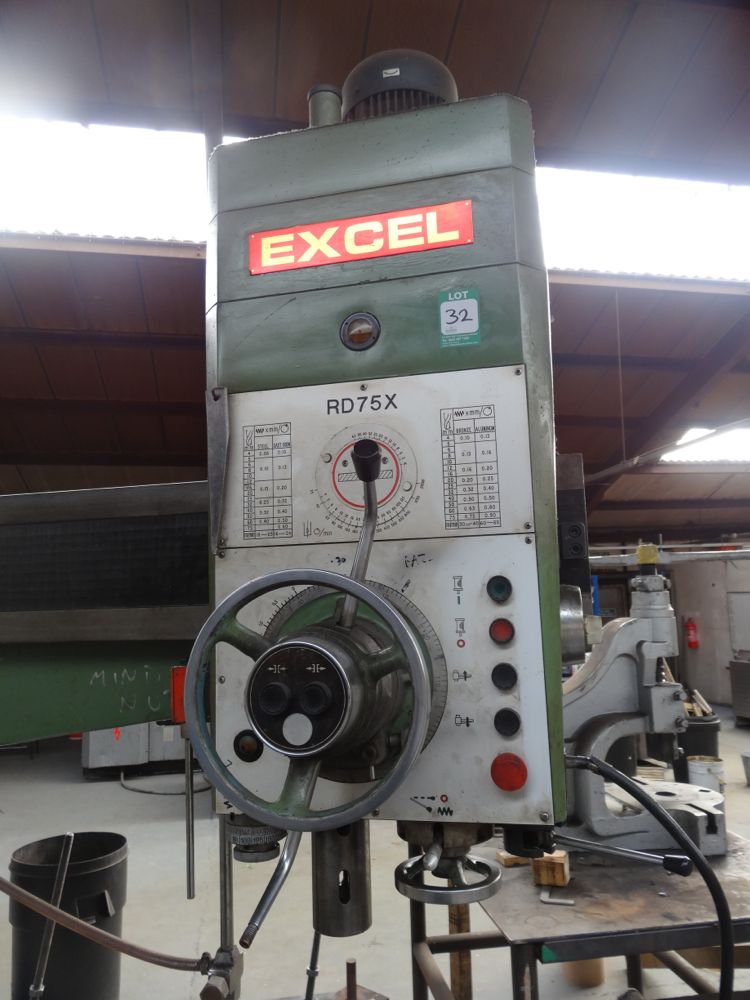

Lot 32 - Excel Radial Drill RD75X
Description:

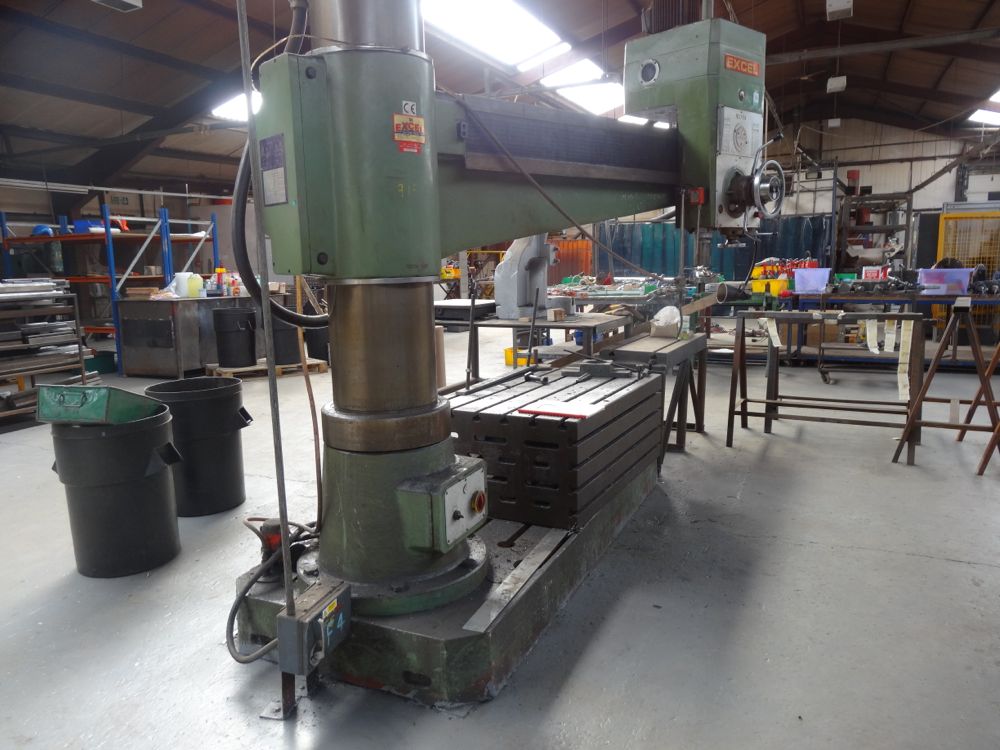

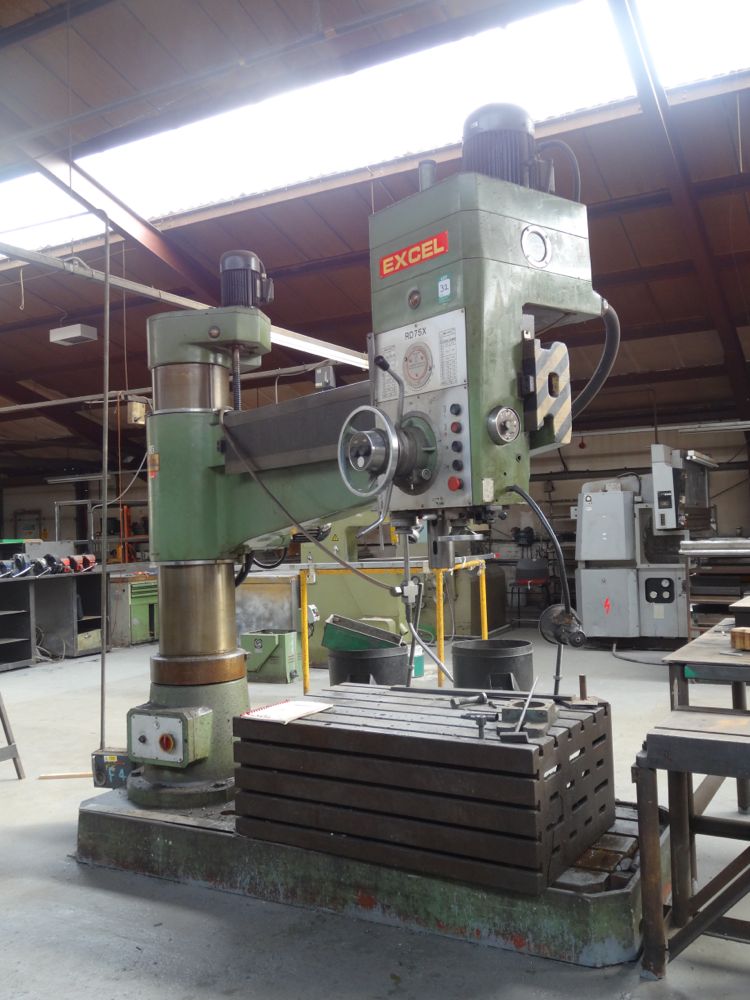

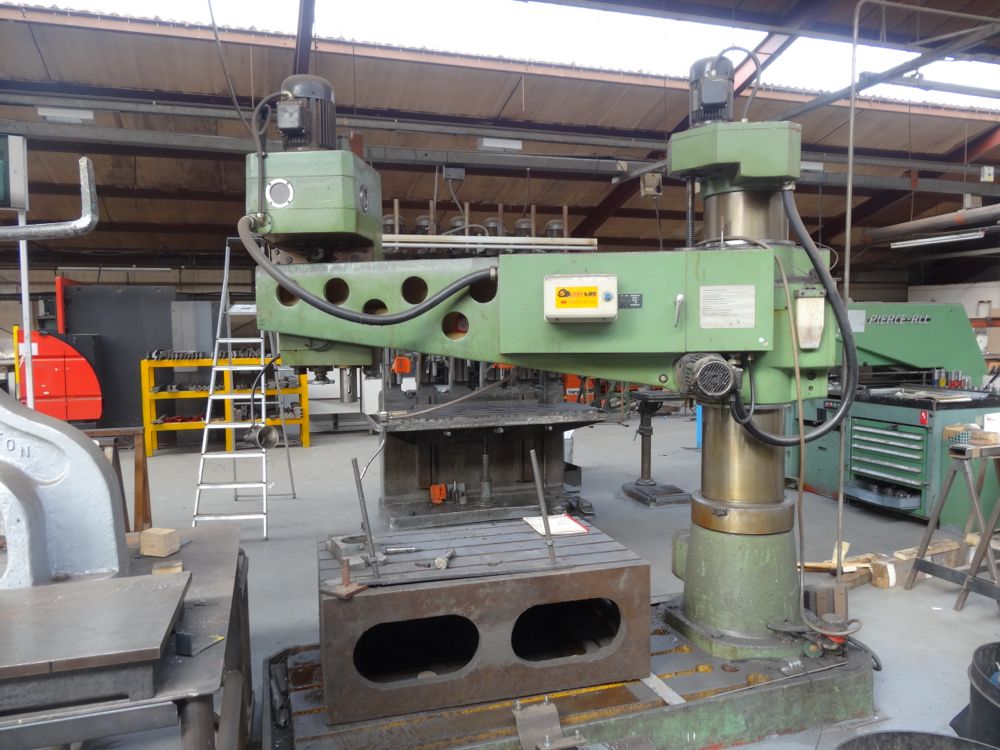

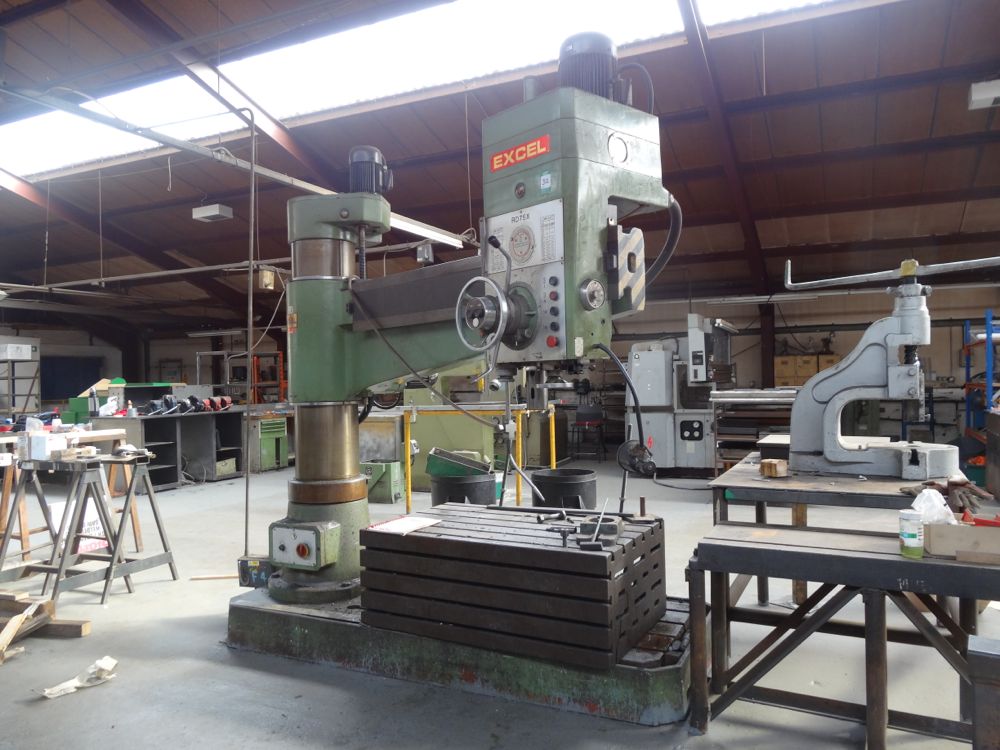

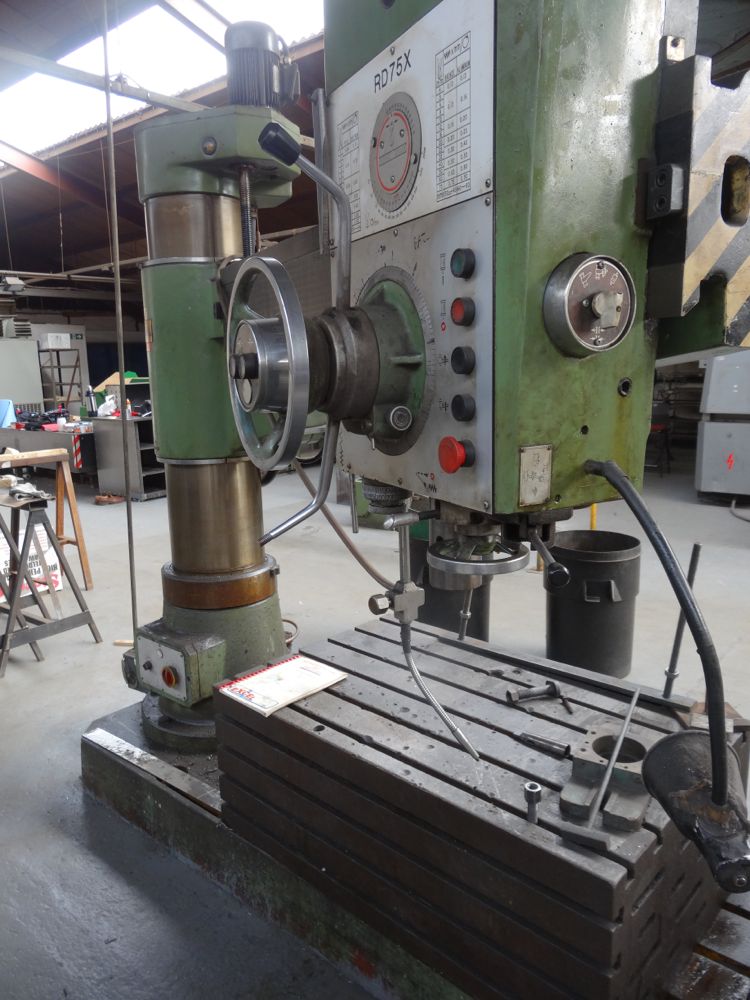

Excel Radial Drill RD75X
Capacity cast iron: 75mm
Capacity steel: 55mm
Distance between spindle and column MIN: 350MM
Distance between spindle and column MAX: 1600mm
Distance between spindle end and table surface MIN: 320mm
Distance between spindle end and table surface MAX:1220mm
Spindle taper: 5MT
Spindle travel 315mm
Spindle speed: 25 - 2000RPM
No. of spindle speeds: 16

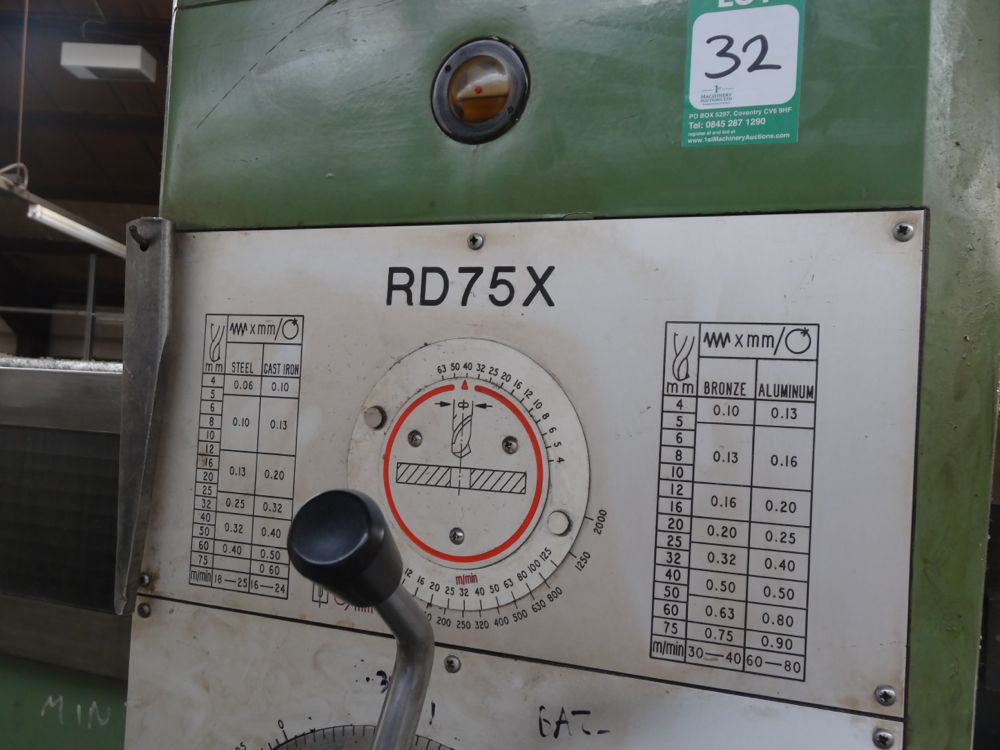

Spindle feeds: 0.04 - 3.2mm/rev
No. of spindle feeds: 16
Column Diameter: 350mm
Arm length: 2140mm
Table size: 500 x 630mm
Main Motor: 5.5HP
Net Weight: 3500kg
LxWxH: 1000 x 2500 x 2800

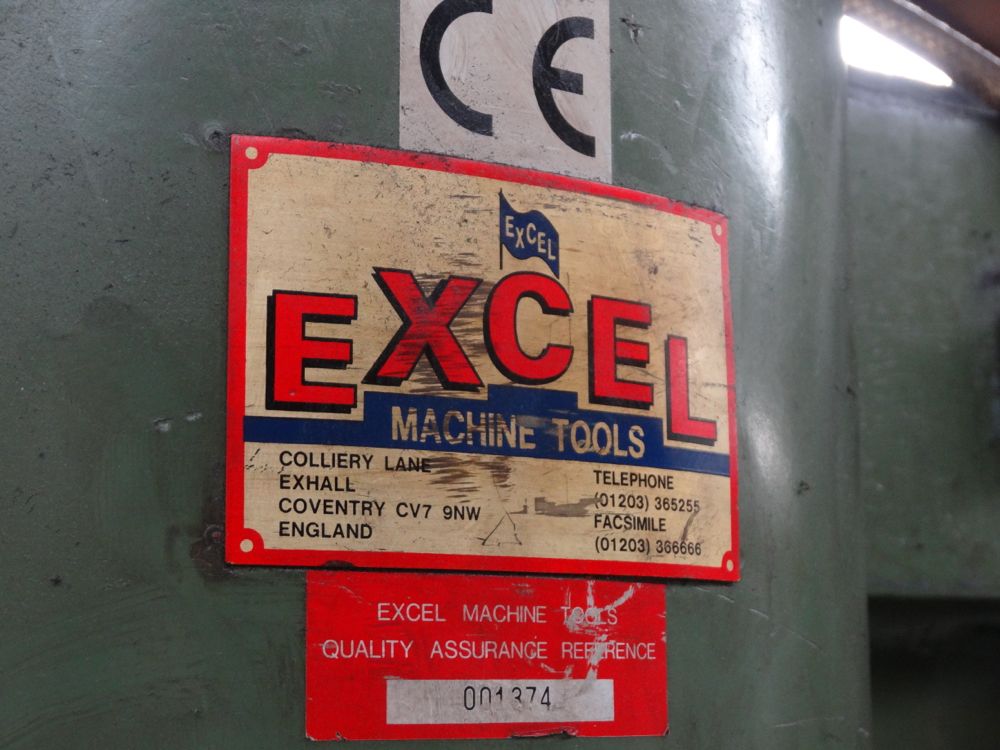

Ref: 001374
Location: Engments Ltd, Derby
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
