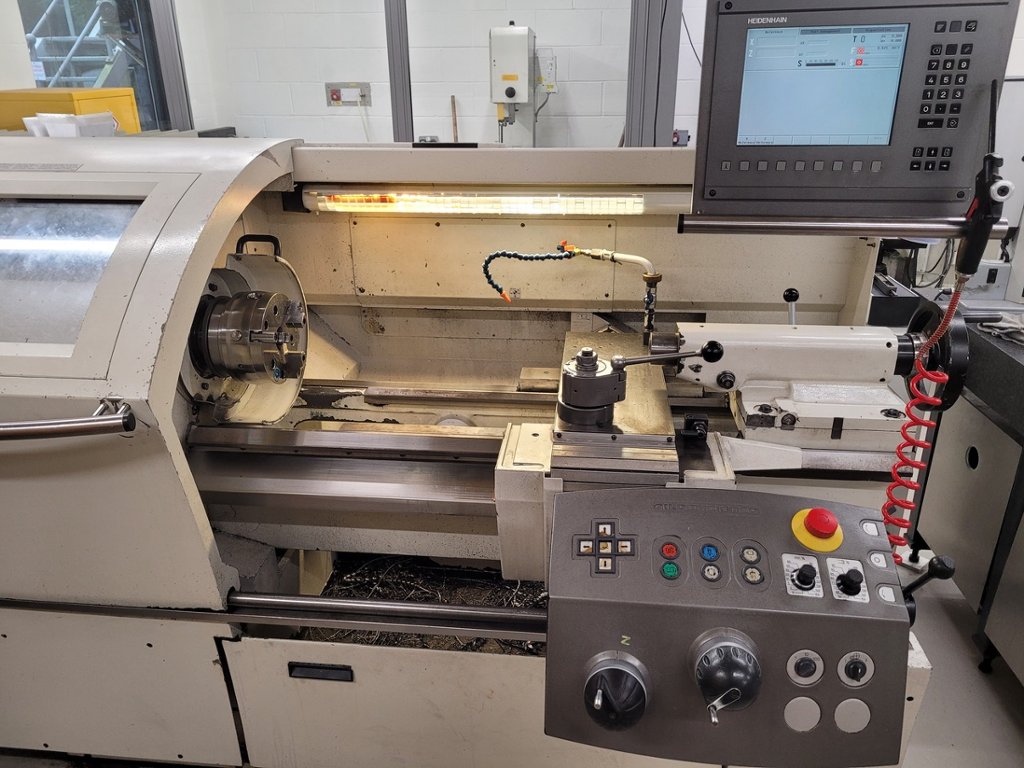

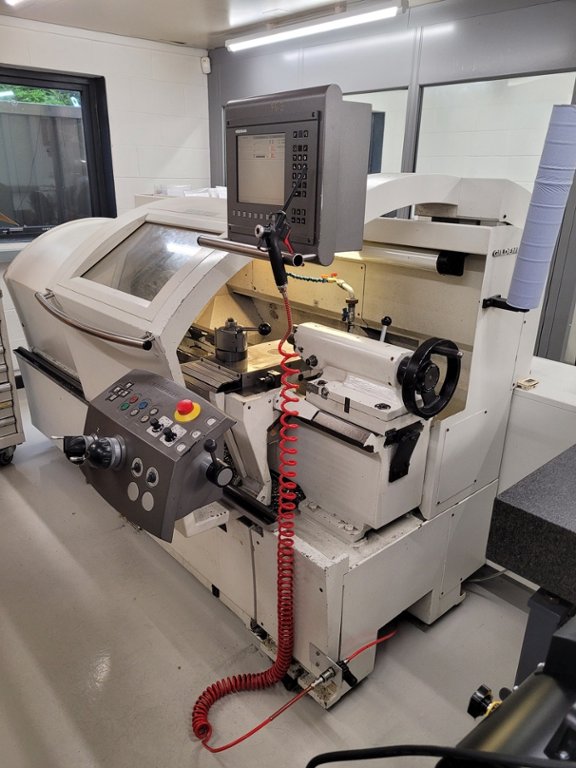

Lot 1 - Gildemeister NEF 320 CNC Lathe (2002)

Description:

Machine type : NEF 320

Diameter of max. circumference above bed : 320mm
Diameter of max. circumference above cross :150mm
Chuck diameter : 200mm
Facing traverse : 185mm
Width between centres : 750mm

Turning spindle

Spindle head DIN 55027 : Size 6
Spindle hole diameter : 50.8mm
Holder in spindle : MK6
Spindle diameter in front bearing : 85mm

Main drive AC

Drive rating 100% duty cycle : 9kW
Max. torque at 100% duty cycle : 410 Nm
Rotational speed range : 10...4000

Feed drive AC

× feed force 100% duty cycle : 3000 N
Z feed force 100% duty cycle : 6000N
X rapid traverse/feed speed : 8m/min
Z rapid traverse/feed speed : 10m/min

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport

• Photos

Enlarge

Bid information

Location: Leicester

Transport information

• Other Transport Details: * Please note the loading charge of £2,000 on this machine. This will include, decommissioning and draining, plus transport back to a storage facility in The Midlands due to the sensitivity of the current site. The machine will then be reloaded onto customers transport
