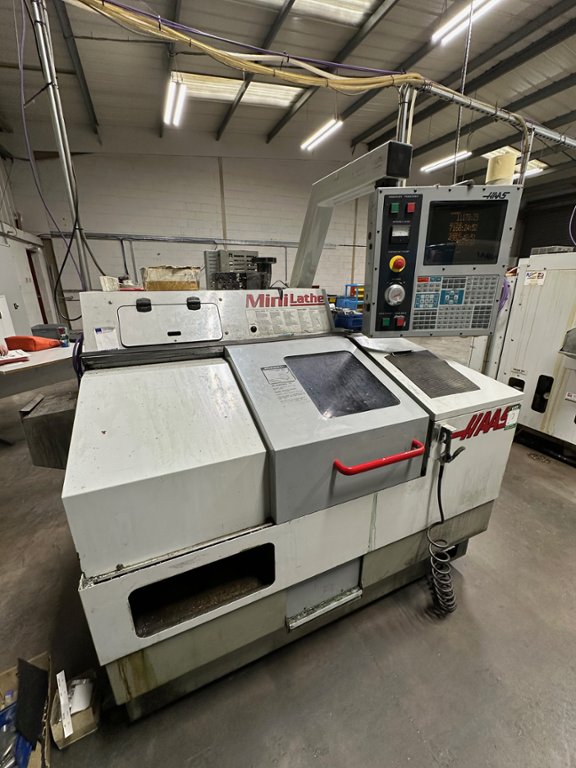

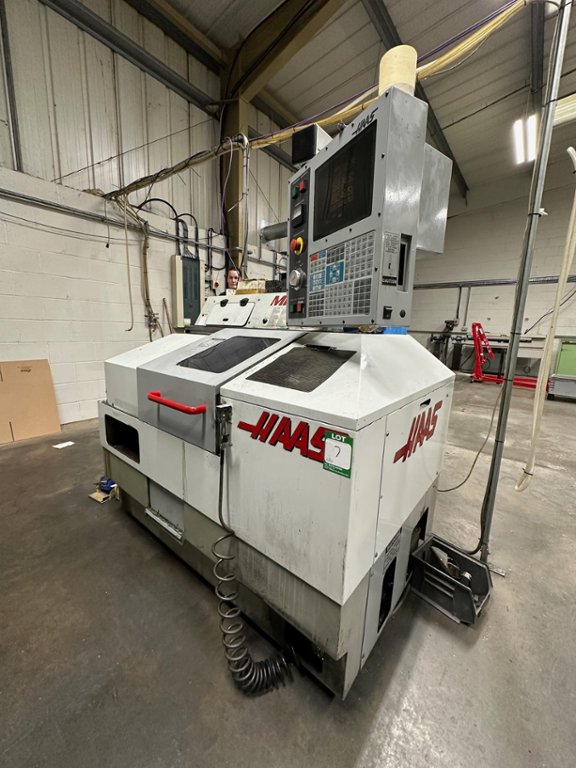

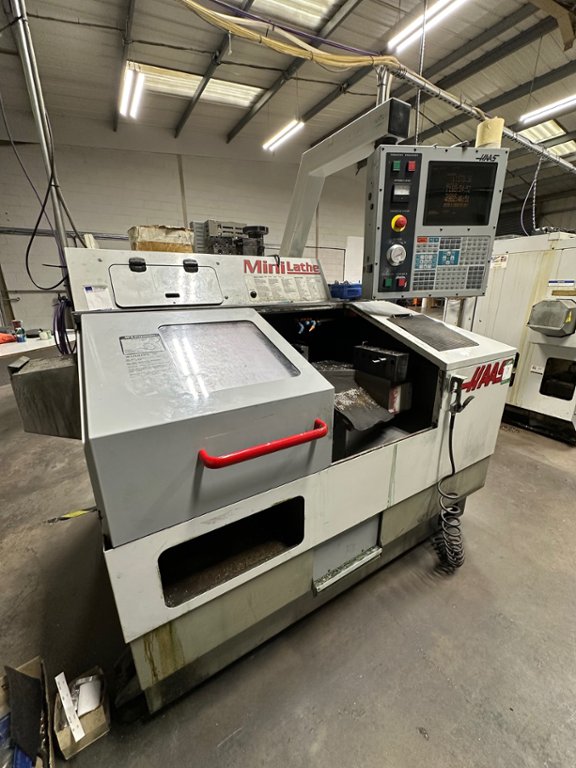

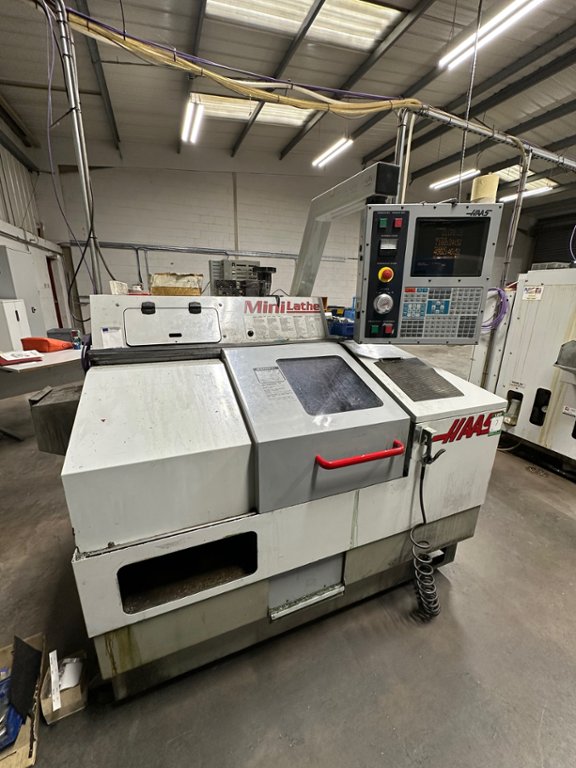

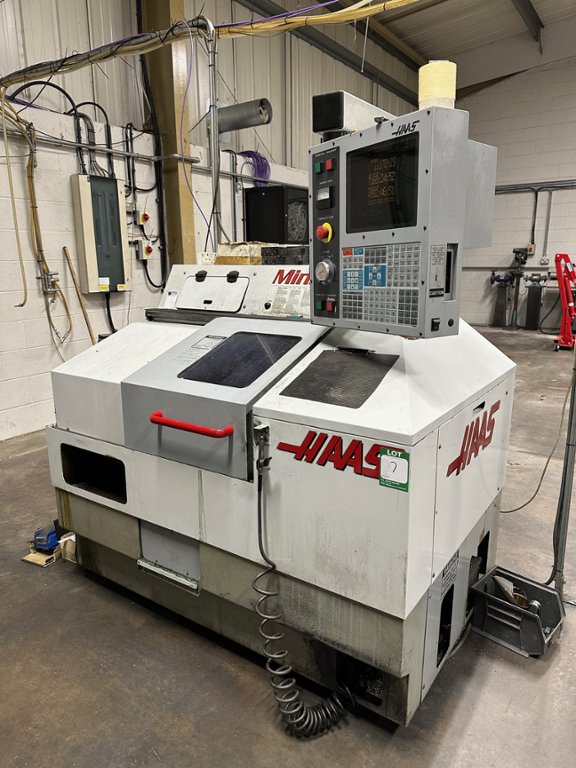

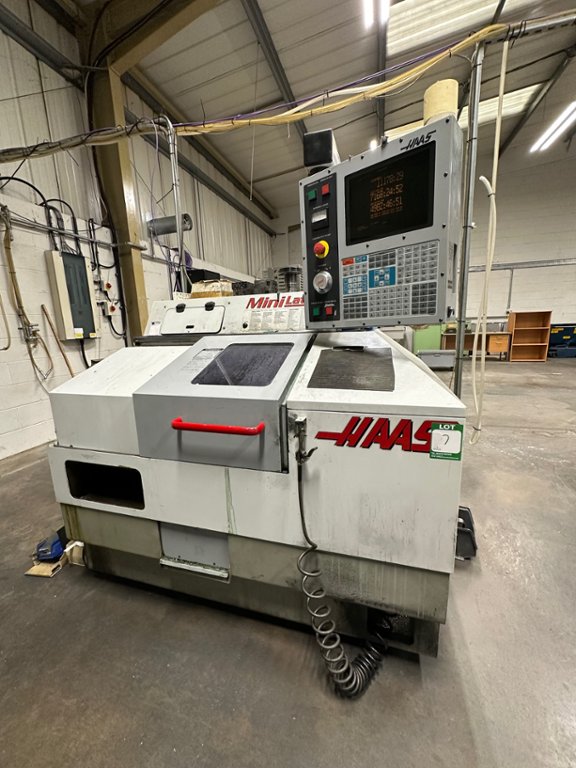

Lot 7 - Haas Mini Lathe (2002)

Description:

Travels

X - 304.8mm, Z - 304.8mm, Axis Motor Thrust - 8,896 N AC Brushless (Maximum), Rapids 15.2 Meters/Minute

Spindle

Maximum Speed - 6000RPM, Motor Rating - 5.61kW, Torque - 26.6 Nm @ 1500RPM, Spindle Nose - A2-5, Spindle Bore - 35.05mm, Draw Tube Bore - 29.97mm, Draw Tube Stroke - 10mm Total, Type Acuation - Push or Pull

Capacities

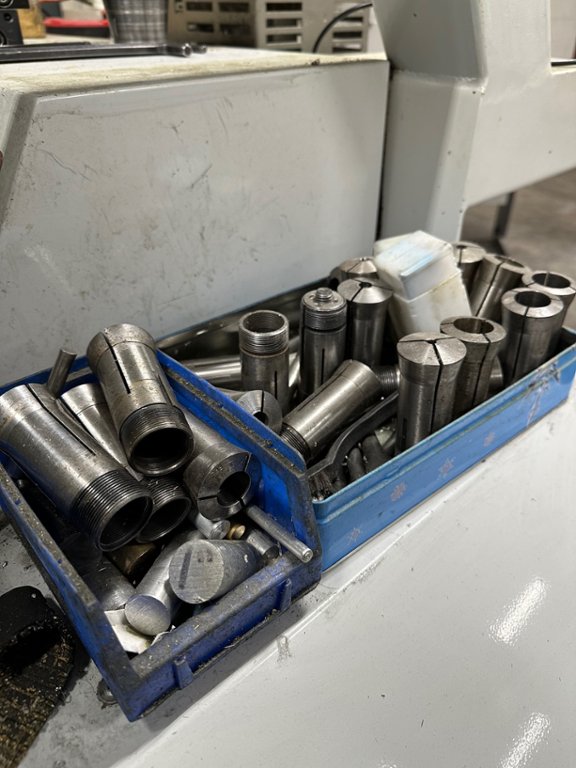

Collet Size - 5C Type Standard, Bar Capacity (Max) - 26.92mm when using liner 5C & 5C Collet, Max Swing - 147.32mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
