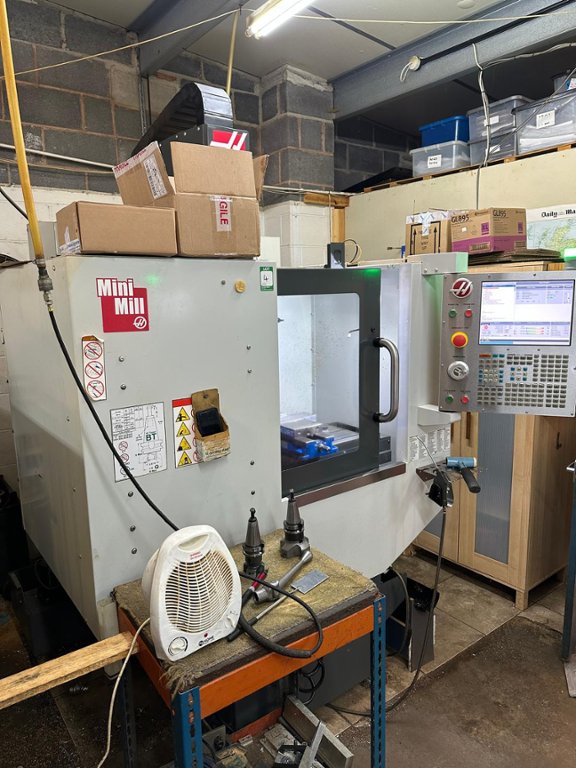

Lot 4 - Haas Mini Mill (2018)

Description:

X Axis Travel: 406mm, Y Axis Travel: 304mm, Z Axis Travel: 254mm, Rapid Rate X Axis: 600 IPM, Rapid Rate Y Axis: 600 IPM, Rapid Rate Z Axis: 600 IPM, Table Size: 730 x 304
Max Table Load: 227kg, Spindle Motor: 7.50 HP, Spindle Speed: 6,000 RPM, Spindle Taper: 40 CT, Tool Changer: 10 ATC, Bearing Lubrication: Grease Packed, Cooling: Air Cooled
Max Cutting: 500 ipm, Axis Motors: 2,000 IBF Max Thrust X,Y,Z, Max Tool Dia: 89mm
Max Tool Weight: 5kg, Chip to Chip: 5 Sec, Coolant Capacity: 40 Gal Standard, Air Required 100 PSI, Full Load AMPS 13/25, Input Voltage 220 3 Phase

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
