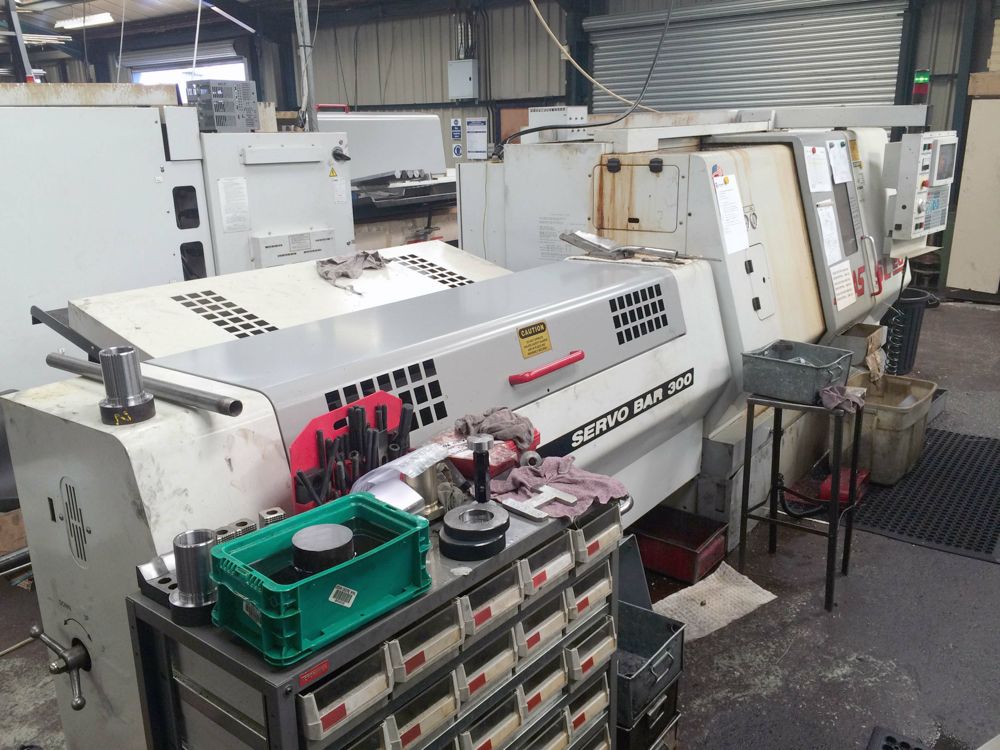

Lot 2 - HAAS SL20 CNC Lathe (1999)

Description:

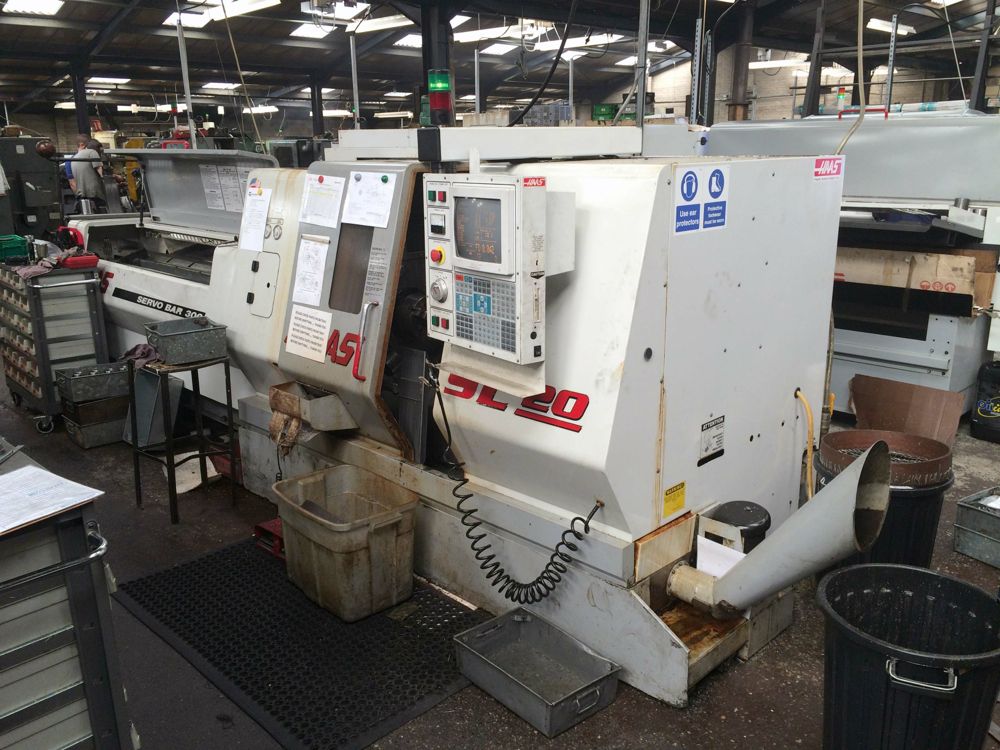

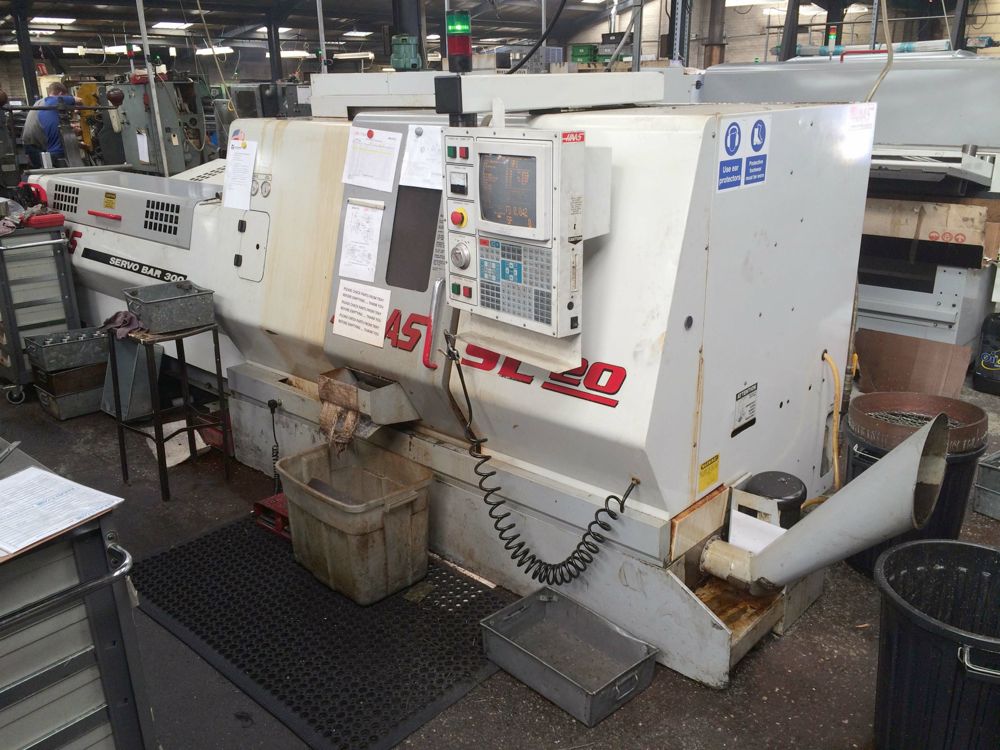

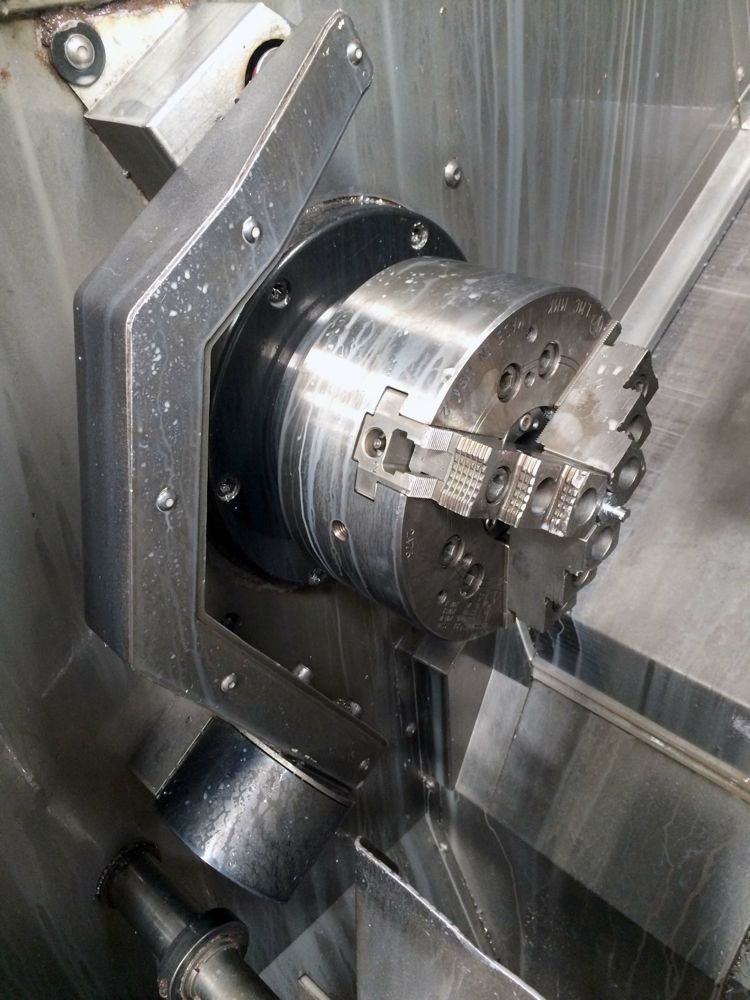

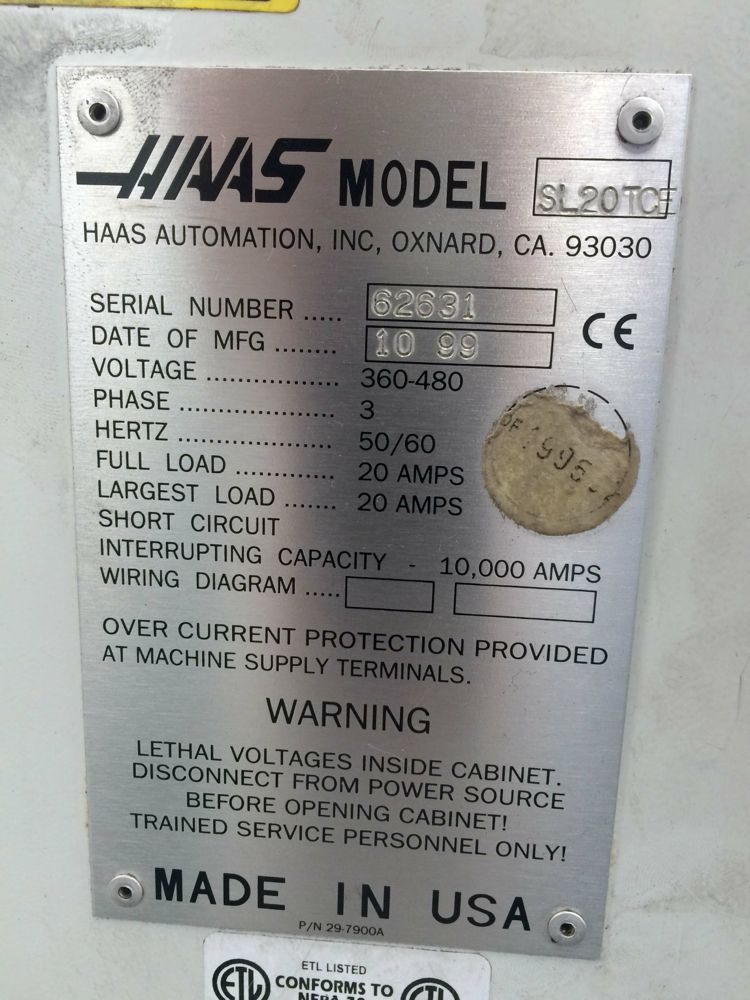

HAAS SL20 CNC Lathe (1999)

Swing Diameter
Over front apron: 508mm
Over cross slide: 241mm

Capacities
Chuck size: 203mm
Standard Bar Capacity: 51mm
Between centers: 610mm
Max cutting diameter: 254mm
Max cutting length: 508mm

Spindle
Max speed: 4000rpm
Torque: 209Nm @ 650rpm
Peak Horsepower: 15kW
Spindle nose: A2-6
Spindle bore: 76.2mm
Draw tube bore: 52.3mm

Travels & Feedrates
X- Axis: 215mm
Z- Axis: 508mm
Axis motor max. thrust: 15124N
Rapids (AC brushless): 710ipm

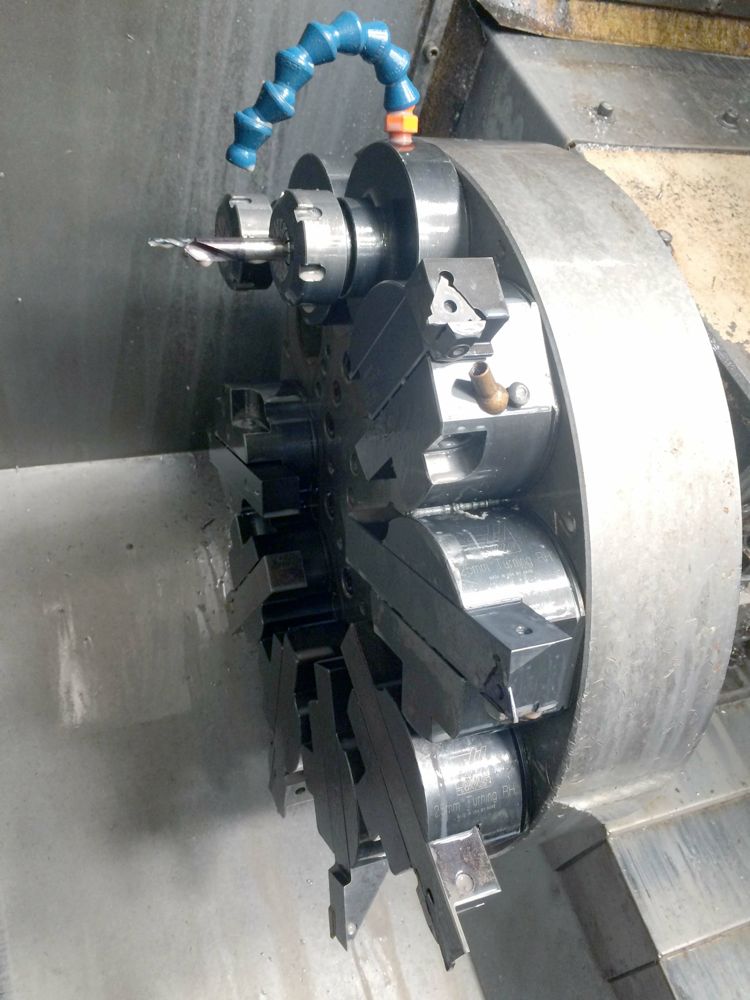

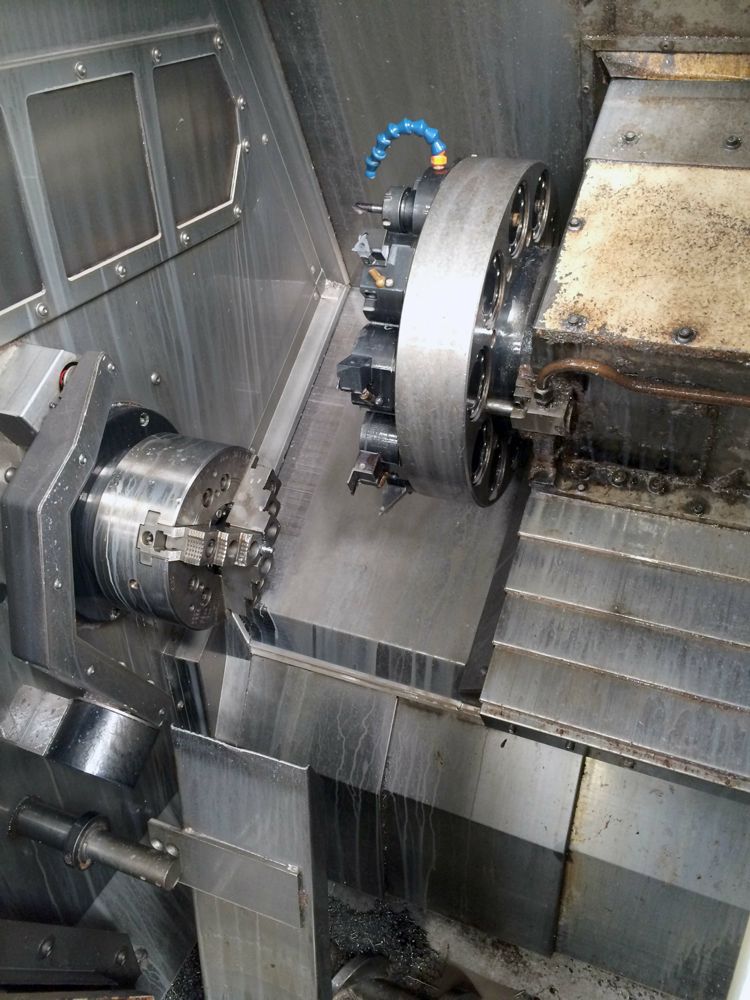

Turret
Number of tools: 10
Tool hole in turret: 50.8mm
Tool size (OD. turning): *1”
Boring bar rear clearance (from turret face):108.0mm
Index time (one tool): 1 second

Accuracy
Positioning: +0051mm
Repeatability: 00.25mm
Miscellaneous
Weight: 4082kg
Power Requirement: 12kVA
Volts/phase: 200-250 VAC, 3 phase 60Hz

Tool Presetter
Parts Catcher
Tail Stock
Coolant: 151L

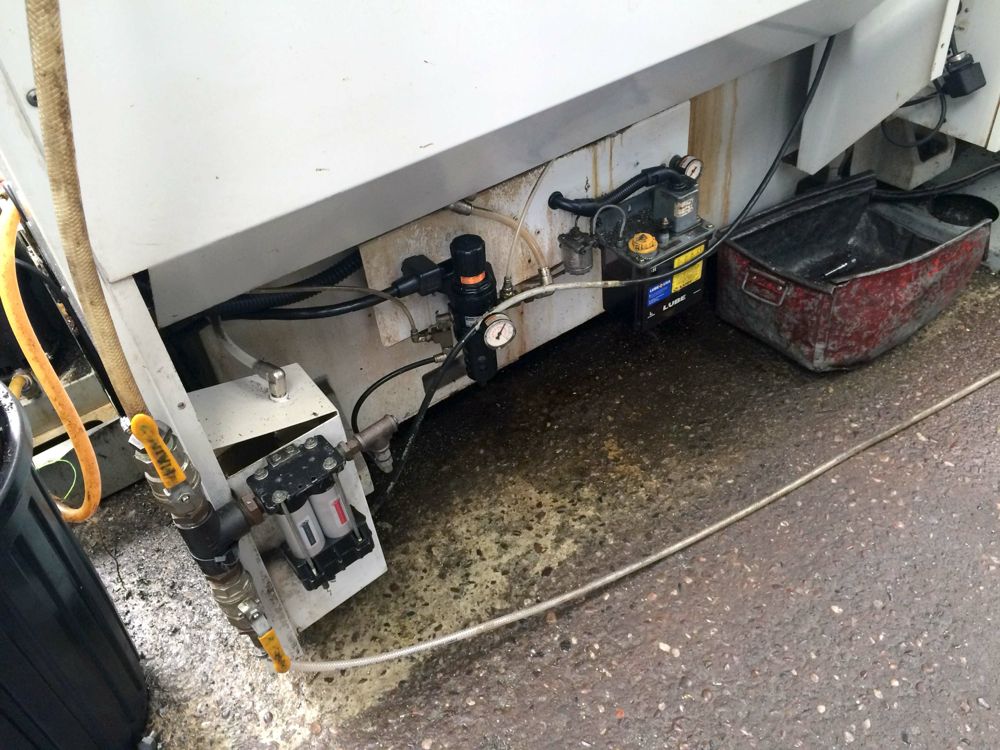

Air Requirement: 1.42lps @ 6.9 bar

Please note,

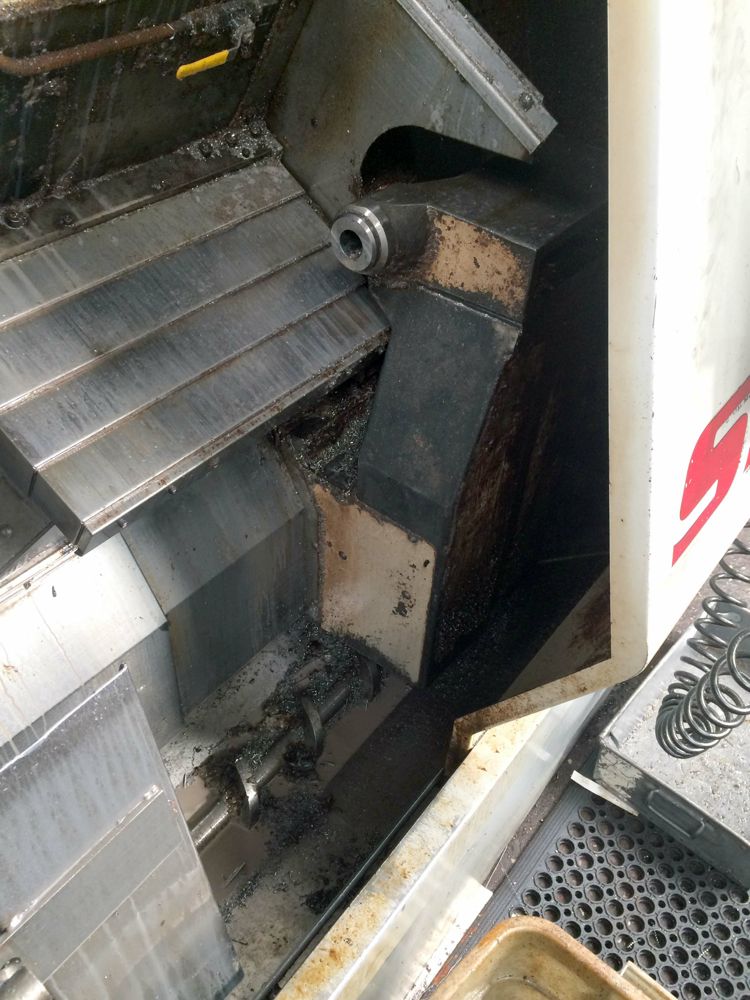

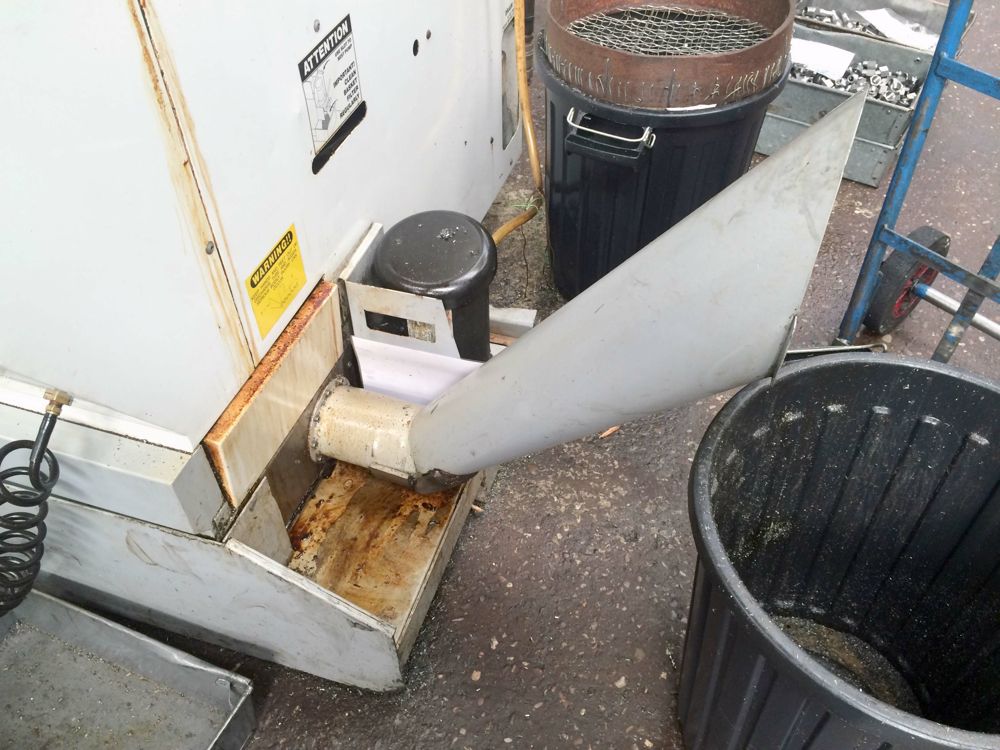

The Turret will only rotate one direction, and the Swarf auger needs repairing.

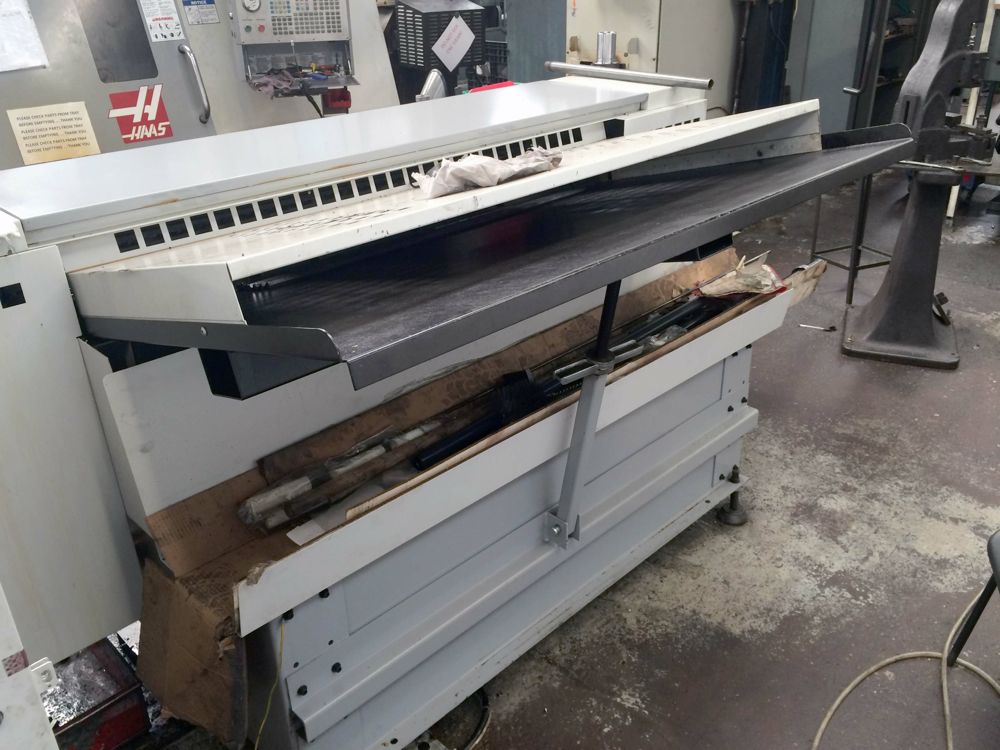

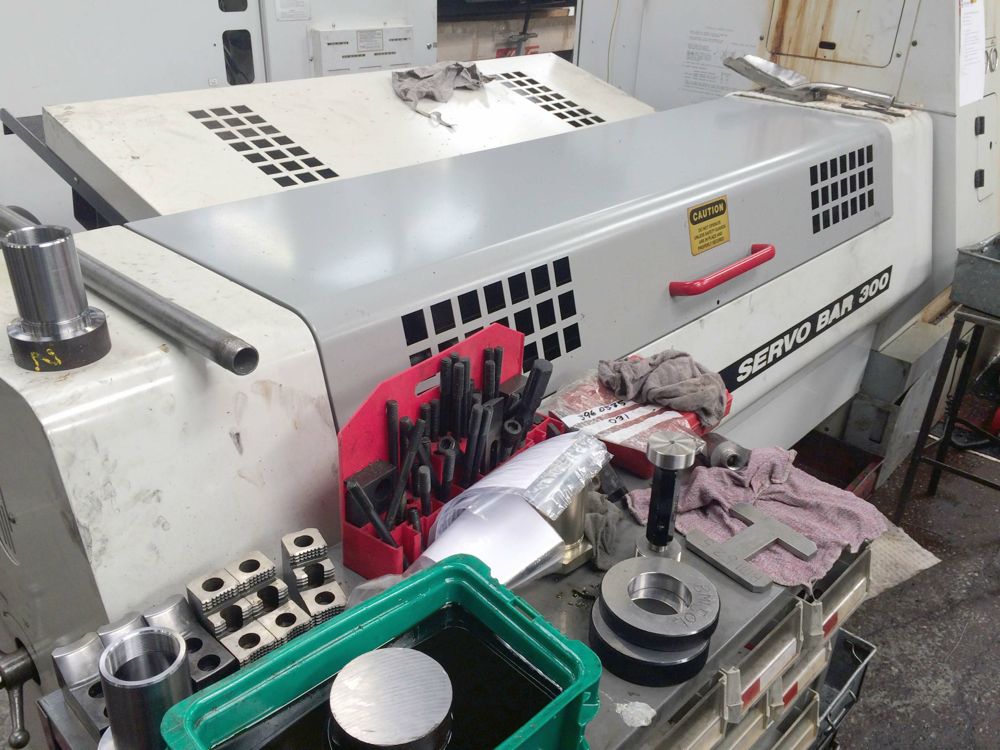

Has just had a new Haas Barfeed Interface card fitted.

Located West Midlands

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
