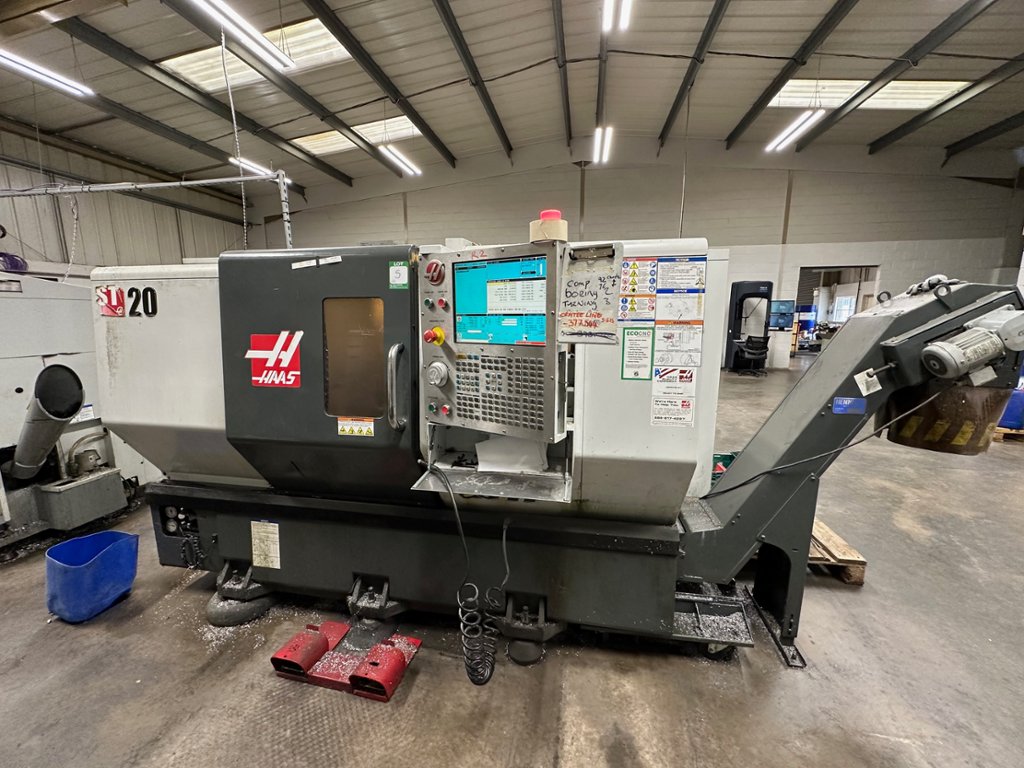

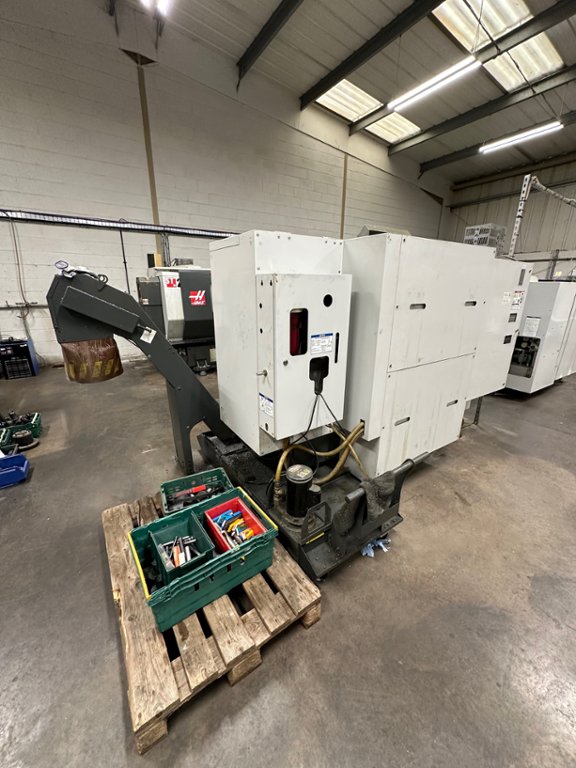

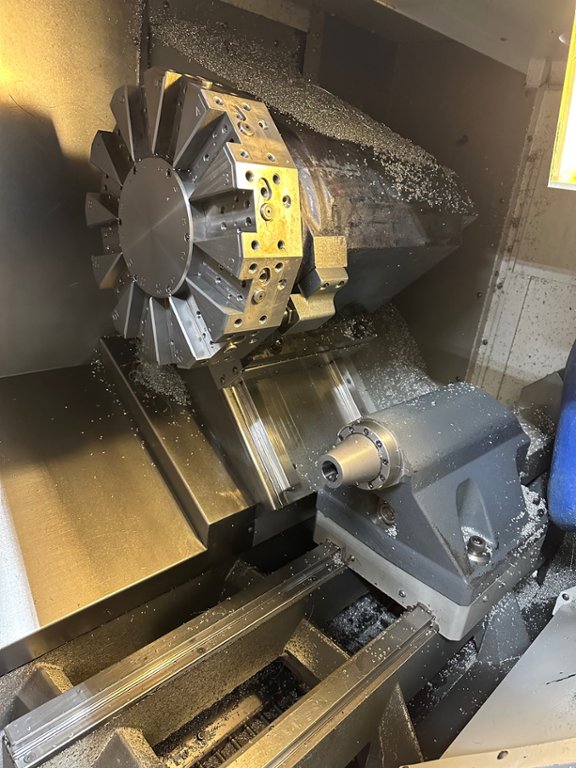

Haas ST20 CNC Turning Centre (2011)

Lot 5 - Haas ST20 CNC Turning Centre (2011)

Description:

Capacities

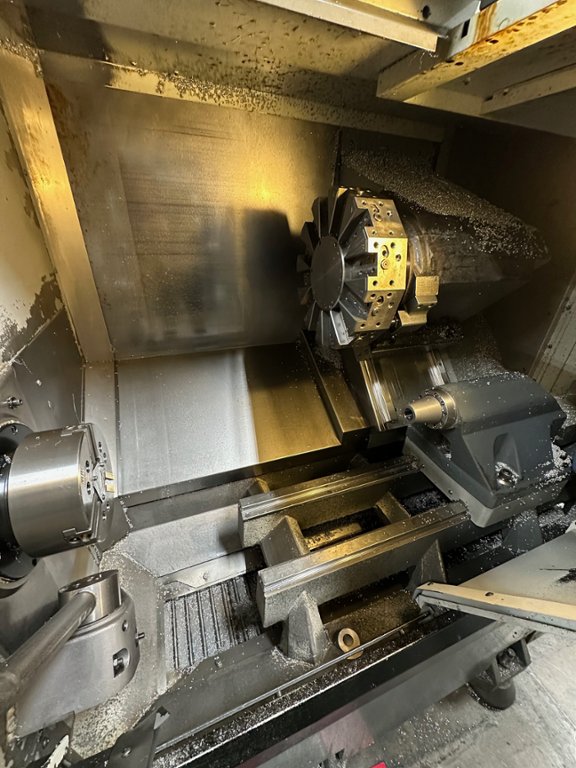

Max Part Swing 533 mm, Max Cutting Diameter (with BOT turret) 330 mm, Max Cutting Diameter (with BMT65 turret) 298 mm, Max Cutting Diameter (with VDI turret) 300 mm, Max Cutting Length (varies with workholding) 572 mm, Bar Capacity 64 mm

Travels

X Axis 213 mm, Z Axis 572 mm

Feedrates

Rapids on X - 24.0 m/min, Rapids on Z - 24.0 m/min

Axis Motors

Max Thrust X - 18238 N, Max Thrust Z - 22686 N

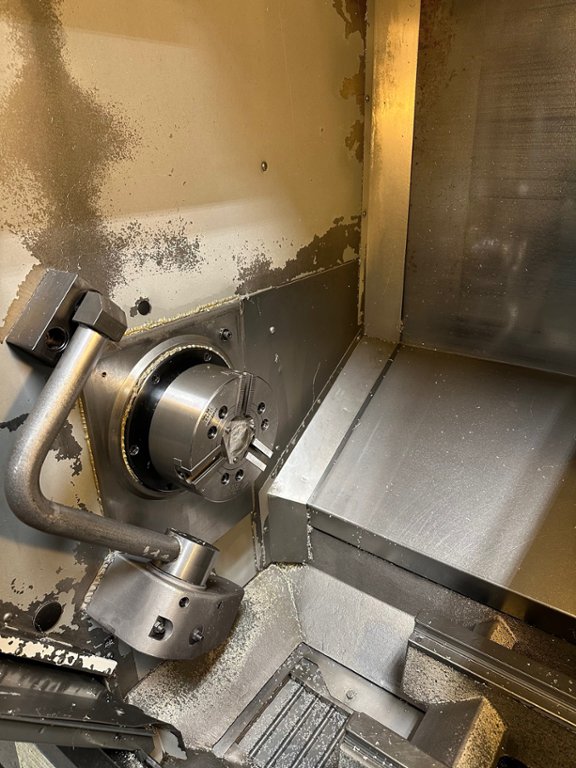

Spindle

Spindle Nose A2-6, Drive System Direct Speed, Belt Drive, Max Rating 14.9 kW, Max Speed 4000 rpm, Max Torque 203.0 Nm @ 500 rpm, Spindle Bore ø 88.9 mm

Sub Spindle

Chuck Size 5.3", Spindle Nose A2-5, Max Speed 6000 rpm, Max Sync Speed w/Main Spindle 4800 rpm, Chuck Throat Ø 33.0 mm x 34.8 mm DEEP, Drawbar Bore (non-through) Ø 25.4 mm x 114.3 mm DEEP, Spindle Bore (without chuck and drawbar installed) 38.1 mm, Integrated Brake Torque 23 N/m, Spindle Orientation Accuracy (Requires SO) ± 0.02 °, Rapids (B-axis) 10 m/min

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
