Lot 7 - HAAS TM 3P VMC
Description:

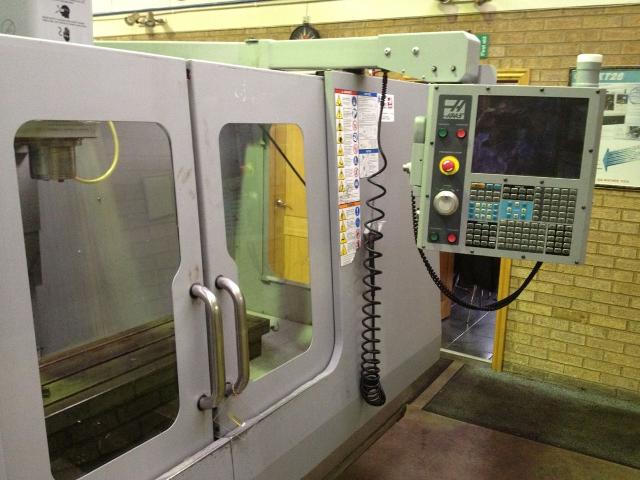

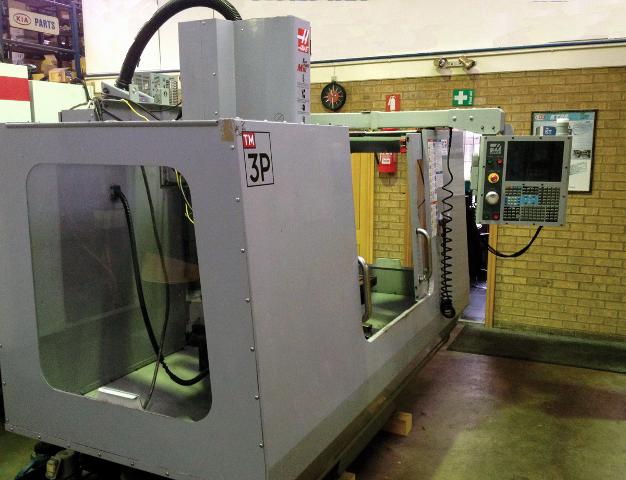

Haas TM-3P VMC
Location: Coventry
Swarf conveyor,
Manuals,
Remote Hand Wheel,
USB Port
TRAVELS S.A.E.
X Axis: 40 "
Y Axis: 20 "
Z Axis: 16 "
Spindle Nose to Table (~ min) 4 "
Spindle Nose to Table (~ max) 20 "
TABLE S.A.E.
Length : 57.75 "
Width : 14.5 "
T-Slot Width : 5/8 "
T-Slot Center Distance ...4.00 "
Number of Std T-Slots 3
Max Weight on Table (evenly distributed: 1000 lb

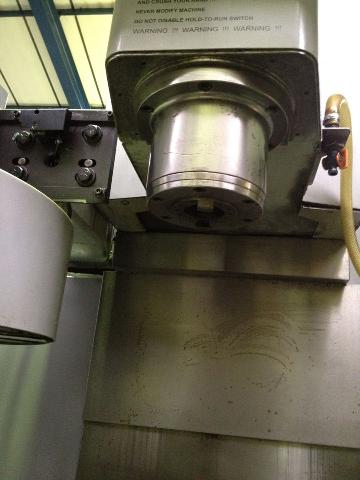

SPINDLE S.A.E.
Max Rating: 7.5 hp
Max Speed: 6000 rpm
Max Torque: 33 ft-lb @ 1200 rpm
Drive System Direct Speed, Belt Drive
Taper : BT 40
Bearing Lubrication Grease packed
Cooling Air Cooled
FEEDRATES S.A.E.
Rapids on X 400 in/min
Rapids on Y 400 in/min
Rapids on Z 400 in/min
Max Cutting 400 in/min
AXIS MOTORS S.A.E.
Max Thrust X 2000 lb
Max Thrust Y 2000 lb
Max Thrust Z 2000 lb
TOOL CHANGER S.A.E.
Type Carousel
Capacity 10
Max Tool Diameter (full) 3.5 "
Max Tool Weight 12 lb
Tool-to-Tool (avg) 5.7 sec
Chip-to-Chip (avg) 6.5 sec
ACCURACY S.A.E.
Positioning (±) 0.0004 "
Repeatability (±) 0.0002 "
GENERAL S.A.E.
Air Required 4 scfm, 100 psi

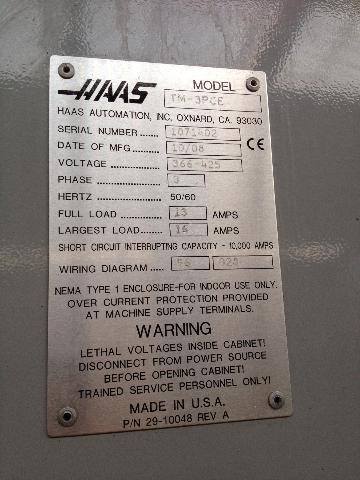

Power (options may increase requirement) 195-250 VAC/50 A
366-425 VAC/20 A
Equipped With:

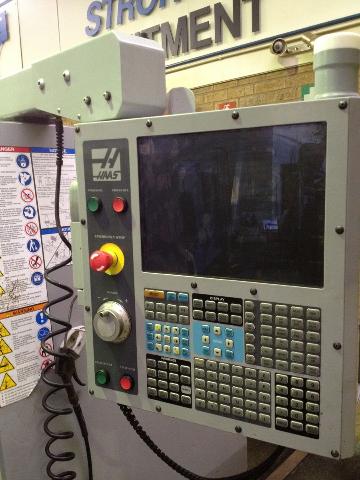

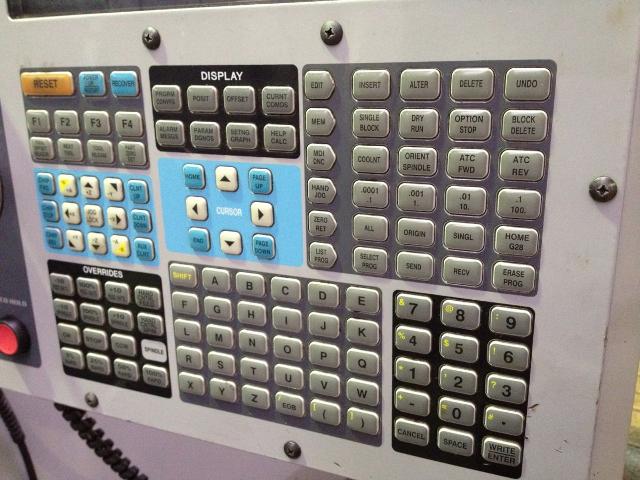

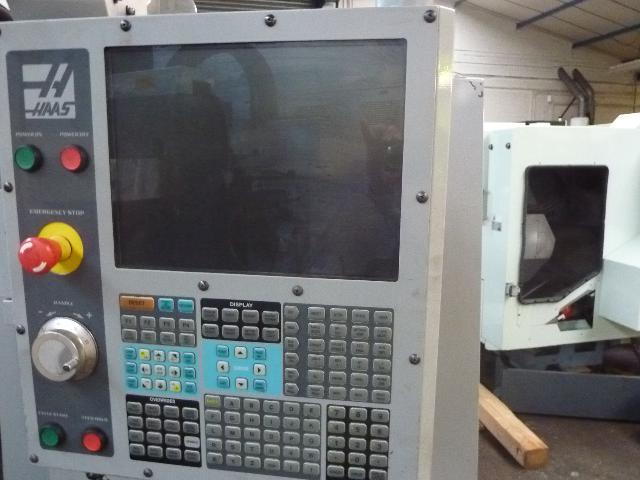

Haas 32-Bit Cnc Control W/14" Crt
Rs-232 Port
USB Port
1mb Memory

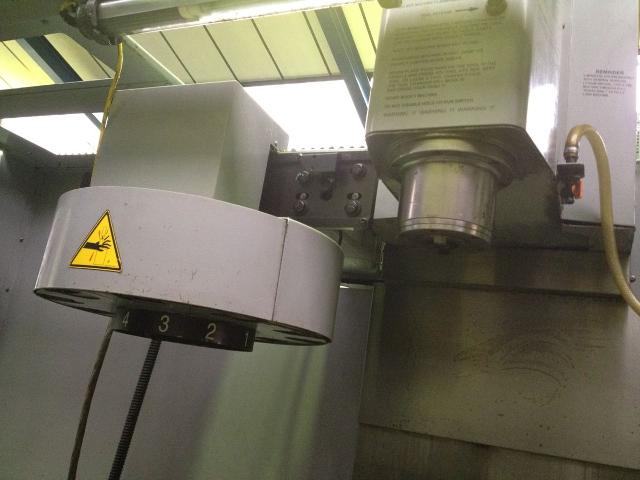

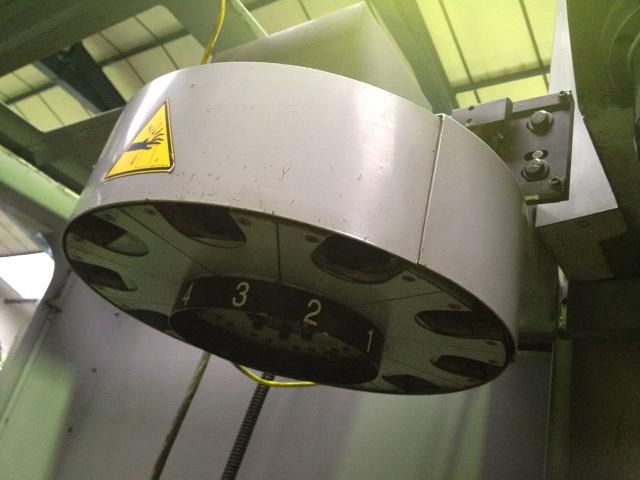

10 Station Umbrella Style Auto Tool Changer
Programmable Coolant Nozzle
Work Light
Remote Jog Handle with Color LCD
Early Power Failure Detection Module
