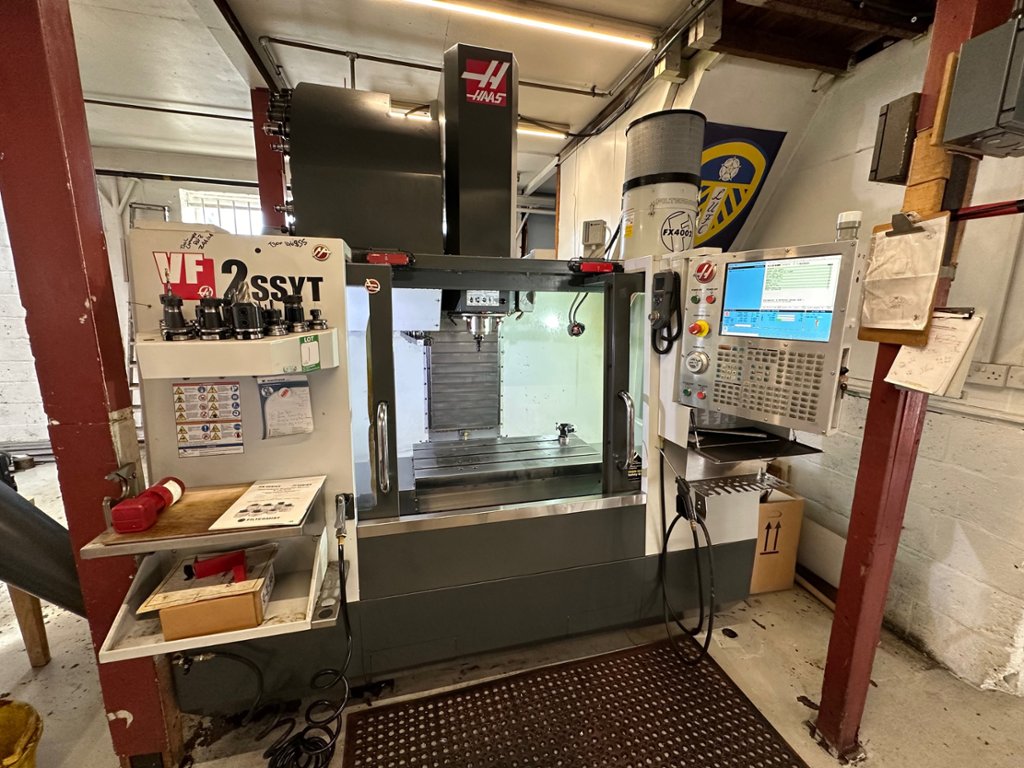

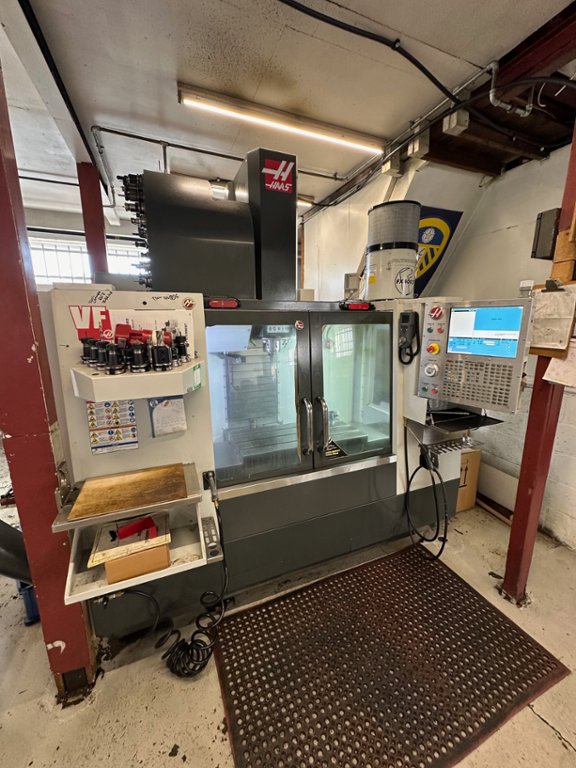

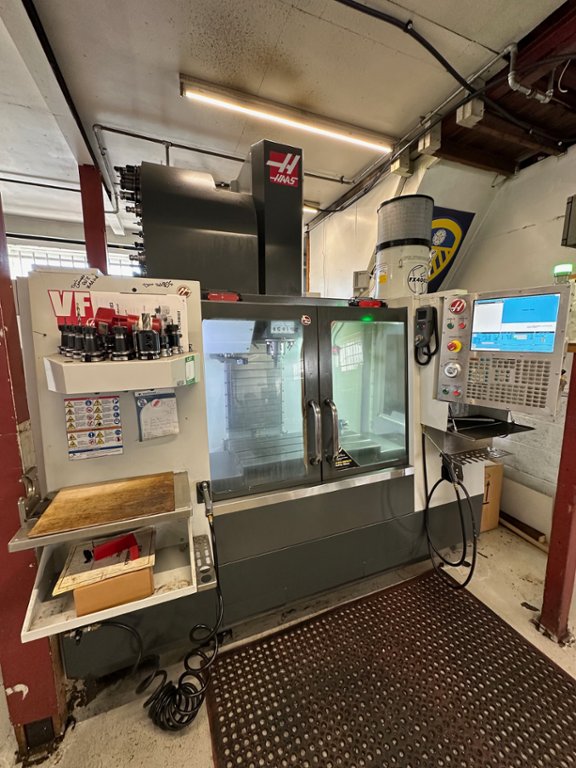

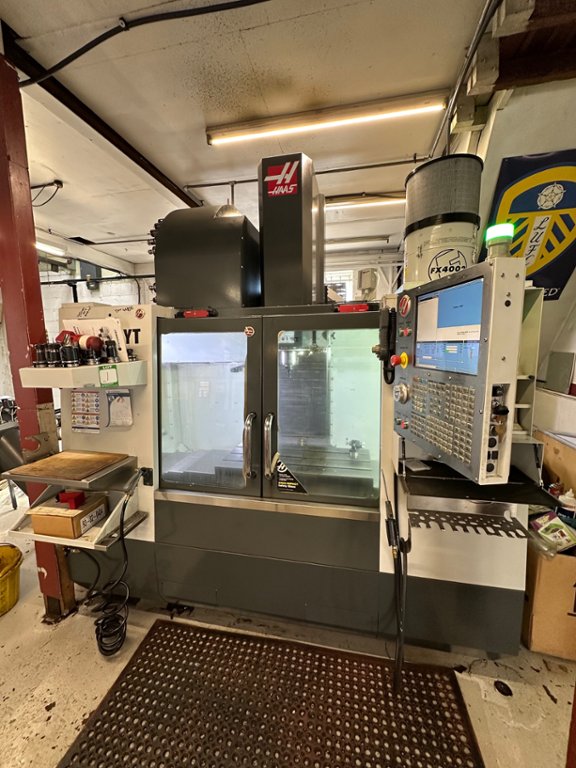

Haas VF-2SSYT Vertical machining Centre (2015)

Lot 1 - Haas VF-2SSYT Vertical machining Centre (2015)

Description:

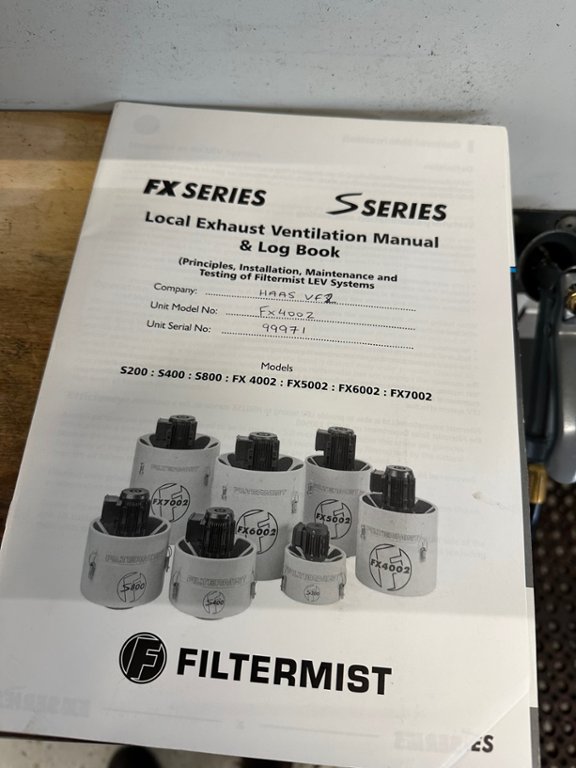

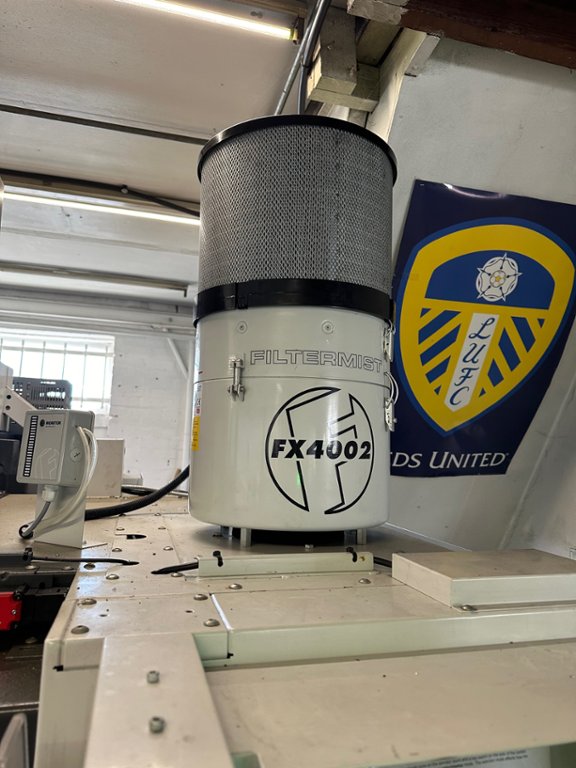

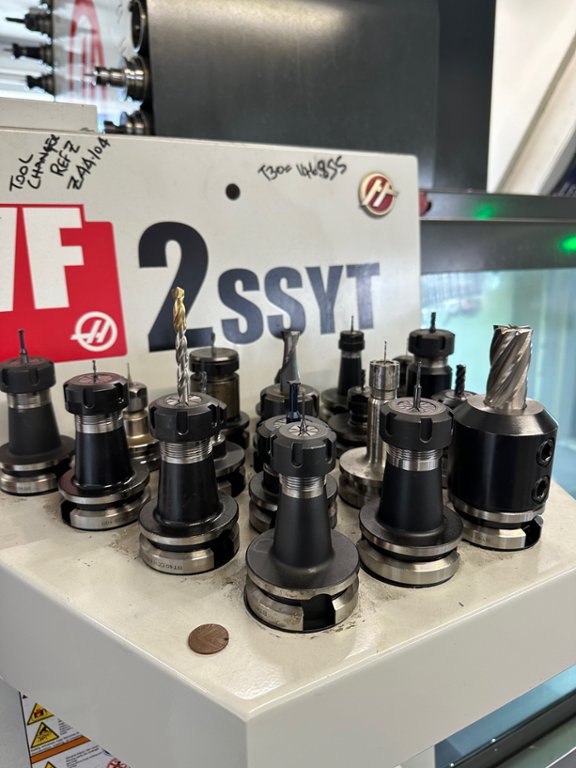

Comes with filtermist, selection of tooling, 1 tool ofset probe & 1 tool positioning probe.

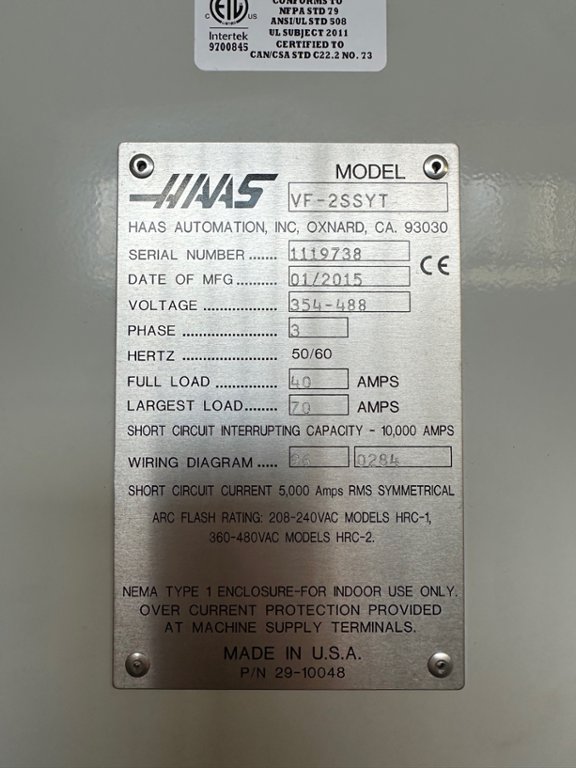

VF-2SSYT
TRAVELS S.A.E. METRIC
X Axis - 762 mm
Y Axis - 508 mm
Z Axis - 508 mm
Spindle Nose to Table (~ max) 610 mm
Spindle Nose to Table (~ min) 102 mm

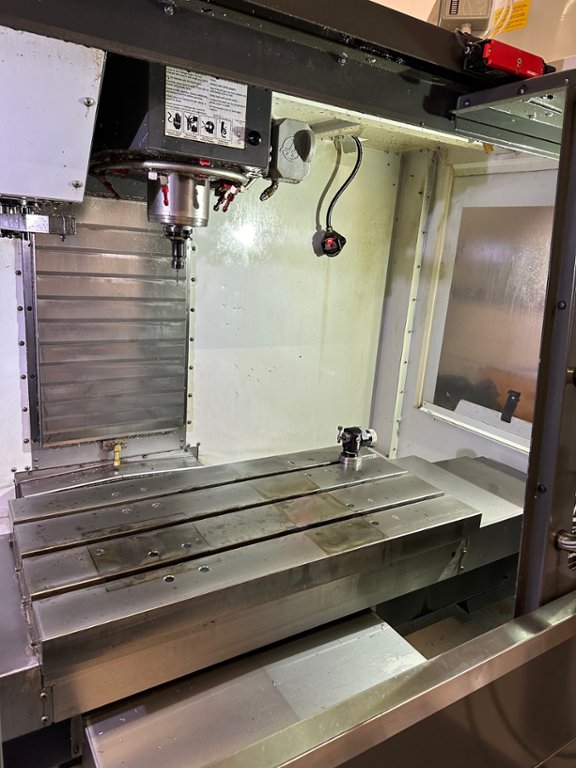

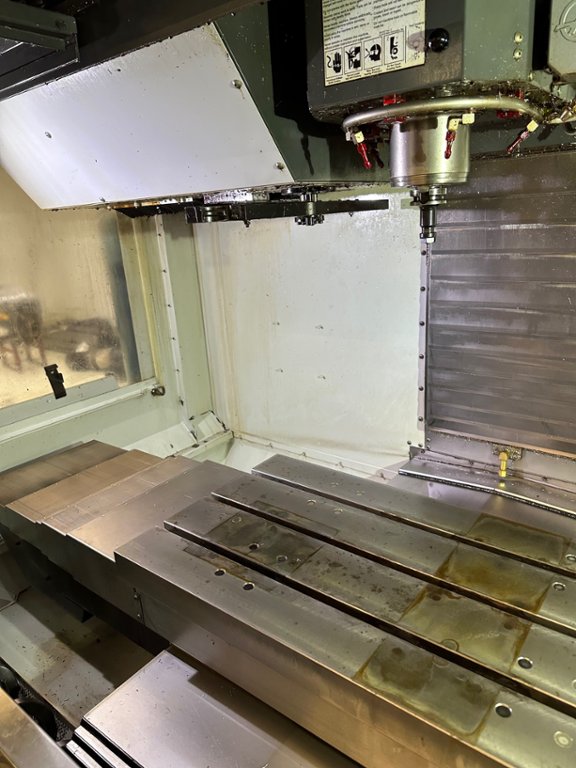

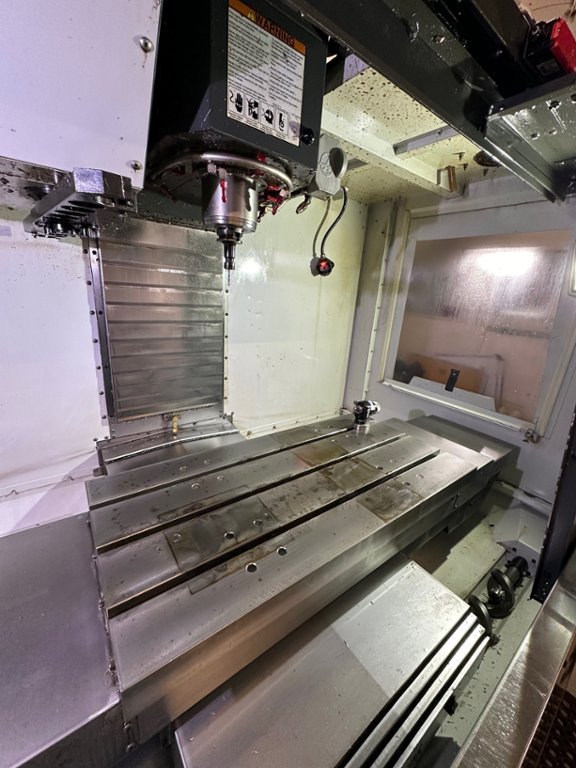

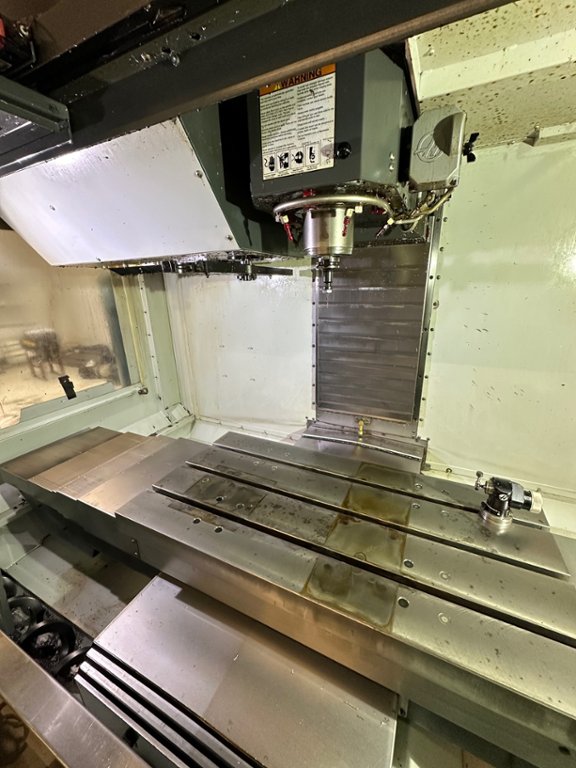

TABLE
Length - 914 mm
Width - 457 mm
T-Slot Width - 16 mm
T-Slot Center Distance - 125.0 mm
Number of Std T-Slots - 3
Max Weight on Table (evenly distributed)- 680 kg

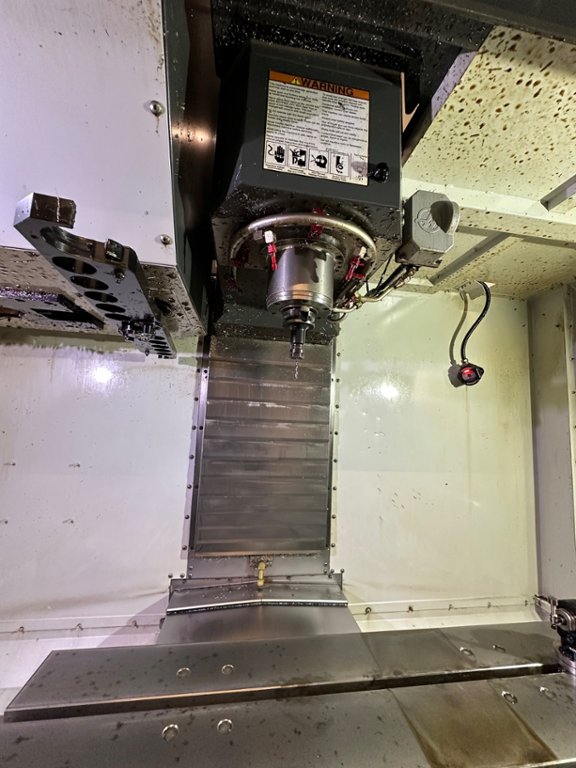

SPINDLE
Max Rating - 22.4 kW
Max Speed - 12000 rpm
Max Torque - 122 Nm @ 2000 rpm
Drive System Inline Direct-Drive
Taper BT or CT 40
Bearing Lubrication Air/Oil Injection
Cooling- Liquid Cooled
SPINDLE (OPT) S.A.E. METRIC
Max Rating- 22.4 kW
Max Speed - 15000 rpm
Max Torque -122 Nm @ 2000 rpm
Drive System - Direct-Drive
Taper - BT or CT 40
FEEDRATES
Rapids on X -35.6 m/min
Rapids on Y -35.6 m/min
Rapids on Z -35.6 m/min
Max Cutting - 21.2 m/min
AXIS MOTORS
Max Thrust X - 8874 N
Max Thrust Y - 8874 N
Max Thrust Z - 13723 N

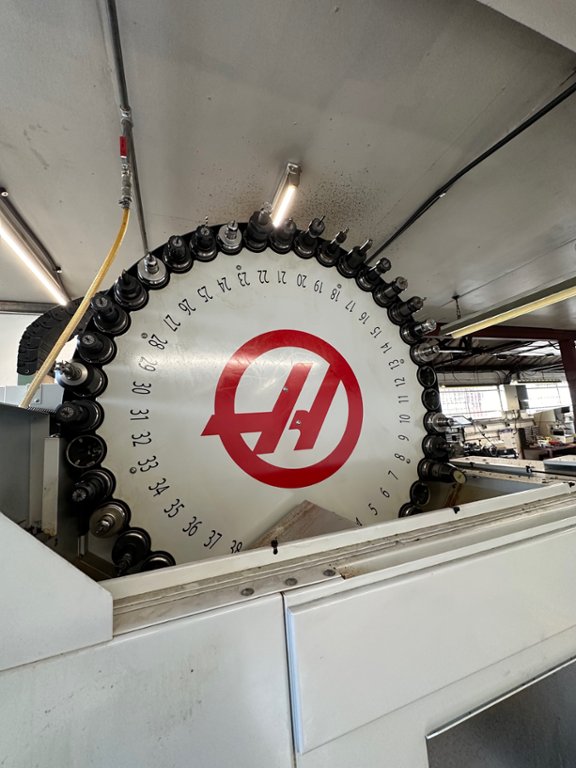

TOOL CHANGER
Type SMTC
Capacity 30+1
Max Tool Diameter (adjacent empty) - 127 mm
Max Tool Diameter (full) - 76 mm
Max Tool Length (from gage line)-279 mm
Max Tool Weight -5 kg
Tool-to-Tool (avg) - 1.6 sec
Chip-to-Chip (avg) - 2.2 sec

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
