Lot 3 - HAAS VF-4SS VMC (2011)

Description:

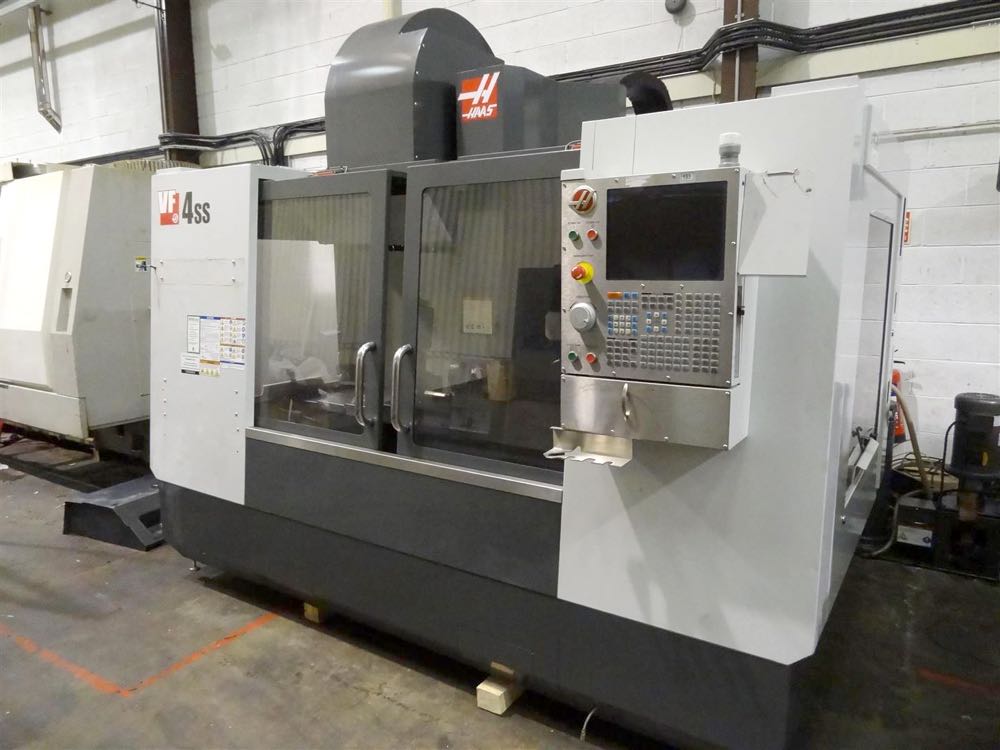

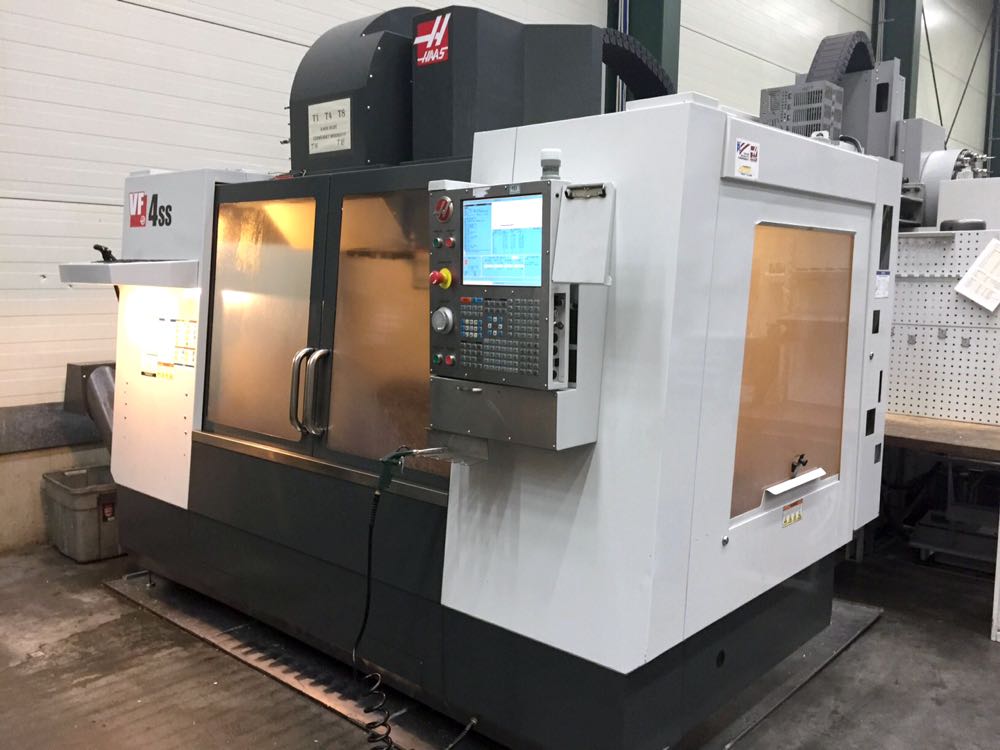

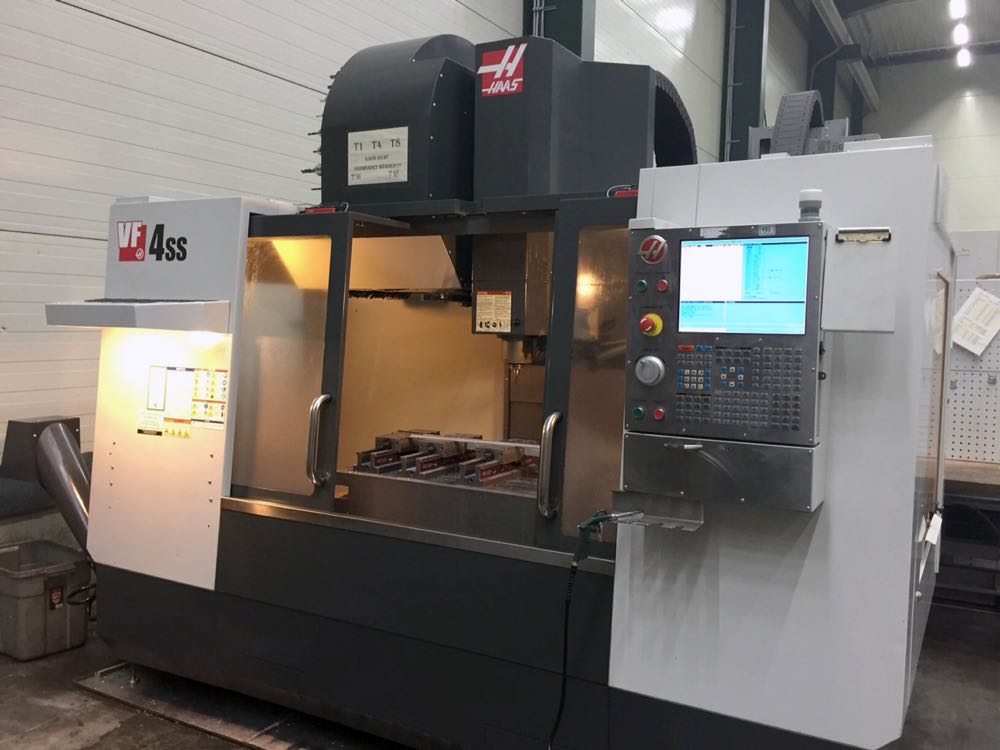

HAAS VF-4SS VMC (2011)

Click her to download VF-4SS Layout

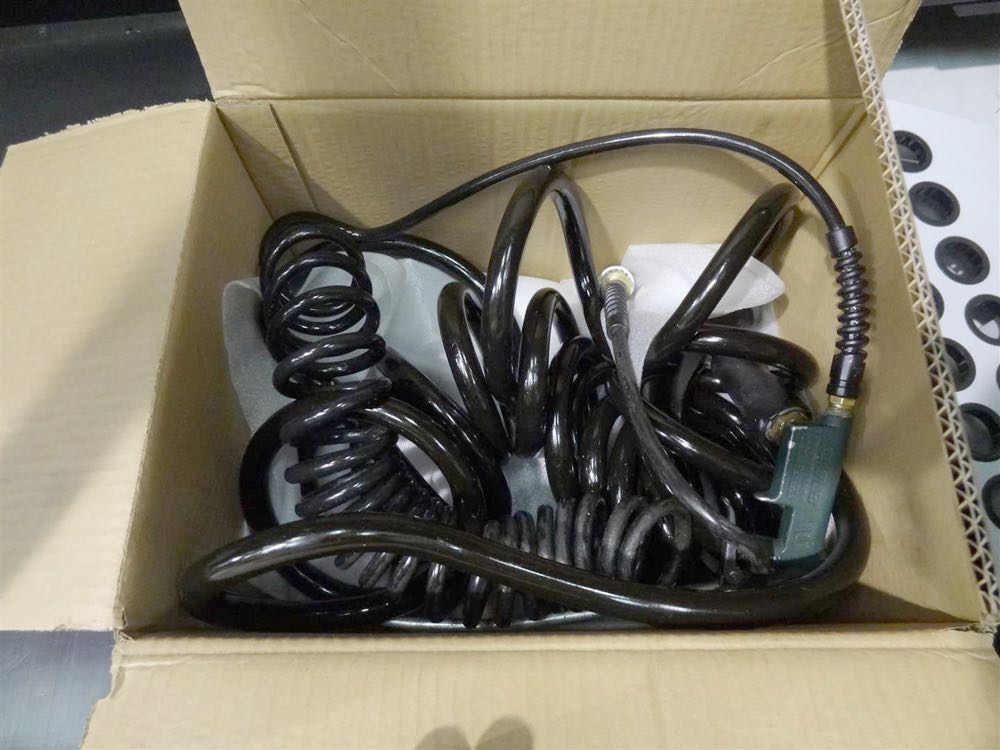

Auto Air Gun for dry clearing of machining area
Manuals
Spiral chip conveyor

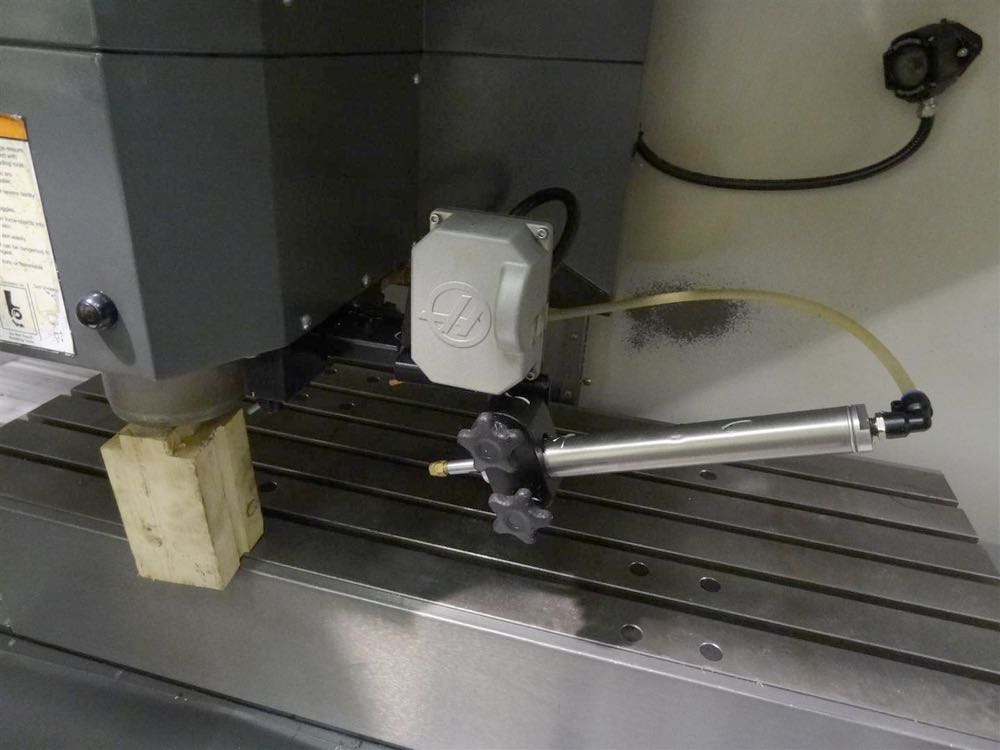

Programmable coolant nozzle

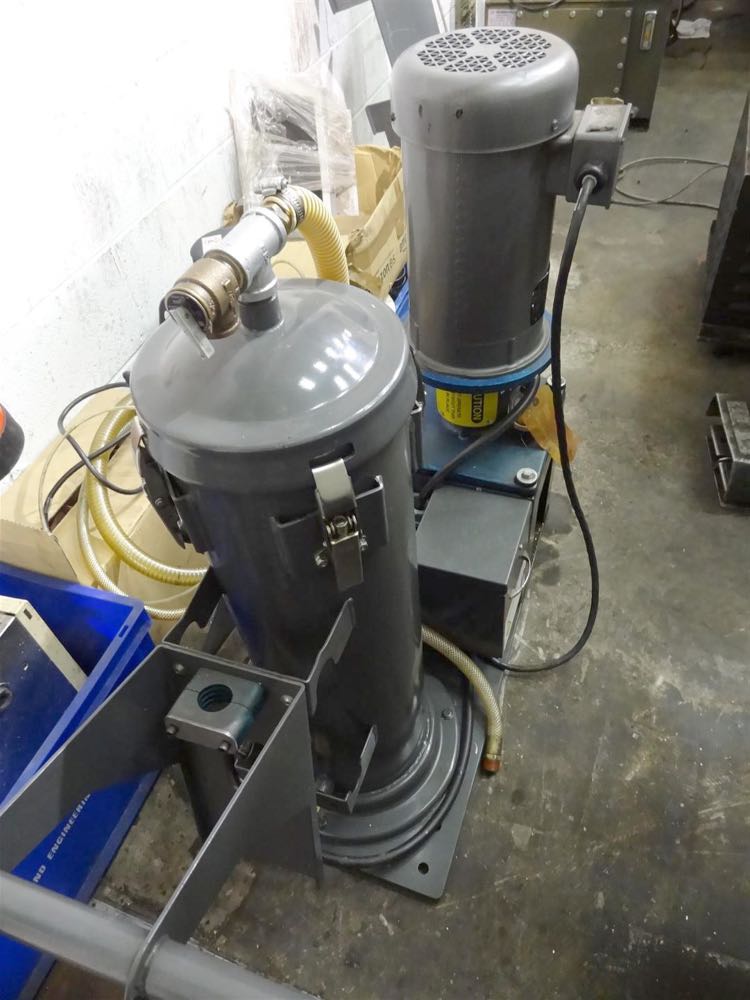

IKZ 1000psi Thru’ Spindle Coolant

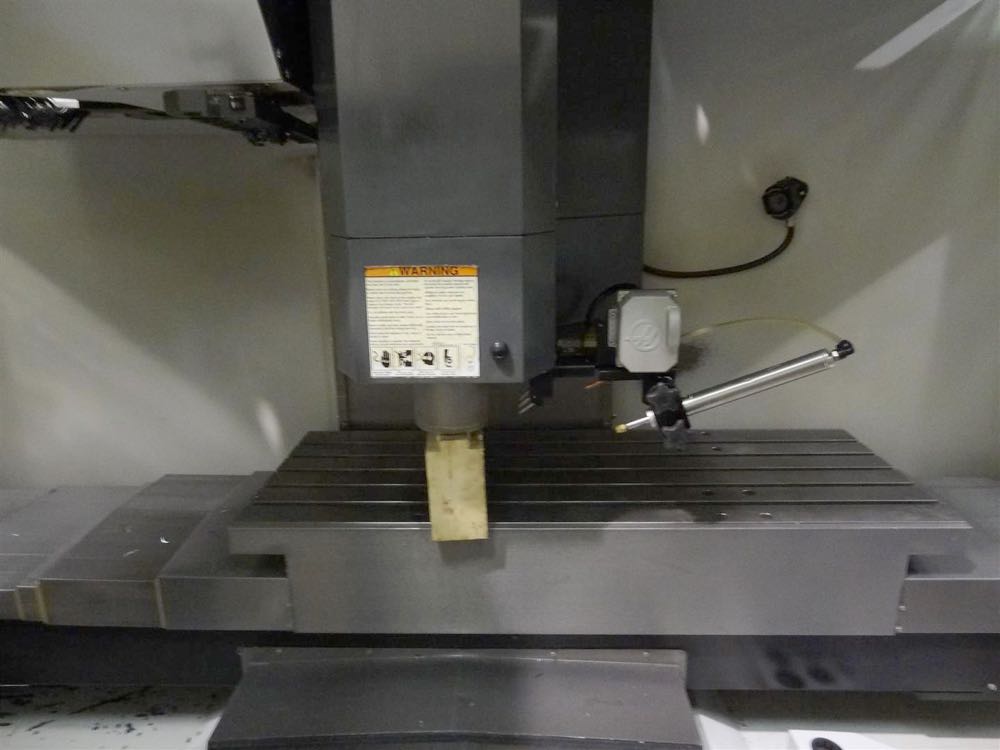

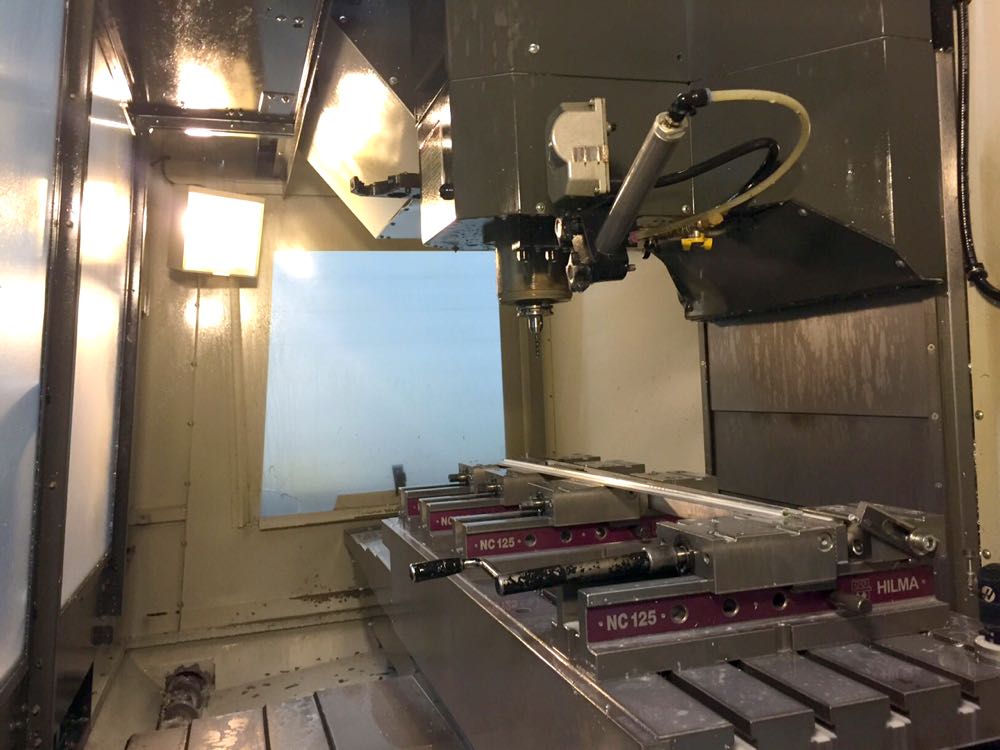

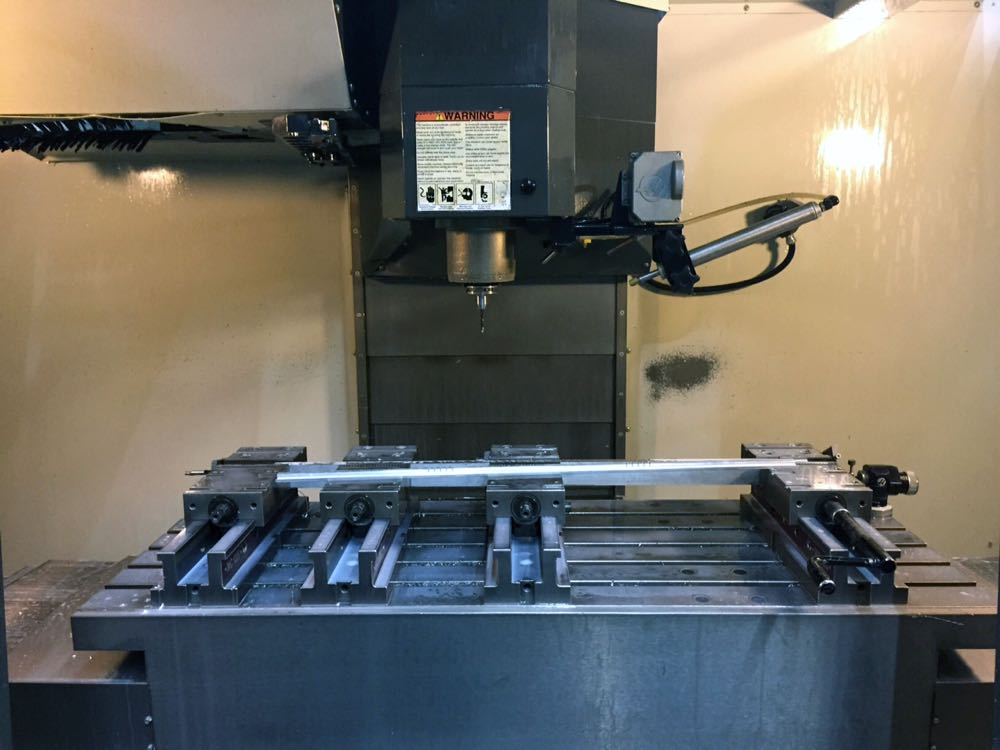

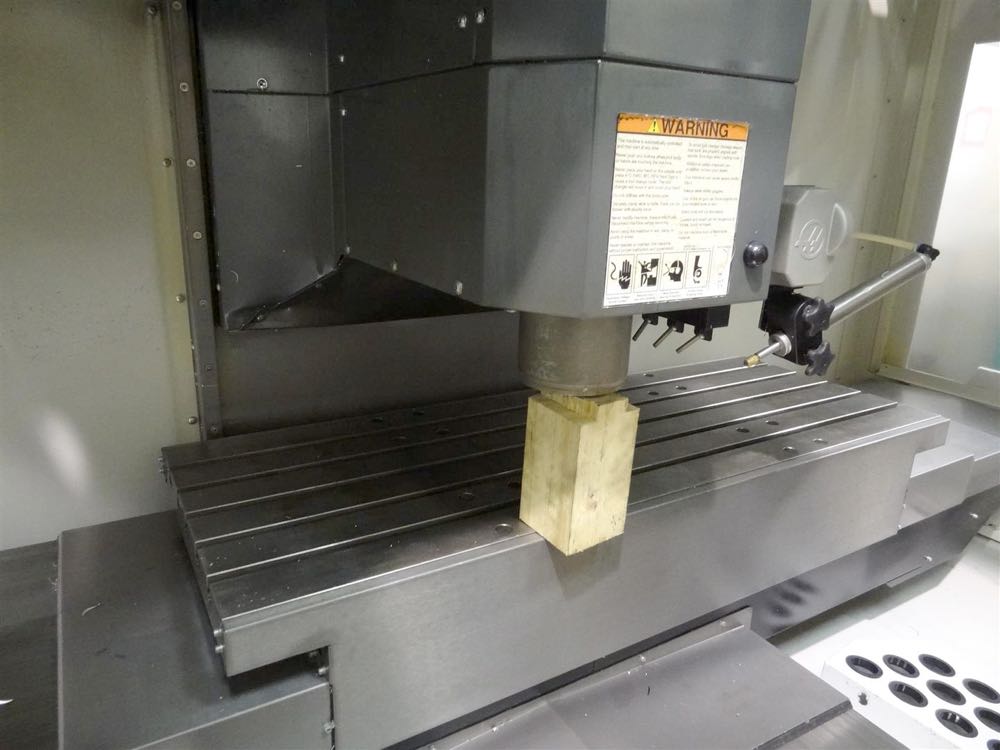

Renishaw Wireless Intuitive Probe System
Renishaw Tool setter

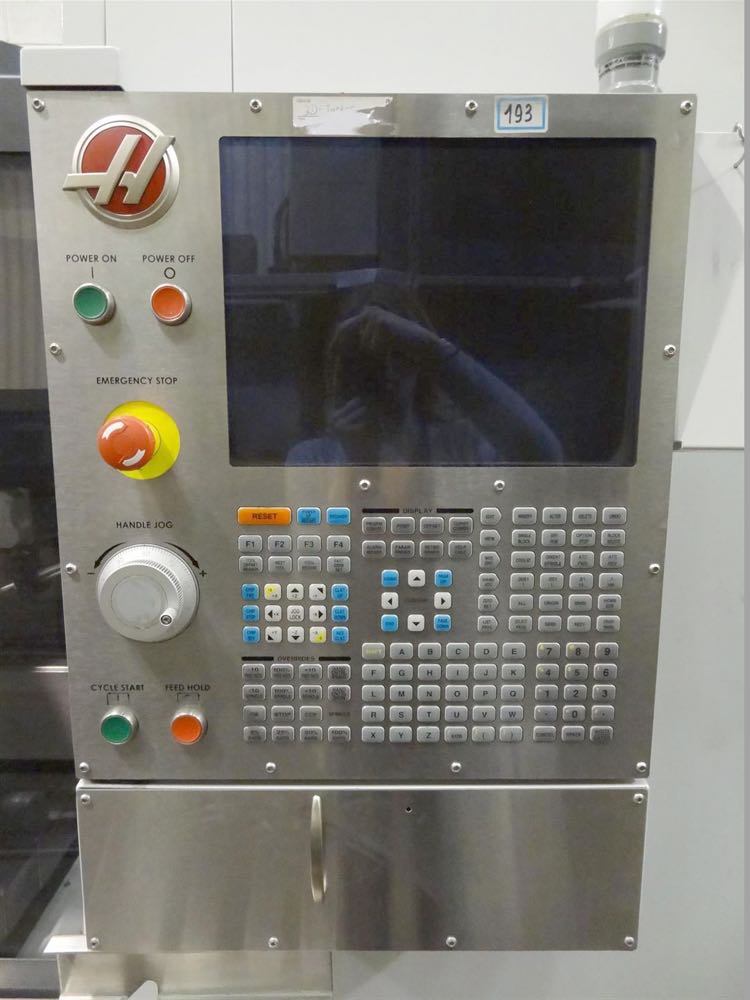

HAAS Control with the following Options
Co-ordinate and Scaling
Power Failure Detection
Macro Programming
Spindle Orientation
High Speed Machining
Ethernet

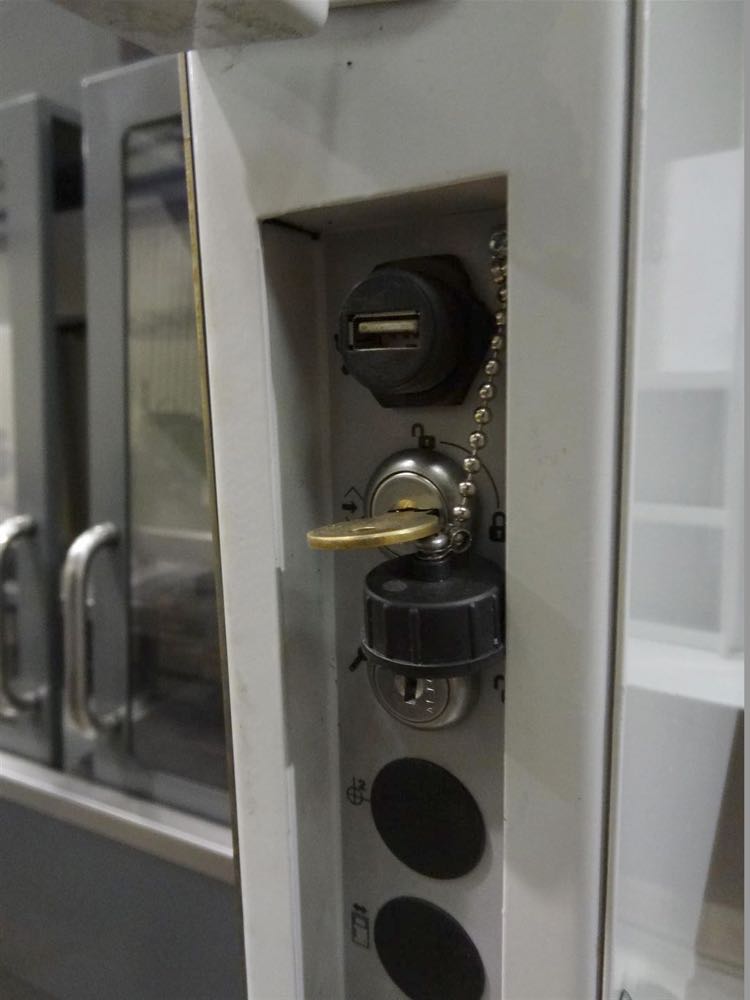

Super-Speed Vertical Machining Center; 50" x 20" x 25" (1270 x 508 x 635 mm), 40 taper, 30 hp (22.4 kW) vector drive, 12,000 rpm, inline direct-drive, high-speed 24+1 side-mount tool changer, 1400 ipm (35.6 m/min) rapids, 1 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

TRAVELS	S.A.E.	METRIC
VF-4SS
X Axis	50 "	1270 mm
Y Axis	20 "	508 mm
Z Axis	25 "	635 mm
Spindle Nose to Table (~ max)	29 "	737 mm
Spindle Nose to Table (~ min)	4 "	102 mm
TABLE	S.A.E.	METRIC
Length	52 "	1321 mm
Width	18 "	457 mm
T-Slot Width	5/8 "	16 mm
T-Slot Center Distance	3.15 "	80.0 mm
Number of Std T-Slots	5	5
Max Weight on Table (evenly distributed)	1750 lb	794 kg
SPINDLE	S.A.E.	METRIC
Max Rating	30 hp	22.4 kW
Max Speed	12000 rpm	12000 rpm
Max Torque	90 ft-lb @ 2000 rpm	122 Nm @ 2000 rpm
Drive System	Inline Direct-Drive	Inline Direct-Drive
Taper	DIN 40	DIN 40
Bearing Lubrication	Air/Oil Injection	Air/Oil Injection
Cooling	Liquid Cooled	Liquid Cooled
FEEDRATES	S.A.E.	METRIC
Rapids on X	1400 in/min	35.6 m/min
Rapids on Y	1400 in/min	35.6 m/min
Rapids on Z	1400 in/min	35.6 m/min
Max Cutting	833 in/min	21.2 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	3085 lb	13723 N
Max Thrust Y	3085 lb	13723 N
Max Thrust Z	3925 lb	17459 N
TOOL CHANGER	S.A.E.	METRIC
Type	SMTC	SMTC
Capacity	24+1	24+1
Max Tool Diameter (adjacent empty)	5 "	127 mm
Max Tool Diameter (full)	3 "	76 mm
Max Tool Length (from gage line)	11 "	279 mm
Max Tool Weight	12 lb	5.4 kg
Tool-to-Tool (avg)	1.6 sec	1.6 sec
Chip-to-Chip (avg)	2.2 sec	2.2 sec
GENERAL	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
Coolant Capacity	55 gal	208 L

Location: Leicester
No Tool Holders or vices included with this Machine

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
