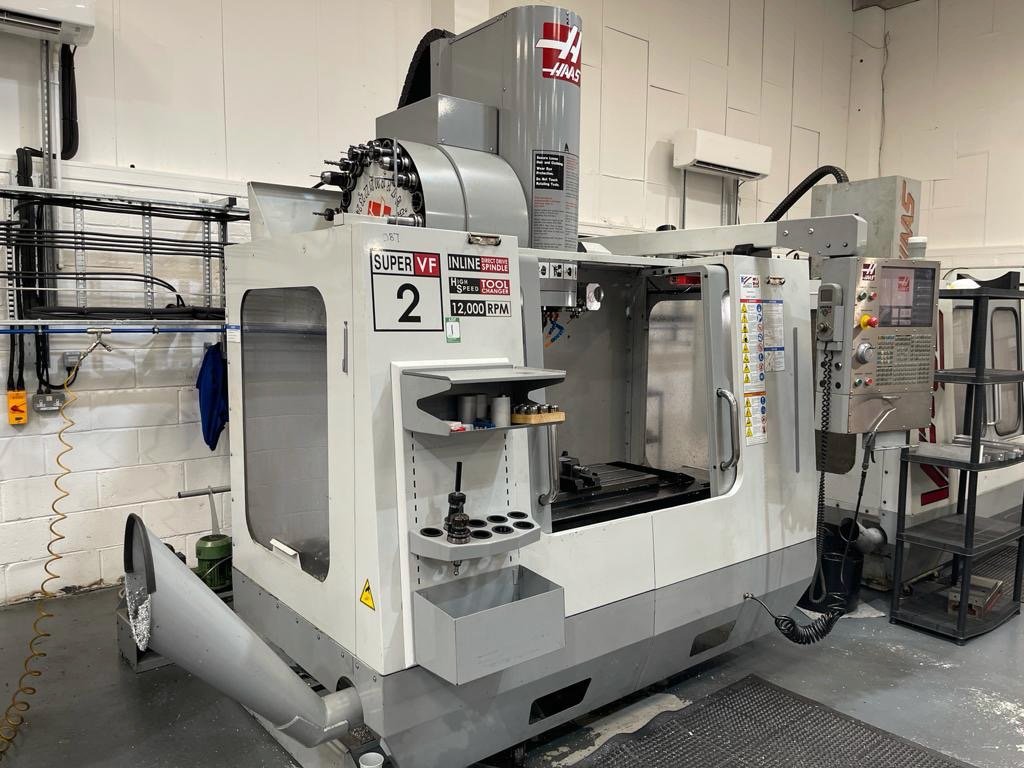

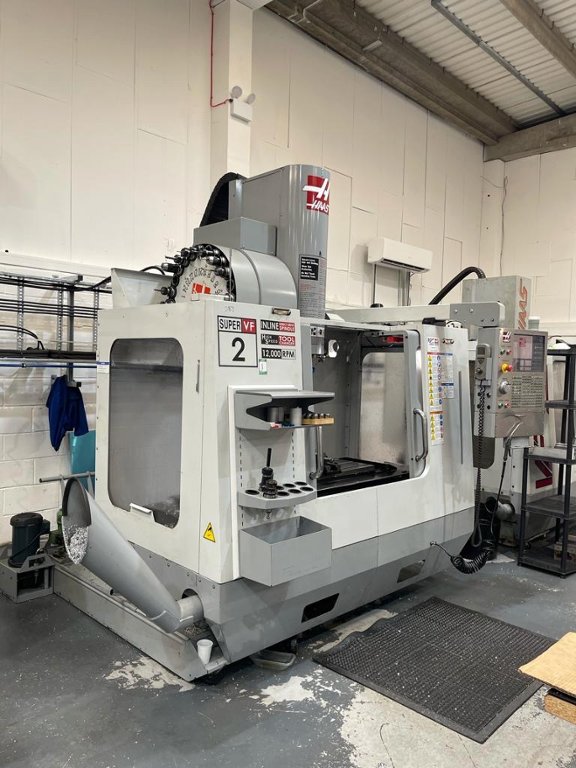

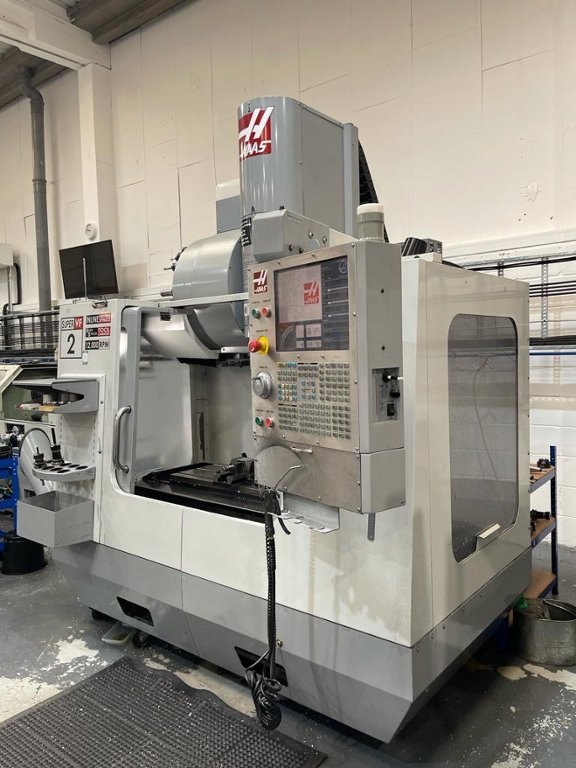

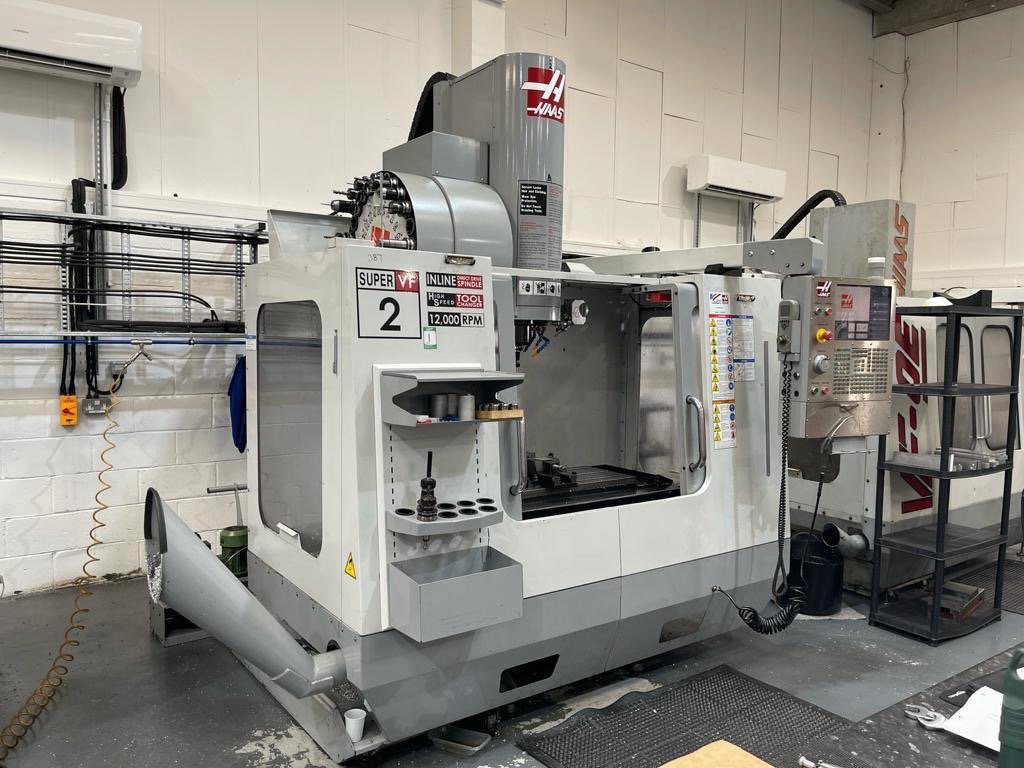

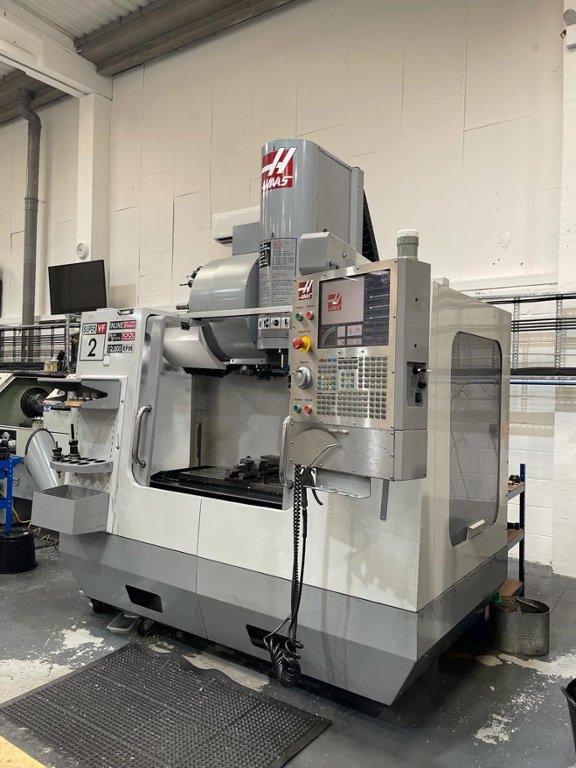

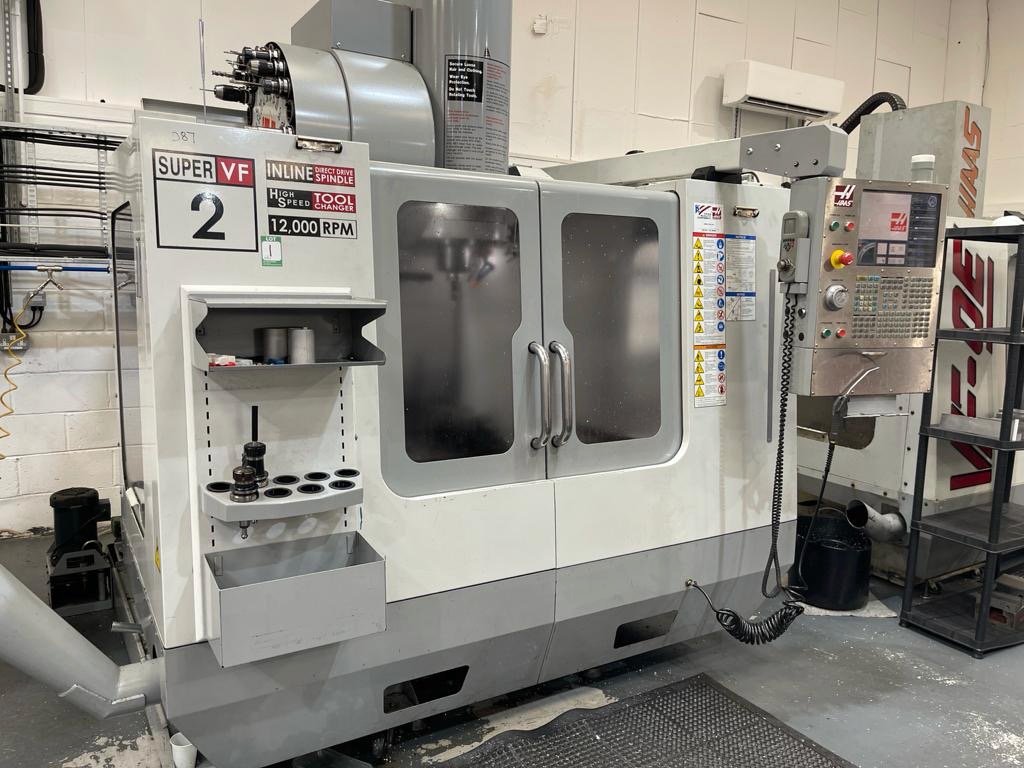

Haas VF2 SSECE CNC Milling Machine (2007)

Lot 1 - Haas VF2 SSECE CNC Milling Machine (2007)

Description:

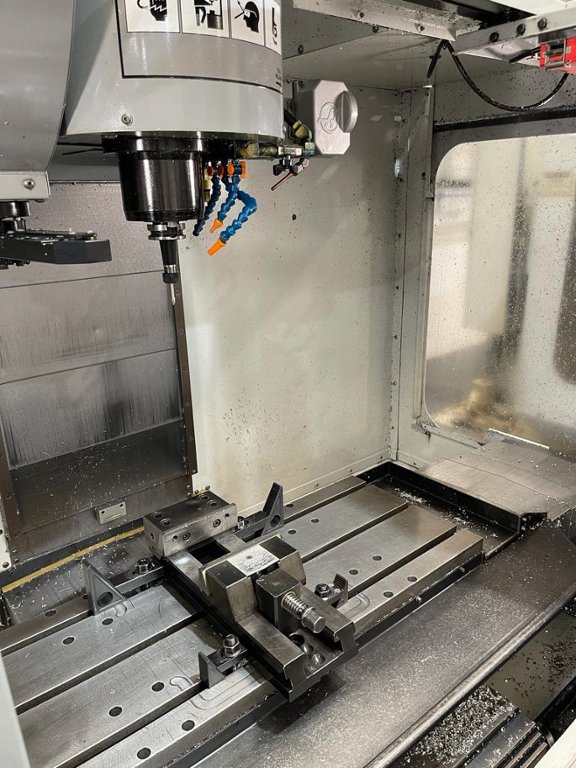

Vice NOT included

TRAVELS - METRIC
X Axis 762 mm
Y Axis 406 mm
Z Axis 508 mm
Spindle Nose to Table (~ max) 610 mm
Spindle Nose to Table (~ min) 102 mm

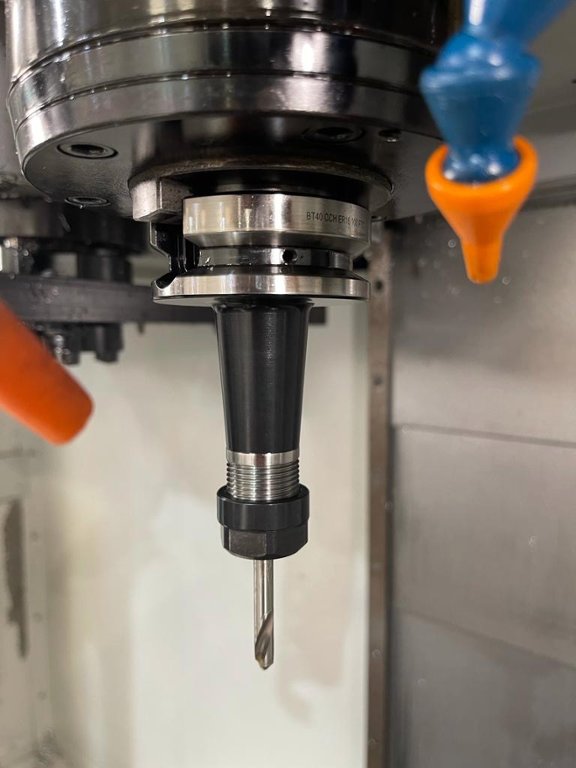

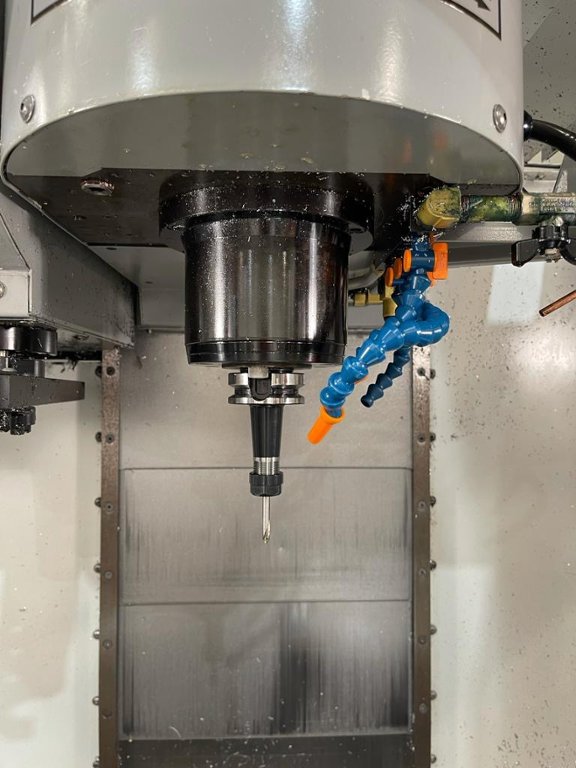

SPINDLE - METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 12000 rpm
Max Torque 122.0 Nm @ 2000 rpm

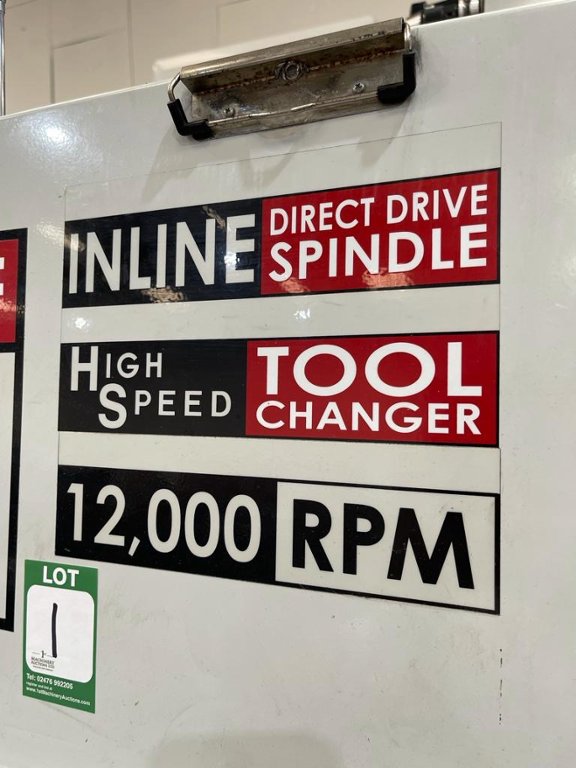

Drive System Inline Direct
Taper - CT or BT 40
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled

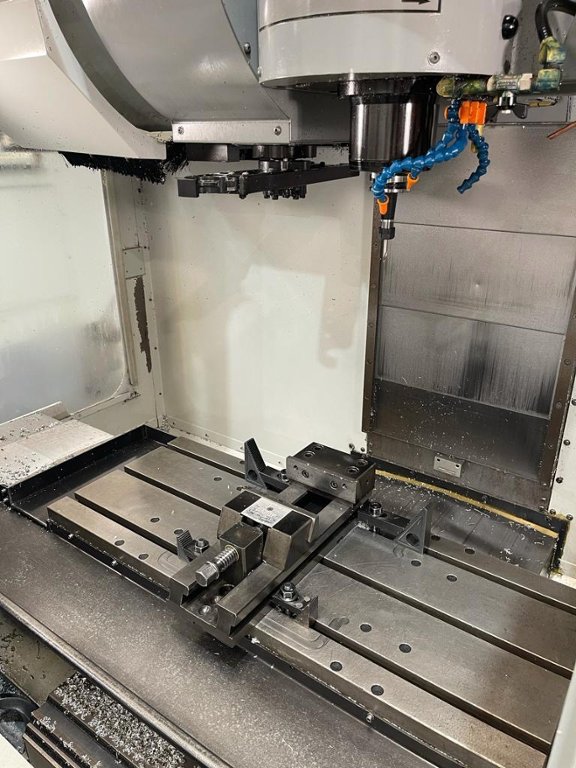

TABLE - METRIC
Length 914 mm
Width 356 mm
T-Slot Width - 15.90 mm to 16.00 mm
T-Slot Center Distance - 125 mm
Number of Std T-Slots 3
Max Weight on Table (evenly distributed) 680 kg

FEEDRATES - METRIC
Max Cutting 21.2 m/min
Rapids on X 35.6 m/min
Rapids on Y 35.6 m/min
Rapids on Z 35.6 m/min

AXIS MOTORS - METRIC
Max Thrust X - 8874 N
Max Thrust Y - 8874 N
Max Thrust Z - 13723 N

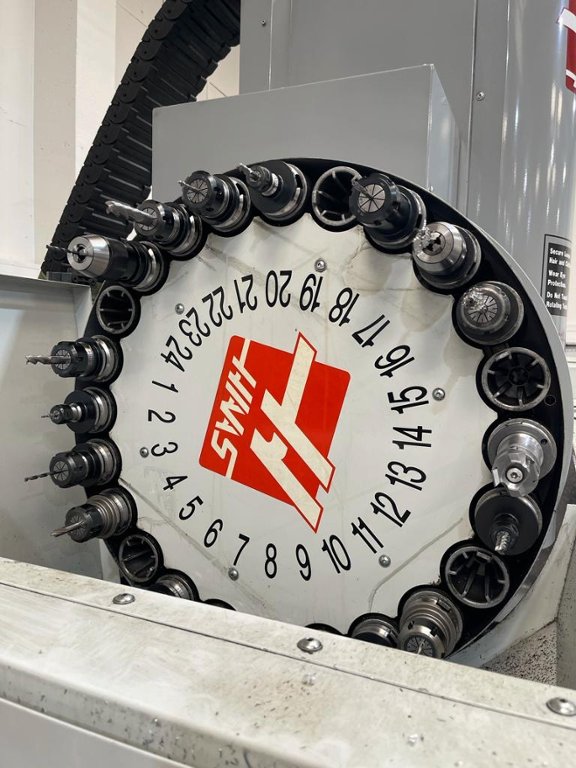

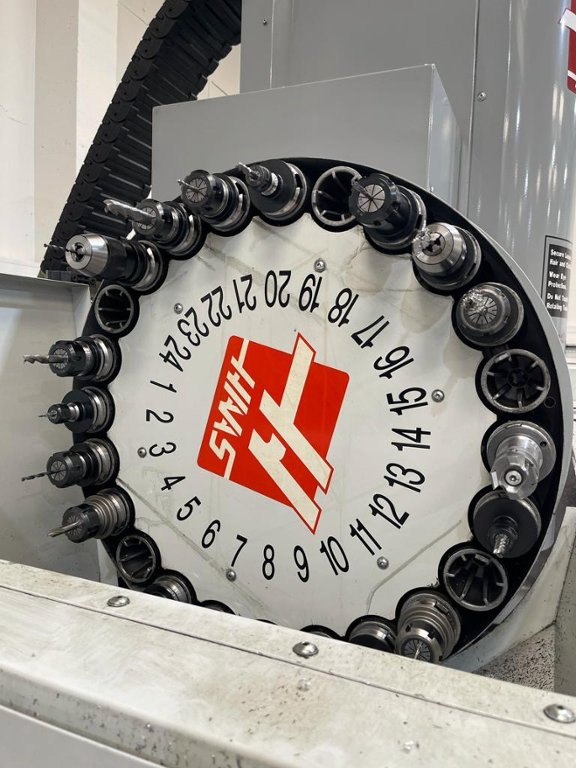

TOOL CHANGER - METRIC
Type SMTC
Capacity 30+1
Max Tool Diameter (full) 64 mm
Max Tool Diameter (adjacent empty) 127 mm
Max Tool Length (from gage line) 279 mm
Max Tool Weight 5.4 kg
Tool-to-Tool (avg) 1.8 s
Chip-to-Chip (avg) 2.4 s

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
