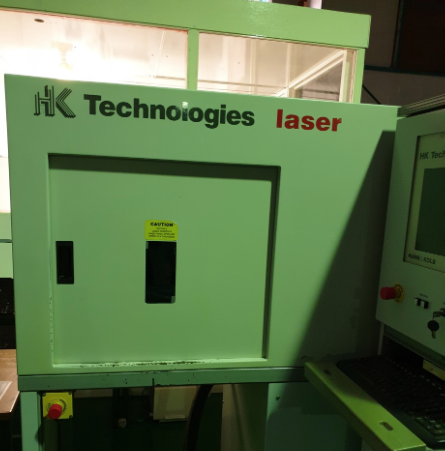

Lot 2 - Hahn & Kolb YAG Laser-marker (1998)

Description:

It is a 60w YAG Laser with integrated 4th axis rotary fixture owned from new since 1998. Marks all metals and most polymers. Surplus to requirements.

There is also a chiller unit as part of this laser-marker (Model TAE 015)

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Specifications:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

HKR 2

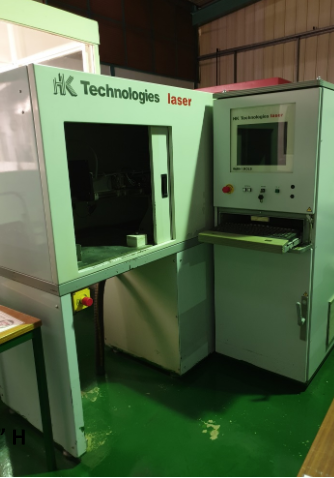

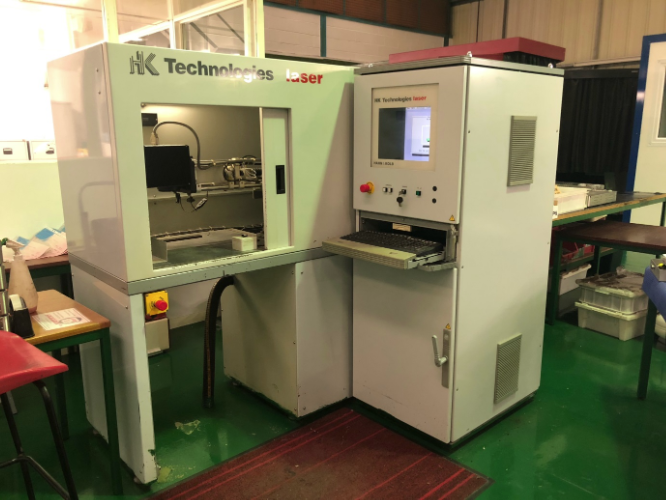

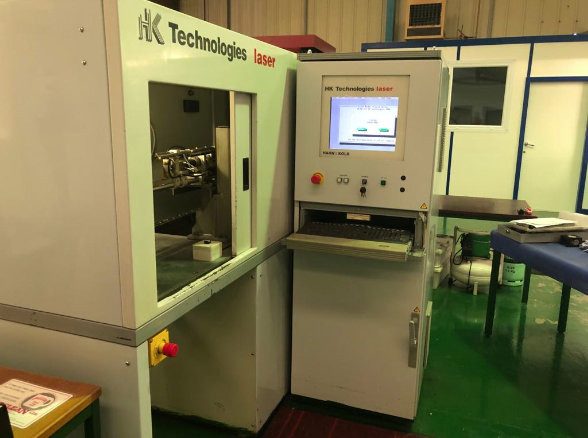

Fully enclosed machine frame with programmable control of laser parameters. Front
interlocked sliding door for access to 600mm x 700mm work area. Rack Mounted
14" SVGA Colour Monitor and keyboard. Pentium Processor based Computer.
Motorised, Z Axrs (focusing).

Laser Source - 1.06 pm ND:YAG
Output power - 65 Watts CW (average) 16 Watt CW Tem oo
Manual and programmable setting

Output modes - Continuous Wave (CW) Q switched 1-100 KHz.
Manual and programmable setting

Scan Head - X-Y galvo system with flat fie1d lens assy
Working area - 110 mm x 110 mm (Standard)
Working distance - 190 mm (Standard)
Marking speed - up to 3200 mm/sec (material dependent)
Power supply - 5 KW capacity switch mode
Cooling system - Heat exchanger type with a primary tap water circuit
and de-ionised secondary circuit. Capacity approx. 5
litres.

Controller - Based on a rack mounted Pentium Processor based
Computer system with Smb, 3.5 inch floppy disc drive,
1.2 GB hard disc. Serial and Parallel Ports

V.D.U. - 14" SVGA Colour Monitor cabinet mounted

Data entry - Slide mounted,I.B.M. XT/AT compatible 102 key
keyboard, with lockable, hinged cover.

Control panel - All operator controls are locally mounted on one panel
with comprehensive on screen diagnostics

Software - A complete software package is offered with the
machine which includes:-

Alphanumerics in standard font sets (i.e. Helvetica DIN
etc.) and user defined front sets. Incremental and
variable text with user defined prompts. Automatic serialisation. Variable character height, width and inter-character gap. Marking on a radius marking on an angle. Automatic fit and justification. Logos and special characters. Barcodes (3 of 9, 2 of 5 etc.) Plot files from CAD systems can be ioaded either directly or indirectiy into the system data files. External input via LAN or RS 232.

Electrical requirements :- 415 Volt, 50 Hz, 3 Phase
20 Amp supply, neutral and earth

Service requirements :- Water Supply (7.5 litres/minute)
Back pressure free drain

Compressed Air:- 6 bar supply clean and dry
Noise Levels: - Less than 70 dBA
Colour: - Grey







Bid information

Time remaining

HRSMINSEC
000000

16 Jan 2020 15:00:00 GMT

Opening bid: £2000

Bids: 0


Final remove by date: 30/Jan/2020

Location: Cleveland

Lot location

Transport information

  • Other Transport Details: NO loading facilities on site
