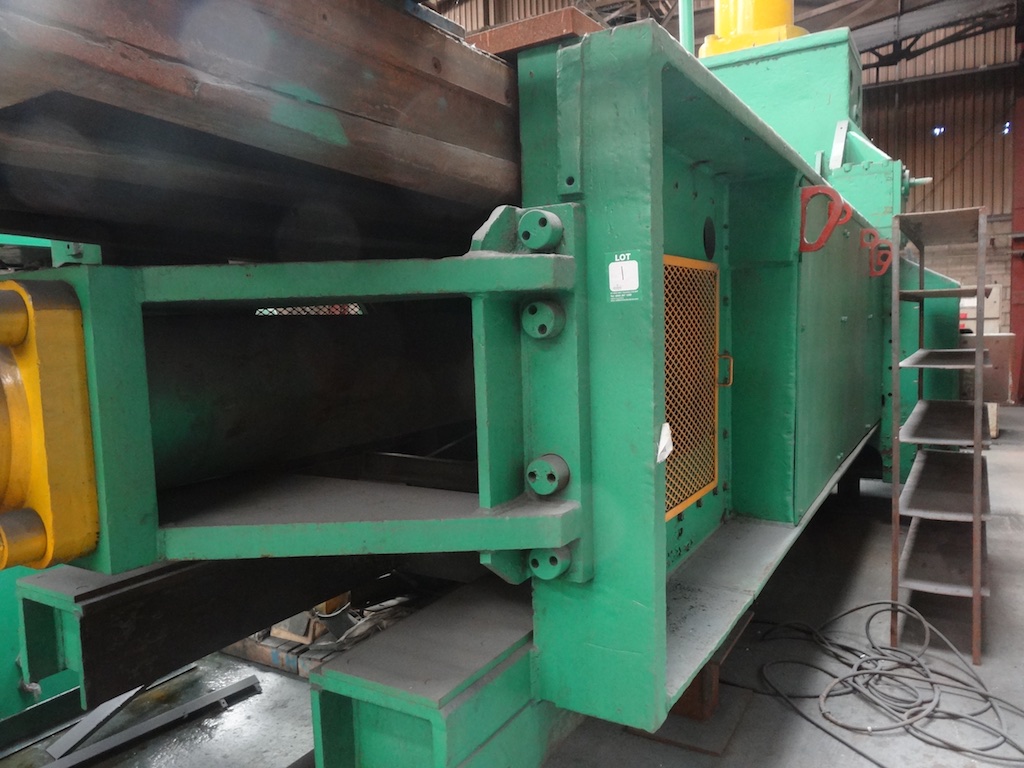

Lot 1 - Harris TGS 320 Metal baler (Fully Refurbished)
Description:

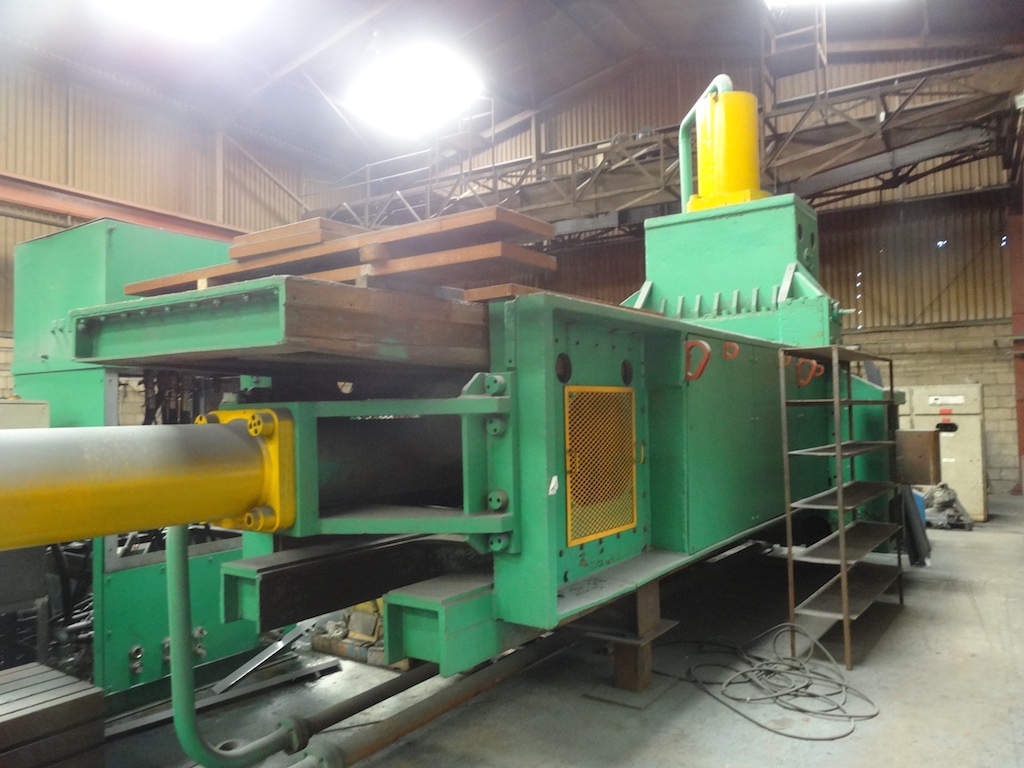

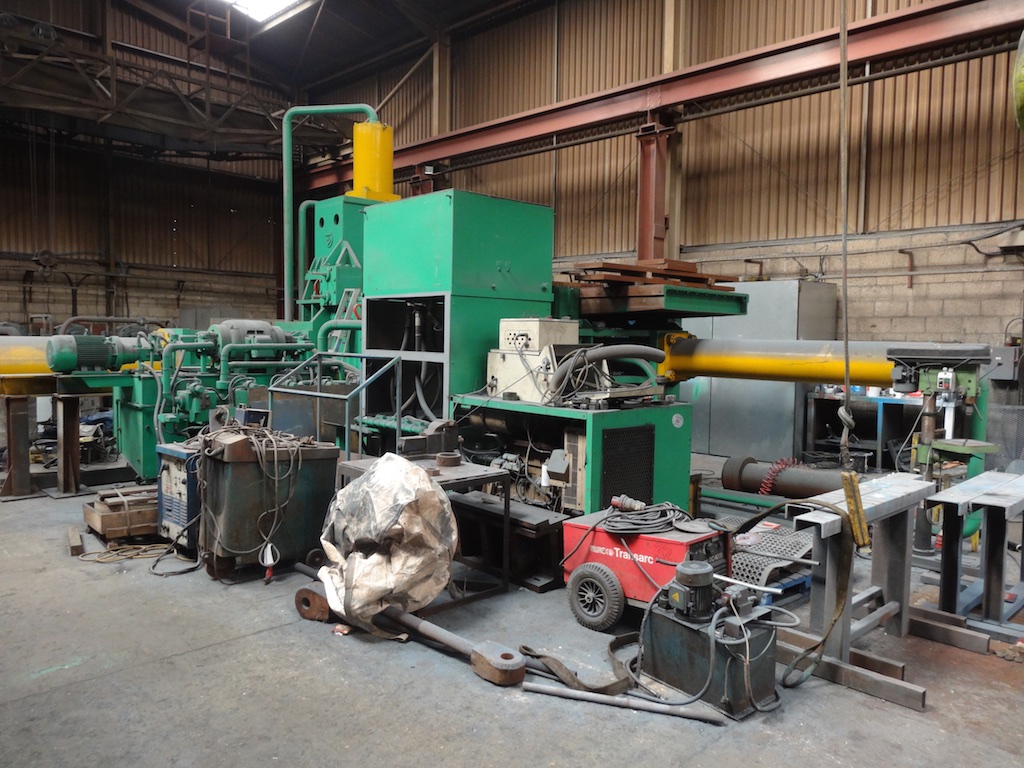

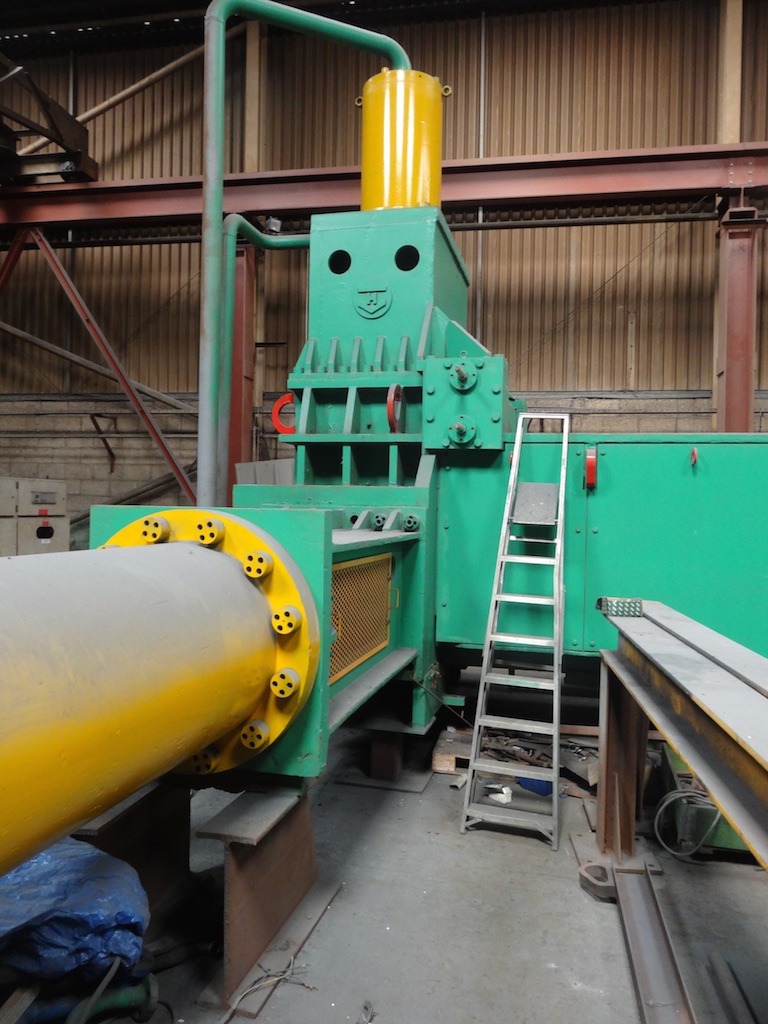

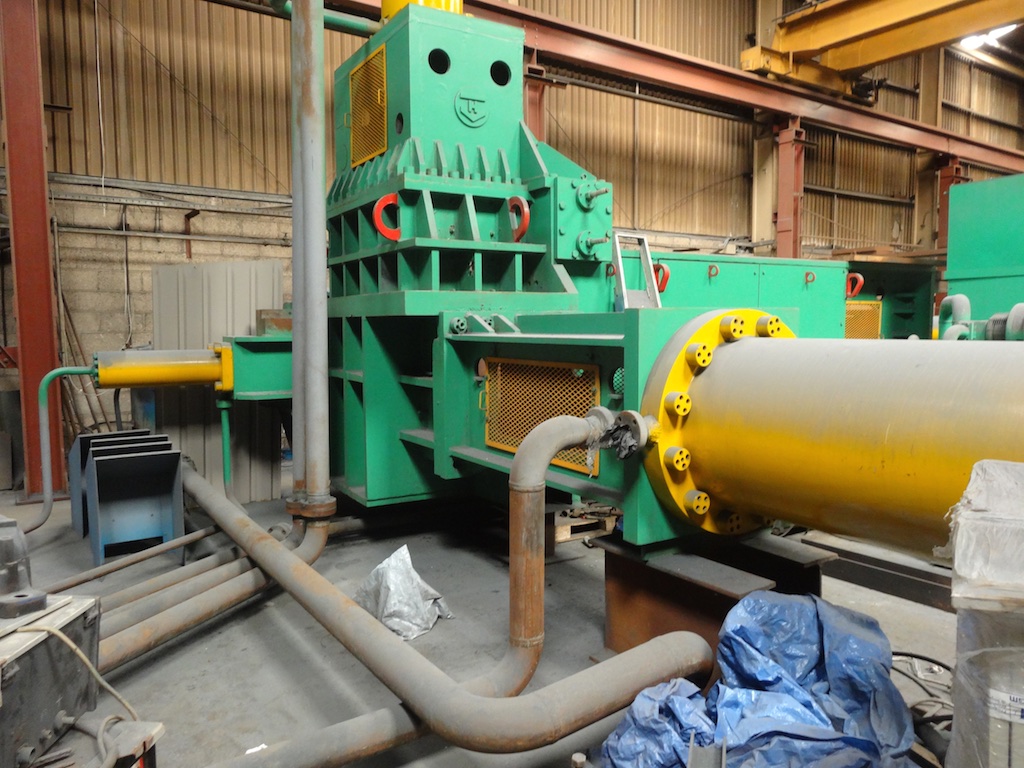

Harris TGS 320 baler, Baler is located in Bridgend, Wales.
Youtube Video below shows machine before it was refurbished.
Description: Bale size: 20” x 20” x variable, 508 x 508 mm
Approximate bale weight: Steel 318kg, Copper 386kg, Aluminium 118kg
Operating cycles per hour: Up to 50/hour on full automatic repeat control
Charging box dimensions: 4267mm x 1524mm x 1270mm
Gatherer cylinder: 12” diameter – 123 tonnes first compression
Tramper cylinder: 20” diameter – 342 tonnes second compression

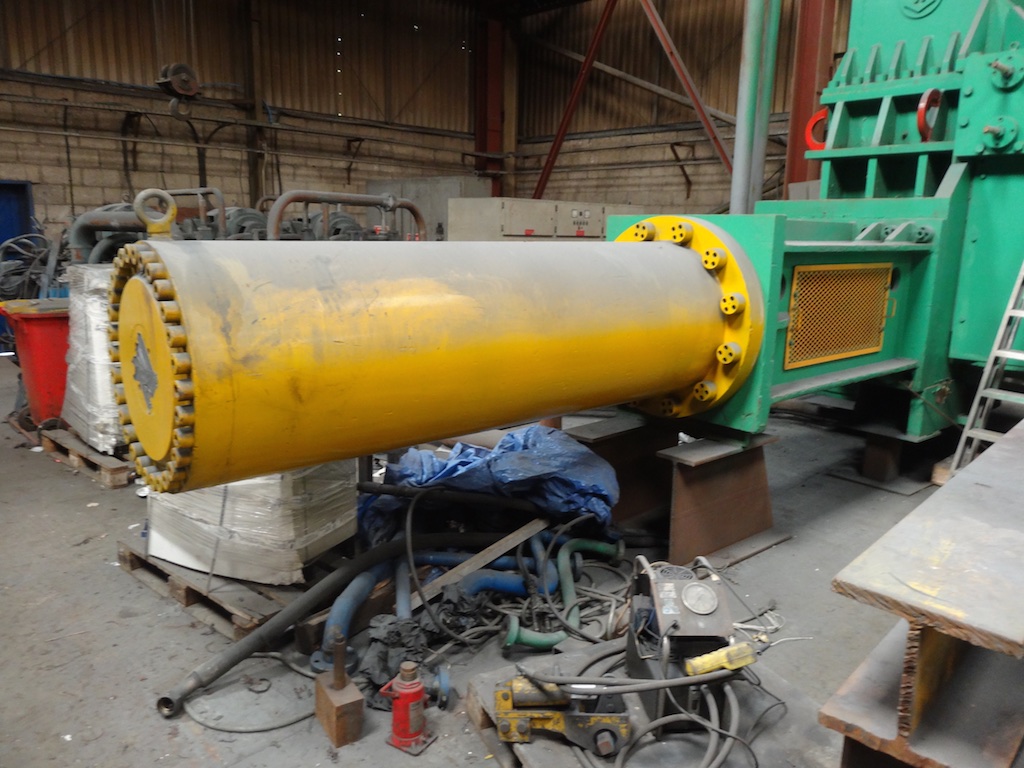

Longitudinal cylinder: 24” diameter – 492 tonnes third compression
Operating pressure: 165 Bar

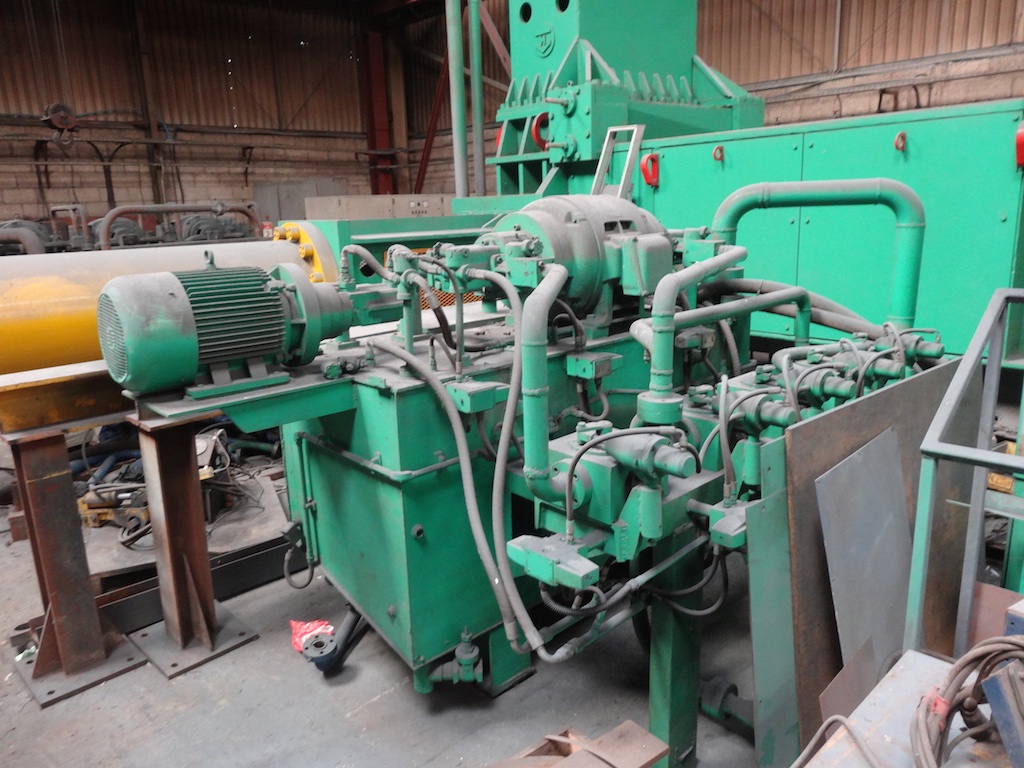

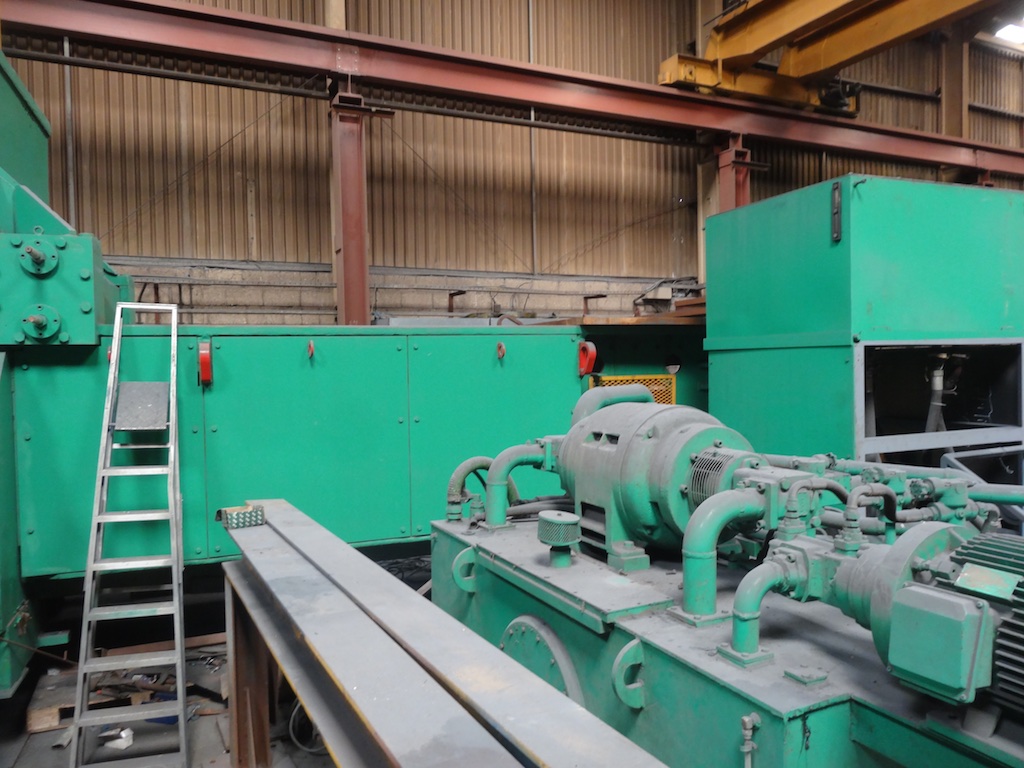

Power unit oil capacity: 1400 Imp. gallons, 6365 Litres approximately
Electric motors: 3 (three) 75kW 1 (one)18kW
2 (two) 2.5kW 1 (one)0.5kW
1 (one) 4.5kW
Total 300kW 380/440 volt 3 phase 50 cycle 426 Amps
Approximate shipping weight: 94 Tonnes
Location: Bridgend Wales
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
