Lot 5 - Harrison M300 Centre Lathe
Description:
Sold Subject to payment

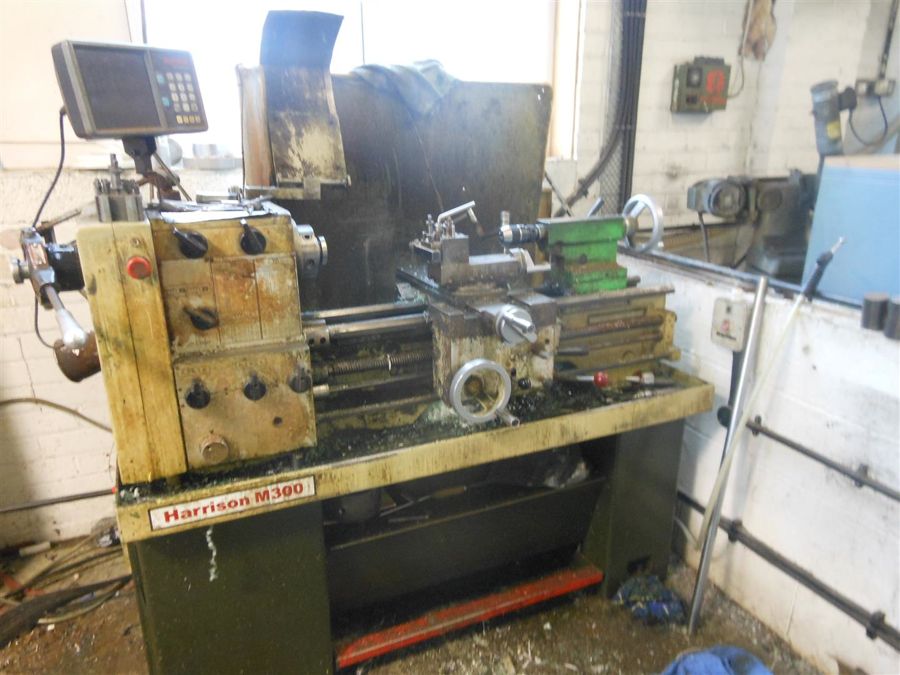

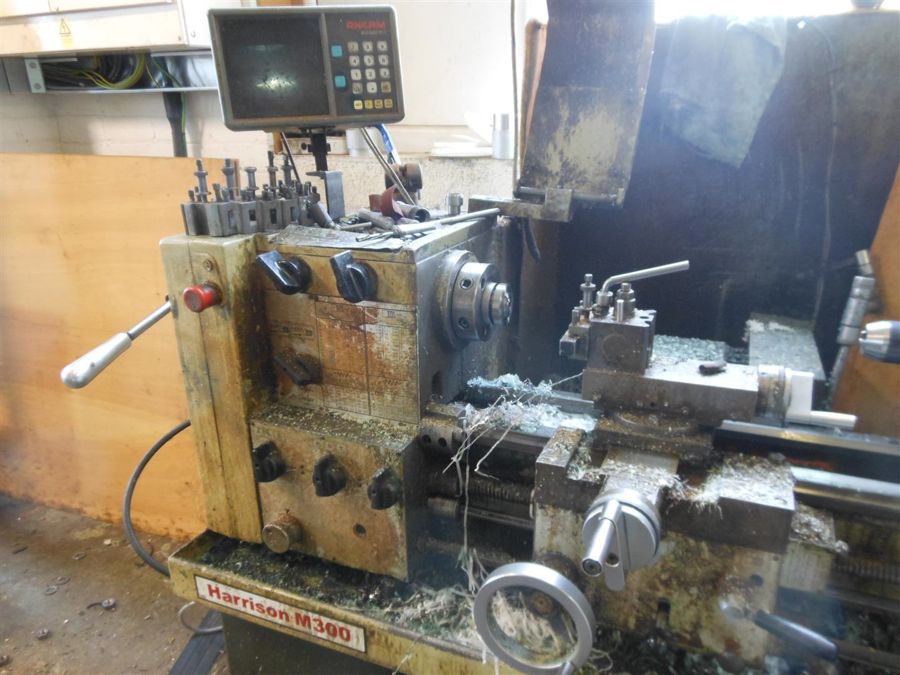

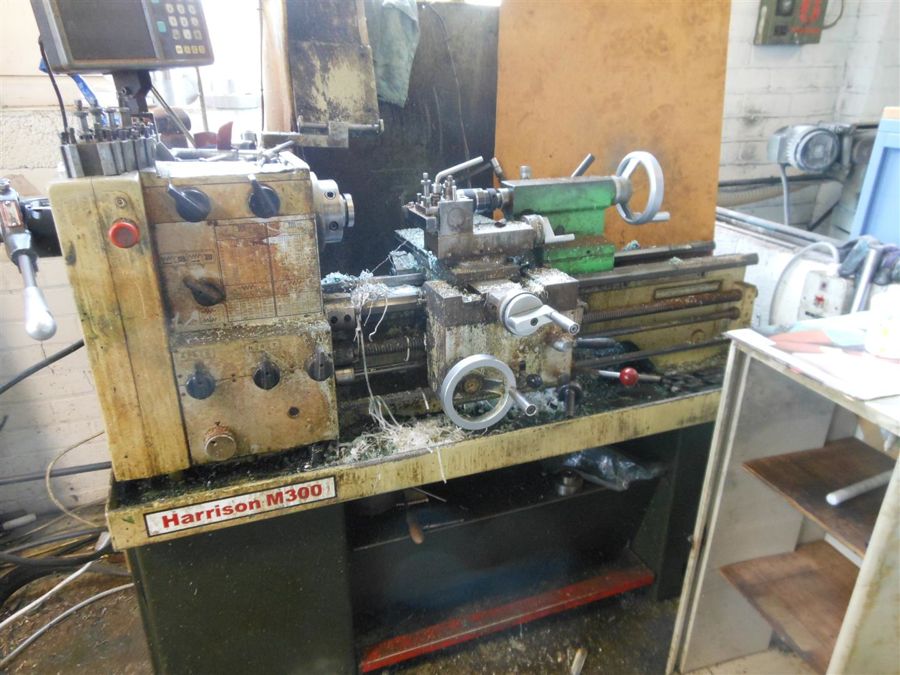

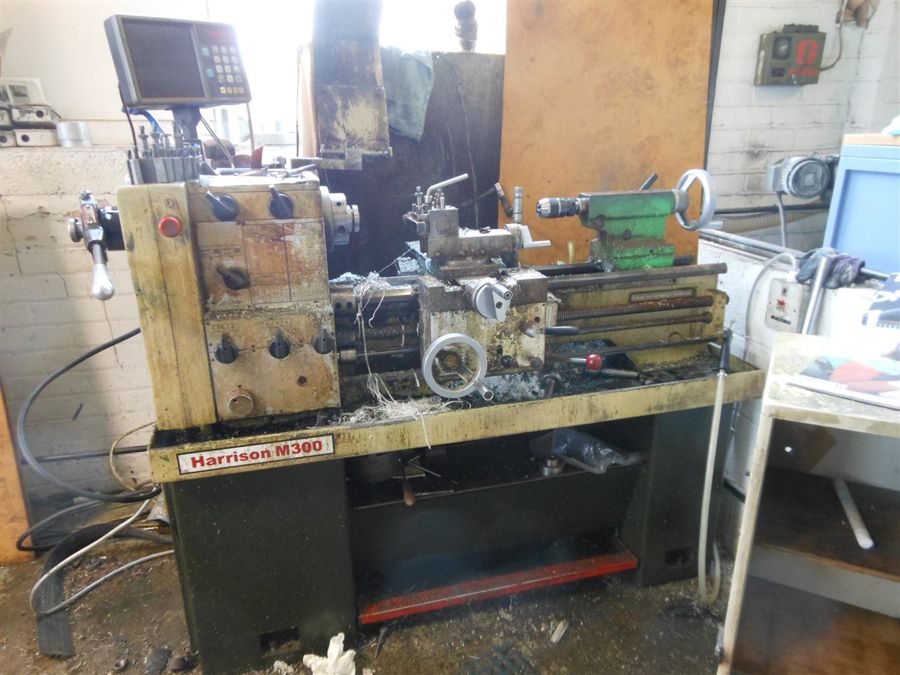

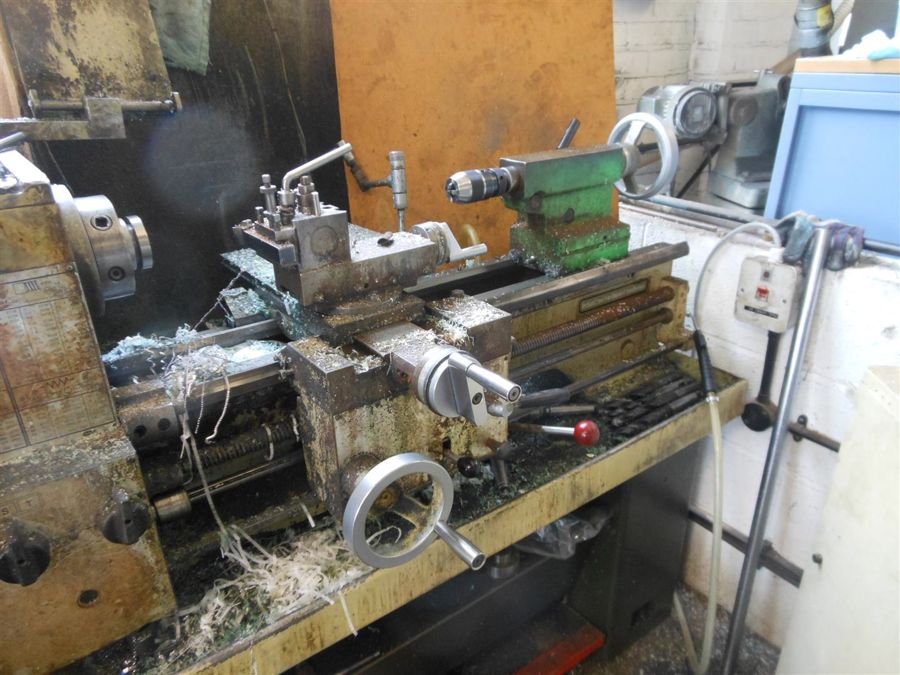

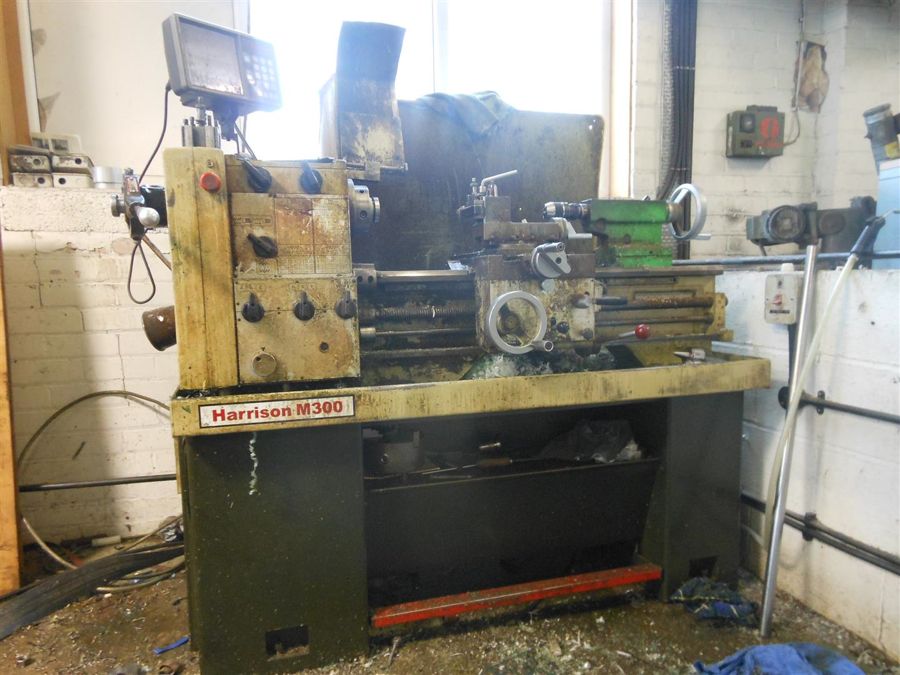

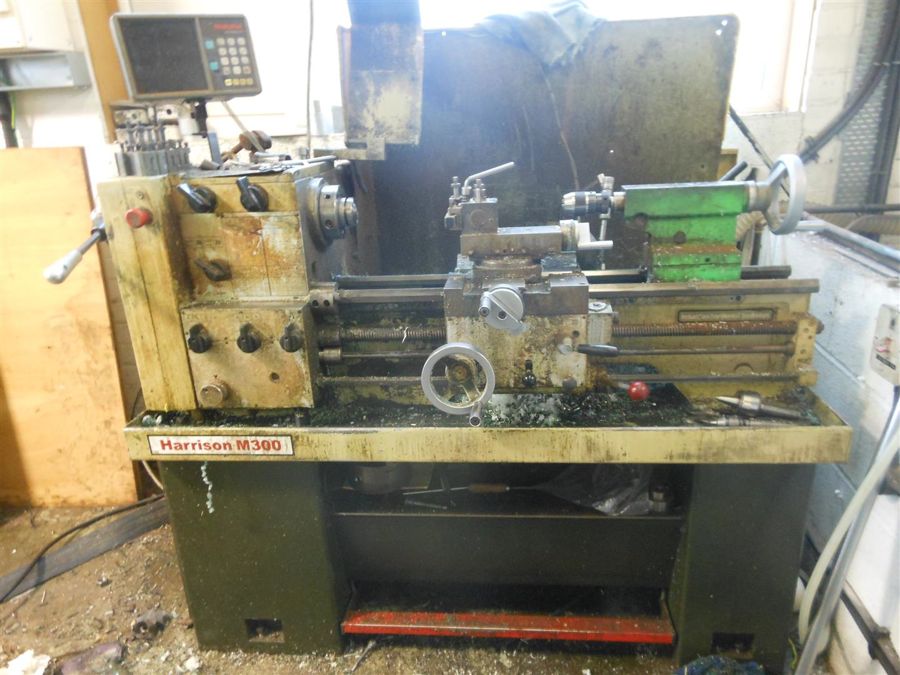

Harrison M300 Centre Lathe

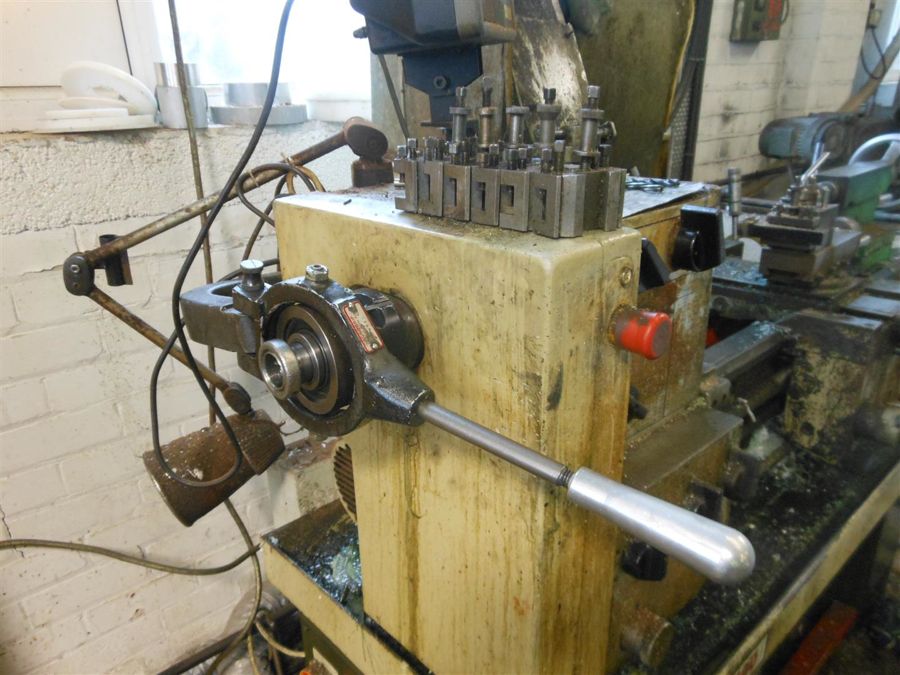

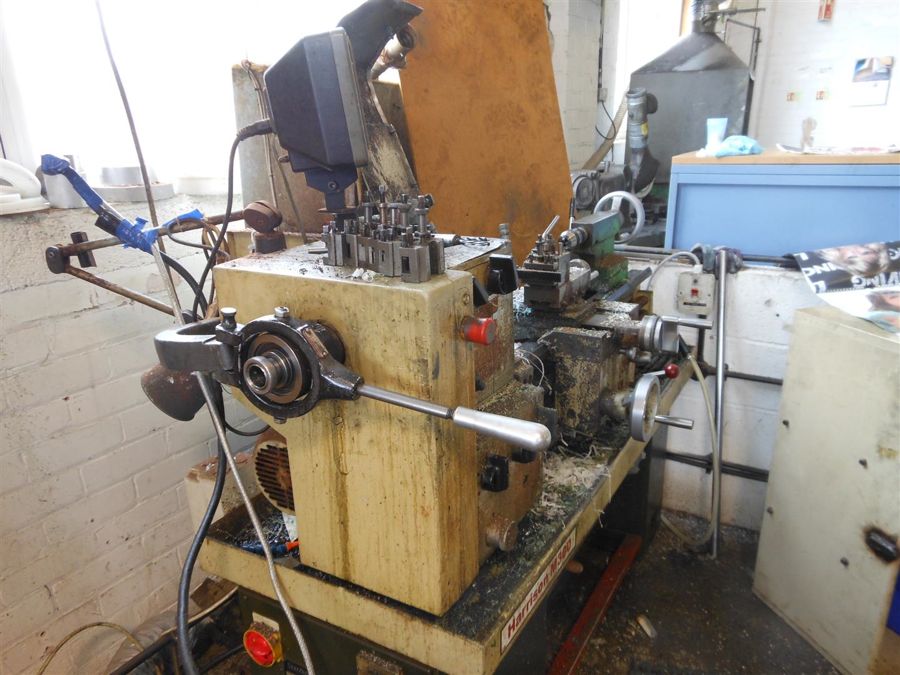

C/W: 5C collet attachment,

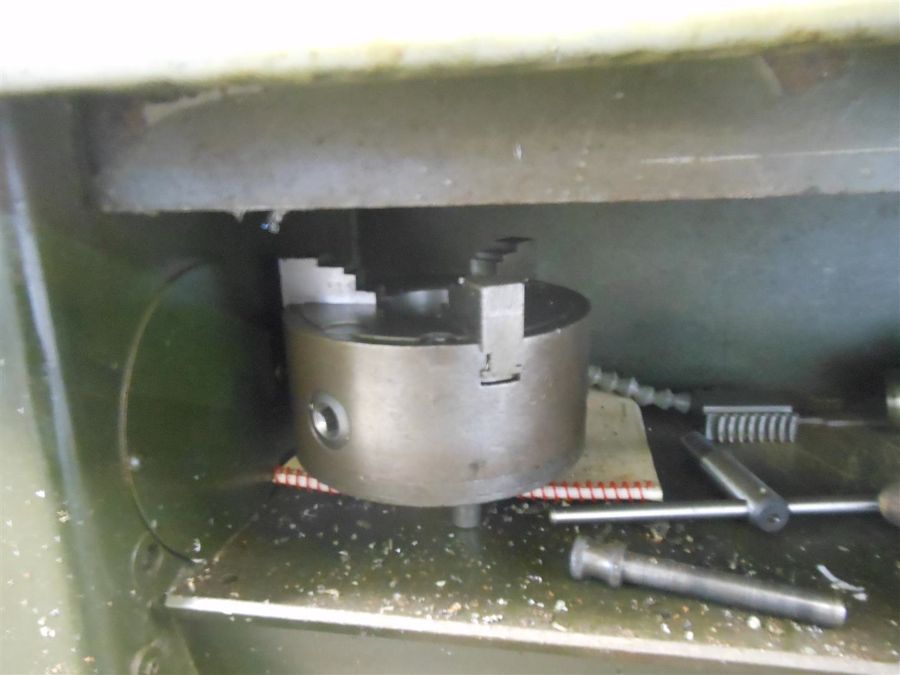

3 jaw chuck,

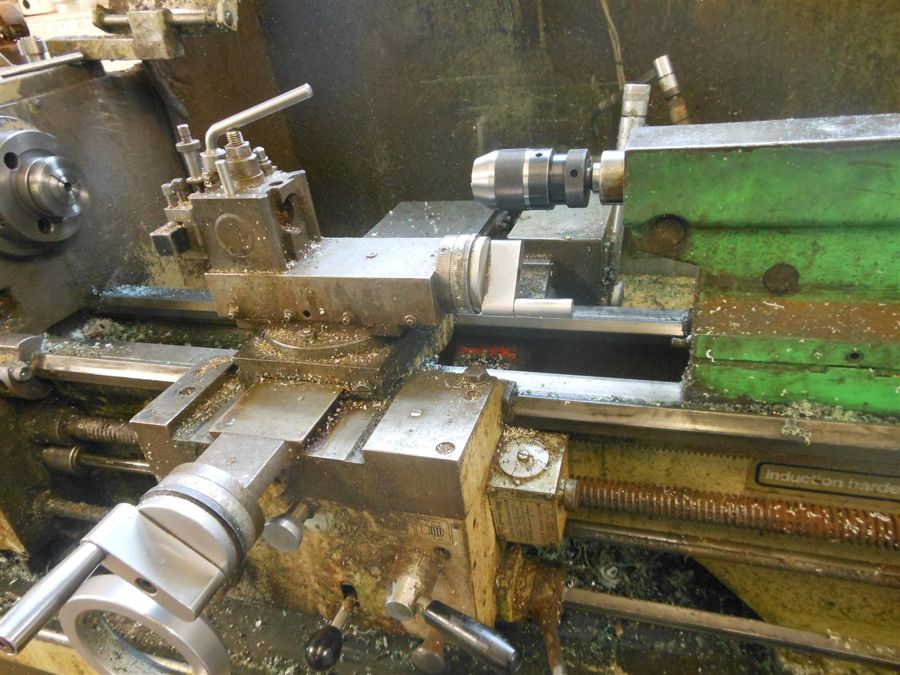

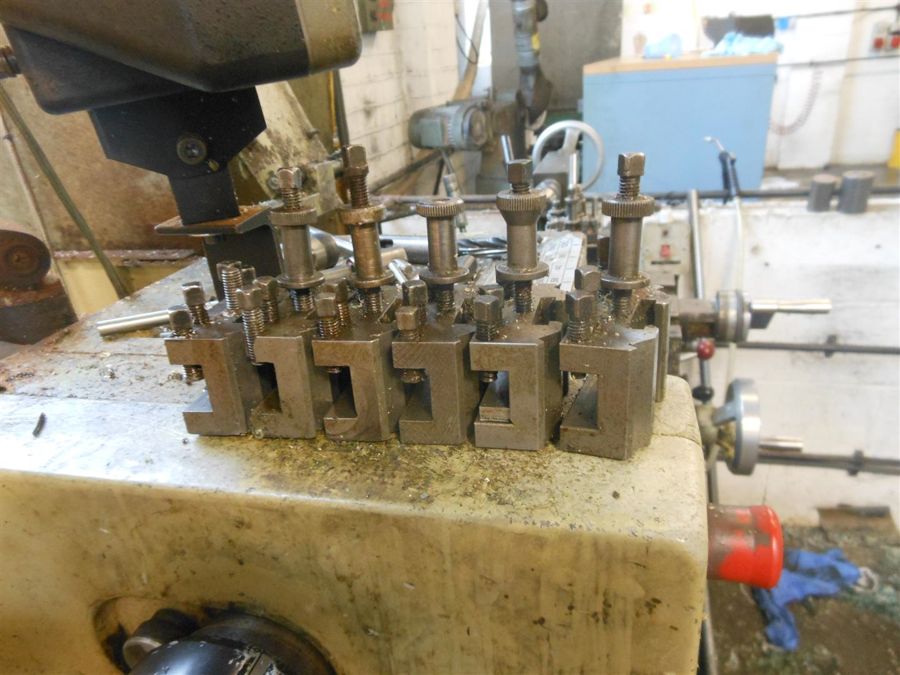

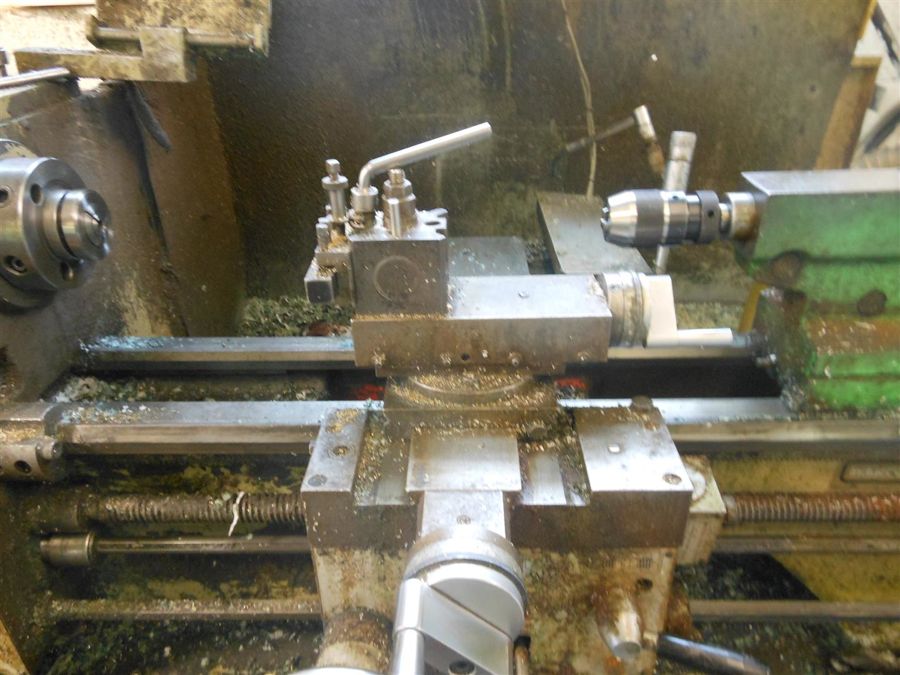

Quick change toolpost and holders,

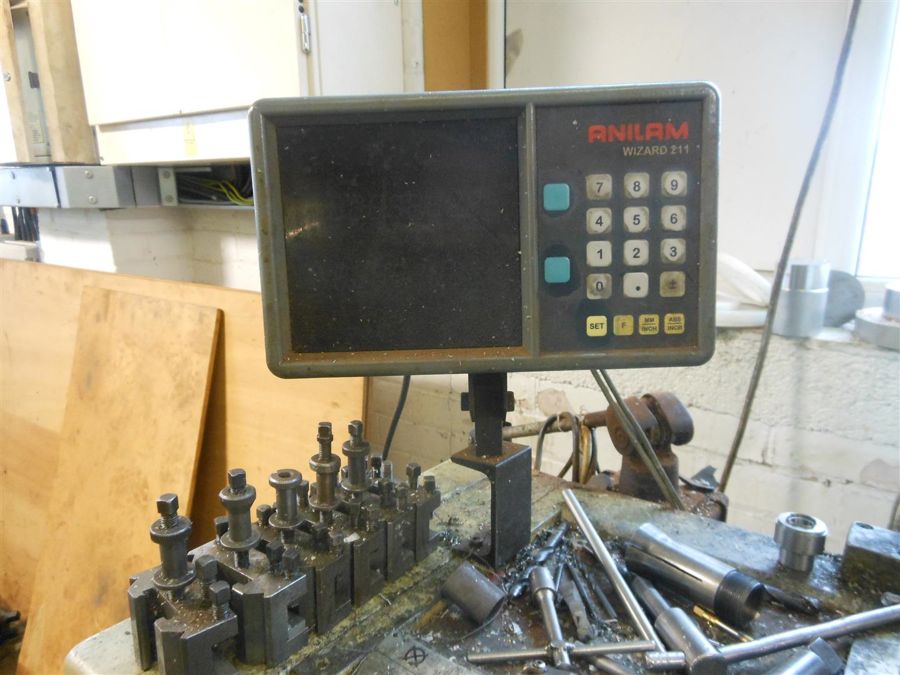

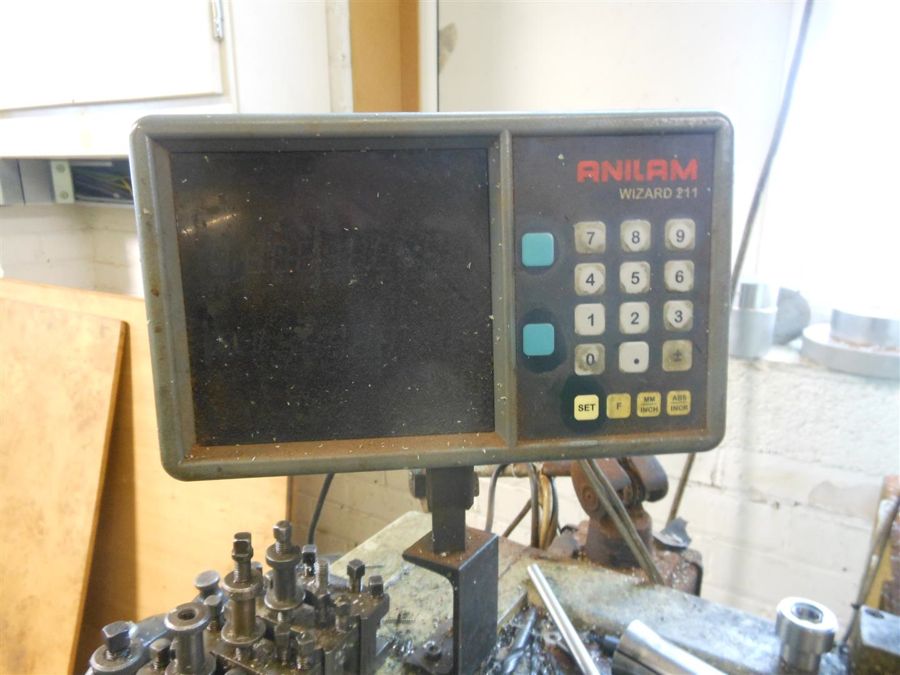

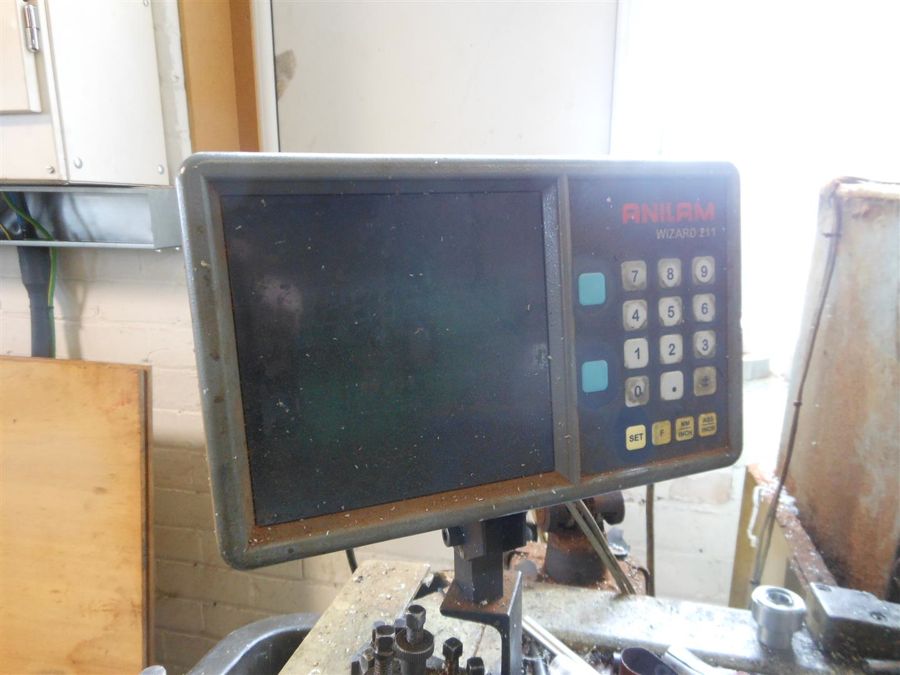

Digital Readout
CENTRES HEIGHT ----167 MM (6 9/16")
ADMITS BETWEEN-----635 MM (25")
SWING OVER BED------330 MM (13")
OVER CROSS SLIDE------210 MM (8 1/4)
SPINDLE BORED TO PASS----------38 MM (1 1/2) DIA
NOSE--------NO 4-D1 CAMLOCK
MORSE TAPER IN NOSE---NO 5
SPEEDS NUMBER ---12
PROGRESSION RATIO------1.46
RANGE ------0 TO 2500 RPM

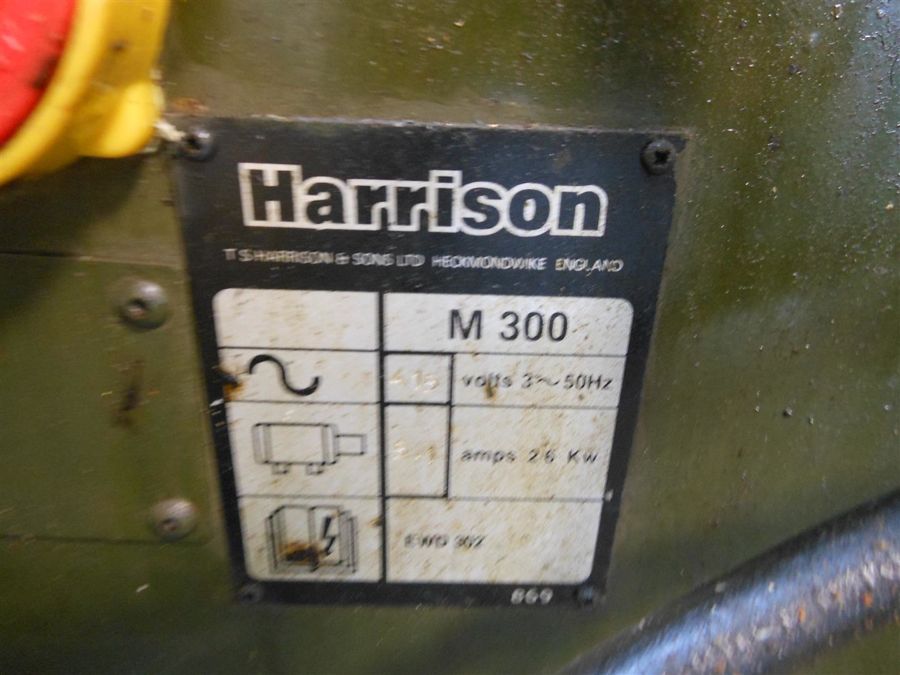

MOTOR (1500 RPM @ 50 HZ)--2.2 KW 3HP
LEADSCREW DIAMETER-------28 MM (1 1/8")
THREAD-------6 MM PITCH
THREADS 39 METRIC PITCHES--------FROM 0.2 TO 14 MM PITCH
35 ENGLISH PITCHES-------FROM 2 TO 56 TPI
18 MODULE PITCHES--------FROM 0.3 TO 3.5 MOD
18 DIAMETRIAL PITCHES----FROM 8 TO 56 DP
FEADS 16 METRIC (R.10 SERIES) FROM .03 TO 1 MM /REV
16 ENGLISH------FROM .001 TO .040" /REV CROSS FEEDS HALF LONGITUDINAL VALUES
CROSS SLIDE WIDTH---------140 MM (5 1/2")
TRAVEL-------92 MM (3 5/8")
TOP SLIDE WIDTH--------82 MM (3 1/4")
TRAVEL-------92 MM (3 5/8")
TOOL MAX SECTION---------16 X 20 (5/8" X 3/4")
TAILSTOCK QUILL-DIAMETER---42 MM (1 21/32")
TRAVEL------110 MM (4 3/8")
MORSE TAPER----- NO 3
SET OVER -----+- 12 MM (1/2")
WEIGHT 583 KG (1288LBS)
Location: Leicester, Can be loaded for free to flatbed truck
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
