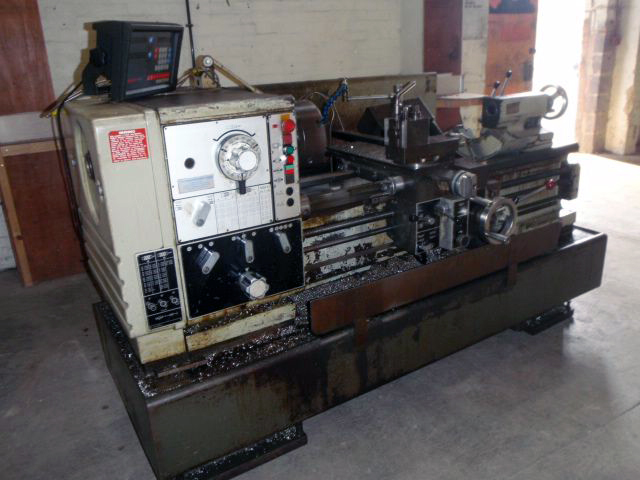

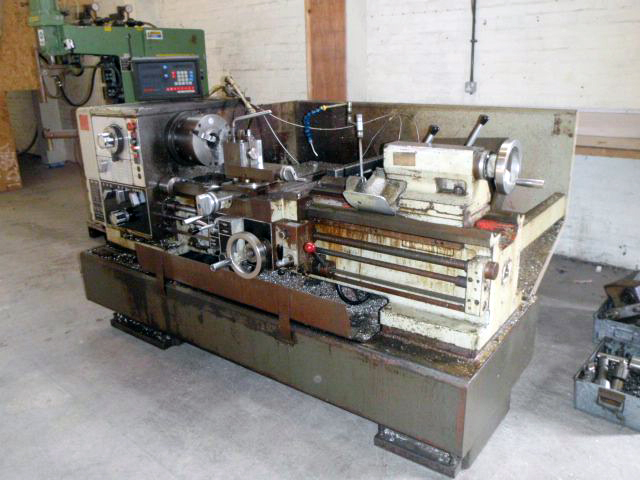

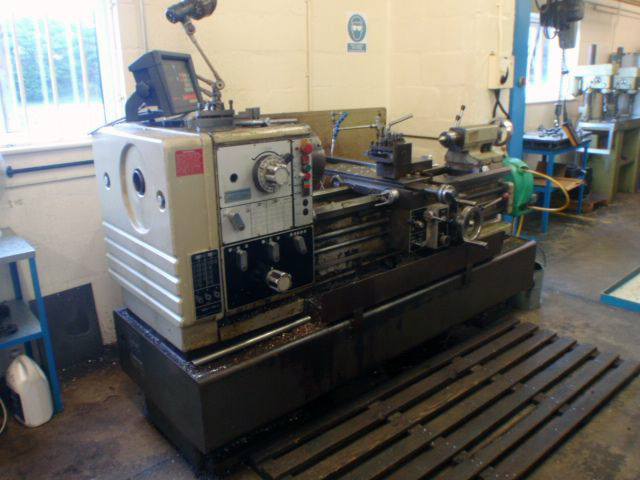

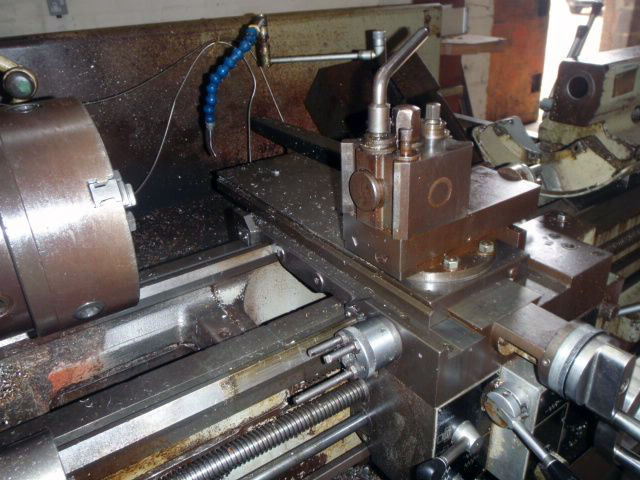

Harrison M400 x 40 Centre Lathe

Lot 50 - Harrison M400 x 40 Centre Lathe

Description:

Serial Number: 408 490 3776
Centres height 200mm
Distance between centres 1016mm
Swing over bed 420mm
Swing over cross slide 254mm
Swing in gap : diameter 610mm
Gap length 180mm

Spindle
Nose D1-8 Camlock
Bore 65mm

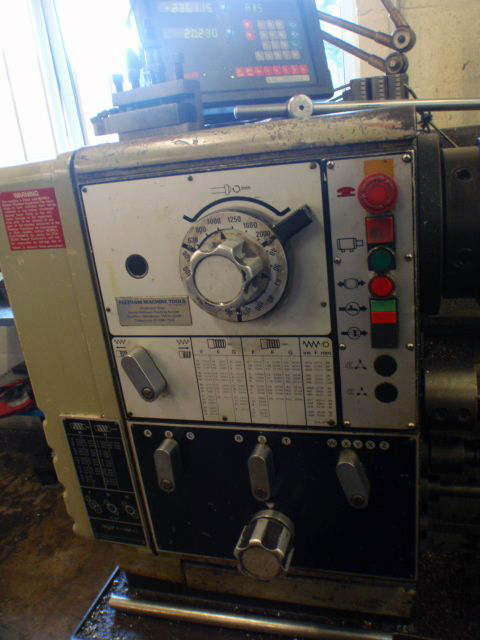

Speeds
Number 18
Range 40-2500rpm
Spindle motor 7.5kW

Leadscrew Diameter 32mm
Thread 6mm pitch
Threads
Metric pitches From 0.2 – 14mm pitch
English pitches From 2 to 72 tpi
Module pitches From 0.2 – 3.5 MOD
Diametral pitches From 8 – 72 DP

Feeds
Longitudinal : Metric From 0.04 to 0.71mm/rev
Longitudinal : Imperial From 0.0016 – 0.028in/rev
Bed width over ways 360mm
Depth under headstock 380mm
Cross Slide Width 195mm

Travel 250mm
Top Slide
Width 115mm
Travel 120mm

Tailstock
Quill diameter 73mm
Quill travel 155mm
Tailstock taper No. 5MT
Set over +/- 12mm

Complete with:

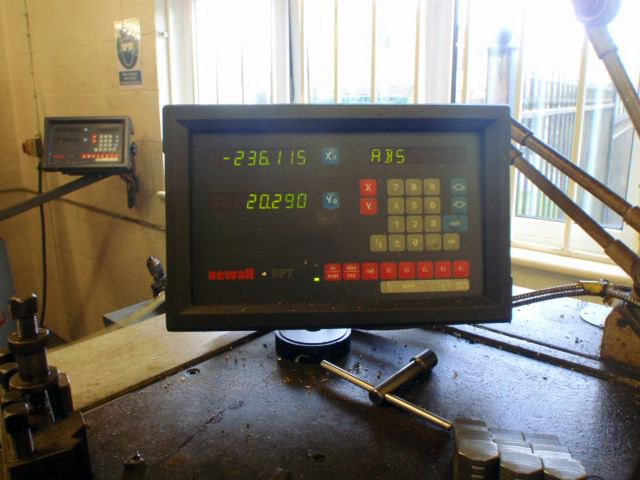

Newall DP7 2 Axis Digital Read Out
3 Jaw Chuck

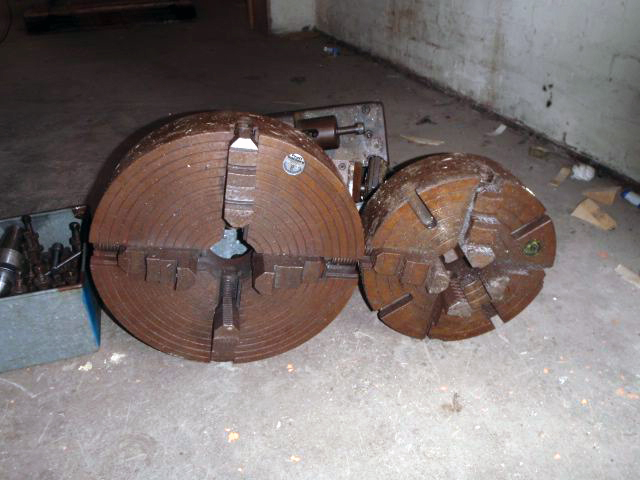

2 x 4 Jaw Chucks
Quick Change Tool Post

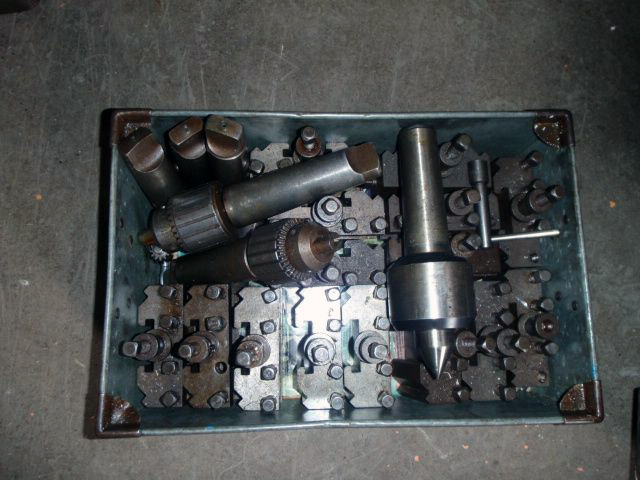

15 Tool Holders
Ainjest
Drilling Attachment
2 x Dill Chucks
2 x Centres

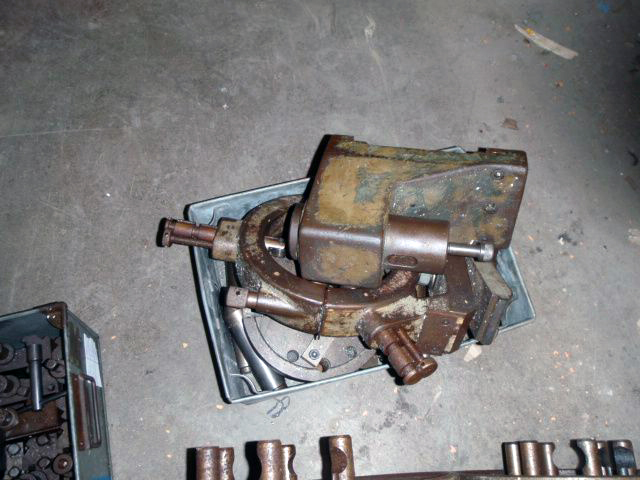

3 Point Steady
Back Plate
Bed Stops
Coolant
Chuck Guard
Machine Light

Location:
Unit 3
Brimscombe Port Industrial Estate
Port Lane
Brimscombe
Stroud
Gloucestershire
GL5 2QQ

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
