Lot 10 - Harrison M400 x 40 Centre Lathe
Description:

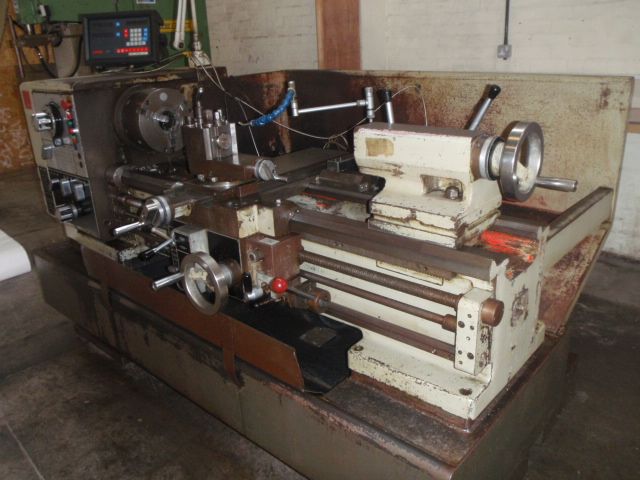

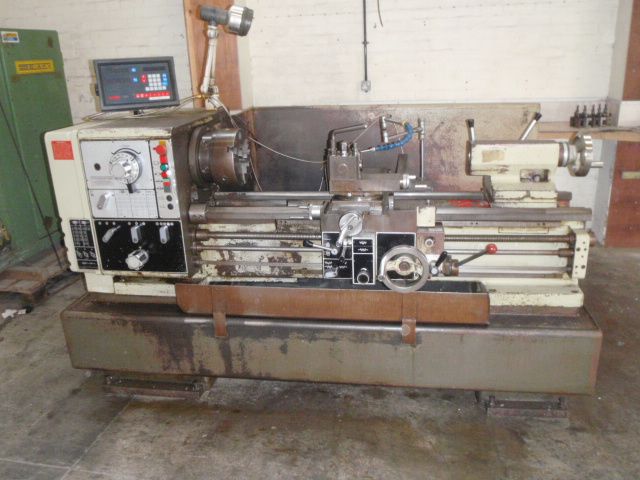

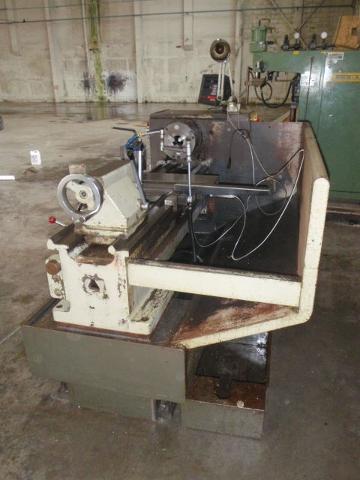

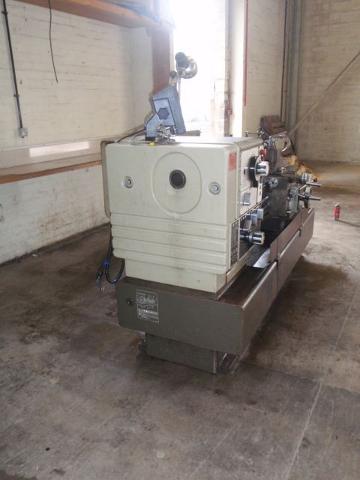

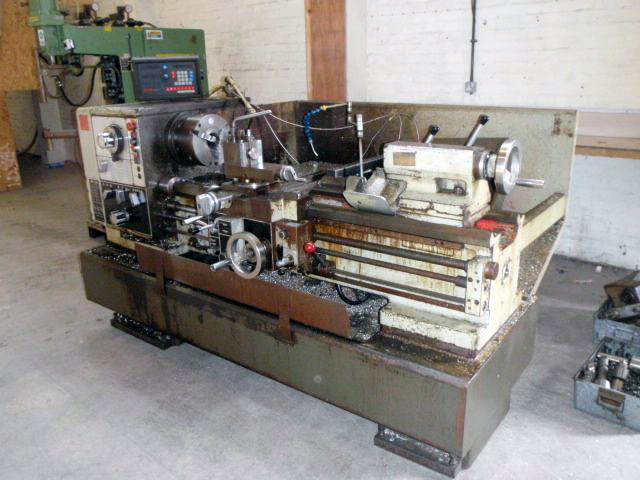

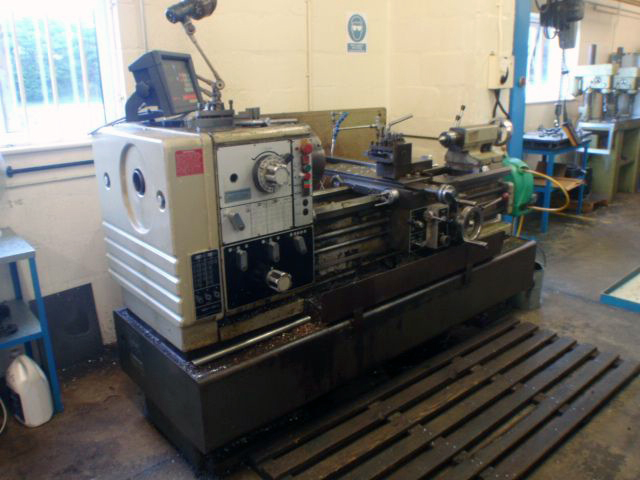

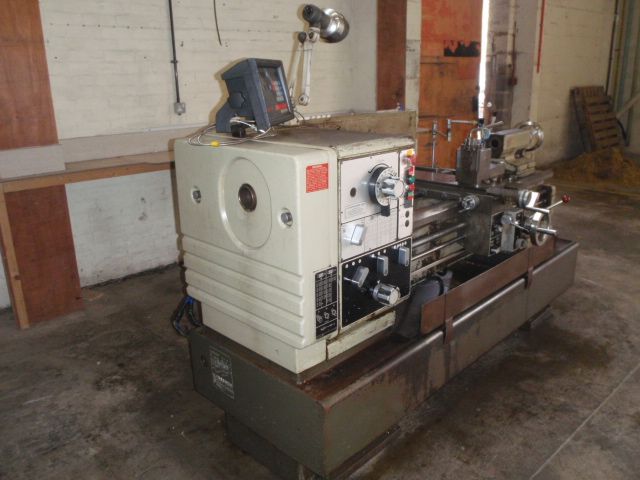

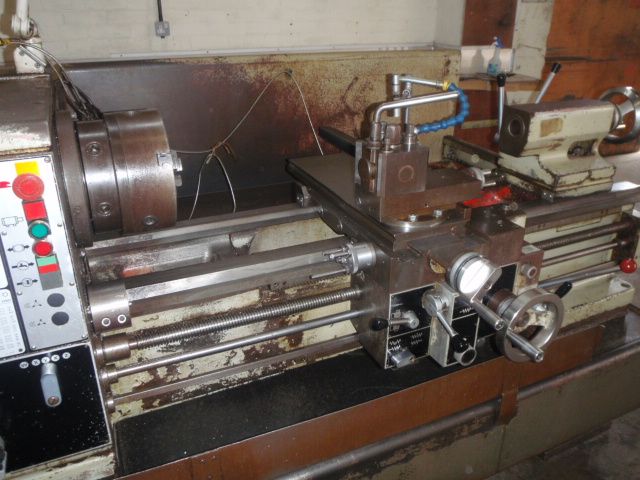

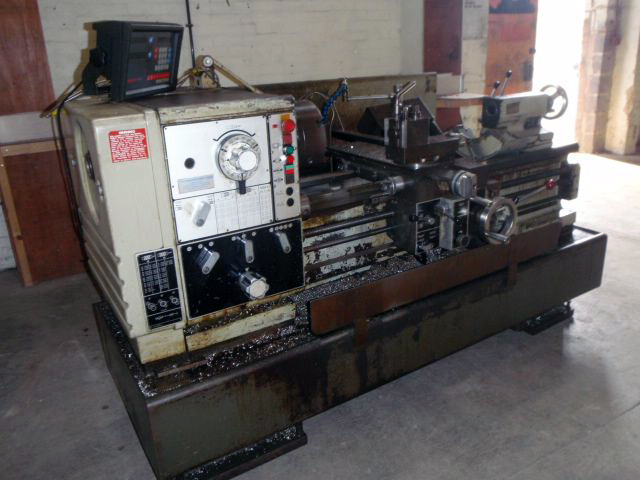

Harrison M400 x 40 Centre Lathe
Serial Number: 408 490 3776
Centres height 200mm
Distance between centres 1016mm
Swing over bed 420mm
Swing over cross slide 254mm
Swing in gap : diameter 610mm
Gap length 180mm
Spindle
Nose D1-8 Camlock
Bore 65mm
Speeds
Number 18
Range 40-2500rpm
Spindle motor 7.5kW
Leadscrew Diameter 32mm
Thread 6mm pitch
Threads
Metric pitches From 0.2 – 14mm pitch
English pitches From 2 to 72 tpi
Module pitches From 0.2 – 3.5 MOD
Diametral pitches From 8 – 72 DP
Feeds
Longitudinal : Metric From 0.04 to 0.71mm/rev
Longitudinal : Imperial From 0.0016 – 0.028in/rev
Bed width over ways 360mm
Depth under headstock 380mm
Cross Slide Width 195mm
Travel 250mm
Top Slide
Width 115mm
Travel 120mm
Tailstock
Quill diameter 73mm
Quill travel 155mm
Tailstock taper No. 5MT
Set over +/- 12mm

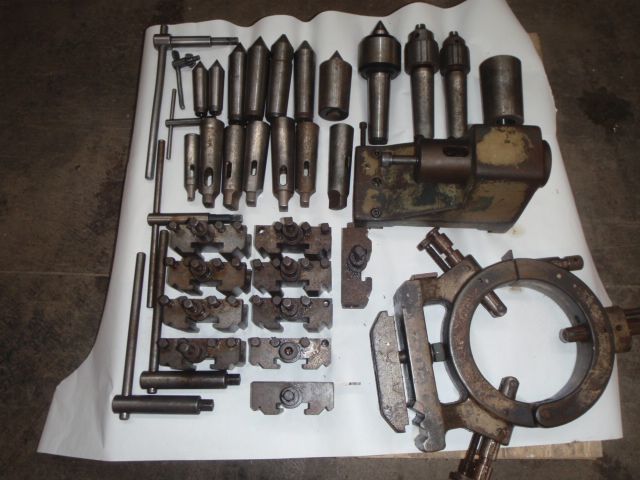

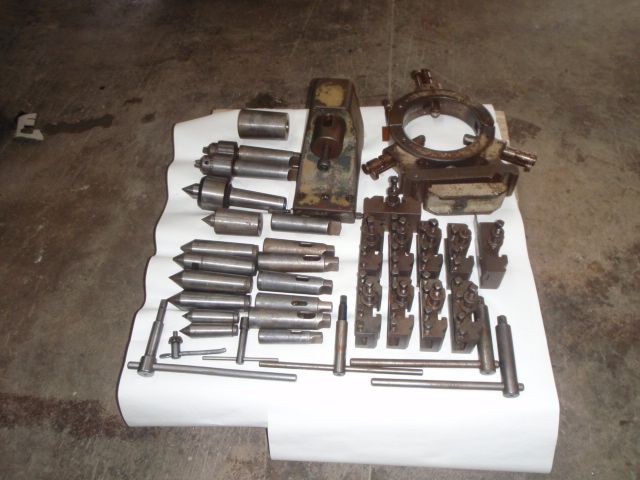

Complete with:

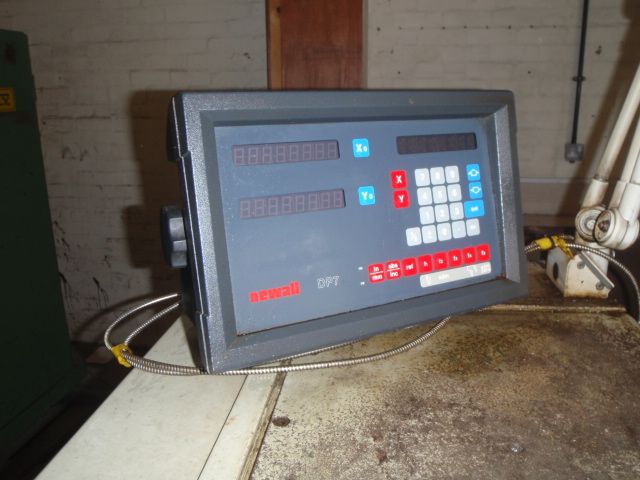

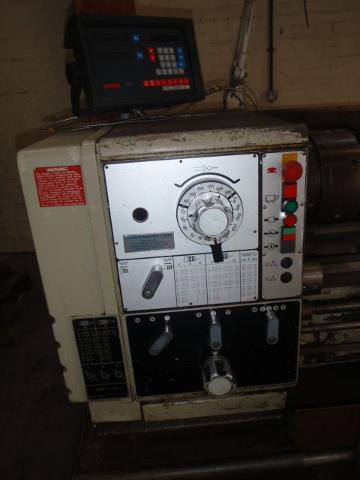

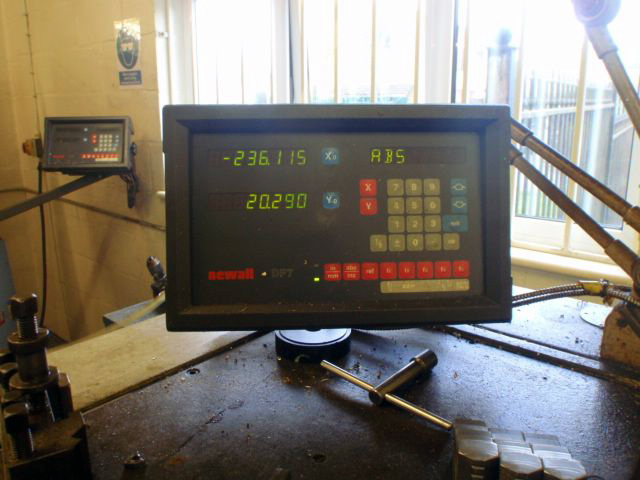

Newall DP7 2 Axis Digital Read Out
Chuck Guard

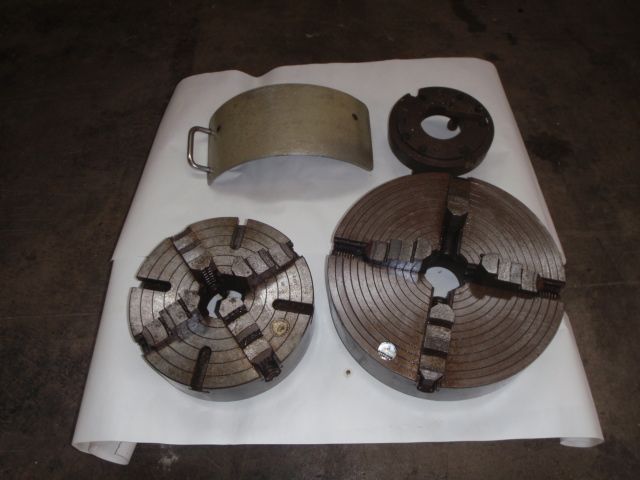

250mm 3 Jaw Chuck
320mm 4 Jaw Chuck
405mm 4 Jaw Chuck

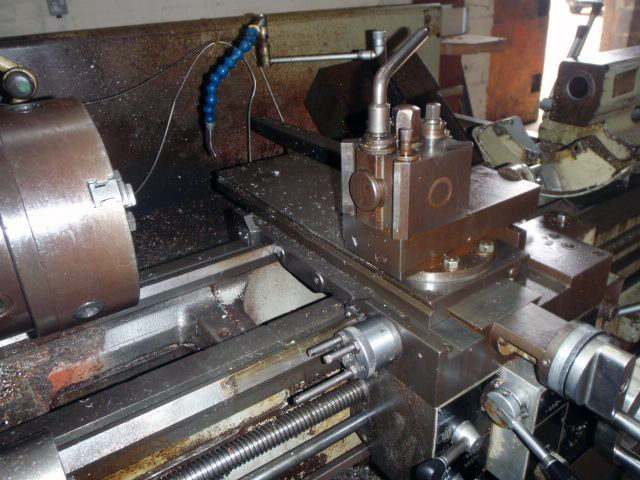

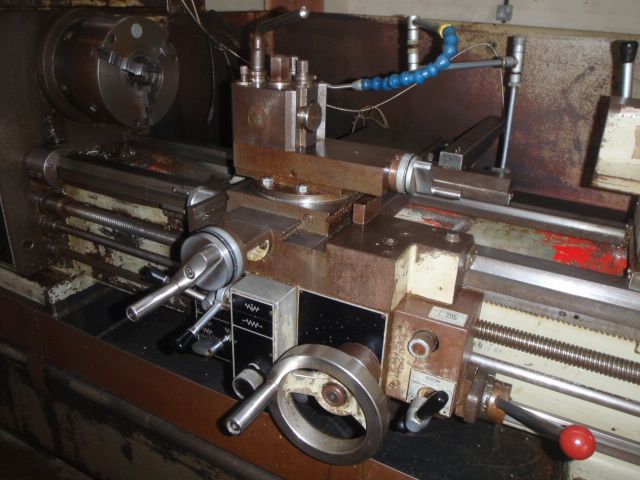

Quick Change Tool Post
10 Tool Holders
Ainjest
Drilling Attachment
2 x Dill Chucks
8 x Centres
7 x Morse taper Sleeves
3 Point Steady
Back Plate
Bed Stops
Coolant
Machine Light
Chuck keys
Location:
Unit 3
Brimscombe Port Industrial Estate
Port Lane
Brimscombe
Stroud
Gloucestershire
GL5 2QQ
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
