Lot 4 - Hartford HV 50-S Vertical machining Centre with 4th axis

Description:

PLEASE NOTE THERE IS NO TOOLRING IN THE CAROUSEL OF THIS MACHINE

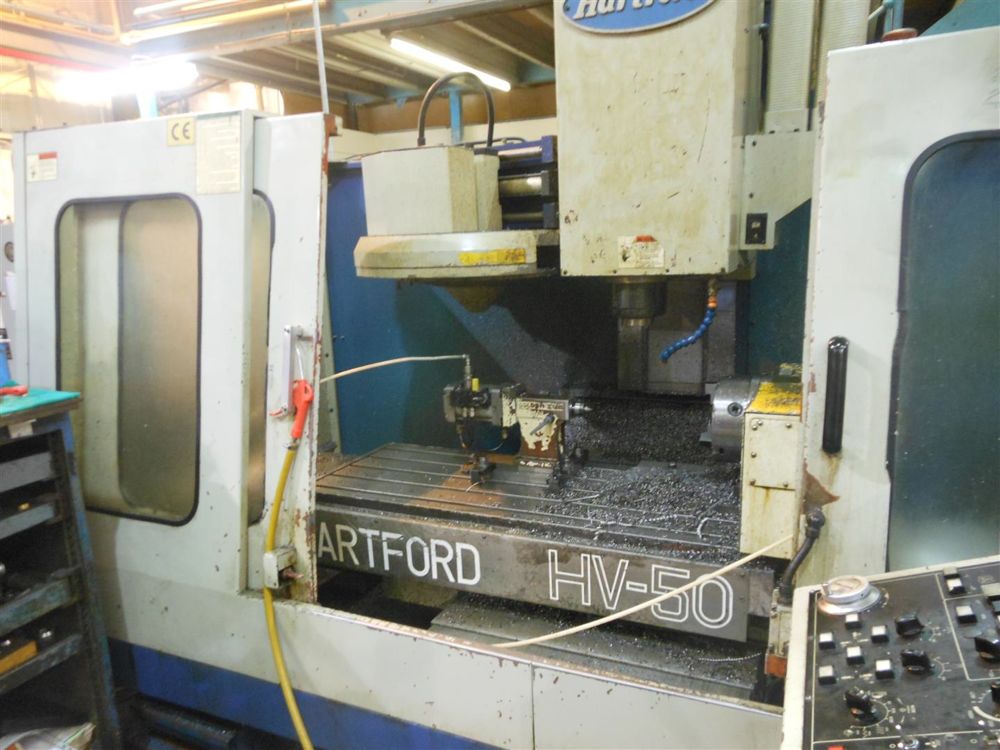

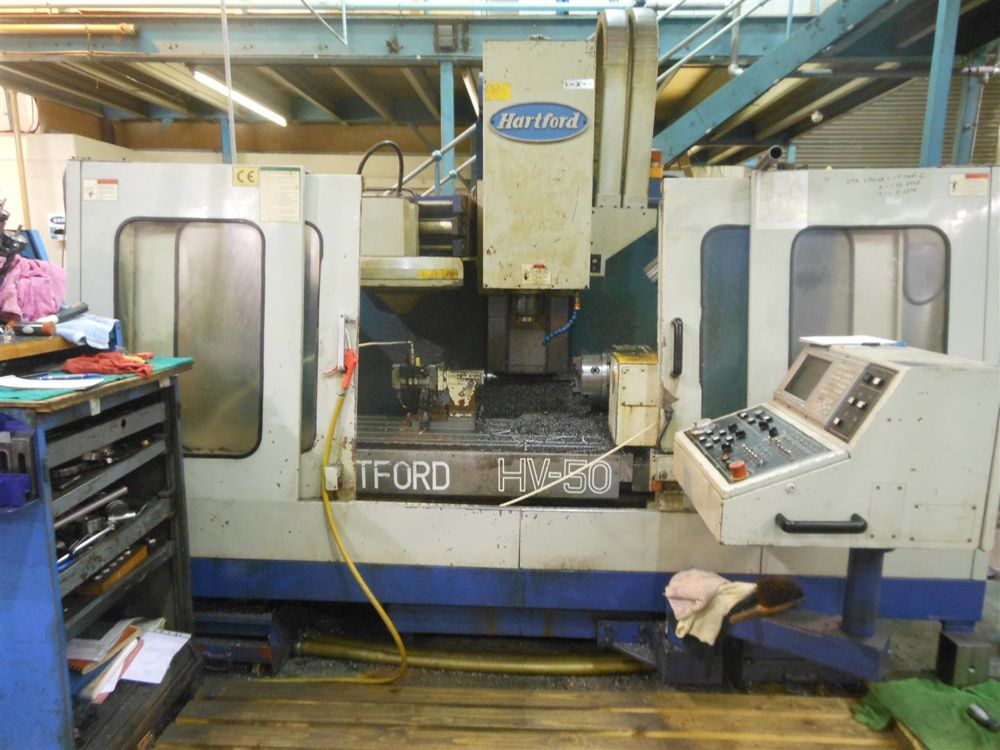

Hartford HV 50-S Vertical machining Centre with 4th axis

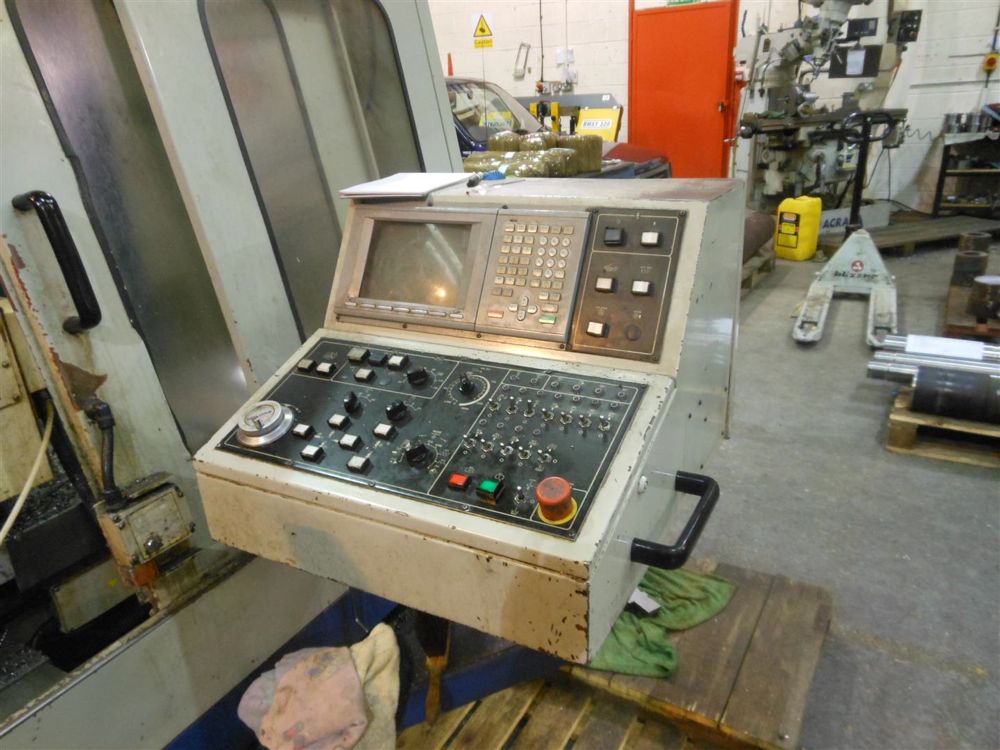

Controller : Misubishi Meldas M500
Year : 1996

- x-travel 1030 mm
- y-travel 510 mm
- z-travel 610 mm

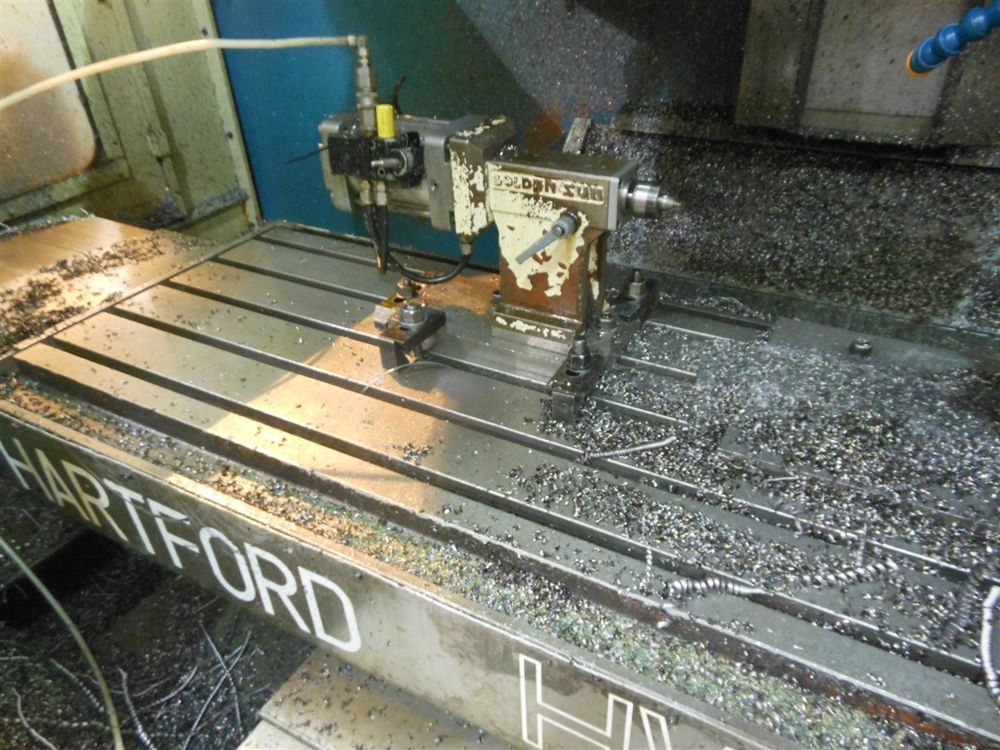

- table-size 1270 x 500 mm
- T-slots 18 x 5 x 125
- max. table load 700 kg
- turning speed 6000rpm
- tool taper BT 40
- Tool changer 24 pos.- NO TOOL RING
- max. tool diameter 125 mm
- max. tool length 300 mm
- max. tool weight 7 kg
- rapid traverse X-axis 15 m/min
- rapid traverse Y-axis 15 m/min
- rapid traverse Z-axis 15 m/min
- total power requirement 32 kW
- weight of the machine ca. 6,7 t
- dimensions of the machine ca. 3,2 x 2,9 x 2,6 m

Additional
Accessories
- Coolantsystem
- spindle oil cooler
- high pressure coolant
- full splash guard
- Other information

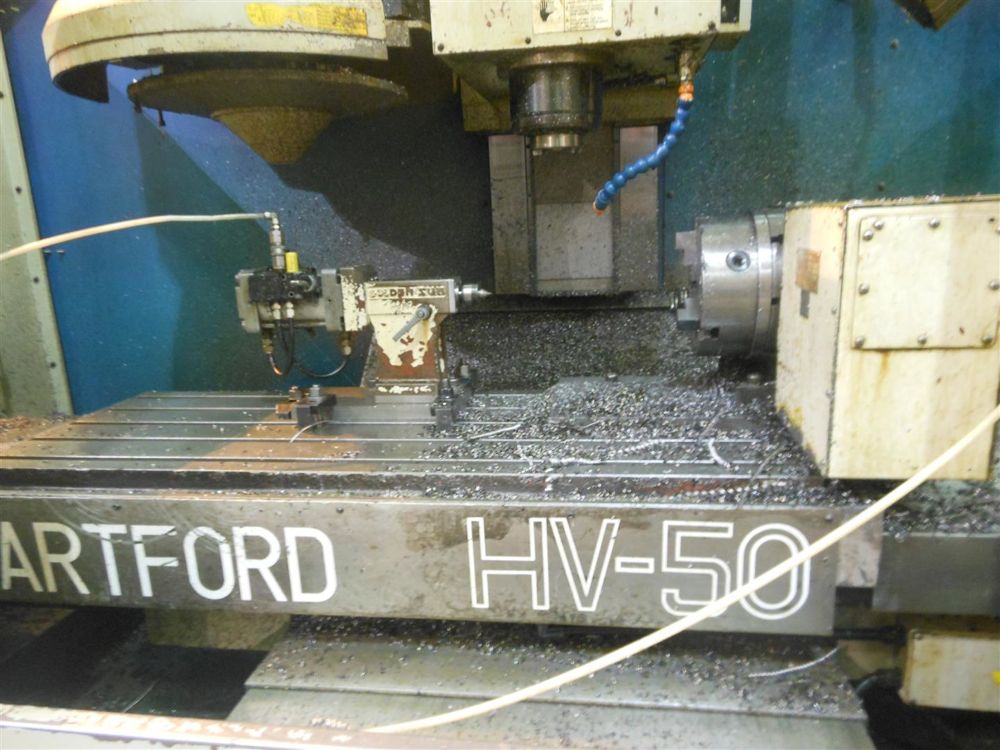

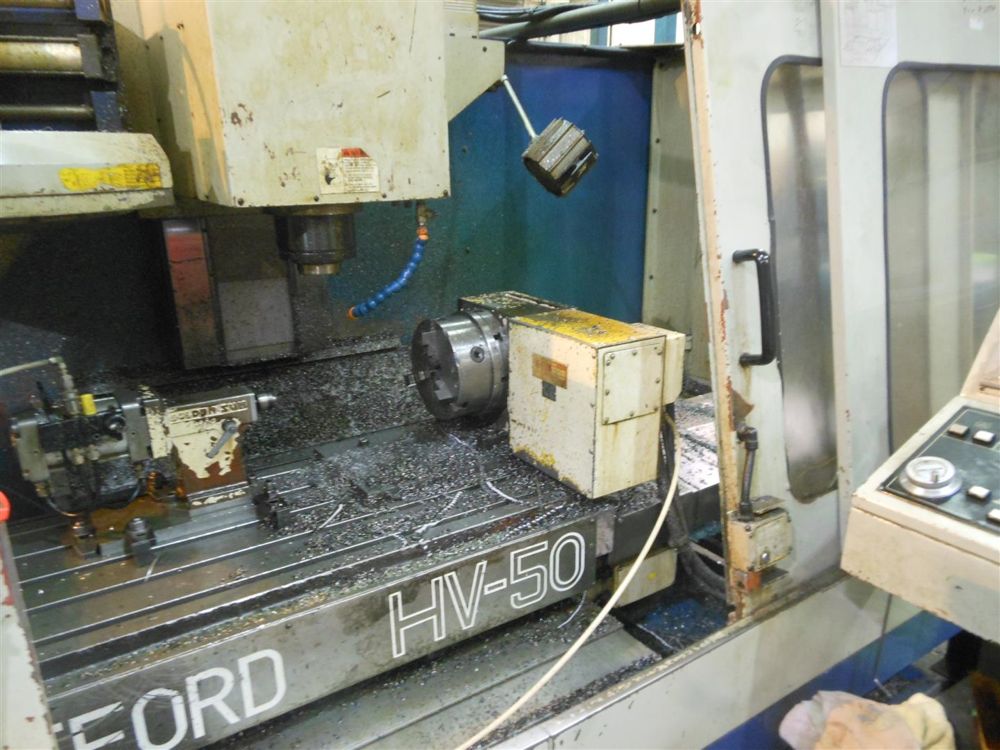

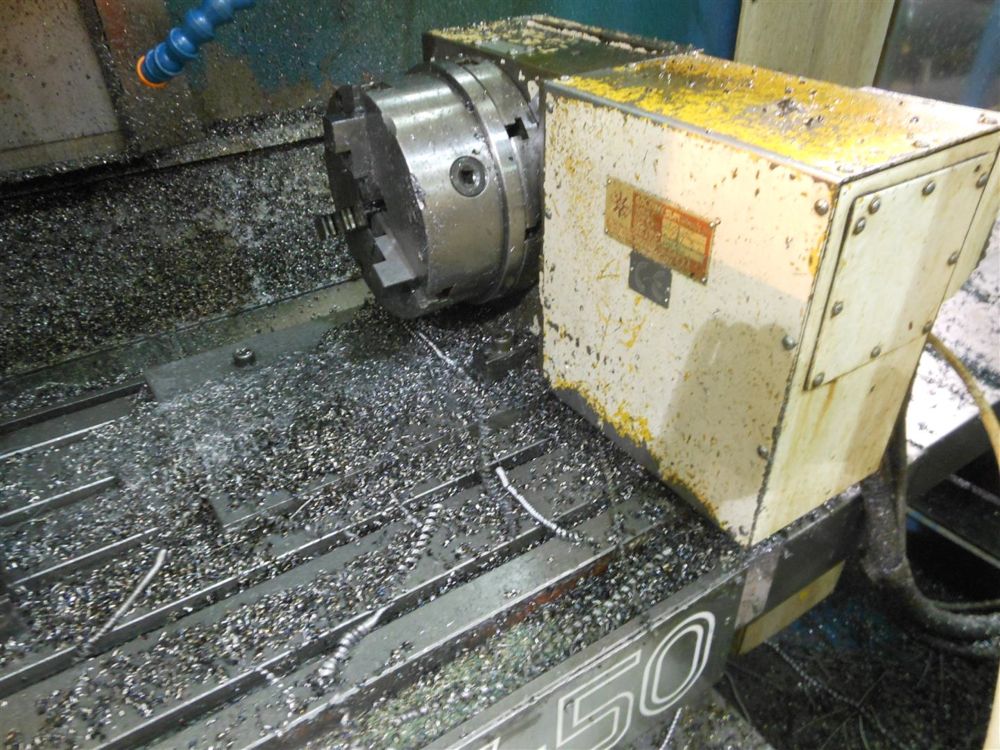

- 250mm 4th axis interfaced

Location: Leicester, can be loaded to flatbed truck for £100

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
