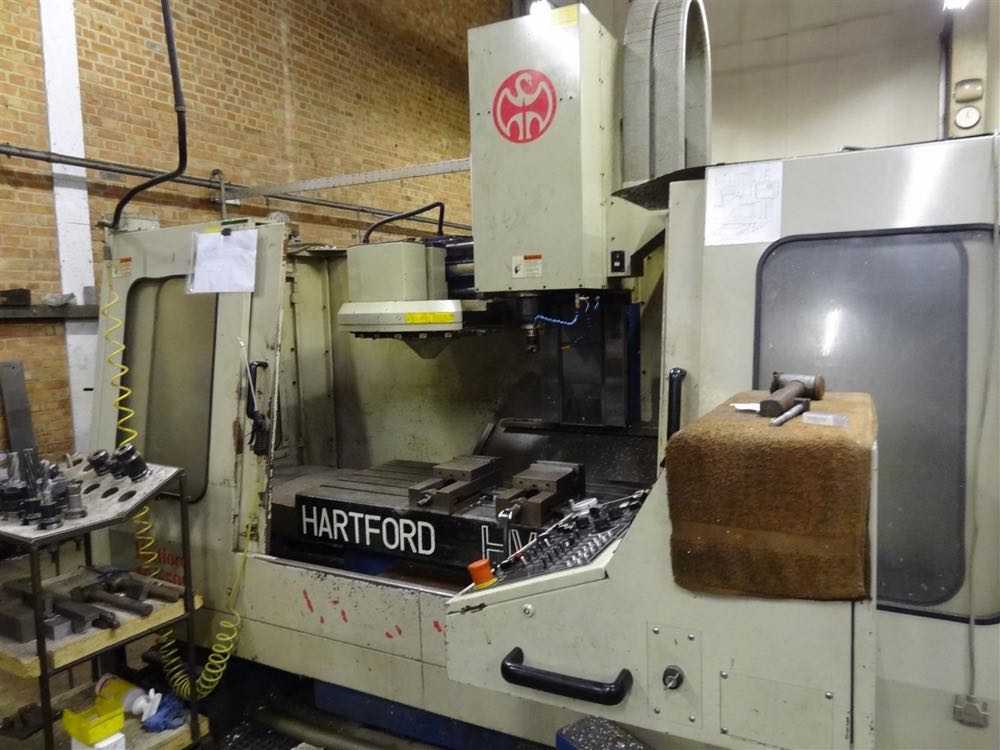

Hartford HV-50S Vertical Machining Centre (1996)

Lot 4 - Hartford HV-50S Vertical Machining Centre (1996)

Description:

Serial no. 000333
2 off VICES on machine bed included. Also a small amount of BT40 tool holders included
Controller : Misubishi Meldas M500
- x-travel 1030 mm
- y-travel 510 mm
- z-travel 610 mm
- table-size 1270 x 500 mm
- T-slots 18 x 5 x 125
- max. table load 700 kg
- turning speed 6000rpm
- tool taper BT 40
- Tool changer 24 pos
- max. tool diameter 125 mm
- max. tool length 300 mm
- max. tool weight 7 kg
- rapid traverse X-axis 15 m/min
- rapid traverse Y-axis 15 m/min
- rapid traverse Z-axis 15 m/min

Location: Leicester

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
